TDRSS scaled map for 1340954
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 09 Aug 25 16:54:29 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1340954, Seg_Num: 0
GRB_RA: 233.015d {+15h 32m 04s} (J2000),
233.497d {+15h 33m 59s} (current),
232.079d {+15h 28m 19s} (1950)
GRB_DEC: -53.289d {-53d 17' 18"} (J2000),
-53.374d {-53d 22' 25"} (current),
-53.119d {-53d 07' 08"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 39566 [cnts] Image_Peak=725 [image_cnts]
TRIGGER_DUR: 16.384 [sec]
TRIGGER_INDEX: 479 E_range: 25-100 keV
BKG_INTEN: 142064 [cnts]
BKG_TIME: 60699.88 SOD {16:51:39.88} UT
BKG_DUR: 64 [sec]
GRB_DATE: 20896 TJD; 221 DOY; 25/08/09
GRB_TIME: 60799.53 SOD {16:53:19.53} UT
GRB_PHI: -78.73 [deg]
GRB_THETA: 10.19 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 12.84 [sigma]
IMAGE_SIGNIF: 9.22 [sigma]
MERIT_PARAMS: +1 +0 +0 +4 +2 +0 +0 +1 +24 +0
SUN_POSTN: 139.80d {+09h 19m 13s} +15.63d {+15d 37' 50"}
SUN_DIST: 104.67 [deg] Sun_angle= -6.2 [hr] (East of Sun)
MOON_POSTN: 325.24d {+21h 40m 59s} -16.43d {-16d 26' 00"}
MOON_DIST: 77.90 [deg]
MOON_ILLUM: 100 [%]
GAL_COORDS: 325.63, 2.35 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 244.59,-33.06 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 48.96,-18.84 [deg].
GCN BAT Scaled Map Notice

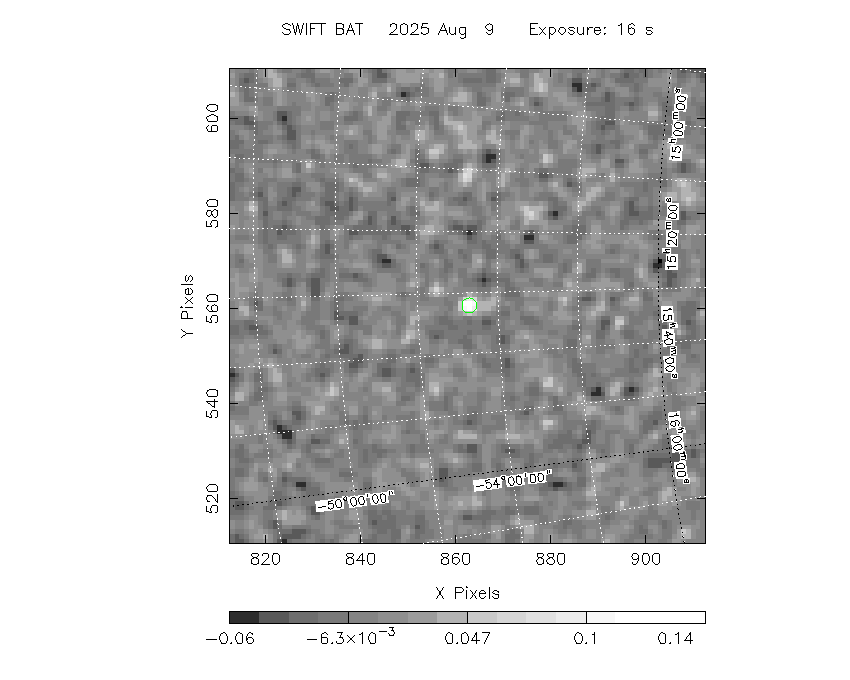

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (233.015, -53.289).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 233.015 -53.289 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
19.2729 -73.4422 0.0 48.2 178.5 0.0326 0.8 0.0 SMC X-1
83.1919 -66.3675 0.0 59.5 -158.2 -0.3136 -1.9 0.0 LMC X-4
170.3158 -60.6230 0.0 41.1 -117.0 -0.0571 -1.0 0.0 Cen X-3
172.6417 -62.9308 0.0 39.1 -119.5 -0.0234 -0.6 0.0 IGR J11305-6256
176.8692 -61.9539 0.0 37.7 -116.8 0.0183 0.4 0.0 1E 1145.1-6141
177.0001 -62.2069 0.0 37.5 -117.1 -0.0540 -1.3 0.0 4U 1145-61
177.1387 -67.7500 0.0 35.8 -125.9 -0.0015 -0.0 0.0 EXO 0748-676
186.6567 -62.7703 0.0 33.1 -115.7 0.0001 0.0 0.0 GX 301-2
188.9026 -39.9093 0.0 42.7 -81.2 -0.0304 -0.3 0.0 NGC 4507
195.6985 -63.8358 0.0 28.9 -116.4 0.0088 0.3 0.0 PSR B1259-63
196.3645 -49.4682 0.0 32.9 -89.2 -0.0467 -1.3 0.0 NGC 4945
201.3651 -43.0191 0.0 33.4 -75.9 -0.0201 -0.6 0.0 Cen A
201.6504 -62.1361 0.0 26.4 -112.2 -0.0162 -0.7 0.0 4U 1323-619
207.3302 -30.3094 0.0 38.6 -54.4 0.0626 1.7 0.0 IC 4329A
213.2913 -65.3390 0.0 21.6 -121.3 0.0156 0.8 0.0 Cir Galaxy
213.3119 -3.2075 0.0 58.8 -28.7 -0.3973 -2.1 0.0 NGC 5506
228.4837 -59.1356 0.0 13.1 -107.3 0.0001 0.0 0.0 PSR B1509-58
231.2913 -65.3390 0.0 14.9 -132.6 0.0122 0.7 0.0 Circinus AGN
235.5971 -52.3861 0.0 8.9 -71.4 0.0140 0.8 0.0 H 1538-522
243.1792 -52.4231 0.0 4.4 -59.9 0.0133 0.8 0.0 4U 1608-522
243.1792 -57.1669 0.0 5.3 -118.0 -0.0137 -0.8 0.0 Cir X-1
244.9795 -15.6402 0.0 38.3 7.6 0.0379 1.5 0.0 Sco X-1
248.0700 -67.4619 0.0 13.8 -160.8 -0.0532 -3.1 0.0 4U 1626-67
250.2312 -53.7514 0.0 0.0 151.5 0.0184 1.0 0.0 4U 1636-536
251.4487 -45.6111 0.0 8.2 22.0 -0.0129 -0.7 0.0 GX 340+0
253.5006 -39.8458 0.0 14.1 26.3 0.0114 0.7 0.0 GRO J1655-40
255.1996 -41.6731 0.0 12.5 33.3 0.0072 0.4 0.0 OAO 1657-415
255.9866 -37.8441 0.0 16.4 32.2 0.0259 1.4 0.0 4U 1700-377
256.4354 -36.4231 0.0 17.8 32.3 -0.0298 -1.6 0.0 GX 349+2
256.5638 -43.0361 0.0 11.5 39.8 -0.0402 -2.2 0.0 4U 1702-429
257.2292 -44.1000 0.0 10.7 44.1 -0.0153 -0.8 0.0 4U 1705-440
257.2333 -32.2833 0.0 22.0 31.8 0.0007 0.0 0.0 4U 1705-32
257.2750 -36.4108 0.0 18.0 34.5 0.0408 2.1 0.0 IGR J17091-3624
257.4500 -36.4700 0.0 18.0 35.0 -0.0153 -0.8 0.0 IGR J17098-3628
257.5517 -28.1317 0.0 26.2 30.6 -0.0038 -0.2 0.0 XTE J1710-281
261.3000 -36.2667 0.0 19.1 44.1 0.0163 0.8 0.0 IGR J17252-3616
261.3500 -32.9500 0.0 22.2 41.2 -0.0090 -0.4 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 24.4 40.6 0.0014 0.1 0.0 4U 1722-30
262.9342 -16.9617 0.0 38.1 35.8 0.0127 0.4 0.0 GX 9+9
262.9892 -33.8347 0.0 21.9 45.4 -0.0010 -0.0 0.0 4U 1728-34
263.0090 -24.7456 0.0 30.5 39.1 -0.0107 -0.4 0.0 GX 1+4
263.3504 -33.3878 0.0 22.4 45.7 0.0035 0.2 0.0 4U 1730-335
264.5667 -27.0044 0.0 28.8 43.1 -0.0448 -1.7 0.0 SLX 1735-269
264.7429 -44.4500 0.0 13.3 67.2 0.0264 1.4 0.0 4U 1735-44
265.7500 -36.3447 0.0 20.5 53.9 -0.0340 -1.6 0.0 XTE J1743-363
265.9761 -29.7395 0.0 26.6 47.6 -0.0061 -0.3 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 27.4 47.4 -0.0282 -1.1 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 27.4 47.8 -0.0431 -1.8 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 27.0 48.4 0.0132 0.5 0.0 1A 1742-294
266.8579 -29.9994 0.0 26.6 49.4 0.0357 1.5 0.0 SLX 1744-299
266.9833 -26.5636 0.0 29.9 47.0 -0.0204 -0.8 0.0 GX 3+1
270.2842 -25.0792 0.0 32.3 51.3 -0.0321 -1.1 0.0 GX 5-1
270.3025 -25.7431 0.0 31.7 51.8 -0.0620 -2.1 0.0 GRS 1758-258
270.3846 -20.5289 0.0 36.6 48.6 -0.0135 -0.4 0.0 GX 9+1
270.6663 -20.2871 0.0 36.9 48.8 -0.0262 -0.7 0.0 IGR J18027-2016
273.6315 -17.1574 0.0 40.8 51.3 0.0764 1.4 0.0 GX 13+1
273.8000 -12.0833 0.0 45.7 48.9 0.0400 0.4 0.0 4U 1812-12
274.0058 -14.0364 0.0 43.9 50.1 0.1058 1.4 0.0 GX 17+2
275.9185 -30.3611 0.0 29.8 64.6 -0.0385 -1.3 0.0 4U 1820-30
276.4450 -37.1053 0.0 24.6 73.8 0.0079 0.3 0.0 3A 1822-371
277.3675 -23.7969 0.0 36.2 60.8 0.0016 0.0 0.0 GS 1826-24
278.9337 -32.9914 0.0 29.1 71.9 -0.0084 -0.3 0.0 XB 1832-330
279.5847 -65.4276 0.0 18.6 156.1 -0.0001 -0.0 0.0 ESO 103-035
264.0401 -28.5585 2.7 27.1 43.2 0.1004 4.4 ------ UNKNOWN
237.6943 -28.0667 1.8 27.3 -8.9 0.1203 6.6 ------ UNKNOWN
232.9946 -53.2922 1.3 10.2 -78.8 0.1625 8.9 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
170.3158 -60.6230 0.0 41.1 -117.0 -0.0569 -1.0 0.0 Cen X-3
186.6567 -62.7703 0.0 33.1 -115.7 0.0001 0.0 0.0 GX 301-2
244.9795 -15.6402 0.0 38.3 7.6 0.0379 1.5 0.0 Sco X-1
255.9866 -37.8441 0.0 16.4 32.2 0.0260 1.4 0.0 4U 1700-377
256.4354 -36.4231 0.0 17.8 32.3 -0.0311 -1.6 0.0 GX 349+2
263.0090 -24.7456 0.0 30.5 39.1 -0.0107 -0.4 0.0 GX 1+4
264.7429 -44.4500 0.0 13.3 67.2 0.0264 1.4 0.0 4U 1735-44
270.2842 -25.0792 0.0 32.3 51.3 -0.0322 -1.1 0.0 GX 5-1
270.3025 -25.7431 0.0 31.7 51.8 -0.0620 -2.1 0.0 GRS 1758-258
274.0058 -14.0364 0.0 43.9 50.1 0.1059 1.4 0.0 GX 17+2
275.9250 -30.3670 0.0 29.8 64.6 -0.0365 -1.2 0.0 H1820-303
285.0360 -24.9205 0.0 38.7 71.7 0.1738 2.7 0.0 HT1900.1-2455
262.9891 -33.8347 0.0 21.9 45.4 -0.0015 -0.1 0.0 GX 354-0
237.6943 -28.0667 1.8 27.3 -8.9 0.1203 6.6 ------ UNKNOWN
232.9946 -53.2923 1.3 10.2 -78.8 0.1625 8.9 ------ UNKNOWN
Search for UNKNOWN source R.A. = 232.9946 Dec. = -53.2923 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 237.6943 Dec. = -28.0667 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1340954/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Sat Aug 9 13:07:10 EDT 2025
