batgrbproduct analysis for trigger=1342439

batgrbproduct Analysis for Trigger=1342439

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Fri Aug 15 15:43:20 EDT 2025
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1342439/batgroup_hand_proc
======================================================================

  Trigger: 01342439      Segment: 000

  BAT Trigger Time: 776849736   [s; MET]
      Trigger Stop: 776849808   [s; MET]
               UTC: 2025-08-14T07:34:59.856620    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 306.328650636288   Dec: 48.3909798891984  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.55
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    10.55

  Flight Position:   [ source = BAT ]
    RA: 306.328650636288   Dec: 48.3909798891984  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 306.313134833502   Dec: 48.4064028446367  [deg; J2000]
        { 20h 25m 15.2s , +48d 24' 23.1" }
         +/- 1.91410846435455 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.86081171350287 [arcmin] (formal 1-sigma fit error)
    SNR: 12.0312023670586

  Angular difference between Flight and Ground position is 1.112819 arcmin

  Partial Coding Fraction: 0.546875    [ including projection effects ]

  Duration
     T90: 110.108000040054 +/- 47.9023809834804
        Measured from: 3.21599996089935
                   to: 113.324000000954     [s; relative to TRIGTIME]
     T50: 29.4079998731613 +/- 18.3315524264779
        Measured from: 10.932000041008
                   to: 40.3399999141693     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 10.2159999608994
                   to: 11.2159999608994     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 1.06400001049042
                   to: 125.363999962807     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.769945   0.924007   0.528043   0.241134
           0.097394   0.099038   0.082502   0.065545 [error]
 Peak      0.014452   0.053423   0.026780   0.014004
           0.009155   0.009788   0.008408   0.006342 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.78e-07 3.99e-07 4.24e-07 8.35e-07 1.36e-06 1.94e-06   erg/cm2
              Error 4.86e-08 4.69e-08 7.94e-08 3.14e-07 1.86e-07 3.95e-07   erg/cm2
Peak flux Power-law 2.61e-01 2.59e-01 1.80e-01 1.98e-01 7.79e-01 8.98e-01   ph/cm2/s
              Error 1.21e-01 8.03e-02 6.38e-02 1.19e-01 2.33e-01 2.64e-01   ph/cm2/s

Fluence   Cutoff-PL 2.70e-07 4.18e-07 4.22e-07 4.47e-07 1.32e-06 1.56e-06   erg/cm2
              Error 5.40e-08 6.52e-08 8.72e-08 5.73e-07 2.16e-07 5.84e-07   erg/cm2
Peak flux Cutoff-PL 2.03e-01 3.20e-01 1.91e-01 3.17e-02 7.42e-01 7.46e-01   ph/cm2/s
              Error 1.32e-01 1.23e-01 1.03e-01 1.25e-01 2.35e-01 2.50e-01   ph/cm2/s

Fluence        Band 2.59e-07 4.32e-07 4.03e-07 6.57e-07 1.32e-06 1.75e-06   erg/cm2
              Error -------- -------- 8.67e-08 -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.912    0.214    -      -           1.19e-03 1.64e-04   73.960 57
CPL   1.553    0.872      54.0    0.0      1.90e-03 0.00e+00   73.520 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.526    0.459    -      -           6.20e-03 1.85e-03   61.500 57
CPL  -0.441    3.808      56.2  -18.7      7.28e-02 8.53e+01   59.210 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 24.064000 sec.
T50 in the 50-300 keV band: 15.488000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  124.300    1.064  125.364
T90   110.108    3.216  113.324
T50    29.408   10.932   40.340
Peak    1.000   10.216   11.216

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

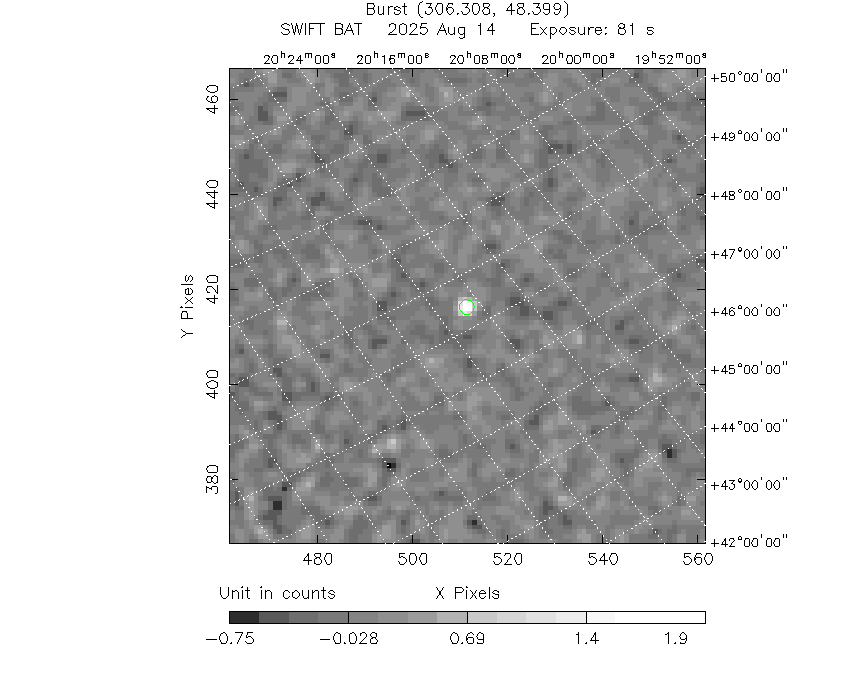

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  306.3131 +48.4064 0.0160   38.1    9.3       2.1363    12.0  TRIG_01342439
------------------------------------------

Foreground time interval of the image:
  1.064  82.501 (delta_t =  81.437 [sec])
Background time interval of the image:
-239.000   1.064 (delta_t = 240.064 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

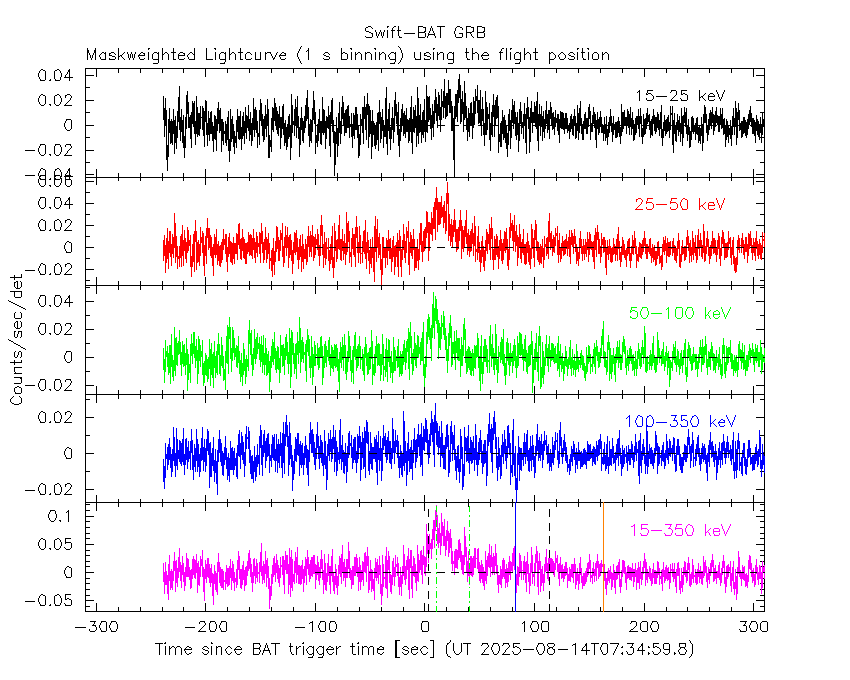

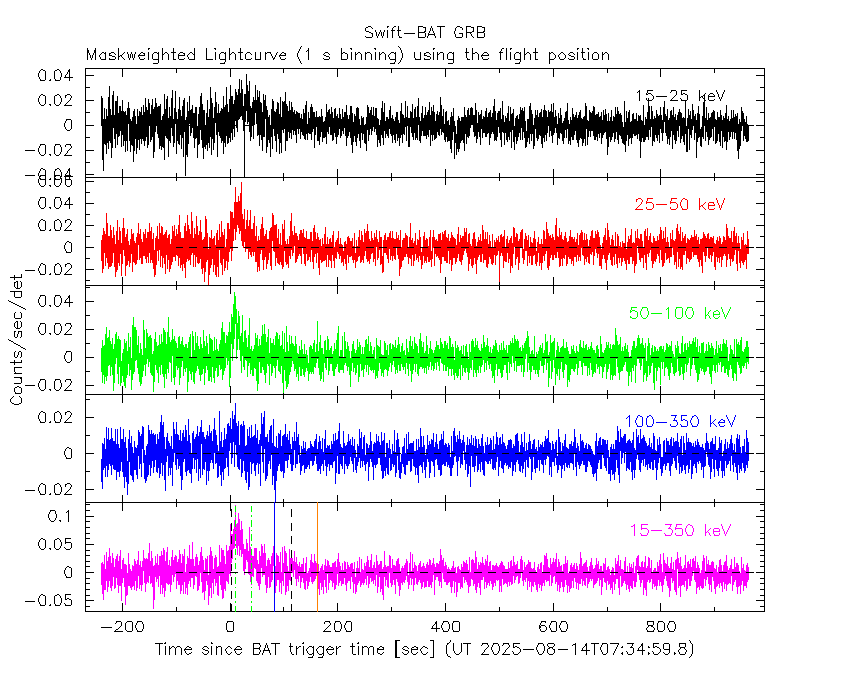

1 s binning

From T0-310 s to T0+310 s

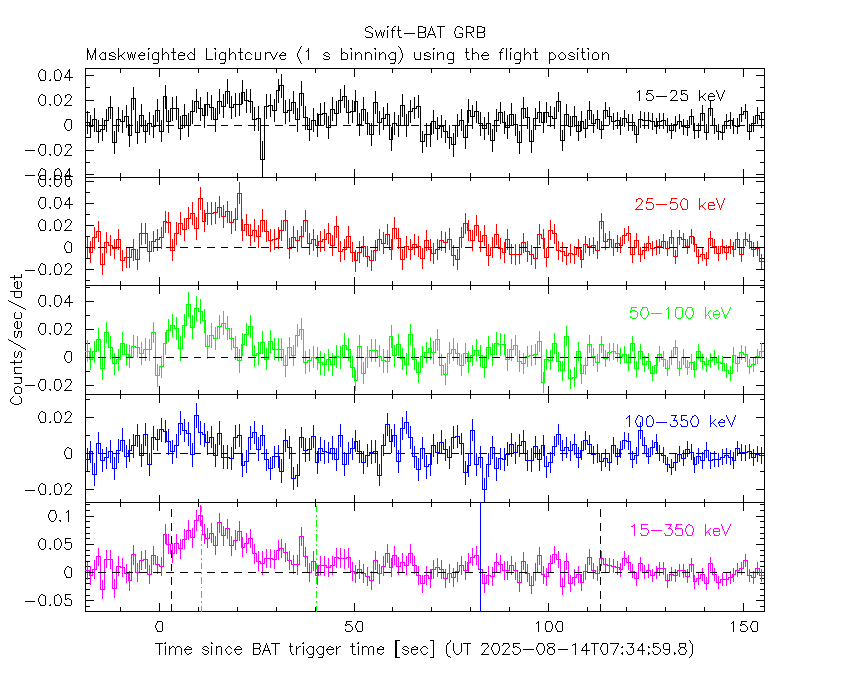

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

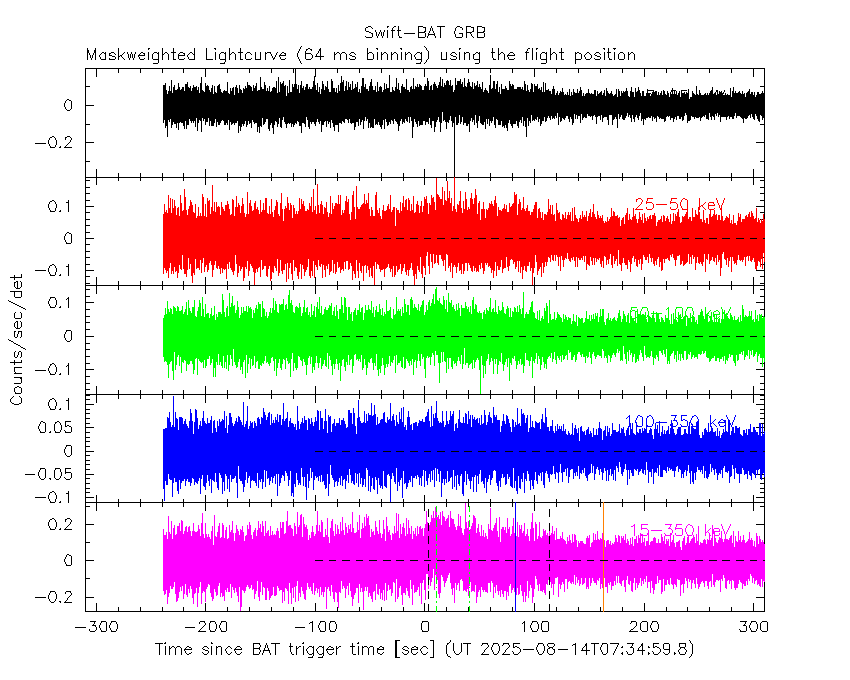

Full time interval

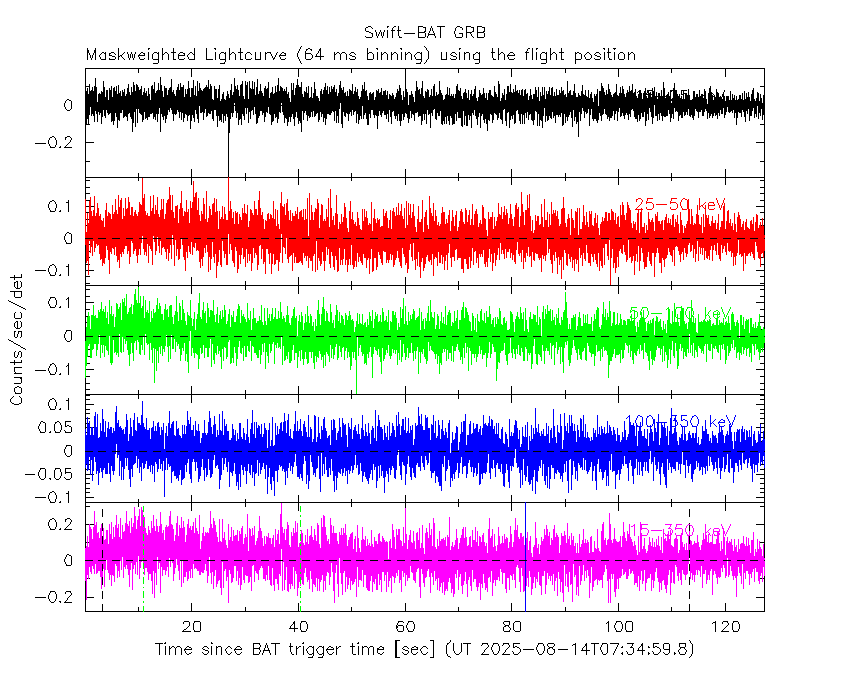

From T100_start to T100_end

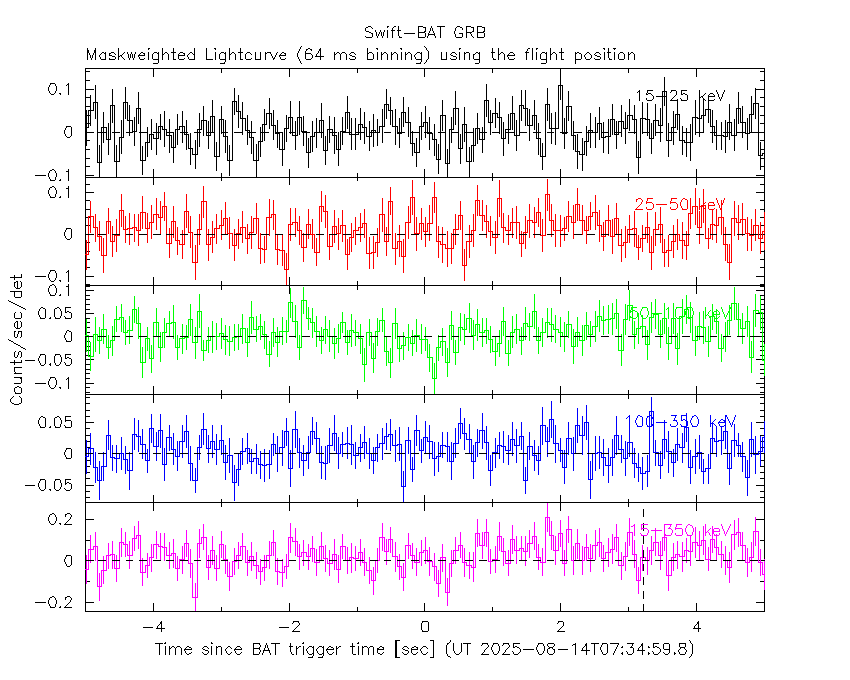

From T0-5 sec to T0+5 sec

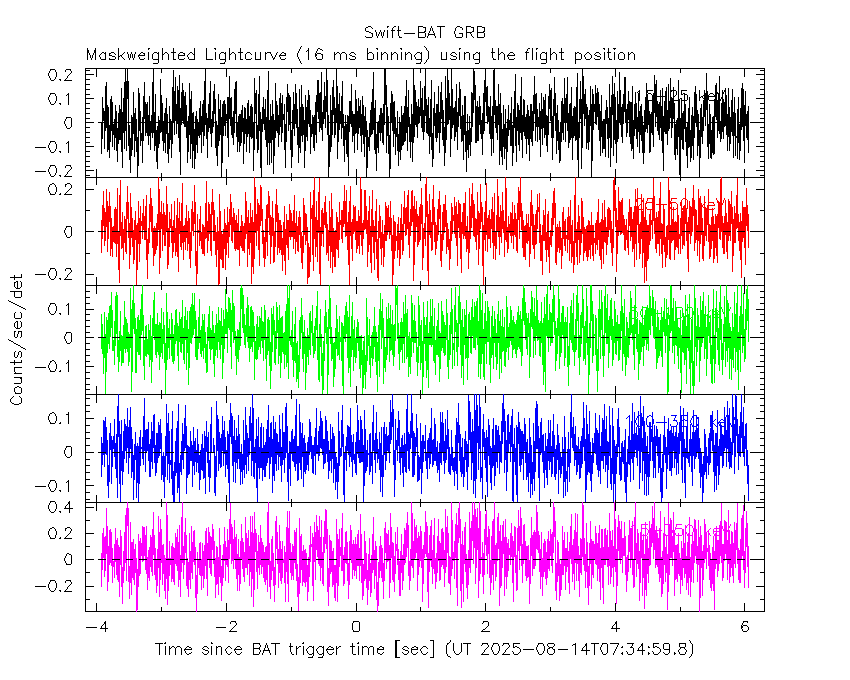

16 ms binning

From T100_start-5 s to T100_start+5 s

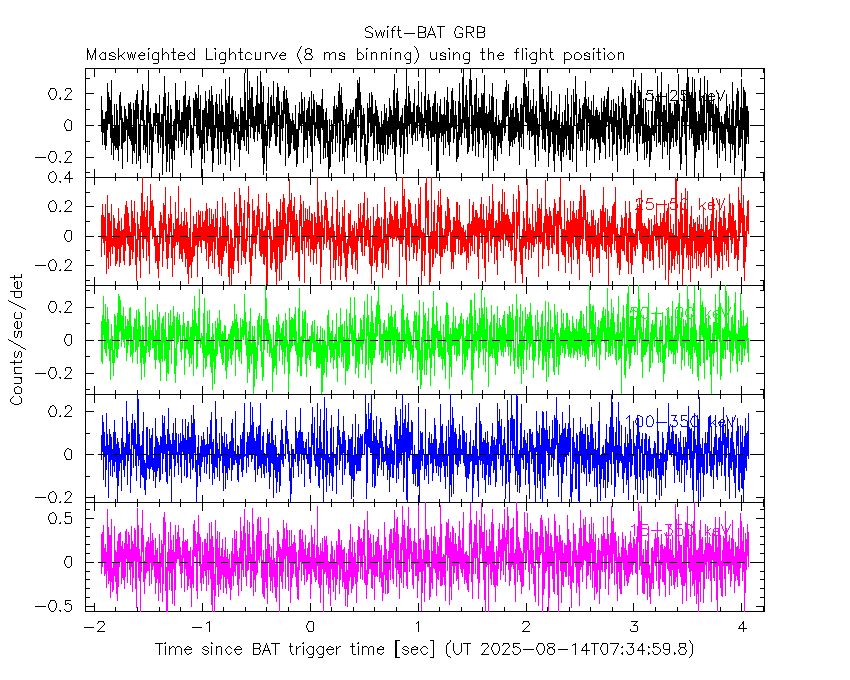

8 ms binning

From T100_start-3 s to T100_start+3 s

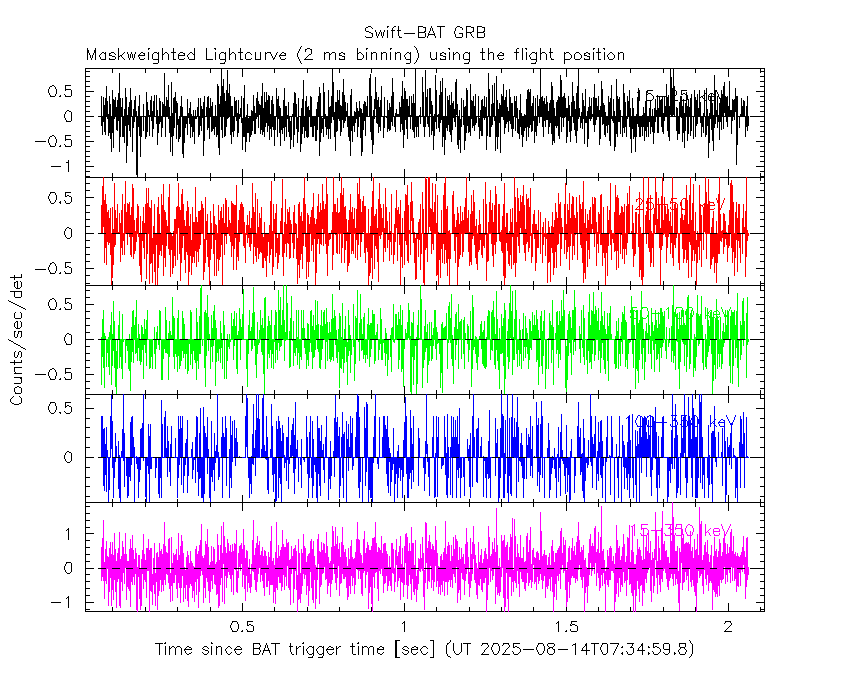

2 ms binning

From T100_start-1 s to T100_start+1 s

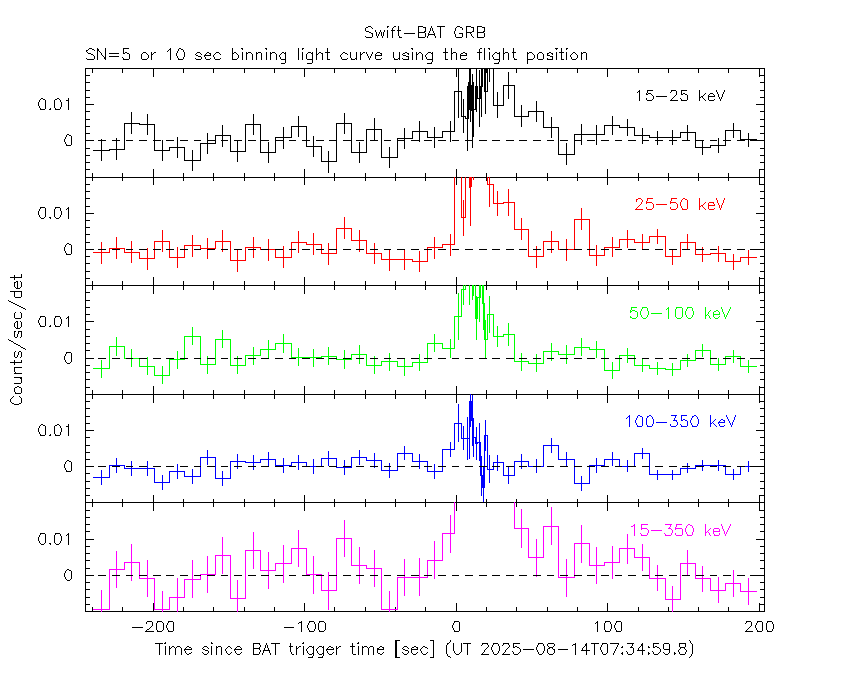

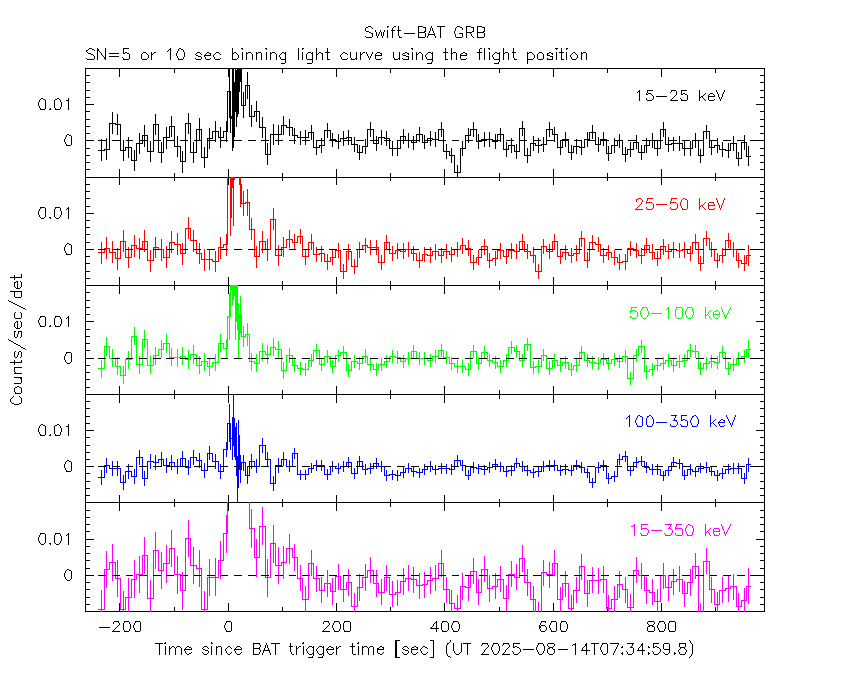

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

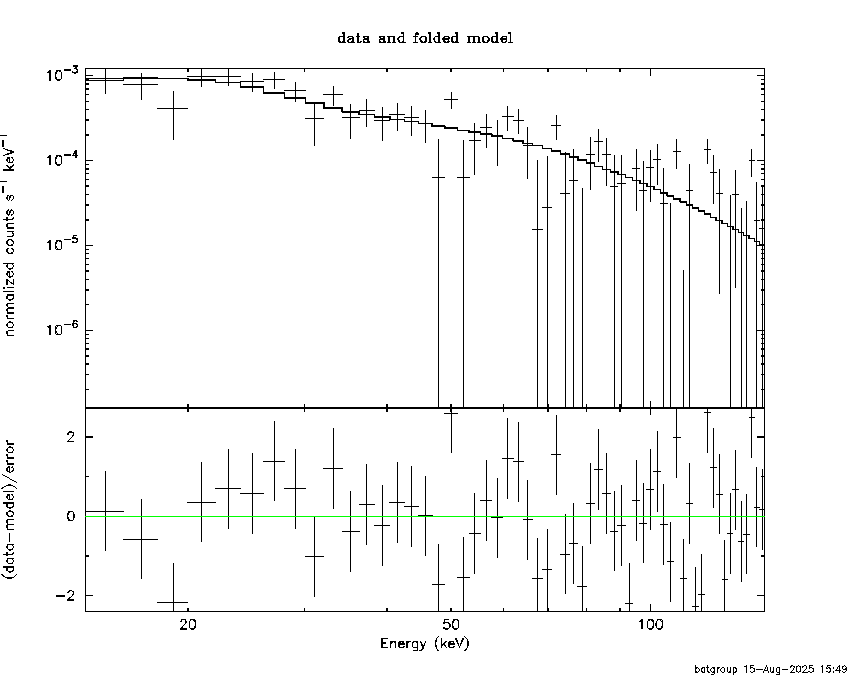

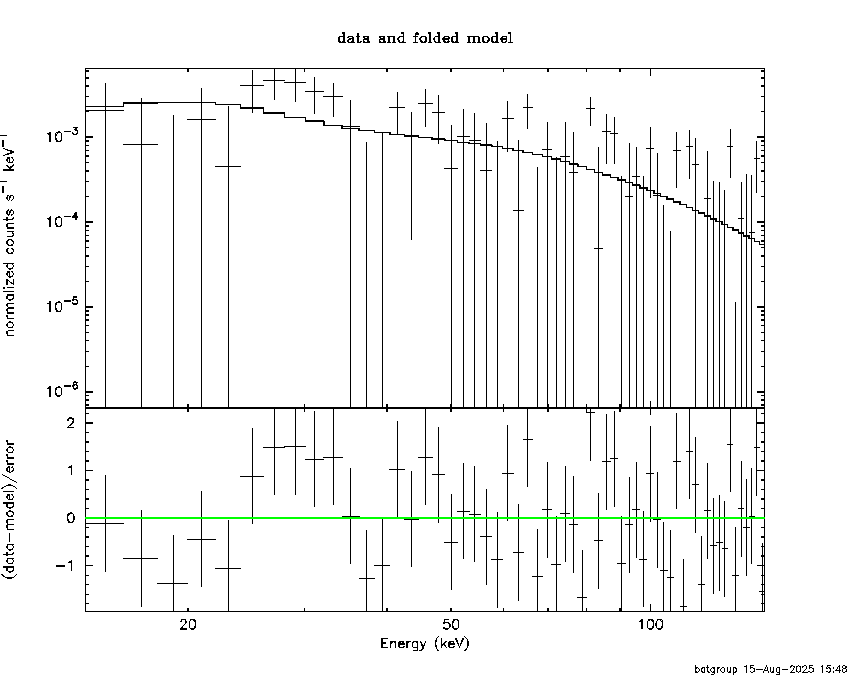

Time averaged spectrum fit using the pre-slew DRM

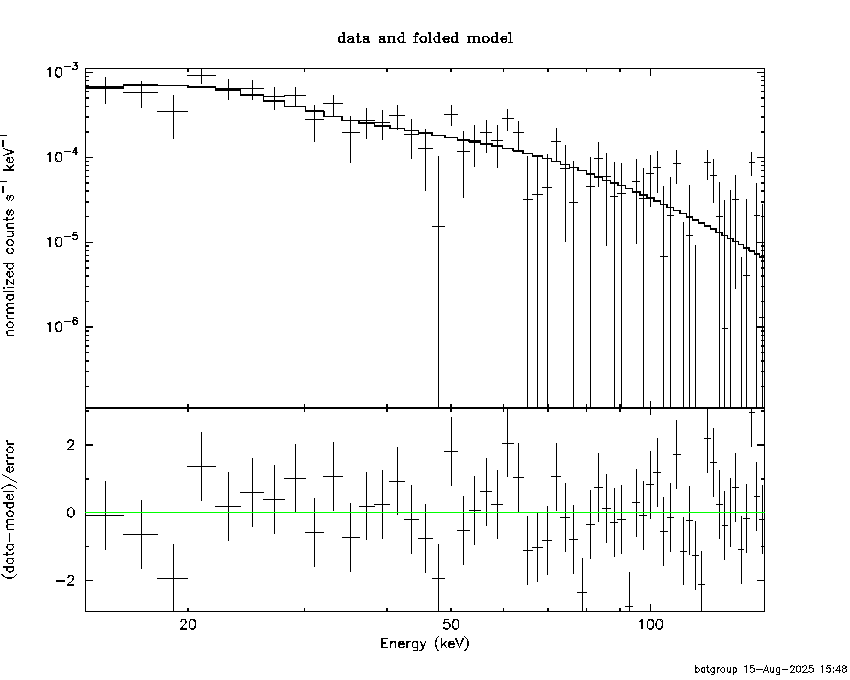

Power-law model

Time interval is from    1.064 sec. to  125.364 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.91166     ( -0.208664   0.219023 )
Norm@50keV  : 1.19073E-03    ( -0.000166368   0.000162519 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.96 using 59 PHA bins.
# Reduced chi-squared =          1.298 for     57 degrees of freedom
# Null hypothesis probability =   6.487993e-02

Photon flux (15-150 keV)    in 124.3 sec: 0.171735 ( -0.0204763  0.0204933 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.36092e-06 ( -1.84189e-07  1.86886e-07 ) ergs/cm2

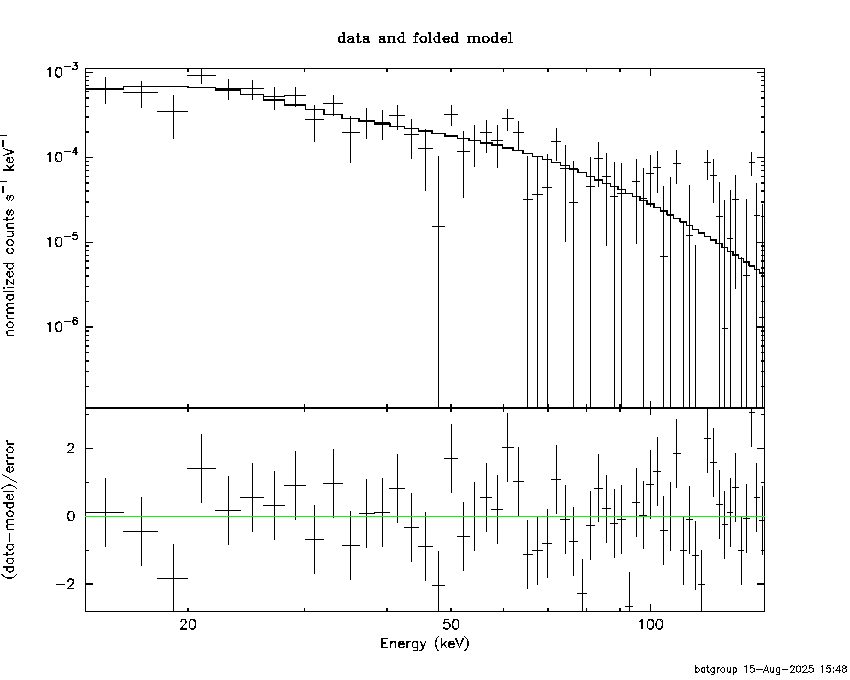

Cutoff power-law model

Time interval is from    1.064 sec. to  125.364 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55292     ( -1.1058   0.639088 )
Epeak [keV] : 53.9753      (   )
Norm@50keV  : 1.90315E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.52 using 59 PHA bins.
# Reduced chi-squared =          1.313 for     56 degrees of freedom
# Null hypothesis probability =   5.820348e-02

Photon flux (15-150 keV)    in 124.3 sec: 0.169659 ( -0.02121  0.021124 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.3165e-06 ( -2.1664e-07  2.1576e-07 ) ergs/cm2

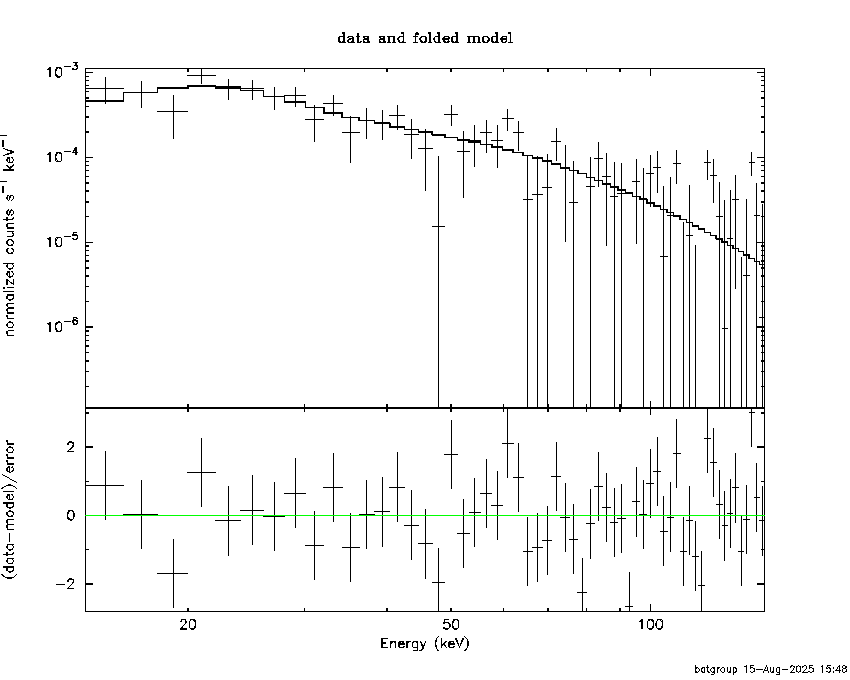

Band function

Time interval is from    1.064 sec. to  125.364 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.86165   ( -4.13532   -4.13532 )
beta        : -2.10266    ( -0.350435   0.296003 )
Epeak [keV] : 26.3766      ( -25.341 77.3494 )
Norm@50keV   : 3.74137    ( -3.73797   66.8744 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.08 using 59 PHA bins.
# Reduced chi-squared =          1.311 for     55 degrees of freedom
# Null hypothesis probability =   6.086742e-02

Photon flux (15-150 keV)    in 124.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.32026e-06 ( 0  0 ) ergs/cm2

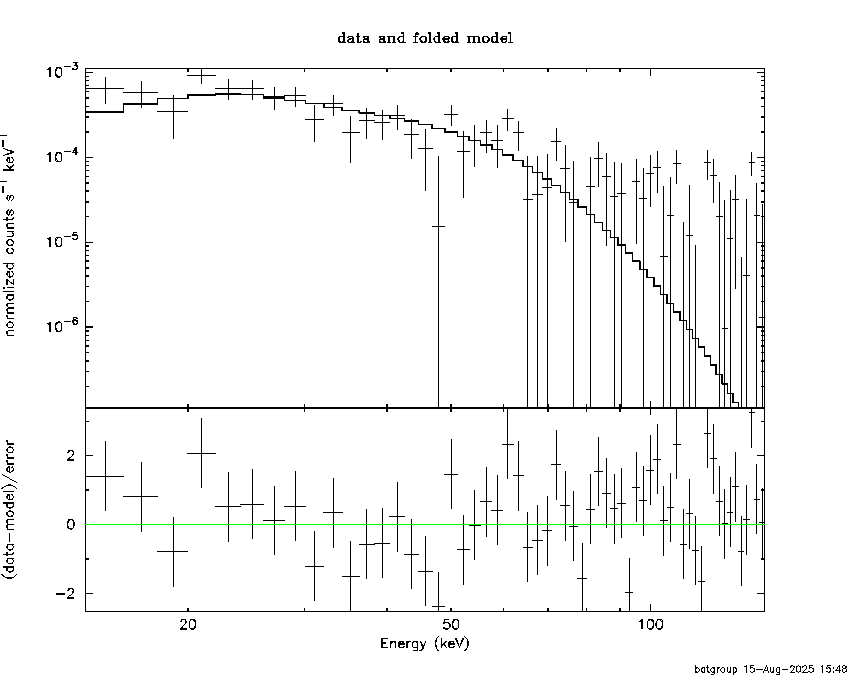

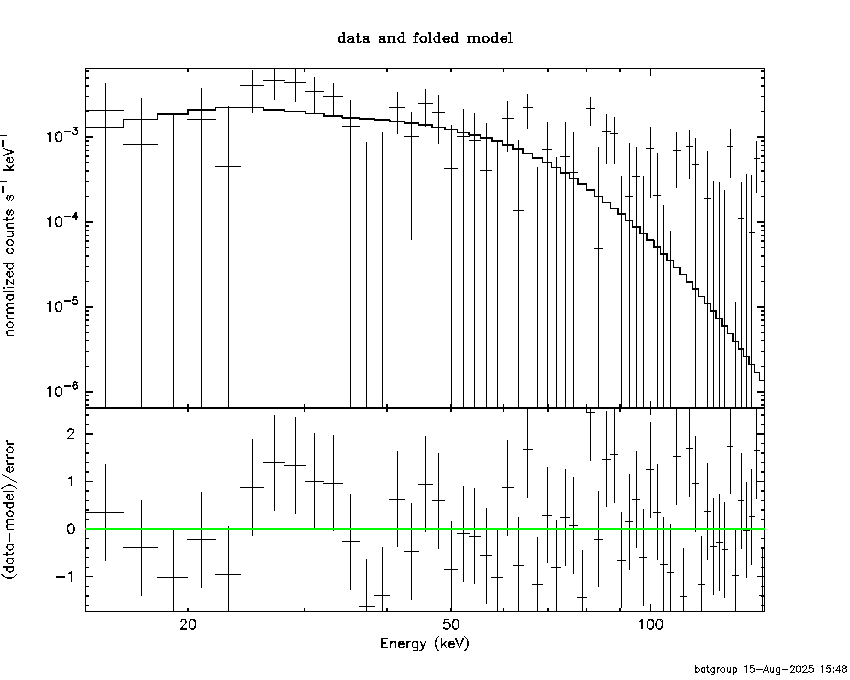

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.4295  (-1.40288  1.62762)
R^2/D10^2   : 6.89604E-02  (-0.0293605   0.0508918)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          87.48 using 59 PHA bins.
# Reduced chi-squared =          1.535 for     57 degrees of freedom
# Null hypothesis probability =   5.821801e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.924e-07   4.139e-08
25- 50  5.070e-07   7.539e-08
50-150  2.985e-07   8.993e-08
15-150  9.979e-07   1.614e-07

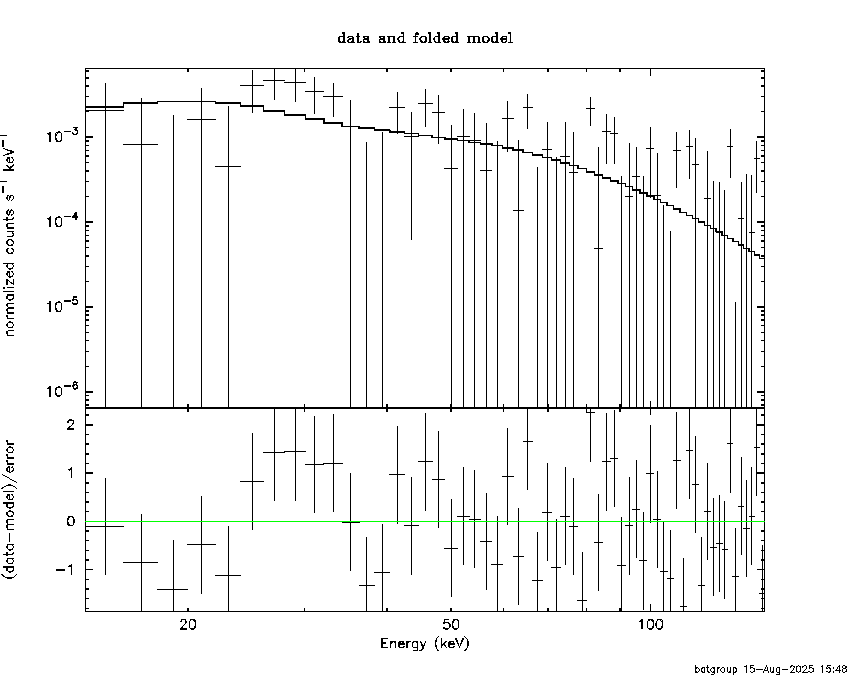

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 78.6511       (-25.1612      47.5906)
Norm        : 0.812098       (-0.136643     0.177515)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.616e-07   4.438e-08
25- 50  4.289e-07   5.699e-08
50-150  5.986e-07   2.585e-07
15-150  1.289e-06   2.823e-07

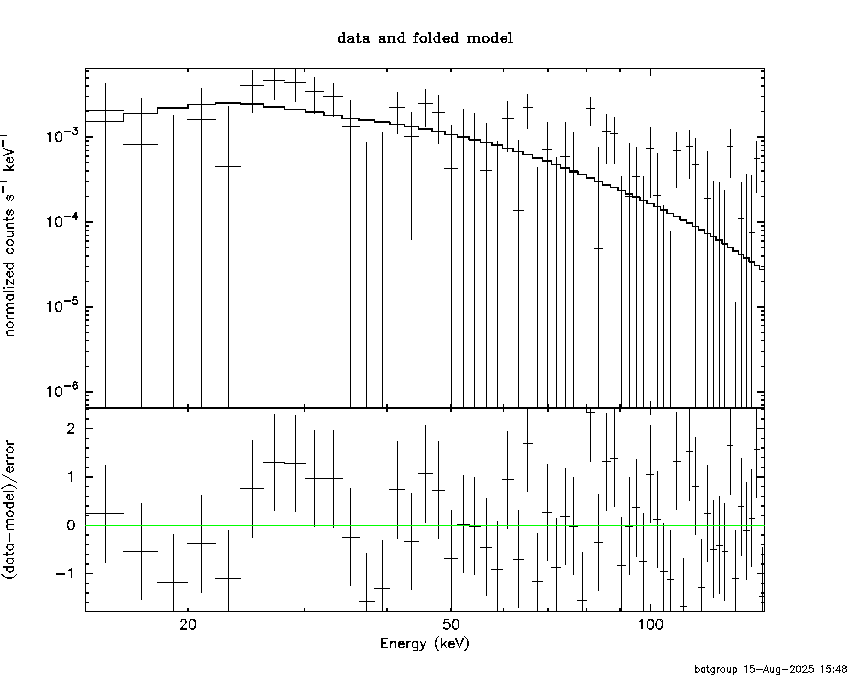

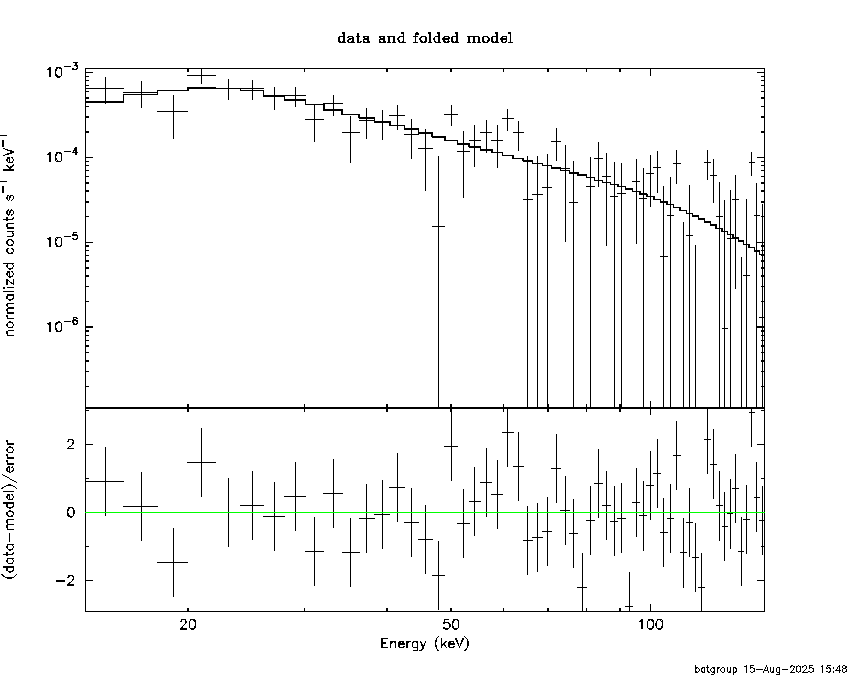

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.03364        (-3.0889      2.26198)
R1^2/D10^2  : 0.160205        (-0.100637      0.708931)
kT2 [keV]   : 42.8430        (-21.1237      -35.9226)
R2^2/D10^2  : 2.59822E-04    (-0.000461452   0.013361)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.544e-07   1.442e-07
25- 50  4.055e-07   2.145e-07
50-150  4.916e-07   2.909e-07
15-150  1.152e-06   6.271e-07

Peak spectrum fit

Power-law model

Time interval is from   10.216 sec. to   11.216 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52552     ( -0.455206   0.462471 )
Norm@50keV  : 6.19998E-03    ( -0.00185487   0.0018405 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.50 using 59 PHA bins.
# Reduced chi-squared =          1.079 for     57 degrees of freedom
# Null hypothesis probability =   3.181464e-01

Photon flux (15-150 keV)    in 1 sec: 0.779360 ( -0.231995  0.233187 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.85896e-08 ( -1.83841e-08  1.8791e-08 ) ergs/cm2

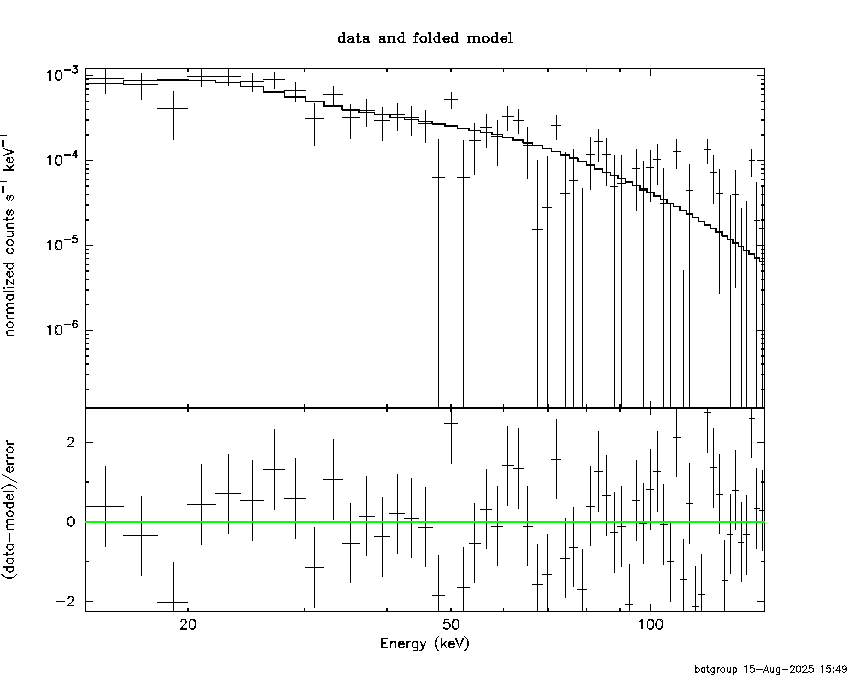

Cutoff power-law model

Time interval is from   10.216 sec. to   11.216 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.441227     ( -5.49014   2.12637 )
Epeak [keV] : 56.1980      ( -18.5629 -56.0537 )
Norm@50keV  : 7.27871E-02    ( -0.0741867   170.473 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.21 using 59 PHA bins.
# Reduced chi-squared =          1.057 for     56 degrees of freedom
# Null hypothesis probability =   3.591965e-01

Photon flux (15-150 keV)    in 1 sec: 0.742106 ( -0.232405  0.236892 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.07667e-08 ( -1.93946e-08  2.12126e-08 ) ergs/cm2

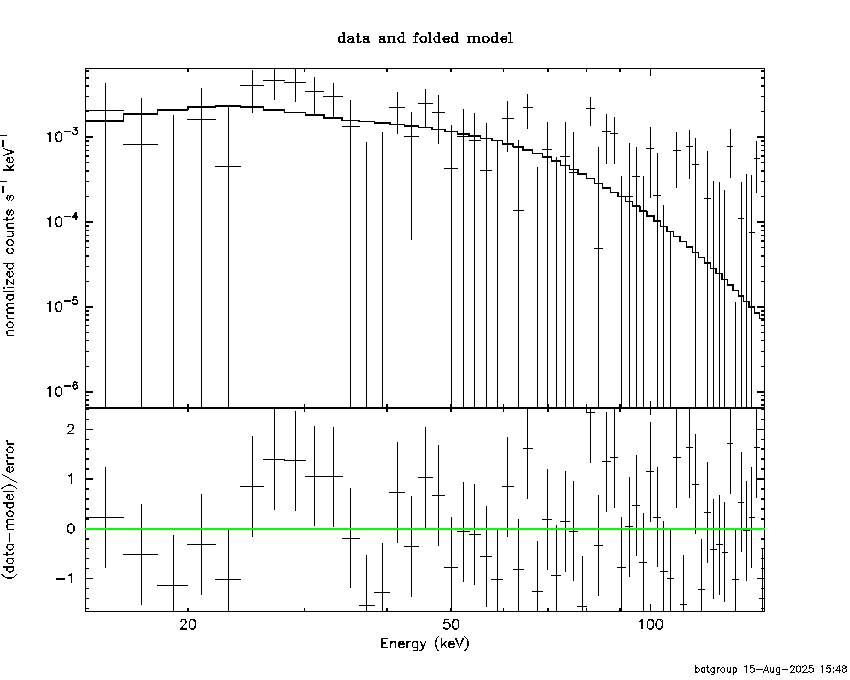

Band function

Time interval is from   10.216 sec. to   11.216 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.399666   ( -1.13263   2.20268 )
beta        : -10.00000    ( 10   8.31442e-10 )
Epeak [keV] : 56.7397      ( -17.5364 -56.7397 )
Norm@50keV   : 6.85665E-02    ( -0.0193159   25.3492 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.21 using 59 PHA bins.
# Reduced chi-squared =          1.077 for     55 degrees of freedom
# Null hypothesis probability =   3.245198e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.51438e-08 ( -5.51368e-08  -1.80719e-08 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.9971  (-3.40707  5.24062)
R^2/D10^2   : 0.158359  (-0.113035   0.319307)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.674e-09   3.291e-09
25- 50  1.954e-08   1.078e-08
50-150  2.086e-08   1.431e-08
15-150  4.607e-08   2.915e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 175.763       (-114.15      -175.647)
Norm        : 3.26807       (-0.96248     1.3042)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.264e-09   4.932e-09
25- 50  1.565e-08   9.210e-09
50-150  3.286e-08   2.028e-08
15-150  5.678e-08   3.376e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 30.6379        (-31.1058      -31.1058)
R1^2/D10^2  : 3.55144E-03        (-0.00306816      0.358616)
kT2 [keV]   : 9.99339        (-10.0503      6.87723)
R2^2/D10^2  : 0.312307    (-0.307845   -0.307845)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.875e-09   4.948e-09
25- 50  1.883e-08   1.378e-08
50-150  2.877e-08   1.762e-08
15-150  5.448e-08   3.499e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.84313     ( -0.194253   0.201981 )
Norm@50keV  : 1.67584E-03    ( -0.000212019   0.0002081 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.29 using 59 PHA bins.
# Reduced chi-squared =          1.461 for     57 degrees of freedom
# Null hypothesis probability =   1.314454e-02

Photon flux (15-150 keV)    in 81.44 sec: 0.234902 ( -0.0265364  0.0265673 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.25505e-06 ( -1.58012e-07  1.5992e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43982     ( -0.963261   0.664827 )
Epeak [keV] : 62.3016      (   )
Norm@50keV  : 2.80133E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          82.57 using 59 PHA bins.
# Reduced chi-squared =          1.474 for     56 degrees of freedom
# Null hypothesis probability =   1.198284e-02

Photon flux (15-150 keV)    in 81.44 sec: 0.231539 ( -0.027357  0.027362 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.21289e-06 ( -1.80609e-07  1.80504e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.91586   ( -4.21389   -4.21389 )
beta        : -2.04354    ( -0.346612   0.283605 )
Epeak [keV] : 28.9323      ( -26.7987 141.065 )
Norm@50keV   : 0.754112    ( -0.751819   65.5515 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          80.95 using 59 PHA bins.
# Reduced chi-squared =          1.472 for     55 degrees of freedom
# Null hypothesis probability =   1.295264e-02

Photon flux (15-150 keV)    in 81.44 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.21944e-06 ( -1.21887e-06  -1.68027e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.99e-07
S(50-100 keV) = 4.24e-07

T90 vs. Hardness ratio plot

T90                                   = 110.108000040054 sec.
Hardness ratio (energy fluence ratio) = 1.06266

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.20009
Count Ratio (50-100 keV) / (15-25 keV) = 0.685819

Mask shadow pattern

IMX = 7.738283291555789E-01, IMY = -1.268182570105515E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 1.064000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9830 -15.6683    1.7  46.5  176.8   6.4630   7.0    1.7	Sco X-1
254.7038  35.4045    0.0  14.7  -77.8   0.1537   0.4   12.6	Her X-1
262.8732 -24.8436    3.9  50.5  151.7   4.5420   2.9    9.4	GX 1+4
268.3604  -1.4496  118.8  26.9  144.1  -0.0460  -0.1    0.5	SW J1753.5-0127
274.0475 -14.0370    4.4  40.1  136.3   2.8628   2.6    2.4	GX 17+2
288.8855  11.0511    3.7  25.0   87.8   1.7141   3.1    8.2	GRS 1915+105
299.6112  35.2009    0.5  29.4   29.5  12.6253  24.9    1.0	Cyg X-1
308.2024  40.9435    2.3  37.2   21.6   2.8533   4.9    4.2	Cyg X-3
326.3646  38.2955    0.0  50.9   26.8   1.2919   1.1    9.2	Cyg X-2
317.4197  40.5640    2.9  44.0   23.7   2.6263   4.0 ------	UNKNOWN
318.3027  58.5654    2.9  48.5   -0.6   2.8187   3.9 ------	UNKNOWN
217.6654  10.1567    2.0  49.3 -132.1  10.7295   5.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
1.064000 82.500590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0810 -15.6796   16.3  46.5  176.7  -0.1767  -0.7    6.3	Sco X-1
254.4515  35.3359 1455.0  14.8  -78.5   0.0010   0.0    0.5	Her X-1
263.2105 -24.7196    2.8  50.3  151.4  -2.0189  -4.0   11.1	GX 1+4
268.4220  -1.3165    4.8  26.8  144.0   0.3944   2.4    8.8	SW J1753.5-0127
274.0735 -14.1622    4.5  40.2  136.3  -0.6723  -2.5    8.5	GX 17+2
288.8487  11.0820    4.6  25.0   87.8  -0.4265  -2.5    8.7	GRS 1915+105
299.5599  34.9913    0.0  29.4   29.9   0.2190   1.4   12.7	Cyg X-1
308.0727  40.7722    7.3  37.0   21.9   0.3012   1.6   11.0	Cyg X-3
326.0838  38.4056    6.1  50.7   26.7   1.1602   1.9    6.5	Cyg X-2
306.3131  48.4064    1.0  38.1    9.3   2.1362  12.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
162.500600 963.072300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4093  35.5184    8.2  39.9 -159.7   2.4742   1.4   10.8	Her X-1
288.7936  10.8021    7.9  40.3  136.6  -4.5767  -1.5    8.6	GRS 1915+105
299.5985  35.1908    0.3  14.1  132.5  40.3210  35.8    0.8	Cyg X-1
308.0958  40.9421    2.0   7.5   99.2   6.2220   5.8    0.9	Cyg X-3
325.9997  38.1680    5.3  17.5   47.8   2.4284   2.2   12.3	Cyg X-2
  4.3900  41.2177    2.6  40.8    7.0   7.5138   4.4 ------	UNKNOWN
310.5048  71.5879    3.1  23.3  -67.3   5.2527   3.7 ------	UNKNOWN

Plot creation:
Fri Aug 15 15:49:40 EDT 2025
