batgrbproduct analysis for trigger=1345836

batgrbproduct Analysis for Trigger=1345836

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Mar  1 01:17:20 EST 2026
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1345836
======================================================================

  Trigger: 01345836      Segment: 000

  BAT Trigger Time: 778113254.08   [s; MET]
      Trigger Stop: 778113255.104   [s; MET]
               UTC: 2025-08-28T22:33:37.850740    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 124.851735661913   Dec: -17.3884002792466  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.25
     Image Trigger?:     NO
     Rate S/N Ratio:     12.5299640861417  [ if not an image trigger ]
     Image S/N Ratio:    9.25

  Flight Position:   [ source = BAT ]
    RA: 124.851735661913   Dec: -17.3884002792466  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 124.864934516323   Dec: -17.3534164999877  [deg; J2000]
        { 08h 19m 27.6s , -17d 21' 12.3" }
         +/- 2.29090007200901 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.935258576717569 [arcmin] (formal 1-sigma fit error)
    SNR: 9.30730371230404

  Angular difference between Flight and Ground position is 2.230956 arcmin

  Partial Coding Fraction: 0.6484375    [ including projection effects ]

  Duration
     T90: 94.0119999647141 +/- 31.7302949536843
        Measured from: -46.7000000476837
                   to: 47.3119999170303     [s; relative to TRIGTIME]
     T50: 24.567999958992 +/- 13.6562909906366
        Measured from: -19.0320000648499
                   to: 5.53599989414215     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.263999938964844
                   to: 1.26399993896484     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -53.1160000562668
                   to: 76.6599999666214     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.096305   0.927679   0.551033   0.047600
           0.089244   0.090582   0.075033   0.063461 [error]
 Peak      0.058085   0.076243   0.043299   0.011281
           0.008930   0.009686   0.007936   0.005647 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.70e-07 4.52e-07 4.00e-07 6.07e-07 1.43e-06 1.83e-06   erg/cm2
              Error 5.15e-08 4.51e-08 7.43e-08 2.22e-07 1.68e-07 3.07e-07   erg/cm2
Peak flux Power-law 6.50e-01 5.54e-01 3.23e-01 2.81e-01 1.65e+00 1.81e+00   ph/cm2/s
              Error 1.37e-01 7.93e-02 6.27e-02 1.03e-01 2.36e-01 2.56e-01   ph/cm2/s

Fluence   Cutoff-PL 3.63e-07 4.62e-07 4.00e-07 4.37e-07 1.41e-06 1.65e-06   erg/cm2
              Error 4.97e-08 4.99e-08 7.71e-08 -------- 1.79e-07 5.30e-07   erg/cm2
Peak flux Cutoff-PL 5.83e-01 6.16e-01 3.41e-01 1.13e-01 1.62e+00 1.65e+00   ph/cm2/s
              Error 1.55e-01 1.07e-01 7.38e-02 1.34e-01 2.39e-01 2.65e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.178    0.200    -      -           1.18e-03 1.57e-04   42.550 57
CPL   1.977    0.339       5.1   -0.4      1.53e-03 1.29e-03   42.520 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.780    0.229    -      -           1.21e-02 1.86e-03   60.930 57
CPL   0.907    1.069      57.9  -21.1      3.60e-02 8.60e-02   58.280 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 2.048000 sec.
T50 in the 50-300 keV band: 1.152000 sec.

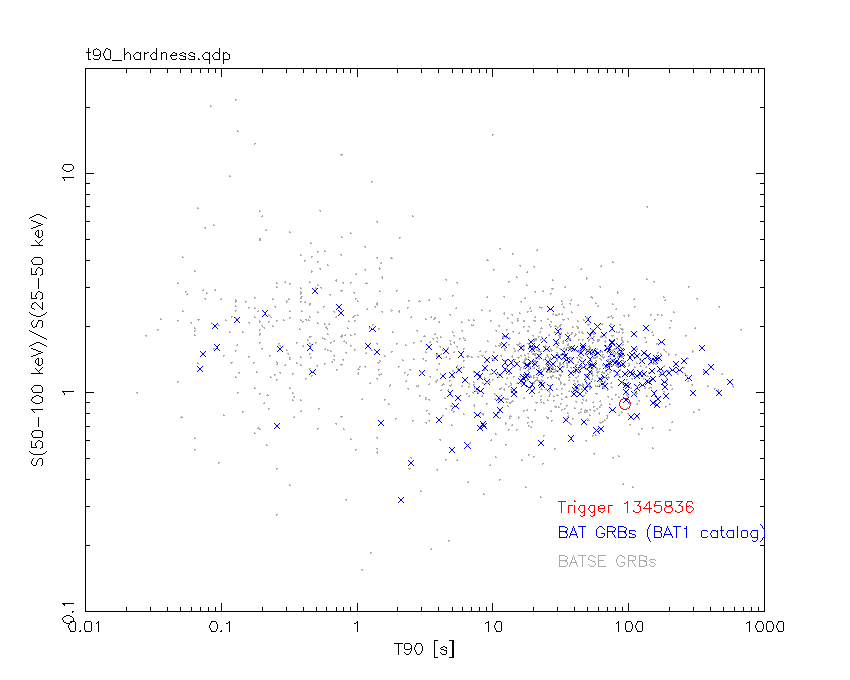

=== Table of the duration information ==

        Value   tstart    tstop
T100  129.776  -53.116   76.660
T90    94.012  -46.700   47.312
T50    24.568  -19.032    5.536
Peak    1.000    0.264    1.264

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

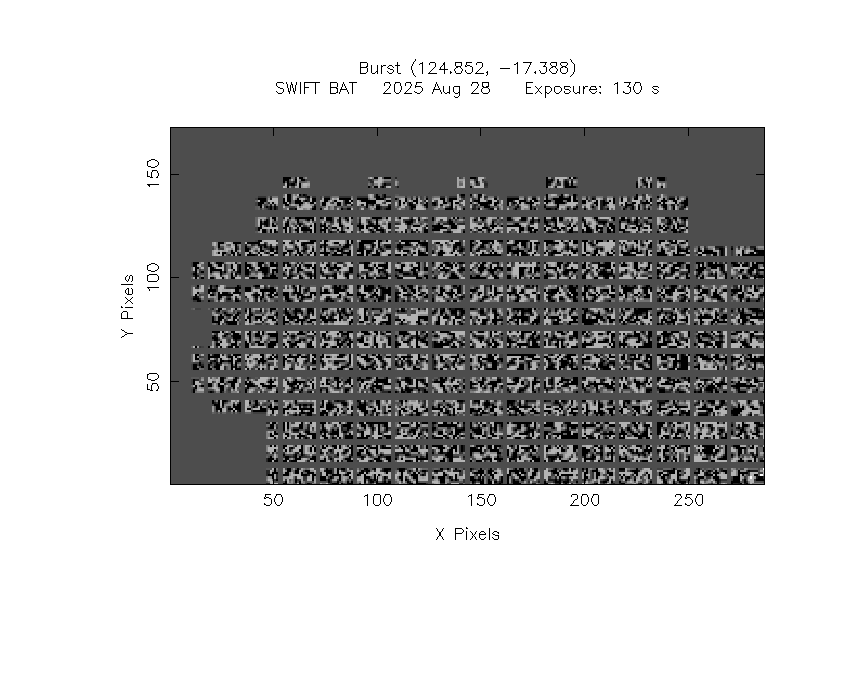

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  124.8649   -17.3534   0.0206    34.8032  -152.0382         1.9973382      9.307 TRIG_01345836

Foreground time interval of the image:
-53.116  76.660 (delta_t = 129.776 [sec])
Background time interval of the image:
-239.080 -53.116 (delta_t = 185.964 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

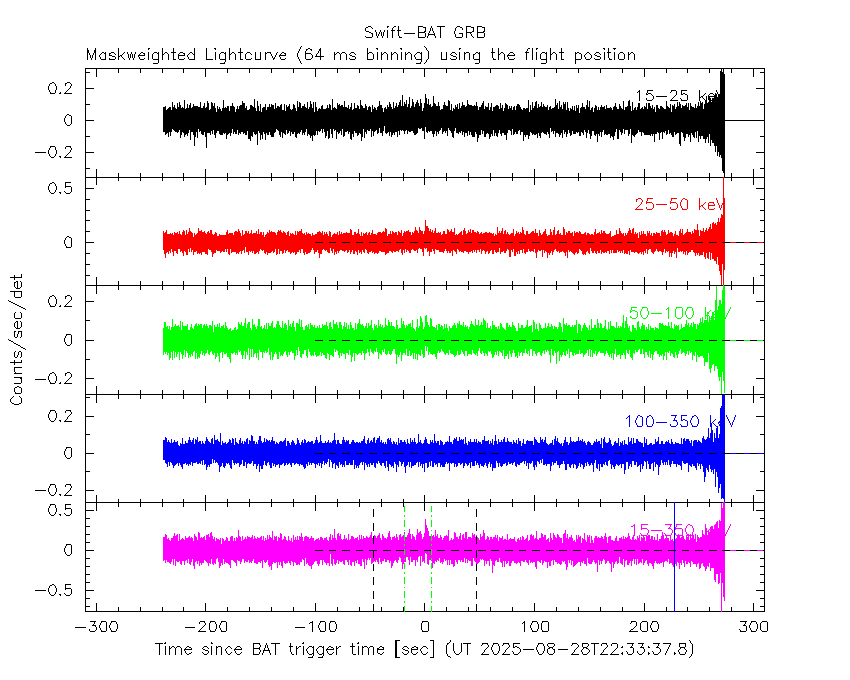

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -53.116 sec. to   76.660 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.17780     ( -0.194004   0.206957 )
Norm@50keV  : 1.17772E-03    ( -0.000159652   0.000155243 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.55     using 59 bins.
 Reduced chi-squared = 0.746491
# Null hypothesis probability of 9.23e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 129.8 sec: 0.192746 ( -0.018988  0.019002 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.43323e-06 ( -1.66552e-07  1.69594e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -53.116 sec. to   76.660 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97679     ( -0.634689   0.0426395 )
Epeak [keV] : 5.07786      ( -4.21956 -5.07786 )
Norm@50keV  : 1.52525E-03    ( -0.000611385   0.00197566 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.52     using 59 bins.
 Reduced chi-squared = 0.759286
# Null hypothesis probability of 9.08e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 129.8 sec: 0.192623 ( -0.018902  0.019208 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.41662e-06 ( -1.79981e-07  1.77473e-07 ) ergs/cm2

Band function

Time interval is from  -53.116 sec. to   76.660 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

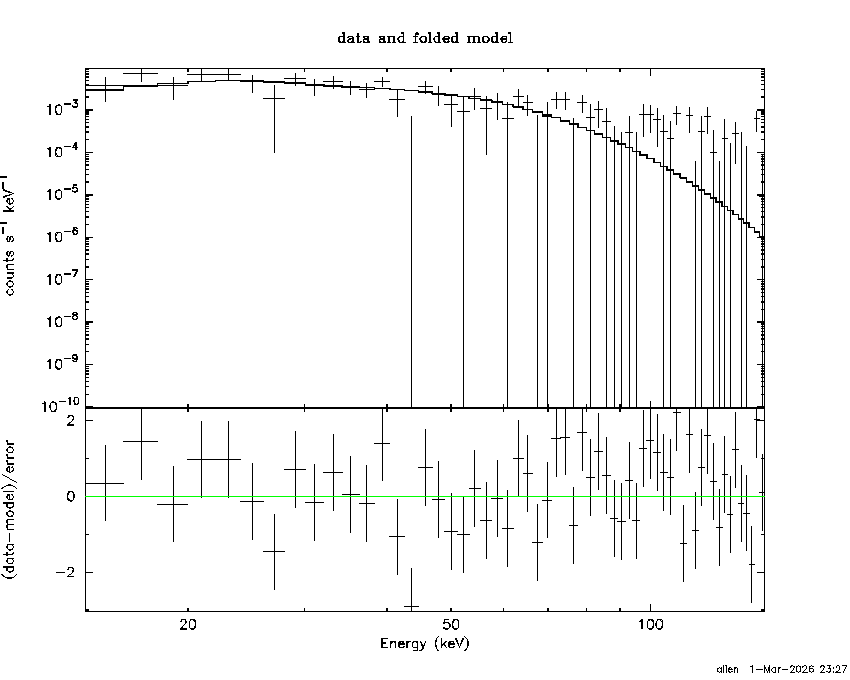

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.94336  (-1.29286  1.53016)
R^2/D10^2   : 0.129515  (-0.0590775   0.111193)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   78.48     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.11e-02 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.609e-07   5.140e-08
25- 50  5.491e-07   7.230e-08
50-150  2.055e-07   5.919e-08
15-150  1.016e-06   1.408e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 54.6554       (-14.1674      20.6598)
Norm        : 1.03827       (-0.175078     0.216533)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   45.39     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.66e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.331e-07   4.485e-08
25- 50  4.920e-07   1.164e-07
50-150  5.167e-07   2.546e-07
15-150  1.342e-06   3.881e-07

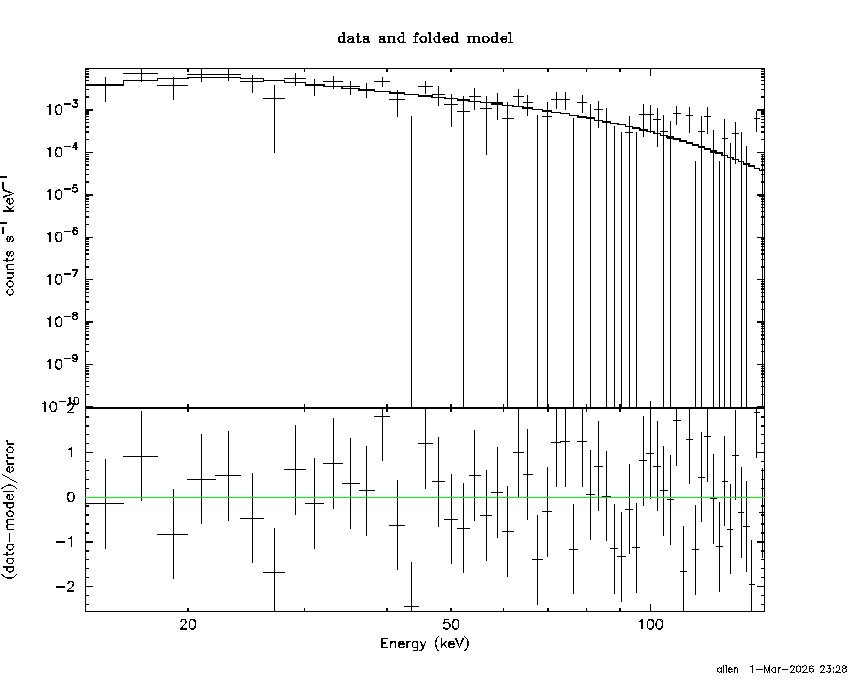

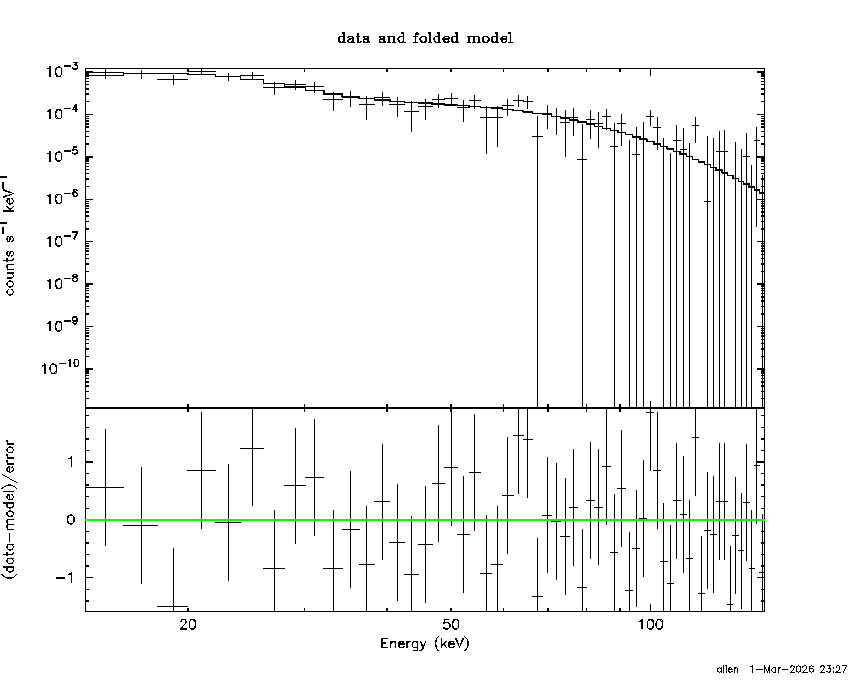

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.64193        (-0.880499      1.01251)
R1^2/D10^2  : 1.41948        (-0.805724      2.28494)
kT2 [keV]   : 18.3149        (-3.62059      5.32694)
R2^2/D10^2  : 6.03370E-03    (-0.00379287   0.00850586)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   38.65     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.54e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.820e-07   1.809e-07
25- 50  4.234e-07   1.733e-07
50-150  6.041e-07   3.268e-07
15-150  1.409e-06   5.188e-07

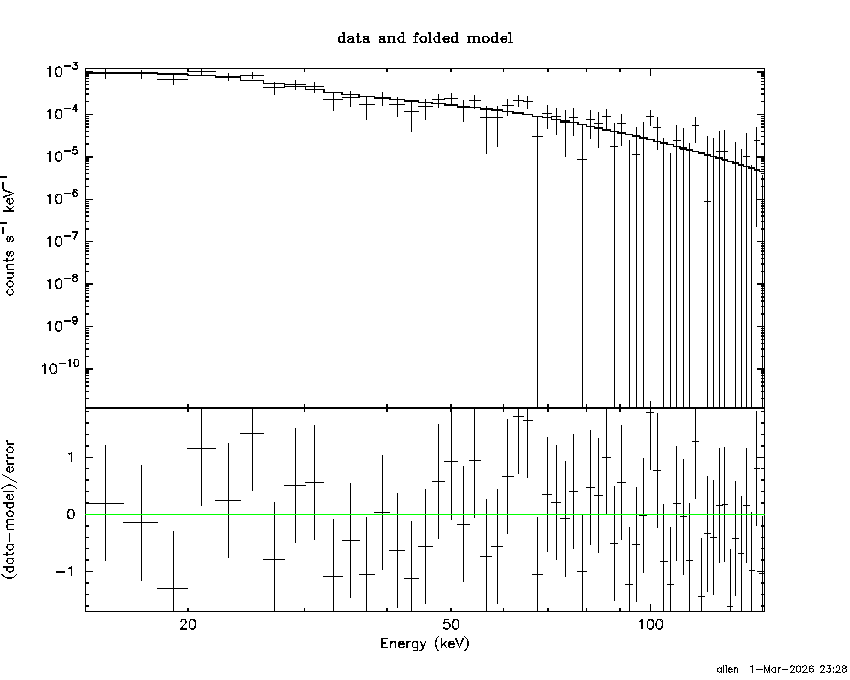

Peak spectrum fit

Power-law model

Time interval is from    0.264 sec. to    1.264 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.77975     ( -0.223024   0.234291 )
Norm@50keV  : 1.20628E-02    ( -0.00187898   0.00184743 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   60.93     using 59 bins.
 Reduced chi-squared = 1.06895
# Null hypothesis probability of 3.36e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.64945 ( -0.236  0.23621 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.11158e-07 ( -1.75183e-08  1.76907e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.264 sec. to    1.264 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.907137     ( -1.22598   0.912864 )
Epeak [keV] : 57.9304      ( -15.671 -57.9304 )
Norm@50keV  : 3.60226E-02    ( -0.0360226   0.135949 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.28     using 59 bins.
 Reduced chi-squared = 1.04071
# Null hypothesis probability of 3.91e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.62031 ( -0.23912  0.23891 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.05847e-07 ( -1.88368e-08  1.88914e-08 ) ergs/cm2

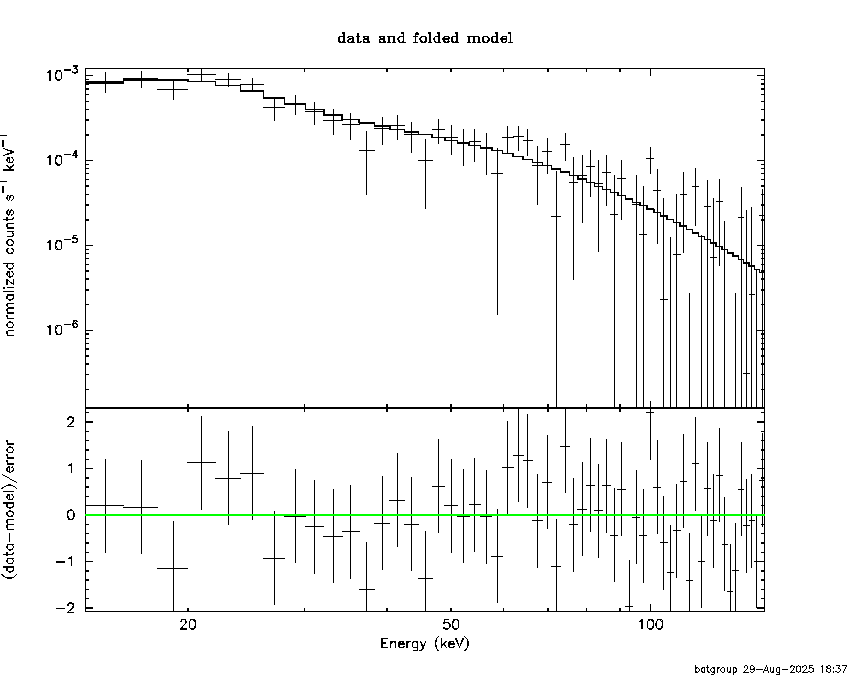

Band function

Time interval is from    0.264 sec. to    1.264 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.7383  (-1.81537  2.1839)
R^2/D10^2   : 0.451337  (-0.213027   0.390118)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   66.40     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.85e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.313e-08   3.473e-09
25- 50  4.024e-08   7.830e-09
50-150  3.284e-08   1.089e-08
15-150  8.620e-08   1.492e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 105.368       (-39.197      85.5527)
Norm        : 7.30551       (-1.27354     1.62471)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.68     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.14e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.909e-08   3.360e-09
25- 50  3.335e-08   6.420e-09
50-150  5.564e-08   2.957e-08
15-150  1.081e-07   3.605e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.81938        (-2.73262      2.69462)
R1^2/D10^2  : 1.45178        (-0.883581      3.95436)
kT2 [keV]   : 25.2752        (-20.1902      42.034)
R2^2/D10^2  : 1.59755E-02    (-0.0153143   0.0400928)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.21     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.93e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.754e-08   1.009e-08
25- 50  3.658e-08   1.986e-08
50-150  5.401e-08   3.176e-08
15-150  1.081e-07   5.625e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.17780     ( -0.194004   0.206957 )
Norm@50keV  : 1.17772E-03    ( -0.000159652   0.000155243 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.55     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.23e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 129.8 sec: 0.192728 ( -0.0189862  0.0189997 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.43295e-06 ( -1.6653e-07  1.69581e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97798     ( -0.635687   0.0333726 )
Epeak [keV] : 4.84533      ( -4.0487 -4.84533 )
Norm@50keV  : 1.52299E-03    ( -0.000310341   0.00197556 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.52     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.08e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 129.8 sec: 0.191841 ( -0.019591  0.019528 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.41926e-06 ( -1.84071e-07  1.79734e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.52e-07
S(50-100 keV) = 4.00e-07

T90 vs. Hardness ratio plot

T90                                   = 94.0119999647141 sec.
Hardness ratio (energy fluence ratio) = 0.884956

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.846187
Count Ratio (50-100 keV) / (15-25 keV) = 0.502627

Mask shadow pattern

IMX = -6.139561426774393E-01, IMY = 3.259209778338725E-01

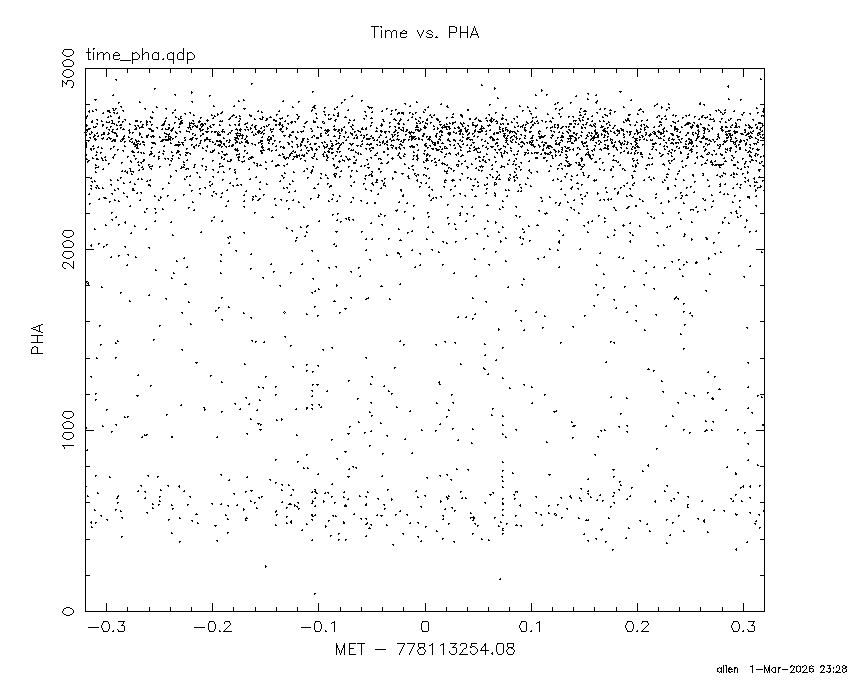

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.080000 -53.116000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5057 -40.5718  804.4  12.0  178.7   0.0040   0.0    1.5	Vela X-1
170.3494 -60.5969    2.9  19.9   46.4   1.3148   4.0    1.8	Cen X-3
186.3998 -62.9154    9.5  27.4   40.1   0.4376   1.2   11.2	GX 301-2
146.2257 -76.4151    3.3  32.0   77.3   1.9009   3.5 ------	UNKNOWN
207.5512 -36.7343    2.2  42.8   -4.8   2.5204   5.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-53.116000 76.660000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.6251 -40.7515    0.0  11.8  178.1  -0.0159  -0.1   12.6	Vela X-1
170.5384 -60.4720    6.8  19.8   46.0  -0.2927  -1.7   11.2	Cen X-3
186.7157 -62.9090    7.7  27.5   39.9   0.3080   1.5    8.5	GX 301-2
124.8649 -17.3534    1.2  34.8 -152.0   1.9969   9.3 ------	UNKNOWN
146.5684  -2.8304    2.7  41.8 -111.3   2.5316   4.2 ------	UNKNOWN
185.4085  -9.1321    2.3  46.2  -54.0   3.5175   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
345.820610 962.977300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3274 -60.6015   89.2  47.5 -137.5   0.3651   0.1    1.3	Cen X-3
186.6898 -62.7953    4.1  39.4 -138.0   4.9849   2.8    1.8	GX 301-2
244.9958 -15.6570    0.7  30.7  -11.6  19.5594  15.4    1.4	Sco X-1
256.1286 -37.8360    8.4   8.7   24.8   1.3920   1.4    6.7	4U 1700-377
256.4058 -36.5245    2.9  10.0   23.3   4.0561   4.0    6.2	GX 349+2
263.1067 -24.6941    6.5  23.1   28.4   2.0065   1.8    6.2	GX 1+4
264.8494 -44.2855    5.2   9.4   86.2   2.4309   2.2   10.9	4U 1735-44
268.2449  -1.4351    5.7  46.7   24.2  -4.0070  -2.0    7.5	SW J1753.5-0127
270.1295 -25.1063    8.0  25.5   42.8   1.9263   1.4    8.6	GX 5-1
270.1039 -25.6275    0.0  25.0   43.4   1.1621   0.9   12.8	GRS 1758-258
273.8221 -13.9274   30.2  37.0   38.6  -0.7602  -0.4   12.5	GX 17+2
276.1055 -30.3690    8.9  24.5   60.4   1.9096   1.3    9.3	H1820-303
285.0886 -25.0415   10.3  33.8   64.7   2.4895   1.1    7.8	HT1900.1-2455
263.0848 -33.9733    4.3  14.7   41.2   2.4559   2.7    9.6	GX 354-0
306.0380 -49.1335    3.8  36.0  116.7   6.9653   3.0 ------	UNKNOWN
288.9233 -31.3169    3.7  32.1   77.4   5.9801   3.1 ------	UNKNOWN
 48.9045 -78.8843    2.4  54.5  176.0  14.6014   4.9 ------	UNKNOWN
211.6805 -30.7219    2.1  34.4  -76.9  10.0935   5.5 ------	UNKNOWN

Plot creation:
Sun Mar  1 23:28:20 EST 2026
