batgrbproduct analysis for trigger=1351008

batgrbproduct Analysis for Trigger=1351008

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Sep 21 11:38:29 EDT 2025
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1351008/GCN5_download_cron
======================================================================

  Trigger: 01351008      Segment: 000

  BAT Trigger Time: 780050826.944   [s; MET]
      Trigger Stop: 780050827.968   [s; MET]
               UTC: 2025-09-20T08:46:30.582840    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 187.336671647084   Dec: 47.8441431180864  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    17.87
     Image Trigger?:     NO
     Rate S/N Ratio:     62.3538290724796  [ if not an image trigger ]
     Image S/N Ratio:    17.87

  Flight Position:   [ source = BAT ]
    RA: 187.336671647084   Dec: 47.8441431180864  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 187.315728734299   Dec: 47.8426734415596  [deg; J2000]
        { 12h 29m 15.8s , +47d 50' 33.6" }
         +/- 0.716127906467701 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.163428806238864 [arcmin] (formal 1-sigma fit error)
    SNR: 49.0088677031702

  Angular difference between Flight and Ground position is 0.847959 arcmin

  Partial Coding Fraction: 0.5703125    [ including projection effects ]

  Duration
     T90: 128.43599998951 +/- 1.00055178300946
        Measured from: -0.263999938964844
                   to: 128.172000050545     [s; relative to TRIGTIME]
     T50: 97.3679999113083 +/- 2.28327480470179
        Measured from: 7.4080001115799
                   to: 104.776000022888     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.287999987602234
                   to: 1.28799998760223     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -4.83200001716614
                   to: 149.432000041008     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     4.602484   6.638463   5.017210   1.300340
           0.086567   0.092565   0.080002   0.061270 [error]
 Peak      0.131817   0.225880   0.211818   0.059829
           0.010872   0.013090   0.012723   0.008888 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.52e-06 2.76e-06 3.84e-06 1.11e-05 1.10e-05 1.92e-05   erg/cm2
              Error 6.40e-08 6.65e-08 8.81e-08 6.00e-07 2.20e-07 6.34e-07   erg/cm2
Peak flux Power-law 1.30e+00 1.57e+00 1.36e+00 2.04e+00 4.95e+00 6.27e+00   ph/cm2/s
              Error 1.46e-01 1.09e-01 9.80e-02 3.01e-01 3.09e-01 4.13e-01   ph/cm2/s

Fluence   Cutoff-PL 1.44e-06 2.78e-06 3.92e-06 8.54e-06 1.09e-05 1.67e-05   erg/cm2
              Error 8.63e-08 6.95e-08 1.03e-07 1.54e-06 2.42e-07 1.55e-06   erg/cm2
Peak flux Cutoff-PL 1.20e+00 1.63e+00 1.43e+00 1.32e+00 4.89e+00 5.58e+00   ph/cm2/s
              Error 1.76e-01 1.27e-01 1.19e-01 5.68e-01 3.14e-01 6.34e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.525    0.038    -      -           7.56e-03 1.48e-04   42.790 57
CPL   1.306    0.154     182.2  153.0      9.42e-03 1.43e-03   36.640 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.199    0.102    -      -           4.22e-02 2.59e-03   46.030 57
CPL   0.785    0.420     157.6  448.8      6.68e-02 3.18e-02   42.900 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 128.000000 sec.
T50 in the 50-300 keV band: 89.984000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  154.264   -4.832  149.432
T90   128.436   -0.264  128.172
T50    97.368    7.408  104.776
Peak    1.000    0.288    1.288

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

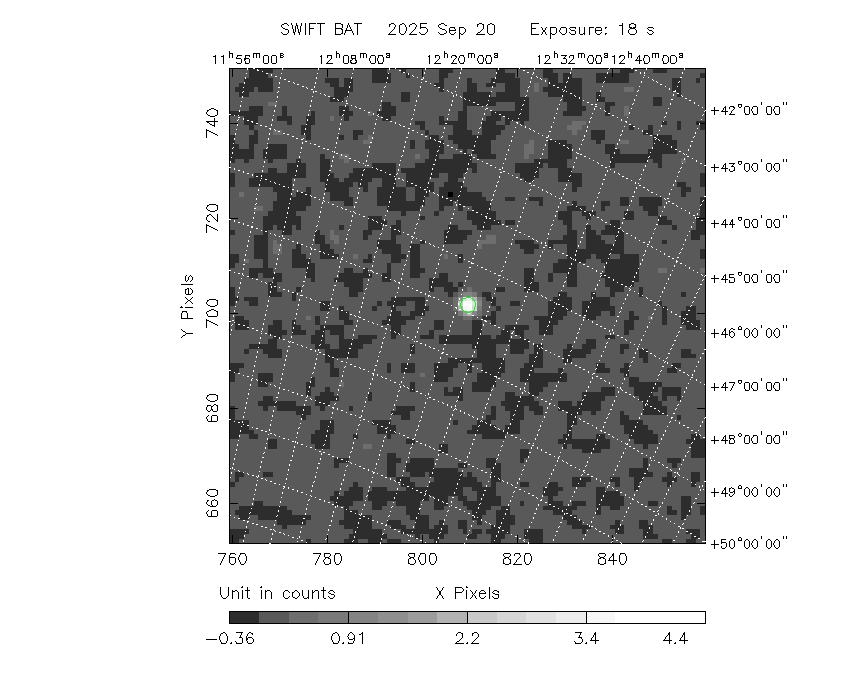

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  187.3157 +47.8427 0.0039   26.4  -72.7       5.0293    49.0  TRIG_01351008
------------------------------------------

Foreground time interval of the image:
 -4.832  13.557 (delta_t =  18.389 [sec])
Background time interval of the image:
-239.944  -4.832 (delta_t = 235.112 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

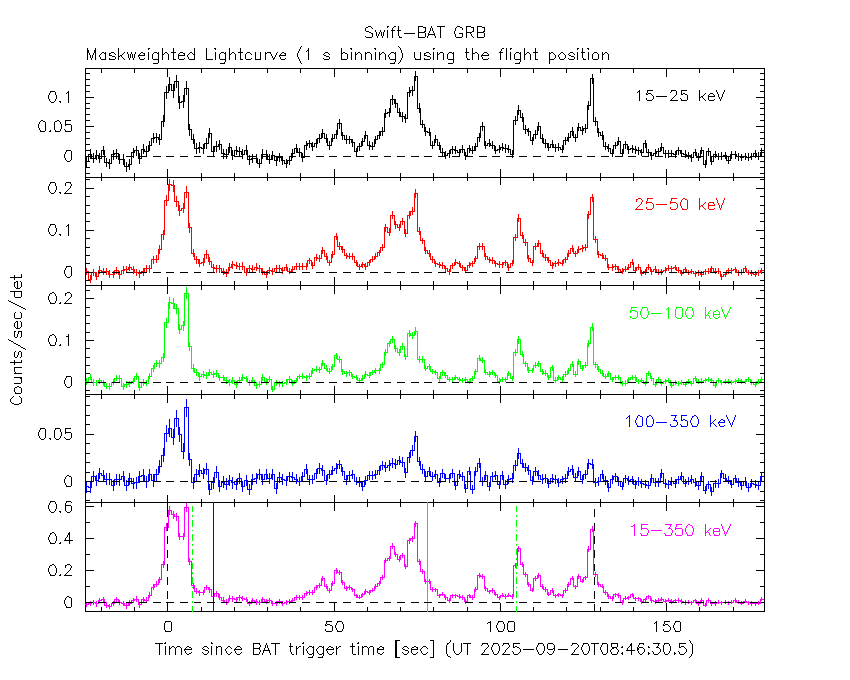

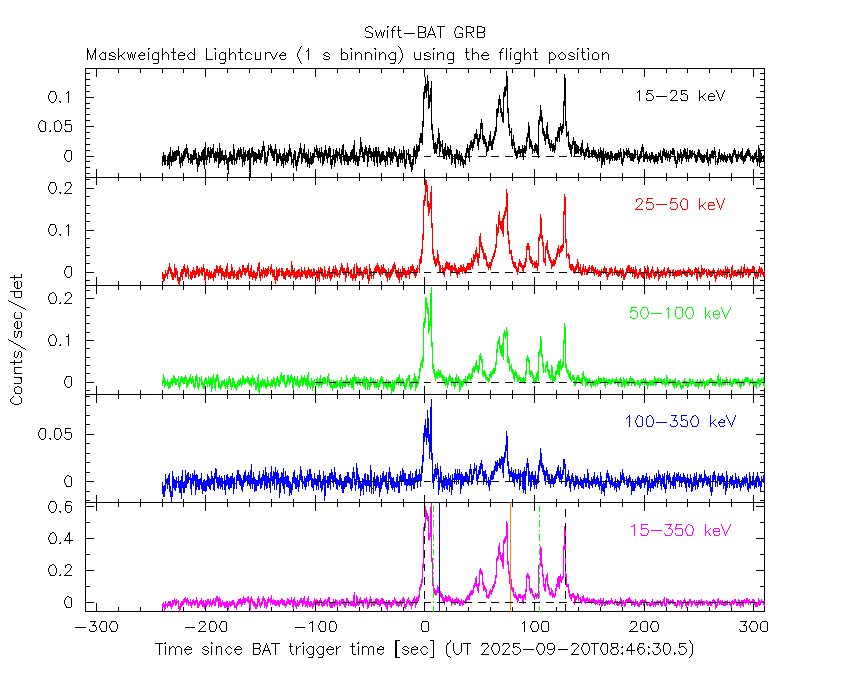

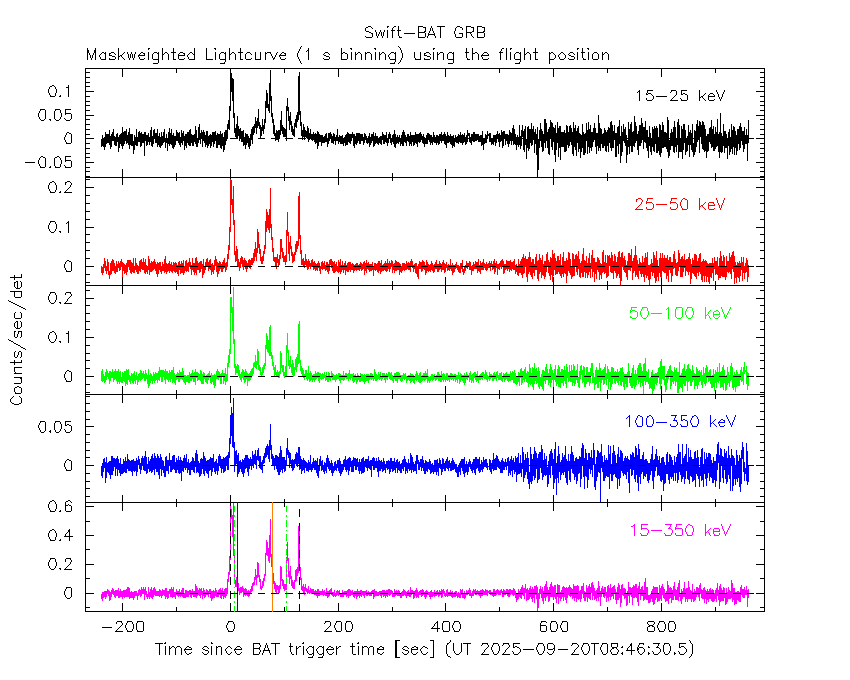

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

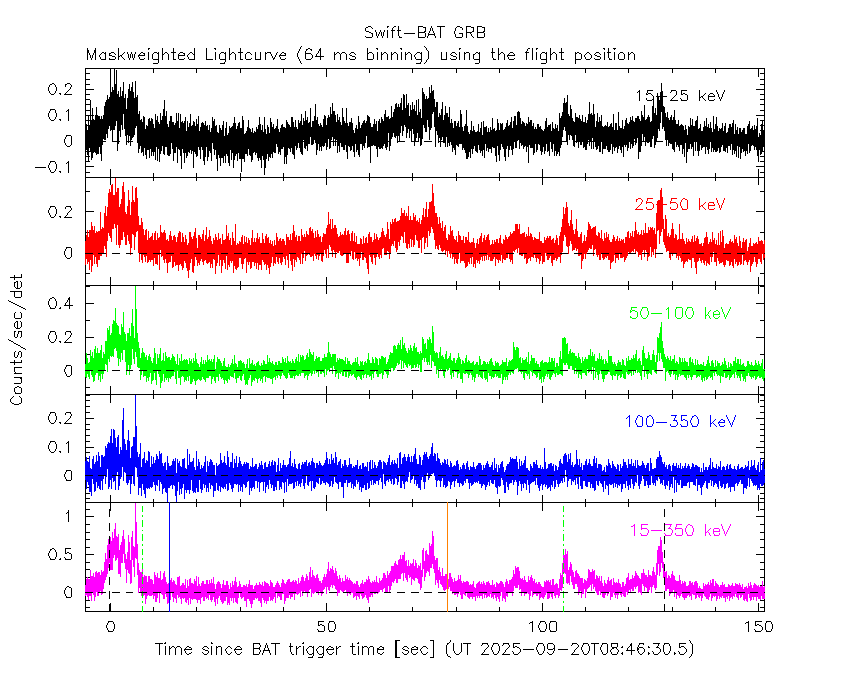

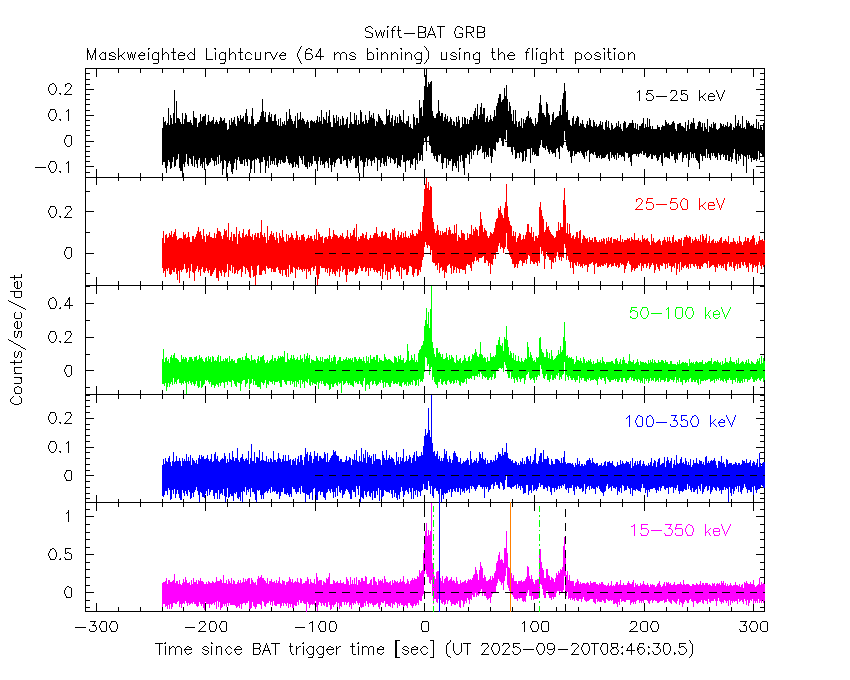

64 ms binning

Full time interval

From T100_start to T100_end

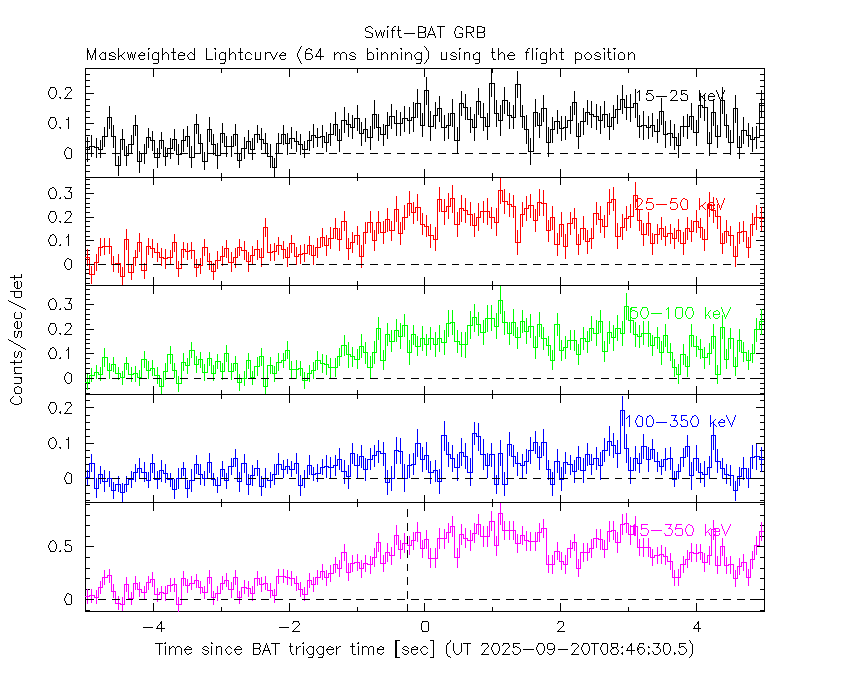

From T0-5 sec to T0+5 sec

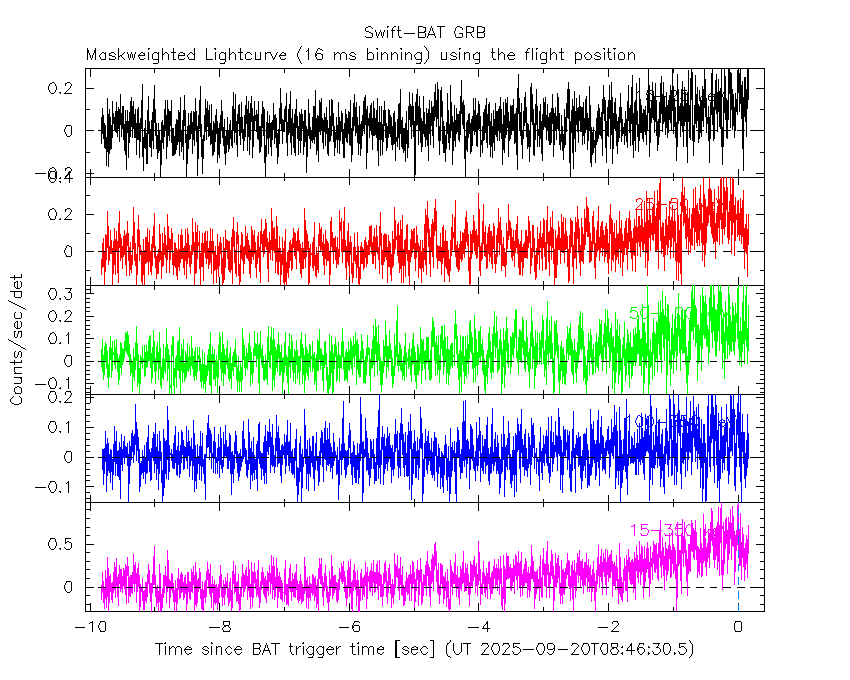

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

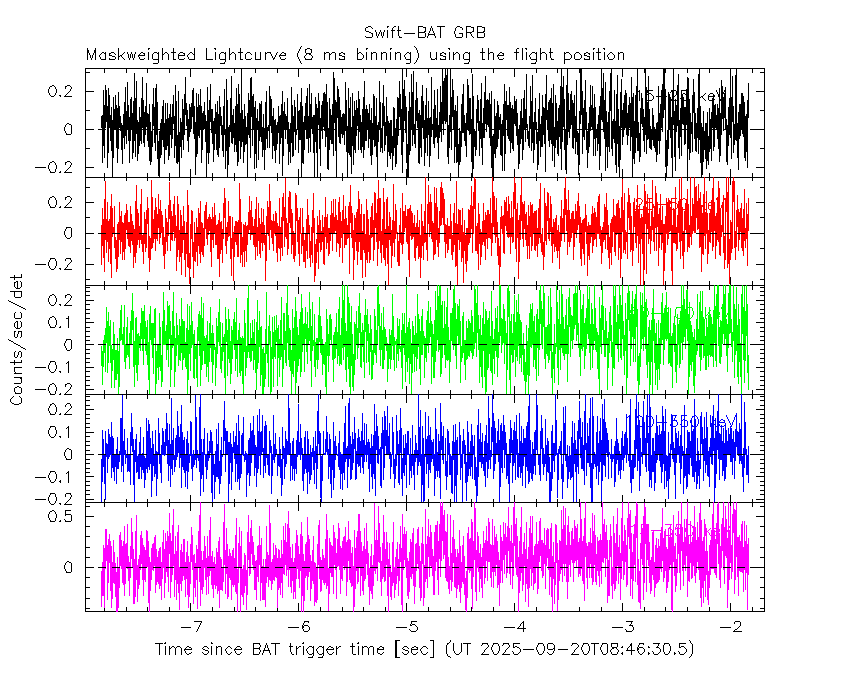

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

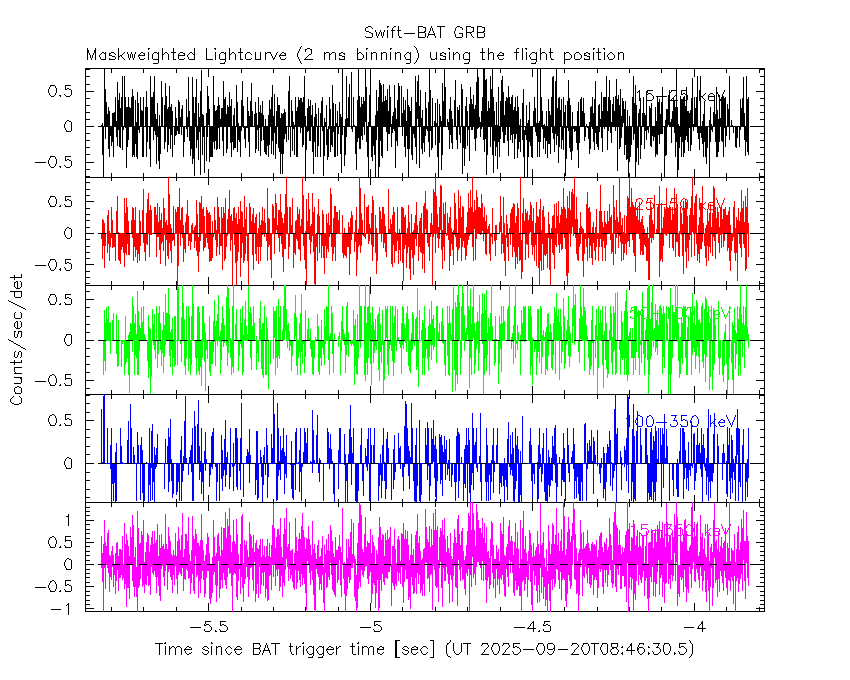

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

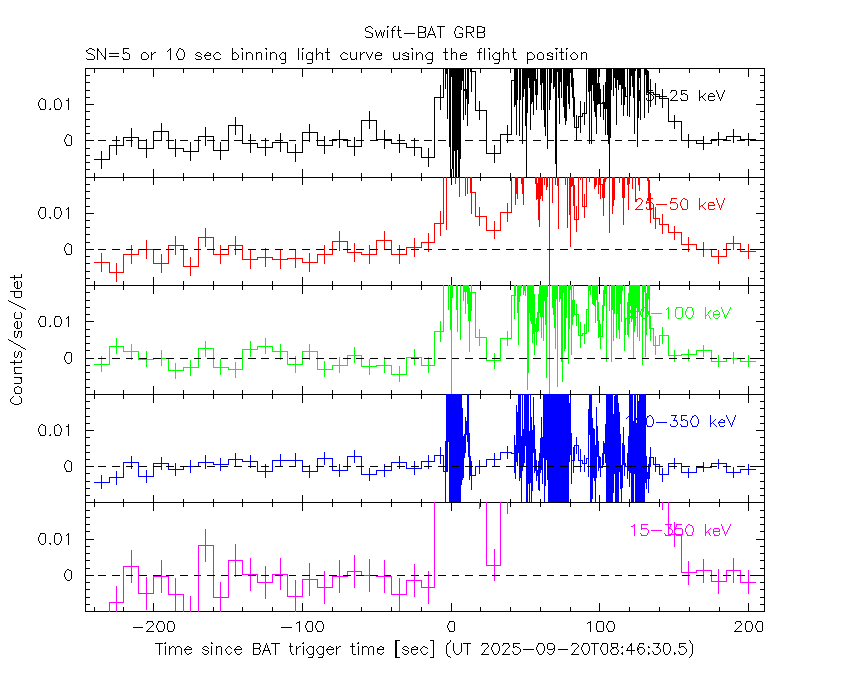

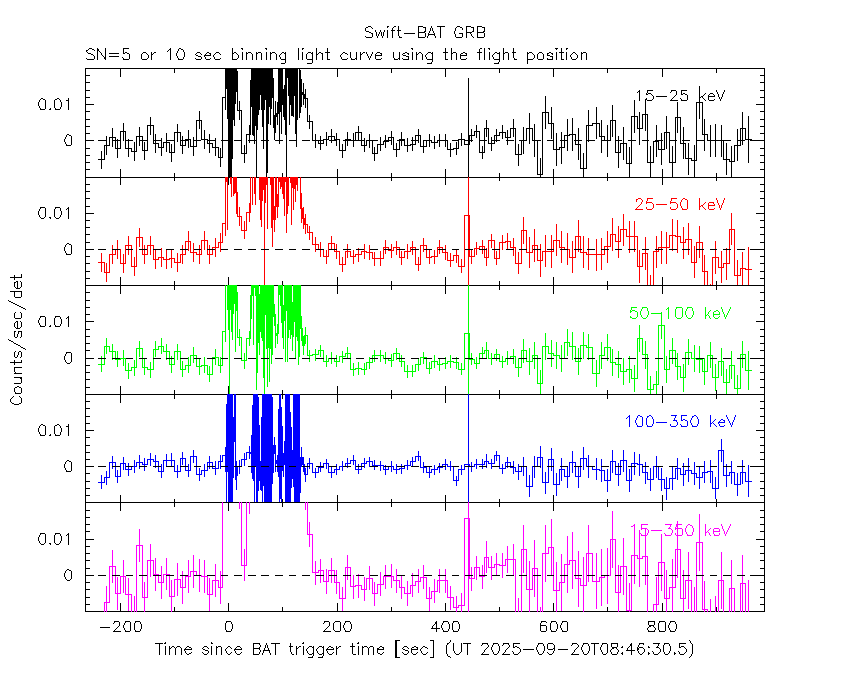

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

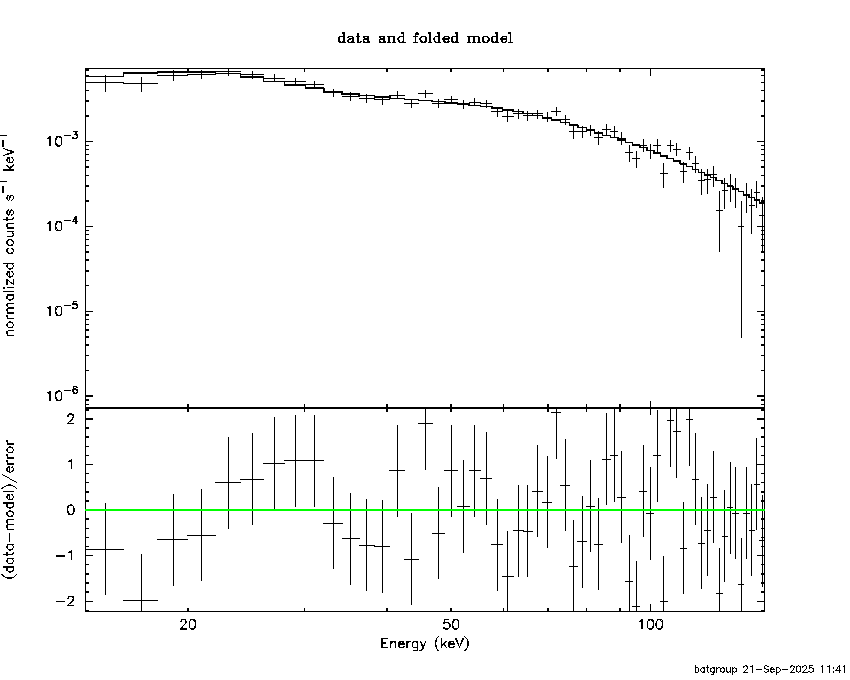

Time averaged spectrum fit using the pre-slew DRM

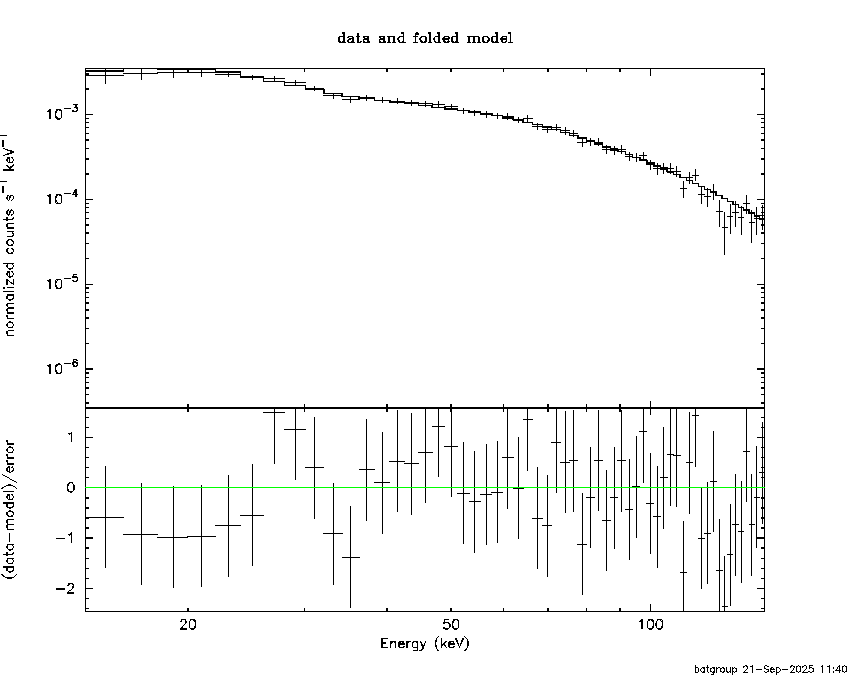

Power-law model

Time interval is from   -4.832 sec. to  149.432 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52481     ( -0.0377173   0.0377131 )
Norm@50keV  : 7.56216E-03    ( -0.000148427   0.000148411 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.79 using 59 PHA bins.
# Reduced chi-squared =         0.7507 for     57 degrees of freedom
# Null hypothesis probability =   9.188302e-01

Photon flux (15-150 keV)    in 154.3 sec: 0.950499 ( -0.0218991  0.0219844 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.10258e-05 ( -2.1999e-07  2.20089e-07 ) ergs/cm2

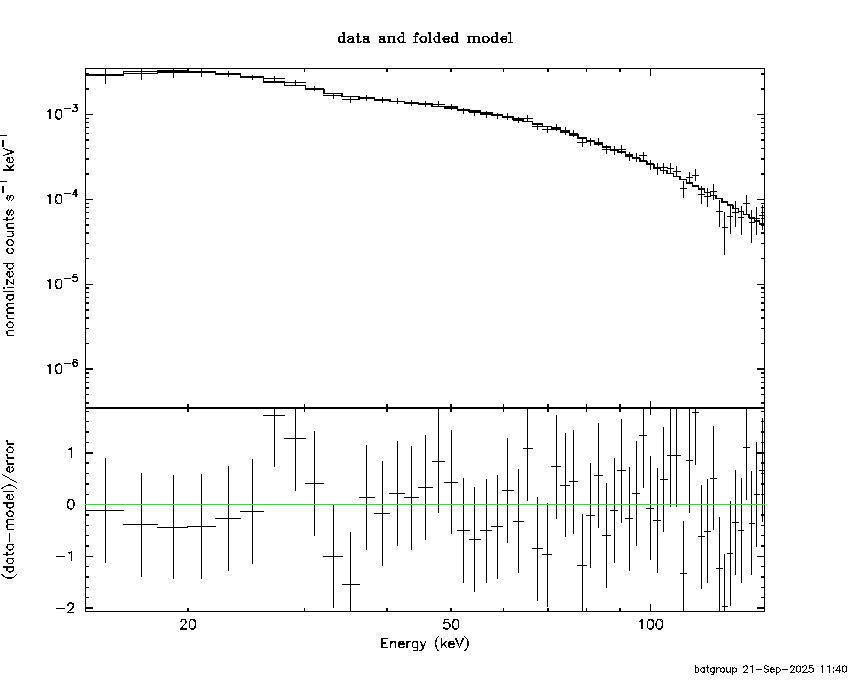

Cutoff power-law model

Time interval is from   -4.832 sec. to  149.432 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.30578     ( -0.156545   0.151432 )
Epeak [keV] : 182.217      ( -52.1711 253.926 )
Norm@50keV  : 9.42225E-03    ( -0.00129823   0.00155784 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.64 using 59 PHA bins.
# Reduced chi-squared =         0.6542 for     56 degrees of freedom
# Null hypothesis probability =   9.789258e-01

Photon flux (15-150 keV)    in 154.3 sec: 0.932313 ( -0.024786  0.024944 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.08863e-05 ( -2.42282e-07  2.41294e-07 ) ergs/cm2

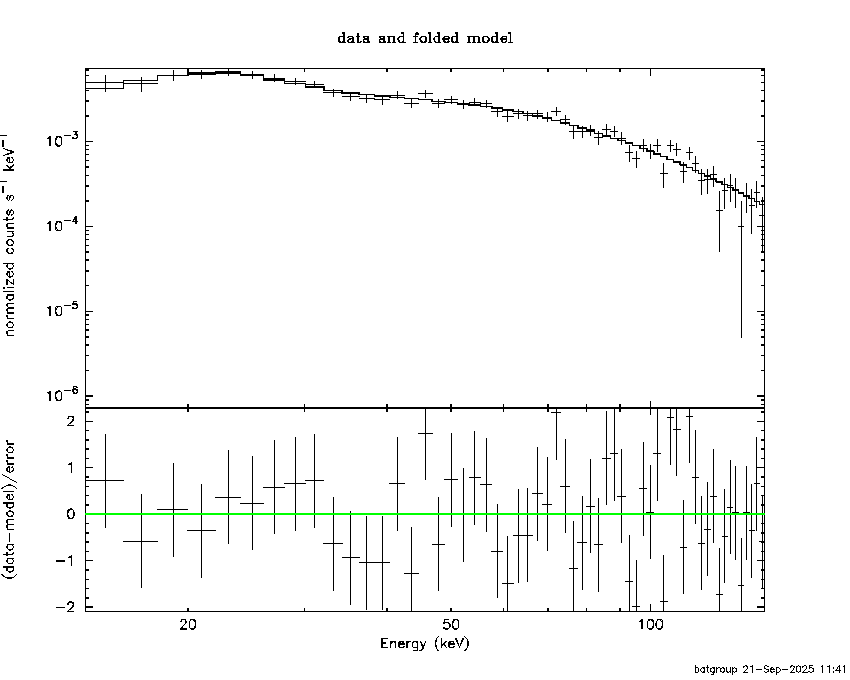

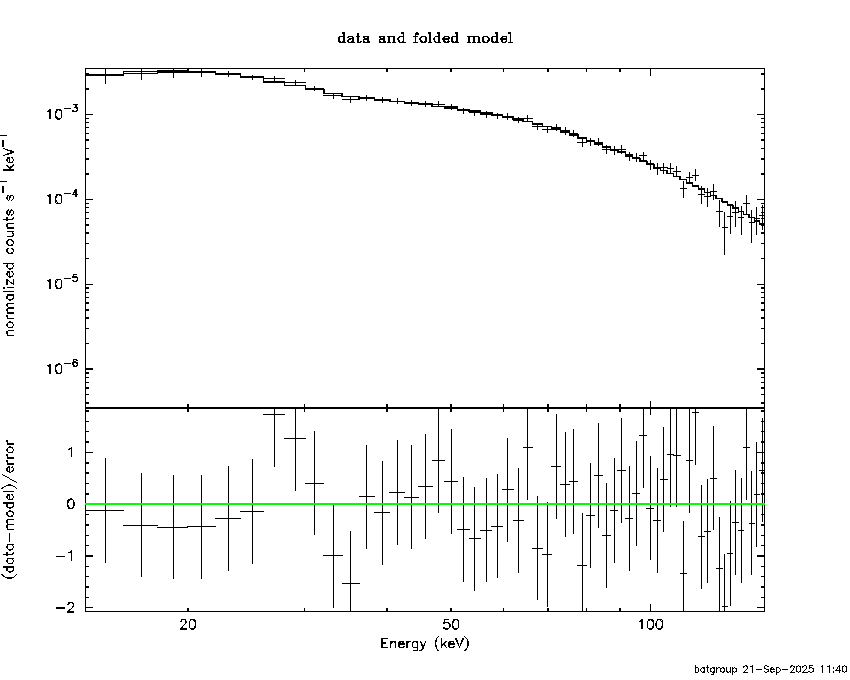

Band function

Time interval is from   -4.832 sec. to  149.432 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.31121   ( -0.321337   4.18745 )
beta        : -9.36918    ( 9.37152   19.3715 )
Epeak [keV] : 185.690      ( -28.585 117.851 )
Norm@50keV   : 9.36909E-03    ( -0.000187045   0.00151474 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.64 using 59 PHA bins.
# Reduced chi-squared =         0.6662 for     55 degrees of freedom
# Null hypothesis probability =   9.731656e-01

Photon flux (15-150 keV)    in 154.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

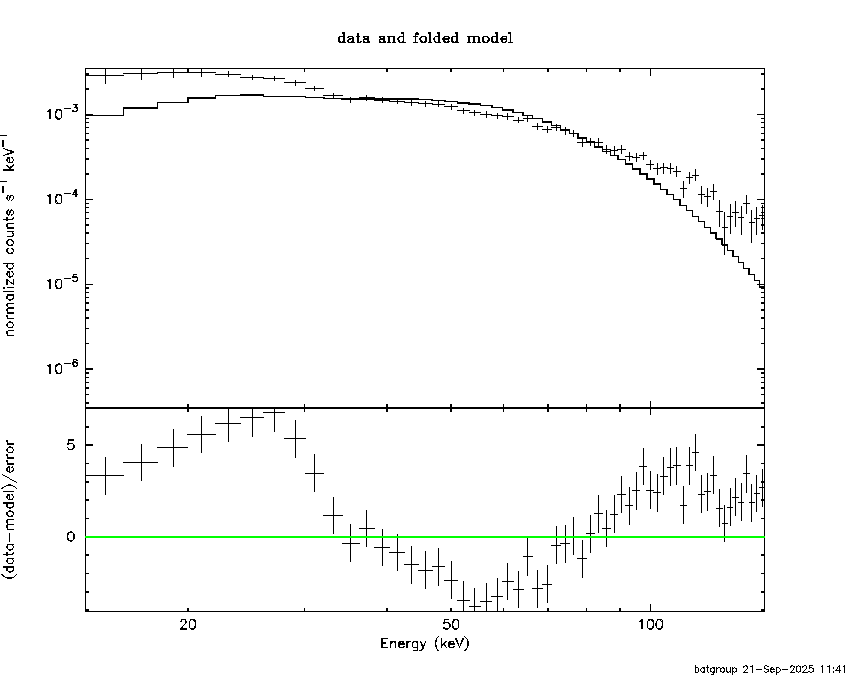

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.6219  (  )
R^2/D10^2   : 5.84364E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         536.42 using 59 PHA bins.
# Reduced chi-squared =         9.4109 for     57 degrees of freedom
# Null hypothesis probability =   3.878535e-79

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.643e-07   2.384e-08
25- 50  2.568e-06   7.406e-08
50-150  5.756e-06   1.929e-07
15-150  8.889e-06   1.952e-07

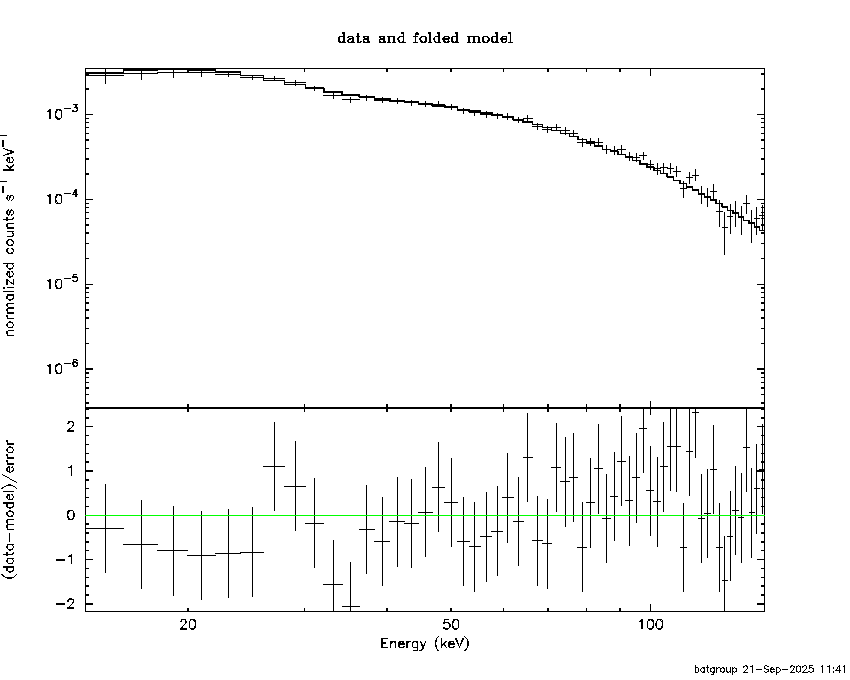

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-5.72895      -200)
Norm        : 3.89103       (-0.0760964     0.0760964)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.495e-06   3.410e-08
25- 50  2.877e-06   6.249e-08
50-150  6.309e-06   1.535e-07
15-150  1.068e-05   2.639e-07

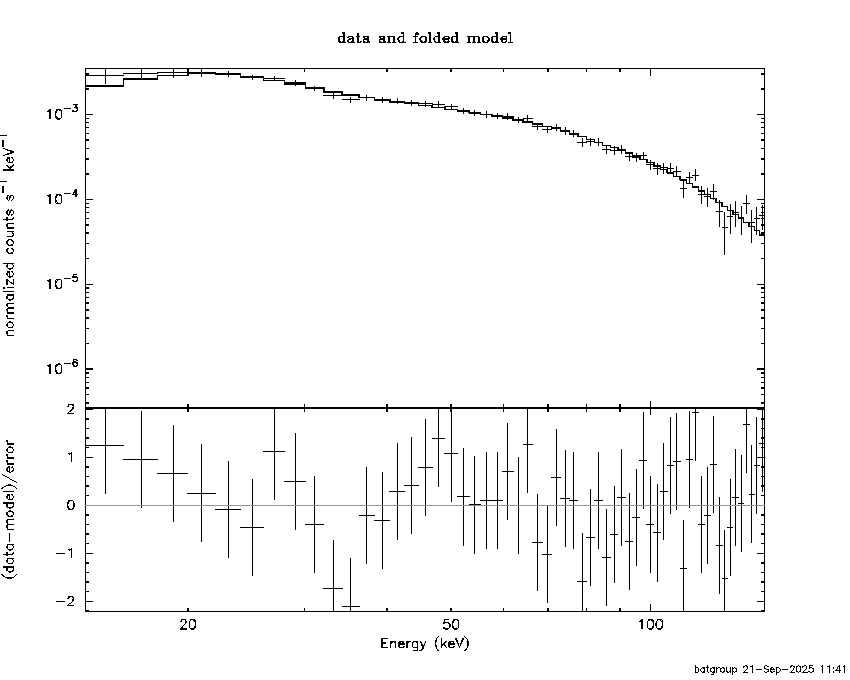

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.59047        (-0.597754      0.633613)
R1^2/D10^2  : 0.705343        (-0.170099      0.240162)
kT2 [keV]   : 28.1207        (-1.88032      2.30404)
R2^2/D10^2  : 9.24957E-03    (-0.00231376   0.00271868)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.271e-06   9.351e-08
25- 50  2.835e-06   1.018e-07
50-150  6.674e-06   2.739e-07
15-150  1.078e-05   3.611e-07

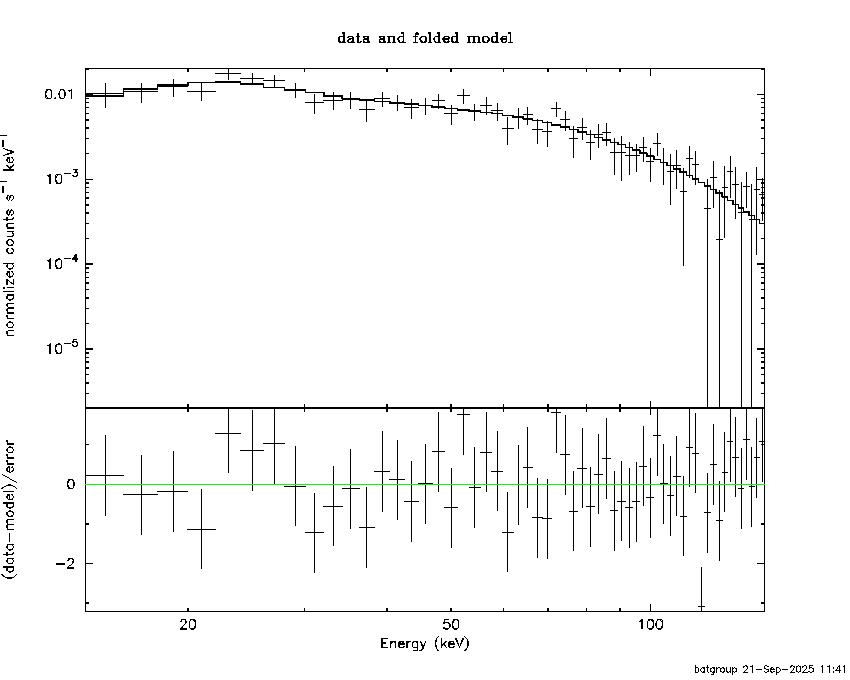

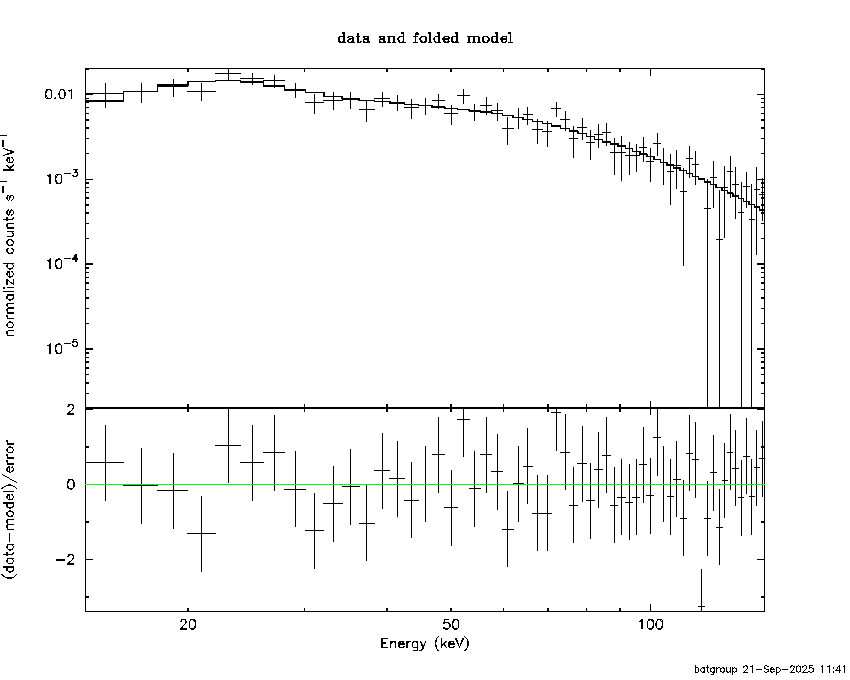

Peak spectrum fit

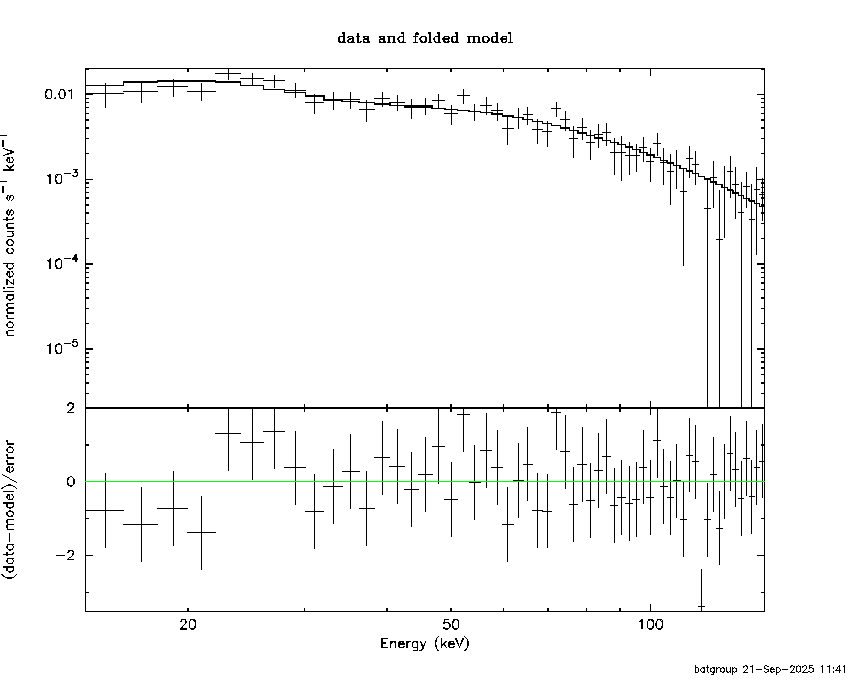

Power-law model

Time interval is from    0.288 sec. to    1.288 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.19944     ( -0.101996   0.101756 )
Norm@50keV  : 4.21696E-02    ( -0.00259276   0.00259238 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.03 using 59 PHA bins.
# Reduced chi-squared =         0.8075 for     57 degrees of freedom
# Null hypothesis probability =   8.505454e-01

Photon flux (15-150 keV)    in 1 sec: 4.94946 ( -0.309151  0.309287 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.27896e-07 ( -2.94823e-08  2.95919e-08 ) ergs/cm2

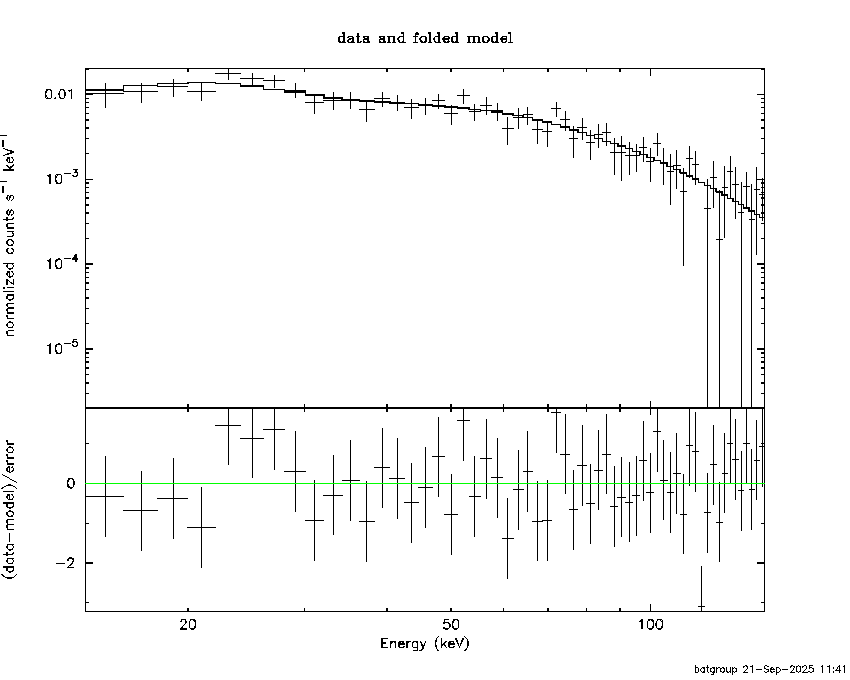

Cutoff power-law model

Time interval is from    0.288 sec. to    1.288 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.785024     ( -0.440392   0.39989 )
Epeak [keV] : 157.619      ( -55.3573 842.167 )
Norm@50keV  : 6.67703E-02    ( -0.0232218   0.0403507 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.90 using 59 PHA bins.
# Reduced chi-squared =         0.7661 for     56 degrees of freedom
# Null hypothesis probability =   9.007174e-01

Photon flux (15-150 keV)    in 1 sec: 4.89196 ( -0.31451  0.31436 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.19434e-07 ( -3.1326e-08  3.1129e-08 ) ergs/cm2

Band function

Time interval is from    0.288 sec. to    1.288 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.56195   ( -5.58766   -3.56176 )
beta        : -1.31354    ( -0.147129   0.13522 )
Epeak [keV] : 31.1690      ( -6.30588 94.9922 )
Norm@50keV   : 109.401    ( -109.249   402.89 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.97 using 59 PHA bins.
# Reduced chi-squared =         0.7450 for     55 degrees of freedom
# Null hypothesis probability =   9.202333e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.4152  (-1.44158  1.592)
R^2/D10^2   : 0.306284  (-0.0732685   0.0946255)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.064e-08   2.465e-09
25- 50  9.708e-08   8.260e-09
50-150  2.403e-07   2.740e-08
15-150  3.580e-07   2.960e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-11.5734      -200)
Norm        : 20.2516       (-1.26954     1.26954)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.041e-08   3.560e-09
25- 50  9.697e-08   9.230e-09
50-150  2.127e-07   5.470e-08
15-150  3.601e-07   5.990e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.28253        (-1.97795      2.53494)
R1^2/D10^2  : 2.33705        (-1.19316      3.0195)
kT2 [keV]   : 30.6896        (-6.00527      14.7079)
R2^2/D10^2  : 4.56640E-02    (-0.0326966   0.053129)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.635e-08   1.152e-08
25- 50  9.649e-08   2.215e-08
50-150  2.885e-07   1.056e-07
15-150  4.213e-07   1.210e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.26913     ( -0.0533193   0.0531323 )
Norm@50keV  : 1.81410E-02    ( -0.00052674   0.000526526 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.21 using 59 PHA bins.
# Reduced chi-squared =          1.144 for     57 degrees of freedom
# Null hypothesis probability =   2.127441e-01

Photon flux (15-150 keV)    in 18.39 sec: 2.15244 ( -0.0670867  0.0672229 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.32223e-06 ( -1.02627e-07  1.02774e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.11865     ( -0.208567   0.171339 )
Epeak [keV] : 332.629      (   )
Norm@50keV  : 2.11891E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.56 using 59 PHA bins.
# Reduced chi-squared =          1.135 for     56 degrees of freedom
# Null hypothesis probability =   2.275073e-01

Photon flux (15-150 keV)    in 18.39 sec: 2.13328 ( -0.07131  0.07145 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.29722e-06 ( -1.09218e-07  1.08795e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.89625   ( -5.89949   -3.4136 )
beta        : -1.31664    ( -0.0666459   0.0638859 )
Epeak [keV] : 29.6822      ( -5.02487 38.5862 )
Norm@50keV   : 21.1054    ( -21.1052   331.956 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.07 using 59 PHA bins.
# Reduced chi-squared =          1.074 for     55 degrees of freedom
# Null hypothesis probability =   3.292281e-01

Photon flux (15-150 keV)    in 18.39 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.76e-06
S(50-100 keV) = 3.84e-06

T90 vs. Hardness ratio plot

T90                                   = 128.43599998951 sec.
Hardness ratio (energy fluence ratio) = 1.3913

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.44237
Count Ratio (50-100 keV) / (15-25 keV) = 1.09011

Mask shadow pattern

IMX = 1.470797417056447E-01, IMY = 4.730137515851542E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.944000 -4.832000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4976  35.3566  291.5  33.2  170.9  -0.0169  -0.0    2.1	Her X-1
158.6217  38.1455    2.5  46.6  -53.9   6.8069   4.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-4.832000 13.556640

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5187  35.4121   14.2  33.2  170.8  -0.0718  -0.8    5.1	Her X-1
221.6732  87.7408    2.4  24.0   35.4   0.3598   4.8 ------	UNKNOWN
187.3157  47.8427    0.2  26.4  -72.7   5.0294  49.0 ------	UNKNOWN
215.4773  29.6316    2.2  34.8 -127.8   0.5920   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
78.056590 440.536000
442.056000 442.076000
443.056000 451.556600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3262  35.4213    3.1  50.0  155.8  -5.5949  -3.7    8.0	Her X-1
187.2708  47.8190    1.0   0.0  -23.3   5.5188  11.3 ------	UNKNOWN
138.2189  38.0601    2.6  36.6   -9.6   2.8749   4.5 ------	UNKNOWN
152.8753  28.2374    2.7  33.0  -36.6   2.5834   4.3 ------	UNKNOWN

Plot creation:
Sun Sep 21 11:42:14 EDT 2025
