TDRSS scaled map for 1403878
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Tue 14 Oct 25 00:33:56 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1403878, Seg_Num: 0
GRB_RA: 111.732d {+07h 26m 56s} (J2000),
112.078d {+07h 28m 19s} (current),
111.062d {+07h 24m 15s} (1950)
GRB_DEC: +6.415d {+06d 24' 54"} (J2000),
+6.361d {+06d 21' 41"} (current),
+6.517d {+06d 30' 60"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 1938 [cnts] Image_Peak=218 [image_cnts]
TRIGGER_DUR: 0.512 [sec]
TRIGGER_INDEX: 41 E_range: 25-100 keV
BKG_INTEN: 16466 [cnts]
BKG_TIME: 1699.50 SOD {00:28:19.50} UT
BKG_DUR: 8 [sec]
GRB_DATE: 20962 TJD; 287 DOY; 25/10/14
GRB_TIME: 1710.18 SOD {00:28:30.18} UT
GRB_PHI: -82.07 [deg]
GRB_THETA: 17.47 [deg]
SOLN_STATUS: 0x20000003
RATE_SIGNIF: 23.51 [sigma]
IMAGE_SIGNIF: 13.27 [sigma]
MERIT_PARAMS: +1 +0 +0 -1 +2 +2 -5 +0 -2 +0
SUN_POSTN: 199.33d {+13h 17m 19s} -8.16d {-08d 09' 53"}
SUN_DIST: 88.20 [deg] Sun_angle= 5.8 [hr] (West of Sun)
MOON_POSTN: 116.98d {+07h 47m 55s} +25.49d {+25d 29' 06"}
MOON_DIST: 19.69 [deg]
MOON_ILLUM: 47 [%]
GAL_COORDS: 211.21, 10.80 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 112.43,-15.35 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This Notice was delayed by more than 60 sec past the end of the trigger integration interval;
COMMENTS: probably due to it occurring during a Malindi downlink session.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 15.91,9.61 [deg].
GCN BAT Scaled Map Notice

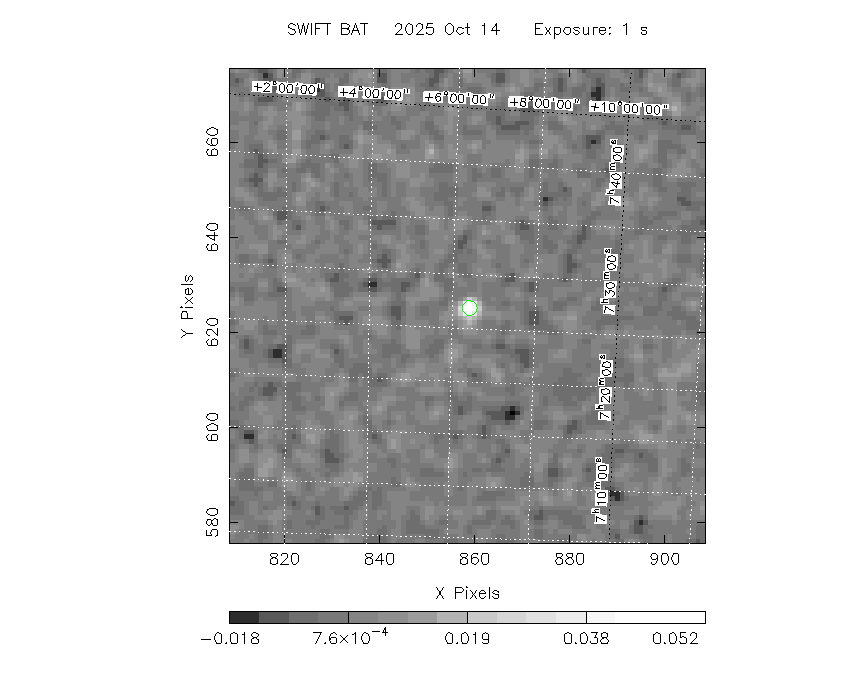

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (111.732, +6.415).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 111.732 +6.415 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
52.8001 43.9046 0.0 50.0 141.7 0.0125 0.6 0.0 GK Per
53.7495 53.1732 0.0 54.8 151.8 0.0166 0.4 0.0 V0332+53
58.8458 31.0497 0.0 39.6 129.0 -0.0045 -0.5 0.0 X Per
76.4194 -23.8414 0.0 37.3 27.9 0.0091 1.5 0.0 XSS J05054-2348
83.6332 22.0145 0.0 16.5 143.0 0.0052 1.3 0.0 Crab
88.0474 -7.4562 0.0 17.7 21.1 0.0020 0.5 0.0 NGC 2110
94.2804 9.1369 0.0 0.0 133.6 0.0037 1.0 0.0 4U 0614+091
133.6934 39.5386 0.0 46.4 -137.2 0.0084 0.7 0.0 NGC 2691
63.1419 3.3300 2.1 31.5 81.7 0.0387 5.6 ------ UNKNOWN
111.7098 6.3996 1.0 17.5 -82.0 0.0537 11.9 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
83.6332 22.0145 0.0 16.5 143.0 0.0052 1.3 0.0 Crab
63.1419 3.3300 2.1 31.5 81.7 0.0387 5.6 ------ UNKNOWN
111.7098 6.3996 1.0 17.5 -82.0 0.0537 11.9 ------ UNKNOWN
Search for UNKNOWN source R.A. = 63.1419 Dec. = +3.3300 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 111.7098 Dec. = +6.3996 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1403878/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Mon Oct 13 20:38:09 EDT 2025
