batgrbproduct analysis for trigger=1404126

batgrbproduct Analysis for Trigger=1404126

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Oct 16 13:22:45 EDT 2025
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1404126/batgroup_hand_proc
======================================================================

  Trigger: 01404126      Segment: 000

  BAT Trigger Time: 782171717.056   [s; MET]
      Trigger Stop: 782171725.248   [s; MET]
               UTC: 2025-10-14T21:54:40.550860    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 323.917918787263   Dec: -41.839344253606  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.49
     Image Trigger?:     NO
     Rate S/N Ratio:     8.71779788708135  [ if not an image trigger ]
     Image S/N Ratio:    7.49

  Flight Position:   [ source = BAT ]
    RA: 323.917918787263   Dec: -41.839344253606  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 323.932969251917   Dec: -41.8730518437922  [deg; J2000]
        { 21h 35m 43.9s , -41d 52' 23.0" }
         +/- 2.72203076193821 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.24527146939522 [arcmin] (formal 1-sigma fit error)
    SNR: 7.27516126255353

  Angular difference between Flight and Ground position is 2.131363 arcmin

  Partial Coding Fraction: 0.4921875    [ including projection effects ]

  Duration
     T90: 286.975999951363 +/- 70.0941769025416
        Measured from: 1.96800005435944
                   to: 288.944000005722     [s; relative to TRIGTIME]
     T50: 191.571999907494 +/- 163.030265341405
        Measured from: 7.89600002765656
                   to: 199.46799993515     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 5.18400001525879
                   to: 6.18400001525879     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.391999959945679
                   to: 310.103999972343     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.514556   0.570878   0.412010   0.154335
           0.110454   0.114518   0.095855   0.078321 [error]
 Peak      0.023396   0.012132   0.032301   0.008921
           0.008443   0.008932   0.008101   0.006156 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.73e-07 2.75e-07 3.29e-07 7.68e-07 9.99e-07 1.55e-06   erg/cm2
              Error 5.59e-08 5.55e-08 9.80e-08 4.86e-07 2.29e-07 5.71e-07   erg/cm2
Peak flux Power-law 1.51e-01 1.72e-01 1.40e-01 1.92e-01 5.33e-01 6.55e-01   ph/cm2/s
              Error 1.07e-01 7.94e-02 6.14e-02 1.73e-01 2.20e-01 2.59e-01   ph/cm2/s

Fluence   Cutoff-PL 1.73e-07 2.75e-07 3.29e-07 7.64e-07 9.93e-07 1.49e-06   erg/cm2
              Error 5.59e-08 5.52e-08 9.90e-08 7.06e-07 2.28e-07 6.56e-07   erg/cm2
Peak flux Cutoff-PL 1.15e-01 1.83e-01 1.60e-01 8.41e-02 5.12e-01 5.42e-01   ph/cm2/s
              Error 1.30e-01 1.39e-01 8.91e-02 1.27e-01 2.56e-01 4.43e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.740    0.377    -      -           3.49e-04 7.70e-05   67.710 57
CPL   2.419    0.960     150.4    0.0      1.58e-04 0.00e+00   67.420 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.293    0.671    -      -           4.48e-03 1.76e-03   57.820 57
CPL   0.206    0.874      93.1    0.0      1.39e-02 1.08e+02   57.350 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 7.808000 sec.
T50 in the 50-300 keV band: 4.416000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  309.712    0.392  310.104
T90   286.976    1.968  288.944
T50   191.572    7.896  199.468
Peak    1.000    5.184    6.184

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

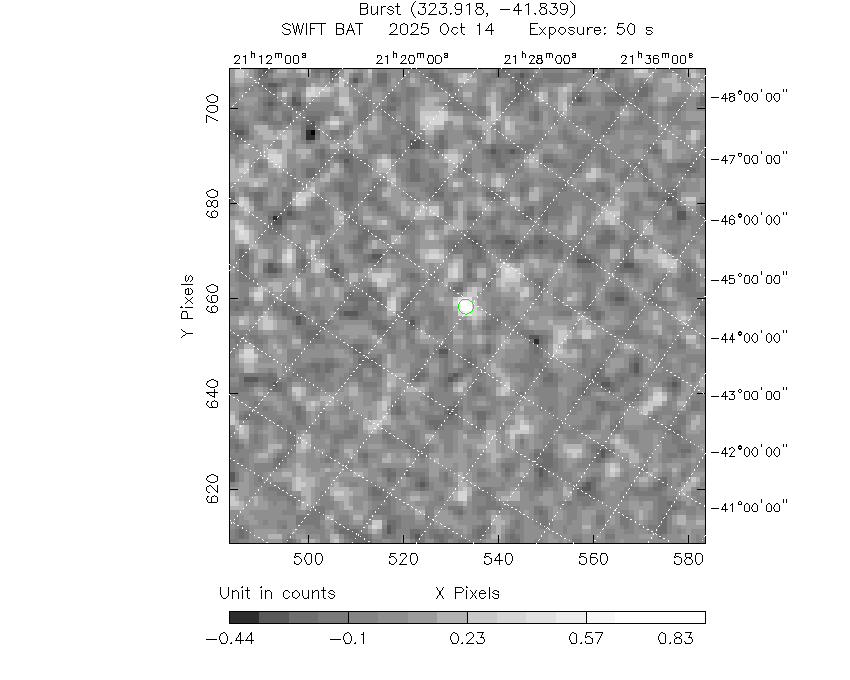

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  323.9330 -41.8731 0.0264   39.4  -27.7       0.9034     7.3  TRIG_01404126
------------------------------------------

Foreground time interval of the image:
  0.392  50.845 (delta_t =  50.453 [sec])
Background time interval of the image:
-239.056   0.392 (delta_t = 239.448 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

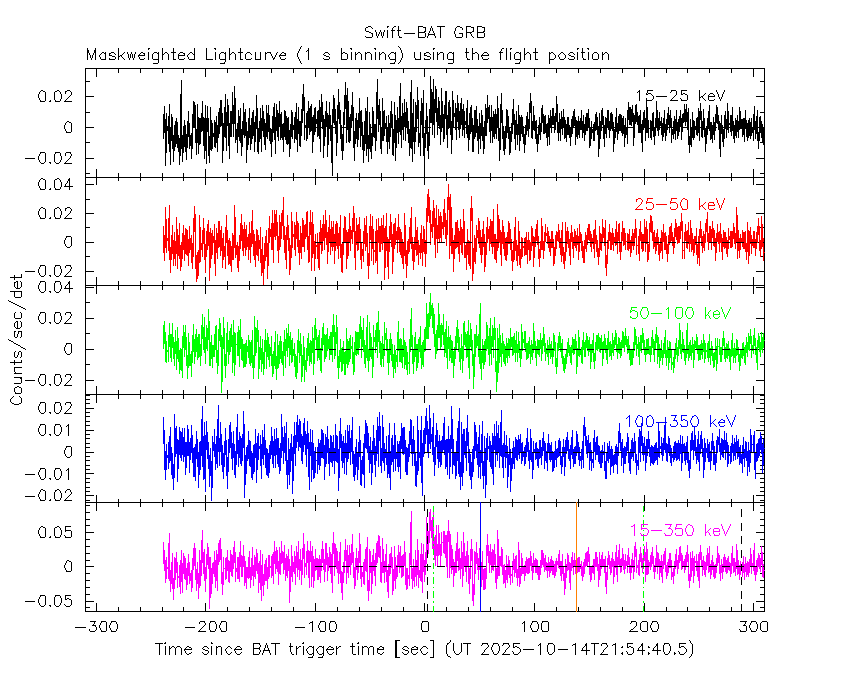

1 s binning

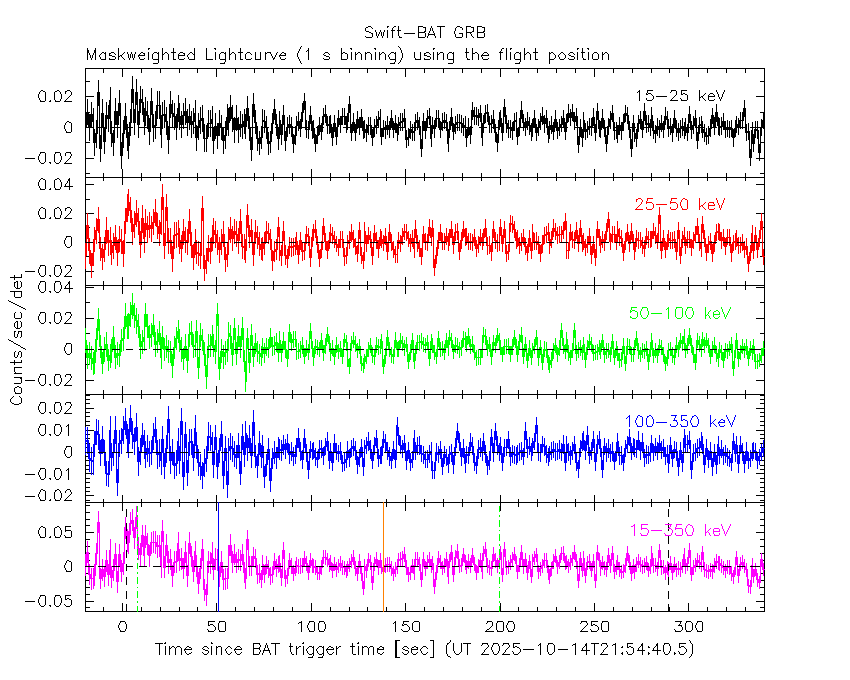

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

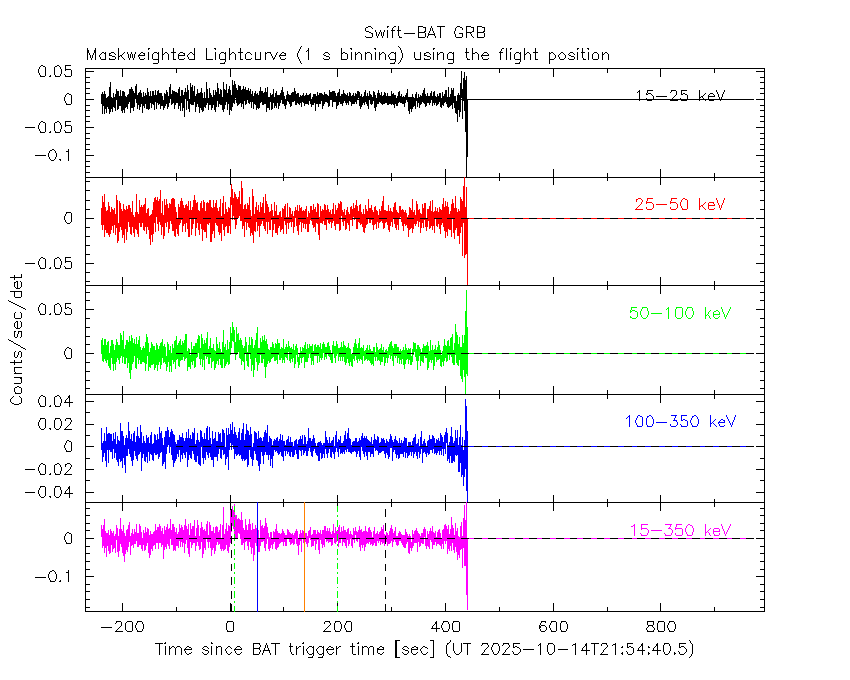

Full time interval

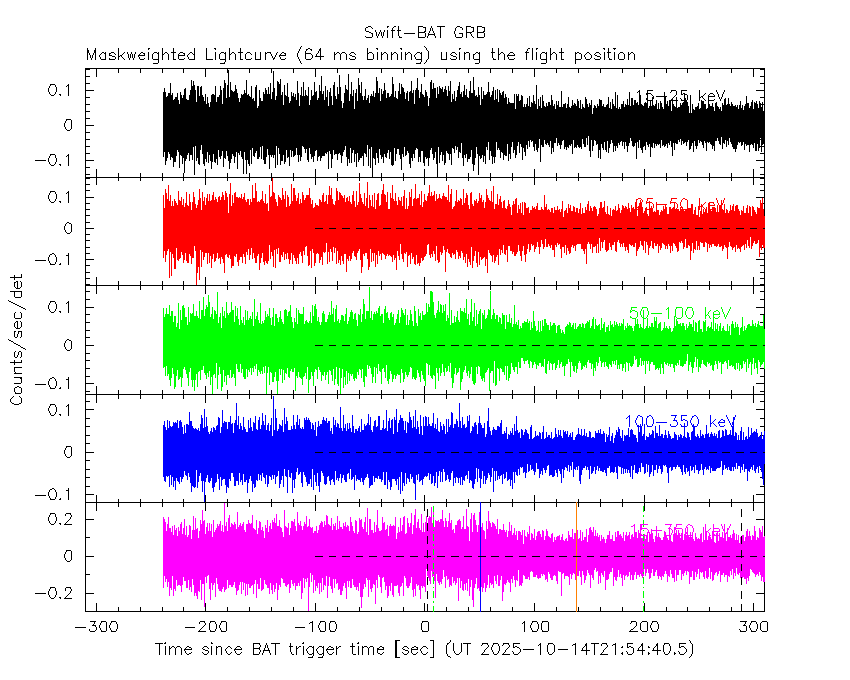

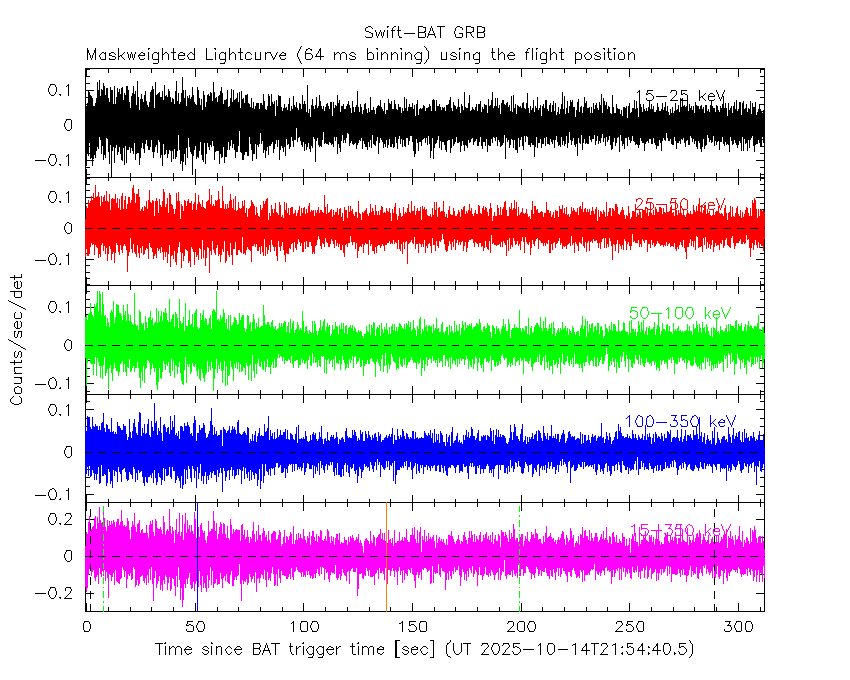

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

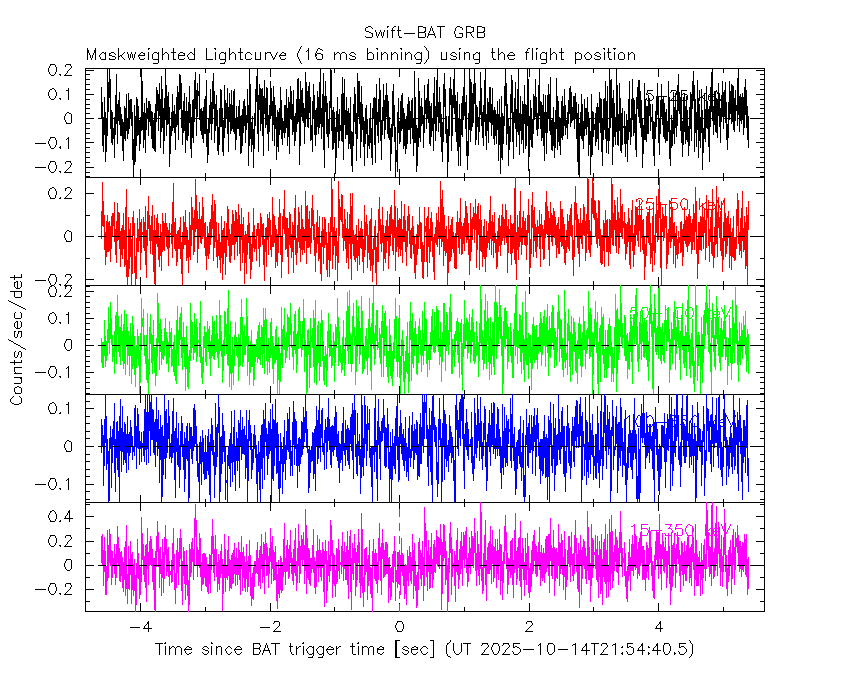

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

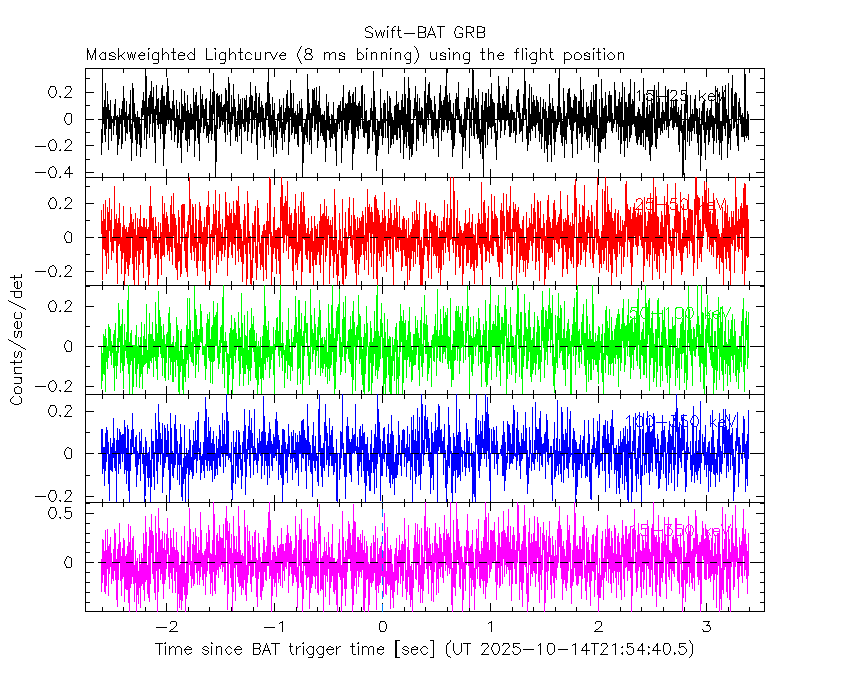

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

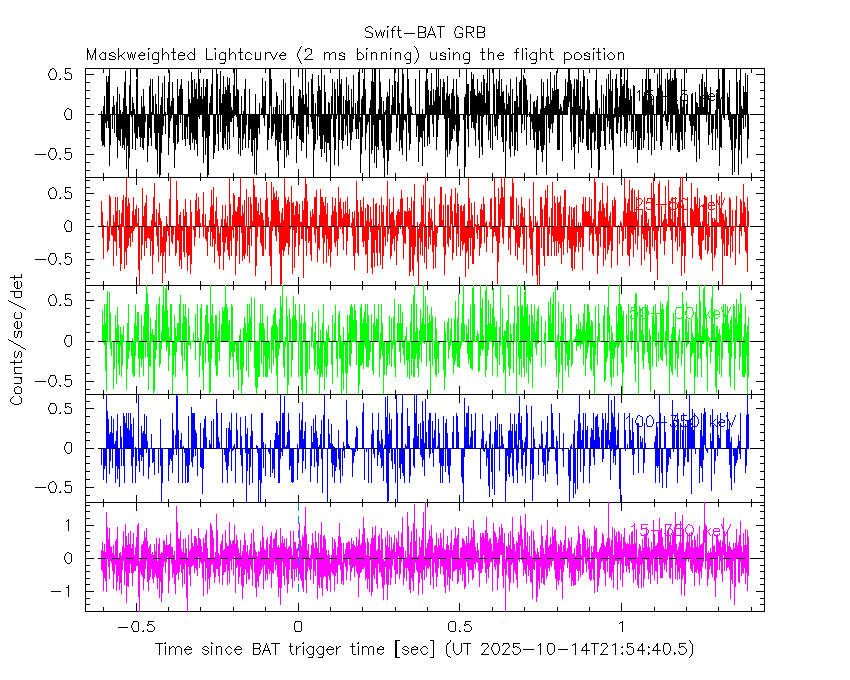

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

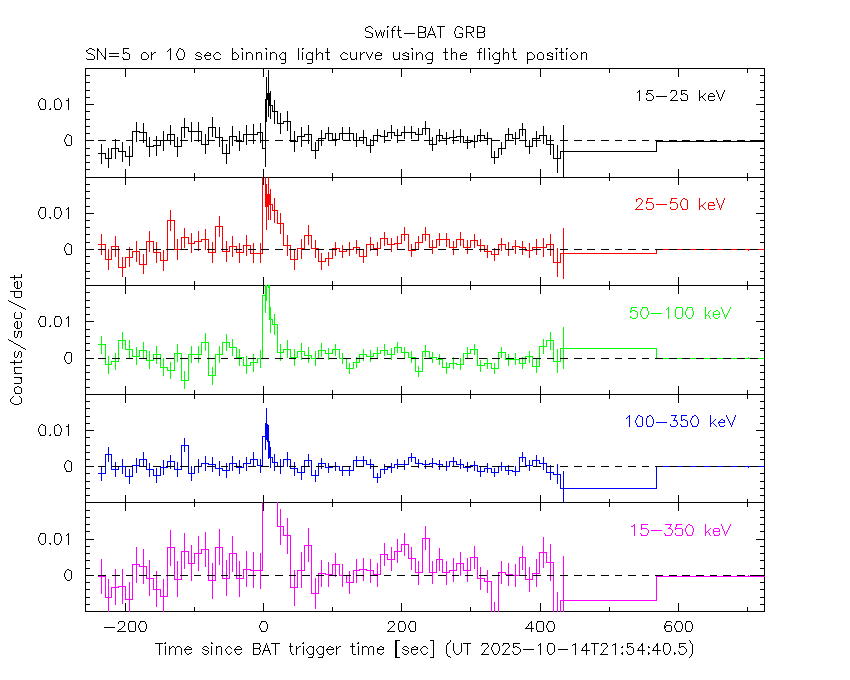

SN=5 or 10 sec. binning (whichever binning is satisfied first)

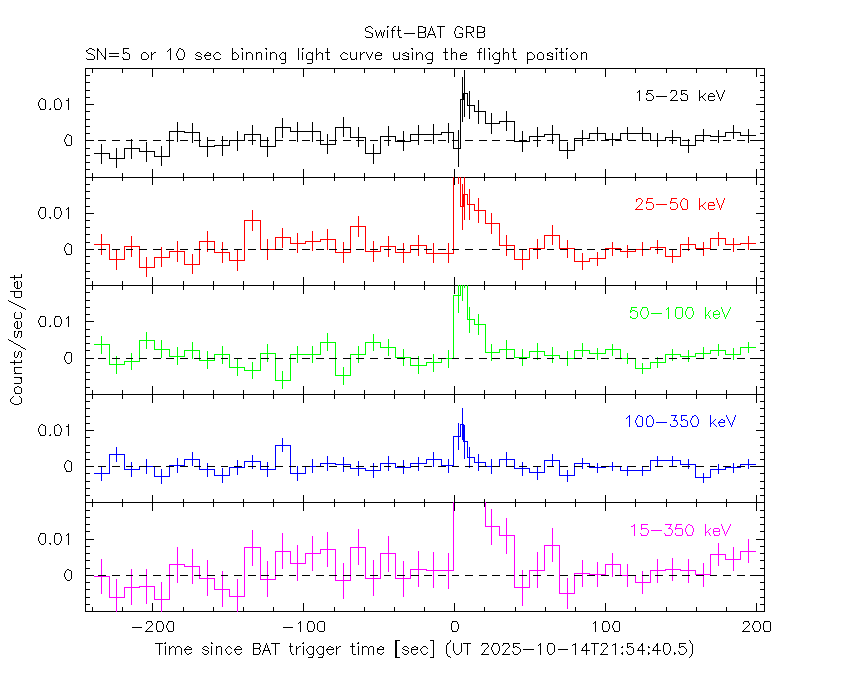

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

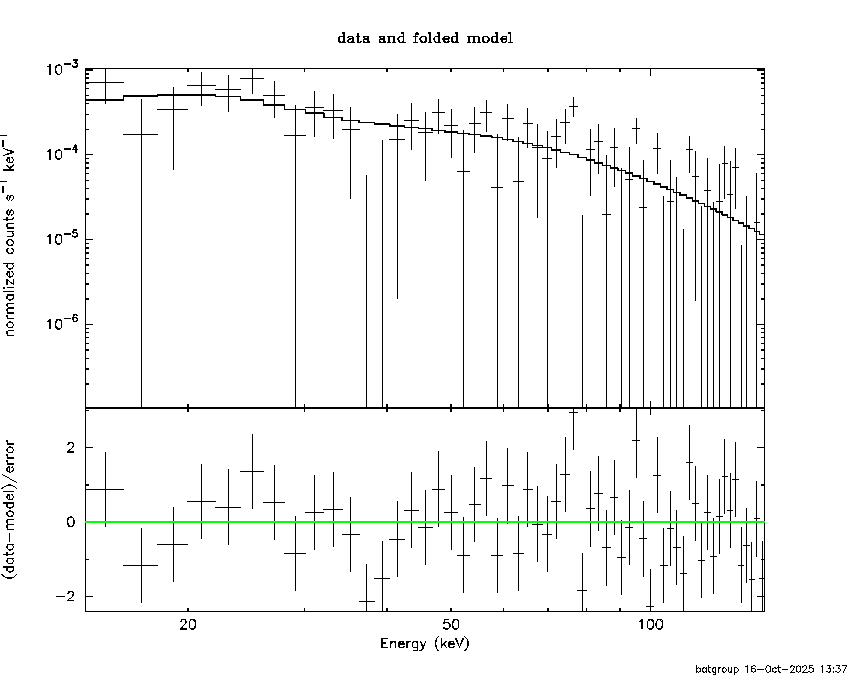

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.392 sec. to  310.104 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.74010     ( -0.363125   0.391639 )
Norm@50keV  : 3.49371E-04    ( -7.85955e-05   7.53445e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.71 using 59 PHA bins.
# Reduced chi-squared =          1.188 for     57 degrees of freedom
# Null hypothesis probability =   1.567707e-01

Photon flux (15-150 keV)    in 309.7 sec: 4.70697E-02 ( -0.00956504  0.00959735 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.9899e-07 ( -2.2687e-07  2.30182e-07 ) ergs/cm2

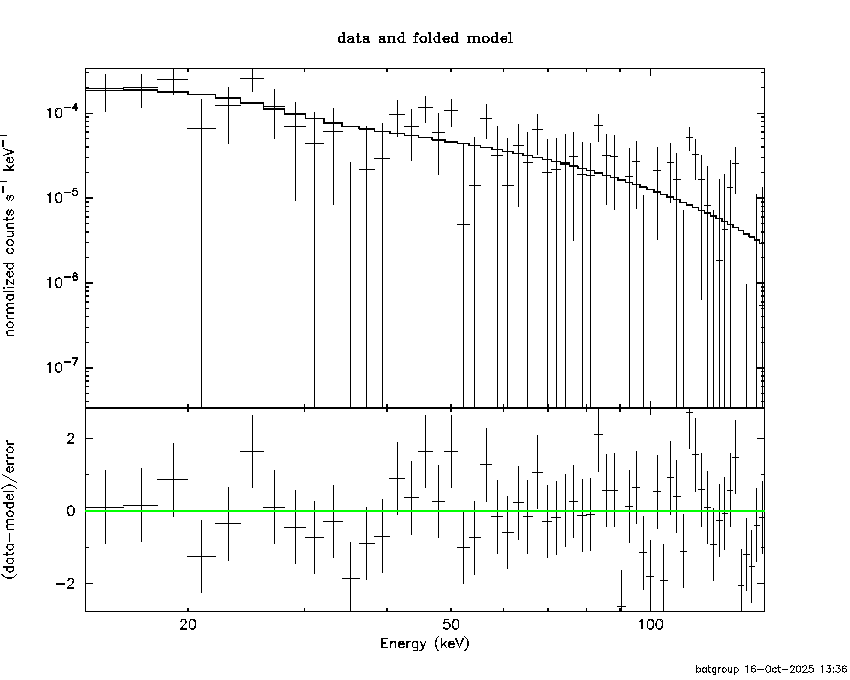

Cutoff power-law model

Time interval is from    0.392 sec. to  310.104 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.41911     ( -1.76968   0.150175 )
Epeak [keV] : 150.394      (   )
Norm@50keV  : 1.58179E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.42 using 59 PHA bins.
# Reduced chi-squared =          1.204 for     56 degrees of freedom
# Null hypothesis probability =   1.411671e-01

Photon flux (15-150 keV)    in 309.7 sec: 4.71307E-02 ( -0.0096667  0.0095291 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.9349e-07 ( -2.2265e-07  2.3356e-07 ) ergs/cm2

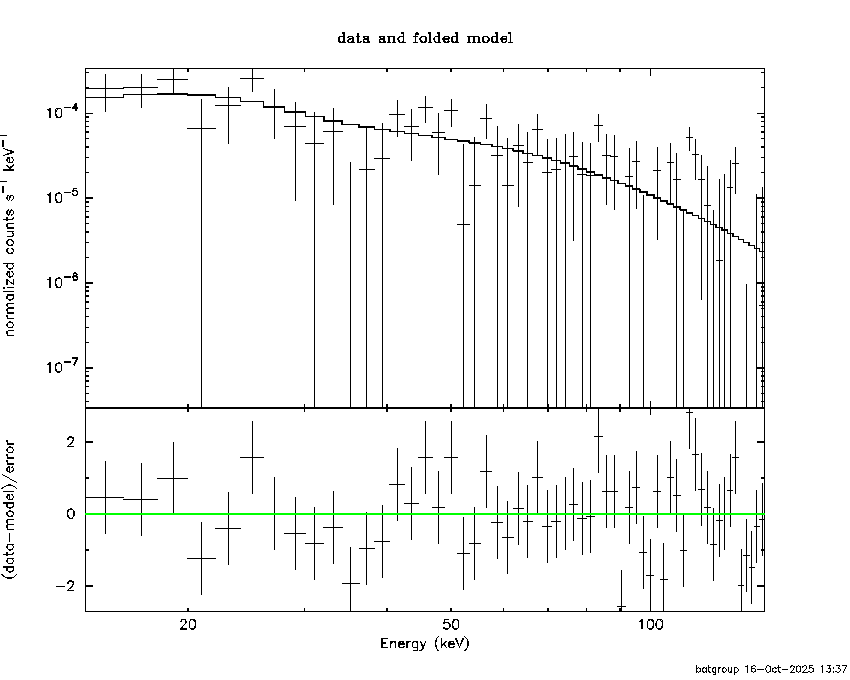

Band function

Time interval is from    0.392 sec. to  310.104 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -2.75814   ( 2.75814   2.75814 )
beta        : -1.74011    ( -0.391143   0.363743 )
Epeak [keV] : 87.9686      ( -87.9686 -87.9686 )
Norm@50keV   : 4.74843E-02    ( -0.0106822   0.0102405 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.71 using 59 PHA bins.
# Reduced chi-squared =          1.231 for     55 degrees of freedom
# Null hypothesis probability =   1.166824e-01

Photon flux (15-150 keV)    in 309.7 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

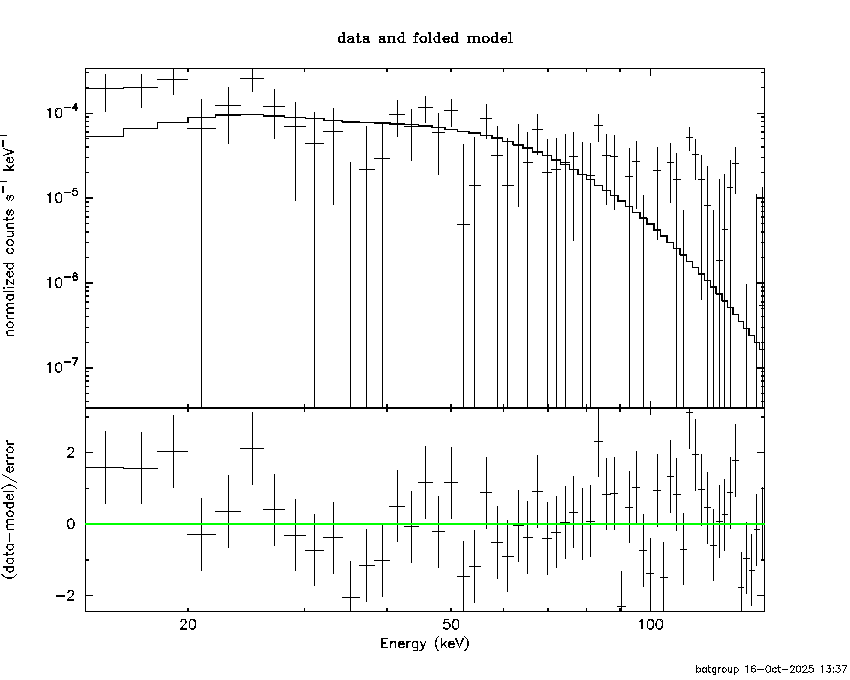

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.5708  (-3.60492  4.79432)
R^2/D10^2   : 5.50275E-03  (-0.00351092   0.00979221)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.89 using 59 PHA bins.
# Reduced chi-squared =          1.367 for     57 degrees of freedom
# Null hypothesis probability =   3.441737e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.608e-08   3.581e-08
25- 50  2.942e-07   1.166e-07
50-150  4.195e-07   2.070e-07
15-150  7.897e-07   3.066e-07

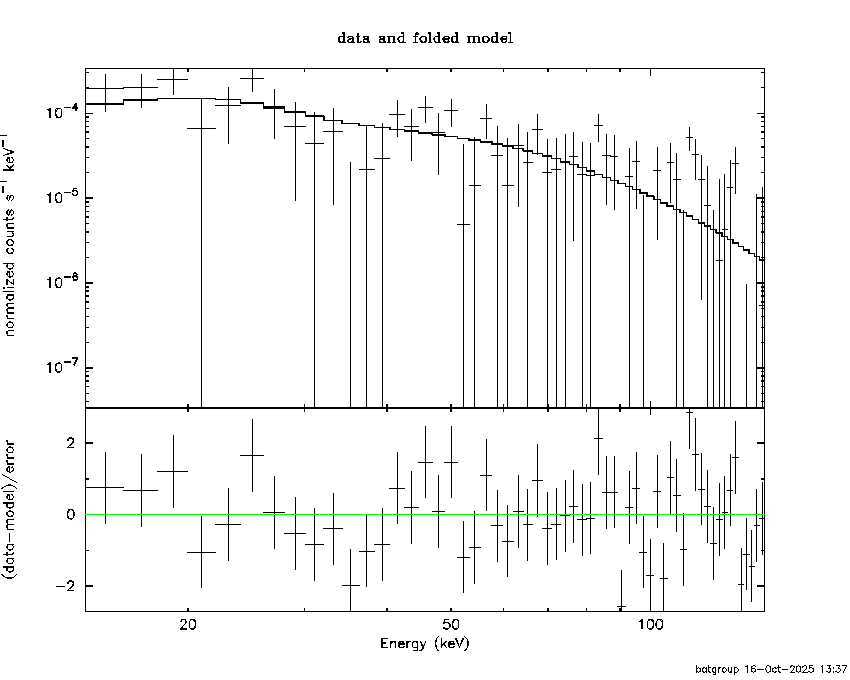

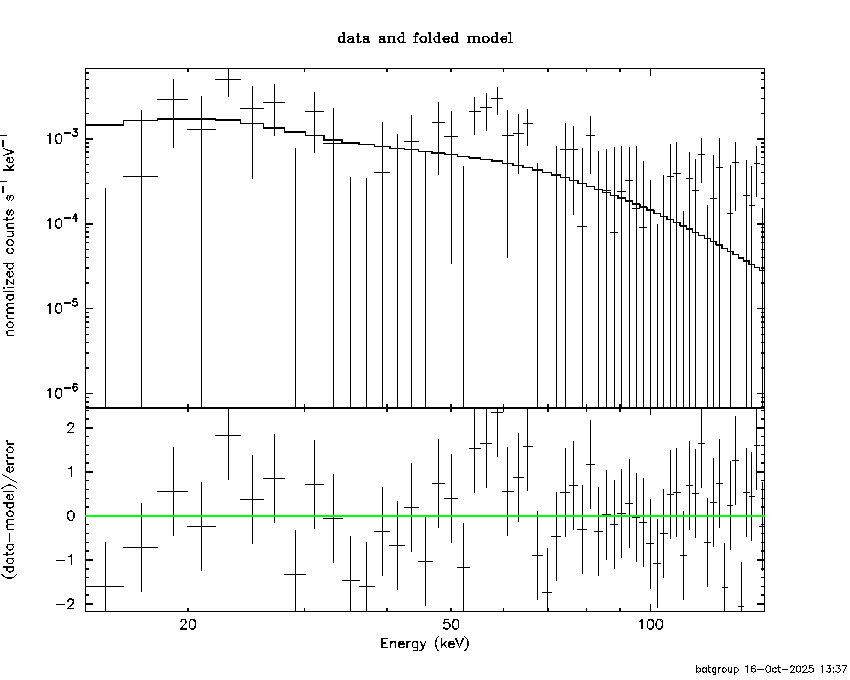

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 153.337       (-87.1376      -150.519)
Norm        : 0.190012       (-0.0413284     0.0651825)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.509e-07   8.687e-08
25- 50  2.805e-07   1.578e-07
50-150  5.587e-07   3.379e-07
15-150  9.900e-07   5.801e-07

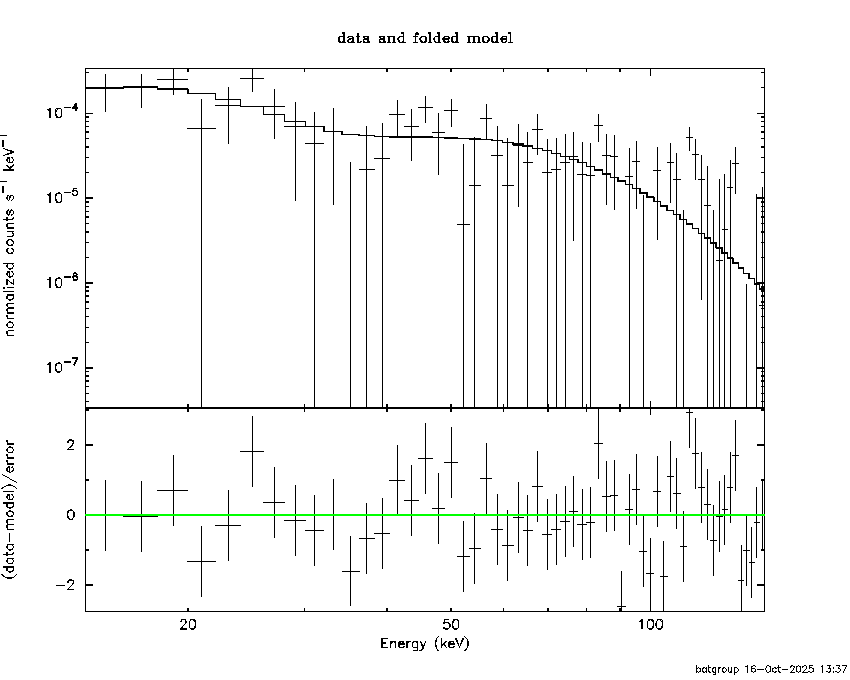

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.61643        (-1.53127      2.42215)
R1^2/D10^2  : 0.941247        (-0.852292      24.8179)
kT2 [keV]   : 20.4483        (-5.66799      10.6431)
R2^2/D10^2  : 1.44039E-03    (-0.00110602   0.00188334)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.948e-07   1.072e-07
25- 50  2.228e-07   1.030e-07
50-150  5.601e-07   3.405e-07
15-150  9.777e-07   5.185e-07

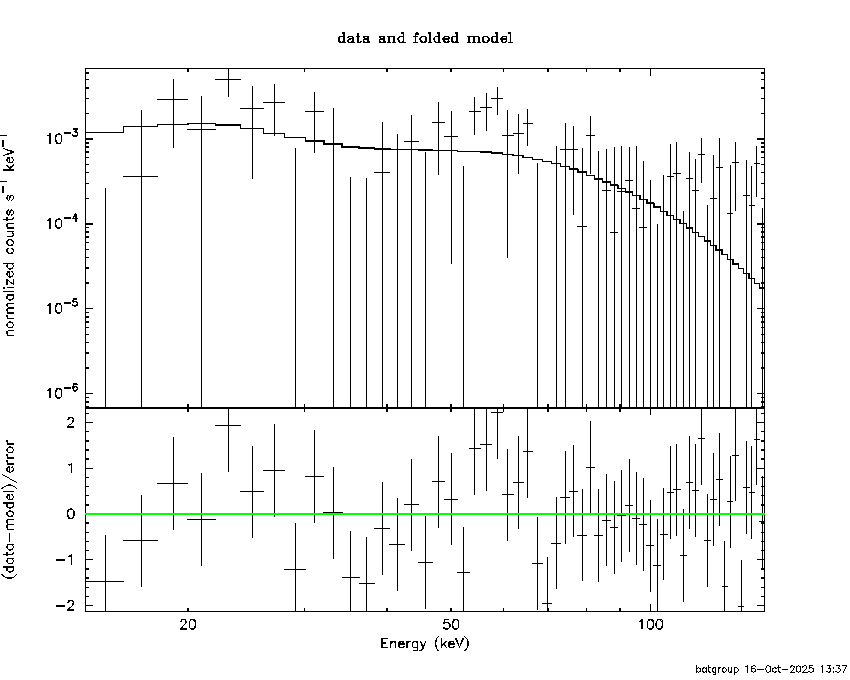

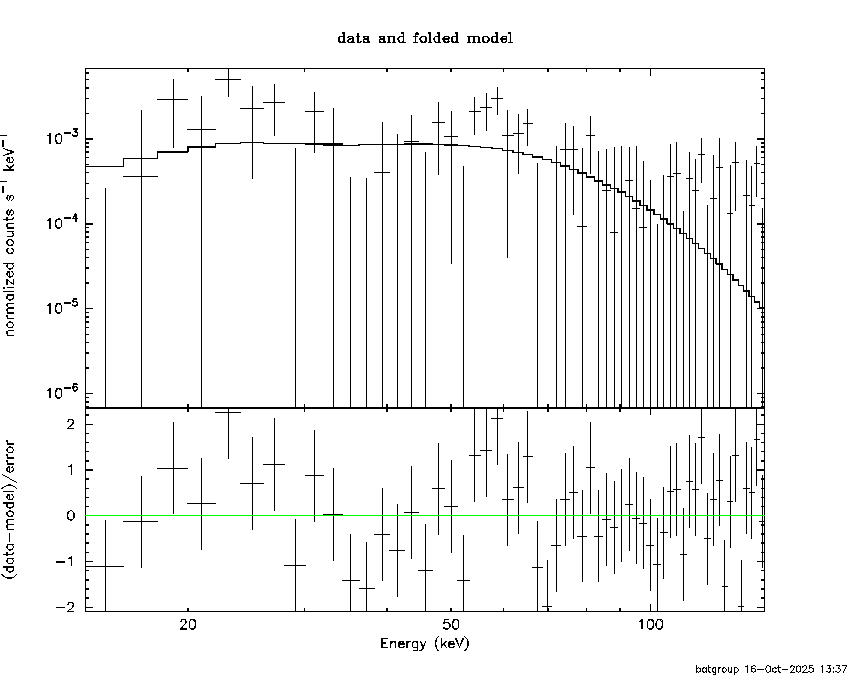

Peak spectrum fit

Power-law model

Time interval is from    5.184 sec. to    6.184 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29267     ( -0.688176   0.653887 )
Norm@50keV  : 4.47657E-03    ( -0.00176021   0.00175755 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.82 using 59 PHA bins.
# Reduced chi-squared =          1.014 for     57 degrees of freedom
# Null hypothesis probability =   4.446178e-01

Photon flux (15-150 keV)    in 1 sec: 0.533353 ( -0.218552  0.221671 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.43164e-08 ( -1.82088e-08  1.84664e-08 ) ergs/cm2

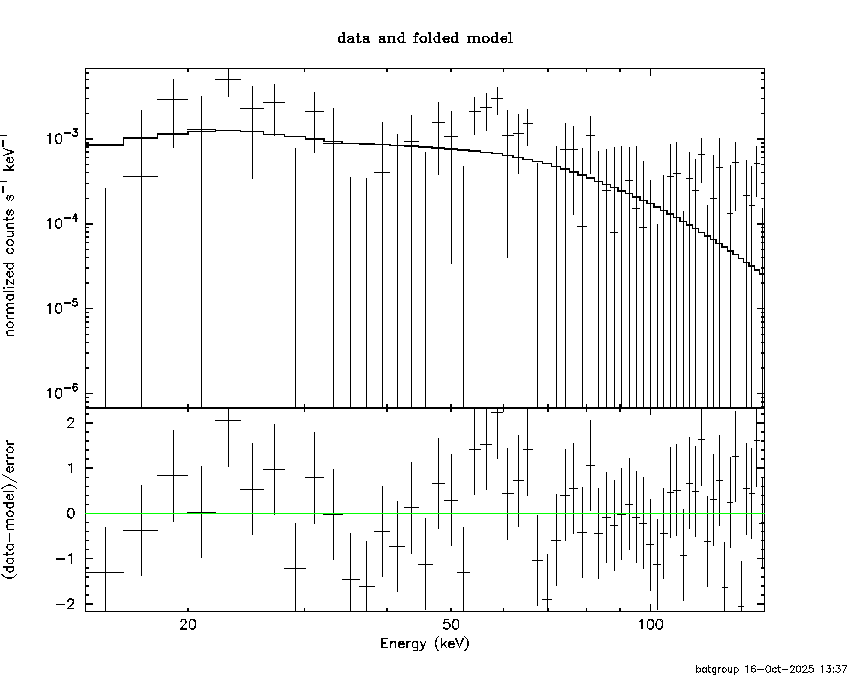

Cutoff power-law model

Time interval is from    5.184 sec. to    6.184 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.206130     ( -0.20598   1.54103 )
Epeak [keV] : 93.0567      ( -93.0524 -93.0524 )
Norm@50keV  : 1.39493E-02    ( -0.0139515   215.794 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.35 using 59 PHA bins.
# Reduced chi-squared =          1.024 for     56 degrees of freedom
# Null hypothesis probability =   4.249427e-01

Photon flux (15-150 keV)    in 1 sec: 0.512392 ( -0.284035  0.228318 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.28251e-08 ( -1.85409e-08  1.90503e-08 ) ergs/cm2

Band function

Time interval is from    5.184 sec. to    6.184 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.37943   ( -1.34142   3.82573 )
beta        : -1.46465    ( 8.43557   18.4356 )
Epeak [keV] : 28.0611      ( -31.9564 267.299 )
Norm@50keV   : 79.7102    ( -79.6767   106.482 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.04 using 59 PHA bins.
# Reduced chi-squared =          1.037 for     55 degrees of freedom
# Null hypothesis probability =   3.992701e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 19.1479  (-6.4963  11.9574)
R^2/D10^2   : 2.91677E-02  (-0.0291677   0.0885403)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.096e-09   1.415e-09
25- 50  1.014e-08   6.555e-09
50-150  2.735e-08   1.803e-08
15-150  3.959e-08   2.599e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-199.363      -199.363)
Norm        : 2.25980       (-0.894567     0.894588)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.627e-09   3.775e-09
25- 50  1.082e-08   6.965e-09
50-150  2.374e-08   1.477e-08
15-150  4.019e-08   2.663e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.96820        (-4.96211      185.039)
R1^2/D10^2  : 1.42460        (-1.43808      -1.43808)
kT2 [keV]   : 22.3884        (-22.3856      -22.3856)
R2^2/D10^2  : 1.55565E-02    (-0.0155649   0.0689987)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.808e-09   2.855e-09
25- 50  9.818e-09   5.415e-09
50-150  2.873e-08   1.938e-08
15-150  4.336e-08   2.555e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.50558     ( -0.321729   0.325488 )
Norm@50keV  : 1.29974E-03    ( -0.000245162   0.000243916 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.20 using 59 PHA bins.
# Reduced chi-squared =          1.161 for     57 degrees of freedom
# Null hypothesis probability =   1.891876e-01

Photon flux (15-150 keV)    in 50.45 sec: 0.162503 ( -0.0314795  0.0316568 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.21483e-07 ( -1.25129e-07  1.26263e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.18131     ( -1.40201   1.3243 )
Epeak [keV] : 136.594      ( -136.62 -136.62 )
Norm@50keV  : 1.85516E-03    ( -0.00100504   0.00591606 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.96 using 59 PHA bins.
# Reduced chi-squared =          1.178 for     56 degrees of freedom
# Null hypothesis probability =   1.702833e-01

Photon flux (15-150 keV)    in 50.45 sec: 0.160230 ( -0.032697  0.032455 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.13538e-07 ( -1.28693e-07  1.29379e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.18990   ( -6.69789   1.19096 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 136.196      ( -75.7515 -136.23 )
Norm@50keV   : 1.85147E-03    ( -0.000779556   0.00593335 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.97 using 59 PHA bins.
# Reduced chi-squared =          1.199 for     55 degrees of freedom
# Null hypothesis probability =   1.478322e-01

Photon flux (15-150 keV)    in 50.45 sec: 0.160154 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.75e-07
S(50-100 keV) = 3.29e-07

T90 vs. Hardness ratio plot

T90                                   = 286.975999951363 sec.
Hardness ratio (energy fluence ratio) = 1.19636

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.10946
Count Ratio (50-100 keV) / (15-25 keV) = 0.80071

Mask shadow pattern

IMX = 7.279075773863132E-01, IMY = 3.818464470884497E-01

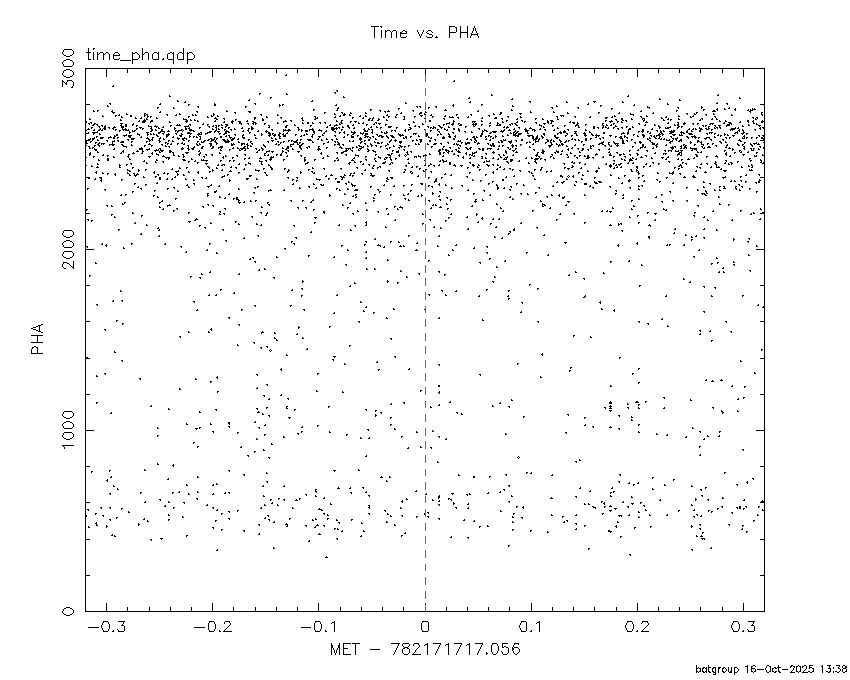

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

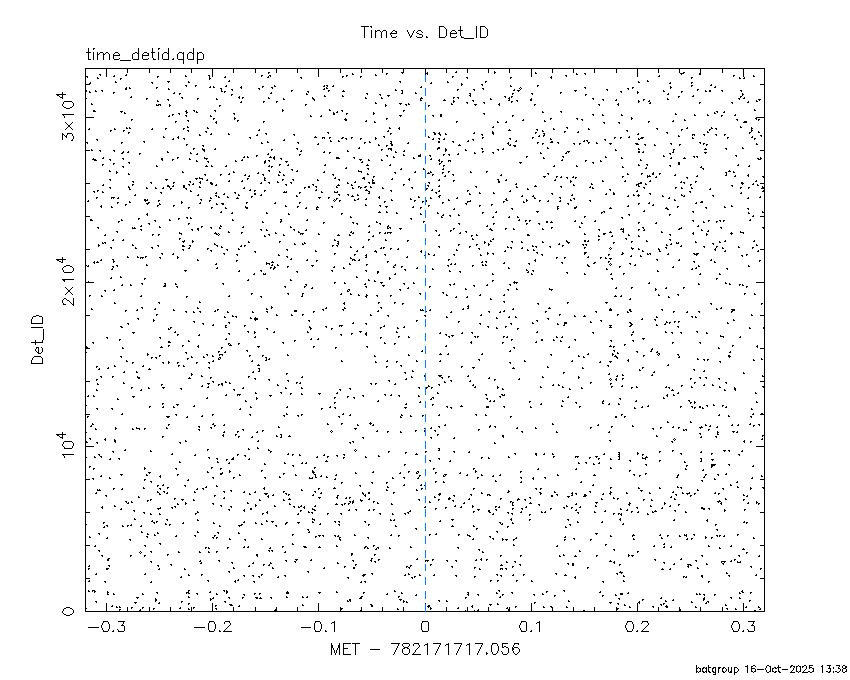

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

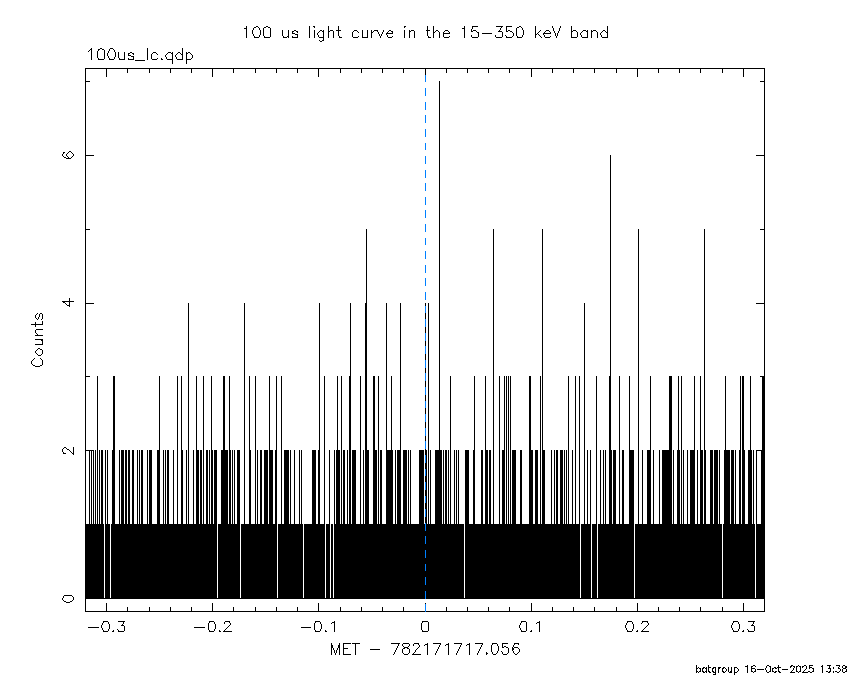

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

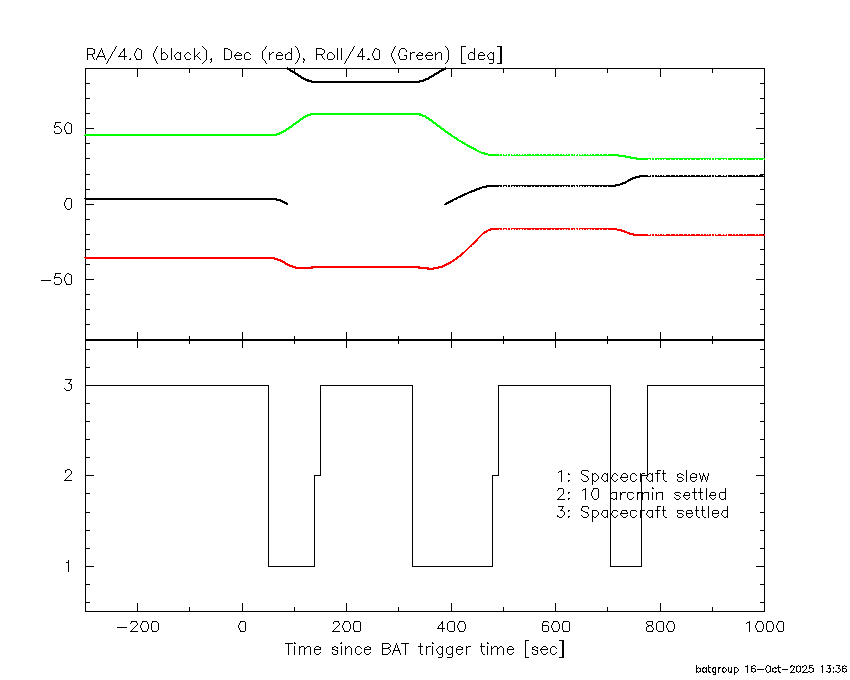

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.056000 0.392000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.392000 50.844600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
323.9337 -41.8732    1.6  39.4  -27.7   0.9106   7.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
138.044600 326.844600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
274.1468 -13.8746    5.5  51.2  -41.8  -2.4567  -2.1   12.7	GX 17+2
275.7447 -30.5145    7.8  39.9  -59.3   0.7529   1.5   12.9	H1820-303
285.1834 -24.8558    4.4  36.1  -44.1  -0.9504  -2.6    8.9	HT1900.1-2455
 28.0161 -47.1640    2.6  44.7  150.0   3.6368   4.5 ------	UNKNOWN

Plot creation:
Thu Oct 16 13:38:30 EDT 2025
