batgrbproduct analysis for trigger=1404904

batgrbproduct Analysis for Trigger=1404904

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Oct 18 20:08:44 EDT 2025
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1404904/batgroup_hand_proc
======================================================================

  Trigger: 01404904      Segment: 000

  BAT Trigger Time: 782383281.152   [s; MET]
      Trigger Stop: 782383282.176   [s; MET]
               UTC: 2025-10-17T08:40:44.632520    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 335.386417470042   Dec: 7.05068725437213  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.52
     Image Trigger?:     NO
     Rate S/N Ratio:     15.7162336455017  [ if not an image trigger ]
     Image S/N Ratio:    9.52

  Flight Position:   [ source = BAT ]
    RA: 335.386417470042   Dec: 7.05068725437213  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 335.404195153812   Dec: 7.04843941039666  [deg; J2000]
        { 22h 21m 37.0s , +07d 02' 54.4" }
         +/- 1.26282457891258 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.435853674642934 [arcmin] (formal 1-sigma fit error)
    SNR: 21.7942851268771

  Angular difference between Flight and Ground position is 1.067154 arcmin

  Partial Coding Fraction: 0.9375    [ including projection effects ]

  Duration
     T90: 116.896000027657 +/- 61.9135087019101
        Measured from: -2.16799998283386
                   to: 114.728000044823     [s; relative to TRIGTIME]
     T50: 15.6800000667572 +/- 8.32178823988608
        Measured from: 2.15200006961823
                   to: 17.8320001363754     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 6.41200006008148
                   to: 7.41200006008148     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -5.4799998998642
                   to: 125.080000042915     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.480279   0.721431   0.528098   0.158661
           0.065598   0.068529   0.057903   0.048578 [error]
 Peak      0.035327   0.064304   0.050826   0.010245
           0.006332   0.007123   0.006353   0.004772 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.44e-07 2.82e-07 4.29e-07 1.42e-06 1.20e-06 2.27e-06   erg/cm2
              Error 2.82e-08 3.20e-08 5.82e-08 4.40e-07 1.41e-07 4.76e-07   erg/cm2
Peak flux Power-law 3.44e-01 4.10e-01 3.53e-01 5.17e-01 1.29e+00 1.62e+00   ph/cm2/s
              Error 7.56e-02 5.67e-02 4.93e-02 1.47e-01 1.60e-01 2.08e-01   ph/cm2/s

Fluence   Cutoff-PL 1.45e-07 2.83e-07 4.28e-07 1.39e-06 1.20e-06 2.25e-06   erg/cm2
              Error 2.39e-08 3.06e-08 5.81e-08 2.76e-07 1.34e-07 7.24e-07   erg/cm2
Peak flux Cutoff-PL 3.11e-01 4.33e-01 3.73e-01 2.87e-01 1.27e+00 1.40e+00   ph/cm2/s
              Error 8.73e-02 6.74e-02 5.81e-02 -------- 1.62e-01 2.03e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.396    0.197    -      -           9.53e-04 9.91e-05   58.860 57
CPL   2.392    0.343     133.6    0.0      2.82e-04 0.00e+00   54.550 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.217    0.198    -      -           1.10e-02 1.33e-03   61.690 57
CPL   0.668    0.803     125.8    0.0      2.05e-02 0.00e+00   60.130 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 22.208000 sec.
T50 in the 50-300 keV band: 6.592000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  130.560   -5.480  125.080
T90   116.896   -2.168  114.728
T50    15.680    2.152   17.832
Peak    1.000    6.412    7.412

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  335.4042  +7.0484 0.0088   21.1   -0.8       1.3200    21.8  TRIG_01404904
------------------------------------------

Foreground time interval of the image:
 -5.480  15.949 (delta_t =  21.429 [sec])
Background time interval of the image:
-60.152  -5.480 (delta_t =  54.672 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

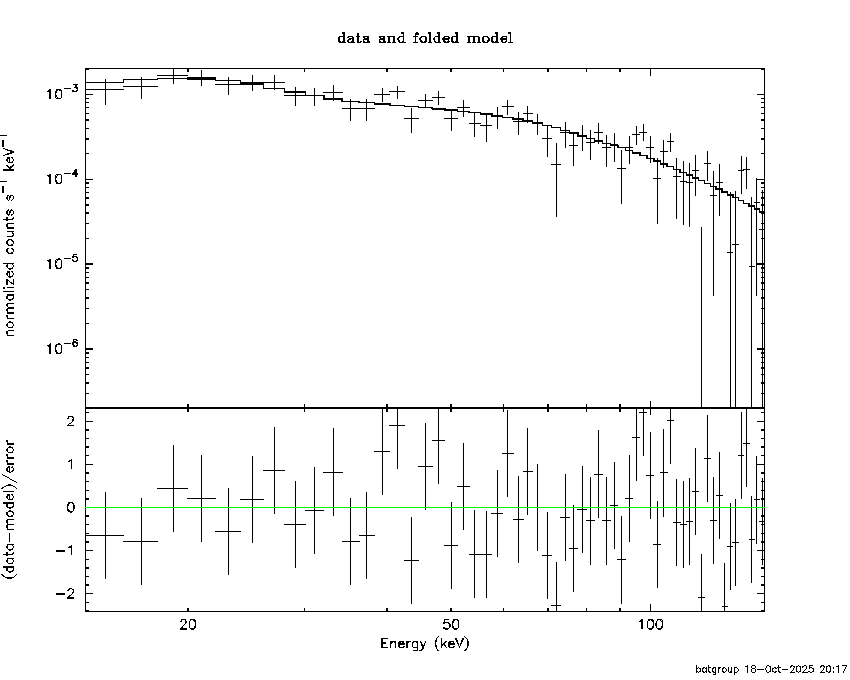

Power-law model

Time interval is from   -5.480 sec. to  125.080 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.39628     ( -0.198098   0.196119 )
Norm@50keV  : 9.53236E-04    ( -9.92594e-05   9.892e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.86 using 59 PHA bins.
# Reduced chi-squared =          1.033 for     57 degrees of freedom
# Null hypothesis probability =   4.072219e-01

Photon flux (15-150 keV)    in 130.6 sec: 0.115989 ( -0.0123332  0.0123618 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.20384e-06 ( -1.40322e-07  1.41489e-07 ) ergs/cm2

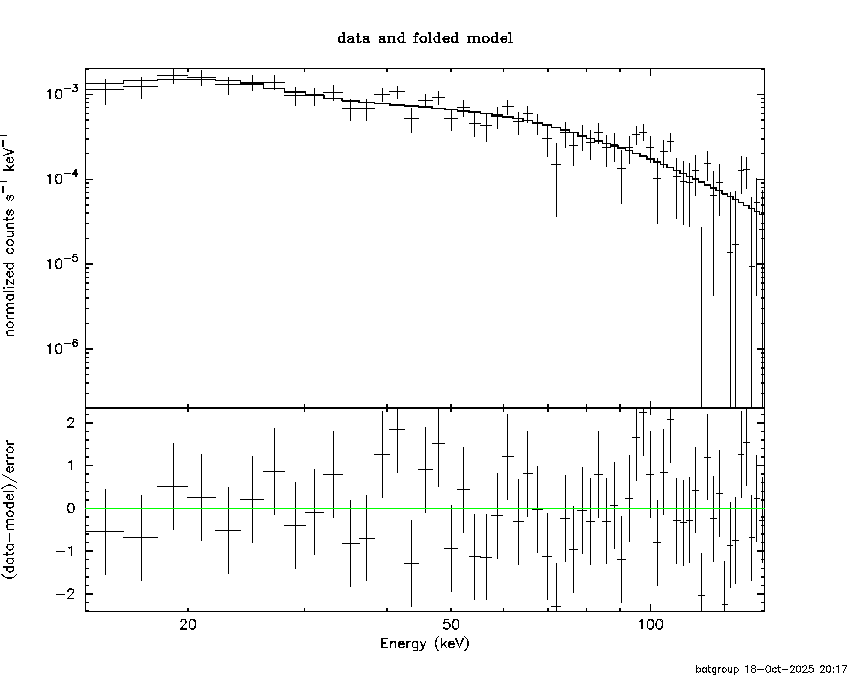

Cutoff power-law model

Time interval is from   -5.480 sec. to  125.080 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.39203     ( -0.562586   0.122641 )
Epeak [keV] : 133.559      (   )
Norm@50keV  : 2.81580E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.55 using 59 PHA bins.
# Reduced chi-squared =         0.9742 for     56 degrees of freedom
# Null hypothesis probability =   5.297754e-01

Photon flux (15-150 keV)    in 130.6 sec: 0.115951 ( -0.012349  0.012343 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.20132e-06 ( -1.37757e-07  1.31168e-07 ) ergs/cm2

Band function

Time interval is from   -5.480 sec. to  125.080 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.17743   ( 1.17742   1.17742 )
beta        : -1.39620    ( -0.196122   0.198276 )
Epeak [keV] : 20.8335      ( -20.8274 -20.8274 )
Norm@50keV   : 1.91966E-03    ( -0.001065   0.00708597 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.86 using 59 PHA bins.
# Reduced chi-squared =          1.070 for     55 degrees of freedom
# Null hypothesis probability =   3.361303e-01

Photon flux (15-150 keV)    in 130.6 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.1108  (-3.24355  4.65416)
R^2/D10^2   : 9.74714E-03  (-0.00545182   0.011483)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         107.68 using 59 PHA bins.
# Reduced chi-squared =         1.8891 for     57 degrees of freedom
# Null hypothesis probability =   5.757973e-05

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.821e-08   1.574e-08
25- 50  2.887e-07   4.754e-08
50-150  5.252e-07   1.075e-07
15-150  8.821e-07   1.394e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-44.4577      -200)
Norm        : 0.476199       (-0.0494326     0.0494326)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.549e-07   4.361e-08
25- 50  2.979e-07   1.601e-07
50-150  6.534e-07   3.465e-07
15-150  1.106e-06   5.825e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.30115        (-1.34805      1.56313)
R1^2/D10^2  : 0.127228        (-0.0642974      0.144229)
kT2 [keV]   : 54.6217        (-19.5321      97.4755)
R2^2/D10^2  : 2.14996E-04    (-0.000156318   0.000465453)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.569e-07   6.036e-08
25- 50  2.830e-07   8.580e-08
50-150  8.763e-07   4.422e-07
15-150  1.316e-06   5.113e-07

Peak spectrum fit

Power-law model

Time interval is from    6.412 sec. to    7.412 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.21720     ( -0.199575   0.196047 )
Norm@50keV  : 1.09564E-02    ( -0.00132821   0.00132796 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.69 using 59 PHA bins.
# Reduced chi-squared =          1.082 for     57 degrees of freedom
# Null hypothesis probability =   3.120339e-01

Photon flux (15-150 keV)    in 1 sec: 1.28926 ( -0.159625  0.159839 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.10623e-07 ( -1.47638e-08  1.48814e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    6.412 sec. to    7.412 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.668391     ( -0.896205   0.709206 )
Epeak [keV] : 125.848      (   )
Norm@50keV  : 2.05189E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.13 using 59 PHA bins.
# Reduced chi-squared =          1.074 for     56 degrees of freedom
# Null hypothesis probability =   3.285563e-01

Photon flux (15-150 keV)    in 1 sec: 1.26986 ( -0.16235  0.16224 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.06993e-07 ( -1.61105e-08  1.5892e-08 ) ergs/cm2

Band function

Time interval is from    6.412 sec. to    7.412 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.87641   ( -4.34043   -3.72098 )
beta        : -1.44487    ( -0.392804   0.312752 )
Epeak [keV] : 36.3555      ( -20.5031 61.6652 )
Norm@50keV   : 5.95242    ( -5.94793   102.58 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.47 using 59 PHA bins.
# Reduced chi-squared =          1.063 for     55 degrees of freedom
# Null hypothesis probability =   3.492536e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

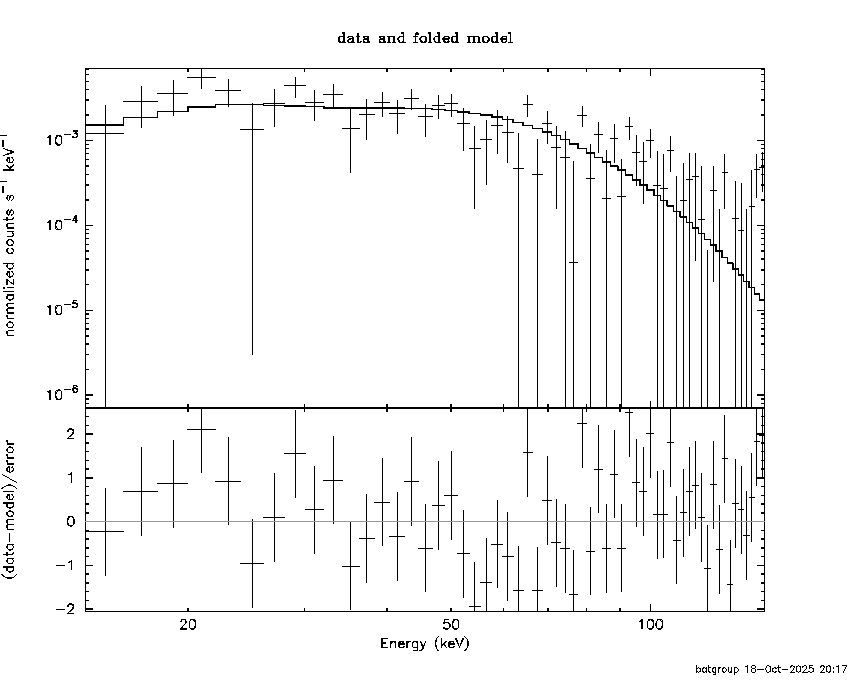

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.3516  (-2.67173  3.32304)
R^2/D10^2   : 9.58920E-02  (-0.0425477   0.0728798)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.846e-09   1.421e-09
25- 50  2.629e-08   5.465e-09
50-150  5.687e-08   1.358e-08
15-150  8.900e-08   1.752e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-37.4362      -200)
Norm        : 5.32481       (-0.656548     0.656548)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.326e-08   7.515e-09
25- 50  2.550e-08   1.407e-08
50-150  5.593e-08   3.109e-08
15-150  9.469e-08   5.235e-08

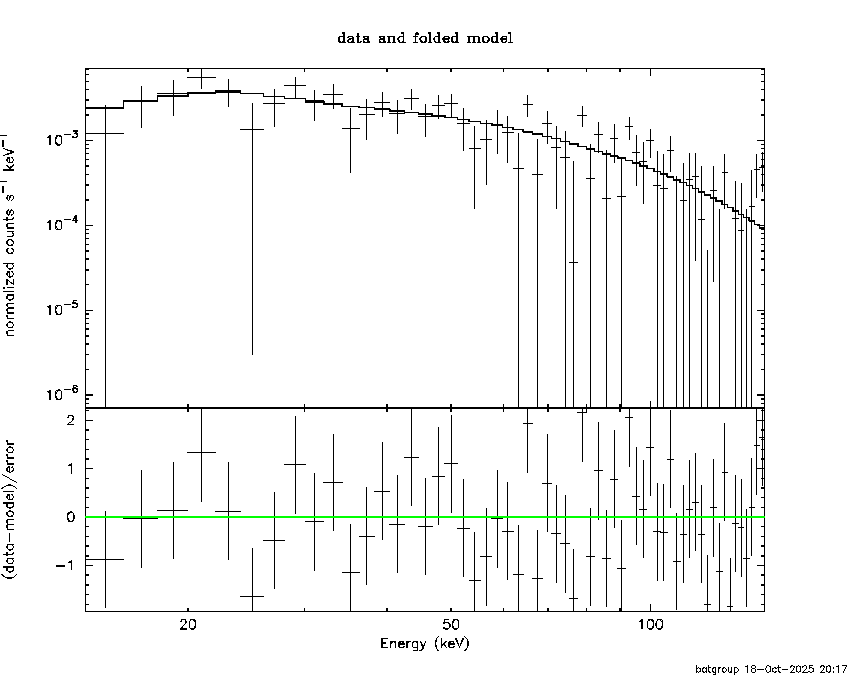

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.69680        (-3.00298      3.61869)
R1^2/D10^2  : 0.439874        (-0.256756      0.469984)
kT2 [keV]   : 37.4133        (-12.0517      -37.4211)
R2^2/D10^2  : 5.71639E-03    (-0.00514935   0.0228781)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.412e-09   5.104e-09
25- 50  2.705e-08   1.438e-08
50-150  7.296e-08   3.957e-08
15-150  1.094e-07   5.365e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.28730     ( -0.115334   0.114206 )
Norm@50keV  : 4.12251E-03    ( -0.000267677   0.000267661 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.83 using 59 PHA bins.
# Reduced chi-squared =          1.067 for     57 degrees of freedom
# Null hypothesis probability =   3.396781e-01

Photon flux (15-150 keV)    in 21.43 sec: 0.490695 ( -0.0331618  0.0332129 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.75752e-07 ( -6.24669e-08  6.2734e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.19693     ( -0.442057   0.146712 )
Epeak [keV] : 441.545      ( -481.497 -481.497 )
Norm@50keV  : 4.55836E-03    ( -0.00125049   0.00275295 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.74 using 59 PHA bins.
# Reduced chi-squared =          1.085 for     56 degrees of freedom
# Null hypothesis probability =   3.091613e-01

Photon flux (15-150 keV)    in 21.43 sec: 0.488796 ( -0.034241  0.034182 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.7117e-07 ( -6.63151e-08  6.55629e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.99521   ( -3.99578   -3.99578 )
beta        : -1.32797    ( -0.135668   0.129377 )
Epeak [keV] : 24.8687      ( -24.8631 109.623 )
Norm@50keV   : 66.3126    ( -66.4169   102.266 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.85 using 59 PHA bins.
# Reduced chi-squared =          1.088 for     55 degrees of freedom
# Null hypothesis probability =   3.040254e-01

Photon flux (15-150 keV)    in 21.43 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.82e-07
S(50-100 keV) = 4.29e-07

T90 vs. Hardness ratio plot

T90                                   = 116.896000027657 sec.
Hardness ratio (energy fluence ratio) = 1.52128

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.50211
Count Ratio (50-100 keV) / (15-25 keV) = 1.09957

Mask shadow pattern

IMX = 3.855045564478867E-01, IMY = 5.642856939992835E-03

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-60.152000 -5.480000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
326.0972  38.2398    8.6  51.6   18.6   0.4764   1.3    6.0	Cyg X-2
359.9341  15.9828    4.0  26.4   64.7   0.3985   2.9 ------	UNKNOWN
355.3473 -47.0767    2.6  38.9 -143.8   0.6702   4.4 ------	UNKNOWN
330.7163 -41.1016    2.3  36.8 -113.5   0.9489   5.0 ------	UNKNOWN
297.4862  10.1096    2.2  55.2  -29.1   2.4481   5.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-5.480000 15.948600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
326.2443  38.3454   17.9  51.7   18.8  -0.1701  -0.6    3.7	Cyg X-2
335.4042   7.0484    0.5  21.1   -0.8   1.3201  21.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
95.748600 242.895700
498.848000 548.231400
549.848000 561.735800
563.848000 574.730800
584.848000 589.658400
591.848000 615.963800
617.848000 962.903700

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5733  35.2102    0.7  43.2  -37.8  24.5147  17.4    1.0	Cyg X-1
308.0316  40.9377    3.4  41.7  -25.0   4.5972   3.4    3.7	Cyg X-3
326.0248  38.2361    5.5  32.3   -7.3   1.7390   2.1    8.6	Cyg X-2
355.6681 -37.7734    2.3  48.7  165.1  10.6969   5.1 ------	UNKNOWN
332.3940  16.7419    2.7  10.1  -10.0   3.5061   4.3 ------	UNKNOWN
299.3967 -20.3408    2.4  44.7 -122.0  15.9794   4.9 ------	UNKNOWN
299.5159 -24.9996    3.1  47.4 -127.3  15.3074   3.7 ------	UNKNOWN

Plot creation:
Sat Oct 18 20:18:20 EDT 2025
