batgrbproduct Analysis for Trigger=1418729

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Dec  2 18:32:20 EST 2025
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1418729/GCN5_download_cron
======================================================================

  Trigger: 01418729      Segment: 000

  BAT Trigger Time: 786299227.136   [s; MET]
      Trigger Stop: 786299228.16   [s; MET]
               UTC: 2025-12-01T16:26:30.351160    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 6.40853981469526   Dec: -44.237098764362  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.62
     Image Trigger?:     NO
     Rate S/N Ratio:     26.9814751264641  [ if not an image trigger ]
     Image S/N Ratio:    12.62

  Flight Position:   [ source = BAT ]
    RA: 6.40853981469526   Dec: -44.237098764362  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 6.4048817923682   Dec: -44.2366805668464  [deg; J2000]
        { 00h 25m 37.2s , -44d 14' 12.1" }
         +/- 0.766941119319505 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.253410999325282 [arcmin] (formal 1-sigma fit error)
    SNR: 44.436931445478

  Angular difference between Flight and Ground position is 0.159239 arcmin

  Partial Coding Fraction: 0.859375    [ including projection effects ]

  Duration
     T90: 86.0080000162125 +/- 4.94093923469365
        Measured from: -5.44799995422363
                   to: 80.5600000619888     [s; relative to TRIGTIME]
     T50: 28.1039999723434 +/- 3.02157095715236
        Measured from: 2.57200002670288
                   to: 30.6759999990463     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.276000022888184
                   to: 0.723999977111816     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -9.61199998855591
                   to: 96.095999956131     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.801082   2.412118   1.889251   0.509115
           0.064839   0.068679   0.058605   0.046833 [error]
 Peak      0.061612   0.090321   0.063184   0.021890
           0.007488   0.008426   0.007338   0.005712 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.75e-07 1.03e-06 1.43e-06 4.09e-06 4.11e-06 7.13e-06   erg/cm2
              Error 3.64e-08 3.83e-08 5.90e-08 3.79e-07 1.44e-07 4.14e-07   erg/cm2
Peak flux Power-law 5.95e-01 6.25e-01 4.64e-01 5.58e-01 1.90e+00 2.24e+00   ph/cm2/s
              Error 1.07e-01 6.94e-02 5.89e-02 1.46e-01 1.97e-01 2.33e-01   ph/cm2/s

Fluence   Cutoff-PL 5.44e-07 1.05e-06 1.46e-06 2.87e-06 4.04e-06 5.92e-06   erg/cm2
              Error 4.55e-08 3.21e-08 6.55e-08 9.08e-07 1.58e-07 6.68e-07   erg/cm2
Peak flux Cutoff-PL 5.95e-01 6.25e-01 4.64e-01 5.54e-01 1.90e+00 2.24e+00   ph/cm2/s
              Error 8.45e-02 7.50e-02 6.28e-02 2.28e-01 1.99e-01 3.01e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.535    0.061    -      -           4.12e-03 1.36e-04   57.800 57
CPL   1.276    0.241     148.7  351.7      5.47e-03 1.42e-03   54.200 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.428    0.176    -      -           1.55e-02 1.60e-03   52.710 57
CPL   1.425    0.938    9994.6    0.0      1.55e-02 1.70e-02   52.710 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 81.664000 sec.
T50 in the 50-300 keV band: 24.768000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  105.708   -9.612   96.096
T90    86.008   -5.448   80.560
T50    28.104    2.572   30.676
Peak    1.000   -0.276    0.724

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
    6.4049 -44.2367 0.0043   30.4 -164.6       3.1449    44.4  TRIG_01418729
------------------------------------------

Foreground time interval of the image:
 -9.612  12.665 (delta_t =  22.277 [sec])
Background time interval of the image:
-239.136  -9.612 (delta_t = 229.524 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

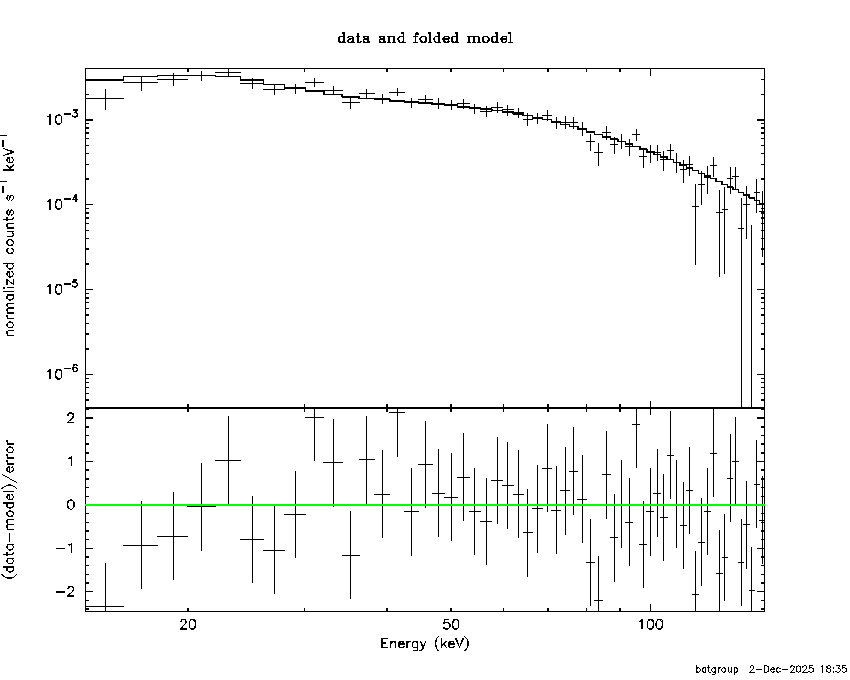

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -9.612 sec. to   96.096 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.53537     ( -0.0607738   0.0608031 )
Norm@50keV  : 4.12265E-03    ( -0.000136177   0.000136142 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.80 using 59 PHA bins.
# Reduced chi-squared =          1.014 for     57 degrees of freedom
# Null hypothesis probability =   4.454544e-01

Photon flux (15-150 keV)    in 105.7 sec: 0.519721 ( -0.0186354  0.0186858 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.1111e-06 ( -1.43694e-07  1.43956e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -9.612 sec. to   96.096 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27554     ( -0.247883   0.234566 )
Epeak [keV] : 148.738      ( -47.6474 655.686 )
Norm@50keV  : 5.47141E-03    ( -0.00120282   0.00164148 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.20 using 59 PHA bins.
# Reduced chi-squared =         0.9679 for     56 degrees of freedom
# Null hypothesis probability =   5.431556e-01

Photon flux (15-150 keV)    in 105.7 sec: 0.510882 ( -0.020123  0.020172 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.04145e-06 ( -1.58529e-07  1.57704e-07 ) ergs/cm2

Band function

Time interval is from   -9.612 sec. to   96.096 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.45811   ( -9.57928   -3.45776 )
beta        : -1.57333    ( -0.0741508   0.0703673 )
Epeak [keV] : 25.0735      ( -8.58281 68.3321 )
Norm@50keV   : 30.9385    ( -30.8627   273.598 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.63 using 59 PHA bins.
# Reduced chi-squared =         0.9751 for     55 degrees of freedom
# Null hypothesis probability =   5.270316e-01

Photon flux (15-150 keV)    in 105.7 sec: 0.508388 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

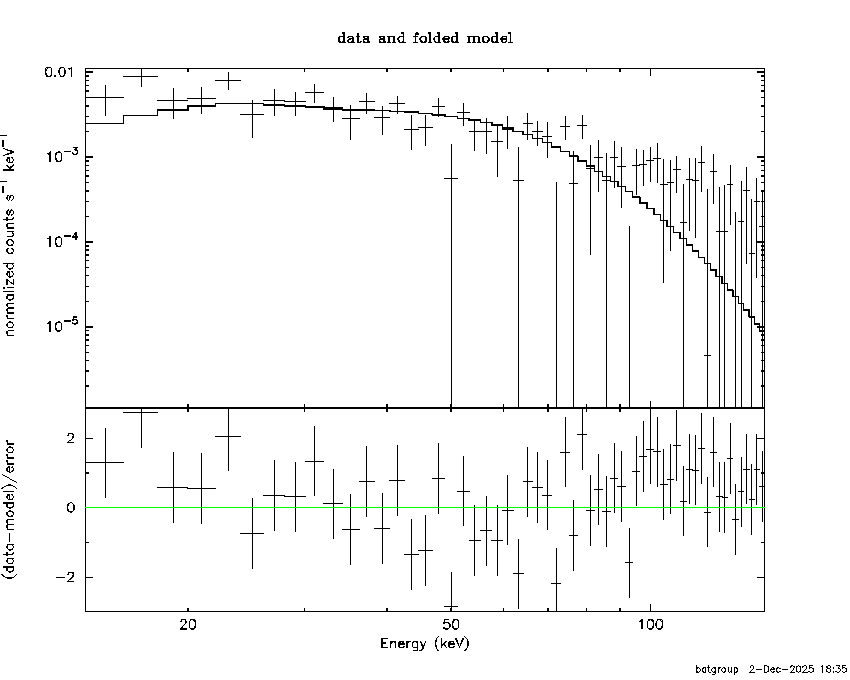

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.1285  (  )
R^2/D10^2   : 4.40554E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         246.80 using 59 PHA bins.
# Reduced chi-squared =         4.3298 for     57 degrees of freedom
# Null hypothesis probability =   1.858057e-25

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.500e-07   1.797e-08
25- 50  1.059e-06   5.359e-08
50-150  1.932e-06   1.173e-07
15-150  3.241e-06   1.316e-07

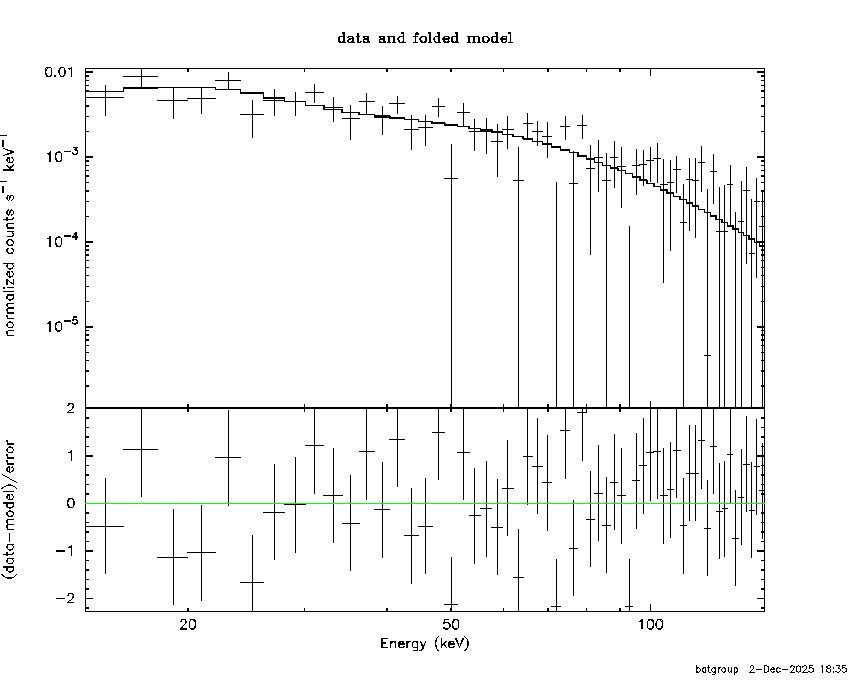

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-19.0285      -200)
Norm        : 2.11841       (-0.0696748     0.0696748)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.577e-07   2.082e-08
25- 50  1.073e-06   3.773e-08
50-150  2.353e-06   8.245e-08
15-150  3.984e-06   1.464e-07

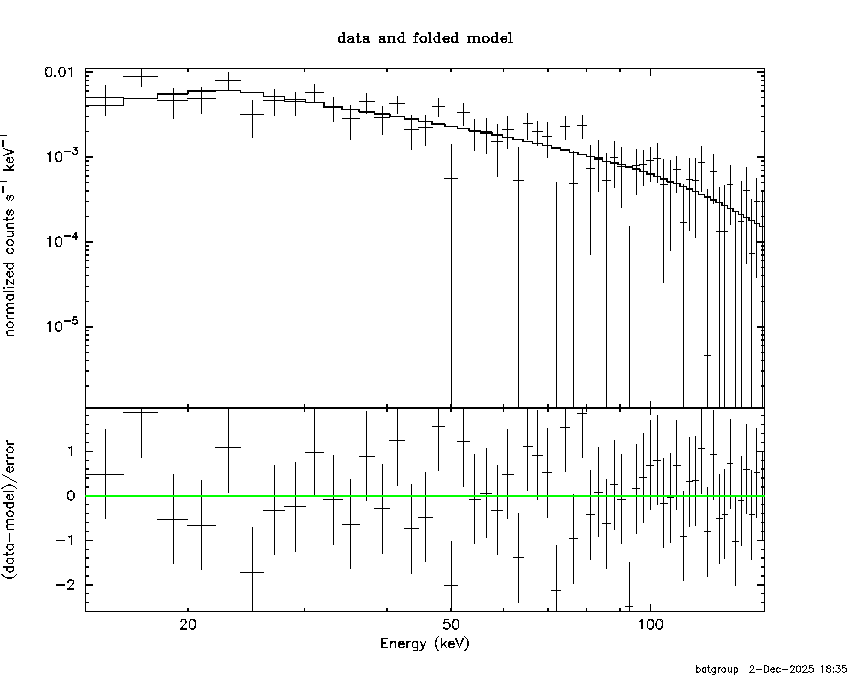

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.04978        (-0.827312      0.913047)
R1^2/D10^2  : 0.513035        (-0.173803      0.289289)
kT2 [keV]   : 26.3107        (-2.65156      3.59634)
R2^2/D10^2  : 6.37609E-03    (-0.00237459   0.00310777)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.150e-07   6.421e-08
25- 50  1.064e-06   8.324e-08
50-150  2.436e-06   2.421e-07
15-150  4.015e-06   3.065e-07

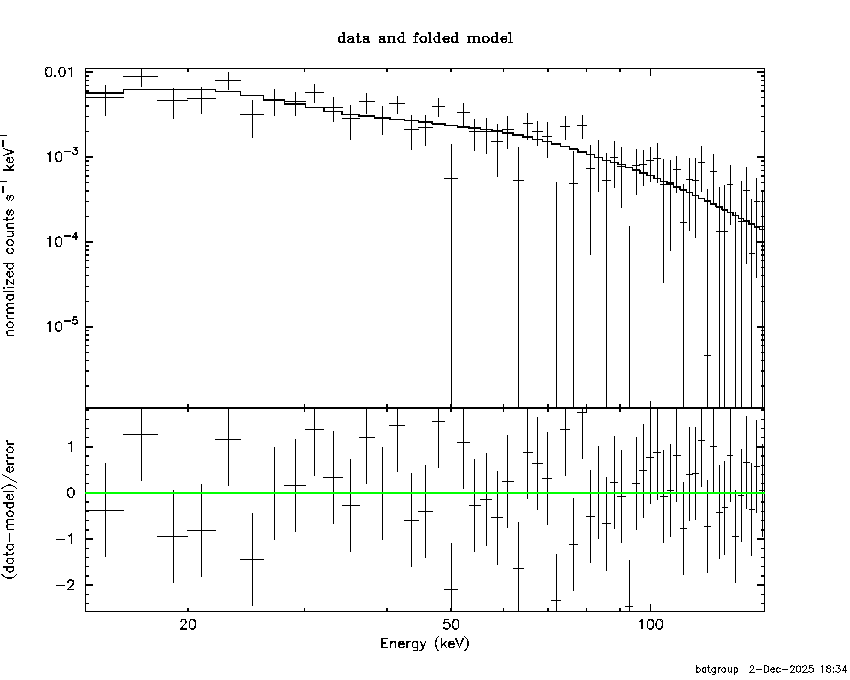

Peak spectrum fit

Power-law model

Time interval is from   -0.276 sec. to    0.724 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42794     ( -0.175931   0.176505 )
Norm@50keV  : 1.54846E-02    ( -0.00159873   0.00159301 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.71 using 59 PHA bins.
# Reduced chi-squared =         0.9248 for     57 degrees of freedom
# Null hypothesis probability =   6.365942e-01

Photon flux (15-150 keV)    in 1 sec: 1.89804 ( -0.197232  0.197538 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.48795e-07 ( -1.69118e-08  1.70291e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.276 sec. to    0.724 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42508     ( -0.690158   1.18594 )
Epeak [keV] : 9994.63      ( -9995.33 -9995.33 )
Norm@50keV  : 1.55383E-02    ( -0.0155384   0.0183677 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.71 using 59 PHA bins.
# Reduced chi-squared =         0.9413 for     56 degrees of freedom
# Null hypothesis probability =   6.001436e-01

Photon flux (15-150 keV)    in 1 sec: 1.89785 ( -0.20087  0.1969 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.48802e-07 ( -1.7981e-08  1.6954e-08 ) ergs/cm2

Band function

Time interval is from   -0.276 sec. to    0.724 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.924693   ( 0.920663   0.920663 )
beta        : -1.50491    ( 1.50577   0.243854 )
Epeak [keV] : 78.2402      ( -75.4579 741.36 )
Norm@50keV   : 3.13100E-02    ( -0.0159558   1.54093e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.42 using 59 PHA bins.
# Reduced chi-squared =         0.9532 for     55 degrees of freedom
# Null hypothesis probability =   5.736297e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.2586  (-2.10691  2.53944)
R^2/D10^2   : 0.204382  (-0.0846364   0.139345)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.933e-09   2.147e-09
25- 50  4.009e-08   6.000e-09
50-150  6.400e-08   1.296e-08
15-150  1.140e-07   1.660e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-49.0922      -200)
Norm        : 7.82709       (-0.79624     0.79624)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.950e-08   9.089e-09
25- 50  3.750e-08   1.754e-08
50-150  8.225e-08   4.471e-08
15-150  1.393e-07   5.881e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.76193        (-2.29907      2.32234)
R1^2/D10^2  : 1.03069        (-0.530946      1.56776)
kT2 [keV]   : 41.2874        (-16.5513      -42.2794)
R2^2/D10^2  : 5.60922E-03    (-0.00455864   0.0214551)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.639e-08   7.550e-09
25- 50  3.923e-08   1.357e-08
50-150  9.331e-08   4.650e-08
15-150  1.489e-07   6.582e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.26424     ( -0.06292   0.062521 )
Norm@50keV  : 9.51108E-03    ( -0.000339388   0.000339293 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.79 using 59 PHA bins.
# Reduced chi-squared =          1.014 for     57 degrees of freedom
# Null hypothesis probability =   4.459916e-01

Photon flux (15-150 keV)    in 22.28 sec: 1.12756 ( -0.0429218  0.0430035 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.1129e-06 ( -7.98785e-08  8.00041e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.868778     ( -0.265254   0.249673 )
Epeak [keV] : 159.307      ( -42.2771 164.437 )
Norm@50keV  : 1.44296E-02    ( -0.00325636   0.00448018 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.22 using 59 PHA bins.
# Reduced chi-squared =         0.8968 for     56 degrees of freedom
# Null hypothesis probability =   6.924249e-01

Photon flux (15-150 keV)    in 22.28 sec: 1.10512 ( -0.04501  0.04507 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.06985e-06 ( -8.56087e-08  8.52611e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.310719   ( -0.685642   0.302711 )
beta        : -1.42195    ( 1.42134   0.12663 )
Epeak [keV] : 73.8753      ( -43.2821 128.093 )
Norm@50keV   : 3.18732E-02    ( -0.0197935   164.986 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.12 using 59 PHA bins.
# Reduced chi-squared =         0.8749 for     55 degrees of freedom
# Null hypothesis probability =   7.327288e-01

Photon flux (15-150 keV)    in 22.28 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.03e-06
S(50-100 keV) = 1.43e-06

T90 vs. Hardness ratio plot

T90                                   = 86.0080000162125 sec.
Hardness ratio (energy fluence ratio) = 1.38835

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.33926
Count Ratio (50-100 keV) / (15-25 keV) = 1.04895

Mask shadow pattern

IMX = -5.646264345033682E-01, IMY = 1.558453113076264E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

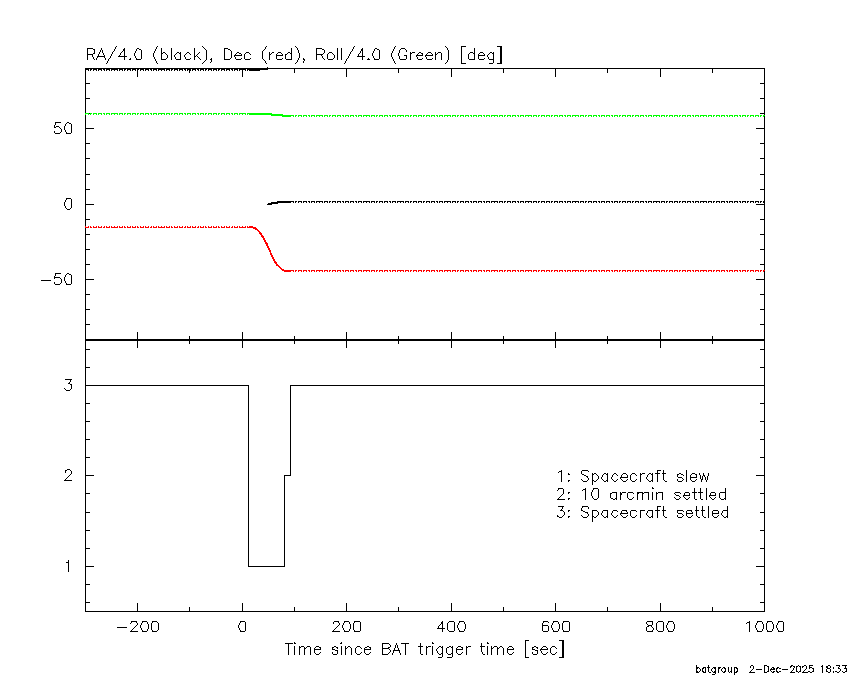

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.136000 -9.612000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 24.2031   5.7891    3.0  34.9   85.3   2.9730   3.9 ------	UNKNOWN
 14.5715   8.1046    2.8  29.7   69.7   2.1239   4.1 ------	UNKNOWN
346.4072 -64.9946    2.8  50.2 -144.5   3.5471   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-9.612000 12.664600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
357.0598  12.8938    2.1  28.1   32.3   0.4591   5.7 ------	UNKNOWN
  6.4049 -44.2367    0.3  30.4 -164.6   3.1450  44.4 ------	UNKNOWN
349.1370 -47.3085    2.3  32.6 -141.1   0.4202   5.1 ------	UNKNOWN
339.4446 -34.5326    2.8  24.4 -115.1   0.3377   4.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
81.764600 350.784000
351.864000 711.997300
720.864000 782.912500
840.864000 889.644000
891.864000 893.434000
894.864000 962.925100

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']

Plot creation:
Tue Dec  2 18:35:56 EST 2025
