batgrbproduct analysis for trigger=1500295

batgrbproduct Analysis for Trigger=1500295

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Mar 14 13:25:22 EDT 2026
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1500295/GCN5_download_cron
======================================================================

  Trigger: 01500295      Segment: 000

  BAT Trigger Time: 795098384   [s; MET]
      Trigger Stop: 795098448   [s; MET]
               UTC: 2026-03-13T12:39:06.620680    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 353.407284579112   Dec: -2.8926199852004  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    11.78
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    11.78

  Flight Position:   [ source = BAT ]
    RA: 353.407284579112   Dec: -2.8926199852004  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 353.378079736923   Dec: -2.90658032584521  [deg; J2000]
        { 23h 33m 30.7s , -02d 54' 23.7" }
         +/- 2.48556321859468 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.11202724949086 [arcmin] (formal 1-sigma fit error)
    SNR: 8.28372721673608

  Angular difference between Flight and Ground position is 1.940173 arcmin

  Partial Coding Fraction: 0.28125    [ including projection effects ]

  Duration
     T90: 79.1119999885559 +/- 379.159545522398
        Measured from: 30.836000084877
                   to: 109.948000073433     [s; relative to TRIGTIME]
     T50: 31.5360000133514 +/- 9.02391079312138
        Measured from: 47.6600000858307
                   to: 79.1960000991821     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 75.3439999818802
                   to: 76.3439999818802     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 23.1720000505447
                   to: 489.024000048637     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     5.743801   1.693934   0.071018  -0.215545
           0.284062   0.282503   0.253181   0.212211 [error]
 Peak      0.142564   0.050559   0.014429   0.000890
           0.015633   0.013829   0.011769   0.009660 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.51e-06 7.21e-07 1.12e-07 1.99e-08 3.36e-06 3.36e-06   erg/cm2
              Error 3.14e-07 1.79e-07 6.81e-08 2.20e-08 3.73e-07 3.75e-07   erg/cm2
Peak flux Power-law 1.99e+00 4.67e-01 5.67e-02 7.65e-03 2.52e+00 2.52e+00   ph/cm2/s
              Error 4.02e-01 1.70e-01 4.98e-02 1.37e-02 4.49e-01 4.49e-01   ph/cm2/s

Fluence   Cutoff-PL 2.51e-06 7.18e-07 1.06e-07 1.53e-08 3.34e-06 3.35e-06   erg/cm2
              Error 3.17e-07 1.87e-07 7.93e-08 2.53e-08 4.07e-07 4.10e-07   erg/cm2
Peak flux Cutoff-PL 1.99e+00 4.67e-01 5.64e-02 7.56e-03 2.51e+00 2.52e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 1.99e+00 4.65e-01 5.60e-02 7.45e-03 2.51e+00 2.52e+00   ph/cm2/s
              Error 4.02e-01 -------- -------- -------- 4.49e-01 4.49e-01   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.685    0.520    -      -           1.92e-04 9.04e-05   70.880 57
CPL   1.000    0.000      50.0    0.0      2.31e-03 0.00e+00  206.060 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.044    0.772    -      -           3.93e-03 2.69e-03   56.160 57
CPL   1.000    0.000      50.0    0.0      3.43e-02 0.00e+00   95.830 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  465.852   23.172  489.024
T90    79.112   30.836  109.948
T50    31.536   47.660   79.196
Peak    1.000   75.344   76.344

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  353.3781  -2.9066 0.0233   47.0 -150.1       6.5159     8.3  TRIG_01500295
------------------------------------------

Foreground time interval of the image:
 23.172 134.790 (delta_t = 111.618 [sec])
136.000 196.901 (delta_t =  60.901 [sec])
Background time interval of the image:
-10.499  23.172 (delta_t =  33.671 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

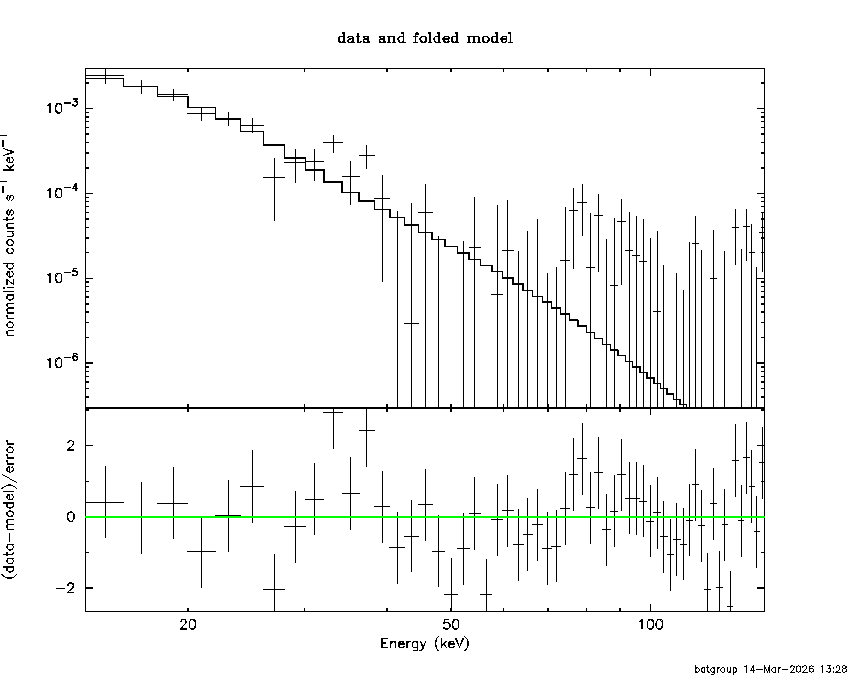

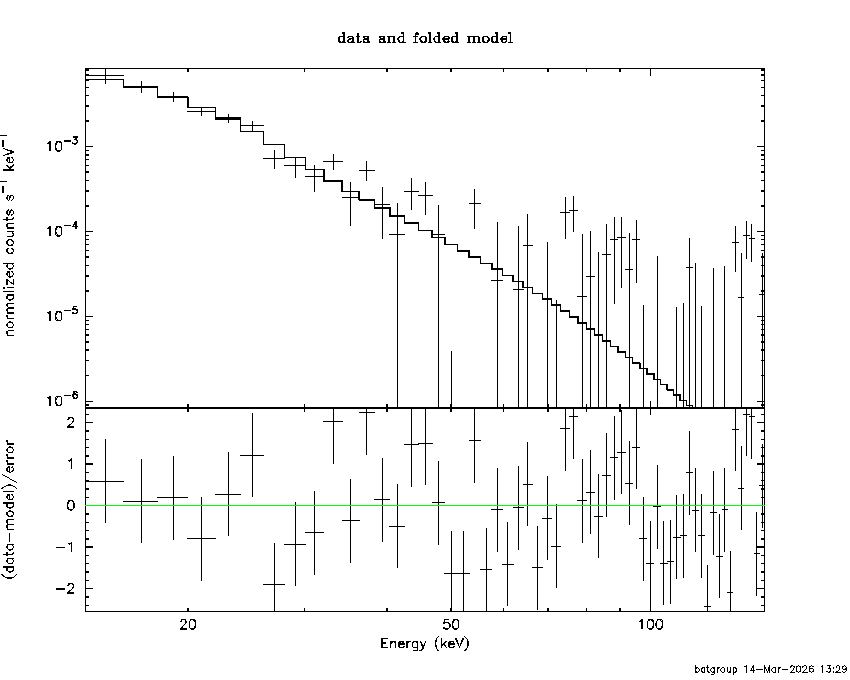

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
23.172000 134.790000
136.000000 489.024000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.68514     ( -0.495281   0.54487 )
Norm@50keV  : 1.91507E-04    ( -7.67918e-05   0.0001041 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.88 using 59 PHA bins.
# Reduced chi-squared =          1.243 for     57 degrees of freedom
# Null hypothesis probability =   1.023386e-01

Photon flux (15-150 keV)    in 464.6 sec: 0.219528 ( -0.0243443  0.0244701 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.35739e-06 ( -3.71239e-07  3.74285e-07 ) ergs/cm2

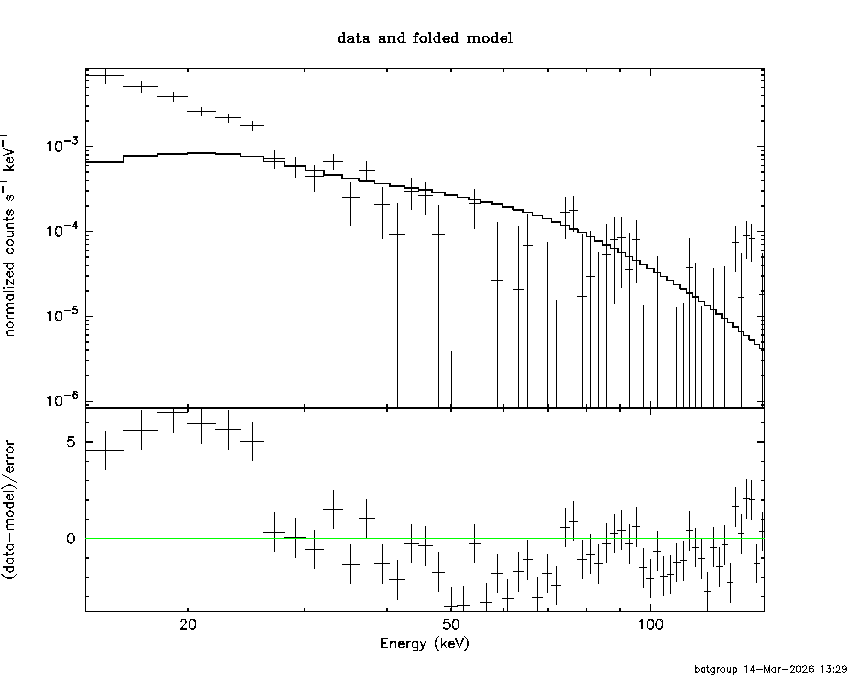

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
23.172000 134.790000
136.000000 489.024000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.30590E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         206.06 using 59 PHA bins.
# Reduced chi-squared =         3.6796 for     56 degrees of freedom
# Null hypothesis probability =   4.989004e-19

Photon flux (15-150 keV)    in 464.6 sec: 0.218810 ( -0.02594  0.024864 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.34216e-06 ( -4.26856e-07  3.87147e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
23.172000 134.790000
136.000000 489.024000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -6.00137   ( 6.00137   6.00137 )
beta        : -4.68513    ( -0.544867   0.49444 )
Epeak [keV] : 7.39796      ( -7.39796 -7.39796 )
Norm@50keV   : 2.60285E-02    ( -0.0104192   0.0141644 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.88 using 59 PHA bins.
# Reduced chi-squared =          1.289 for     55 degrees of freedom
# Null hypothesis probability =   7.341667e-02

Photon flux (15-150 keV)    in 464.6 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

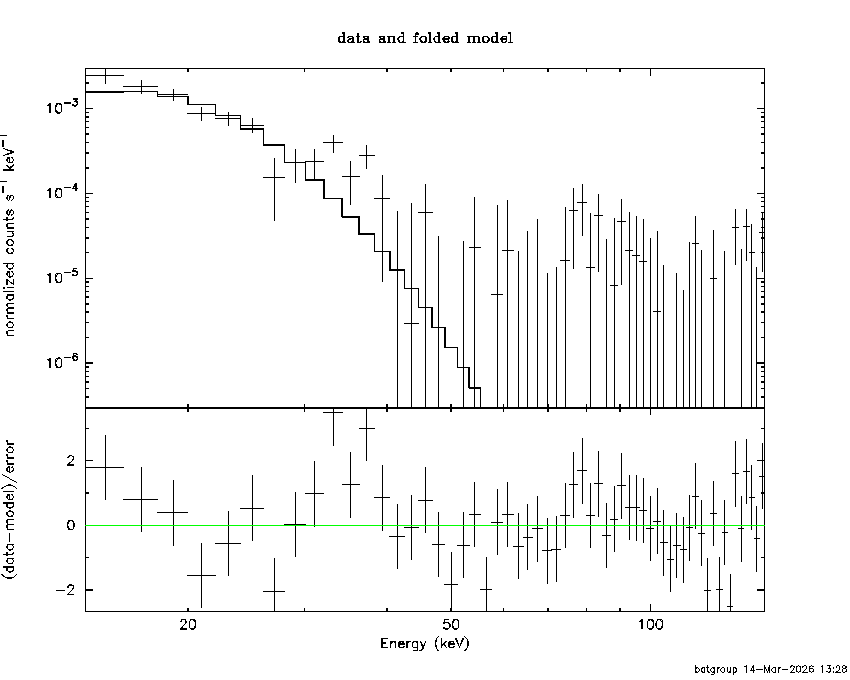

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.34566  (-0.448833  0.542788)
R^2/D10^2   : 14.4636  (-8.80953   23.2832)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          81.42 using 59 PHA bins.
# Reduced chi-squared =          1.428 for     57 degrees of freedom
# Null hypothesis probability =   1.856762e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.398e-06   5.873e-07
25- 50  5.037e-07   1.744e-07
50-150  1.875e-09   1.388e-09
15-150  2.903e-06   6.537e-07

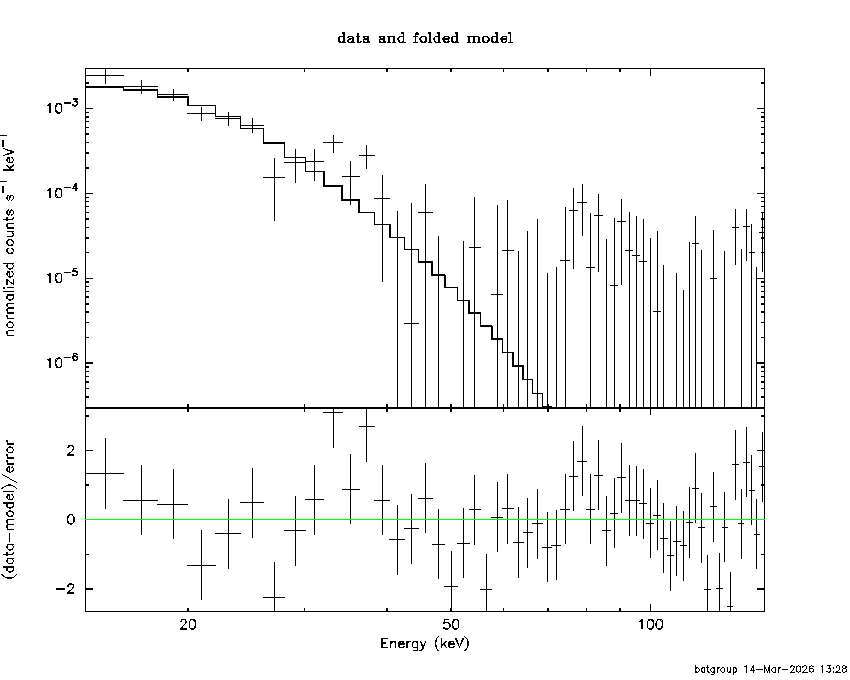

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 7.25456       (-1.45061      1.92715)
Norm        : 15.1444       (-6.98105     14.9232)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.427e-06   5.220e-07
25- 50  6.412e-07   1.982e-07
50-150  1.617e-08   1.198e-08
15-150  3.085e-06   6.602e-07

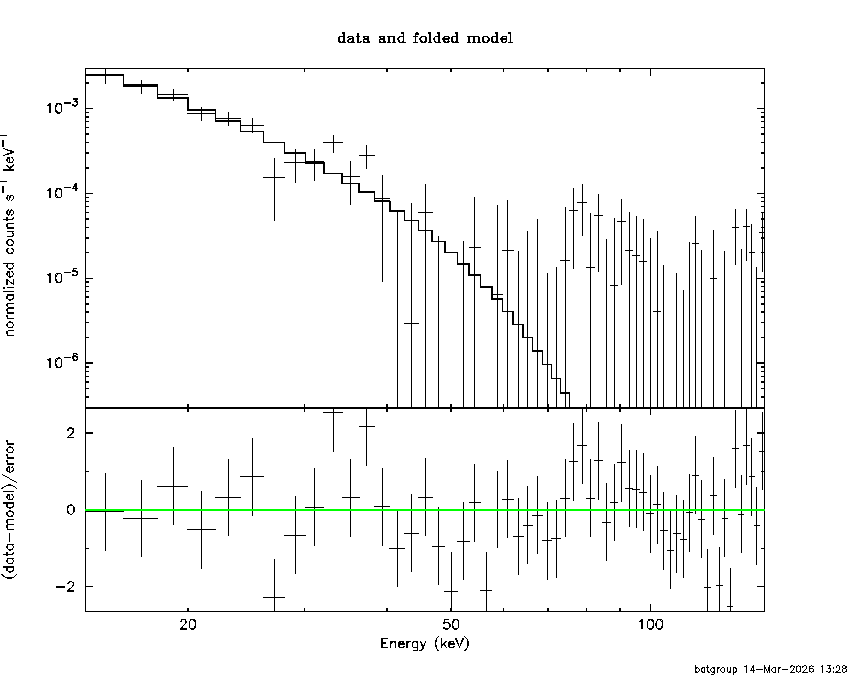

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.86778        (-0.593548      0.580339)
R1^2/D10^2  : 646.973        (-653.347      24961.9)
kT2 [keV]   : 5.42093        (-1.16385      1.56298)
R2^2/D10^2  : 0.660699    (-0.536979   2.30045)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.507e-06   1.227e-06
25- 50  8.378e-07   4.600e-07
50-150  4.796e-08   3.324e-08
15-150  3.393e-06   1.644e-06

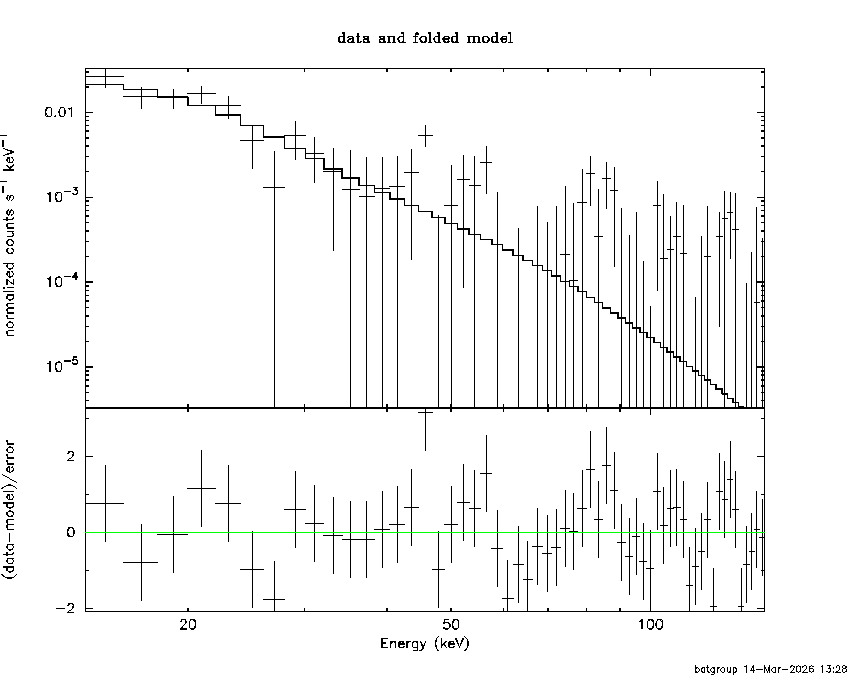

Peak spectrum fit

Power-law model

Time interval is from   75.344 sec. to   76.344 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.04371     ( -0.690614   0.852396 )
Norm@50keV  : 3.92688E-03    ( -0.00221826   0.00316008 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.16 using 59 PHA bins.
# Reduced chi-squared =         0.9853 for     57 degrees of freedom
# Null hypothesis probability =   5.064921e-01

Photon flux (15-150 keV)    in 1 sec: 2.51602 ( -0.448868  0.448931 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.93109e-08 ( -1.82829e-08  1.96041e-08 ) ergs/cm2

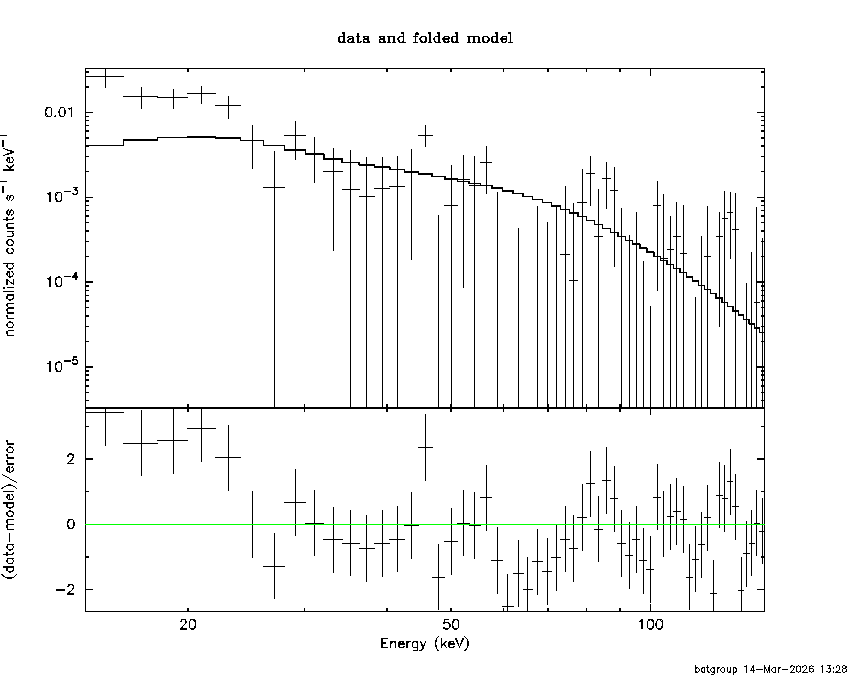

Cutoff power-law model

Time interval is from   75.344 sec. to   76.344 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.43337E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          95.83 using 59 PHA bins.
# Reduced chi-squared =          1.711 for     56 degrees of freedom
# Null hypothesis probability =   7.317045e-04

Photon flux (15-150 keV)    in 1 sec: 2.51429 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.8665e-08 ( 0  0 ) ergs/cm2

Band function

Time interval is from   75.344 sec. to   76.344 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.63804   ( 8.63804   8.63804 )
beta        : -4.04368    ( -0.852029   0.690344 )
Epeak [keV] : 0.862455      ( -0.862455 -0.862455 )
Norm@50keV   : 0.533733    ( -0.301497   0.429494 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.16 using 59 PHA bins.
# Reduced chi-squared =          1.021 for     55 degrees of freedom
# Null hypothesis probability =   4.311049e-01

Photon flux (15-150 keV)    in 1 sec: 2.51425 ( 4.48575  -0.44853 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.41488  (-0.61556  0.825858)
R^2/D10^2   : 152.171  (-152.207   377.159)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.090e-08   3.372e-08
25- 50  1.366e-08   8.050e-09
50-150  5.889e-11   5.400e-11
15-150  7.462e-08   4.081e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 8.47849       (-2.70199      5.20785)
Norm        : 120.366       (-73.9157     219.157)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.900e-08   2.189e-08
25- 50  2.006e-08   9.999e-09
50-150  8.506e-10   7.547e-10
15-150  7.991e-08   3.268e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.53288        (-0.886401      0.875255)
R1^2/D10^2  : 787.781        (-658.138      18867.4)
kT2 [keV]   : 8.93022        (-3.62706      7.28857)
R2^2/D10^2  : 0.709184    (-0.656636   8.28514)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.846e-08   3.172e-08
25- 50  2.671e-08   1.545e-08
50-150  8.578e-09   6.865e-09
15-150  9.374e-08   4.703e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.61474     ( -0.35781   0.378867 )
Norm@50keV  : 5.67285E-04    ( -0.000157693   0.000191518 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          86.07 using 59 PHA bins.
# Reduced chi-squared =          1.510 for     57 degrees of freedom
# Null hypothesis probability =   7.705503e-03

Photon flux (15-150 keV)    in 172.5 sec: 0.609042 ( -0.0537738  0.0547591 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.48257e-06 ( -2.71144e-07  2.71568e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 5.62098E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         324.36 using 59 PHA bins.
# Reduced chi-squared =         5.7922 for     56 degrees of freedom
# Null hypothesis probability =   1.893193e-39

Photon flux (15-150 keV)    in 172.5 sec: 0.610311 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.48781e-06 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.21921   ( 14.1737   9.21921 )
beta        : -4.61476    ( -0.378864   0.358146 )
Epeak [keV] : 129.685      ( -129.685 -129.685 )
Norm@50keV   : 7.71008E-02    ( -0.0214325   0.0260299 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          86.07 using 59 PHA bins.
# Reduced chi-squared =          1.565 for     55 degrees of freedom
# Null hypothesis probability =   4.676111e-03

Photon flux (15-150 keV)    in 172.5 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.21e-07
S(50-100 keV) = 1.12e-07

T90 vs. Hardness ratio plot

T90                                   = 79.1119999885559 sec.
Hardness ratio (energy fluence ratio) = 0.15534

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.294915
Count Ratio (50-100 keV) / (15-25 keV) = 0.0123643

Mask shadow pattern

IMX = -9.289753211546096E-01, IMY = 5.346939698185558E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-10.499400 23.172000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5082  35.2524    6.1  52.9   15.9   0.6953   1.9    5.9	Her X-1
288.8236  10.9407  211.1  33.0  -36.3   0.0060   0.1    1.5	GRS 1915+105
299.6121  35.1978    0.9  16.4   16.6   1.0297  12.7    1.1	Cyg X-1
307.9140  40.8433    4.6  13.8   48.6   0.2125   2.5   11.1	Cyg X-3
326.0023  38.4081    8.8  10.9  117.3  -0.1042  -1.3    9.5	Cyg X-2
350.6066  61.7050    2.3  38.5  106.5   1.2250   5.0 ------	UNKNOWN
311.4398  33.8590    3.1   7.0   30.7   0.2797   3.7 ------	UNKNOWN
272.7422  15.0425    2.1  44.0  -17.0   0.7155   5.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
23.172000 134.790000
136.000000 196.900590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3584  35.4009    6.3  53.0   16.1  -3.5390  -1.8    6.0	Her X-1
288.6683  10.8369    3.6  33.2  -36.3   1.4900   3.3   10.1	GRS 1915+105
299.7736  35.1893    5.6  16.3   16.6  -0.7535  -2.0    9.0	Cyg X-1
307.9970  40.8216    9.7  13.8   48.7  -0.4530  -1.2    9.4	Cyg X-3
325.9487  38.2081    0.0  10.8  117.8   0.4562   1.3   12.5	Cyg X-2
310.5107  47.7606    2.2  19.0   66.6   2.0157   5.2 ------	UNKNOWN
353.3780  -2.9066    1.4  47.0 -150.1   6.5170   8.3  433.7	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
222.500600 435.900600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4386  35.3425    9.5  53.4   10.5   1.2143   1.2    0.9	Her X-1
288.7272  10.9606    5.5  36.0  -41.8   1.1682   2.1    4.3	GRS 1915+105
299.5940  35.2037    0.6  17.1    2.2   6.6293  19.6    0.2	Cyg X-1
308.3169  41.0211    8.1  12.5   33.2  -0.4926  -1.4   10.2	Cyg X-3
326.4048  38.4258    0.0   7.7  118.8   0.7757   2.3   12.6	Cyg X-2
  8.0834  47.2320    2.3  38.9  131.8   4.3608   4.9 ------	UNKNOWN
357.3970  46.8640    2.7  31.6  130.6   2.3476   4.2 ------	UNKNOWN
352.9429  -2.9716    1.8  47.4 -149.4   5.5247   6.4  459.3	UNKNOWN
306.2676   0.8529    2.6  34.4  -77.0   3.1607   4.5 ------	UNKNOWN

Plot creation:
Sat Mar 14 13:29:48 EDT 2026
