TDRSS scaled map for 1500295
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 13 Mar 26 12:40:22 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1500295, Seg_Num: 0
GRB_RA: 353.407d {+23h 33m 38s} (J2000),
353.744d {+23h 34m 58s} (current),
352.765d {+23h 31m 04s} (1950)
GRB_DEC: -2.893d {-02d 53' 32"} (J2000),
-2.748d {-02d 44' 51"} (current),
-3.169d {-03d 10' 07"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=2124 [image_cnts]
TRIGGER_DUR: 64.000 [sec]
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 21112 TJD; 72 DOY; 26/03/13
GRB_TIME: 45546.62 SOD {12:39:06.62} UT
GRB_PHI: -150.12 [deg]
GRB_THETA: 46.99 [deg]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 11.78 [sigma]
MERIT_PARAMS: +1 +0 +0 +6 +1 +1 -100 +0 -99 +0
SUN_POSTN: 353.52d {+23h 34m 06s} -2.80d {-02d 47' 53"}
SUN_DIST: 0.22 [deg] Sun_angle= -0.0 [hr] (East of Sun)
MOON_POSTN: 288.22d {+19h 12m 53s} -26.63d {-26d 38' 00"}
MOON_DIST: 66.96 [deg]
MOON_ILLUM: 30 [%]
GAL_COORDS: 82.07,-59.44 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 352.80, -0.04 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 289.69,20.44 [deg].
GCN BAT Scaled Map Notice

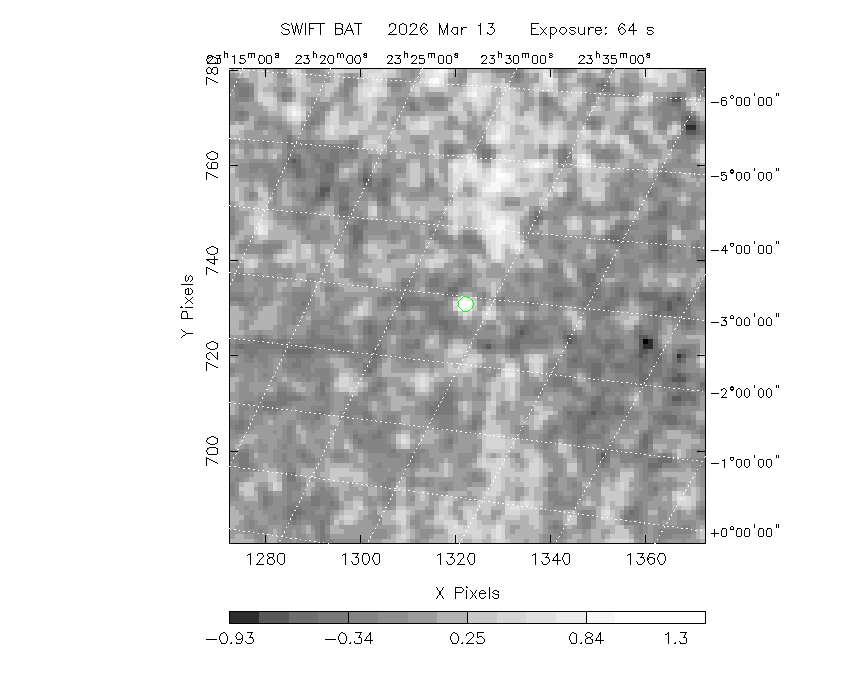

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (353.407, -2.893).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 353.407 -2.893 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2036 59.2894 0.0 44.3 115.8 0.8299 1.3 0.0 V709 Cas
254.4576 35.3425 0.0 53.0 16.0 0.2654 0.6 0.0 Her X-1
278.7590 32.6973 0.0 33.5 7.6 0.0159 0.1 0.0 3C 382
279.9896 5.0358 0.0 43.5 -34.8 0.0743 0.4 0.0 Ser X-1
283.8804 -2.6067 0.0 45.9 -46.5 0.1118 0.4 0.0 XTE J1855-026
287.4138 9.8292 0.0 34.8 -36.3 0.0469 0.3 0.0 4U 1907+09
287.7208 7.6667 0.0 35.9 -39.5 0.0542 0.3 0.0 4U 1909+07
287.9565 4.9827 0.0 37.6 -43.0 0.0097 0.1 0.0 SS 433
288.5083 9.8883 0.0 33.9 -37.4 0.1141 0.8 0.0 IGR J19140+0951
288.7983 10.9456 0.0 33.0 -36.3 0.2354 1.8 0.0 GRS 1915+105
297.3771 30.2067 0.0 17.8 -1.0 0.0304 0.3 0.0 KS 1947+300
298.9292 32.1000 0.0 16.5 5.4 -0.0429 -0.5 0.0 4U 1954+31
299.5903 35.2016 0.0 16.4 16.5 0.5062 5.9 0.0 Cyg X-1
299.8682 40.7339 0.0 18.4 33.9 0.0045 0.0 0.0 Cyg A
308.0633 37.6375 0.0 11.4 38.8 0.0224 0.2 0.0 EXO 2030+375
308.1103 40.9526 0.0 13.8 49.4 -0.0797 -0.9 0.0 Cyg X-3
314.6979 41.7770 0.0 12.4 70.7 0.0883 0.9 0.0 GRO J2058+42
321.1638 50.9739 0.0 21.4 87.7 0.1129 1.0 0.0 IGR J21247+5058
322.4929 12.1674 0.0 18.0 -112.2 -0.0520 -0.5 0.0 4U 2129+12
323.4320 51.1236 0.0 21.8 91.4 0.0290 0.2 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 11.0 118.2 -0.0165 -0.2 0.0 Cyg X-2
331.9808 54.5197 0.0 26.8 100.3 0.1453 0.9 0.0 4U 2206+54
343.4906 16.1482 0.0 27.0 -163.4 0.1258 1.2 0.0 3C 454.3
350.9671 42.1830 0.0 29.2 137.9 0.0225 0.2 0.0 1ES 2321+419
266.1271 56.1585 4.2 44.7 43.7 0.9153 2.8 ------ UNKNOWN
249.8540 31.8670 3.0 57.6 13.2 4.0699 3.8 ------ UNKNOWN
269.5463 23.8869 4.6 43.3 -3.5 0.4286 2.6 ------ UNKNOWN
278.1881 13.9667 3.7 39.9 -22.2 0.4750 3.1 ------ UNKNOWN
353.4107 -2.8776 1.9 47.0 -150.1 1.6878 6.1 431.3 UNKNOWN
297.1301 -6.5948 2.6 41.5 -65.5 1.5529 4.5 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4576 35.3425 0.0 53.0 16.0 0.2654 0.6 0.0 Her X-1
268.3680 -1.4526 0.0 56.6 -32.0 -1.2317 -1.8 0.0 SW J1753.5-0127
288.7983 10.9456 0.0 33.0 -36.3 0.2352 1.8 0.0 GRS 1915+105
299.5903 35.2016 0.0 16.4 16.5 0.5062 5.8 0.0 Cyg X-1
308.1103 40.9526 0.0 13.8 49.4 -0.0797 -0.9 0.0 Cyg X-3
326.1717 38.3217 0.0 11.0 118.2 -0.0165 -0.2 0.0 Cyg X-2
266.1271 56.1585 4.2 44.7 43.7 0.9153 2.8 ------ UNKNOWN
249.8540 31.8670 3.0 57.6 13.2 4.0699 3.8 ------ UNKNOWN
269.5463 23.8869 4.6 43.3 -3.5 0.4286 2.6 ------ UNKNOWN
278.1881 13.9667 3.7 39.9 -22.2 0.4750 3.1 ------ UNKNOWN
353.4107 -2.8776 1.9 47.0 -150.1 1.6878 6.1 431.3 UNKNOWN
297.1301 -6.5948 2.6 41.5 -65.5 1.5529 4.5 ------ UNKNOWN
Search for UNKNOWN source R.A. = 249.8540 Dec. = +31.8670 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 266.1271 Dec. = +56.1585 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 269.5463 Dec. = +23.8869 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 278.1881 Dec. = +13.9667 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 297.1301 Dec. = -6.5948 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 353.4107 Dec. = -2.8776 (search radius of 3 degrees)
No bright source found.
Result of batcelldetect cleaning the bright sources
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1500295/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Fri Mar 13 08:50:10 EDT 2026
