batgrbproduct analysis for trigger=151207

batgrbproduct Analysis for Trigger=151207

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 20:48:44 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger151207
======================================================================

  Trigger: 00151207      Segment: 000

  BAT Trigger Time: 146212492.8   [s; MET]
      Trigger Stop: 146212493.824   [s; MET]
               UTC: 2005-08-20T06:34:53.115840    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 337.39960673239   Dec: 19.5782013718259  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.38
     Image Trigger?:     NO
     Rate S/N Ratio:     15.6204993518133  [ if not an image trigger ]
     Image S/N Ratio:    8.38

  Flight Position:   [ source = BAT ]
    RA: 337.39960673239   Dec: 19.5782013718259  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 337.416642861812   Dec: 19.5605559321051  [deg; J2000]
        { 22h 29m 40.0s , +19d 33' 38.0" }
         +/- 1.07678536589351 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.346905538452602 [arcmin] (formal 1-sigma fit error)
    SNR: 27.3665217069556

  Angular difference between Flight and Ground position is 1.431261 arcmin

  Partial Coding Fraction: 0.765625    [ including projection effects ]

  Duration
     T90: 240.767999976873 +/- 11.5134425819149
        Measured from: -1.44800001382828
                   to: 239.319999963045     [s; relative to TRIGTIME]
     T50: 220.143999993801 +/- 2.9953777639415
        Measured from: 13.9599999785423
                   to: 234.103999972343     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 229.531999975443
                   to: 230.531999975443     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -20.472000002861
                   to: 240.887999981642     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.399027   2.004103   1.880053   0.618679
           0.088740   0.099831   0.100152   0.108039 [error]
 Peak      0.058582   0.117876   0.111439   0.042121
           0.008003   0.009948   0.010832   0.011975 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.82e-07 8.24e-07 1.40e-06 5.42e-06 3.83e-06 8.02e-06   erg/cm2
              Error 3.83e-08 4.80e-08 9.87e-08 8.67e-07 2.45e-07 9.34e-07   erg/cm2
Peak flux Power-law 5.50e-01 7.38e-01 7.28e-01 1.29e+00 2.44e+00 3.31e+00   ph/cm2/s
              Error 9.19e-02 7.69e-02 8.33e-02 3.06e-01 2.30e-01 3.82e-01   ph/cm2/s

Fluence   Cutoff-PL 3.79e-07 8.25e-07 1.39e-06 4.97e-06 3.82e-06 7.56e-06   erg/cm2
              Error 4.10e-08 4.74e-08 9.82e-08 1.49e-06 2.48e-07 1.29e-06   erg/cm2
Peak flux Cutoff-PL 4.74e-01 7.99e-01 7.78e-01 5.24e-01 2.36e+00 2.57e+00   ph/cm2/s
              Error 1.09e-01 9.54e-02 9.78e-02 4.02e-01 2.39e-01 4.55e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.241    0.100    -      -           1.46e-03 7.91e-05   45.570 57
CPL   1.240    0.101    9999.3    0.0      1.47e-03 3.11e-04   45.590 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.019    0.157    -      -           2.11e-02 2.01e-03   65.110 57
CPL   0.190    0.738     110.7  132.9      5.50e-02 5.43e-02   60.580 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 129.984000 sec.
T50 in the 50-300 keV band: 65.216000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  261.360  -20.472  240.888
T90   240.768   -1.448  239.320
T50   220.144   13.960  234.104
Peak    1.000  229.532  230.532

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  337.4166    19.5606   0.0071    20.4379   128.3230         1.9030202     27.367 TRIG_00151207

Foreground time interval of the image:
-20.472  19.101 (delta_t =  39.573 [sec])
Background time interval of the image:
-299.800 -20.472 (delta_t = 279.328 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

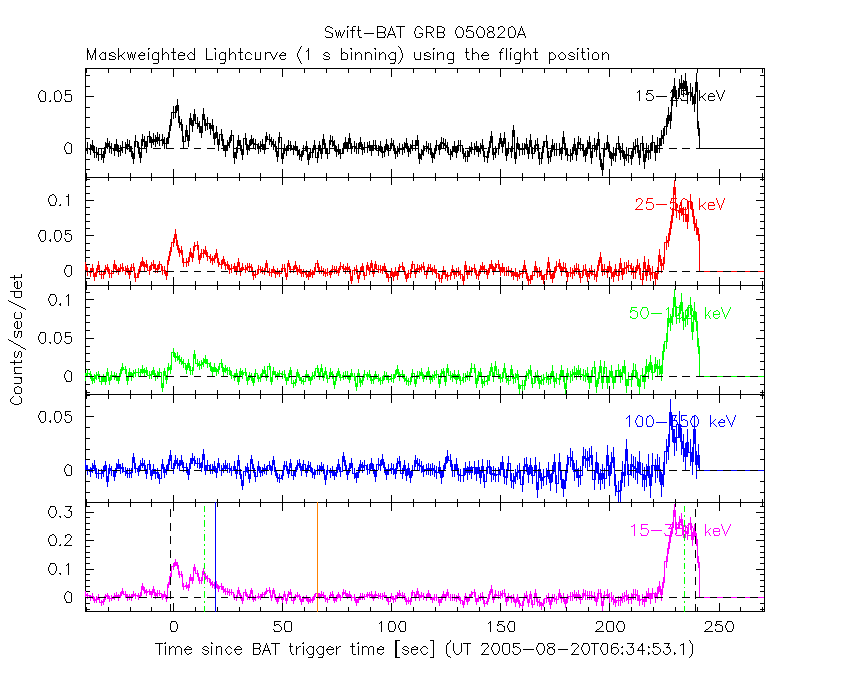

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -20.472 sec. to  240.888 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.24058     ( -0.100279   0.10024 )
Norm@50keV  : 1.46066E-03    ( -7.92048e-05   7.90019e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.57 using 59 PHA bins.
# Reduced chi-squared =         0.7995 for     57 degrees of freedom
# Null hypothesis probability =   8.616495e-01

Photon flux (15-150 keV)    in 261.4 sec: 0.172495 ( -0.00930265  0.00930804 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.83076e-06 ( -2.44219e-07  2.46282e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -20.472 sec. to  240.888 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.24009     ( -0.10326   0.0985933 )
Epeak [keV] : 9999.32      ( -9999.36 -9999.36 )
Norm@50keV  : 1.46559E-03    ( -7.93471e-05   0.00054237 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.59 using 59 PHA bins.
# Reduced chi-squared =         0.8142 for     56 degrees of freedom
# Null hypothesis probability =   8.383909e-01

Photon flux (15-150 keV)    in 261.4 sec: 0.172444 ( -0.009309  0.009292 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.82428e-06 ( -2.45716e-07  2.49689e-07 ) ergs/cm2

Band function

Time interval is from  -20.472 sec. to  240.888 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.42258   ( -4.42258   -4.42258 )
beta        : -1.29657    ( -0.115552   0.110881 )
Epeak [keV] : 26.0200      ( -26.02 49.2376 )
Norm@50keV   : 36.6690    ( -1.95837   431663 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.26 using 59 PHA bins.
# Reduced chi-squared =         0.8047 for     55 degrees of freedom
# Null hypothesis probability =   8.496875e-01

Photon flux (15-150 keV)    in 261.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.7924  (  )
R^2/D10^2   : 1.11887E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         137.84 using 59 PHA bins.
# Reduced chi-squared =         2.4182 for     57 degrees of freedom
# Null hypothesis probability =   1.199784e-08

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.861e-07   2.005e-08
25- 50  8.530e-07   6.261e-08
50-150  1.954e-06   2.060e-07
15-150  2.993e-06   2.130e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 0.699814       (-0.037942     0.0379419)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.40 using 59 PHA bins.
# Reduced chi-squared =          1.270 for     57 degrees of freedom
# Null hypothesis probability =   8.215172e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.555e-07   2.915e-08
25- 50  8.763e-07   5.881e-08
50-150  1.922e-06   3.708e-07
15-150  3.254e-06   5.038e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.89858        (-0.970542      1.12263)
R1^2/D10^2  : 0.170889        (-0.0687698      0.122277)
kT2 [keV]   : 32.4677        (-5.06039      7.79415)
R2^2/D10^2  : 1.39807E-03    (-0.000654831   0.00097961)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.42 using 59 PHA bins.
# Reduced chi-squared =         0.6986 for     55 degrees of freedom
# Null hypothesis probability =   9.563396e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.936e-07   7.933e-08
25- 50  8.125e-07   1.405e-07
50-150  2.693e-06   6.262e-07
15-150  3.900e-06   7.221e-07

Peak spectrum fit

Power-law model

Time interval is from  229.532 sec. to  230.532 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.01922     ( -0.15769   0.156901 )
Norm@50keV  : 2.11402E-02    ( -0.00201262   0.00201054 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.11 using 59 PHA bins.
# Reduced chi-squared =          1.142 for     57 degrees of freedom
# Null hypothesis probability =   2.153760e-01

Photon flux (15-150 keV)    in 1 sec: 2.43653 ( -0.230417  0.230417 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.27074e-07 ( -2.58522e-08  2.62059e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  229.532 sec. to  230.532 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.189761     ( -0.800726   0.675238 )
Epeak [keV] : 110.696      ( -32.3483 233.454 )
Norm@50keV  : 5.49951E-02    ( -0.0292745   0.0794022 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.58 using 59 PHA bins.
# Reduced chi-squared =          1.082 for     56 degrees of freedom
# Null hypothesis probability =   3.140234e-01

Photon flux (15-150 keV)    in 1 sec: 2.36047 ( -0.23958  0.23913 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.10495e-07 ( -2.9265e-08  2.9645e-08 ) ergs/cm2

Band function

Time interval is from  229.532 sec. to  230.532 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -1.17416    ( -0.27504   0.193039 )
Epeak [keV] : 30.5208      ( -8.03453 6.47599 )
Norm@50keV   : 485.535    ( -45.5771   2287.84 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.60 using 59 PHA bins.
# Reduced chi-squared =          1.102 for     55 degrees of freedom
# Null hypothesis probability =   2.808967e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.4877  (-2.08028  2.43431)
R^2/D10^2   : 0.153096  (-0.0492924   0.0696841)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.71 using 59 PHA bins.
# Reduced chi-squared =          1.223 for     57 degrees of freedom
# Null hypothesis probability =   1.202642e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.039e-08   1.945e-09
25- 50  4.898e-08   6.410e-09
50-150  1.223e-07   2.416e-08
15-150  1.817e-07   2.515e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 9.21824       (-0.907431     0.908651)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          89.33 using 59 PHA bins.
# Reduced chi-squared =          1.567 for     57 degrees of freedom
# Null hypothesis probability =   3.995019e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.295e-08   1.265e-08
25- 50  4.414e-08   2.405e-08
50-150  9.681e-08   5.300e-08
15-150  1.639e-07   9.025e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.14789        (-4.1146      5.98911)
R1^2/D10^2  : 0.666292        (-0.435649      2.80981)
kT2 [keV]   : 28.8403        (-8.38511      -28.8403)
R2^2/D10^2  : 2.91471E-02    (-0.027847   0.0719054)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.11 using 59 PHA bins.
# Reduced chi-squared =          1.093 for     55 degrees of freedom
# Null hypothesis probability =   2.960896e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.483e-08   8.000e-09
25- 50  4.743e-08   2.454e-08
50-150  1.500e-07   8.175e-08
15-150  2.123e-07   1.105e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72935     ( -0.118321   0.120409 )
Norm@50keV  : 2.69873E-03    ( -0.00018664   0.000184546 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.59 using 59 PHA bins.
# Reduced chi-squared =          1.133 for     57 degrees of freedom
# Null hypothesis probability =   2.285653e-01

Photon flux (15-150 keV)    in 39.57 sec: 0.362176 ( -0.0226379  0.0226691 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.86634e-07 ( -7.12557e-08  7.20324e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72367     ( -0.434813   0.370824 )
Epeak [keV] : 9831.59      ( -9687.95 -9687.96 )
Norm@50keV  : 2.70632E-03    ( -0.000682072   0.00185746 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.60 using 59 PHA bins.
# Reduced chi-squared =          1.153 for     56 degrees of freedom
# Null hypothesis probability =   2.014933e-01

Photon flux (15-150 keV)    in 39.57 sec: 0.362020 ( -0.022621  0.022657 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.86583e-07 ( -8.20998e-08  7.14832e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.118022   ( 1.22062   1.22062 )
beta        : -1.77585    ( 1.75066   0.12918 )
Epeak [keV] : 29.2364      ( -28.6919 61.5768 )
Norm@50keV   : 4.27316E-02    ( -0.045201   299.865 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.80 using 59 PHA bins.
# Reduced chi-squared =          1.160 for     55 degrees of freedom
# Null hypothesis probability =   1.945995e-01

Photon flux (15-150 keV)    in 39.57 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.24e-07
S(50-100 keV) = 1.40e-06

T90 vs. Hardness ratio plot

T90                                   = 240.767999976873 sec.
Hardness ratio (energy fluence ratio) = 1.69903

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.4325
Count Ratio (50-100 keV) / (15-25 keV) = 1.34383

Mask shadow pattern

IMX = -2.310779479077750E-01, IMY = -2.923535457271975E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-299.800000 -20.472000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5818  35.2105    0.8  51.6  165.3   9.2903  14.2    0.7	Cyg X-1
308.1147  40.9975    2.0  44.8  173.0   1.8728   5.6    2.7	Cyg X-3
326.1436  38.3566    6.5  30.7  173.0   0.3567   1.8    2.5	Cyg X-2
359.4159  -5.9239    2.4  30.7   47.7   1.1585   4.7  357.1	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-20.472000 19.100600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.6361  35.0870   48.7  51.5  165.1   0.0527   0.2    7.2	Cyg X-1
308.1208  41.0614    4.9  44.8  173.1  -0.2966  -2.4    6.5	Cyg X-3
326.1587  38.3167  154.6  30.7  172.9  -0.0055  -0.1    0.7	Cyg X-2
337.4167  19.5606    0.4  20.4  128.3   1.9032  27.4 ------	UNKNOWN
  6.1091  66.5873    2.5  42.0 -126.7   0.6231   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
66.100600 302.290000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
288.8596  10.8295    6.0  47.5  162.6  -3.4735  -1.9    7.8	GRS 1915+105
299.6010  35.2365    1.4  36.7 -161.0   6.1849   8.3    2.2	Cyg X-1
308.1386  41.0281    4.0  32.8 -147.0   2.0810   2.9    4.7	Cyg X-3
325.9803  38.3026    4.4  21.2 -129.7   1.4921   2.6    9.1	Cyg X-2
  6.5315  -5.2145    2.6  37.9   23.8   4.4181   4.5  501.0	UNKNOWN
281.3532  15.1917    2.6  53.5  170.6  10.7746   4.5 ------	UNKNOWN
305.8956  19.3229    2.5  29.7  170.7   3.1133   4.7 ------	UNKNOWN
337.3932  19.5952    1.6   0.0  148.3   4.2012   7.2 ------	UNKNOWN
 32.1608   4.2366    2.6  55.5   -5.5  10.2203   4.5 ------	UNKNOWN
 16.8206  20.2964    2.7  37.0  -22.2   3.5331   4.4 ------	UNKNOWN
273.0364  36.8883    2.8  58.2 -162.2  11.8111   4.1 ------	UNKNOWN

Plot creation:
Sun May 31 15:58:33 EDT 2015
