batgrbproduct Analysis for Trigger=1512356

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Mon Sep 21 17:16:10 EDT 2026
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1512356/batgroup_hand_proc
======================================================================

  Trigger: 01512356      Segment: 000

  BAT Trigger Time: 811675790.528   [s; MET]
      Trigger Stop: 811675791.552   [s; MET]
               UTC: 2026-09-21T09:29:12.031340    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 145.372818296902   Dec: 2.85212615697513  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    19.28
     Image Trigger?:     NO
     Rate S/N Ratio:     60.1747455333215  [ if not an image trigger ]
     Image S/N Ratio:    19.28

  Flight Position:   [ source = BAT ]
    RA: 145.372818296902   Dec: 2.85212615697513  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 145.375687186135   Dec: 2.84877789334757  [deg; J2000]
        { 09h 41m 30.2s , +02d 50' 55.6" }
         +/- 0.996477287756291 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.402691559217056 [arcmin] (formal 1-sigma fit error)
    SNR: 30.57087027499

  Angular difference between Flight and Ground position is 0.264416 arcmin

  Partial Coding Fraction: 0.2773438    [ including projection effects ]

  Duration
     T90: 8.62399995326996 +/- 1.43795410609326
        Measured from: -4.03199994564056
                   to: 4.59200000762939     [s; relative to TRIGTIME]
     T50: 3.04000008106232 +/- 0.28844399226893
        Measured from: -1.23199999332428
                   to: 1.80800008773804     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.131999969482422
                   to: 1.13199996948242     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -6.87999999523163
                   to: 6.92799997329712     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.960281   1.637137   1.493850   0.598314
           0.055403   0.063358   0.059013   0.043853 [error]
 Peak      0.158145   0.288097   0.337923   0.152452
           0.017342   0.021570   0.021977   0.016372 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.56e-07 7.44e-07 1.22e-06 4.48e-06 3.36e-06 6.80e-06   erg/cm2
              Error 2.94e-08 3.67e-08 5.69e-08 4.74e-07 1.45e-07 5.03e-07   erg/cm2
Peak flux Power-law 1.81e+00 2.31e+00 2.16e+00 3.54e+00 7.48e+00 9.83e+00   ph/cm2/s
              Error 2.61e-01 2.06e-01 1.68e-01 5.81e-01 5.60e-01 7.42e-01   ph/cm2/s

Fluence   Cutoff-PL 3.51e-07 7.47e-07 1.23e-06 4.13e-06 3.35e-06 6.44e-06   erg/cm2
              Error 3.52e-08 3.92e-08 6.64e-08 9.02e-07 1.49e-07 8.19e-07   erg/cm2
Peak flux Cutoff-PL 1.73e+00 2.34e+00 2.21e+00 3.01e+00 7.44e+00 9.29e+00   ph/cm2/s
              Error 3.19e-01 2.19e-01 2.13e-01 8.25e-01 5.67e-01 1.19e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.290    0.072    -      -           2.46e-02 1.01e-03   49.610 57
CPL   1.186    0.202     413.7  -87.2      2.74e-02 6.69e-03   49.700 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.099    0.121    -      -           6.45e-02 4.66e-03   55.370 57
CPL   0.930    0.357     370.0    0.0      7.67e-02 3.16e-02   54.960 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 5.760000 sec.
T50 in the 50-300 keV band: 2.240000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   13.808   -6.880    6.928
T90     8.624   -4.032    4.592
T50     3.040   -1.232    1.808
Peak    1.000    0.132    1.132

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  145.3757  +2.8488 0.0063   43.9  -37.5       4.7910    30.6  TRIG_01512356
------------------------------------------

Foreground time interval of the image:
 -6.880   6.928 (delta_t =  13.808 [sec])
Background time interval of the image:
-60.528  -6.880 (delta_t =  53.648 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

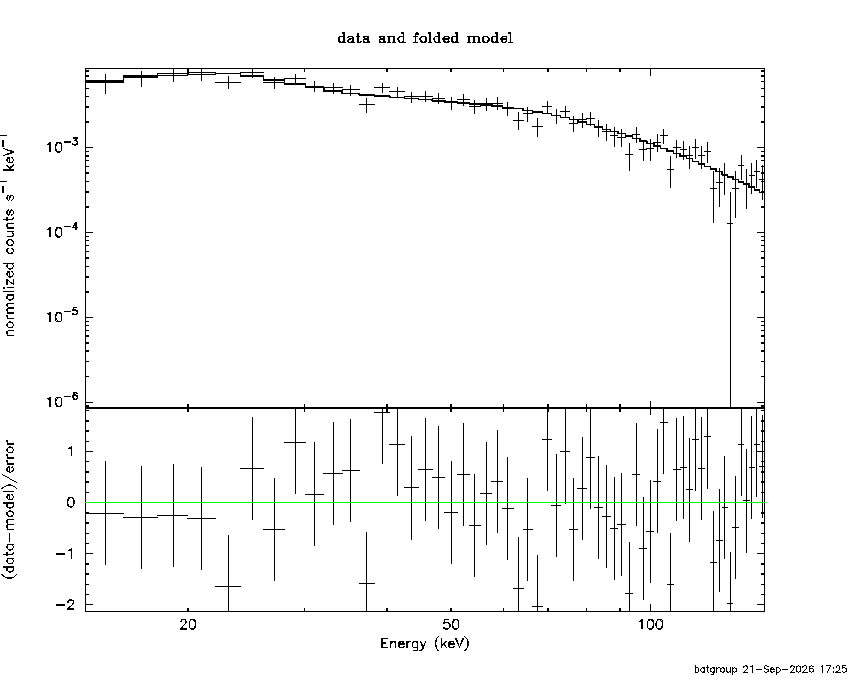

Power-law model

Time interval is from   -6.880 sec. to    6.928 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29044     ( -0.0725165   0.0720887 )
Norm@50keV  : 2.45565E-02    ( -0.00101279   0.0010119 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.61 using 59 PHA bins.
# Reduced chi-squared =         0.8704 for     57 degrees of freedom
# Null hypothesis probability =   7.457096e-01

Photon flux (15-150 keV)    in 13.81 sec: 2.92456 ( -0.130137  0.130431 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.35906e-06 ( -1.44729e-07  1.4487e-07 ) ergs/cm2

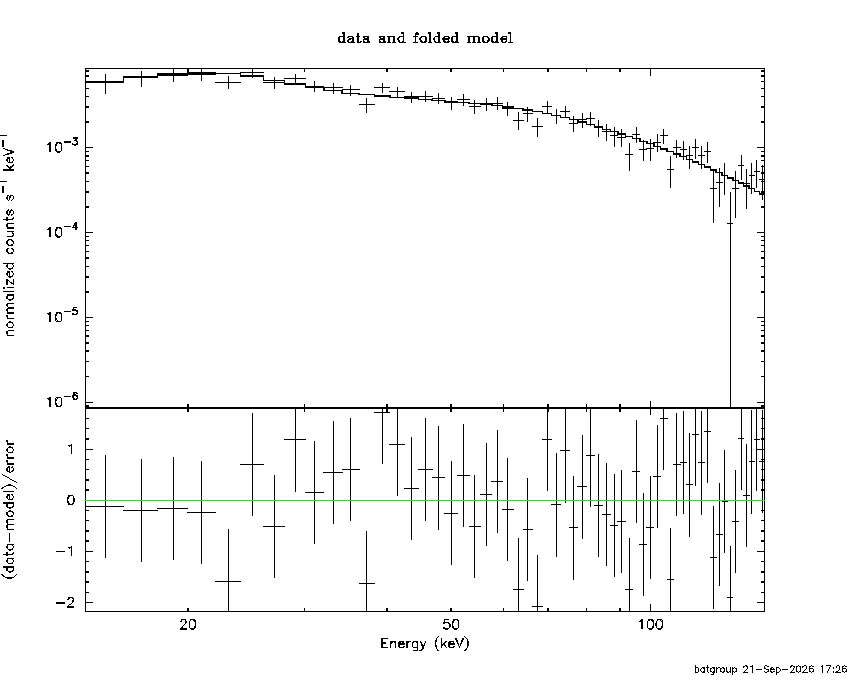

Cutoff power-law model

Time interval is from   -6.880 sec. to    6.928 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.18618     ( -0.296546   0.106885 )
Epeak [keV] : 413.740      ( -517.595 -692.031 )
Norm@50keV  : 2.73747E-02    ( -0.00461378   0.00876965 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.70 using 59 PHA bins.
# Reduced chi-squared =         0.8875 for     56 degrees of freedom
# Null hypothesis probability =   7.106532e-01

Photon flux (15-150 keV)    in 13.81 sec: 2.91577 ( -0.13492  0.13493 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.35297e-06 ( -1.49272e-07  1.48623e-07 ) ergs/cm2

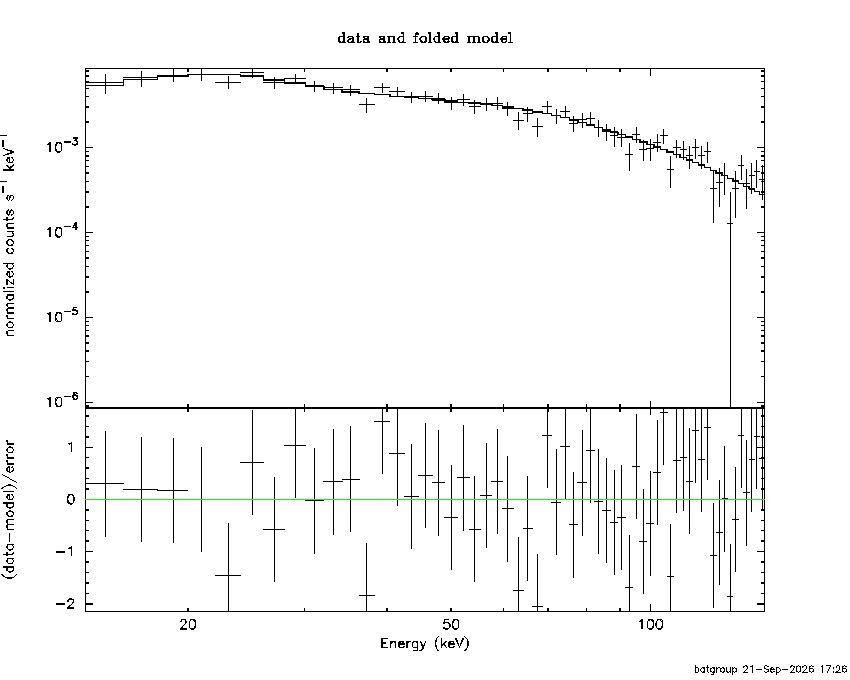

Band function

Time interval is from   -6.880 sec. to    6.928 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.703141   ( 0.76095   0.76095 )
beta        : -1.35613    ( -0.597395   0.111737 )
Epeak [keV] : 85.4505      ( -84.8166 201.211 )
Norm@50keV   : 5.34788E-02    ( -0.0317089   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.99 using 59 PHA bins.
# Reduced chi-squared =         0.8725 for     55 degrees of freedom
# Null hypothesis probability =   7.373602e-01

Photon flux (15-150 keV)    in 13.81 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 19.1702  (  )
R^2/D10^2   : 0.150019  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         189.26 using 59 PHA bins.
# Reduced chi-squared =         3.3204 for     57 degrees of freedom
# Null hypothesis probability =   4.279800e-16

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.492e-07   1.362e-08
25- 50  7.220e-07   4.426e-08
50-150  1.953e-06   1.353e-07
15-150  2.824e-06   1.416e-07

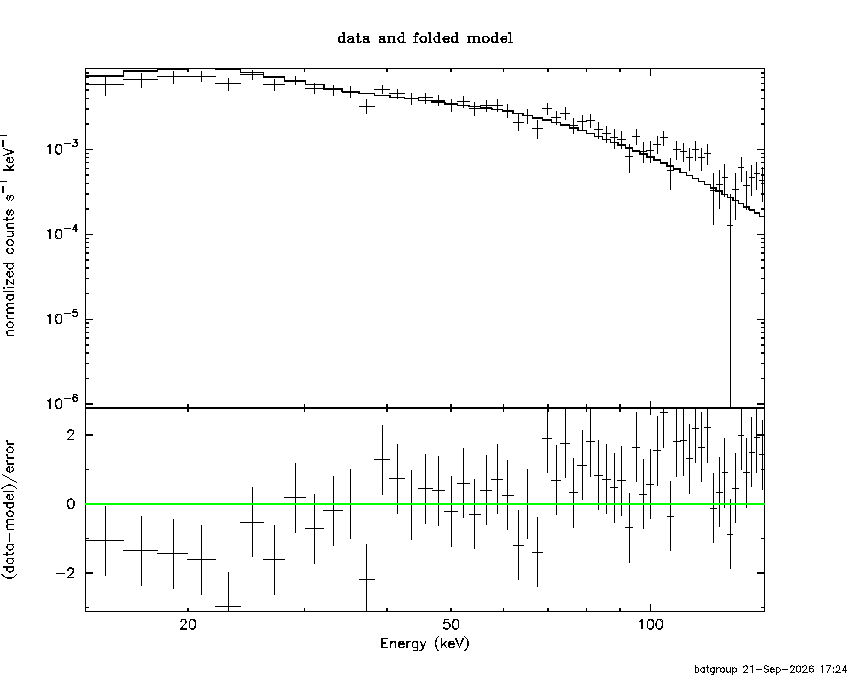

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-6.46149      -200)
Norm        : 12.4130       (-0.515869     0.515869)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.270e-07   1.982e-08
25- 50  8.214e-07   3.832e-08
50-150  1.802e-06   8.148e-08
15-150  3.050e-06   1.457e-07

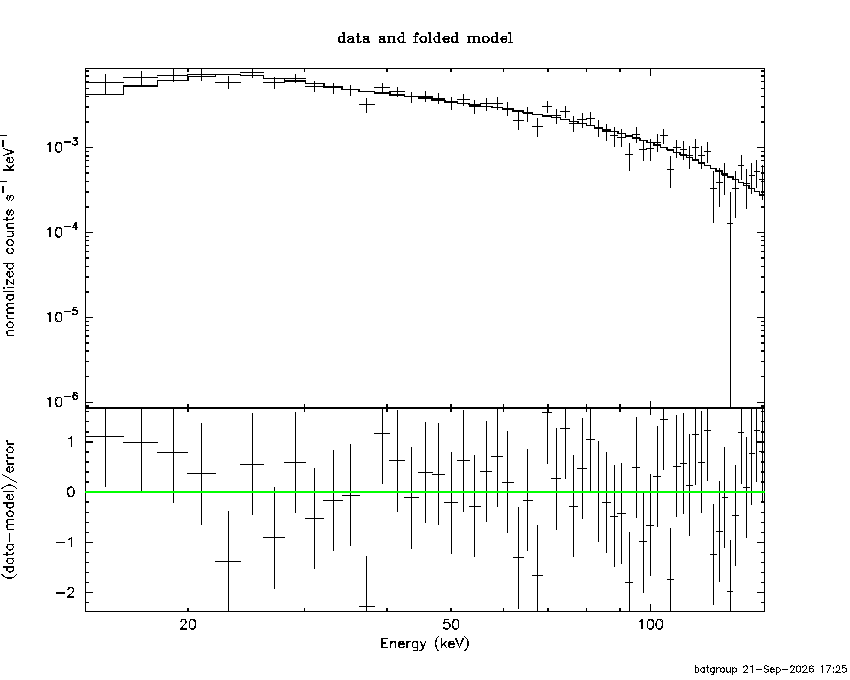

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.28459        (-1.26141      1.37792)
R1^2/D10^2  : 1.13106        (-0.379276      0.643379)
kT2 [keV]   : 39.5554        (-7.15682      13.5167)
R2^2/D10^2  : 1.11590E-02    (-0.00634392   0.0100836)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.976e-07   4.281e-08
25- 50  8.068e-07   9.087e-08
50-150  2.259e-06   5.420e-07
15-150  3.363e-06   5.262e-07

Peak spectrum fit

Power-law model

Time interval is from    0.132 sec. to    1.132 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.09927     ( -0.12193   0.120228 )
Norm@50keV  : 6.44632E-02    ( -0.00467112   0.00465729 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.37 using 59 PHA bins.
# Reduced chi-squared =         0.9715 for     57 degrees of freedom
# Null hypothesis probability =   5.362948e-01

Photon flux (15-150 keV)    in 1 sec: 7.47677 ( -0.559491  0.560248 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.7413e-07 ( -5.17364e-08  5.18358e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.132 sec. to    1.132 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.930056     ( -0.484427   0.22918 )
Epeak [keV] : 369.960      ( -369.96 -369.96 )
Norm@50keV  : 7.67133E-02    ( -0.0160799   0.0470601 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.96 using 59 PHA bins.
# Reduced chi-squared =         0.9814 for     56 degrees of freedom
# Null hypothesis probability =   5.142592e-01

Photon flux (15-150 keV)    in 1 sec: 7.44155 ( -0.56676  0.56719 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.72022e-07 ( -5.2628e-08  5.2466e-08 ) ergs/cm2

Band function

Time interval is from    0.132 sec. to    1.132 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.933734   ( 0.640729   0.640729 )
beta        : -1.81945    ( 7.69056   7.68336 )
Epeak [keV] : 382.707      ( -168.573 -382.203 )
Norm@50keV   : 7.63044E-02    ( -0.0054573   0.0287247 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.96 using 59 PHA bins.
# Reduced chi-squared =         0.9993 for     55 degrees of freedom
# Null hypothesis probability =   4.760648e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

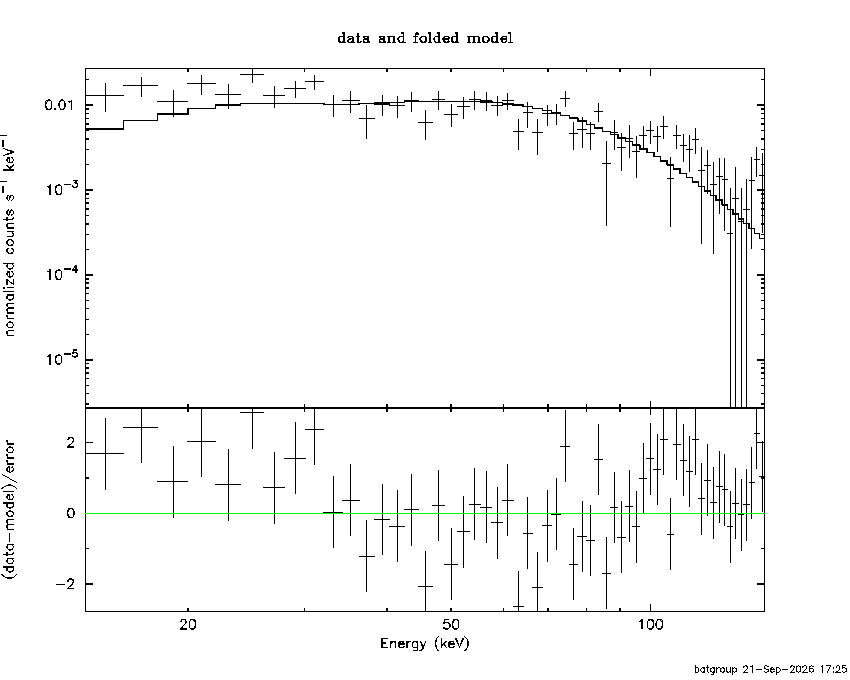

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.7932  (-2.0636  2.36455)
R^2/D10^2   : 0.272578  (-0.0771693   0.103826)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.406e-08   3.720e-09
25- 50  1.265e-07   1.390e-08
50-150  4.488e-07   5.615e-08
15-150  5.994e-07   5.585e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-11.6918      -200)
Norm        : 30.9819       (-2.3041     2.3041)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.717e-08   6.410e-09
25- 50  1.484e-07   1.680e-08
50-150  3.256e-07   9.925e-08
15-150  5.512e-07   1.155e-07

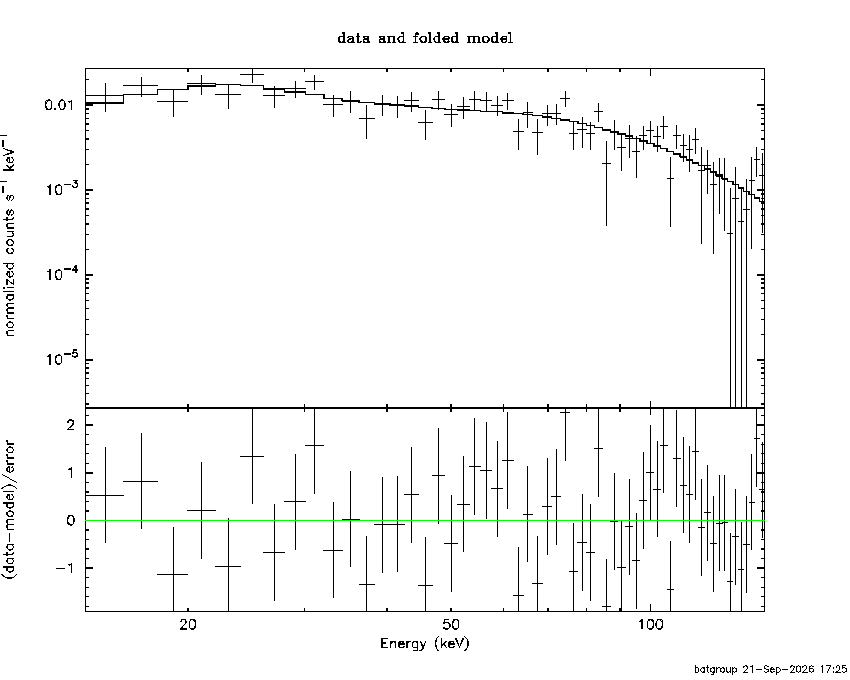

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.96913        (-2.02098      2.61536)
R1^2/D10^2  : 3.82610        (-2.1954      6.36115)
kT2 [keV]   : 34.2037        (-6.41379      12.9961)
R2^2/D10^2  : 5.56032E-02    (-0.0350434   0.05519)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.317e-08   1.809e-08
25- 50  1.368e-07   4.130e-08
50-150  4.906e-07   1.499e-07
15-150  6.806e-07   1.933e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29044     ( -0.0725165   0.0720887 )
Norm@50keV  : 2.45565E-02    ( -0.00101279   0.0010119 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.61 using 59 PHA bins.
# Reduced chi-squared =         0.8704 for     57 degrees of freedom
# Null hypothesis probability =   7.457096e-01

Photon flux (15-150 keV)    in 13.81 sec: 2.92456 ( -0.130137  0.130431 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.35906e-06 ( -1.44729e-07  1.4487e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.18618     ( -0.296546   0.106885 )
Epeak [keV] : 413.740      ( -517.595 -692.031 )
Norm@50keV  : 2.73747E-02    ( -0.00461378   0.00876965 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.70 using 59 PHA bins.
# Reduced chi-squared =         0.8875 for     56 degrees of freedom
# Null hypothesis probability =   7.106532e-01

Photon flux (15-150 keV)    in 13.81 sec: 2.91577 ( -0.13492  0.13493 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.35297e-06 ( -1.49272e-07  1.48623e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.703141   ( 0.76095   0.76095 )
beta        : -1.35613    ( -0.597395   0.111737 )
Epeak [keV] : 85.4505      ( -84.8166 201.26 )
Norm@50keV   : 5.34788E-02    ( -0.0317089   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.99 using 59 PHA bins.
# Reduced chi-squared =         0.8725 for     55 degrees of freedom
# Null hypothesis probability =   7.373602e-01

Photon flux (15-150 keV)    in 13.81 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.44e-07
S(50-100 keV) = 1.22e-06

T90 vs. Hardness ratio plot

T90                                   = 8.62399995326996 sec.
Hardness ratio (energy fluence ratio) = 1.63978

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.70485
Count Ratio (50-100 keV) / (15-25 keV) = 1.55564

Mask shadow pattern

IMX = 7.626666800030986E-01, IMY = 5.843156205477825E-01

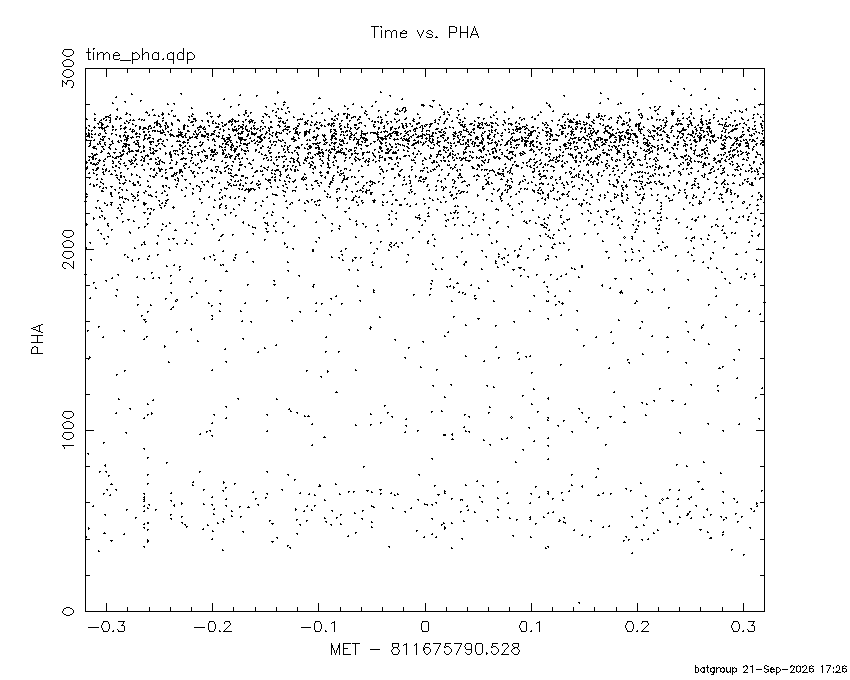

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-60.528000 -6.880000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 88.3925  79.5586    3.4  41.5  111.5   1.5483   3.4 ------	UNKNOWN
 98.4225  75.5963    2.4  38.4  106.3   1.5425   4.8 ------	UNKNOWN
239.1927  73.2779    2.6  44.8  150.1   1.3290   4.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-6.880000 6.928000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
141.0589  63.6681    2.3  20.1  106.0   0.3305   5.0 ------	UNKNOWN
242.8584  51.2516    2.6  54.1  176.6   0.9675   4.4 ------	UNKNOWN
147.7800  43.9728    2.7   6.5   25.0   0.2750   4.3 ------	UNKNOWN
176.5007  38.2969    2.2  16.4 -124.5   0.3380   5.3 ------	UNKNOWN
145.3757   2.8488    0.4  43.9  -37.5   4.7914  30.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Mon Sep 21 17:26:30 EDT 2026
