batgrbproduct Analysis for Trigger=1512686

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Sep 22 21:03:45 EDT 2026
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1512686/batgroup_hand_proc
======================================================================

  Trigger: 01512686      Segment: 000

  BAT Trigger Time: 811764077.952   [s; MET]
      Trigger Stop: 811764078.976   [s; MET]
               UTC: 2026-09-22T10:00:39.449420    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 227.903695378982   Dec: 14.2071450684077  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.03
     Image Trigger?:     NO
     Rate S/N Ratio:     39.1535439009038  [ if not an image trigger ]
     Image S/N Ratio:    12.03

  Flight Position:   [ source = BAT ]
    RA: 227.903695378982   Dec: 14.2071450684077  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 227.908752402476   Dec: 14.2160418354194  [deg; J2000]
        { 15h 11m 38.1s , +14d 12' 57.8" }
         +/- 1.15560579892878 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.549947795484993 [arcmin] (formal 1-sigma fit error)
    SNR: 24.7394601949506

  Angular difference between Flight and Ground position is 0.609479 arcmin

  Partial Coding Fraction: 0.21875    [ including projection effects ]

  Duration
     T90: 57.4759999513626 +/- 8.53956529011334
        Measured from: -3.37199997901917
                   to: 54.1039999723434     [s; relative to TRIGTIME]
     T50: 13.7680000066757 +/- 14.935779780163
        Measured from: 0.179999947547913
                   to: 13.9479999542236     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.723999977111816
                   to: 1.72399997711182     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -4.89999997615814
                   to: 66.3320000171661     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.316920   2.424757   2.109070   0.588934
           0.121221   0.113055   0.096280   0.073482 [error]
 Peak      0.088060   0.207099   0.315273   0.113169
           0.021042   0.022410   0.023932   0.016379 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.48e-07 1.08e-06 1.64e-06 5.43e-06 4.59e-06 8.69e-06   erg/cm2
              Error 5.54e-08 6.51e-08 9.37e-08 6.98e-07 2.38e-07 7.43e-07   erg/cm2
Peak flux Power-law 1.10e+00 1.63e+00 1.79e+00 3.72e+00 5.66e+00 8.24e+00   ph/cm2/s
              Error 2.35e-01 2.20e-01 1.71e-01 7.11e-01 5.84e-01 8.25e-01   ph/cm2/s

Fluence   Cutoff-PL 4.89e-07 1.11e-06 1.72e-06 3.17e-06 4.50e-06 6.48e-06   erg/cm2
              Error 6.95e-08 7.16e-08 1.13e-07 1.31e-06 2.51e-07 1.30e-06   erg/cm2
Peak flux Cutoff-PL 7.36e-01 1.62e+00 2.09e+00 1.86e+00 5.47e+00 6.30e+00   ph/cm2/s
              Error 2.89e-01 2.51e-01 2.53e-01 -------- 5.87e-01 1.01e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 7.60e-01 1.62e+00 2.07e+00 1.96e+00 5.49e+00 6.42e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.393    0.088    -      -           6.66e-03 3.36e-04   45.080 57
CPL   0.933    0.369     131.9  129.8      1.07e-02 4.10e-03   40.070 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.861    0.157    -      -           4.93e-02 5.12e-03   61.960 57
CPL  -0.272    0.813     132.5   74.2      1.33e-01 1.03e-01   54.500 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 67.456000 sec.
T50 in the 50-300 keV band: 4.416000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   71.232   -4.900   66.332
T90    57.476   -3.372   54.104
T50    13.768    0.180   13.948
Peak    1.000    0.724    1.724

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  227.9088 +14.2160 0.0078   44.2  -45.3       4.8958    24.7  TRIG_01512686
------------------------------------------

Foreground time interval of the image:
 -4.900  11.349 (delta_t =  16.249 [sec])
Background time interval of the image:
-60.952  -4.900 (delta_t =  56.052 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

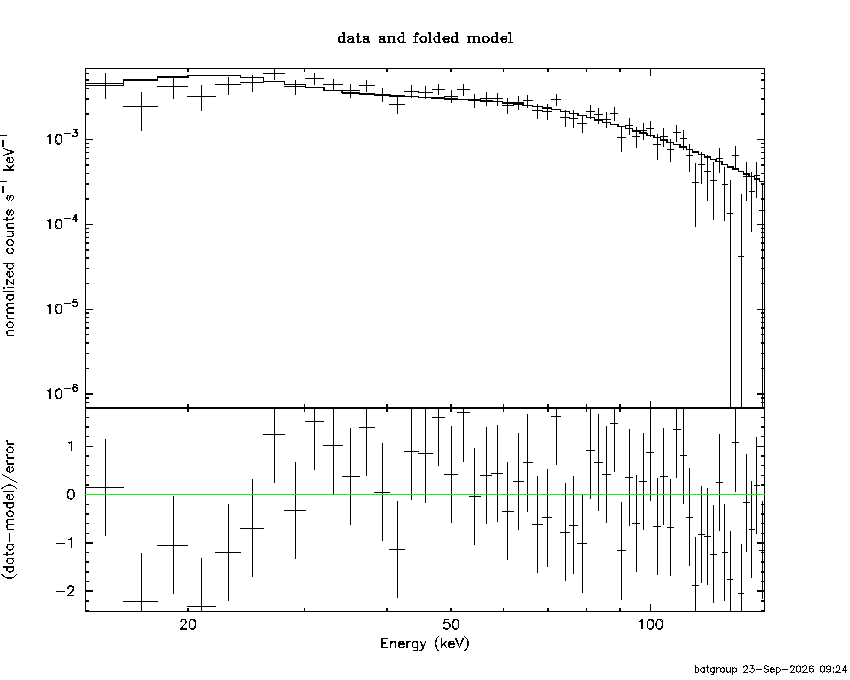

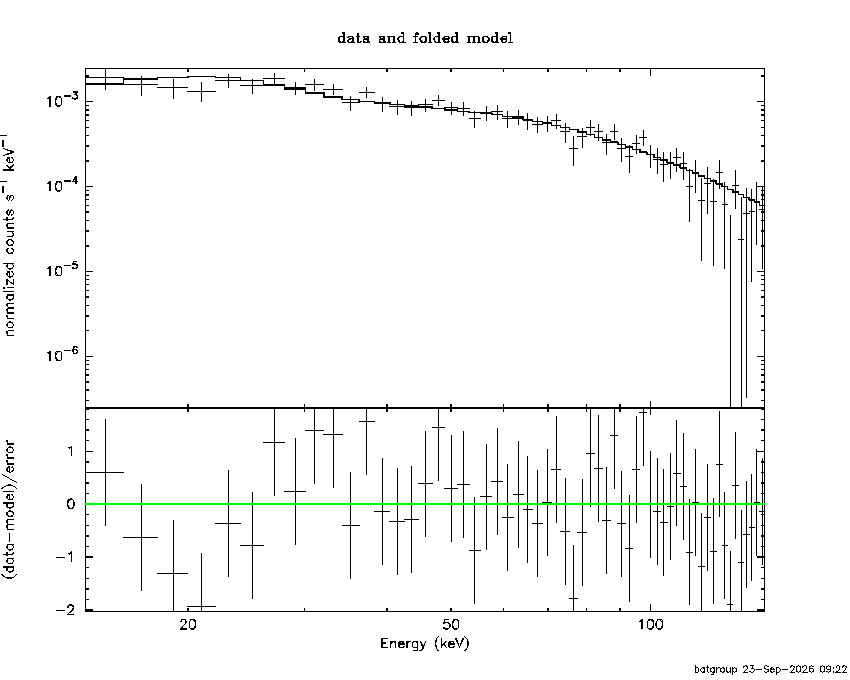

Power-law model

Time interval is from   -4.900 sec. to   66.332 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.39279     ( -0.0886418   0.0880925 )
Norm@50keV  : 6.66096E-03    ( -0.000336575   0.00033642 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.08 using 59 PHA bins.
# Reduced chi-squared =         0.7909 for     57 degrees of freedom
# Null hypothesis probability =   8.731420e-01

Photon flux (15-150 keV)    in 71.23 sec: 0.809873 ( -0.0453797  0.0455924 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.59132e-06 ( -2.37977e-07  2.38249e-07 ) ergs/cm2

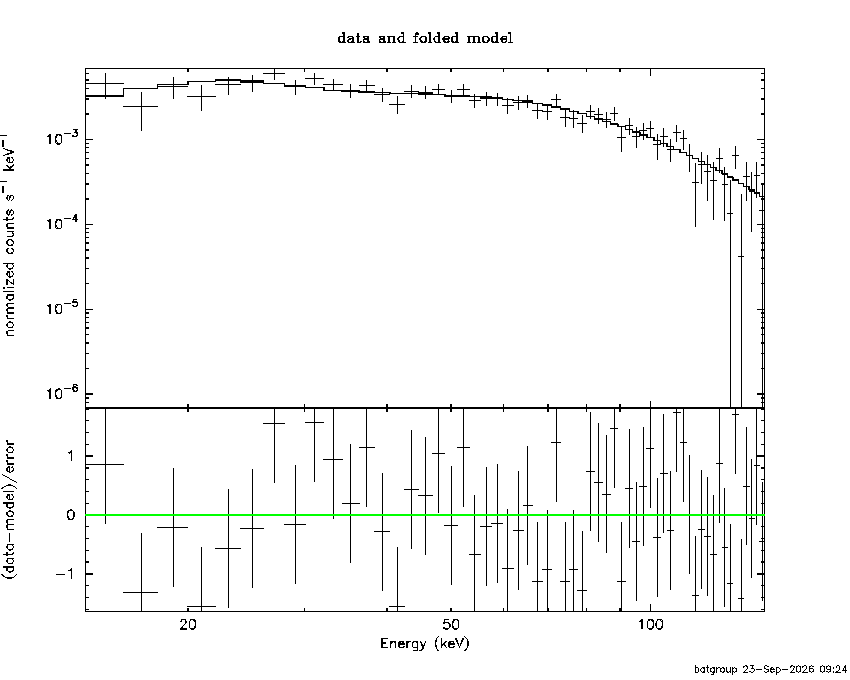

Cutoff power-law model

Time interval is from   -4.900 sec. to   66.332 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.933334     ( -0.383789   0.354054 )
Epeak [keV] : 131.878      ( -35.9118 223.659 )
Norm@50keV  : 1.07006E-02    ( -0.00320496   0.00499992 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.07 using 59 PHA bins.
# Reduced chi-squared =         0.7155 for     56 degrees of freedom
# Null hypothesis probability =   9.466537e-01

Photon flux (15-150 keV)    in 71.23 sec: 0.788183 ( -0.047895  0.048183 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.49961e-06 ( -2.52005e-07  2.50772e-07 ) ergs/cm2

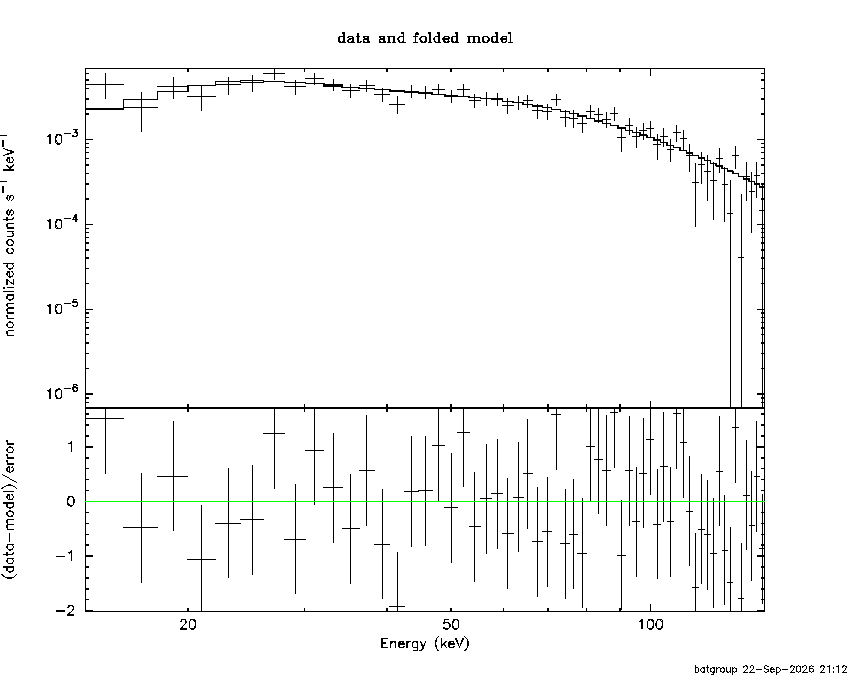

Band function

Time interval is from   -4.900 sec. to   66.332 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.933316   ( -0.167153   0.333401 )
beta        : -10.00000    ( 10   20 )
Epeak [keV] : 131.857      ( -23.4025 222.994 )
Norm@50keV   : 1.07000E-02    ( -0.00217848   0.0013916 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.07 using 59 PHA bins.
# Reduced chi-squared =         0.7285 for     55 degrees of freedom
# Null hypothesis probability =   9.348199e-01

Photon flux (15-150 keV)    in 71.23 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.3399  (-1.15848  1.25619)
R^2/D10^2   : 4.67377E-02  (-0.00971686   0.0120912)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         108.52 using 59 PHA bins.
# Reduced chi-squared =         1.9038 for     57 degrees of freedom
# Null hypothesis probability =   4.651081e-05

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.228e-07   2.454e-08
25- 50  1.045e-06   8.085e-08
50-150  2.563e-06   2.037e-07
15-150  3.831e-06   2.294e-07

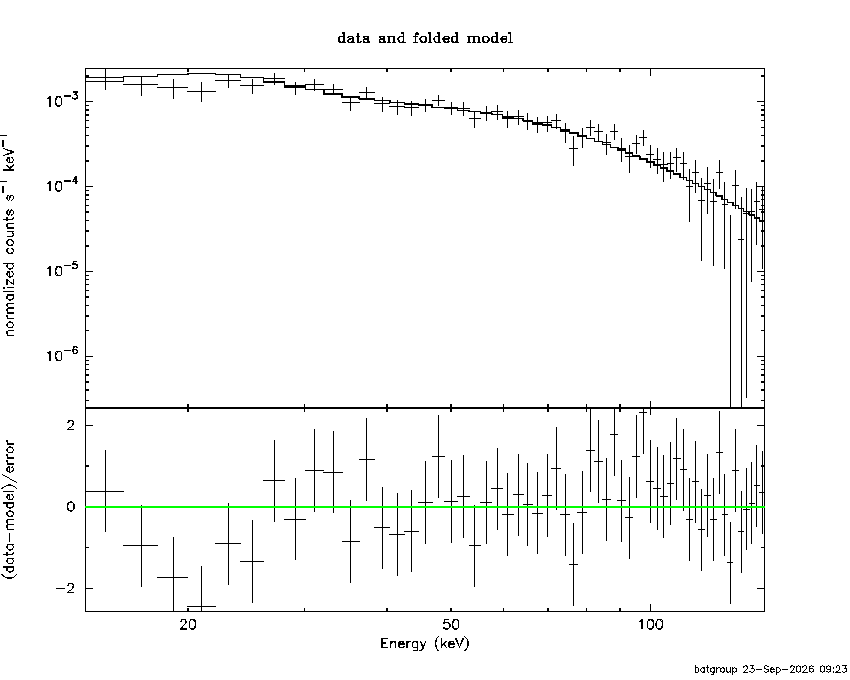

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-13.0916      -200)
Norm        : 3.42849       (-0.172919     0.172919)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.081e-07   3.697e-08
25- 50  1.170e-06   7.550e-08
50-150  2.565e-06   1.563e-07
15-150  4.343e-06   2.742e-07

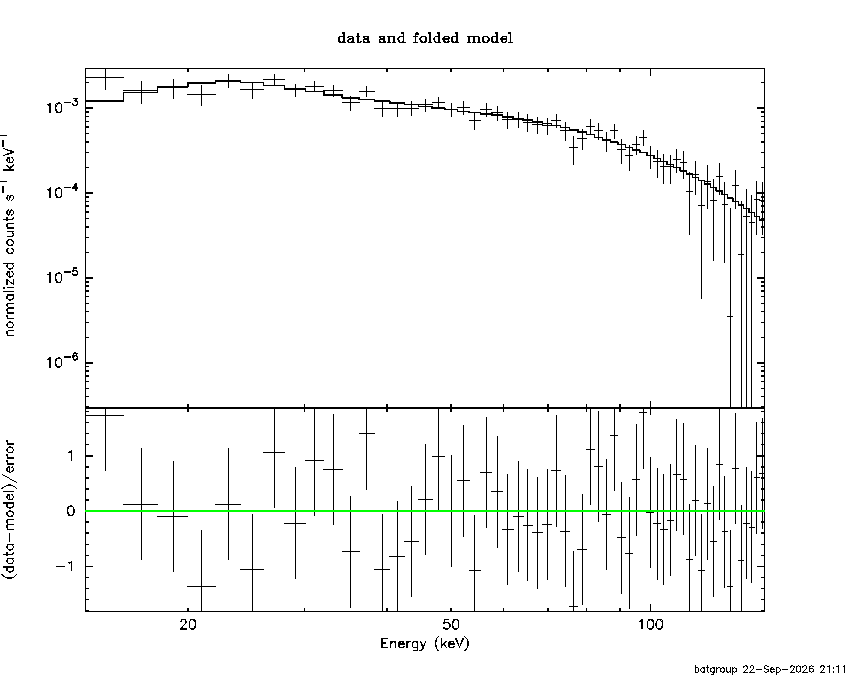

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.56437        (-1.40639      1.59251)
R1^2/D10^2  : 0.381452        (-0.1552      0.299225)
kT2 [keV]   : 30.3374        (-4.63358      7.71702)
R2^2/D10^2  : 6.55721E-03    (-0.00357232   0.00550965)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.441e-07   9.456e-08
25- 50  1.155e-06   1.991e-07
50-150  2.921e-06   7.501e-07
15-150  4.520e-06   9.527e-07

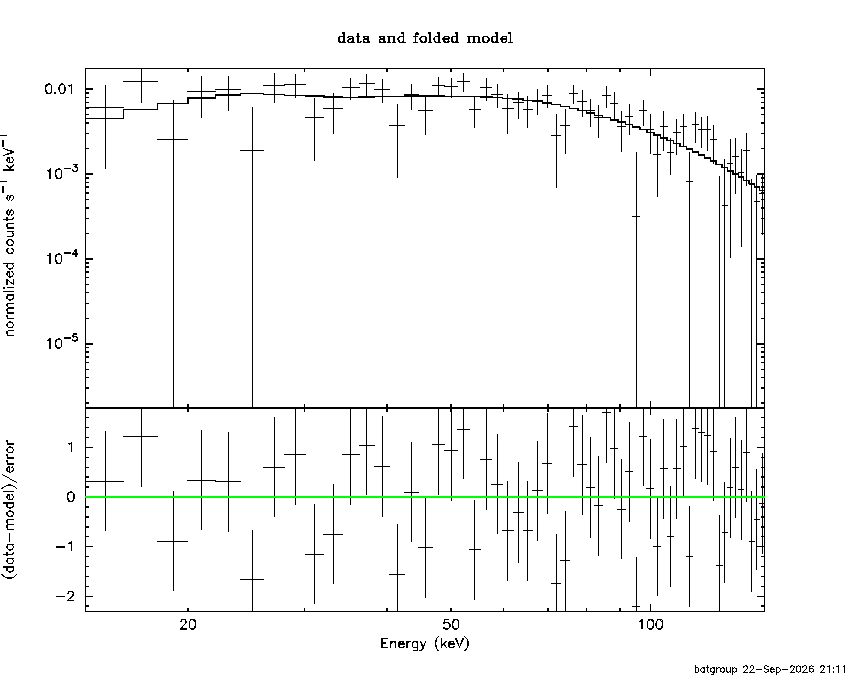

Peak spectrum fit

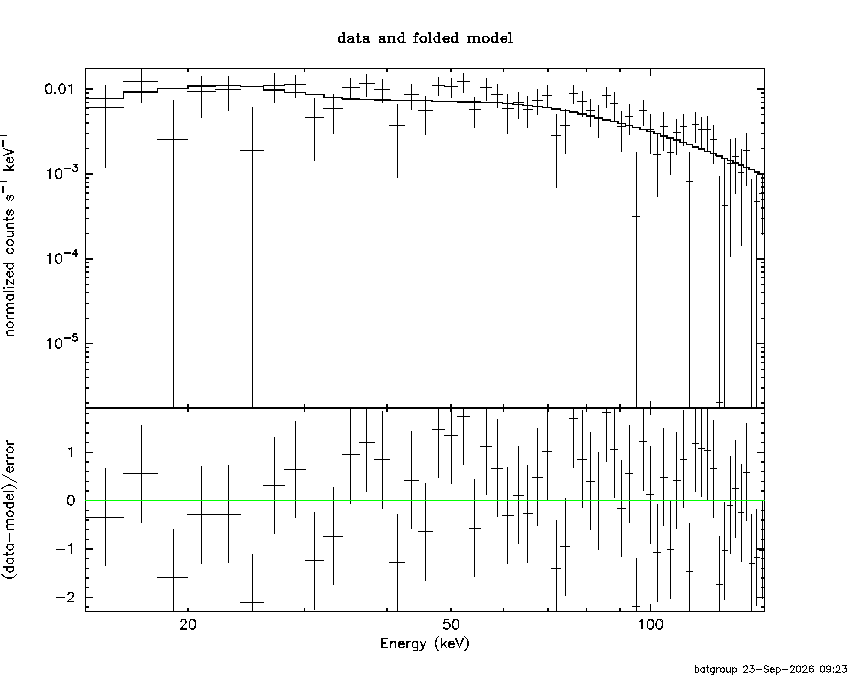

Power-law model

Time interval is from    0.724 sec. to    1.724 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.860510     ( -0.15977   0.154263 )
Norm@50keV  : 4.92878E-02    ( -0.00515542   0.00509346 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.96 using 59 PHA bins.
# Reduced chi-squared =          1.087 for     57 degrees of freedom
# Null hypothesis probability =   3.037847e-01

Photon flux (15-150 keV)    in 1 sec: 5.65722 ( -0.5827  0.58611 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.61828e-07 ( -5.4218e-08  5.42589e-08 ) ergs/cm2

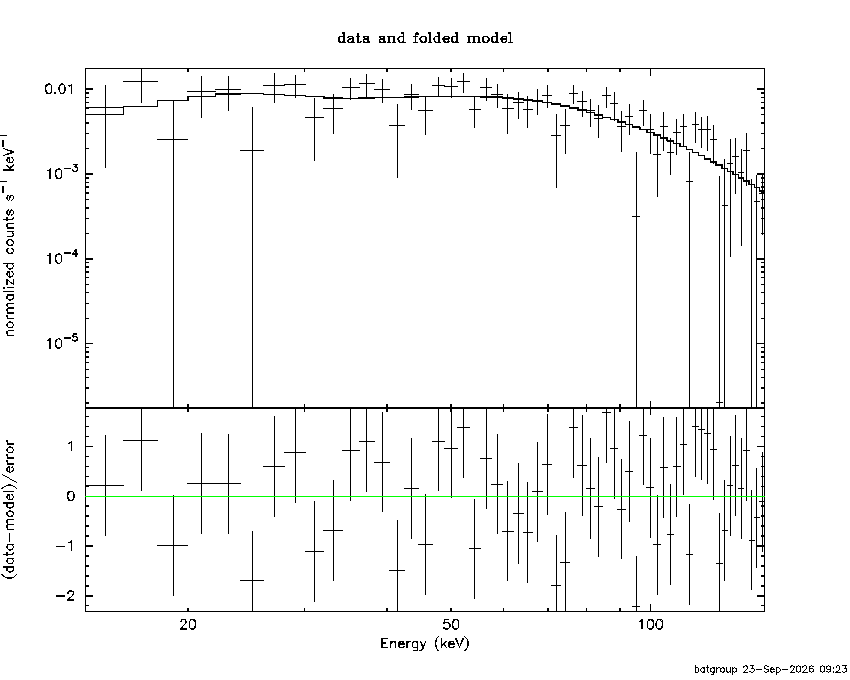

Cutoff power-law model

Time interval is from    0.724 sec. to    1.724 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.271905     ( -0.889743   0.736748 )
Epeak [keV] : 132.513      ( -31.1268 117.207 )
Norm@50keV  : 0.133489    ( -0.0624495   0.143192 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.50 using 59 PHA bins.
# Reduced chi-squared =         0.9733 for     56 degrees of freedom
# Null hypothesis probability =   5.316871e-01

Photon flux (15-150 keV)    in 1 sec: 5.46804 ( -0.58377  0.59111 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.61757e-07 ( -5.6156e-08  5.5805e-08 ) ergs/cm2

Band function

Time interval is from    0.724 sec. to    1.724 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.282824   ( -0.728688   0.696006 )
beta        : -9.36536    ( 9.37167   19.3717 )
Epeak [keV] : 132.293      ( -20.6439 105.038 )
Norm@50keV   : 0.134292    ( -0.0550797   30.4185 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.50 using 59 PHA bins.
# Reduced chi-squared =         0.9910 for     55 degrees of freedom
# Null hypothesis probability =   4.934987e-01

Photon flux (15-150 keV)    in 1 sec: 5.49156 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

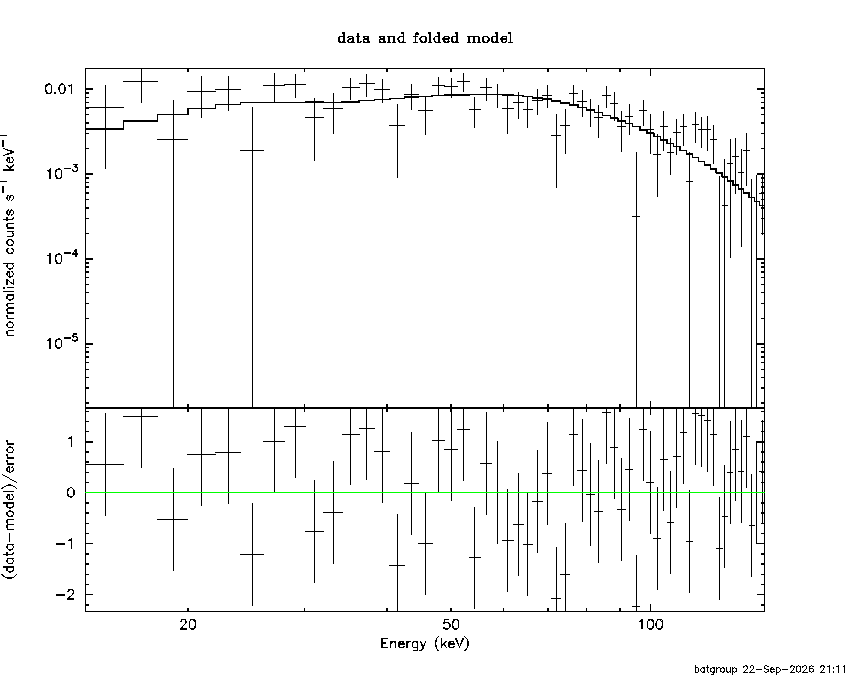

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 26.1905  (-2.84854  3.39802)
R^2/D10^2   : 0.130123  (-0.0409859   0.0564154)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.512e-08   2.755e-09
25- 50  8.778e-08   1.412e-08
50-150  4.429e-07   5.725e-08
15-150  5.458e-07   6.475e-08

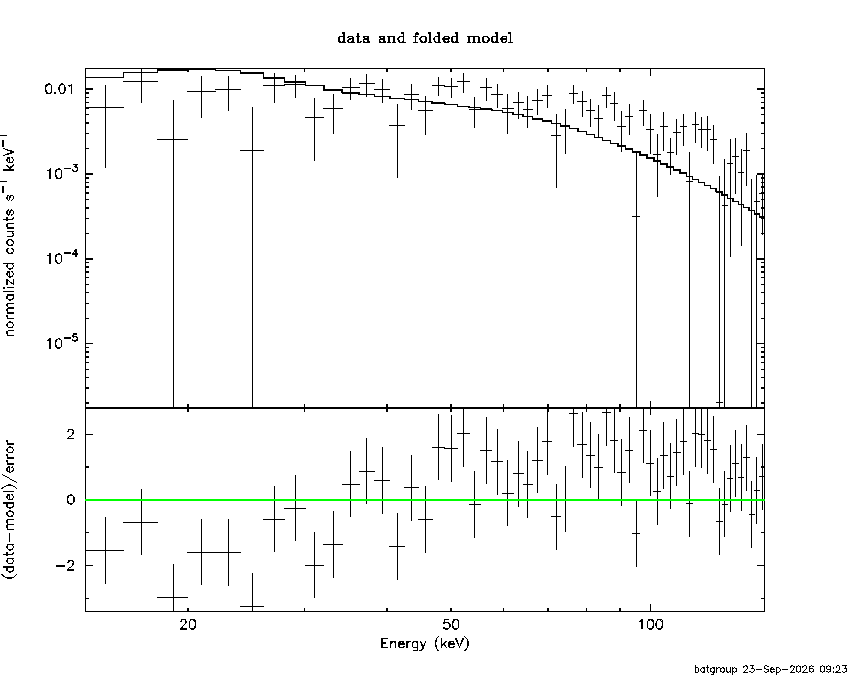

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 23.6321       (     )
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.885e-08   3.259e-08
25- 50  1.132e-07   4.446e-08
50-150  2.483e-07   1.306e-07
15-150  4.203e-07   2.296e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 13.0889        (-11.1146      11.6419)
R1^2/D10^2  : 0.397884        (-0.314229      498.193)
kT2 [keV]   : 35.2819        (-33.3641      -35.2819)
R2^2/D10^2  : 4.16192E-02    (-0.0411063   0.0925514)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.201e-08   1.256e-08
25- 50  9.770e-08   5.245e-08
50-150  4.428e-07   2.273e-07
15-150  5.625e-07   2.853e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.10402     ( -0.0810566   0.0798295 )
Norm@50keV  : 2.11660E-02    ( -0.00103967   0.00103591 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.70 using 59 PHA bins.
# Reduced chi-squared =          1.118 for     57 degrees of freedom
# Null hypothesis probability =   2.525741e-01

Photon flux (15-150 keV)    in 16.25 sec: 2.45609 ( -0.127355  0.127822 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.59146e-06 ( -1.7232e-07  1.72419e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.350137     ( -0.380031   0.350338 )
Epeak [keV] : 132.496      ( -25.189 60.7477 )
Norm@50keV  : 4.38714E-02    ( -0.0122958   0.0185195 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.00 using 59 PHA bins.
# Reduced chi-squared =         0.8750 for     56 degrees of freedom
# Null hypothesis probability =   7.347567e-01

Photon flux (15-150 keV)    in 16.25 sec: 2.37140 ( -0.13143  0.13225 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.51723e-06 ( -1.79953e-07  1.7914e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.55127   ( -2.80487   -2.55133 )
beta        : -1.31416    ( -0.14505   0.126584 )
Epeak [keV] : 45.8336      ( -8.08184 92.7194 )
Norm@50keV   : 2.94831    ( -2.94896   51.4344 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.38 using 59 PHA bins.
# Reduced chi-squared =         0.8432 for     55 degrees of freedom
# Null hypothesis probability =   7.896594e-01

Photon flux (15-150 keV)    in 16.25 sec: 2.31069 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.08e-06
S(50-100 keV) = 1.64e-06

T90 vs. Hardness ratio plot

T90                                   = 57.4759999513626 sec.
Hardness ratio (energy fluence ratio) = 1.51852

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.84123
Count Ratio (50-100 keV) / (15-25 keV) = 1.60152

Mask shadow pattern

IMX = 6.839248521307840E-01, IMY = 6.913376458530039E-01

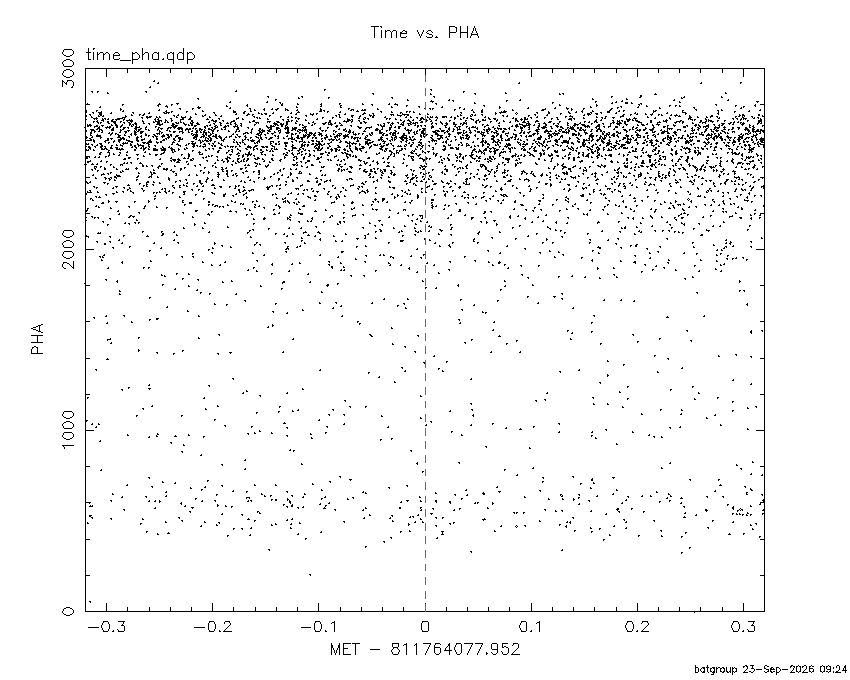

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-60.952000 -4.900000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9865 -15.6435    0.6  16.6  -91.0   2.4617  18.3    0.5	Sco X-1
254.5662  35.4162    5.0  50.2   -1.9  -0.5938  -2.3    6.9	Her X-1
255.8327 -37.9366    3.3  24.3 -162.0  -0.4186  -3.5    9.2	4U 1700-377
256.3374 -36.4993    4.7  22.8 -162.0   0.2909   2.5    6.6	GX 349+2
262.8364 -24.6700    2.9  10.4 -177.8   0.4469   3.9   10.4	GX 1+4
264.8823 -44.4297   44.0  30.3 -178.0   0.0403   0.3    6.1	4U 1735-44
268.4061  -1.2995   10.6  14.4   32.4   0.1341   1.1    9.5	SW J1753.5-0127
270.3538 -25.0299    4.3  13.3  151.4   0.3427   2.7    4.8	GX 5-1
270.4499 -25.6375    5.4  13.8  152.7   0.2931   2.3   10.2	GRS 1758-258
274.1312 -14.0391    7.9  11.7   96.4  -0.1843  -1.5    7.3	GX 17+2
275.8685 -30.2705    3.1  20.4  149.9   0.4878   3.7    6.5	H1820-303
285.0322 -25.0691    8.4  24.1  126.2   0.2228   1.4    8.9	HT1900.1-2455
288.9285  10.8158    5.0  36.6   54.2   0.6219   2.3   10.9	GRS 1915+105
263.0200 -33.8543   23.6  19.6 -176.3   0.0613   0.5    1.9	GX 354-0
305.0592 -21.0829    2.7  41.4  111.9   2.6440   4.3 ------	UNKNOWN
285.4472  -3.5081    2.5  25.4   73.2   0.7749   4.5 ------	UNKNOWN
264.1812  26.6385    2.8  40.9    8.9   0.7712   4.0 ------	UNKNOWN
263.2316  28.9617    2.9  43.2    7.5   0.8548   4.0 ------	UNKNOWN
236.2844 -53.2145    2.4  44.0 -151.9   1.0330   4.7 ------	UNKNOWN
226.8824  29.7884    2.0  55.6  -31.3   4.4259   5.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-4.900000 11.348600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1210 -15.4926   37.6  16.4  -90.4  -0.0229  -0.3   12.1	Sco X-1
254.5737  35.3582   25.3  50.1   -1.9   0.0688   0.5    5.8	Her X-1
255.9132 -37.7801    6.6  24.1 -162.0   0.1172   1.7    5.2	4U 1700-377
256.2638 -36.4455    5.8  22.8 -161.8  -0.1308  -2.0    8.4	GX 349+2
263.1520 -24.5802    0.0  10.4 -179.4  -0.0489  -0.7   12.6	GX 1+4
264.9427 -44.5368   10.0  30.4 -178.0   0.0848   1.2   10.0	4U 1735-44
268.2199  -1.4519   13.1  14.2   31.9  -0.0579  -0.9    8.9	SW J1753.5-0127
270.4295 -25.2083   14.0  13.5  151.7  -0.0547  -0.8   11.1	GX 5-1
270.2836 -25.5947    8.1  13.7  153.1  -0.0959  -1.5    9.0	GRS 1758-258
273.9094 -14.1718    5.0  11.5   97.0  -0.1580  -2.3    9.9	GX 17+2
276.1156 -30.4805    0.0  20.7  149.8  -0.0680  -1.0   12.0	H1820-303
285.1517 -24.7422   14.9  24.1  125.3   0.0577   0.8   12.4	HT1900.1-2455
288.8840  11.0350    3.0  36.7   53.8   0.4708   3.8    7.4	GRS 1915+105
263.0447 -33.8312   37.9  19.6 -176.4   0.0198   0.3    2.8	GX 354-0
278.2002  20.7106    2.4  38.4   30.8   0.4963   4.8 ------	UNKNOWN
287.8509 -58.0183    2.1  47.8  167.9   0.8279   5.4 ------	UNKNOWN
248.8703 -47.3662    2.8  34.9 -158.3   0.3275   4.1 ------	UNKNOWN
227.9087  14.2161    0.5  44.2  -45.3   4.8966  24.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
96.548630 199.175600
206.048000 213.325700
218.048000 242.208000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9779 -15.6443    0.6  34.3  162.1   5.7082  19.2    0.3	Sco X-1
254.4255  35.2090   11.3  31.7   56.1  -0.3992  -1.0    8.2	Her X-1
246.8440 -27.6841    2.8  45.8  168.5   2.4154   4.1 ------	UNKNOWN
224.2713  55.0860    2.5  41.0    9.0   1.5968   4.6 ------	UNKNOWN
204.8014 -36.5485    2.7  55.3 -145.3   5.0596   4.2 ------	UNKNOWN

Plot creation:
Tue Sep 22 21:12:45 EDT 2026
