batgrbproduct Analysis for Trigger=1513082

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Sep 24 09:02:11 EDT 2026
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1513082/batgroup_hand_proc
======================================================================

  Trigger: 01513082      Segment: 000

  BAT Trigger Time: 811905246.784   [s; MET]
      Trigger Stop: 811905247.808   [s; MET]
               UTC: 2026-09-24T01:13:28.271940    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 133.739773158039   Dec: 12.0455693875754  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    13.83
     Image Trigger?:     NO
     Rate S/N Ratio:     50.0199960015992  [ if not an image trigger ]
     Image S/N Ratio:    13.83

  Flight Position:   [ source = BAT ]
    RA: 133.739773158039   Dec: 12.0455693875754  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 133.753568259257   Dec: 12.0408275065565  [deg; J2000]
        { 08h 55m 00.9s , +12d 02' 27.0" }
         +/- 0.865435566641292 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.251961089549811 [arcmin] (formal 1-sigma fit error)
    SNR: 37.3923739277964

  Angular difference between Flight and Ground position is 0.858032 arcmin

  Partial Coding Fraction: 0.3945312    [ including projection effects ]

  Duration
     T90: 344.824000000954 +/- 1.7845021548826
        Measured from: 7.1159999370575
                   to: 351.939999938011     [s; relative to TRIGTIME]
     T50: 77.9199999570847 +/- 0.951066796420879
        Measured from: 70.1519999504089
                   to: 148.071999907494     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 338.783999919891
                   to: 339.783999919891     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -5.96000003814697
                   to: 455.684000015259     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    16.475103  26.235065  26.455659   9.273948
           0.153286   0.169793   0.157030   0.126720 [error]
 Peak      0.238811   0.422513   0.438829   0.154254
           0.010210   0.012859   0.013648   0.010697 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.68e-06 1.22e-05 2.06e-05 7.96e-05 5.66e-05 1.18e-04   erg/cm2
              Error 1.70e-07 2.21e-07 2.46e-07 2.23e-06 6.69e-07 2.23e-06   erg/cm2
Peak flux Power-law 2.65e+00 3.29e+00 2.98e+00 4.69e+00 1.05e+01 1.36e+01   ph/cm2/s
              Error 1.82e-01 1.36e-01 1.12e-01 3.84e-01 3.68e-01 4.84e-01   ph/cm2/s

Fluence   Cutoff-PL 5.50e-06 1.22e-05 2.08e-05 7.35e-05 5.65e-05 1.12e-04   erg/cm2
              Error 2.52e-07 2.24e-07 3.17e-07 4.72e-06 6.78e-07 4.71e-06   erg/cm2
Peak flux Cutoff-PL 2.53e+00 3.32e+00 3.04e+00 3.95e+00 1.04e+01 1.28e+01   ph/cm2/s
              Error 2.23e-01 1.43e-01 1.40e-01 8.66e-01 3.83e-01 9.71e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.245    0.023    -      -           1.22e-02 1.65e-04   23.050 57
CPL   1.159    0.070     663.5 -178.2      1.32e-02 9.12e-04   20.560 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.144    0.060    -      -           9.03e-02 3.04e-03   61.480 57
CPL   0.973    0.218     347.2    0.0      1.08e-01 2.42e-02   59.880 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 342.976000 sec.
T50 in the 50-300 keV band: 78.144000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  461.644   -5.960  455.684
T90   344.824    7.116  351.940
T50    77.920   70.152  148.072
Peak    1.000  338.784  339.784

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  133.7536 +12.0408 0.0051   40.2  -38.5       5.6199    37.4  TRIG_01513082
------------------------------------------

Foreground time interval of the image:
 -5.960  16.717 (delta_t =  22.677 [sec])
Background time interval of the image:
-179.784  -5.960 (delta_t = 173.824 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -5.960 sec. to  455.684 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.24498     ( -0.0225932   0.0224977 )
Norm@50keV  : 1.22358E-02    ( -0.000165702   0.000165091 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          23.05 using 59 PHA bins.
# Reduced chi-squared =         0.4044 for     57 degrees of freedom
# Null hypothesis probability =   9.999823e-01

Photon flux (15-150 keV)    in 461.6 sec: 1.44598 ( -0.0225003  0.0225846 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.66005e-05 ( -6.68812e-07  6.68808e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -5.960 sec. to  455.684 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.15904     ( -0.0940573   0.0468749 )
Epeak [keV] : 663.549      ( -307.226 -663.549 )
Norm@50keV  : 1.31593E-02    ( -0.000756603   0.00106807 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          20.56 using 59 PHA bins.
# Reduced chi-squared =         0.3672 for     56 degrees of freedom
# Null hypothesis probability =   9.999963e-01

Photon flux (15-150 keV)    in 461.6 sec: 1.43439 ( -0.0253  0.02437 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.65252e-05 ( -6.7809e-07  6.7809e-07 ) ergs/cm2

Band function

Time interval is from   -5.960 sec. to  455.684 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.15905   ( 1.03726   1.18613 )
beta        : -10.00000    ( 10   2.31191e-09 )
Epeak [keV] : 663.520      ( -187.919 -663.52 )
Norm@50keV   : 1.31577E-02    ( -0.000155275   0.00106771 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          20.56 using 59 PHA bins.
# Reduced chi-squared =         0.3738 for     55 degrees of freedom
# Null hypothesis probability =   9.999937e-01

Photon flux (15-150 keV)    in 461.6 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 24.1448  (  )
R^2/D10^2   : 3.45918E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =        1270.44 using 59 PHA bins.
# Reduced chi-squared =        22.2884 for     57 degrees of freedom
# Null hypothesis probability =  2.941404e-228

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.647e-06   4.501e-08
25- 50  9.174e-06   2.008e-07
50-150  3.982e-05   5.724e-07
15-150  5.065e-05   6.693e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 6.60594       (     )
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.593e-06   1.085e-07
25- 50  1.461e-05   2.193e-07
50-150  3.203e-05   4.754e-07
15-150  5.423e-05   7.616e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.86558        (-0.468543      0.489547)
R1^2/D10^2  : 0.560238        (-0.0924406      0.115227)
kT2 [keV]   : 35.9012        (-1.48171      1.69962)
R2^2/D10^2  : 8.01133E-03    (-0.0011557   0.0012428)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.589e-06   2.645e-07
25- 50  1.252e-05   3.000e-07
50-150  3.930e-05   6.878e-07
15-150  5.642e-05   8.540e-07

Peak spectrum fit

Power-law model

Time interval is from  338.784 sec. to  339.784 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.14380     ( -0.0600891   0.0599289 )
Norm@50keV  : 9.03364E-02    ( -0.00303874   0.00303723 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.48 using 59 PHA bins.
# Reduced chi-squared =          1.079 for     57 degrees of freedom
# Null hypothesis probability =   3.188278e-01

Photon flux (15-150 keV)    in 1 sec: 10.5274 ( -0.367825  0.36826 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.31702e-07 ( -3.41787e-08  3.42426e-08 ) ergs/cm2

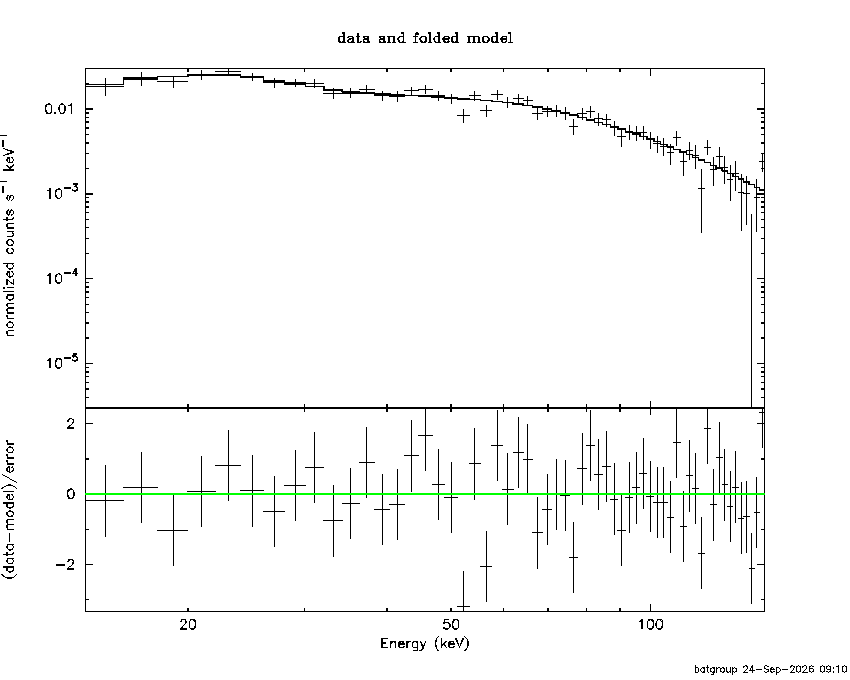

Cutoff power-law model

Time interval is from  338.784 sec. to  339.784 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.972759     ( -0.24164   0.194249 )
Epeak [keV] : 347.220      ( -347.22 -347.22 )
Norm@50keV  : 0.107602    ( -0.0191492   0.0291748 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.88 using 59 PHA bins.
# Reduced chi-squared =          1.069 for     56 degrees of freedom
# Null hypothesis probability =   3.367795e-01

Photon flux (15-150 keV)    in 1 sec: 10.4435 ( -0.3832  0.3837 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.25466e-07 ( -3.5714e-08  3.5566e-08 ) ergs/cm2

Band function

Time interval is from  338.784 sec. to  339.784 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.689933   ( 0.690376   0.690376 )
beta        : -1.20723    ( 1.20651   0.101517 )
Epeak [keV] : 119.146      ( -119.011 661.973 )
Norm@50keV   : 0.160861    ( -0.0723204   2634.46 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.73 using 59 PHA bins.
# Reduced chi-squared =          1.086 for     55 degrees of freedom
# Null hypothesis probability =   3.079360e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.5761  (  )
R^2/D10^2   : 0.448897  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.622e-08   2.360e-09
25- 50  1.838e-07   9.100e-09
50-150  5.788e-07   3.260e-08
15-150  7.988e-07   3.290e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 43.7521       (     )
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.090e-07   3.650e-09
25- 50  2.096e-07   7.450e-09
50-150  4.596e-07   1.635e-08
15-150  7.782e-07   2.740e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.30962        (-1.17473      1.32025)
R1^2/D10^2  : 4.73824        (-1.68195      2.97276)
kT2 [keV]   : 33.8449        (-4.00418      6.02233)
R2^2/D10^2  : 7.66690E-02    (-0.0313087   0.0401155)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.349e-08   9.350e-09
25- 50  1.957e-07   1.725e-08
50-150  6.619e-07   6.855e-08
15-150  9.310e-07   7.990e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.947883     ( -0.0629105   0.0620838 )
Norm@50keV  : 1.67623E-02    ( -0.000614792   0.000611958 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.53 using 59 PHA bins.
# Reduced chi-squared =         0.7285 for     57 degrees of freedom
# Null hypothesis probability =   9.384625e-01

Photon flux (15-150 keV)    in 22.68 sec: 1.92570 ( -0.0717634  0.0718948 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.18961e-06 ( -1.48626e-07  1.48596e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.788908     ( -0.251157   0.182039 )
Epeak [keV] : 478.495      ( -478.495 -478.495 )
Norm@50keV  : 1.94483E-02    ( -0.00302438   0.00495414 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.24 using 59 PHA bins.
# Reduced chi-squared =         0.7186 for     56 degrees of freedom
# Null hypothesis probability =   9.443974e-01

Photon flux (15-150 keV)    in 22.68 sec: 1.91174 ( -0.07444  0.07462 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.17698e-06 ( -1.51434e-07  1.50935e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.777070   ( 0.777807   0.777807 )
beta        : -3.80865    ( -0.0620798   0.062916 )
Epeak [keV] : 455.869      ( -144.838 -455.869 )
Norm@50keV   : 1.96095E-02    ( -0.000667838   0.00276952 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.25 using 59 PHA bins.
# Reduced chi-squared =         0.7318 for     55 degrees of freedom
# Null hypothesis probability =   9.320670e-01

Photon flux (15-150 keV)    in 22.68 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.22e-05
S(50-100 keV) = 2.06e-05

T90 vs. Hardness ratio plot

T90                                   = 344.824000000954 sec.
Hardness ratio (energy fluence ratio) = 1.68852

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.59241
Count Ratio (50-100 keV) / (15-25 keV) = 1.6058

Mask shadow pattern

IMX = 6.612046647019300E-01, IMY = 5.260602157087735E-01

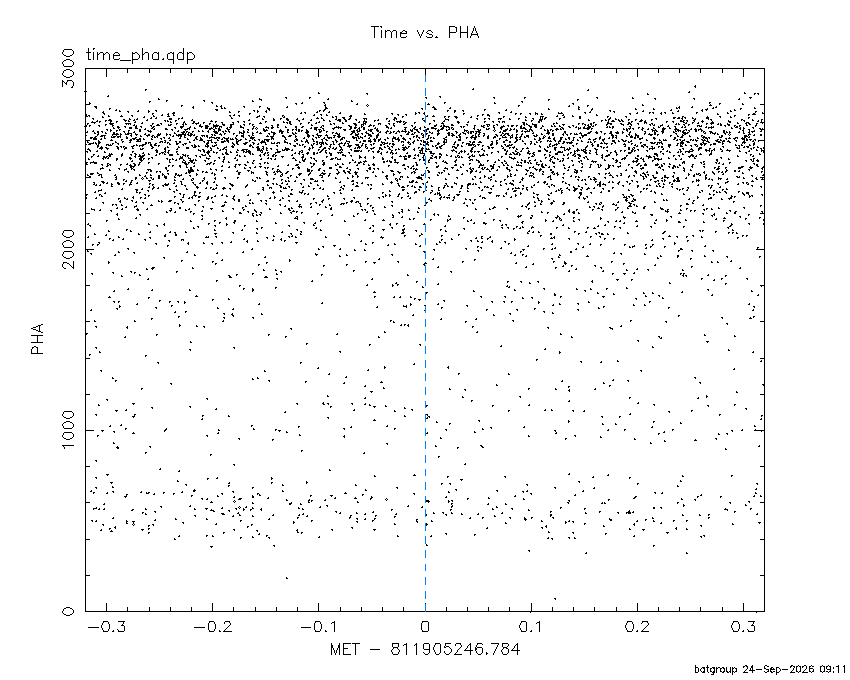

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-179.784000 -5.960000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6103  22.0350    1.2  39.2   42.0   6.1190   9.9    1.8	Crab
 23.9813  75.5957    3.3  42.9  143.8   2.8565   3.5 ------	UNKNOWN
112.2919  24.9517    2.5  25.7   -2.0   1.3600   4.6 ------	UNKNOWN
242.7486  70.3708    2.8  52.9 -174.6   3.3097   4.1 ------	UNKNOWN
129.9711   5.7411    2.2  45.5  -31.1   2.9268   5.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-5.960000 16.716590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.5291  21.8793    7.6  39.3   42.0  -0.2546  -1.5   10.0	Crab
 53.9912  54.0303    2.6  38.4  106.5   0.9221   4.4 ------	UNKNOWN
 96.9538  15.4125    2.2  38.9   19.3   0.6136   5.2 ------	UNKNOWN
274.5736  72.1350    3.3  56.5  173.7   1.5029   3.5 ------	UNKNOWN
108.3674  -0.1521    2.1  51.1   -1.9   1.1248   5.4 ------	UNKNOWN
133.7536  12.0408    0.3  40.2  -38.5   5.6191  37.4 ------	UNKNOWN
131.3664  -1.2169    3.1  52.6  -31.3   1.3214   3.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
98.716620 372.716610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4973 -40.5693    2.4  52.6  -12.9   8.2418   4.8    1.7	Vela X-1
133.7566  12.0434    0.2   0.0 -137.6  42.1242  66.5 ------	UNKNOWN
183.8371  47.0664    2.9  54.6 -151.3   8.7944   4.1 ------	UNKNOWN

Plot creation:
Thu Sep 24 09:11:40 EDT 2026
