batgrbproduct analysis for trigger=1516528

batgrbproduct Analysis for Trigger=1516528

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Oct 11 19:24:46 EDT 2026
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1516528/batgroup_hand_proc
======================================================================

  Trigger: 01516528      Segment: 000

  BAT Trigger Time: 813352665.92   [s; MET]
      Trigger Stop: 813352666.432   [s; MET]
               UTC: 2026-10-10T19:17:07.310880    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 248.751603809033   Dec: 26.6091767045418  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.94
     Image Trigger?:     NO
     Rate S/N Ratio:     26.944387170615  [ if not an image trigger ]
     Image S/N Ratio:    8.94

  Flight Position:   [ source = BAT ]
    RA: 248.751603809033   Dec: 26.6091767045418  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 248.767294556298   Dec: 26.600367773935  [deg; J2000]
        { 16h 35m 04.2s , +26d 36' 01.3" }
         +/- 1.75333806837667 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.715467885208547 [arcmin] (formal 1-sigma fit error)
    SNR: 13.637628710311

  Angular difference between Flight and Ground position is 0.993938 arcmin

  Partial Coding Fraction: 0.8359375    [ including projection effects ]

  Duration
     T90: 71.5040000677109 +/- 14.0730278203181
        Measured from: -4.28799998760223
                   to: 67.2160000801086     [s; relative to TRIGTIME]
     T50: 36.3999999761581 +/- 4.65542952101428
        Measured from: 1.39200007915497
                   to: 37.7920000553131     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.259999990463257
                   to: 1.25999999046326     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -9.27999997138977
                   to: 76.4480000734329     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.434306   1.819950   1.369880   0.514249
           0.116889   0.142888   0.161924   0.136316 [error]
 Peak      0.066844   0.168029   0.178290   0.087524
           0.013311   0.016498   0.018498   0.015749 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.82e-07 7.30e-07 1.08e-06 3.43e-06 3.05e-06 5.63e-06   erg/cm2
              Error 5.29e-08 6.40e-08 1.53e-07 1.02e-06 3.65e-07 1.16e-06   erg/cm2
Peak flux Power-law 6.80e-01 1.02e+00 1.15e+00 2.44e+00 3.58e+00 5.29e+00   ph/cm2/s
              Error 1.44e-01 1.32e-01 1.38e-01 6.35e-01 3.86e-01 7.20e-01   ph/cm2/s

Fluence   Cutoff-PL 3.85e-07 7.31e-07 1.07e-06 3.09e-06 3.03e-06 5.21e-06   erg/cm2
              Error 5.49e-08 5.31e-08 1.53e-07 1.65e-06 3.88e-07 1.56e-06   erg/cm2
Peak flux Cutoff-PL 5.94e-01 1.07e+00 1.22e+00 1.34e+00 3.52e+00 4.22e+00   ph/cm2/s
              Error 1.77e-01 1.51e-01 1.74e-01 1.06e+00 3.97e-01 1.15e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.435    0.168    -      -           3.71e-03 3.73e-04   49.400 57
CPL   1.439    0.170    9999.4    0.0      3.71e-03 2.81e-03   49.410 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.832    0.184    -      -           3.12e-02 3.37e-03   46.260 57
CPL   0.250    0.807     167.2    0.0      5.80e-02 0.00e+00   44.550 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 37.632000 sec.
T50 in the 50-300 keV band: 20.736000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   85.728   -9.280   76.448
T90    71.504   -4.288   67.216
T50    36.400    1.392   37.792
Peak    1.000    0.260    1.260

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  248.7673 +26.6004 0.0141   15.3   63.1       4.2449    13.6  TRIG_01516528
------------------------------------------

Foreground time interval of the image:
 -9.280  33.381 (delta_t =  42.661 [sec])
Background time interval of the image:
-119.920  -9.280 (delta_t = 110.640 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

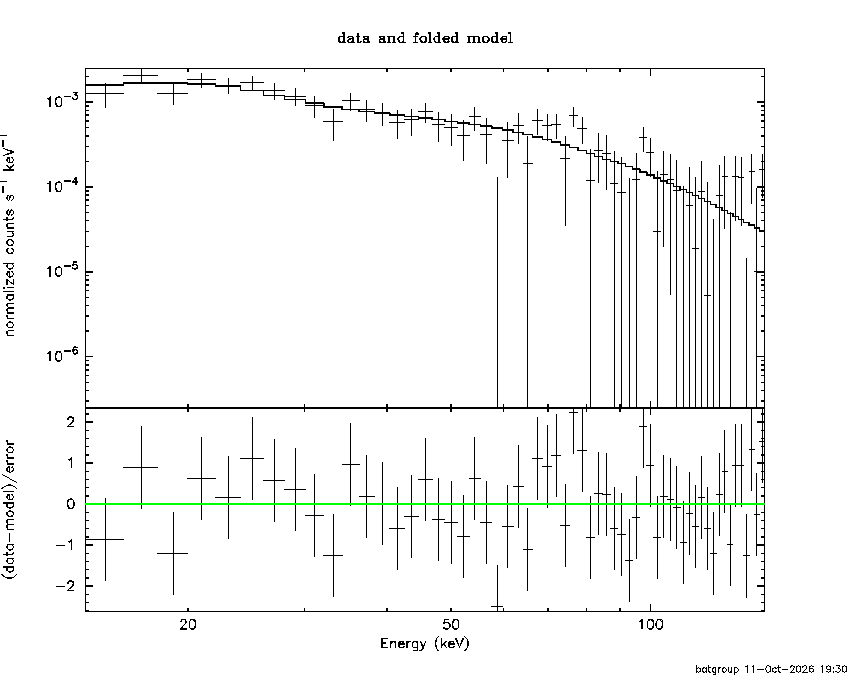

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -9.280 sec. to   76.448 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43470     ( -0.165699   0.1712 )
Norm@50keV  : 3.70930E-03    ( -0.000376917   0.000369627 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.40 using 59 PHA bins.
# Reduced chi-squared =         0.8667 for     57 degrees of freedom
# Null hypothesis probability =   7.525997e-01

Photon flux (15-150 keV)    in 85.73 sec: 0.455411 ( -0.0400195  0.0400385 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.05174e-06 ( -3.59911e-07  3.69232e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -9.280 sec. to   76.448 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43942     ( -0.171625   0.167704 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 3.70732E-03    ( -0.00200828   0.00362152 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.41 using 59 PHA bins.
# Reduced chi-squared =         0.8823 for     56 degrees of freedom
# Null hypothesis probability =   7.207724e-01

Photon flux (15-150 keV)    in 85.73 sec: 0.455211 ( -0.039895  0.039763 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.0311e-06 ( -3.86368e-07  3.89746e-07 ) ergs/cm2

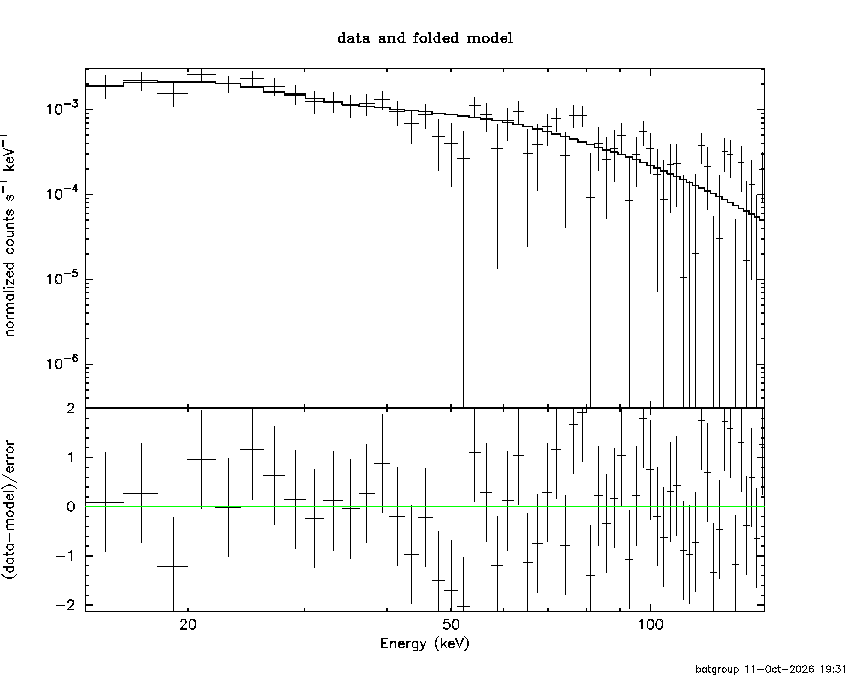

Band function

Time interval is from   -9.280 sec. to   76.448 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.99566   ( -3.99562   -3.99562 )
beta        : -1.48089    ( -0.240061   0.181571 )
Epeak [keV] : 22.7985      ( -22.7966 85.4881 )
Norm@50keV   : 107.670    ( -107.697   341576 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.90 using 59 PHA bins.
# Reduced chi-squared =         0.8890 for     55 degrees of freedom
# Null hypothesis probability =   7.056568e-01

Photon flux (15-150 keV)    in 85.73 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

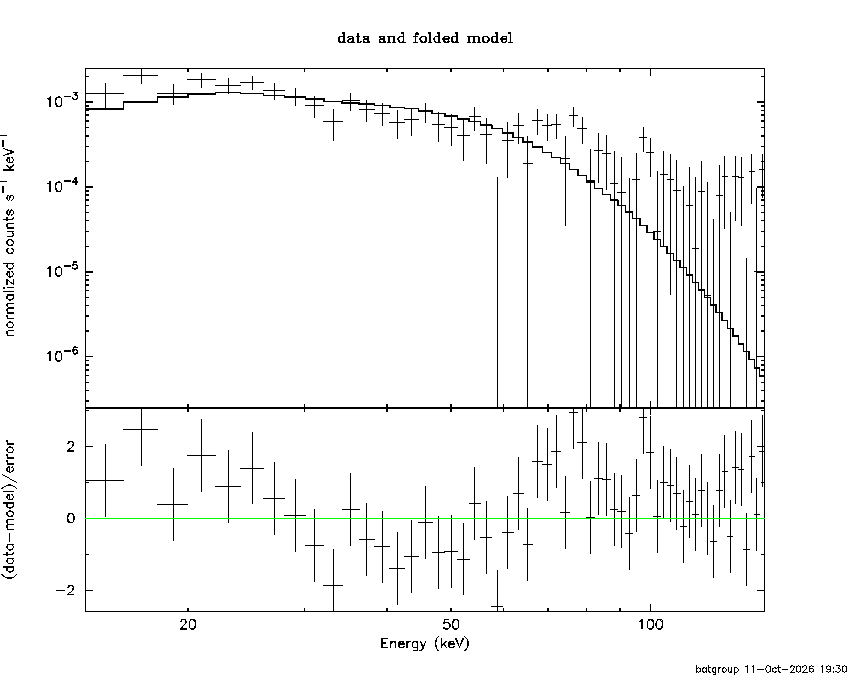

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.9812  (-1.79  2.12311)
R^2/D10^2   : 8.27708E-02  (-0.0325178   0.0537423)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          84.95 using 59 PHA bins.
# Reduced chi-squared =          1.490 for     57 degrees of freedom
# Null hypothesis probability =   9.592452e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.536e-07   4.505e-08
25- 50  8.721e-07   1.055e-07
50-150  9.283e-07   2.241e-07
15-150  2.054e-06   2.799e-07

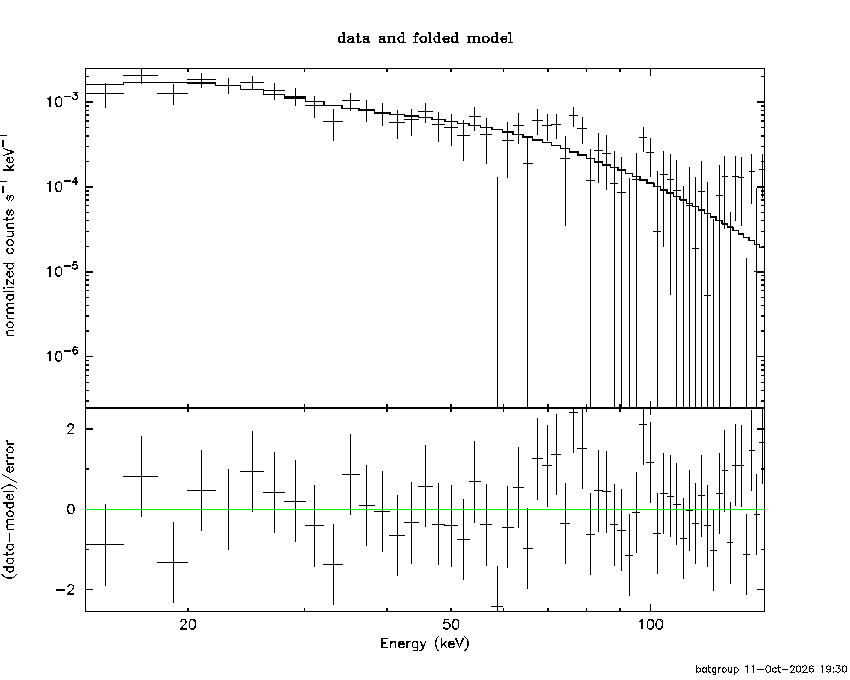

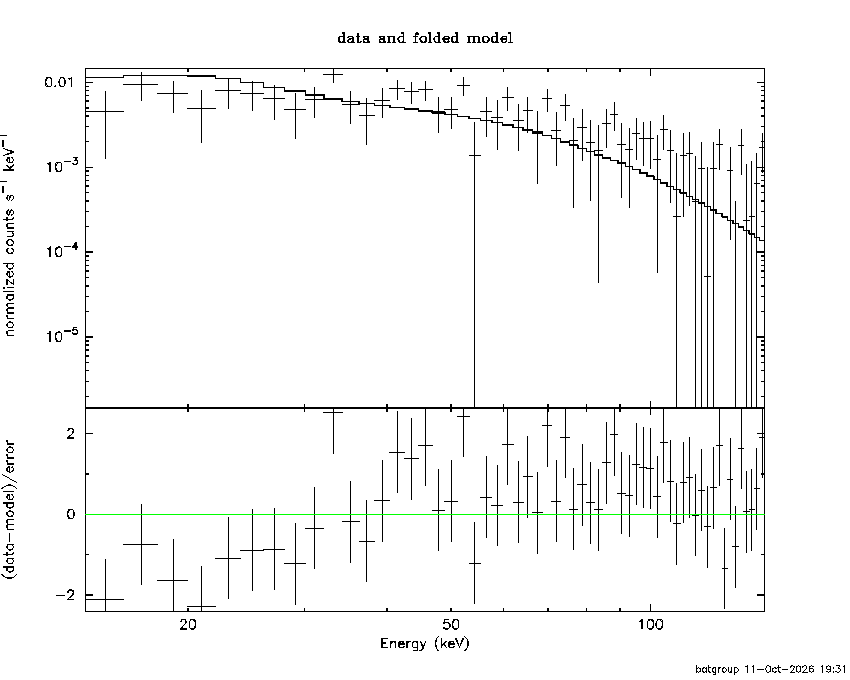

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-55.9143      -200)
Norm        : 1.83220       (-0.160855     0.160855)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.919e-07   1.286e-07
25- 50  7.538e-07   4.044e-07
50-150  1.653e-06   8.743e-07
15-150  2.799e-06   1.483e-06

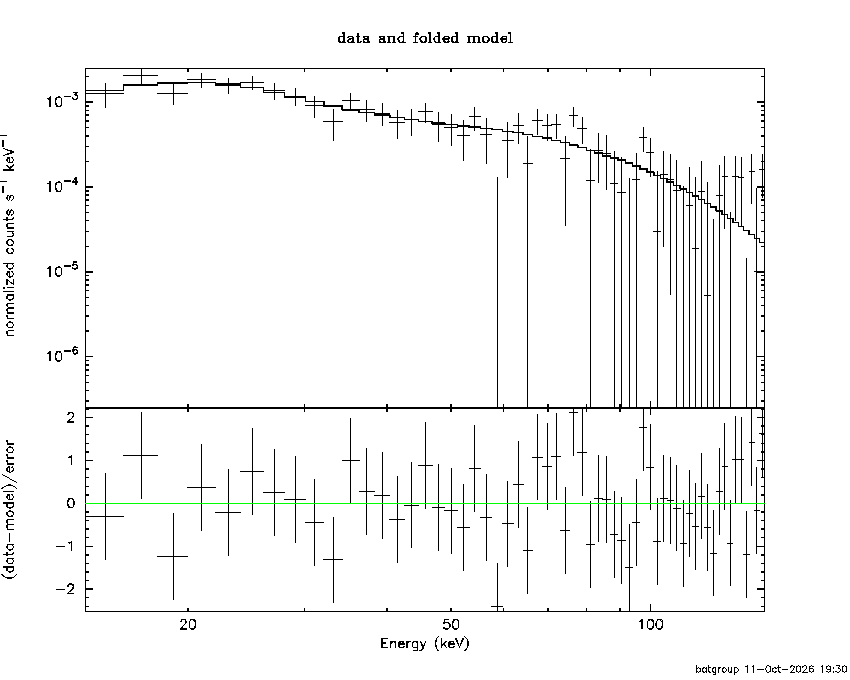

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.60892        (-1.4626      1.72005)
R1^2/D10^2  : 0.597236        (-0.316053      0.470959)
kT2 [keV]   : 29.7008        (-7.85193      18.9837)
R2^2/D10^2  : 4.22100E-03    (-0.00321591   0.00449355)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.874e-07   1.367e-07
25- 50  7.206e-07   2.591e-07
50-150  1.986e-06   1.079e-06
15-150  3.094e-06   1.259e-06

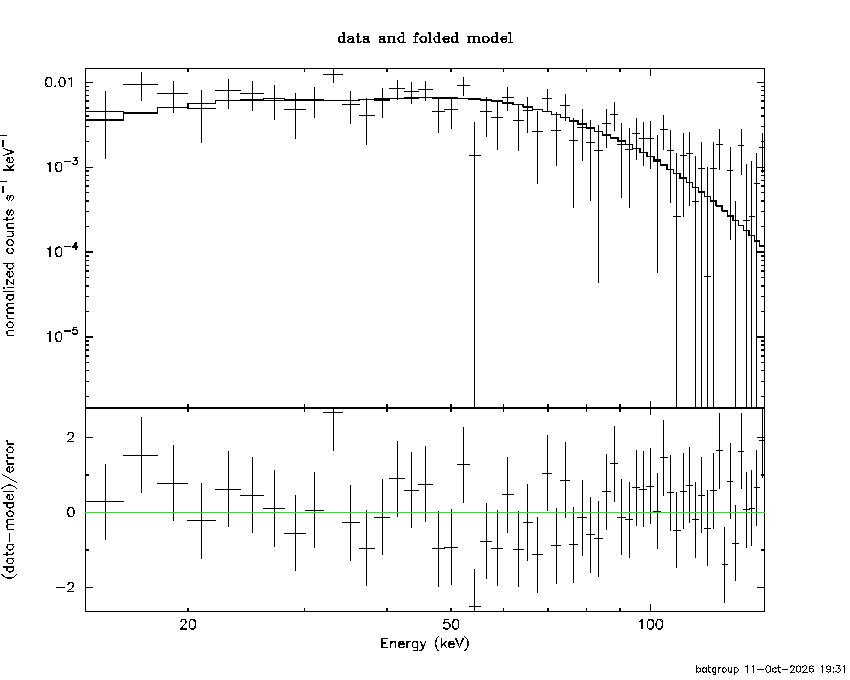

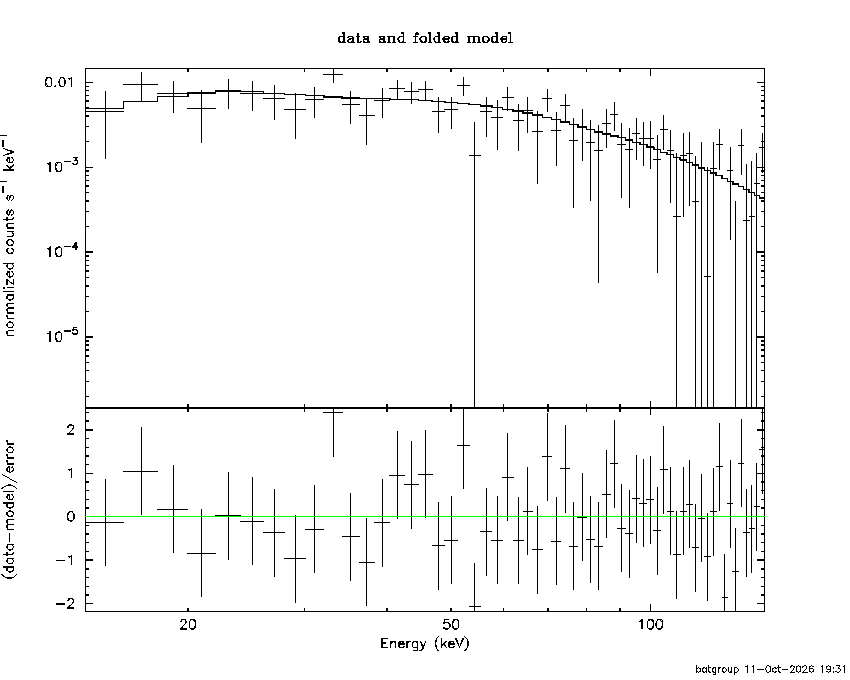

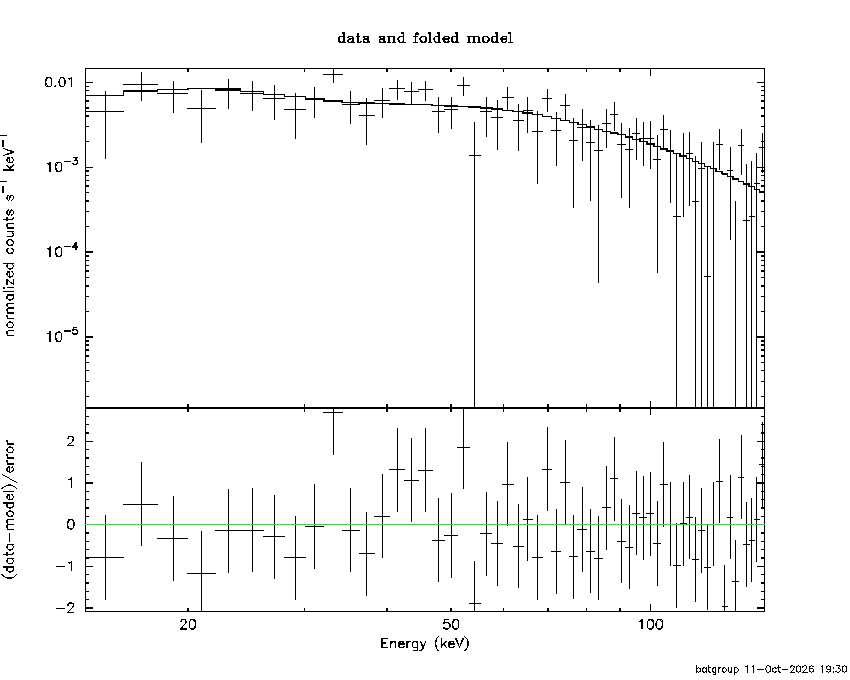

Peak spectrum fit

Power-law model

Time interval is from    0.260 sec. to    1.260 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.831760     ( -0.185612   0.182122 )
Norm@50keV  : 3.12026E-02    ( -0.00337388   0.00336745 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.26 using 59 PHA bins.
# Reduced chi-squared =         0.8115 for     57 degrees of freedom
# Null hypothesis probability =   8.447117e-01

Photon flux (15-150 keV)    in 1 sec: 3.58294 ( -0.385749  0.385799 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.59851e-07 ( -4.49562e-08  4.54281e-08 ) ergs/cm2

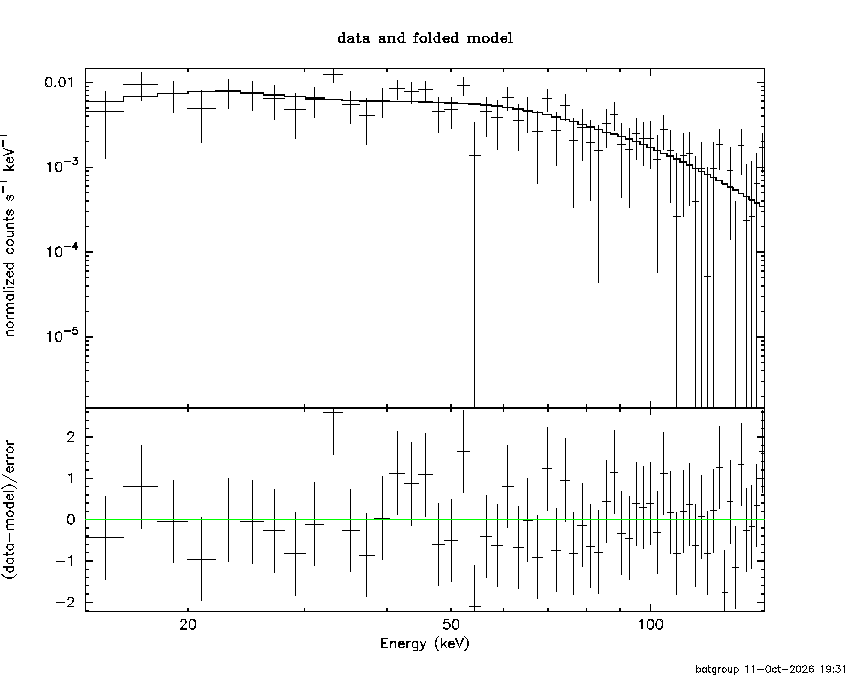

Cutoff power-law model

Time interval is from    0.260 sec. to    1.260 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.249804     ( -0.904125   0.709725 )
Epeak [keV] : 167.237      (   )
Norm@50keV  : 5.79713E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.55 using 59 PHA bins.
# Reduced chi-squared =         0.7956 for     56 degrees of freedom
# Null hypothesis probability =   8.646830e-01

Photon flux (15-150 keV)    in 1 sec: 3.51837 ( -0.39832  0.39619 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.47437e-07 ( -5.0121e-08  4.915e-08 ) ergs/cm2

Band function

Time interval is from    0.260 sec. to    1.260 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.967864   ( 0.967696   0.967696 )
beta        : -0.831760    ( -0.182143   0.18571 )
Epeak [keV] : 15.3470      ( -15.3465 -15.3465 )
Norm@50keV   : 4.34170E-02    ( -0.0155773   789625 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.26 using 59 PHA bins.
# Reduced chi-squared =         0.8410 for     55 degrees of freedom
# Null hypothesis probability =   7.933312e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 22.2188  (-3.08717  3.81126)
R^2/D10^2   : 0.130681  (-0.0489854   0.0740071)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.189e-08   2.655e-09
25- 50  6.321e-08   9.420e-09
50-150  2.332e-07   4.265e-08
15-150  3.083e-07   4.860e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-21.5482      -200)
Norm        : 12.9981       (-1.51595     1.51595)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.234e-08   1.790e-08
25- 50  6.222e-08   3.428e-08
50-150  1.365e-07   7.600e-08
15-150  2.310e-07   1.285e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 12.3050        (-5.62794      6.45)
R1^2/D10^2  : 0.452954        (-0.271651      1.36502)
kT2 [keV]   : 46.9207        (-27.4173      -49.7786)
R2^2/D10^2  : 1.08268E-02    (-0.00819763   0.0628861)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.726e-08   9.645e-09
25- 50  6.654e-08   3.687e-08
50-150  2.665e-07   1.363e-07
15-150  3.503e-07   1.741e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29625     ( -0.166192   0.169397 )
Norm@50keV  : 5.38773E-03    ( -0.000511017   0.000504383 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.57 using 59 PHA bins.
# Reduced chi-squared =          1.010 for     57 degrees of freedom
# Null hypothesis probability =   4.538012e-01

Photon flux (15-150 keV)    in 42.66 sec: 0.642328 ( -0.0564474  0.0564515 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.27333e-06 ( -2.59767e-07  2.6471e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29452     ( -0.194321   0.16905 )
Epeak [keV] : 9999.23      ( -9999.35 -9999.35 )
Norm@50keV  : 5.40770E-03    ( -0.005408   0.00225383 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.60 using 59 PHA bins.
# Reduced chi-squared =          1.029 for     56 degrees of freedom
# Null hypothesis probability =   4.157973e-01

Photon flux (15-150 keV)    in 42.66 sec: 0.641907 ( -0.056379  0.056414 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.25463e-06 ( -1.21705e-07  2.7607e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.642946   ( 0.935783   5.70506 )
beta        : -1.31618    ( -0.240662   0.176422 )
Epeak [keV] : 52.4944      ( -52.0035 -52.0035 )
Norm@50keV   : 1.64345E-02    ( -0.0168935   399749 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.48 using 59 PHA bins.
# Reduced chi-squared =          1.045 for     55 degrees of freedom
# Null hypothesis probability =   3.833069e-01

Photon flux (15-150 keV)    in 42.66 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.30e-07
S(50-100 keV) = 1.08e-06

T90 vs. Hardness ratio plot

T90                                   = 71.5040000677109 sec.
Hardness ratio (energy fluence ratio) = 1.47945

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.26887
Count Ratio (50-100 keV) / (15-25 keV) = 0.955082

Mask shadow pattern

IMX = 1.237456974964544E-01, IMY = -2.436557892518454E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-119.920000 -9.280000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9610 -15.7183    2.2  31.5 -168.6   6.9510   5.3    4.8	Sco X-1
254.5740  35.5113    0.0  25.3   56.9   0.8024   0.5   11.6	Her X-1
256.0460 -37.8882    5.7  55.5 -173.0  -7.8052  -2.0    3.9	4U 1700-377
256.3624 -36.4960    7.8  54.3 -173.9   5.3448   1.5    5.6	GX 349+2
262.8802 -24.7164    7.3  46.5  172.5   4.0602   1.6    7.2	GX 1+4
268.4183  -1.5803    8.0  34.3  140.5  -2.7007  -1.4    8.2	SW J1753.5-0127
270.3109 -25.1236    4.3  51.0  165.7   9.9914   2.7    3.0	GX 5-1
270.2733 -25.7698    5.0  51.4  166.3  -8.8888  -2.3    2.3	GRS 1758-258
273.8772 -14.0058   12.9  45.8  151.8   2.9428   0.9    7.7	GX 17+2
263.0930 -33.8106    8.5  54.3  178.5   6.0871   1.4    5.4	GX 354-0
278.5432 -16.5257    2.6  50.9  150.8  19.9007   4.4 ------	UNKNOWN
227.3638  38.4616    2.2  25.3    4.2   6.0488   5.3 ------	UNKNOWN
230.1481 -24.1661    2.7  39.9 -144.5   7.6281   4.3 ------	UNKNOWN
212.8072 -23.5031    3.0  45.8 -122.7  19.6800   3.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-9.280000 33.380590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9269 -15.7713    4.9  31.5 -168.5   0.8352   2.3    8.4	Sco X-1
254.6158  35.2318    5.9  25.1   57.4  -0.7569  -2.0   10.2	Her X-1
256.0745 -37.8205   64.9  55.5 -173.1   0.1871   0.2    4.4	4U 1700-377
256.5590 -36.4151    4.8  54.3 -174.2  -2.3222  -2.4    6.0	GX 349+2
262.9671 -24.9217    4.9  46.7  172.5   1.5697   2.4   10.8	GX 1+4
268.3684  -1.4502  284.7  34.2  140.3   0.0194   0.0    0.1	SW J1753.5-0127
270.3690 -25.0782    4.8  51.0  165.6   2.4424   2.4    4.6	GX 5-1
270.2306 -25.8513    5.2  51.5  166.4  -2.3651  -2.2    7.6	GRS 1758-258
273.9835 -14.1391   11.8  45.9  151.8   0.8310   1.0    6.3	GX 17+2
262.8585 -33.8164   72.5  54.2  178.7  -0.1693  -0.2    6.6	GX 354-0
248.7673  26.6004    0.8  15.3   63.1   4.2455  13.6 ------	UNKNOWN
255.7927 -27.5486    2.5  45.9 -177.9   2.6129   4.6 ------	UNKNOWN
241.3287 -34.4687    2.7  49.6 -159.4   2.8930   4.3 ------	UNKNOWN
191.2227  24.4671    2.7  44.9  -46.1   3.0080   4.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
82.380590 218.818600
221.080000 472.054400
474.080000 476.508900
481.080000 485.417800
519.080000 520.949300
523.080000 530.021100
533.080000 556.380000
557.080000 573.258500
574.080000 574.211300
575.080000 576.648900
581.080000 582.650000
586.080000 587.377000
603.080000 619.208200
620.080000 621.710000
623.080000 624.911900
626.080000 662.151700

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8745 -15.6460    4.0  42.4 -148.7  17.2769   2.9    6.1	Sco X-1
254.6553  35.3449    6.2  10.1   54.4  -6.4116  -1.8    9.7	Her X-1
262.8996 -24.7598    7.3  53.2 -170.3  15.2949   1.6    6.0	GX 1+4
268.2857  -1.5986   15.5  33.9  169.0  -3.5436  -0.7   10.1	SW J1753.5-0127
270.3677 -25.0456   62.9  55.7 -178.1   2.3273   0.2    5.0	GX 5-1
270.3073 -25.7487   23.1  56.3 -177.7   6.9772   0.5    0.4	GRS 1758-258
274.0002 -14.0384    3.5  47.5  171.6  28.9307   3.3    0.4	GX 17+2
288.7632  11.0235   10.0  40.7  130.5  13.0547   1.2    5.1	GRS 1915+105
269.5580 -20.6914    3.0  51.4 -179.4  36.6911   3.9 ------	UNKNOWN

Plot creation:
Sun Oct 11 19:32:08 EDT 2026
