batgrbproduct analysis for trigger=202442

batgrbproduct Analysis for Trigger=202442

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 17:55:19 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger202442
======================================================================

  Trigger: 00202442      Segment: 000

  BAT Trigger Time: 164761222.208   [s; MET]
      Trigger Stop: 164761223.232   [s; MET]
               UTC: 2006-03-22T23:00:21.120860    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 274.244501992693   Dec: -36.6974174803287  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    6.93
     Image Trigger?:     NO
     Rate S/N Ratio:     12.6491106406735  [ if not an image trigger ]
     Image S/N Ratio:    6.93

  Flight Position:   [ source = BAT ]
    RA: 274.244501992693   Dec: -36.6974174803287  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 274.233938283178   Dec: -36.7082462403164  [deg; J2000]
        { 18h 16m 56.1s , -36d 42' 29.7" }
         +/- 1.12008277268499 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.377090776256455 [arcmin] (formal 1-sigma fit error)
    SNR: 25.8678937848661

  Angular difference between Flight and Ground position is 0.824848 arcmin

  Partial Coding Fraction: 0.8046875    [ including projection effects ]

  Duration
     T90: 229.472000002861 +/- 23.4945108472267
        Measured from: -19.5200000107288
                   to: 209.951999992132     [s; relative to TRIGTIME]
     T50: 170.784000009298 +/- 3.268028126179
        Measured from: 15.7999999821186
                   to: 186.583999991417     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 182.187999993563
                   to: 183.187999993563     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -51.6240000128746
                   to: 268.211999982595     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     2.372754   3.418899   2.394127   0.494201
           0.126911   0.114662   0.097387   0.083391 [error]
 Peak      0.063242   0.099749   0.068867   0.014059
           0.007955   0.007647   0.006749   0.004907 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 7.76e-07 1.38e-06 1.87e-06 5.26e-06 5.42e-06 9.29e-06   erg/cm2
              Error 5.83e-08 6.13e-08 9.68e-08 5.99e-07 2.35e-07 6.62e-07   erg/cm2
Peak flux Power-law 6.95e-01 6.81e-01 4.66e-01 5.01e-01 2.04e+00 2.34e+00   ph/cm2/s
              Error 1.07e-01 6.59e-02 5.38e-02 1.16e-01 1.90e-01 2.14e-01   ph/cm2/s

Fluence   Cutoff-PL 7.07e-07 1.44e-06 1.93e-06 2.67e-06 5.22e-06 6.74e-06   erg/cm2
              Error 7.06e-08 7.19e-08 1.06e-07 1.06e-06 2.67e-07 1.08e-06   erg/cm2
Peak flux Cutoff-PL 6.03e-01 7.32e-01 4.93e-01 2.22e-01 1.97e+00 2.05e+00   ph/cm2/s
              Error 1.28e-01 8.05e-02 6.21e-02 1.54e-01 1.99e-01 2.51e-01   ph/cm2/s

Fluence        Band 6.52e-07 1.49e-06 1.84e-06 4.23e-06 5.23e-06 8.24e-06   erg/cm2
              Error 8.03e-08 1.06e-07 1.02e-07 8.73e-07 2.62e-07 9.23e-07   erg/cm2
Peak flux      Band 5.98e-01 7.37e-01 4.88e-01 2.89e-01 1.97e+00 2.11e+00   ph/cm2/s
              Error 1.51e-01 1.02e-01 -------- -------- 1.98e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.557    0.073    -      -           1.80e-03 7.36e-05   60.830 57
CPL   1.066    0.310      96.8   44.3      3.14e-03 1.11e-03   52.590 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.547    0.154    -      -           1.61e-02 1.50e-03   41.130 57
CPL   0.742    0.705      77.1   60.5      4.15e-02 4.01e-02   36.430 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 213.568000 sec.
T50 in the 50-300 keV band: 171.136000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  319.836  -51.624  268.212
T90   229.472  -19.520  209.952
T50   170.784   15.800  186.584
Peak    1.000  182.188  183.188

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  274.2339   -36.7082   0.0074    30.6032   -15.2296         9.2675058     25.868 TRIG_00202442

Foreground time interval of the image:
-51.624 268.212 (delta_t = 319.836 [sec])
Background time interval of the image:
-239.208 -51.624 (delta_t = 187.584 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

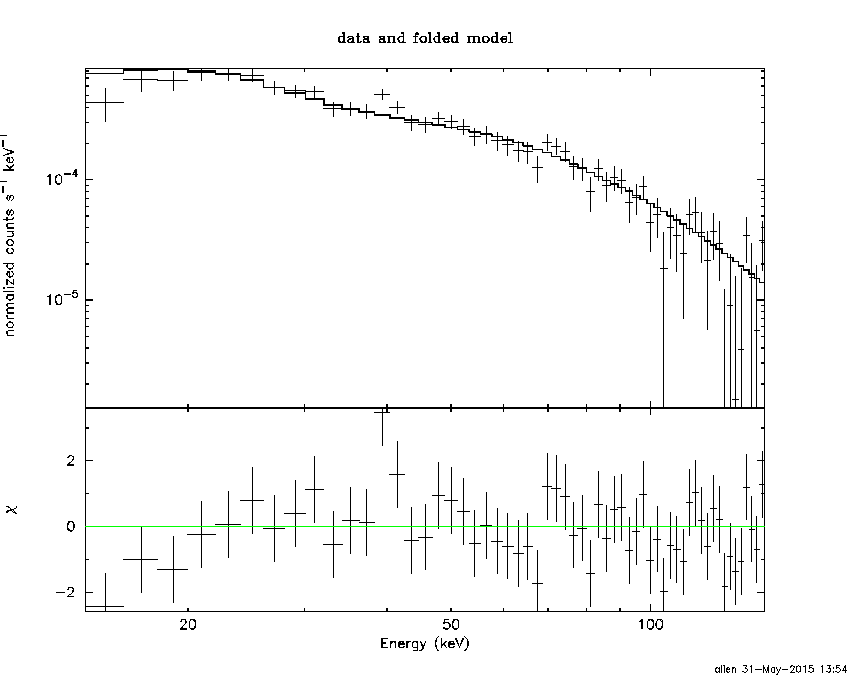

Power-law model

Time interval is from  -51.624 sec. to  268.212 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55692     ( -0.0733574   0.0733503 )
Norm@50keV  : 1.80277E-03    ( -7.3577e-05   7.3526e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.83 using 59 PHA bins.
# Reduced chi-squared =          1.067 for     57 degrees of freedom
# Null hypothesis probability =   3.398372e-01

Photon flux (15-150 keV)    in 319.8 sec: 0.228680 ( -0.00992136  0.00994939 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.42221e-06 ( -2.34894e-07  2.35549e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -51.624 sec. to  268.212 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.06609     ( -0.321473   0.298623 )
Epeak [keV] : 96.8088      ( -20.0782 68.6054 )
Norm@50keV  : 3.14330E-03    ( -0.000882192   0.0013426 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.59 using 59 PHA bins.
# Reduced chi-squared =         0.9390 for     56 degrees of freedom
# Null hypothesis probability =   6.049091e-01

Photon flux (15-150 keV)    in 319.8 sec: 0.221929 ( -0.01066  0.010681 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.21725e-06 ( -2.67385e-07  2.66617e-07 ) ergs/cm2

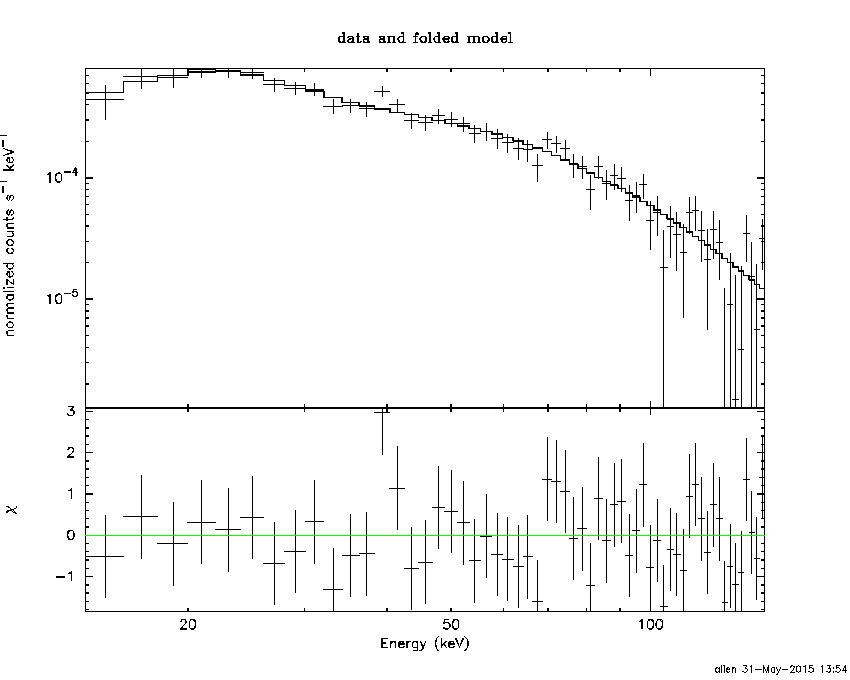

Band function

Time interval is from  -51.624 sec. to  268.212 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.39415   ( -2.30246   -1.39269 )
beta        : -1.70587    ( -0.232801   0.115989 )
Epeak [keV] : 35.4148      ( -7.27822 39.3328 )
Norm@50keV   : 0.160450    ( -0.159665   37.2287 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.78 using 59 PHA bins.
# Reduced chi-squared =         0.8688 for     55 degrees of freedom
# Null hypothesis probability =   7.442280e-01

Photon flux (15-150 keV)    in 319.8 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.23318e-06 ( -5.23094e-06  -2.52482e-07 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.9394  (  )
R^2/D10^2   : 2.53890E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         157.19 using 59 PHA bins.
# Reduced chi-squared =         2.7576 for     57 degrees of freedom
# Null hypothesis probability =   2.598489e-11

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.796e-07   3.150e-08
25- 50  1.503e-06   8.203e-08
50-150  2.279e-06   1.903e-07
15-150  4.161e-06   1.935e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 198.772       (-39.4907      -198.801)
Norm        : 0.928785       (-0.0374784     0.0425404)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.46 using 59 PHA bins.
# Reduced chi-squared =         0.9379 for     57 degrees of freedom
# Null hypothesis probability =   6.085721e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.399e-07   3.950e-08
25- 50  1.423e-06   7.739e-08
50-150  3.117e-06   5.883e-07
15-150  5.280e-06   6.204e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.19313        (-1.06101      1.13274)
R1^2/D10^2  : 0.143136        (-0.0470081      0.0792304)
kT2 [keV]   : 28.6289        (-4.54043      7.44562)
R2^2/D10^2  : 1.86993E-03    (-0.00103163   0.00170076)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.20 using 59 PHA bins.
# Reduced chi-squared =         0.8582 for     55 degrees of freedom
# Null hypothesis probability =   7.635675e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.441e-07   8.890e-08
25- 50  1.508e-06   1.693e-07
50-150  3.101e-06   7.176e-07
15-150  5.253e-06   8.331e-07

Peak spectrum fit

Power-law model

Time interval is from  182.188 sec. to  183.188 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.54686     ( -0.153124   0.154795 )
Norm@50keV  : 1.61497E-02    ( -0.00150805   0.00150154 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.13 using 59 PHA bins.
# Reduced chi-squared =         0.7216 for     57 degrees of freedom
# Null hypothesis probability =   9.438451e-01

Photon flux (15-150 keV)    in 1 sec: 2.04261 ( -0.190151  0.190518 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.52104e-07 ( -1.52475e-08  1.53705e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  182.188 sec. to  183.188 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.741880     ( -0.76407   0.644942 )
Epeak [keV] : 77.0856      ( -17.8403 103.084 )
Norm@50keV  : 4.15212E-02    ( -0.0216684   0.0585651 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.43 using 59 PHA bins.
# Reduced chi-squared =         0.6505 for     56 degrees of freedom
# Null hypothesis probability =   9.802027e-01

Photon flux (15-150 keV)    in 1 sec: 1.97247 ( -0.19856  0.19853 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.43562e-07 ( -1.686e-08  1.6946e-08 ) ergs/cm2

Band function

Time interval is from  182.188 sec. to  183.188 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.195108   ( -1.74176   -0.381769 )
beta        : -1.88378    ( 1.87905   0.323391 )
Epeak [keV] : 48.8343      ( -21.4022 71.3637 )
Norm@50keV   : 0.168032    ( -0.1646   418.565 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.18 using 59 PHA bins.
# Reduced chi-squared =         0.6579 for     55 degrees of freedom
# Null hypothesis probability =   9.765487e-01

Photon flux (15-150 keV)    in 1 sec: 1.96962 ( 5.03038  -0.19821 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.43586e-07 ( -1.43579e-07  -1.6781e-08 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.3689  (-1.52228  1.7364)
R^2/D10^2   : 0.270699  (-0.0907433   0.133507)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.27 using 59 PHA bins.
# Reduced chi-squared =         0.9345 for     57 degrees of freedom
# Null hypothesis probability =   6.158148e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.177e-08   2.176e-09
25- 50  4.492e-08   5.415e-09
50-150  6.186e-08   1.097e-08
15-150  1.186e-07   1.430e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 197.003       (-73.5807      -196.151)
Norm        : 8.37765       (-0.770166     0.871026)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.10 using 59 PHA bins.
# Reduced chi-squared =         0.6685 for     57 degrees of freedom
# Null hypothesis probability =   9.744482e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.089e-08   5.200e-09
25- 50  4.014e-08   2.137e-08
50-150  8.768e-08   4.630e-08
15-150  1.487e-07   7.600e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.72034        (-2.55891      3.05936)
R1^2/D10^2  : 1.41843        (-0.854099      2.86057)
kT2 [keV]   : 23.8144        (-6.08036      20.4305)
R2^2/D10^2  : 3.27405E-02    (-0.0291735   0.0756755)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.04 using 59 PHA bins.
# Reduced chi-squared =         0.6553 for     55 degrees of freedom
# Null hypothesis probability =   9.775170e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.818e-08   9.099e-09
25- 50  4.274e-08   2.066e-08
50-150  8.304e-08   4.489e-08
15-150  1.440e-07   6.240e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55692     ( -0.0733574   0.0733503 )
Norm@50keV  : 1.80277E-03    ( -7.3577e-05   7.3526e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.83 using 59 PHA bins.
# Reduced chi-squared =          1.067 for     57 degrees of freedom
# Null hypothesis probability =   3.398372e-01

Photon flux (15-150 keV)    in 319.8 sec: 0.228680 ( -0.00992136  0.00994939 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.42221e-06 ( -2.34894e-07  2.35549e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.06609     ( -0.321473   0.298623 )
Epeak [keV] : 96.8088      ( -20.0782 68.6054 )
Norm@50keV  : 3.14330E-03    ( -0.000882192   0.0013426 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.59 using 59 PHA bins.
# Reduced chi-squared =         0.9390 for     56 degrees of freedom
# Null hypothesis probability =   6.049091e-01

Photon flux (15-150 keV)    in 319.8 sec: 0.221929 ( -0.01066  0.010681 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.21725e-06 ( -2.67385e-07  2.66617e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.39415   ( -2.30246   -1.39269 )
beta        : -1.70587    ( -0.232801   0.115989 )
Epeak [keV] : 35.4148      ( -7.27822 39.4497 )
Norm@50keV   : 0.160450    ( -0.159665   37.2295 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.78 using 59 PHA bins.
# Reduced chi-squared =         0.8688 for     55 degrees of freedom
# Null hypothesis probability =   7.442280e-01

Photon flux (15-150 keV)    in 319.8 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.23318e-06 ( -5.23094e-06  -2.52482e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.38e-06
S(50-100 keV) = 1.87e-06

T90 vs. Hardness ratio plot

T90                                   = 229.472000002861 sec.
Hardness ratio (energy fluence ratio) = 1.35507

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.4409
Count Ratio (50-100 keV) / (15-25 keV) = 1.00901

Mask shadow pattern

IMX = 5.707016042742225E-01, IMY = 1.553729841290223E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.208000 -51.624000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9803 -15.6361    0.3  23.8   61.5  11.0118  45.1    0.3	Sco X-1
254.2956  35.2194   48.1  43.8  159.7   0.1035   0.2   10.8	Her X-1
255.9836 -37.7872    2.6  32.8   12.4   1.0454   4.4    3.4	4U 1700-377
256.4148 -36.4095    3.2  31.4   12.7   0.8298   3.6    1.3	GX 349+2
263.0093 -24.7646    2.3  18.5    8.4   0.9380   5.1    1.1	GX 1+4
264.6005 -44.2906    8.7  37.7   -1.2   0.3945   1.3   11.3	4U 1735-44
268.5288  -1.3151    0.0   5.5 -174.1   0.4540   2.3   12.7	SW J1753.5-0127
270.2228 -25.1078    6.2  18.6  -12.3   0.3639   1.9    3.8	GX 5-1
270.1870 -25.8617    3.9  19.3  -11.9   0.6001   3.0    9.5	GRS 1758-258
273.8564 -14.0085    3.3   9.6  -44.6   0.7218   3.5    8.9	GX 17+2
275.7860 -30.3210    4.2  24.8  -21.8   0.5171   2.7    7.7	H1820-303
285.0061 -25.0195    5.3  24.8  -45.1   0.5066   2.2    6.2	HT1900.1-2455
288.8084  10.9528    1.0  27.6 -134.3   3.1217  11.0    0.7	GRS 1915+105
299.5984  35.1943    1.1  51.7 -151.0   6.1863  10.5    0.6	Cyg X-1
262.8770 -33.7913    3.7  27.4    3.8   0.7180   3.1    6.2	GX 354-0
281.7340 -41.5850    3.2  37.1  -22.4   0.9258   3.6 ------	UNKNOWN
291.6437  48.2974    3.0  59.0 -166.1   4.3674   3.8 ------	UNKNOWN
296.9274  46.8339    3.9  59.6 -161.7   4.8846   3.0 ------	UNKNOWN
306.0269  27.2347    3.9  50.4 -138.7   2.9751   3.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-51.624000 268.212000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0052 -15.6827 1085.1  23.8   61.4   0.0040   0.0    3.0	Sco X-1
254.4540  35.3403  139.1  43.8  159.9  -0.0553  -0.1    0.2	Her X-1
256.0291 -37.9872    5.3  33.0   12.2   0.8335   2.2    8.8	4U 1700-377
256.5825 -36.5220    3.9  31.4   12.4  -1.1360  -3.0    9.2	GX 349+2
262.9943 -24.7927    2.5  18.6    8.4  -1.4343  -4.6    2.9	GX 1+4
264.7387 -44.4546  257.9  37.8   -1.4   0.0193   0.0    0.3	4U 1735-44
268.2150  -1.4920    4.8   5.3 -177.1   0.6947   2.4    9.5	SW J1753.5-0127
270.1873 -24.9243    4.0  18.4  -12.3   0.9130   2.9   10.7	GX 5-1
270.4731 -25.6017    0.0  19.1  -12.8   0.3738   1.1   12.5	GRS 1758-258
274.1600 -14.0325    5.7   9.8  -45.9   0.6442   2.0    9.0	GX 17+2
275.8576 -30.2989   11.9  24.8  -22.0  -0.3243  -1.0    5.4	H1820-303
285.1970 -24.8639    6.3  24.8  -45.7   0.6922   1.8    9.4	HT1900.1-2455
288.9433  10.9535   58.7  27.7 -134.1  -0.0752  -0.2    8.6	GRS 1915+105
299.6803  35.1586    4.0  51.7 -150.9  -3.1723  -2.9    5.1	Cyg X-1
262.8991 -33.6750    6.0  27.3    3.8  -0.6809  -1.9   10.6	GX 354-0
235.7282  -2.7882    2.6  31.9   90.9   2.6157   4.4 ------	UNKNOWN
264.6337  46.3248    1.8  53.1  172.9   7.8786   6.2 ------	UNKNOWN
274.2339 -36.7082    0.4  30.6  -15.2   9.2666  25.9 ------	UNKNOWN
293.8113  13.7373    2.4  33.2 -132.8   2.2063   4.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
863.992600 962.898200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6424  22.0134    0.4  35.5   33.6   4.1243  26.6    0.5	Crab
 34.9461  31.4462    2.7  39.5  -42.4   0.7556   4.2 ------	UNKNOWN
 23.5736  20.3153    2.7  39.7  -66.2   1.3573   4.2 ------	UNKNOWN

Plot creation:
Sun May 31 13:55:00 EDT 2015
