batgrbproduct analysis for trigger=203755

batgrbproduct Analysis for Trigger=203755

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 17:40:27 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger203755
======================================================================

  Trigger: 00203755      Segment: 000

  BAT Trigger Time: 165762738.24   [s; MET]
      Trigger Stop: 165762739.264   [s; MET]
               UTC: 2006-04-03T13:12:17.129580    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 282.306272499452   Dec: 8.32978203469296  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.6
     Image Trigger?:     NO
     Rate S/N Ratio:     20.1246117974981  [ if not an image trigger ]
     Image S/N Ratio:    9.6

  Flight Position:   [ source = BAT ]
    RA: 282.306272499452   Dec: 8.32978203469296  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 282.333447785968   Dec: 8.32846521857071  [deg; J2000]
        { 18h 49m 20.0s , +08d 19' 42.5" }
         +/- 1.04859455311469 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.374597280607624 [arcmin] (formal 1-sigma fit error)
    SNR: 28.4235916402692

  Angular difference between Flight and Ground position is 1.615252 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 30.5879999995232 +/- 4.84125316037351
        Measured from: -4.06000000238419
                   to: 26.527999997139     [s; relative to TRIGTIME]
     T50: 14.1879999935627 +/- 1.80021887130349
        Measured from: 0.19200000166893
                   to: 14.3799999952316     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 1.80799999833107
                   to: 2.80799999833107     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -6.16800001263618
                   to: 33.1719999909401     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.341202   0.715541   0.681068   0.181609
           0.034532   0.035222   0.030494   0.025045 [error]
 Peak      0.014306   0.048049   0.053549   0.015797
           0.005537   0.005938   0.005411   0.004233 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.07e-07 2.60e-07 5.02e-07 2.37e-06 1.36e-06 3.24e-06   erg/cm2
              Error 1.15e-08 1.66e-08 2.83e-08 3.10e-07 7.41e-08 3.23e-07   erg/cm2
Peak flux Power-law 1.73e-01 2.67e-01 3.09e-01 6.85e-01 9.51e-01 1.43e+00   ph/cm2/s
              Error 4.86e-02 4.68e-02 4.01e-02 1.87e-01 1.27e-01 2.06e-01   ph/cm2/s

Fluence   Cutoff-PL 9.86e-08 2.67e-07 5.20e-07 1.48e-06 1.33e-06 2.36e-06   erg/cm2
              Error 1.41e-08 1.84e-08 3.35e-08 6.64e-07 7.95e-08 6.73e-07   erg/cm2
Peak flux Cutoff-PL 1.15e-01 2.75e-01 3.58e-01 2.61e-01 9.08e-01 1.01e+00   ph/cm2/s
              Error 5.73e-02 5.55e-02 5.40e-02 -------- 1.30e-01 2.22e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.052    0.091    -      -           3.25e-03 1.69e-04   53.340 57
CPL   0.693    0.365     205.9 1088.4      4.72e-03 1.76e-03   50.200 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.790    0.216    -      -           8.27e-03 1.13e-03   67.910 57
CPL  -0.542    1.124     115.6   82.6      2.96e-02 3.88e-02   61.960 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 20.224000 sec.
T50 in the 50-300 keV band: 7.936000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   39.340   -6.168   33.172
T90    30.588   -4.060   26.528
T50    14.188    0.192   14.380
Peak    1.000    1.808    2.808

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  282.3334     8.3285   0.0067     4.5154    89.9173         1.4445643     28.424 TRIG_00203755

Foreground time interval of the image:
 -6.168  14.061 (delta_t =  20.229 [sec])
Background time interval of the image:
-239.240  -6.168 (delta_t = 233.072 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

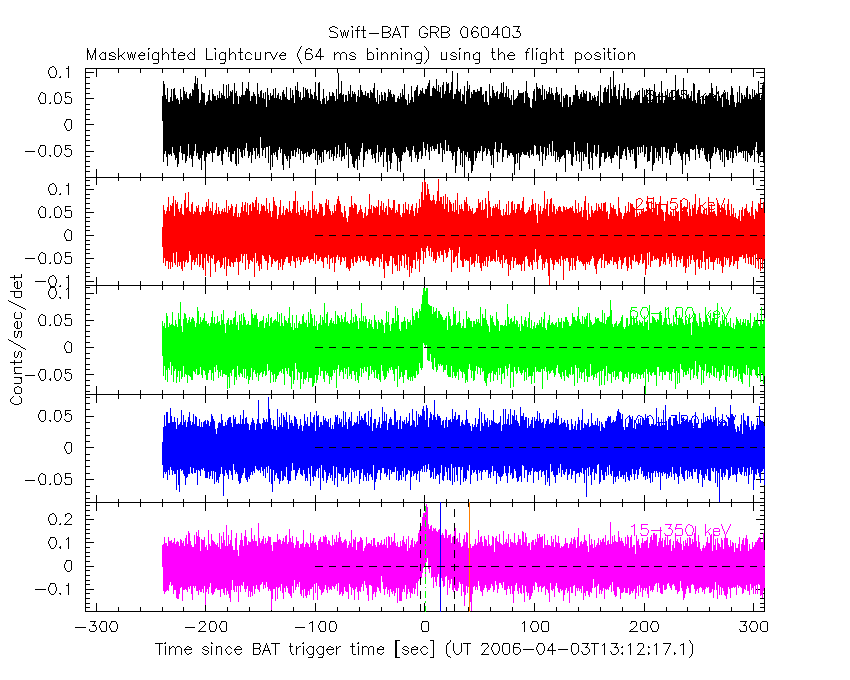

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -6.168 sec. to   33.172 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.05151     ( -0.0916052   0.089951 )
Norm@50keV  : 3.24730E-03    ( -0.000169014   0.000168649 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.34 using 59 PHA bins.
# Reduced chi-squared =         0.9357 for     57 degrees of freedom
# Null hypothesis probability =   6.132866e-01

Photon flux (15-150 keV)    in 39.34 sec: 0.375097 ( -0.0201652  0.0201977 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.35705e-06 ( -7.40221e-08  7.42055e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -6.168 sec. to   33.172 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.693091     ( -0.378324   0.352124 )
Epeak [keV] : 205.878      ( -77.3009 2099.56 )
Norm@50keV  : 4.71590E-03    ( -0.00134366   0.00217095 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.20 using 59 PHA bins.
# Reduced chi-squared =         0.8964 for     56 degrees of freedom
# Null hypothesis probability =   6.930908e-01

Photon flux (15-150 keV)    in 39.34 sec: 0.369071 ( -0.020959  0.020981 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.33059e-06 ( -7.97776e-08  7.92465e-08 ) ergs/cm2

Band function

Time interval is from   -6.168 sec. to   33.172 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.99998   ( -14.9998   -4.99998 )
beta        : -1.19000    ( -0.113362   0.111565 )
Epeak [keV] : 32.7004      ( -4.68295 3.81118 )
Norm@50keV   : 49.6164    ( -2.51364   71.4156 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.05 using 59 PHA bins.
# Reduced chi-squared =         0.8010 for     55 degrees of freedom
# Null hypothesis probability =   8.548508e-01

Photon flux (15-150 keV)    in 39.34 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.2099  (-1.48664  1.65289)
R^2/D10^2   : 1.47085E-02  (-0.00315875   0.00392631)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         106.41 using 59 PHA bins.
# Reduced chi-squared =         1.8669 for     57 degrees of freedom
# Null hypothesis probability =   7.916751e-05

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.897e-08   5.331e-09
25- 50  2.533e-07   1.998e-08
50-150  8.498e-07   7.160e-08
15-150  1.152e-06   6.747e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 1.57071       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         135.75 using 59 PHA bins.
# Reduced chi-squared =         2.3816 for     57 degrees of freedom
# Null hypothesis probability =   2.261238e-08

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.539e-07   8.970e-09
25- 50  2.960e-07   1.829e-08
50-150  6.491e-07   1.123e-07
15-150  1.099e-06   7.789e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 10.2455        (-1.7869      2.02816)
R1^2/D10^2  : 9.20500E-02        (-0.0354831      0.065165)
kT2 [keV]   : 41.5935        (-9.31581      22.3596)
R2^2/D10^2  : 1.45888E-03    (-0.000996284   0.00110948)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.18 using 59 PHA bins.
# Reduced chi-squared =         0.8033 for     55 degrees of freedom
# Null hypothesis probability =   8.515833e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.048e-08   1.806e-08
25- 50  2.866e-07   5.319e-08
50-150  9.732e-07   4.033e-07
15-150  1.350e-06   4.382e-07

Peak spectrum fit

Power-law model

Time interval is from    1.808 sec. to    2.808 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.790429     ( -0.221996   0.209754 )
Norm@50keV  : 8.27168E-03    ( -0.00113361   0.0011195 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.91 using 59 PHA bins.
# Reduced chi-squared =          1.191 for     57 degrees of freedom
# Null hypothesis probability =   1.528125e-01

Photon flux (15-150 keV)    in 1 sec: 0.951018 ( -0.126357  0.126984 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.7053e-08 ( -1.29391e-08  1.30004e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    1.808 sec. to    2.808 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.541924     ( -1.27392   0.973108 )
Epeak [keV] : 115.558      ( -29.1659 135.975 )
Norm@50keV  : 2.95683E-02    ( -0.0175646   0.0599892 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.96 using 59 PHA bins.
# Reduced chi-squared =          1.106 for     56 degrees of freedom
# Null hypothesis probability =   2.720980e-01

Photon flux (15-150 keV)    in 1 sec: 0.907681 ( -0.129532  0.130529 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.24586e-08 ( -1.38681e-08  1.38054e-08 ) ergs/cm2

Band function

Time interval is from    1.808 sec. to    2.808 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.542385   ( -0.795076   1.40935 )
beta        : -10.0000    ( 10   7.10543e-15 )
Epeak [keV] : 115.528      ( -21.3562 136.619 )
Norm@50keV   : 2.95837E-02    ( -0.0175802   0.0600602 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.96 using 59 PHA bins.
# Reduced chi-squared =          1.126 for     55 degrees of freedom
# Null hypothesis probability =   2.419249e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 24.7786  (-3.62629  4.69091)
R^2/D10^2   : 2.56287E-02  (-0.0104812   0.0162207)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.23 using 59 PHA bins.
# Reduced chi-squared =          1.109 for     57 degrees of freedom
# Null hypothesis probability =   2.658607e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.746e-09   7.840e-10
25- 50  1.551e-08   3.325e-09
50-150  7.070e-08   1.588e-08
15-150  8.896e-08   1.707e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 3.76155       (-0.532057     0.53203)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         100.42 using 59 PHA bins.
# Reduced chi-squared =         1.7618 for     57 degrees of freedom
# Null hypothesis probability =   3.406452e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.362e-09   5.345e-09
25- 50  1.801e-08   1.014e-08
50-150  3.950e-08   2.182e-08
15-150  6.687e-08   3.760e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 10.8412        (-10.9055      -10.9055)
R1^2/D10^2  : 8.78615E-02        (-0.0860201      -0.0860201)
kT2 [keV]   : 30.3626        (-30.4636      -30.4636)
R2^2/D10^2  : 1.19767E-02    (-0.0118575   0.0229687)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.56 using 59 PHA bins.
# Reduced chi-squared =          1.119 for     55 degrees of freedom
# Null hypothesis probability =   2.530702e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.866e-09   2.328e-09
25- 50  1.660e-08   8.560e-09
50-150  7.280e-08   3.921e-08
15-150  9.327e-08   4.851e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.811398     ( -0.0908575   0.0885472 )
Norm@50keV  : 4.65345E-03    ( -0.000250459   0.000248638 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.01 using 59 PHA bins.
# Reduced chi-squared =          1.123 for     57 degrees of freedom
# Null hypothesis probability =   2.441793e-01

Photon flux (15-150 keV)    in 20.23 sec: 0.534632 ( -0.0280736  0.0281419 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.09487e-06 ( -5.64409e-08  5.65329e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.194290     ( -0.416702   0.376645 )
Epeak [keV] : 180.383      ( -47.802 172.295 )
Norm@50keV  : 8.31879E-03    ( -0.0024234   0.00373334 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.71 using 59 PHA bins.
# Reduced chi-squared =         0.9948 for     56 degrees of freedom
# Null hypothesis probability =   4.858398e-01

Photon flux (15-150 keV)    in 20.23 sec: 0.520558 ( -0.029267  0.029325 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.07079e-06 ( -5.96927e-08  5.9371e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.737328   ( 0.737328   0.737328 )
beta        : -0.811401    ( -0.0884544   0.0908131 )
Epeak [keV] : 16.6065      (   )
Norm@50keV   : 6.76047E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.01 using 59 PHA bins.
# Reduced chi-squared =          1.164 for     55 degrees of freedom
# Null hypothesis probability =   1.898040e-01

Photon flux (15-150 keV)    in 20.23 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.60e-07
S(50-100 keV) = 5.02e-07

T90 vs. Hardness ratio plot

T90                                   = 30.5879999995232 sec.
Hardness ratio (energy fluence ratio) = 1.93077

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.09712
Count Ratio (50-100 keV) / (15-25 keV) = 1.99608

Mask shadow pattern

IMX = 1.140449292239489E-04, IMY = -7.897123620050106E-02

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

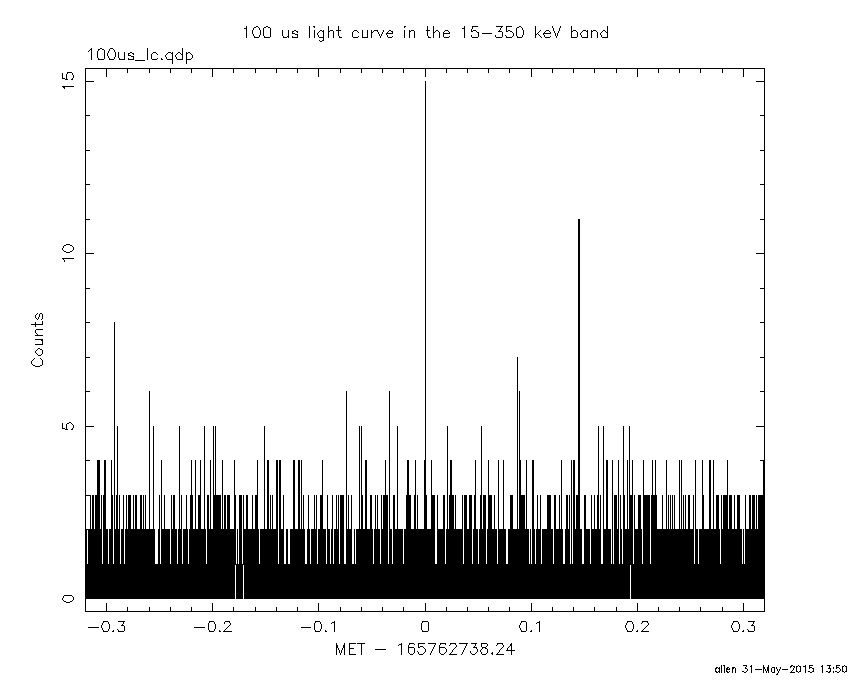

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.240000 -6.168000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4556  35.3766   66.0  39.3  148.6  -0.0677  -0.2    2.1	Her X-1
263.0097 -24.7566    8.6  41.2   45.9   0.5880   1.3    0.7	GX 1+4
268.2689  -1.5076    5.8  21.4   72.7   0.4436   2.0    6.8	SW J1753.5-0127
270.2638 -25.0541    2.4  38.0   36.9   1.5310   4.8    1.9	GX 5-1
270.4527 -25.8189    4.8  38.6   36.1   0.7649   2.4    9.3	GRS 1758-258
273.9684 -13.8968    8.8  26.5   41.0   0.3284   1.3    8.7	GX 17+2
275.9865 -30.4141    7.1  41.1   26.4   0.5928   1.6    4.3	H1820-303
285.1766 -24.9314    7.1  34.3   14.7   0.4089   1.6    7.7	HT1900.1-2455
288.8155  10.9613    0.6   2.6 -117.8   3.8924  19.4    1.4	GRS 1915+105
299.6080  35.2127    0.5  28.4 -145.5   5.4371  23.7    1.1	Cyg X-1
308.1098  40.9600   41.7  36.8 -140.6  -0.0797  -0.3    0.4	Cyg X-3
262.9551 -33.8267  282.1  48.7   38.6   0.0373   0.0    1.8	GX 354-0
252.2004  16.6758    3.2  34.5  118.1   1.4003   3.6 ------	UNKNOWN
250.1226  41.8034    2.2  45.7  153.7   2.5726   5.2 ------	UNKNOWN
293.1456  -3.1550    2.3  14.0  -15.1   0.8766   5.0 ------	UNKNOWN
298.3009  17.1289    2.6  13.7 -114.0   0.8486   4.4 ------	UNKNOWN
290.7843  68.2829    3.0  59.0 -166.2   4.8624   3.9 ------	UNKNOWN
312.0076  65.9628    3.8  59.2 -156.2   4.6648   3.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-6.168000 14.060580

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5362  35.5462   45.5  39.4  148.9   0.0248   0.3   12.8	Her X-1
263.0218 -24.7763    5.1  41.2   45.8  -0.2776  -2.3    2.0	GX 1+4
268.5338  -1.4980   23.6  21.2   72.3  -0.0302  -0.5   10.3	SW J1753.5-0127
270.2851 -25.1229   11.9  38.0   36.8  -0.0866  -1.0    2.6	GX 5-1
270.2466 -25.6967    5.9  38.5   36.4  -0.1760  -2.0    4.1	GRS 1758-258
273.8990 -14.1966    0.0  26.8   40.8  -0.0507  -0.8   11.4	GX 17+2
275.8308 -30.5165    0.0  41.2   26.5   0.1359   1.5   10.2	H1820-303
285.0719 -25.0056   29.9  34.4   14.9   0.0253   0.4    5.5	HT1900.1-2455
288.8165  10.9709   93.8   2.6 -117.9  -0.0059  -0.1    1.9	GRS 1915+105
299.4030  35.2688    7.4  28.4 -145.9   0.0904   1.6   10.0	Cyg X-1
308.1314  41.0233    5.9  36.9 -140.7   0.1482   2.0    4.3	Cyg X-3
262.9858 -33.9669   11.0  48.8   38.5   0.2545   1.1    7.9	GX 354-0
260.3006  49.0753    2.8  45.5  167.9   0.4299   4.2 ------	UNKNOWN
282.3334   8.3285    0.4   4.5   89.9   1.4447  28.4 ------	UNKNOWN
296.0779 -26.5146    2.4  36.9   -1.8   0.3341   4.9 ------	UNKNOWN
312.9743  43.8153    2.2  41.3 -139.1   0.4710   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
40.660600 274.660620

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5064  35.2617    8.3  37.0  146.2   0.4821   1.4    5.4	Her X-1
263.1503 -24.7296   20.9  38.0   34.4   0.1694   0.5    7.8	GX 1+4
268.2900  -1.5156    3.2  17.1   60.9   0.7194   3.6    6.0	SW J1753.5-0127
270.3485 -25.0676    2.4  35.4   24.3   1.2979   4.9    3.6	GX 5-1
270.1744 -25.5960    3.7  35.9   24.3   0.8517   3.1   11.2	GRS 1758-258
274.1634 -14.1353    6.5  23.9   25.3  -0.3514  -1.8   10.9	GX 17+2
275.9610 -30.3725    8.9  39.2   14.1   0.3471   1.3    1.9	H1820-303
285.1218 -24.9455    6.4  33.4    0.8   0.4365   1.8    4.9	HT1900.1-2455
288.7740  10.9408    0.6   6.9 -107.5   3.4512  19.0    1.5	GRS 1915+105
299.5946  35.2037    0.5  31.2 -146.6   5.0064  23.1    0.2	Cyg X-1
308.0805  40.9092   16.4  39.8 -143.7   0.2420   0.7    2.9	Cyg X-3
262.8524 -33.8574   33.0  46.0   28.0  -0.1731  -0.3    6.9	GX 354-0
247.7490   9.3771    2.3  34.1   99.9   2.0200   5.0 ------	UNKNOWN
289.7773  49.8576    2.7  42.0 -167.4   1.2471   4.2 ------	UNKNOWN
306.0013  59.6219    2.9  54.3 -160.1   2.5520   4.0 ------	UNKNOWN
312.1862 -38.0610    2.4  54.1  -23.6   2.8249   4.7 ------	UNKNOWN

Plot creation:
Sun May 31 13:50:12 EDT 2015
