batgrbproduct analysis for trigger=205096

batgrbproduct Analysis for Trigger=205096

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 17:34:16 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger205096
======================================================================

  Trigger: 00205096      Segment: 000

  BAT Trigger Time: 166646424   [s; MET]
      Trigger Stop: 166646488   [s; MET]
               UTC: 2006-04-13T18:40:22.869180    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 291.299608710978   Dec: 13.807879439934  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.26
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.26

  Flight Position:   [ source = BAT ]
    RA: 291.299608710978   Dec: 13.807879439934  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 291.292926282381   Dec: 13.7473285945198  [deg; J2000]
        { 19h 25m 10.3s , +13d 44' 50.4" }
         +/- 1.91165478341018 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.688252182555294 [arcmin] (formal 1-sigma fit error)
    SNR: 12.0532691497615

  Angular difference between Flight and Ground position is 3.653861 arcmin

  Partial Coding Fraction: 1.03125    [ including projection effects ]

  Duration
     T90: 141.124000012875 +/- 20.5971195106687
        Measured from: 53.16400000453
                   to: 194.288000017405     [s; relative to TRIGTIME]
     T50: 37.3480000197887 +/- 3.18845732972999
        Measured from: 83.8240000009537
                   to: 121.172000020742     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 90.1599999964237
                   to: 91.1599999964237     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 29.9760000109673
                   to: 246.944000005722     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     2.044615   2.345358   1.608454   0.352370
           0.073645   0.073594   0.061361   0.049097 [error]
 Peak      0.042131   0.043144   0.027559   0.008898
           0.005185   0.005478   0.004516   0.003394 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.69e-07 9.47e-07 1.20e-06 3.02e-06 3.56e-06 5.73e-06   erg/cm2
              Error 3.96e-08 3.80e-08 6.12e-08 3.43e-07 1.44e-07 3.83e-07   erg/cm2
Peak flux Power-law 3.55e-01 3.10e-01 1.85e-01 1.67e-01 9.22e-01 1.02e+00   ph/cm2/s
              Error 7.04e-02 4.08e-02 3.69e-02 6.46e-02 1.21e-01 1.37e-01   ph/cm2/s

Fluence   Cutoff-PL 5.54e-07 9.58e-07 1.21e-06 2.46e-06 3.52e-06 5.18e-06   erg/cm2
              Error 4.92e-08 4.30e-08 6.45e-08 6.65e-07 1.66e-07 7.67e-07   erg/cm2
Peak flux Cutoff-PL 3.49e-01 3.16e-01 1.86e-01 1.30e-01 9.17e-01 9.82e-01   ph/cm2/s
              Error 7.64e-02 5.04e-02 3.83e-02 1.18e-01 1.24e-01 1.64e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.662    0.072    -      -           1.76e-03 6.76e-05   41.730 57
CPL   1.528    0.261     179.3  -44.7      2.05e-03 5.65e-04   41.060 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.743    0.236    -      -           6.83e-03 1.04e-03   51.740 57
CPL   1.574    0.793     111.9   -0.0      8.50e-03 0.00e+00   51.630 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 160.000000 sec.
T50 in the 50-300 keV band: 36.352000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  216.968   29.976  246.944
T90   141.124   53.164  194.288
T50    37.348   83.824  121.172
Peak    1.000   90.160   91.160

Click here for the BAT GCN circular template

Special notes of this burst

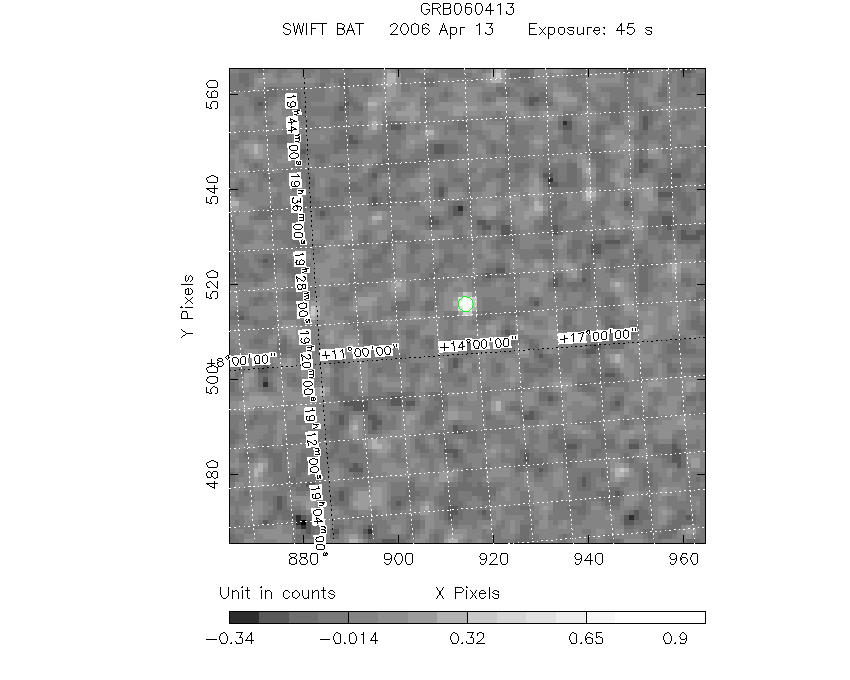

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  291.2929    13.7473   0.0160     6.2665  -131.2762         1.0441791     12.053 TRIG_00205096

Foreground time interval of the image:
 29.976  74.901 (delta_t =  44.925 [sec])
Background time interval of the image:
 -5.699  29.976 (delta_t =  35.675 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

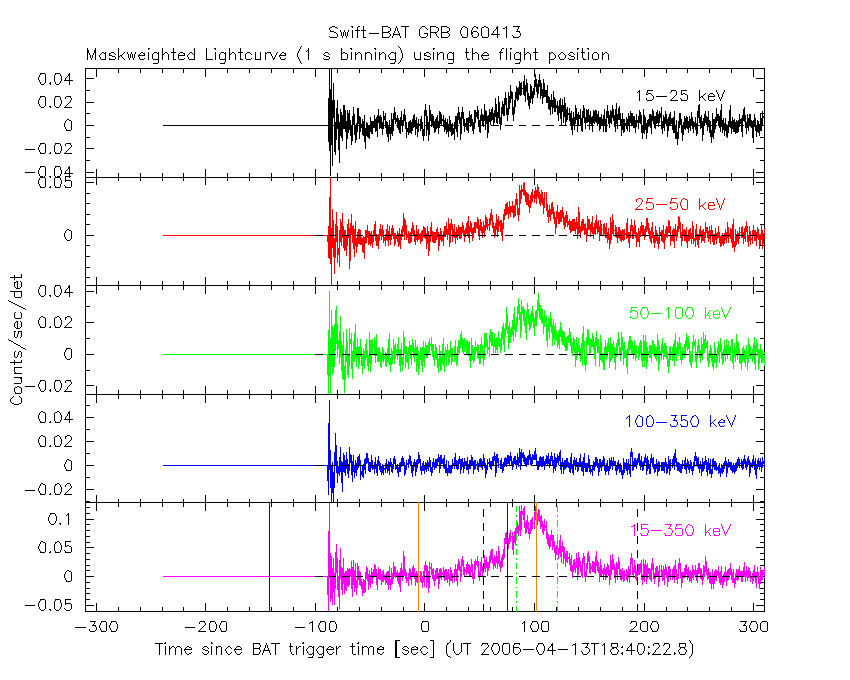

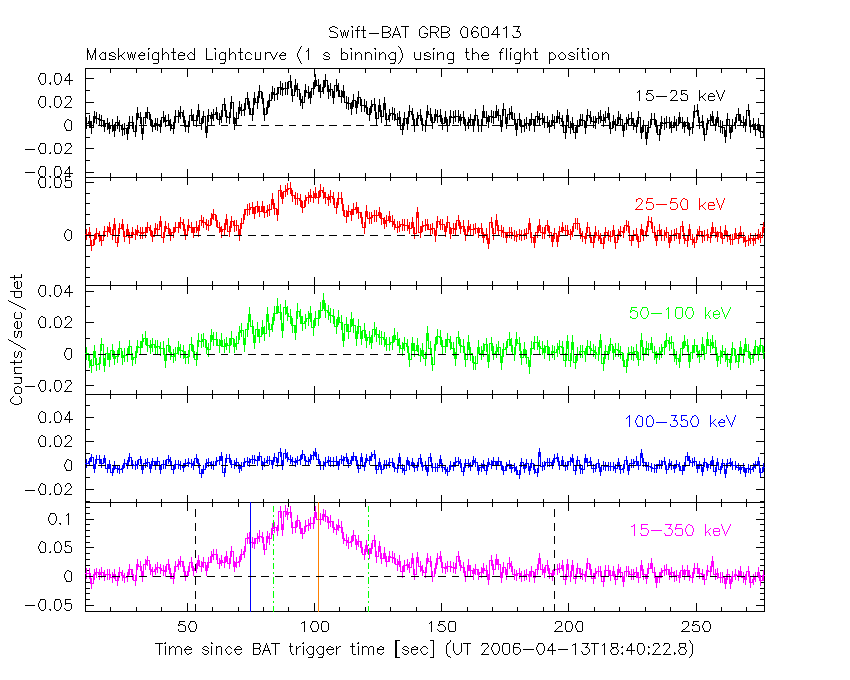

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

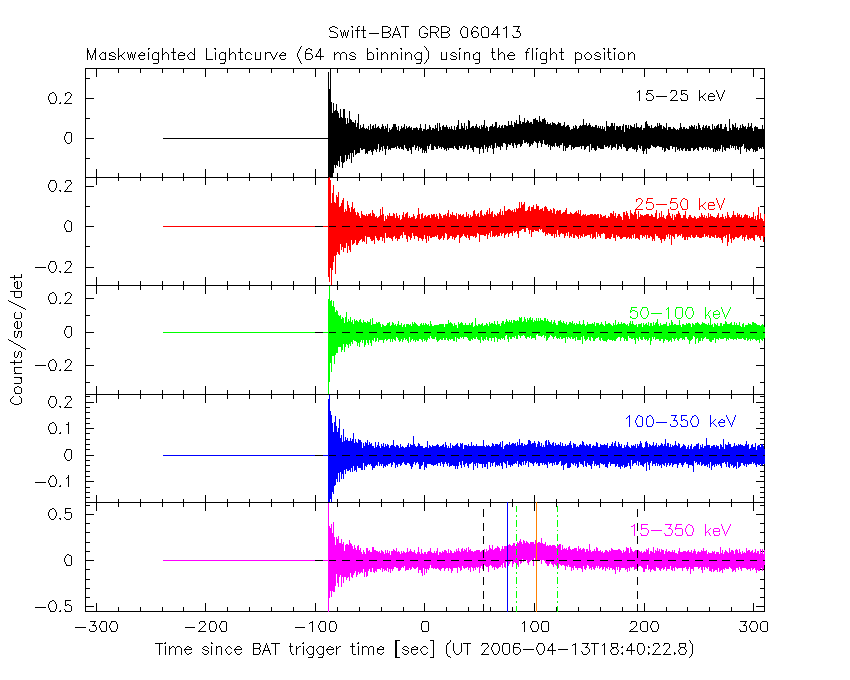

64 ms binning

Full time interval

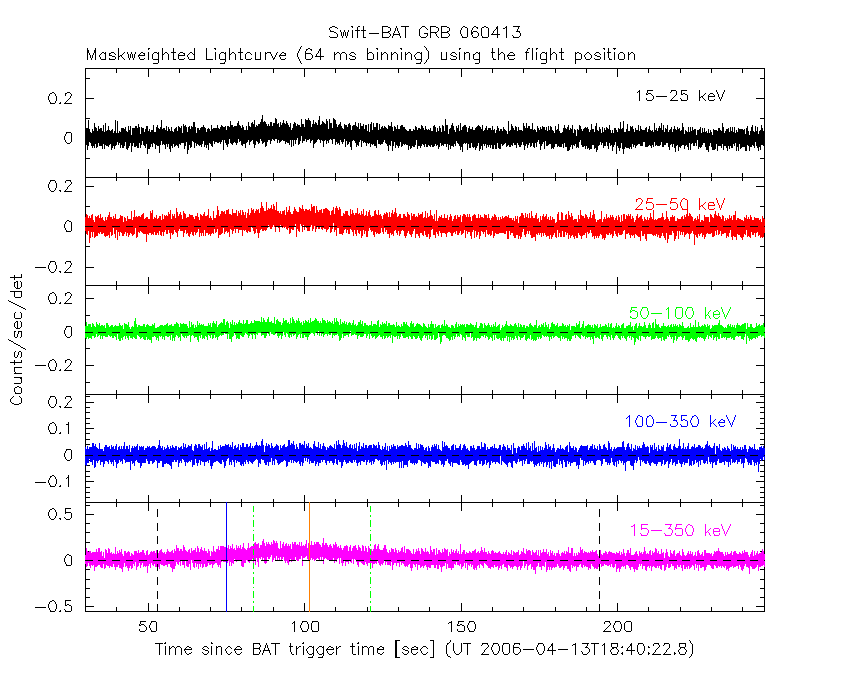

From T100_start to T100_end

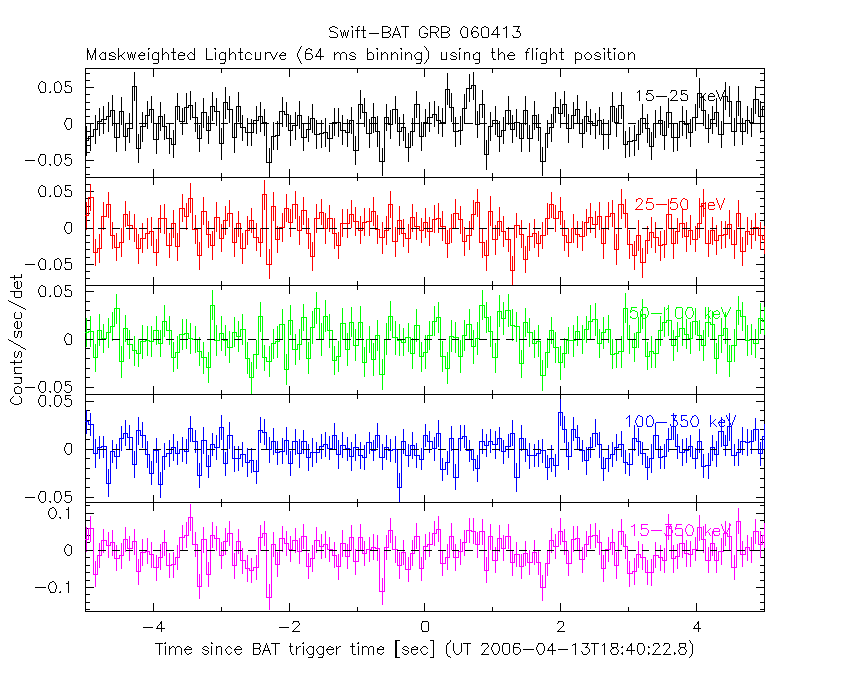

From T0-5 sec to T0+5 sec

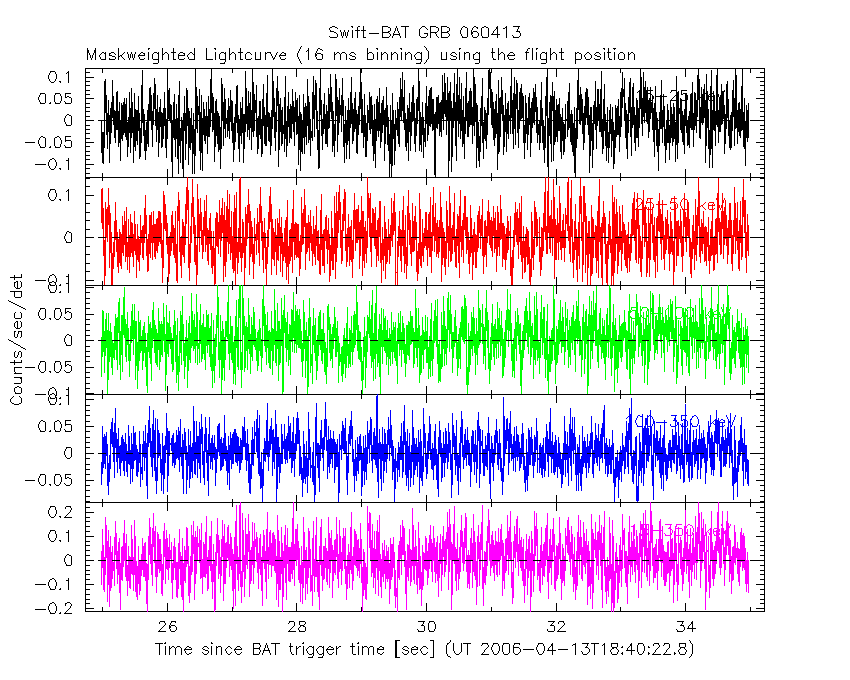

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

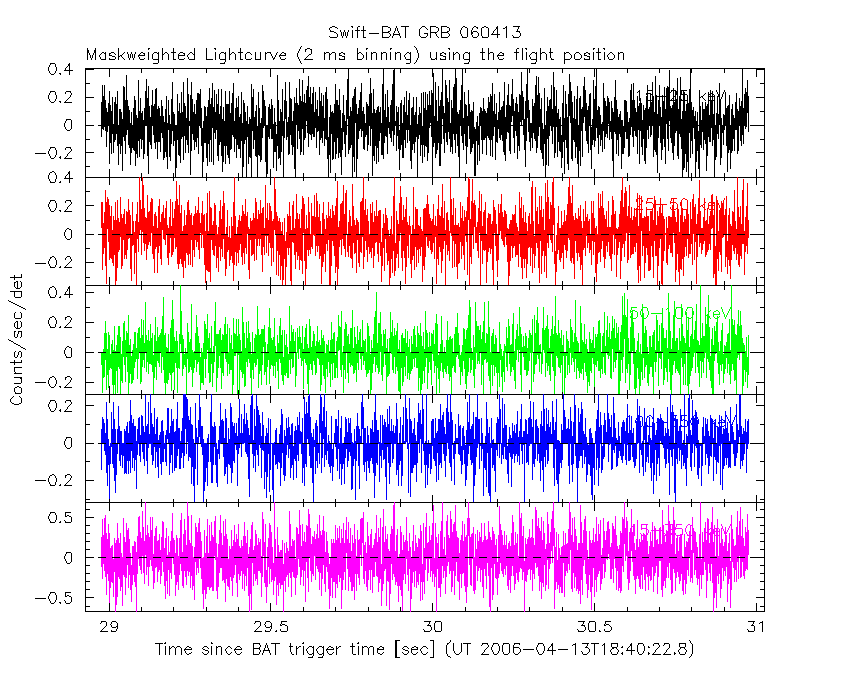

2 ms binning

From T100_start-1 s to T100_start+1 s

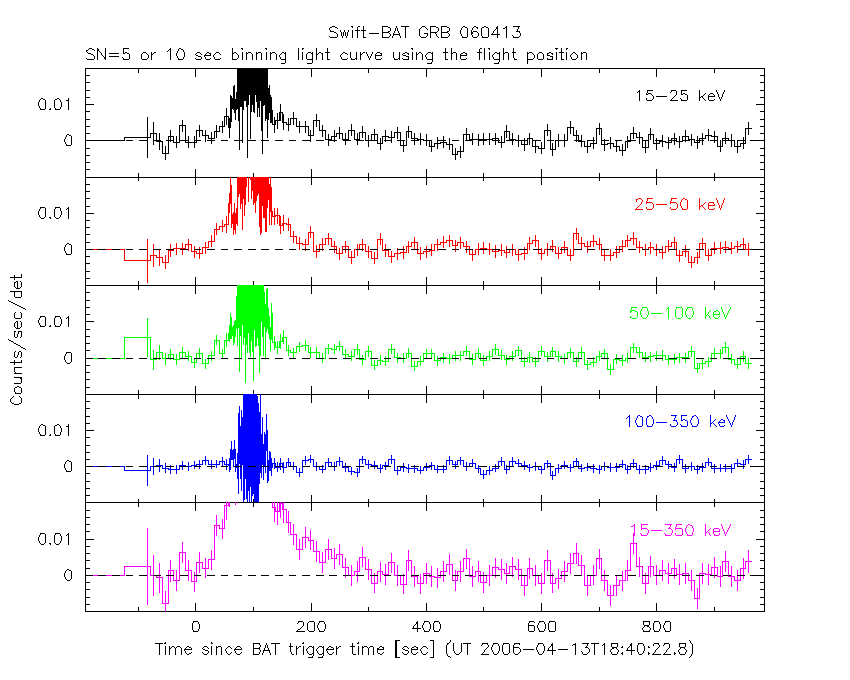

SN=5 or 10 sec. binning (whichever binning is satisfied first)

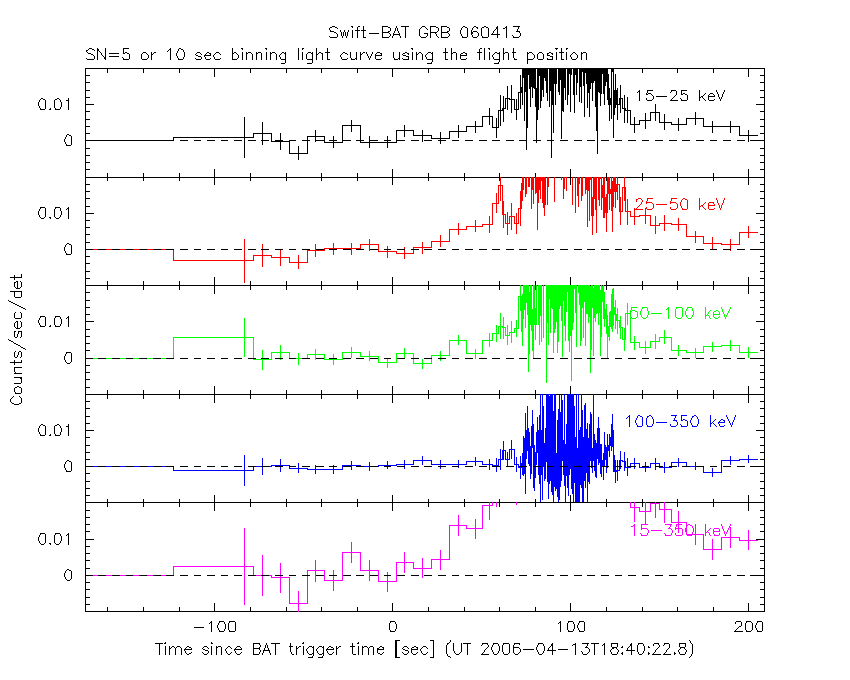

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

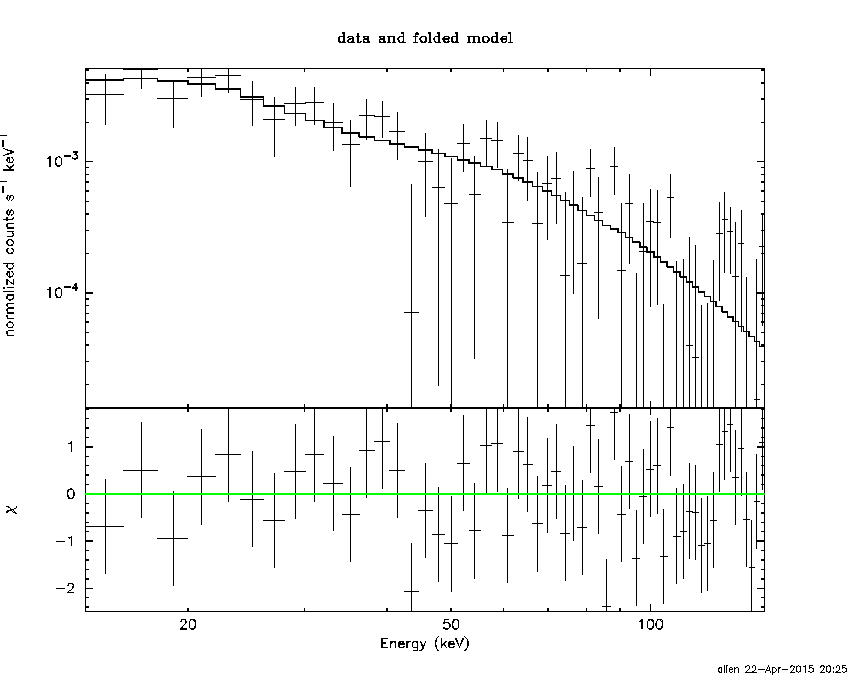

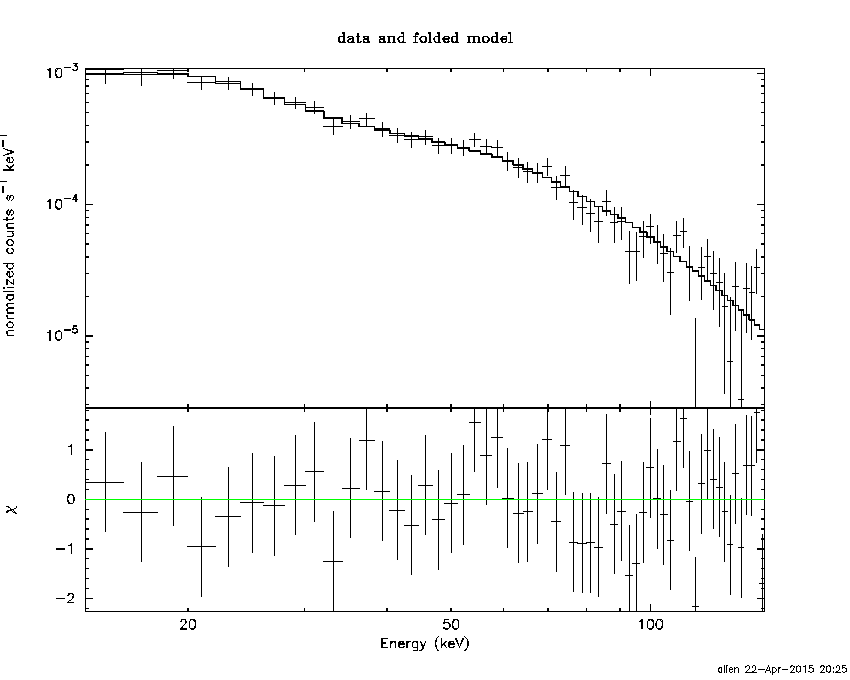

Power-law model

Time interval is from   29.976 sec. to  246.944 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.66246     ( -0.0718946   0.0723175 )
Norm@50keV  : 1.76374E-03    ( -6.77225e-05   6.74861e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.73 using 59 PHA bins.
# Reduced chi-squared =         0.7320 for     57 degrees of freedom
# Null hypothesis probability =   9.356092e-01

Photon flux (15-150 keV)    in 217 sec: 0.231256 ( -0.00926514  0.00930691 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.55522e-06 ( -1.43645e-07  1.44372e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   29.976 sec. to  246.944 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52826     ( -0.294825   0.226227 )
Epeak [keV] : 179.257      ( -89.9138 -179.266 )
Norm@50keV  : 2.05195E-03    ( -0.000343078   0.000786407 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.06 using 59 PHA bins.
# Reduced chi-squared =         0.7333 for     56 degrees of freedom
# Null hypothesis probability =   9.327338e-01

Photon flux (15-150 keV)    in 217 sec: 0.228995 ( -0.010286  0.010129 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.51659e-06 ( -1.66764e-07  1.65159e-07 ) ergs/cm2

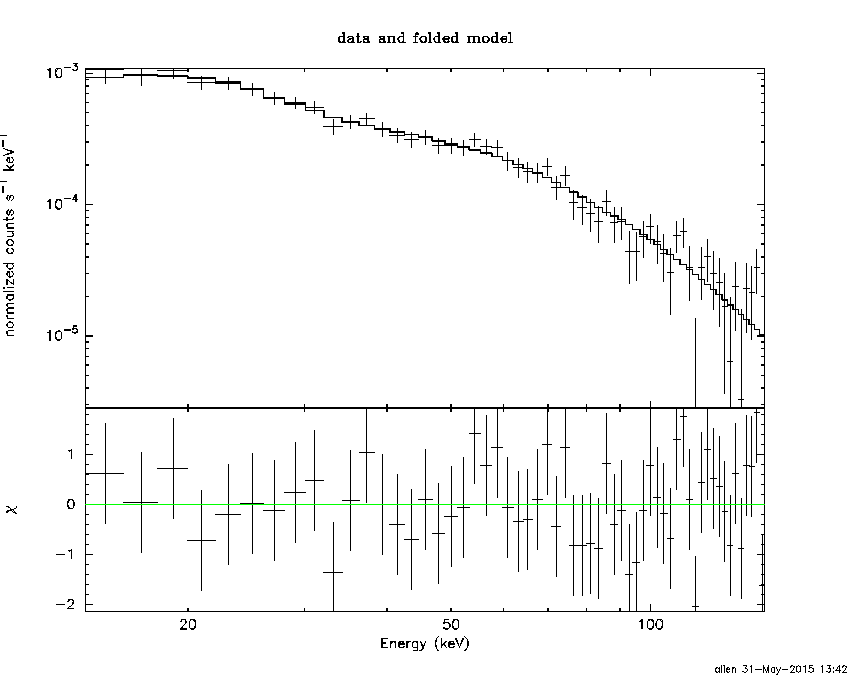

Band function

Time interval is from   29.976 sec. to  246.944 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.44411   ( 1.45197   1.45197 )
beta        : -1.78366    ( 1.7731   0.168798 )
Epeak [keV] : 121.736      ( -127.33 -127.33 )
Norm@50keV   : 2.27790E-03    ( -0.000524363   323612 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.81 using 59 PHA bins.
# Reduced chi-squared =         0.7419 for     55 degrees of freedom
# Null hypothesis probability =   9.230752e-01

Photon flux (15-150 keV)    in 217 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

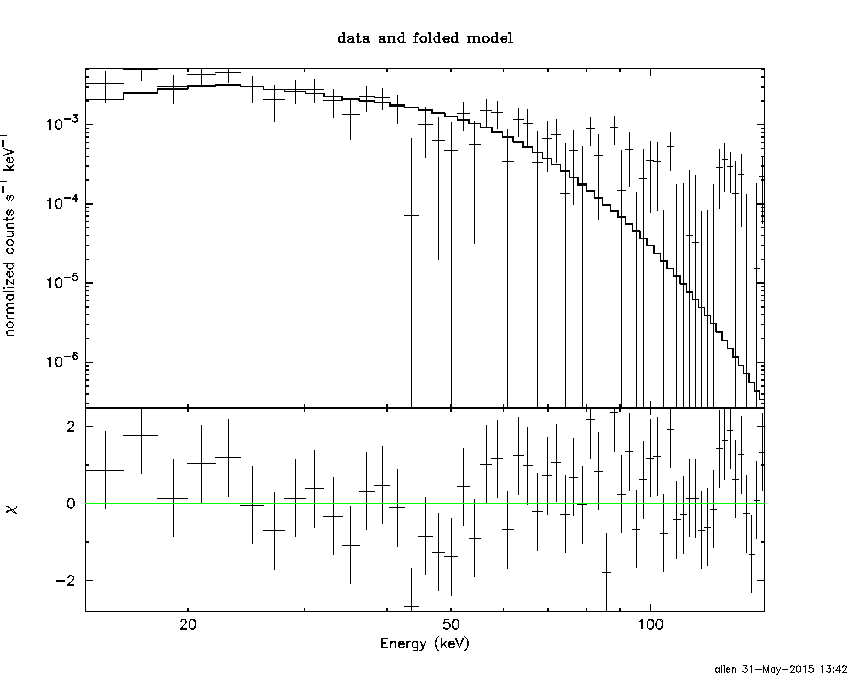

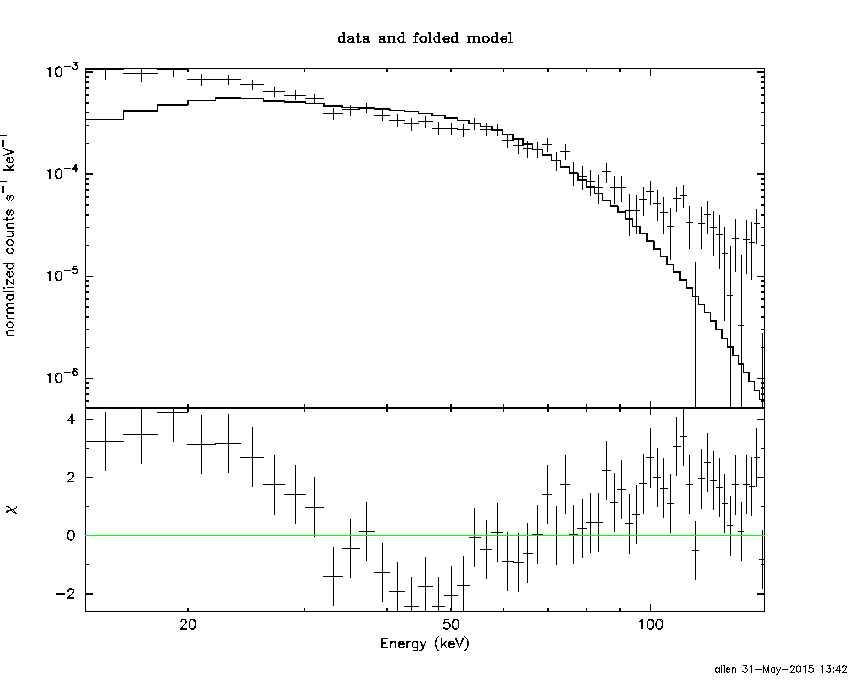

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.3555  (  )
R^2/D10^2   : 2.82837E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         197.99 using 59 PHA bins.
# Reduced chi-squared =         3.4735 for     57 degrees of freedom
# Null hypothesis probability =   1.850510e-17

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.665e-07   1.920e-08
25- 50  1.016e-06   4.698e-08
50-150  1.396e-06   1.000e-07
15-150  2.678e-06   1.172e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 161.274       (-31      36.3739)
Norm        : 0.934074       (-0.0406152     0.049841)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.15 using 59 PHA bins.
# Reduced chi-squared =         0.7570 for     57 degrees of freedom
# Null hypothesis probability =   9.125355e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.172e-07   3.201e-08
25- 50  9.685e-07   7.443e-08
50-150  1.968e-06   5.705e-07
15-150  3.454e-06   6.206e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.37190        (-1.00937      1.17972)
R1^2/D10^2  : 0.342926        (-0.151042      0.316029)
kT2 [keV]   : 23.4357        (-2.90943      4.53192)
R2^2/D10^2  : 3.91665E-03    (-0.00189611   0.0026199)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.87 using 59 PHA bins.
# Reduced chi-squared =         0.9612 for     55 degrees of freedom
# Null hypothesis probability =   5.565594e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.193e-07   8.528e-08
25- 50  9.532e-07   8.485e-08
50-150  1.941e-06   2.379e-07
15-150  3.414e-06   3.396e-07

Peak spectrum fit

Power-law model

Time interval is from   90.160 sec. to   91.160 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.74258     ( -0.23061   0.241428 )
Norm@50keV  : 6.83390E-03    ( -0.00105164   0.00102479 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.74 using 59 PHA bins.
# Reduced chi-squared =         0.9077 for     57 degrees of freedom
# Null hypothesis probability =   6.720645e-01

Photon flux (15-150 keV)    in 1 sec: 0.921543 ( -0.121011  0.121028 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.30866e-08 ( -9.93168e-09  1.01377e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   90.160 sec. to   91.160 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.57445     ( -0.997501   0.589281 )
Epeak [keV] : 111.893      ( -112.323 -112.341 )
Norm@50keV  : 8.49794E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.63 using 59 PHA bins.
# Reduced chi-squared =         0.9220 for     56 degrees of freedom
# Null hypothesis probability =   6.408367e-01

Photon flux (15-150 keV)    in 1 sec: 0.916505 ( -0.123766  0.123235 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.20487e-08 ( -1.12944e-08  1.09588e-08 ) ergs/cm2

Band function

Time interval is from   90.160 sec. to   91.160 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.54334   ( -3.78383   -3.78383 )
beta        : -1.82697    ( -0.376692   0.279418 )
Epeak [keV] : 22.9059      ( -23.0896 76.7253 )
Norm@50keV   : 115.981    ( -115.663   626.026 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.23 using 59 PHA bins.
# Reduced chi-squared =         0.9314 for     55 degrees of freedom
# Null hypothesis probability =   6.195422e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.21159e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.2165  (-1.87546  2.30431)
R^2/D10^2   : 0.284154  (-0.140652   0.273263)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.72 using 59 PHA bins.
# Reduced chi-squared =          1.188 for     57 degrees of freedom
# Null hypothesis probability =   1.564983e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.497e-09   1.804e-09
25- 50  2.173e-08   4.535e-09
50-150  1.567e-08   5.291e-09
15-150  4.490e-08   7.740e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 114.010       (-46.196      -113.518)
Norm        : 3.96786       (-0.572045     0.828036)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.88 using 59 PHA bins.
# Reduced chi-squared =         0.9102 for     57 degrees of freedom
# Null hypothesis probability =   6.668753e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.035e-08   1.748e-09
25- 50  1.836e-08   3.655e-09
50-150  3.192e-08   1.831e-08
15-150  6.063e-08   2.235e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.26217        (-1.89293      2.28354)
R1^2/D10^2  : 1.73955        (-1.12796      4.74557)
kT2 [keV]   : 24.2859        (-8.0623      28.0481)
R2^2/D10^2  : 1.25729E-02    (-0.0114328   0.0457162)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.02 using 59 PHA bins.
# Reduced chi-squared =         0.9277 for     55 degrees of freedom
# Null hypothesis probability =   6.273525e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.092e-08   5.699e-09
25- 50  1.782e-08   9.306e-09
50-150  3.322e-08   1.899e-08
15-150  6.196e-08   3.130e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.62476     ( -0.165822   0.169398 )
Norm@50keV  : 1.32245E-03    ( -0.000136955   0.000135585 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.07 using 59 PHA bins.
# Reduced chi-squared =         0.9485 for     57 degrees of freedom
# Null hypothesis probability =   5.858180e-01

Photon flux (15-150 keV)    in 44.92 sec: 0.171270 ( -0.0166683  0.0166845 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.53958e-07 ( -6.10867e-08  6.18652e-08 ) ergs/cm2

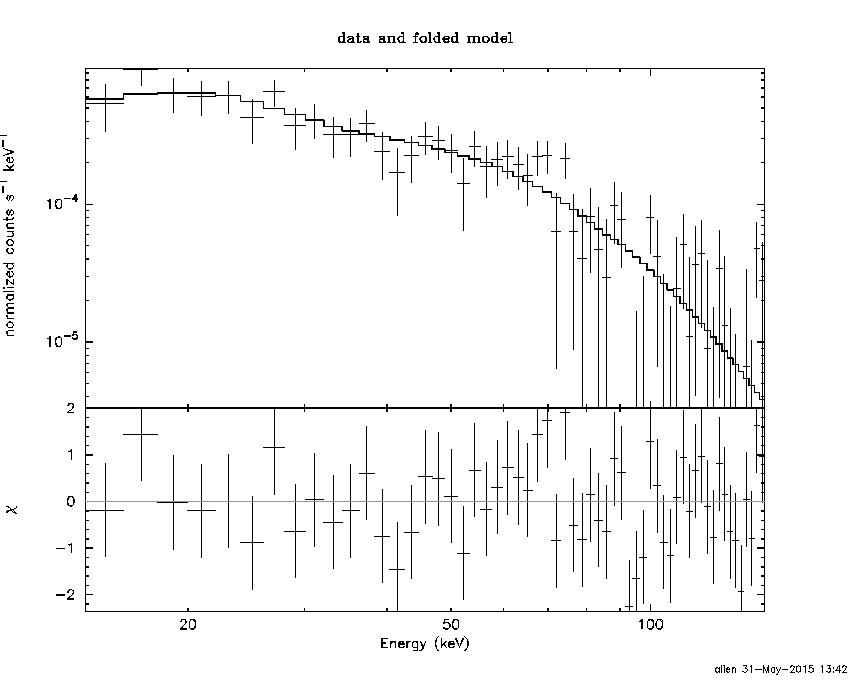

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.765744     ( -0.834676   0.705645 )
Epeak [keV] : 68.9210      ( -14.9496 88.1856 )
Norm@50keV  : 3.69972E-03    ( -0.00207704   0.00604832 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.62 using 59 PHA bins.
# Reduced chi-squared =         0.8861 for     56 degrees of freedom
# Null hypothesis probability =   7.135320e-01

Photon flux (15-150 keV)    in 44.92 sec: 0.164937 ( -0.017521  0.017459 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.18565e-07 ( -6.52777e-08  6.75911e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.765618   ( -0.496582   0.826938 )
beta        : -10.00000    ( 10   1.22569e-08 )
Epeak [keV] : 68.8998      ( -13.9074 88.0513 )
Norm@50keV   : 3.70044E-03    ( -0.00207855   0.00271766 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.62 using 59 PHA bins.
# Reduced chi-squared =         0.9022 for     55 degrees of freedom
# Null hypothesis probability =   6.795856e-01

Photon flux (15-150 keV)    in 44.92 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 9.47e-07
S(50-100 keV) = 1.20e-06

T90 vs. Hardness ratio plot

T90                                   = 141.124000012875 sec.
Hardness ratio (energy fluence ratio) = 1.26716

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.14709
Count Ratio (50-100 keV) / (15-25 keV) = 0.786678

Mask shadow pattern

IMX = -7.243973460855259E-02, IMY = 8.252560554271778E-02

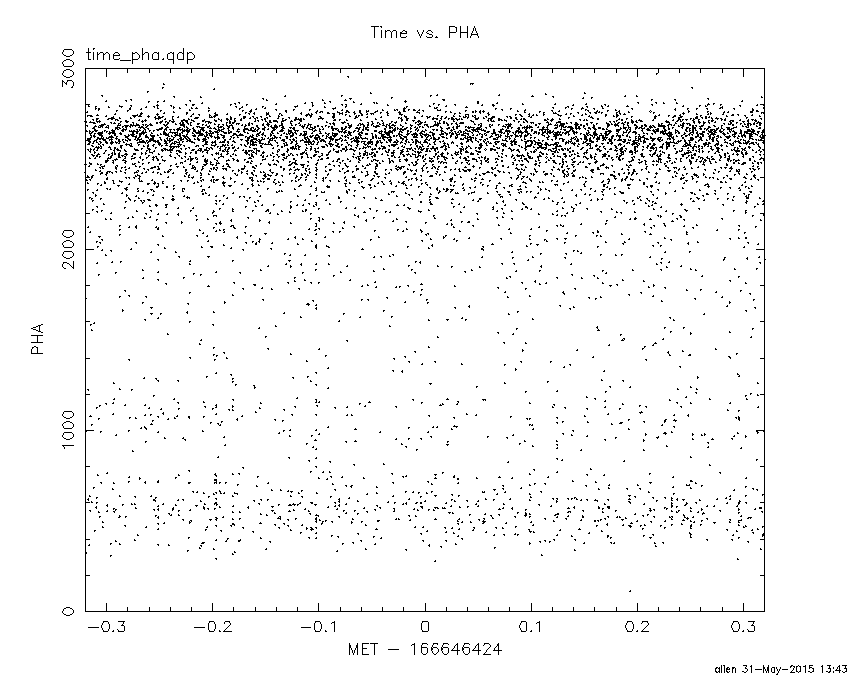

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

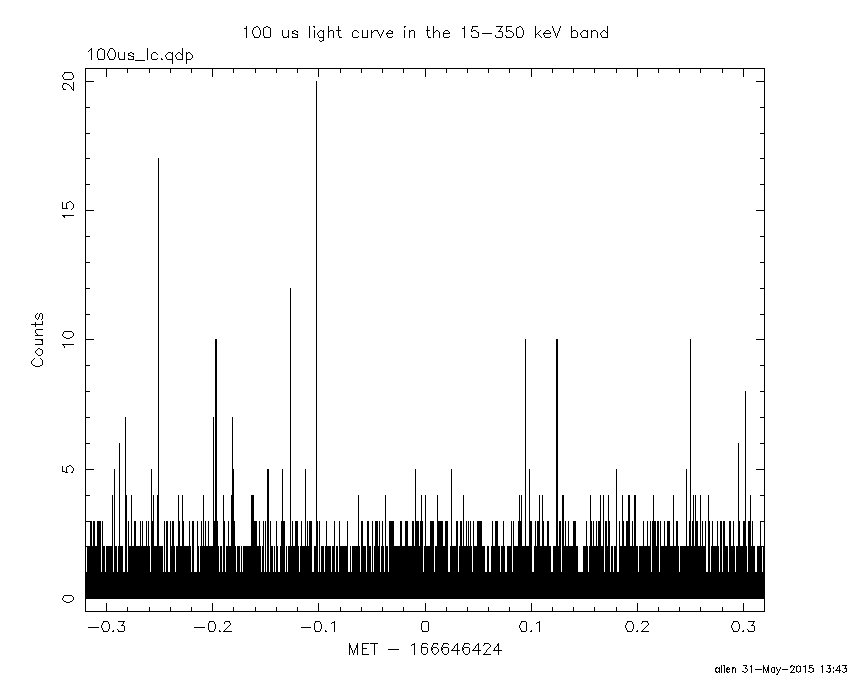

100 us light curve (15-350 keV)

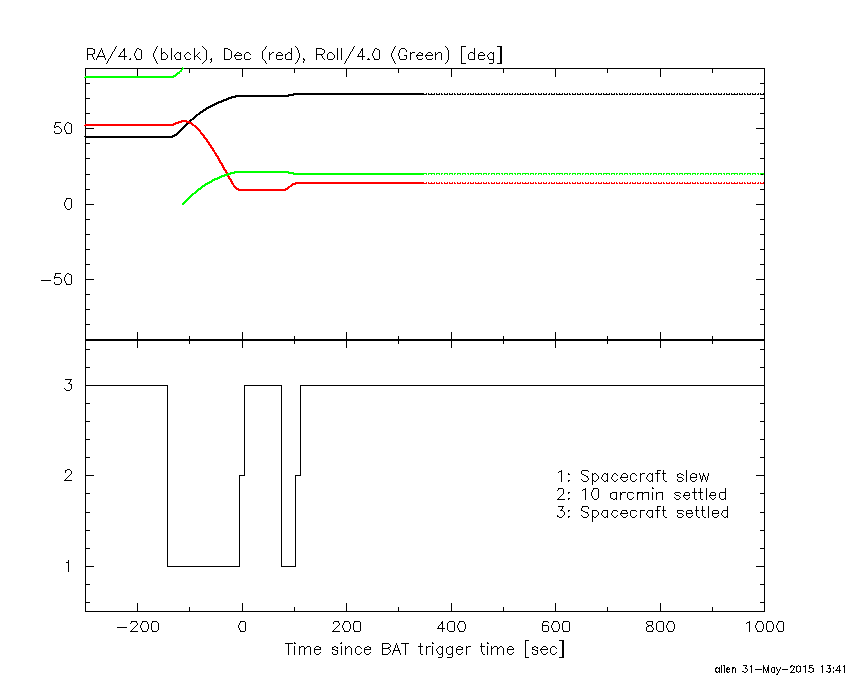

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-5.699410 29.976000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6166  35.3589   16.8  39.2  141.1  -0.0818  -0.7    7.8	Her X-1
263.1587 -24.8989    9.8  41.2   38.0   0.1512   1.2   12.3	GX 1+4
268.4731  -1.3029   19.5  21.1   65.3  -0.0384  -0.6   11.0	SW J1753.5-0127
270.2436 -25.2203   11.8  38.1   29.2   0.0973   1.0    8.8	GX 5-1
270.4661 -25.8845    3.9  38.6   28.4   0.2953   3.0   12.3	GRS 1758-258
274.0381 -14.0242    3.0  26.5   33.1   0.2745   3.9    2.0	GX 17+2
275.9255 -30.3674  191.9  41.0   18.8   0.0059   0.1    0.0	H1820-303
285.0662 -25.0056    5.4  34.3    7.3   0.1544   2.2    5.4	HT1900.1-2455
288.8299  10.9328    0.9   2.6 -125.1   0.6999  12.4    2.0	GRS 1915+105
299.5919  35.1797    0.6  28.4 -153.2   1.1811  20.3    1.3	Cyg X-1
308.2558  40.9753   36.9  36.9 -148.2   0.0244   0.3    6.7	Cyg X-3
326.1127  38.3964    9.5  45.7 -131.6  -0.2133  -1.2    5.3	Cyg X-2
263.0997 -33.7744   13.4  48.6   30.9  -0.1828  -0.9    6.6	GX 354-0
283.2776 -46.7947    2.2  56.2    7.4   1.7997   5.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
29.976000 74.900600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3641  35.4589    8.5  39.5  141.1  -0.2651  -1.3    8.4	Her X-1
263.0803 -24.8042    4.7  41.2   38.1  -0.5157  -2.4    5.2	GX 1+4
268.2020  -1.3229    0.0  21.3   65.6   0.1228   1.1   12.6	SW J1753.5-0127
270.2235 -25.0283    6.6  37.9   29.3   0.2861   1.7    4.5	GX 5-1
270.4656 -25.8811    4.1  38.6   28.4  -0.4698  -2.8   12.1	GRS 1758-258
274.0341 -14.0210    4.0  26.5   33.2  -0.3168  -2.9    1.9	GX 17+2
275.7774 -30.3037    4.2  41.0   19.0   0.4380   2.7    8.5	H1820-303
284.9768 -25.0731    8.3  34.4    7.4  -0.1689  -1.4    9.7	HT1900.1-2455
288.8861  10.9629    5.4   2.7 -124.8  -0.1957  -2.1    5.3	GRS 1915+105
299.6414  35.2671   33.6  28.5 -153.2  -0.0335  -0.3    4.7	Cyg X-1
308.2786  41.0739    0.0  37.0 -148.2  -0.2261  -1.8   10.5	Cyg X-3
326.3106  38.2843    9.2  45.8 -131.3   0.3563   1.3    6.9	Cyg X-2
263.0413 -33.7939    7.0  48.6   31.0   0.5763   1.7    3.6	GX 354-0
270.1920  65.2799    2.5  57.2  176.3   2.4234   4.7 ------	UNKNOWN
291.2929  13.7469    0.9   6.3 -131.3   1.0523  12.2 ------	UNKNOWN
296.6817  25.8005    2.6  19.0 -147.2   0.3796   4.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
101.500600 963.049800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5488  35.2283   12.3  39.4  138.7  -1.0830  -0.9    8.2	Her X-1
263.0012 -24.8230    4.9  47.5   44.8   4.4087   2.3    4.7	GX 1+4
268.4379  -1.5204    4.1  27.4   66.8   1.8588   2.8    5.8	SW J1753.5-0127
270.1972 -25.0789    5.5  44.0   37.1   2.3177   2.1    4.7	GX 5-1
270.3632 -25.7914    3.8  44.5   36.4   3.5798   3.1    4.4	GRS 1758-258
273.9858 -13.9812    1.3  32.6   41.5   5.2570   8.8    3.5	GX 17+2
275.9878 -30.3676    3.2  46.6   27.4   4.3835   3.6    3.3	H1820-303
285.1884 -25.0199    3.6  39.3   17.9   2.2671   3.2   10.2	HT1900.1-2455
288.7964  10.9484    0.4   3.8   50.0  13.6233  29.3    0.2	GRS 1915+105
299.5981  35.1966    0.2  22.7 -153.1  26.1477  50.1    0.5	Cyg X-1
308.2158  40.9618   12.2  30.9 -145.6   0.5126   0.9    4.8	Cyg X-3
326.1676  38.3144    6.3  39.4 -125.9   1.7317   1.8    0.5	Cyg X-2
282.3914  26.4431    2.4  15.1  157.1   1.9145   4.8 ------	UNKNOWN
291.2877  13.7781    1.4   0.0   37.6   4.0435   8.0 ------	UNKNOWN
314.8942 -22.6095    3.2  43.1  -23.6   2.7975   3.6 ------	UNKNOWN
304.6803  72.3542    4.1  59.1 -166.2  10.0977   2.9 ------	UNKNOWN
332.6325  -1.2128    3.7  43.6  -64.1   8.8099   3.2 ------	UNKNOWN

Plot creation:
Sun May 31 13:43:23 EDT 2015
