batgrbproduct Analysis for Trigger=206257

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 17:22:22 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger206257
======================================================================

  Trigger: 00206257      Segment: 000

  BAT Trigger Time: 167272764.48   [s; MET]
      Trigger Stop: 167272764.736   [s; MET]
               UTC: 2006-04-21T00:39:23.334720    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 343.630155574858   Dec: 62.7269646414008  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.34
     Image Trigger?:     NO
     Rate S/N Ratio:     25.5929677841395  [ if not an image trigger ]
     Image S/N Ratio:    8.34

  Flight Position:   [ source = BAT ]
    RA: 343.630155574858   Dec: 62.7269646414008  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 343.639206714245   Dec: 62.7354522845875  [deg; J2000]
        { 22h 54m 33.4s , +62d 44' 07.6" }
         +/- 0.766789577044095 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.193999179312389 [arcmin] (formal 1-sigma fit error)
    SNR: 44.4494779288581

  Angular difference between Flight and Ground position is 0.566792 arcmin

  Partial Coding Fraction: 0.8203125    [ including projection effects ]

  Duration
     T90: 11.9960000216961 +/- 3.2577102430472
        Measured from: -0.747999995946884
                   to: 11.2480000257492     [s; relative to TRIGTIME]
     T50: 6.33599999547005 +/- 0.87591779605344
        Measured from: 1.22800001502037
                   to: 7.56400001049042     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 2.27600002288818
                   to: 3.27600002288818     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -2.7960000038147
                   to: 16.8760000169277     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.553315   0.721837   0.592774   0.097850
           0.024818   0.026278   0.023621   0.020197 [error]
 Peak      0.067006   0.141018   0.125645   0.032197
           0.006196   0.007226   0.006905   0.005221 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.73e-07 3.14e-07 4.37e-07 1.27e-06 1.26e-06 2.20e-06   erg/cm2
              Error 1.29e-08 1.39e-08 2.33e-08 1.50e-07 5.64e-08 1.65e-07   erg/cm2
Peak flux Power-law 7.53e-01 9.19e-01 8.13e-01 1.24e+00 2.92e+00 3.72e+00   ph/cm2/s
              Error 8.20e-02 6.22e-02 5.36e-02 1.69e-01 1.73e-01 2.29e-01   ph/cm2/s

Fluence   Cutoff-PL 1.62e-07 3.23e-07 4.47e-07 7.94e-07 1.22e-06 1.73e-06   erg/cm2
              Error 1.58e-08 1.60e-08 2.55e-08 3.19e-07 6.24e-08 3.22e-07   erg/cm2
Peak flux Cutoff-PL 6.88e-01 9.56e-01 8.54e-01 7.73e-01 2.88e+00 3.27e+00   ph/cm2/s
              Error 9.65e-02 7.14e-02 6.43e-02 3.04e-01 1.76e-01 2.45e-01   ph/cm2/s

Fluence        Band 1.63e-07 3.21e-07 4.33e-07 1.20e-06 1.24e-06 2.12e-06   erg/cm2
              Error 1.69e-08 1.67e-08 2.38e-08 -------- 5.82e-08 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.521    0.075    -      -           6.75e-03 2.80e-04   62.500 57
CPL   1.188    0.294     126.3  193.0      9.80e-03 3.23e-03   58.440 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.177    0.096    -      -           2.49e-02 1.44e-03   59.720 57
CPL   0.732    0.385     152.2  222.4      4.09e-02 1.78e-02   55.370 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 10.368000 sec.
T50 in the 50-300 keV band: 4.288000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   19.672   -2.796   16.876
T90    11.996   -0.748   11.248
T50     6.336    1.228    7.564
Peak    1.000    2.276    3.276

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  343.6392    62.7355   0.0043    28.9498  -178.8907         1.8699315     44.449 TRIG_00206257

Foreground time interval of the image:
 -2.796  10.821 (delta_t =  13.617 [sec])
Background time interval of the image:
-239.480  -2.796 (delta_t = 236.684 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

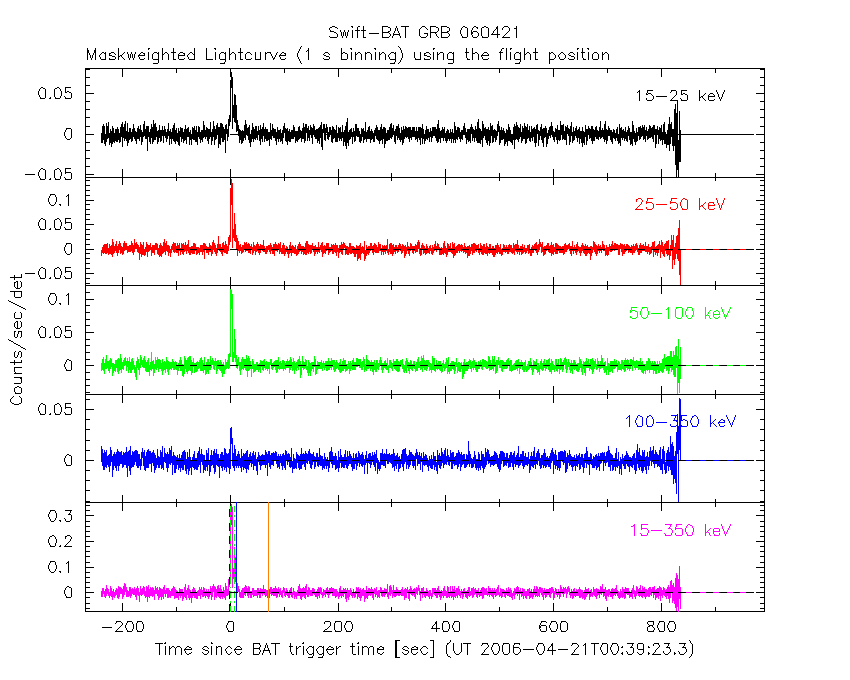

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

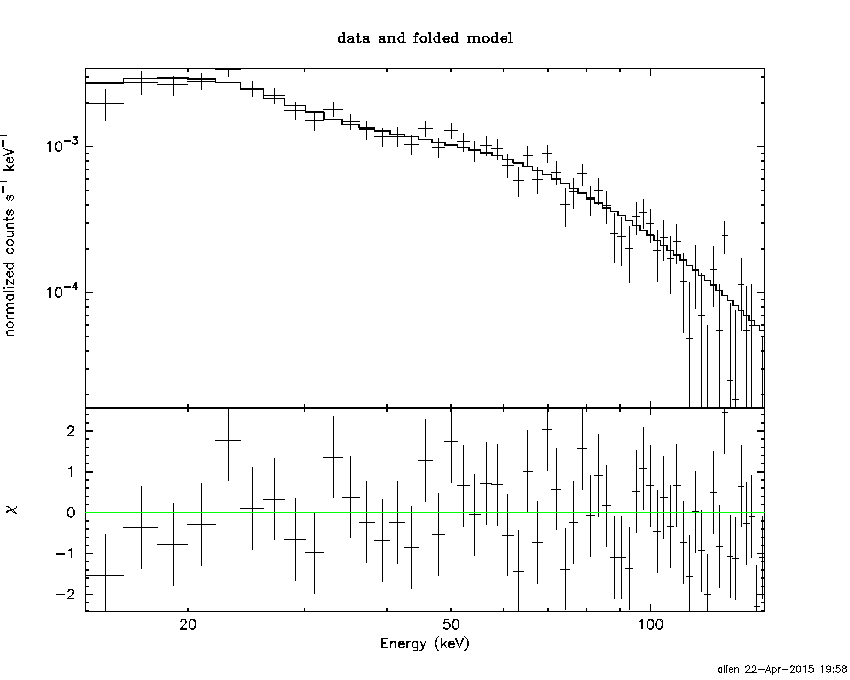

Power-law model

Time interval is from   -2.796 sec. to   16.876 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52057     ( -0.0744831   0.0746901 )
Norm@50keV  : 6.74979E-03    ( -0.000279819   0.00027948 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.50 using 59 PHA bins.
# Reduced chi-squared =          1.097 for     57 degrees of freedom
# Null hypothesis probability =   2.871516e-01

Photon flux (15-150 keV)    in 19.67 sec: 0.847386 ( -0.036377  0.036444 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.25538e-06 ( -5.6259e-08  5.6461e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -2.796 sec. to   16.876 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.18775     ( -0.304238   0.284121 )
Epeak [keV] : 126.320      ( -37.2446 348.715 )
Norm@50keV  : 9.79977E-03    ( -0.00260726   0.00384587 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.44 using 59 PHA bins.
# Reduced chi-squared =          1.044 for     56 degrees of freedom
# Null hypothesis probability =   3.858214e-01

Photon flux (15-150 keV)    in 19.67 sec: 0.830597 ( -0.038921  0.038949 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.22499e-06 ( -6.24247e-08  6.2287e-08 ) ergs/cm2

Band function

Time interval is from   -2.796 sec. to   16.876 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.18772   ( -0.319565   0.272448 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 126.296      ( -33.0619 350.697 )
Norm@50keV   : 9.79884E-03    ( -0.00260753   0.00384621 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.44 using 59 PHA bins.
# Reduced chi-squared =          1.063 for     55 degrees of freedom
# Null hypothesis probability =   3.501917e-01

Photon flux (15-150 keV)    in 19.67 sec: 0.830465 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.24083e-06 ( -1.2407e-06  -5.81485e-08 ) ergs/cm2

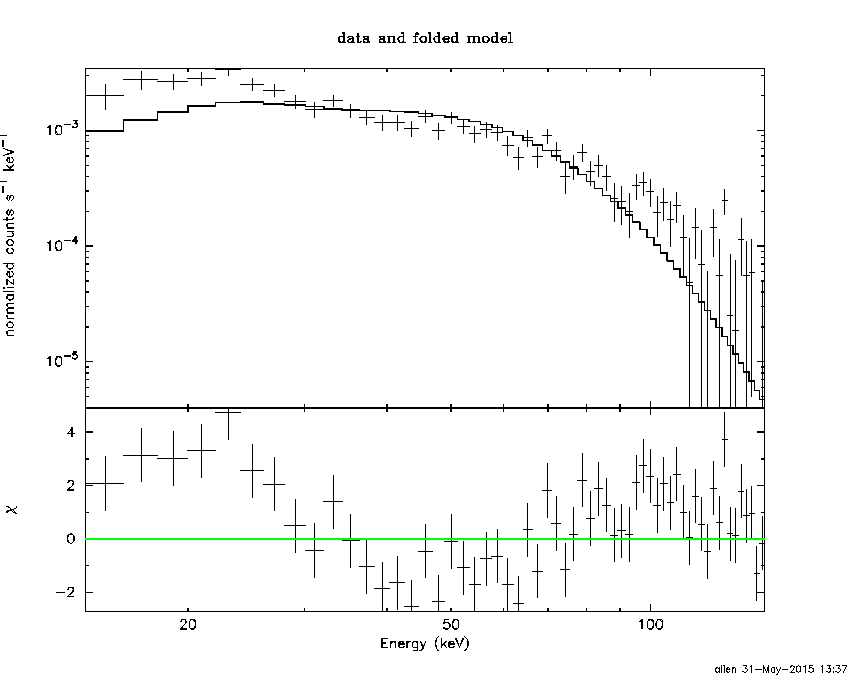

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.7228  (  )
R^2/D10^2   : 7.92642E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         179.80 using 59 PHA bins.
# Reduced chi-squared =         3.1544 for     57 degrees of freedom
# Null hypothesis probability =   1.208142e-14

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.999e-08   6.609e-09
25- 50  3.316e-07   1.751e-08
50-150  5.690e-07   4.760e-08
15-150  9.805e-07   4.691e-08

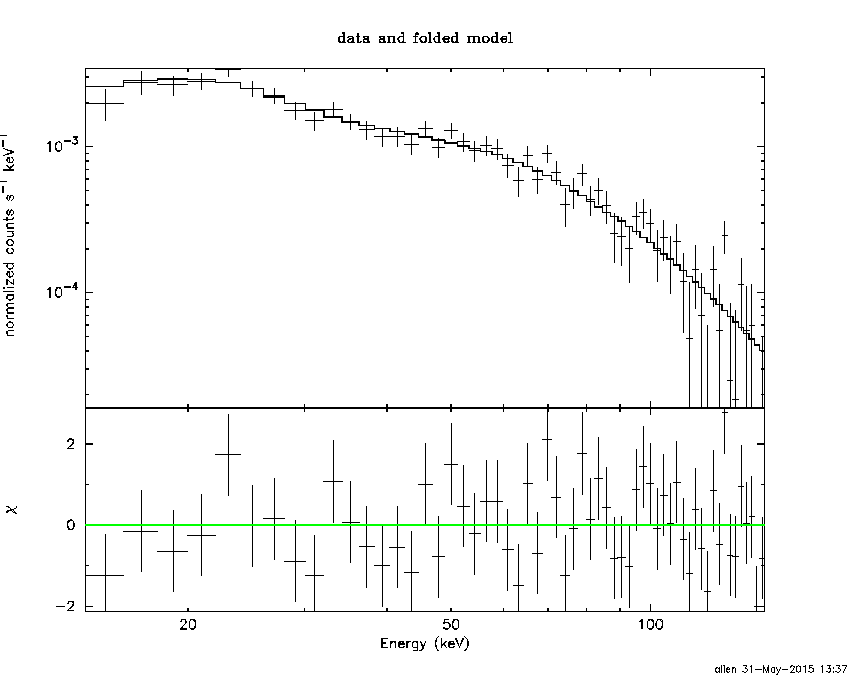

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 3.45787       (-0.141052     0.14099)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.65 using 59 PHA bins.
# Reduced chi-squared =          1.046 for     57 degrees of freedom
# Null hypothesis probability =   3.795349e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.694e-07   7.878e-09
25- 50  3.259e-07   1.515e-08
50-150  7.148e-07   3.078e-08
15-150  1.210e-06   5.675e-08

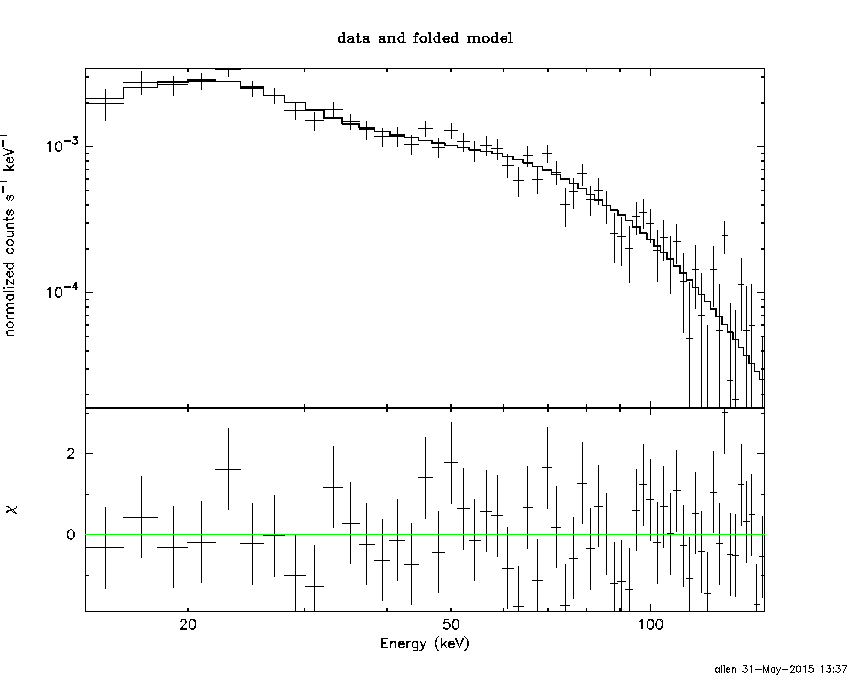

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.37360        (-0.906865      1.05112)
R1^2/D10^2  : 1.15145        (-0.476158      0.892327)
kT2 [keV]   : 24.1139        (-2.57269      3.53386)
R2^2/D10^2  : 1.47041E-02    (-0.00582463   0.00774451)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.96 using 59 PHA bins.
# Reduced chi-squared =          1.036 for     55 degrees of freedom
# Null hypothesis probability =   4.020971e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.624e-07   2.700e-08
25- 50  3.162e-07   3.600e-08
50-150  7.353e-07   7.858e-08
15-150  1.214e-06   1.125e-07

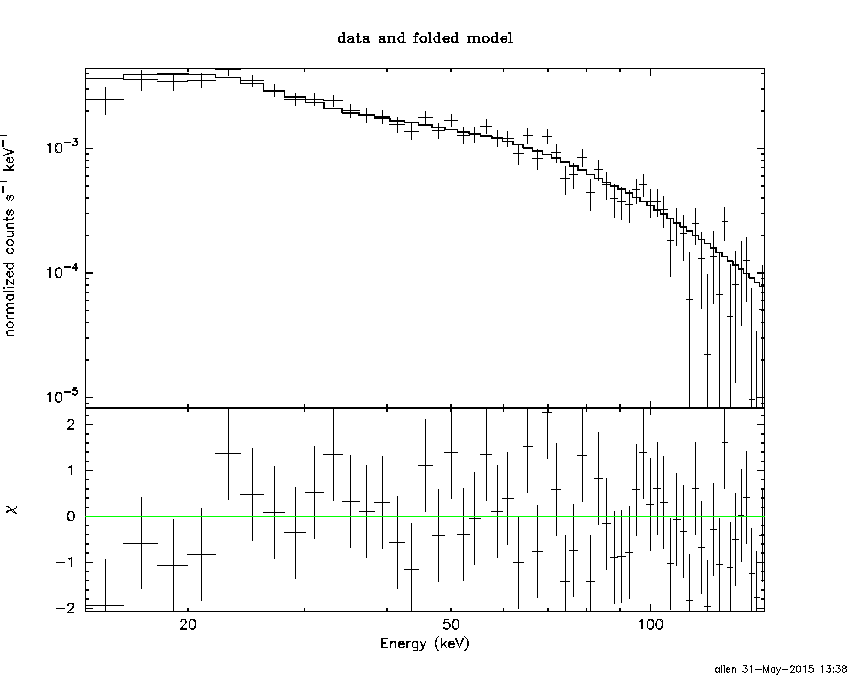

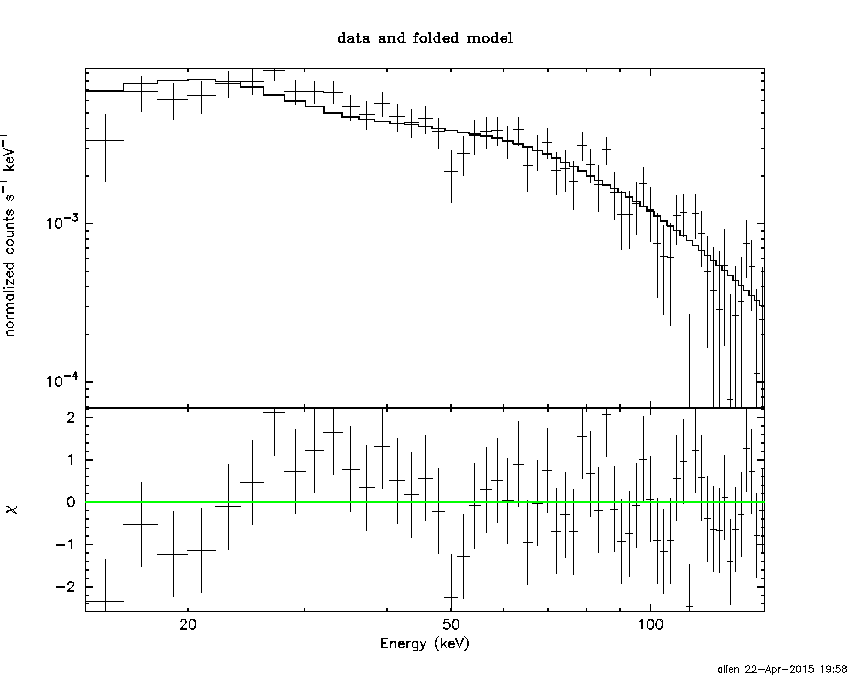

Peak spectrum fit

Power-law model

Time interval is from    2.276 sec. to    3.276 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.17729     ( -0.0964328   0.0955567 )
Norm@50keV  : 2.49235E-02    ( -0.00144293   0.0014429 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.72 using 59 PHA bins.
# Reduced chi-squared =          1.048 for     57 degrees of freedom
# Null hypothesis probability =   3.771963e-01

Photon flux (15-150 keV)    in 1 sec: 2.91651 ( -0.173328  0.173482 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.5451e-07 ( -1.62058e-08  1.62611e-08 ) ergs/cm2

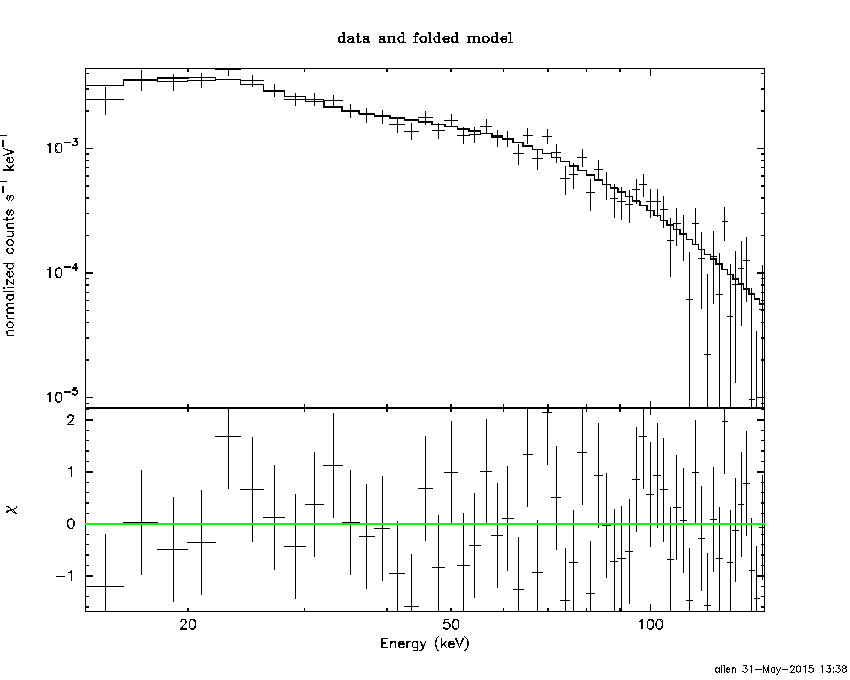

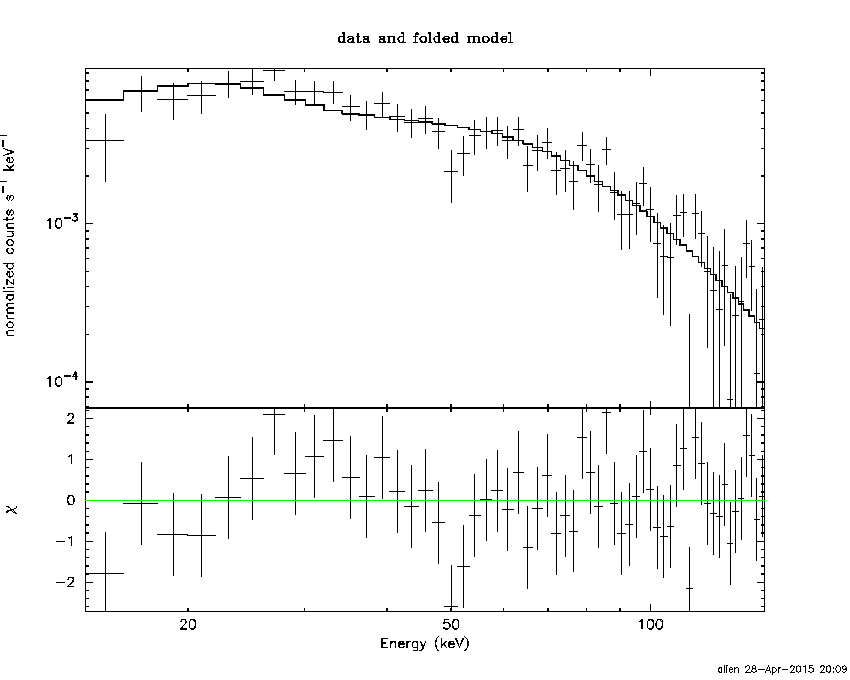

Cutoff power-law model

Time interval is from    2.276 sec. to    3.276 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.732194     ( -0.402329   0.368388 )
Epeak [keV] : 152.163      ( -48.5364 396.28 )
Norm@50keV  : 4.08882E-02    ( -0.0134434   0.0221153 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.37 using 59 PHA bins.
# Reduced chi-squared =         0.9888 for     56 degrees of freedom
# Null hypothesis probability =   4.986375e-01

Photon flux (15-150 keV)    in 1 sec: 2.87718 ( -0.1764  0.17646 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.48404e-07 ( -1.7368e-08  1.7259e-08 ) ergs/cm2

Band function

Time interval is from    2.276 sec. to    3.276 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.55439   ( -3.8556   -4.55439 )
beta        : -1.38504    ( -0.132709   0.127461 )
Epeak [keV] : 33.2903      ( -3.52273 3.46415 )
Norm@50keV   : 204.555    ( -11.7392   760.964 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.72 using 59 PHA bins.
# Reduced chi-squared =         0.8312 for     55 degrees of freedom
# Null hypothesis probability =   8.094124e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

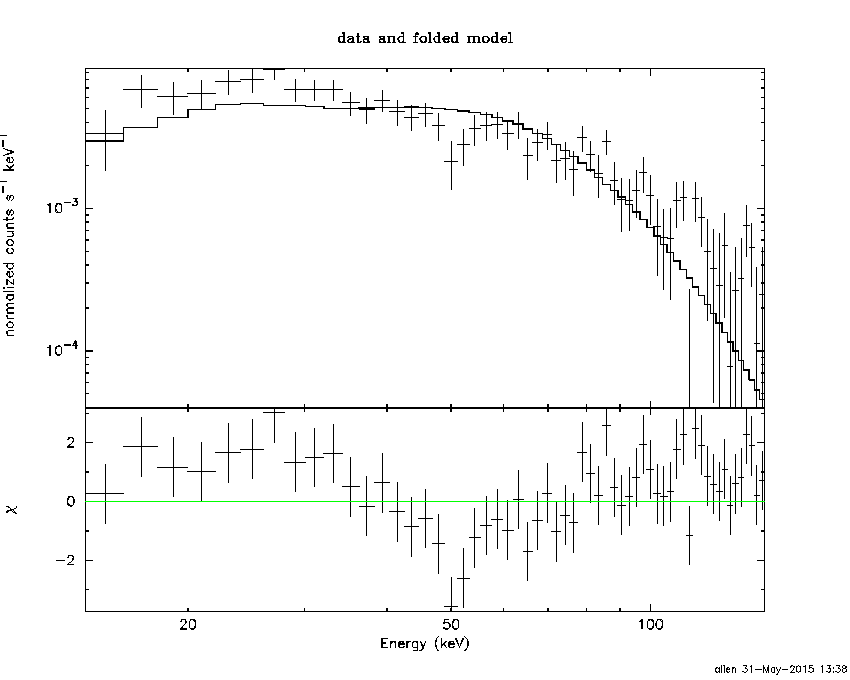

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.5985  (-1.43275  1.57336)
R^2/D10^2   : 0.173446  (-0.0410476   0.0530049)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         108.60 using 59 PHA bins.
# Reduced chi-squared =         1.9052 for     57 degrees of freedom
# Null hypothesis probability =   4.558228e-05

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.188e-08   1.350e-09
25- 50  5.629e-08   4.420e-09
50-150  1.425e-07   1.470e-08
15-150  2.106e-07   1.425e-08

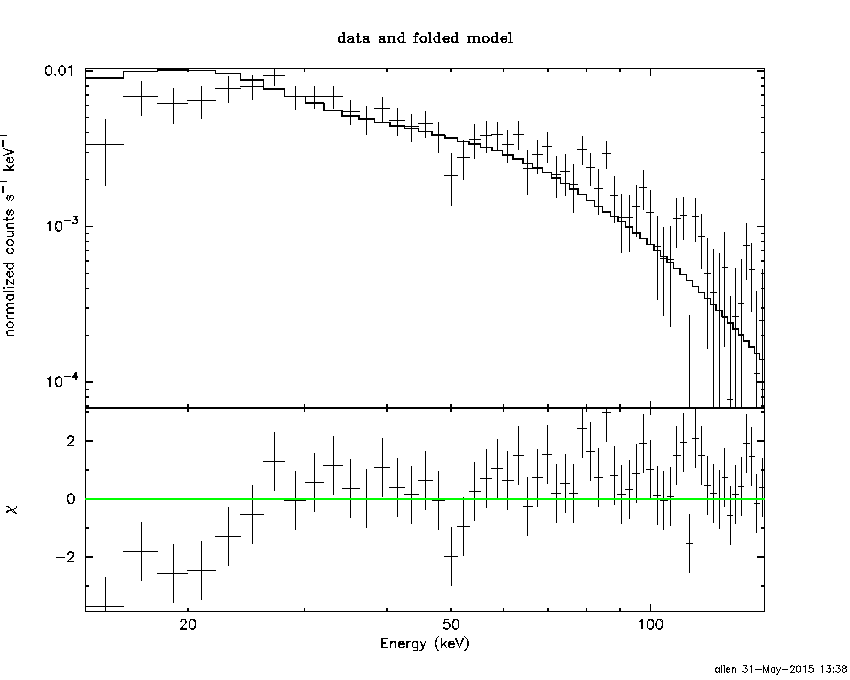

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 12.0323       (-0.712936     0.712868)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          96.11 using 59 PHA bins.
# Reduced chi-squared =          1.686 for     57 degrees of freedom
# Null hypothesis probability =   9.213707e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.997e-08   1.905e-09
25- 50  5.765e-08   4.365e-09
50-150  1.264e-07   2.654e-08
15-150  2.140e-07   3.100e-08

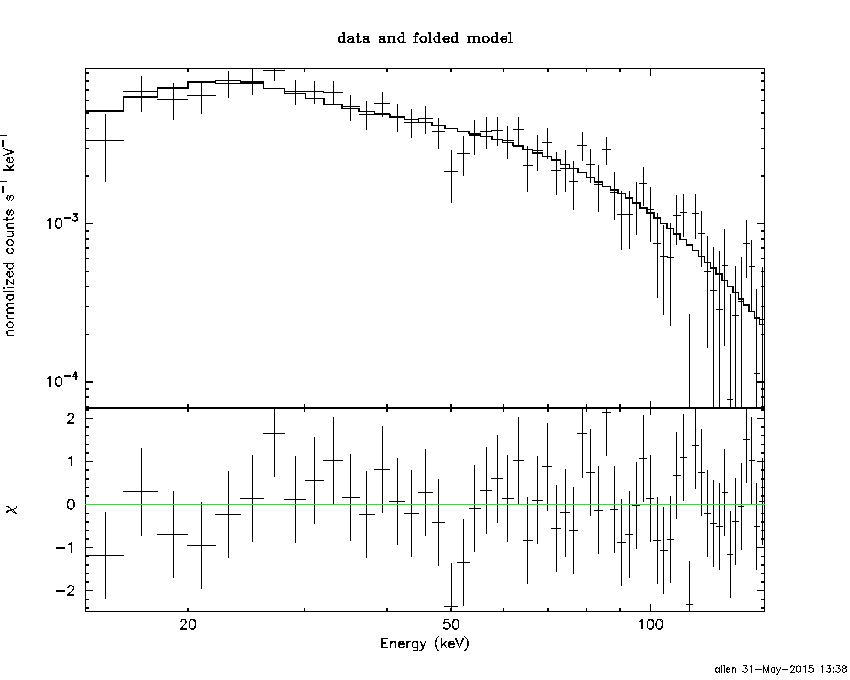

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.07865        (-1.45171      1.71363)
R1^2/D10^2  : 1.13323        (-0.438923      0.75965)
kT2 [keV]   : 35.5100        (-7.06885      14.51)
R2^2/D10^2  : 1.65885E-02    (-0.0106014   0.0181577)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.07 using 59 PHA bins.
# Reduced chi-squared =         0.8557 for     55 degrees of freedom
# Null hypothesis probability =   7.678691e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.120e-08   4.355e-09
25- 50  5.862e-08   1.161e-08
50-150  1.731e-07   7.585e-08
15-150  2.529e-07   7.460e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.49227     ( -0.0676821   0.0677884 )
Norm@50keV  : 9.24095E-03    ( -0.000350803   0.000350547 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.71 using 59 PHA bins.
# Reduced chi-squared =          1.030 for     57 degrees of freedom
# Null hypothesis probability =   4.126070e-01

Photon flux (15-150 keV)    in 13.62 sec: 1.15125 ( -0.0455778  0.0456586 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.19551e-06 ( -4.9047e-08  4.91965e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.08865     ( -0.281822   0.264557 )
Epeak [keV] : 117.515      ( -28.3791 115.599 )
Norm@50keV  : 1.44948E-02    ( -0.00361453   0.0051779 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.68 using 59 PHA bins.
# Reduced chi-squared =         0.9229 for     56 degrees of freedom
# Null hypothesis probability =   6.389585e-01

Photon flux (15-150 keV)    in 13.62 sec: 1.12451 ( -0.04855  0.04861 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.16158e-06 ( -5.42852e-08  5.41613e-08 ) ergs/cm2

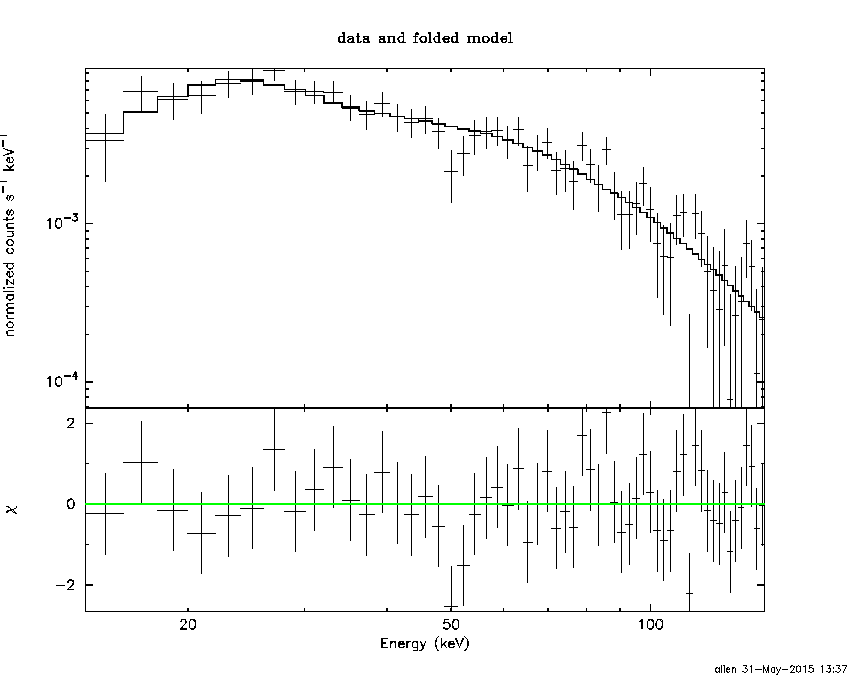

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.08862   ( -0.267564   0.275608 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 117.493      ( -19.9518 115.49 )
Norm@50keV   : 1.44938E-02    ( -0.00361508   0.00517859 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.68 using 59 PHA bins.
# Reduced chi-squared =         0.9396 for     55 degrees of freedom
# Null hypothesis probability =   6.022449e-01

Photon flux (15-150 keV)    in 13.62 sec: 1.12456 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17517e-06 ( -1.17507e-06  -5.12493e-08 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.14e-07
S(50-100 keV) = 4.37e-07

T90 vs. Hardness ratio plot

T90                                   = 11.9960000216961 sec.
Hardness ratio (energy fluence ratio) = 1.39172

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.30457
Count Ratio (50-100 keV) / (15-25 keV) = 1.07131

Mask shadow pattern

IMX = -5.530599133369802E-01, IMY = 1.070934387382703E-02

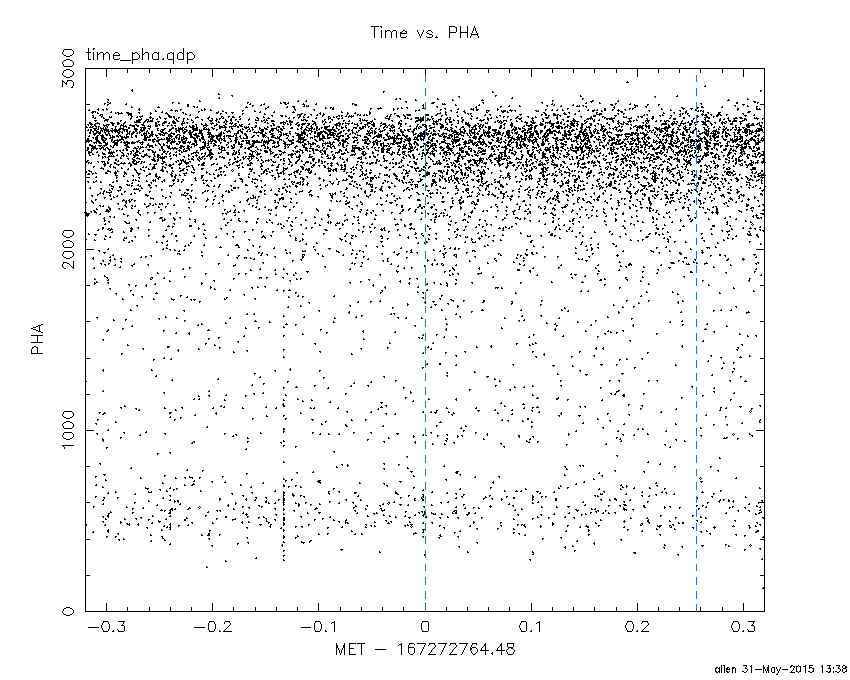

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

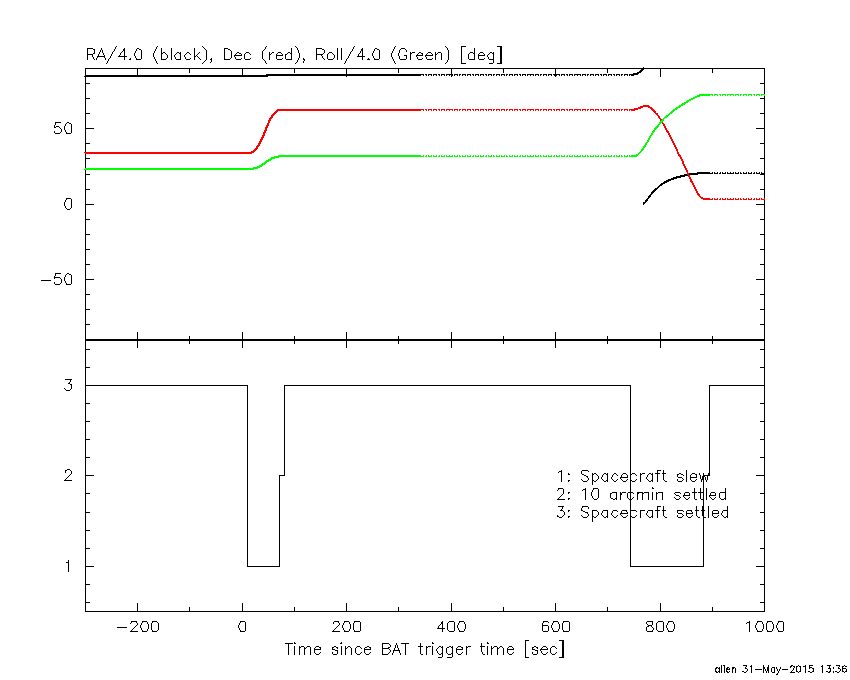

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.480000 -2.796000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5756  35.2024    0.6  32.3  100.4   6.3917  18.2    0.7	Cyg X-1
308.1273  41.1015    7.6  25.4  112.3   0.3360   1.5    9.0	Cyg X-3
326.3257  38.1847    5.7  11.1  112.9   0.3295   2.0   11.0	Cyg X-2
 84.3472  82.8329    2.7  58.2 -175.1   4.0321   4.2 ------	UNKNOWN
358.1694 -21.9708    3.1  58.8  -24.0   4.3284   3.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-2.796000 10.820600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.4020  35.1915   10.1  32.5  100.4   0.0871   1.1    9.3	Cyg X-1
308.0935  40.8843    5.5  25.4  111.7   0.1178   2.1    4.2	Cyg X-3
326.1842  38.4705    4.6  11.3  114.1  -0.0997  -2.5    9.0	Cyg X-2
277.1639  77.3149    2.2  50.9  162.3   0.7269   5.2 ------	UNKNOWN
334.1073  12.9689    2.3  21.4   10.0   0.1997   5.0 ------	UNKNOWN
343.6392  62.7354    0.3  28.9 -178.9   1.8700  44.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
70.820600 743.520600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5902  35.2015    0.4  38.6   28.6  17.5421  28.8    0.0	Cyg X-1
308.0434  41.0882    8.3  30.1   24.0  -0.5567  -1.4    8.7	Cyg X-3
326.2435  38.2876    6.0  26.6   -5.4   0.7155   1.9    4.0	Cyg X-2
309.1625  32.3592    3.0  37.3   15.0   1.8135   3.9 ------	UNKNOWN
319.9655  65.1935    2.5  10.6   77.0   1.3647   4.7 ------	UNKNOWN

Plot creation:
Sun May 31 13:39:11 EDT 2015
