batgrbproduct analysis for trigger=217704

batgrbproduct Analysis for Trigger=217704

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 15:18:36 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger217704
======================================================================

  Trigger: 00217704      Segment: 000

  BAT Trigger Time: 174000620.8   [s; MET]
      Trigger Stop: 174000624.896   [s; MET]
               UTC: 2006-07-07T21:30:19.497320    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 357.079370004711   Dec: -17.9229403218212  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.58
     Image Trigger?:     NO
     Rate S/N Ratio:     11.4455231422596  [ if not an image trigger ]
     Image S/N Ratio:    8.58

  Flight Position:   [ source = BAT ]
    RA: 357.079370004711   Dec: -17.9229403218212  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 357.073600420415   Dec: -17.9078990506836  [deg; J2000]
        { 23h 48m 17.7s , -17d 54' 28.4" }
         +/- 1.44999154811882 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.548273793444466 [arcmin] (formal 1-sigma fit error)
    SNR: 17.8894207627549

  Angular difference between Flight and Ground position is 0.960709 arcmin

  Partial Coding Fraction: 0.4335938    [ including projection effects ]

  Duration
     T90: 66.6440000236034 +/- 6.37671418727915
        Measured from: -46.380000025034
                   to: 20.2639999985695     [s; relative to TRIGTIME]
     T50: 34.6480000019073 +/- 14.6414148361581
        Measured from: -24.9000000059605
                   to: 9.74799999594688     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 3.05199998617172
                   to: 4.05199998617172     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -48.9560000002384
                   to: 25.4439999759197     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.657173   1.097406   0.733202   0.138317
           0.066824   0.069174   0.060193   0.050796 [error]
 Peak      0.037270   0.048231   0.026118   0.012595
           0.008119   0.008631   0.007484   0.006149 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.74e-07 4.54e-07 5.70e-07 1.42e-06 1.70e-06 2.72e-06   erg/cm2
              Error 3.38e-08 3.59e-08 5.78e-08 2.96e-07 1.41e-07 3.47e-07   erg/cm2
Peak flux Power-law 3.99e-01 3.62e-01 2.26e-01 2.16e-01 1.08e+00 1.20e+00   ph/cm2/s
              Error 1.35e-01 7.73e-02 6.28e-02 1.21e-01 2.27e-01 2.48e-01   ph/cm2/s

Fluence   Cutoff-PL 2.24e-07 5.14e-07 6.07e-07 3.49e-07 1.58e-06 1.69e-06   erg/cm2
              Error 4.01e-08 4.66e-08 6.85e-08 2.16e-07 1.50e-07 2.56e-07   erg/cm2
Peak flux Cutoff-PL 3.99e-01 3.62e-01 2.26e-01 2.15e-01 1.08e+00 1.20e+00   ph/cm2/s
              Error 1.34e-01 8.34e-02 6.47e-02 1.77e-01 2.26e-01 2.46e-01   ph/cm2/s

Fluence        Band 2.21e-07 5.11e-07 6.08e-07 3.57e-07 1.58e-06 1.70e-06   erg/cm2
              Error 3.80e-08 -------- 6.49e-08 -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.672    0.126    -      -           2.46e-03 1.95e-04   72.330 57
CPL   0.424    0.631      61.9   11.6      1.06e-02 8.88e-03   57.320 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.677    0.365    -      -           8.18e-03 1.79e-03   62.460 57
CPL   1.685    0.368    9999.4   -0.0      8.16e-03 1.93e-02   62.460 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 23.744000 sec.
T50 in the 50-300 keV band: 12.480000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   74.400  -48.956   25.444
T90    66.644  -46.380   20.264
T50    34.648  -24.900    9.748
Peak    1.000    3.052    4.052

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  357.0736   -17.9079   0.0107    44.9616  -165.3545         2.5995885     17.889 TRIG_00217704

Foreground time interval of the image:
-48.956  25.444 (delta_t =  74.400 [sec])
Background time interval of the image:
-239.800 -48.956 (delta_t = 190.844 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -48.956 sec. to   25.444 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67201     ( -0.125111   0.126973 )
Norm@50keV  : 2.45783E-03    ( -0.000195506   0.000194676 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.33 using 59 PHA bins.
# Reduced chi-squared =          1.269 for     57 degrees of freedom
# Null hypothesis probability =   8.296464e-02

Photon flux (15-150 keV)    in 74.4 sec: 0.323300 ( -0.0255946  0.0256493 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.69714e-06 ( -1.40756e-07  1.41518e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -48.956 sec. to   25.444 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.424012     ( -0.673985   0.587303 )
Epeak [keV] : 61.9489      ( -8.23547 15.0161 )
Norm@50keV  : 1.06466E-02    ( -0.00522032   0.0125386 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.32 using 59 PHA bins.
# Reduced chi-squared =          1.024 for     56 degrees of freedom
# Null hypothesis probability =   4.260018e-01

Photon flux (15-150 keV)    in 74.4 sec: 0.307189 ( -0.026495  0.026584 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.57746e-06 ( -1.48956e-07  1.51196e-07 ) ergs/cm2

Band function

Time interval is from  -48.956 sec. to   25.444 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.423921   ( -0.578139   0.645523 )
beta        : -10.0000    ( 10   7.10543e-15 )
Epeak [keV] : 61.9367      ( -7.7213 15.0192 )
Norm@50keV   : 1.06483E-02    ( -0.00522567   0.0125542 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.32 using 59 PHA bins.
# Reduced chi-squared =          1.042 for     55 degrees of freedom
# Null hypothesis probability =   3.891830e-01

Photon flux (15-150 keV)    in 74.4 sec: 0.309270 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.58018e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.7791  (-1.14164  1.25053)
R^2/D10^2   : 4.97232E-02  (-0.0136631   0.0186169)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          75.08 using 59 PHA bins.
# Reduced chi-squared =          1.317 for     57 degrees of freedom
# Null hypothesis probability =   5.452628e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.486e-07   2.053e-08
25- 50  5.438e-07   4.814e-08
50-150  6.743e-07   1.056e-07
15-150  1.367e-06   1.261e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 137.878       (-36.9814      55.2005)
Norm        : 1.35294       (-0.121463     0.146489)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.48 using 59 PHA bins.
# Reduced chi-squared =          1.114 for     57 degrees of freedom
# Null hypothesis probability =   2.586263e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.602e-07   2.946e-08
25- 50  4.762e-07   7.087e-08
50-150  9.068e-07   3.968e-07
15-150  1.643e-06   3.906e-07

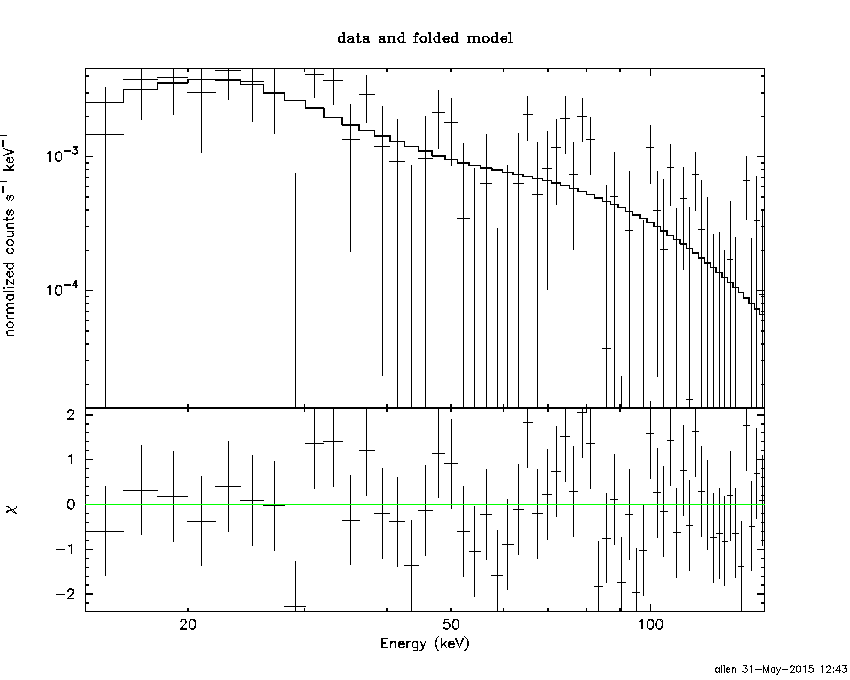

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.75232        (-2.06578      2.20447)
R1^2/D10^2  : 0.216130        (-0.111456      0.350168)
kT2 [keV]   : 20.9561        (-4.02567      7.69177)
R2^2/D10^2  : 7.48460E-03    (-0.00569039   0.012083)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.81 using 59 PHA bins.
# Reduced chi-squared =          1.015 for     55 degrees of freedom
# Null hypothesis probability =   4.443169e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.168e-07   1.109e-07
25- 50  5.198e-07   2.308e-07
50-150  8.437e-07   4.197e-07
15-150  1.580e-06   7.026e-07

Peak spectrum fit

Power-law model

Time interval is from    3.052 sec. to    4.052 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67716     ( -0.357896   0.372798 )
Norm@50keV  : 8.18457E-03    ( -0.00180886   0.0017647 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.46 using 59 PHA bins.
# Reduced chi-squared =          1.096 for     57 degrees of freedom
# Null hypothesis probability =   2.885874e-01

Photon flux (15-150 keV)    in 1 sec: 1.07848 ( -0.226382  0.226941 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.59241e-08 ( -1.73294e-08  1.75719e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    3.052 sec. to    4.052 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.68530     ( -0.366306   0.368728 )
Epeak [keV] : 9999.36      ( -9999.35 -9999.36 )
Norm@50keV  : 8.16411E-03    ( -0.00818526   0.0303393 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.46 using 59 PHA bins.
# Reduced chi-squared =          1.115 for     56 degrees of freedom
# Null hypothesis probability =   2.576046e-01

Photon flux (15-150 keV)    in 1 sec: 1.07821 ( -0.226105  0.22549 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.58201e-08 ( -1.78804e-08  1.75656e-08 ) ergs/cm2

Band function

Time interval is from    3.052 sec. to    4.052 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.70278   ( -4.70278   -4.70278 )
beta        : -1.78617    ( -0.487729   0.408512 )
Epeak [keV] : 24.2086      ( -24.2086 38.144 )
Norm@50keV   : 749.481    ( -152.744   7.90998e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.92 using 59 PHA bins.
# Reduced chi-squared =          1.126 for     55 degrees of freedom
# Null hypothesis probability =   2.428122e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.2046  (-3.6121  5.39677)
R^2/D10^2   : 0.241794  (-0.175134   0.633378)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.12 using 59 PHA bins.
# Reduced chi-squared =          1.265 for     57 degrees of freedom
# Null hypothesis probability =   8.559194e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.627e-09   3.414e-09
25- 50  2.448e-08   1.110e-08
50-150  2.217e-08   1.207e-08
15-150  5.428e-08   2.033e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 172.741       (-106.045      -170.755)
Norm        : 4.36036       (-0.929917     1.53183)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.93 using 59 PHA bins.
# Reduced chi-squared =          1.104 for     57 degrees of freedom
# Null hypothesis probability =   2.745084e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.105e-08   6.505e-09
25- 50  2.088e-08   1.145e-08
50-150  4.355e-08   2.526e-08
15-150  7.547e-08   4.352e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.87579        (-2.29408      3.07784)
R1^2/D10^2  : 1.58365        (-1.16452      5.75263)
kT2 [keV]   : 33.9305        (-29.3509      -33.9308)
R2^2/D10^2  : 5.09446E-03    (-0.00499702   0.0356919)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.03 using 59 PHA bins.
# Reduced chi-squared =          1.110 for     55 degrees of freedom
# Null hypothesis probability =   2.682357e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.265e-08   7.435e-09
25- 50  2.109e-08   1.153e-08
50-150  4.450e-08   2.651e-08
15-150  7.823e-08   3.963e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67201     ( -0.125111   0.126973 )
Norm@50keV  : 2.45783E-03    ( -0.000195506   0.000194676 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.33 using 59 PHA bins.
# Reduced chi-squared =          1.269 for     57 degrees of freedom
# Null hypothesis probability =   8.296464e-02

Photon flux (15-150 keV)    in 74.4 sec: 0.323300 ( -0.0255946  0.0256493 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.69714e-06 ( -1.40756e-07  1.41518e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.424012     ( -0.673985   0.587303 )
Epeak [keV] : 61.9489      ( -8.23547 15.0161 )
Norm@50keV  : 1.06466E-02    ( -0.00522032   0.0125386 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.32 using 59 PHA bins.
# Reduced chi-squared =          1.024 for     56 degrees of freedom
# Null hypothesis probability =   4.260018e-01

Photon flux (15-150 keV)    in 74.4 sec: 0.307189 ( -0.026495  0.026584 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.57746e-06 ( -1.48956e-07  1.51196e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.423921   ( -0.578139   0.645523 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 61.9367      ( -7.7213 15.0192 )
Norm@50keV   : 1.06483E-02    ( -0.00522567   0.0125542 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.32 using 59 PHA bins.
# Reduced chi-squared =          1.042 for     55 degrees of freedom
# Null hypothesis probability =   3.891830e-01

Photon flux (15-150 keV)    in 74.4 sec: 0.309270 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.58018e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.54e-07
S(50-100 keV) = 5.70e-07

T90 vs. Hardness ratio plot

T90                                   = 66.6440000236034 sec.
Hardness ratio (energy fluence ratio) = 1.25551

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.66989
Count Ratio (50-100 keV) / (15-25 keV) = 1.11569

Mask shadow pattern

IMX = -9.662121362301983E-01, IMY = 2.524985327476902E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.800000 -48.956000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.8385 -62.7268    7.8  58.8  -15.3  -1.2544  -1.5    5.6	GX 301-2
255.9957 -37.8192    2.2  46.3   44.0   3.2784   5.3    1.6	4U 1700-377
256.4960 -36.5438    6.0  46.8   45.6  -1.2710  -1.9    7.8	GX 349+2
264.7796 -44.3755    5.4  37.0   42.2   0.5443   2.1    4.7	4U 1735-44
275.8500 -30.4773    6.8  39.5   68.6   0.8708   1.7    7.7	H1820-303
285.1124 -24.8757   12.6  38.9   84.3  -0.4739  -0.9    4.9	HT1900.1-2455
296.0959 -17.5720    2.5  40.4  103.9   2.3850   4.6 ------	UNKNOWN
331.5966  -6.5799    3.2  47.3  156.5   1.4140   3.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-48.956000 25.444000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.7665 -62.7247    3.5  58.8  -15.4   1.8204   3.3    4.1	GX 301-2
256.0671 -37.7830    4.3  46.2   44.1   1.0157   2.7    5.3	4U 1700-377
256.5913 -36.4514    4.4  46.8   45.8   1.0647   2.6    7.7	GX 349+2
264.5662 -44.5155   28.6  37.1   41.9   0.0717   0.4    8.5	4U 1735-44
276.0261 -30.4873    4.8  39.4   68.7  -0.7590  -2.4    8.9	H1820-303
284.9967 -24.7686    9.6  39.0   84.2   0.4001   1.2    9.4	HT1900.1-2455
357.0736 -17.9079    0.6  45.0 -165.4   2.5990  17.9 ------	UNKNOWN
165.0948 -68.6738    2.2  57.0  -27.8   2.5489   5.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
104.500620 962.260900

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
  8.2863 -36.4493    3.1  21.0   -8.6   1.3105   3.7 ------	UNKNOWN
353.3383  40.9895    3.8  59.0 -166.1   8.5184   3.0 ------	UNKNOWN
 23.2472   0.0436    3.9  31.3 -105.0   1.5494   2.9 ------	UNKNOWN

Plot creation:
Sun May 31 12:44:24 EDT 2015
