batgrbproduct analysis for trigger=222546

batgrbproduct Analysis for Trigger=222546

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 14:37:38 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger222546
======================================================================

  Trigger: 00222546      Segment: 000

  BAT Trigger Time: 176369301.184   [s; MET]
      Trigger Stop: 176369309.376   [s; MET]
               UTC: 2006-08-04T07:28:19.825160    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 112.201199296934   Dec: -27.2313754670281  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.92
     Image Trigger?:     NO
     Rate S/N Ratio:     10.816653826392  [ if not an image trigger ]
     Image S/N Ratio:    8.92

  Flight Position:   [ source = BAT ]
    RA: 112.201199296934   Dec: -27.2313754670281  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 112.221032429631   Dec: -27.2282273464159  [deg; J2000]
        { 07h 28m 53.0s , -27d 13' 41.6" }
         +/- 2.07292230462618 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.97175152518805 [arcmin] (formal 1-sigma fit error)
    SNR: 10.7363563153294

  Angular difference between Flight and Ground position is 1.074839 arcmin

  Partial Coding Fraction: 0.1894531    [ including projection effects ]

  Duration
     T90: 18.188000023365 +/- 2.65723162056136
        Measured from: -12.9519999921322
                   to: 5.23600003123283     [s; relative to TRIGTIME]
     T50: 11.3400000035763 +/- 5.37857420360907
        Measured from: -8.13999998569489
                   to: 3.20000001788139     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 4.5160000026226
                   to: 5.5160000026226     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -14.0599999725819
                   to: 5.54800000786781     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.280744   0.402184   0.180068   0.094338
           0.046986   0.049801   0.043516   0.038509 [error]
 Peak      0.036120   0.043100   0.045042   0.027139
           0.011348   0.011563   0.010762   0.008650 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 9.64e-08 1.49e-07 1.73e-07 3.88e-07 5.33e-07 8.06e-07   erg/cm2
              Error 2.16e-08 2.30e-08 4.07e-08 1.83e-07 9.68e-08 2.25e-07   erg/cm2
Peak flux Power-law 3.64e-01 3.78e-01 2.77e-01 3.27e-01 1.14e+00 1.35e+00   ph/cm2/s
              Error 1.70e-01 1.04e-01 8.44e-02 2.23e-01 2.86e-01 3.25e-01   ph/cm2/s

Fluence   Cutoff-PL 8.82e-08 1.81e-07 1.42e-07 3.09e-08 4.37e-07 4.43e-07   erg/cm2
              Error 2.53e-08 4.39e-08 7.16e-08 2.10e-07 1.29e-07 2.98e-07   erg/cm2
Peak flux Cutoff-PL 3.69e-01 3.80e-01 2.75e-01 3.16e-01 1.15e+00 1.34e+00   ph/cm2/s
              Error 1.66e-01 1.04e-01 8.45e-02 2.36e-01 2.84e-01 3.22e-01   ph/cm2/s

Fluence        Band 8.19e-08 1.88e-07 1.46e-07 1.65e-07 4.81e-07 5.82e-07   erg/cm2
              Error 2.62e-08 3.84e-08 -------- 1.98e-07 1.04e-07 2.24e-07   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.783    0.267    -      -           2.95e-03 5.20e-04   83.780 57
CPL   0.161    2.613      43.6  -17.1      2.85e-02 1.84e+00   81.790 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.447    0.483    -      -           9.30e-03 2.24e-03   58.110 57
CPL   1.446    0.592    10000.0    0.0      9.32e-03 -3.53e-03   58.120 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 8.000000 sec.
T50 in the 50-300 keV band: 4.352000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   19.608  -14.060    5.548
T90    18.188  -12.952    5.236
T50    11.340   -8.140    3.200
Peak    1.000    4.516    5.516

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  112.2210   -27.2282   0.0179    36.8587   -95.7660         1.0635654     10.736 TRIG_00222546

Foreground time interval of the image:
-14.060   5.548 (delta_t =  19.608 [sec])
Background time interval of the image:
-239.184 -14.060 (delta_t = 225.124 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

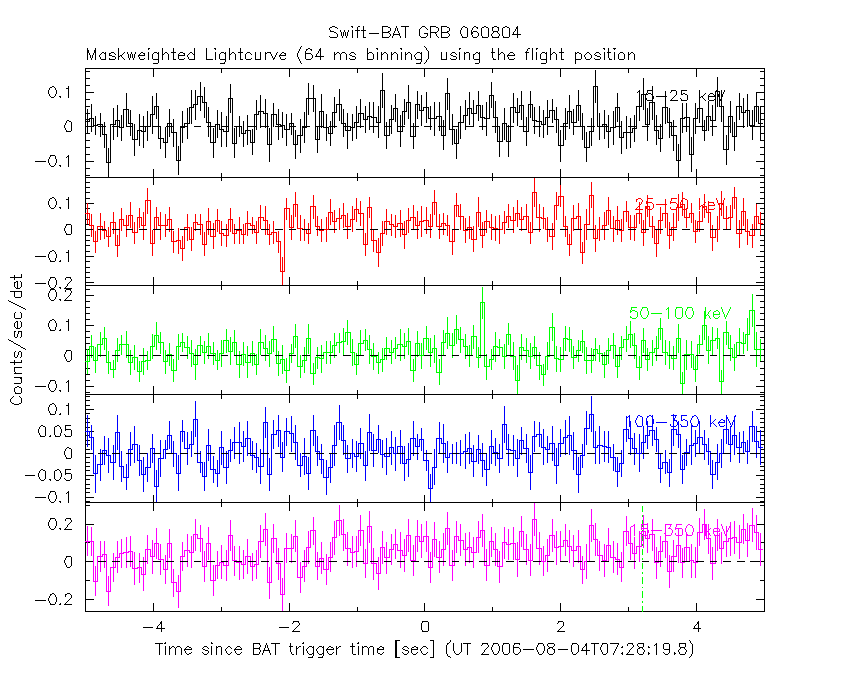

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -14.060 sec. to    5.548 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.78325     ( -0.261404   0.272508 )
Norm@50keV  : 2.94996E-03    ( -0.000526281   0.000514602 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.78 using 59 PHA bins.
# Reduced chi-squared =          1.470 for     57 degrees of freedom
# Null hypothesis probability =   1.199791e-02

Photon flux (15-150 keV)    in 19.61 sec: 0.403890 ( -0.0626358  0.0626643 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.3291e-07 ( -9.5606e-08  9.79459e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -14.060 sec. to    5.548 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.160841     ( -3.34679   1.87925 )
Epeak [keV] : 43.5947      ( -9.18959 -43.4 )
Norm@50keV  : 2.84761E-02    ( -0.0305264   3.65834 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          81.79 using 59 PHA bins.
# Reduced chi-squared =          1.460 for     56 degrees of freedom
# Null hypothesis probability =   1.389991e-02

Photon flux (15-150 keV)    in 19.61 sec: 0.381928 ( -0.068013  0.068883 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.3664e-07 ( -1.07227e-07  1.49901e-07 ) ergs/cm2

Band function

Time interval is from  -14.060 sec. to    5.548 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.96465   ( -2.40664   -1.35559 )
beta        : -2.49949    ( -1.62345   0.643751 )
Epeak [keV] : 35.1236      ( -10.8864 14.1841 )
Norm@50keV   : 0.782346    ( -0.791038   48.9609 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          78.04 using 59 PHA bins.
# Reduced chi-squared =          1.419 for     55 degrees of freedom
# Null hypothesis probability =   2.222265e-02

Photon flux (15-150 keV)    in 19.61 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.81143e-07 ( -4.81006e-07  -1.03213e-07 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.0210  (-1.42899  1.74516)
R^2/D10^2   : 0.198603  (-0.0916727   0.158632)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          82.80 using 59 PHA bins.
# Reduced chi-squared =          1.453 for     57 degrees of freedom
# Null hypothesis probability =   1.441784e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.971e-08   2.512e-08
25- 50  1.988e-07   3.912e-08
50-150  1.044e-07   4.253e-08
15-150  3.828e-07   8.854e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 89.1851       (-36.3876      99.2879)
Norm        : 1.85858       (-0.379292     0.505728)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          82.52 using 59 PHA bins.
# Reduced chi-squared =          1.448 for     57 degrees of freedom
# Null hypothesis probability =   1.517617e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.507e-08   2.036e-08
25- 50  1.605e-07   3.573e-08
50-150  2.430e-07   1.327e-07
15-150  4.985e-07   1.817e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.91733        (-1.35202      1.31807)
R1^2/D10^2  : 0.284986        (-0.131959      0.238266)
kT2 [keV]   : 199.363        (-199.363      -199.363)
R2^2/D10^2  : 3.27507E-05    (-1.86348e-05   0.000821892)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.80 using 59 PHA bins.
# Reduced chi-squared =          1.342 for     55 degrees of freedom
# Null hypothesis probability =   4.612921e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.693e-08   2.911e-08
25- 50  1.874e-07   6.477e-08
50-150  2.369e-07   5.319e-08
15-150  5.112e-07   1.443e-07

Peak spectrum fit

Power-law model

Time interval is from    4.516 sec. to    5.516 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.44713     ( -0.480431   0.485558 )
Norm@50keV  : 9.29589E-03    ( -0.00225614   0.00222659 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.11 using 59 PHA bins.
# Reduced chi-squared =          1.020 for     57 degrees of freedom
# Null hypothesis probability =   4.340790e-01

Photon flux (15-150 keV)    in 1 sec: 1.14478 ( -0.285754  0.286149 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.90038e-08 ( -2.36837e-08  2.38051e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    4.516 sec. to    5.516 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.44640     ( -0.724599   0.458766 )
Epeak [keV] : 1.00000E+04      (   )
Norm@50keV  : 9.32451E-03    ( -0.00227095   -0.00932452 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.12 using 59 PHA bins.
# Reduced chi-squared =          1.038 for     56 degrees of freedom
# Null hypothesis probability =   3.970214e-01

Photon flux (15-150 keV)    in 1 sec: 1.14770 ( -0.28492  0.28284 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.8442e-08 ( -1.14374e-08  2.3584e-08 ) ergs/cm2

Band function

Time interval is from    4.516 sec. to    5.516 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.17154   ( 1.17185   1.17185 )
beta        : -1.44684    ( 1.44696   0.480365 )
Epeak [keV] : 33.4523      ( -33.2761 -33.2761 )
Norm@50keV   : 1.85197E-02    ( -0.0114353   1.54755 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.11 using 59 PHA bins.
# Reduced chi-squared =          1.057 for     55 degrees of freedom
# Null hypothesis probability =   3.613871e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.0566  (-7.10976  15.4952)
R^2/D10^2   : 7.81566E-02  (-0.0658214   0.420676)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.06 using 59 PHA bins.
# Reduced chi-squared =          1.212 for     57 degrees of freedom
# Null hypothesis probability =   1.314034e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.627e-09   2.945e-09
25- 50  2.053e-08   1.054e-08
50-150  4.268e-08   2.455e-08
15-150  6.783e-08   3.448e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-109.99      -199.363)
Norm        : 4.68497       (-1.128     1.128)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.44 using 59 PHA bins.
# Reduced chi-squared =          1.043 for     57 degrees of freedom
# Null hypothesis probability =   3.869379e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.167e-08   7.060e-09
25- 50  2.244e-08   1.318e-08
50-150  4.922e-08   2.883e-08
15-150  8.333e-08   4.923e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.42577        (-4.56066      4.87753)
R1^2/D10^2  : 1.20373        (-0.975761      2.74991)
kT2 [keV]   : 66.3361        (-41.5729      -66.629)
R2^2/D10^2  : 1.29537E-03    (-0.00116042   0.0186629)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.00 using 59 PHA bins.
# Reduced chi-squared =          1.036 for     55 degrees of freedom
# Null hypothesis probability =   4.004235e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.179e-08   7.150e-09
25- 50  2.107e-08   1.154e-08
50-150  6.214e-08   3.347e-08
15-150  9.500e-08   4.622e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.78325     ( -0.261404   0.272508 )
Norm@50keV  : 2.94996E-03    ( -0.000526281   0.000514602 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.78 using 59 PHA bins.
# Reduced chi-squared =          1.470 for     57 degrees of freedom
# Null hypothesis probability =   1.199791e-02

Photon flux (15-150 keV)    in 19.61 sec: 0.403890 ( -0.0626358  0.0626643 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.3291e-07 ( -9.5606e-08  9.79459e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.160841     ( -3.34679   1.87925 )
Epeak [keV] : 43.5947      ( -9.18959 -43.4 )
Norm@50keV  : 2.84761E-02    ( -0.0305264   3.65834 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          81.79 using 59 PHA bins.
# Reduced chi-squared =          1.460 for     56 degrees of freedom
# Null hypothesis probability =   1.389991e-02

Photon flux (15-150 keV)    in 19.61 sec: 0.381928 ( -0.068013  0.068883 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.3664e-07 ( -1.07227e-07  1.49901e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.96465   ( -2.40664   -1.35559 )
beta        : -2.49949    ( -1.62345   0.643751 )
Epeak [keV] : 35.1236      ( -10.8864 14.1841 )
Norm@50keV   : 0.782346    ( -0.791038   48.9609 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          78.04 using 59 PHA bins.
# Reduced chi-squared =          1.419 for     55 degrees of freedom
# Null hypothesis probability =   2.222265e-02

Photon flux (15-150 keV)    in 19.61 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.81143e-07 ( -4.81006e-07  -1.03213e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.49e-07
S(50-100 keV) = 1.73e-07

T90 vs. Hardness ratio plot

T90                                   = 18.188000023365 sec.
Hardness ratio (energy fluence ratio) = 1.16107

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.43256
Count Ratio (50-100 keV) / (15-25 keV) = 0.641396

Mask shadow pattern

IMX = -7.531924975437265E-02, IMY = 7.459008555131527E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

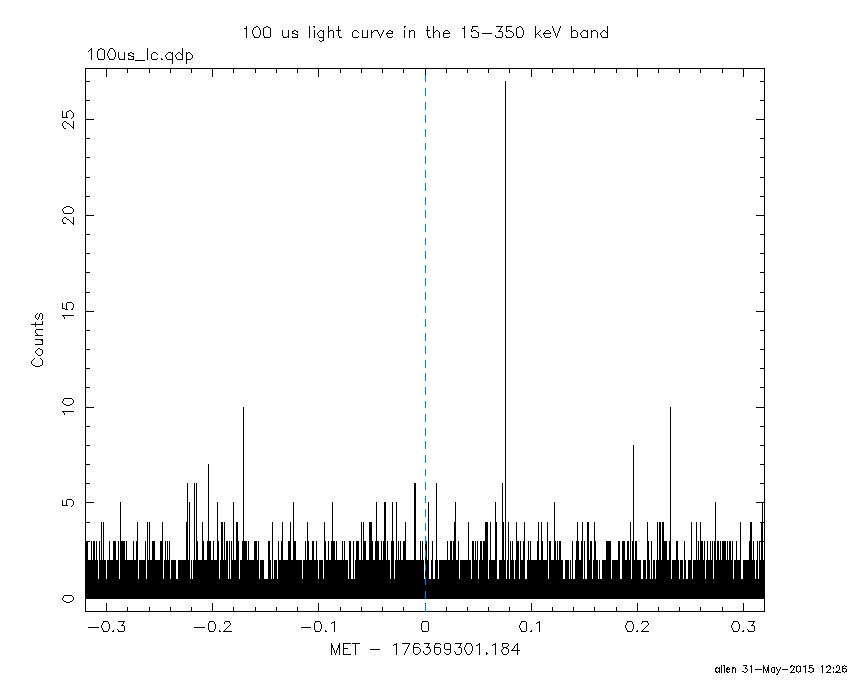

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.184000 -14.060000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.6881 -40.4183    0.0  32.4  -54.6  -0.4311  -1.9   10.9	Vela X-1
170.4084 -60.4332    0.0  33.9    0.2   0.3408   1.6   11.7	Cen X-3
186.6436 -62.7760    1.1  38.4   11.5   2.3527  10.7    0.5	GX 301-2
 54.3004 -15.6778    2.7  54.9 -171.9   2.1736   4.3 ------	UNKNOWN
 85.9710 -29.8548    3.0  33.1 -136.3   0.7500   3.9 ------	UNKNOWN
152.4980 -36.5119    2.4  43.1  -40.5   1.3850   4.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-14.060000 5.548000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.6881 -40.4183    0.0  32.4  -54.6  -0.0646  -1.2   10.9	Vela X-1
170.5673 -60.6862   10.1  33.8    0.7   0.0577   1.1    8.3	Cen X-3
186.5932 -62.8166    3.2  38.4   11.5  -0.2213  -3.6    3.3	GX 301-2
 27.8413 -52.9671    2.0  35.5  132.2   0.4174   5.7 ------	UNKNOWN
 34.9574 -24.9921    2.5  54.4  163.1   1.0966   4.6 ------	UNKNOWN
 84.3353 -32.3936    2.5  30.8 -139.6   0.2204   4.7 ------	UNKNOWN
142.7621 -39.4300    2.3  36.3  -47.7   0.3181   5.1 ------	UNKNOWN
129.5661 -33.7468    1.9  35.8  -68.2   0.4316   6.0 ------	UNKNOWN
112.2210 -27.2282    1.1  36.9  -95.8   1.0636  10.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
105.516600 711.416610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6416  22.0186    0.9  56.5 -150.3  21.5909  12.9    0.5	Crab
135.6699 -40.7234    0.0  23.5   12.8  -0.3282  -1.2   12.0	Vela X-1
170.2851 -60.6064   25.4  51.0   29.4   0.6159   0.5    1.3	Cen X-3
 93.6211 -57.9409    3.6  33.4   79.8   1.7703   3.3 ------	UNKNOWN
 58.7458 -16.3769    3.3  50.4  152.6   4.9513   3.5 ------	UNKNOWN
179.0344 -42.3055    2.4  55.5    6.2   6.4424   4.9 ------	UNKNOWN
168.6260 -43.1820    2.3  47.8    6.7   2.8469   5.0 ------	UNKNOWN

Plot creation:
Sun May 31 12:26:19 EDT 2015
