batgrbproduct analysis for trigger=230711

batgrbproduct Analysis for Trigger=230711

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 13:19:19 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger230711
======================================================================

  Trigger: 00230711      Segment: 000

  BAT Trigger Time: 180711184   [s; MET]
      Trigger Stop: 180711272   [s; MET]
               UTC: 2006-09-23T13:33:02.537640    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 346.126952999923   Dec: 3.94232297853285  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    11.45
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    11.45

  Flight Position:   [ source = BAT ]
    RA: 346.126952999923   Dec: 3.94232297853285  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 346.119979611968   Dec: 3.9386274639519  [deg; J2000]
        { 23h 04m 28.8s , +03d 56' 19.1" }
         +/- 2.06991008803673 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.76067956405974 [arcmin] (formal 1-sigma fit error)
    SNR: 10.7586832428085

  Angular difference between Flight and Ground position is 0.472651 arcmin

  Partial Coding Fraction: 0.1738281    [ including projection effects ]

  Duration
     T90: 73.7279999554157 +/- 9.93160611239548
        Measured from: 8.85600000619888
                   to: 82.5839999616146     [s; relative to TRIGTIME]
     T50: 30.5279999673367 +/- 11.9638843075177
        Measured from: 26.472000002861
                   to: 56.9999999701977     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 27.5
                   to: 28.5     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 6.82400000095367
                   to: 86.6159999966621     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.070236   1.324310   0.398699   0.184159
           0.110689   0.116936   0.103485   0.098425 [error]
 Peak      0.048130   0.036328   0.015754   0.006414
           0.013766   0.013555   0.012411   0.011316 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.27e-07 5.01e-07 4.23e-07 6.05e-07 1.57e-06 1.96e-06   erg/cm2
              Error 6.24e-08 5.92e-08 9.52e-08 2.60e-07 2.18e-07 3.81e-07   erg/cm2
Peak flux Power-law 4.16e-01 2.95e-01 1.38e-01 9.02e-02 8.92e-01 9.38e-01   ph/cm2/s
              Error 2.05e-01 1.16e-01 8.80e-02 1.18e-01 3.44e-01 3.67e-01   ph/cm2/s

Fluence   Cutoff-PL 4.07e-07 5.62e-07 3.50e-07 8.77e-08 1.39e-06 1.41e-06   erg/cm2
              Error 6.89e-08 8.93e-08 1.39e-07 3.29e-07 2.60e-07 4.60e-07   erg/cm2
Peak flux Cutoff-PL 3.18e-01 3.76e-01 1.48e-01 1.35e-02 8.55e-01 8.55e-01   ph/cm2/s
              Error 2.88e-01 1.63e-01 1.07e-01 8.65e-02 3.71e-01 3.40e-01   ph/cm2/s

Fluence        Band 3.99e-07 5.63e-07 3.55e-07 3.14e-07 1.46e-06 1.64e-06   erg/cm2
              Error 6.98e-08 -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 3.37e-01 3.68e-01 1.48e-01 1.33e-02 8.68e-01 8.61e-01   ph/cm2/s
              Error -------- -------- -------- -------- 3.57e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.244    0.227    -      -           2.08e-03 3.40e-04   52.870 57
CPL   1.129    1.285      28.3    0.0      1.04e-02 0.00e+00   50.410 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.098    0.719    -      -           5.67e-03 2.88e-03   38.100 57
CPL  -0.127    1.072      41.8    0.0      9.82e-02 0.00e+00   36.490 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   79.792    6.824   86.616
T90    73.728    8.856   82.584
T50    30.528   26.472   57.000
Peak    1.000   27.500   28.500

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  346.1200     3.9386   0.0179    36.8819    65.4624         2.7499743     10.759 TRIG_00230711

Foreground time interval of the image:
  6.824  86.616 (delta_t =  79.792 [sec])
Background time interval of the image:
-239.000   6.824 (delta_t = 245.824 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

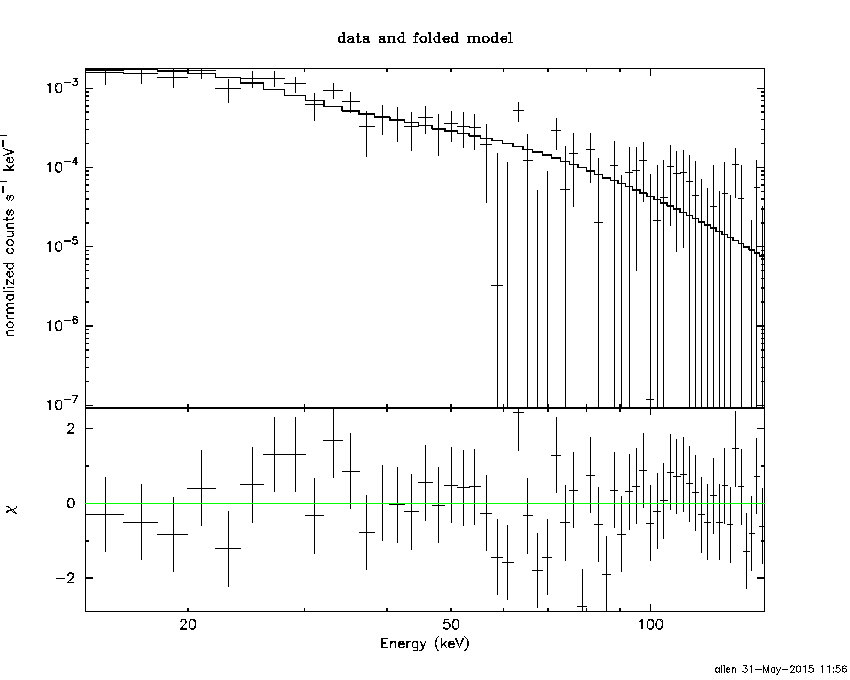

Power-law model

Time interval is from    6.824 sec. to   86.616 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.24360     ( -0.218623   0.236028 )
Norm@50keV  : 2.07708E-03    ( -0.000342968   0.000336412 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.87 using 59 PHA bins.
# Reduced chi-squared =         0.9275 for     57 degrees of freedom
# Null hypothesis probability =   6.308149e-01

Photon flux (15-150 keV)    in 79.79 sec: 0.351943 ( -0.0390857  0.0390861 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.56844e-06 ( -2.14874e-07  2.21752e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from    6.824 sec. to   86.616 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.12925     ( -1.68351   0.88727 )
Epeak [keV] : 28.3217      (   )
Norm@50keV  : 1.03768E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.41 using 59 PHA bins.
# Reduced chi-squared =         0.9002 for     56 degrees of freedom
# Null hypothesis probability =   6.854829e-01

Photon flux (15-150 keV)    in 79.79 sec: 0.338965 ( -0.040996  0.041365 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.3883e-06 ( -2.33114e-07  2.87236e-07 ) ergs/cm2

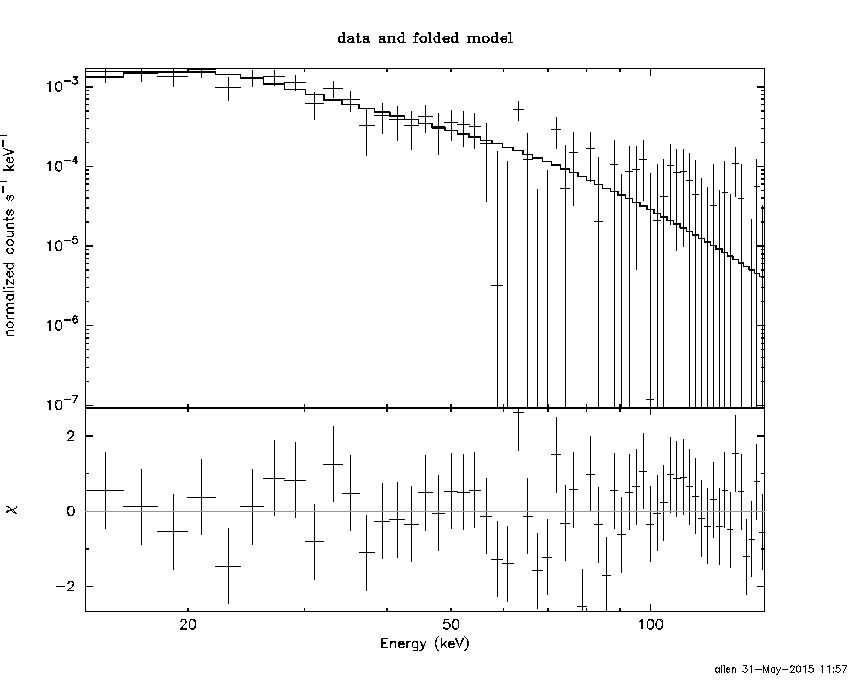

Band function

Time interval is from    6.824 sec. to   86.616 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.490688   ( -1.77368   0.44513 )
beta        : -2.80531    ( 2.78593   0.567696 )
Epeak [keV] : 28.2812      ( -8.92762 7.97392 )
Norm@50keV   : 2.92483E-02    ( -0.037382   269.299 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.42 using 59 PHA bins.
# Reduced chi-squared =         0.8986 for     55 degrees of freedom
# Null hypothesis probability =   6.867514e-01

Photon flux (15-150 keV)    in 79.79 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.45685e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.15404  (-0.919992  1.03452)
R^2/D10^2   : 0.361117  (-0.137983   0.224469)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.66 using 59 PHA bins.
# Reduced chi-squared =         0.9941 for     57 degrees of freedom
# Null hypothesis probability =   4.877137e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.512e-07   6.595e-08
25- 50  6.353e-07   1.014e-07
50-150  1.775e-07   6.351e-08
15-150  1.164e-06   1.723e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 42.0607       (-10.6839      16.7139)
Norm        : 2.20764       (-0.434381     0.566023)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.44 using 59 PHA bins.
# Reduced chi-squared =         0.8849 for     57 degrees of freedom
# Null hypothesis probability =   7.179173e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.111e-07   6.395e-08
25- 50  5.525e-07   8.246e-08
50-150  4.512e-07   1.717e-07
15-150  1.415e-06   2.645e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.15568        (-4.9697      1.27953)
R1^2/D10^2  : 0.555653        (-0.248983      52.2813)
kT2 [keV]   : 36.0220        (-27.2834      -37.7868)
R2^2/D10^2  : 5.65647E-04    (-0.000481701   0.00521765)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.81 using 59 PHA bins.
# Reduced chi-squared =         0.9056 for     55 degrees of freedom
# Null hypothesis probability =   6.726204e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.810e-07   1.108e-07
25- 50  5.864e-07   1.759e-07
50-150  5.435e-07   3.021e-07
15-150  1.511e-06   4.664e-07

Peak spectrum fit

Power-law model

Time interval is from   27.500 sec. to   28.500 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.09755     ( -0.62289   0.815286 )
Norm@50keV  : 5.67378E-03    ( -0.00294643   0.00280951 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.10 using 59 PHA bins.
# Reduced chi-squared =         0.6683 for     57 degrees of freedom
# Null hypothesis probability =   9.744983e-01

Photon flux (15-150 keV)    in 1 sec: 0.891552 ( -0.34394  0.34395 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.2693e-08 ( -2.35618e-08  2.54348e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   27.500 sec. to   28.500 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.127178     ( 0.138269   2.28166 )
Epeak [keV] : 41.8122      (   )
Norm@50keV  : 9.82013E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.49 using 59 PHA bins.
# Reduced chi-squared =         0.6517 for     56 degrees of freedom
# Null hypothesis probability =   9.798236e-01

Photon flux (15-150 keV)    in 1 sec: 0.855179 ( -0.393102  0.348501 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.89368e-08 ( -2.0031e-08  2.45875e-08 ) ergs/cm2

Band function

Time interval is from   27.500 sec. to   28.500 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -6.87921E-02   ( -1.4652   0.53488 )
beta        : -10.0000    ( 10   3.55271e-15 )
Epeak [keV] : 41.8080      ( -21.8883 203.339 )
Norm@50keV   : 7.75045E-02    ( -0.0774072   45.9881 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.50 using 59 PHA bins.
# Reduced chi-squared =         0.6637 for     55 degrees of freedom
# Null hypothesis probability =   9.742167e-01

Photon flux (15-150 keV)    in 1 sec: 0.867980 ( 6.13202  -0.377849 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.95095e-08 ( -4.95025e-08  -2.05307e-08 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.1352  (-3.43744  4.67031)
R^2/D10^2   : 0.303212  (-0.303212   0.900805)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.63 using 59 PHA bins.
# Reduced chi-squared =         0.6427 for     57 degrees of freedom
# Null hypothesis probability =   9.835691e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.874e-09   5.000e-09
25- 50  2.262e-08   1.439e-08
50-150  1.599e-08   1.199e-08
15-150  4.648e-08   3.091e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 57.5546       (-33.0831      -56.8444)
Norm        : 4.91609       (-2.2746     4.1787)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.05 using 59 PHA bins.
# Reduced chi-squared =         0.6501 for     57 degrees of freedom
# Null hypothesis probability =   9.812769e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.227e-08   7.760e-09
25- 50  1.843e-08   1.184e-08
50-150  2.025e-08   1.617e-08
15-150  5.095e-08   3.517e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.80105        (-2.85239      17.3462)
R1^2/D10^2  : 43.5104        (-42.3598      -42.3598)
kT2 [keV]   : 12.4761        (-4.10008      -12.5045)
R2^2/D10^2  : 0.177775    (-0.176284   0.653044)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.40 using 59 PHA bins.
# Reduced chi-squared =         0.6437 for     55 degrees of freedom
# Null hypothesis probability =   9.815283e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.111e-08   4.951e-09
25- 50  1.990e-08   1.201e-08
50-150  1.853e-08   1.377e-08
15-150  4.955e-08   3.050e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.24360     ( -0.218623   0.236028 )
Norm@50keV  : 2.07708E-03    ( -0.000342968   0.000336412 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.87 using 59 PHA bins.
# Reduced chi-squared =         0.9275 for     57 degrees of freedom
# Null hypothesis probability =   6.308149e-01

Photon flux (15-150 keV)    in 79.79 sec: 0.351943 ( -0.0390857  0.0390861 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.56844e-06 ( -2.14874e-07  2.21752e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.12925     ( -1.68351   0.88727 )
Epeak [keV] : 28.3217      (   )
Norm@50keV  : 1.03768E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.41 using 59 PHA bins.
# Reduced chi-squared =         0.9002 for     56 degrees of freedom
# Null hypothesis probability =   6.854829e-01

Photon flux (15-150 keV)    in 79.79 sec: 0.338965 ( -0.040996  0.041365 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.3883e-06 ( -2.33114e-07  2.87236e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.490688   ( -2.16955   0.44513 )
beta        : -2.80531    ( 2.78593   0.567696 )
Epeak [keV] : 28.2812      ( -8.92762 7.97392 )
Norm@50keV   : 2.92483E-02    ( -0.037382   269.421 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.42 using 59 PHA bins.
# Reduced chi-squared =         0.8986 for     55 degrees of freedom
# Null hypothesis probability =   6.867514e-01

Photon flux (15-150 keV)    in 79.79 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.45685e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.01e-07
S(50-100 keV) = 4.23e-07

T90 vs. Hardness ratio plot

T90                                   = 73.7279999554157 sec.
Hardness ratio (energy fluence ratio) = 0.844311

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.2374
Count Ratio (50-100 keV) / (15-25 keV) = 0.372534

Mask shadow pattern

IMX = 3.116029084608269E-01, IMY = -6.825640912998497E-01

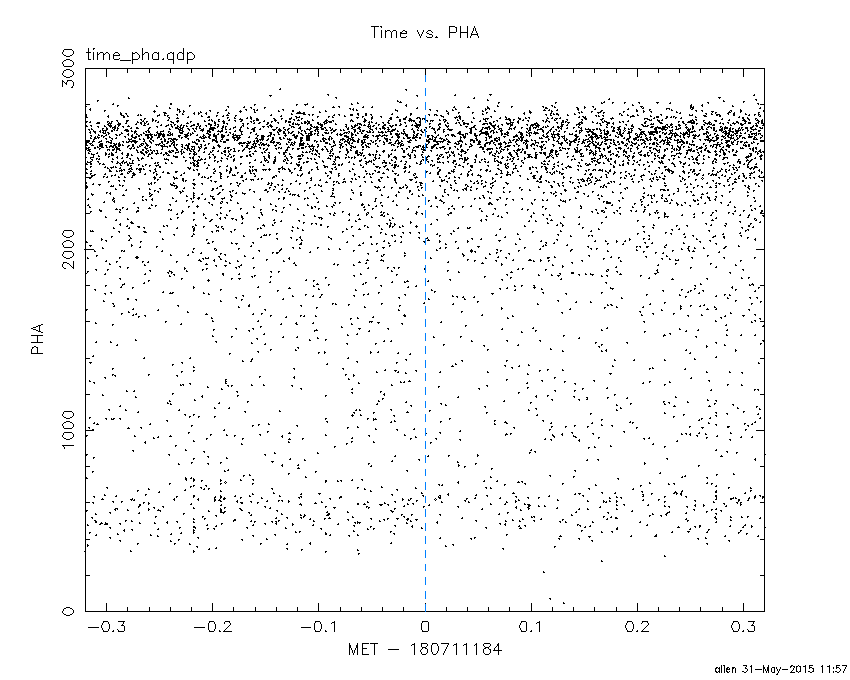

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 6.824000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
285.1042 -24.9698   10.1  57.6  -26.8   1.4230   1.1    4.7	HT1900.1-2455
 14.5430  -7.4317    2.6  33.2  119.8   1.5385   4.4 ------	UNKNOWN
 10.2768 -47.8148    2.8  20.9 -143.8   0.6852   4.1 ------	UNKNOWN
309.4091 -35.5550    2.1  34.5  -32.7   1.1734   5.4 ------	UNKNOWN
 39.2553 -55.4099    2.7  40.2 -146.8   1.1240   4.2 ------	UNKNOWN
324.1916 -70.8044    4.8  40.9  -92.8   2.2592   2.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
6.824000 86.616000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
285.0305 -25.1017    6.2  57.6  -26.9  -0.9907  -1.9   10.9	HT1900.1-2455
356.6368   6.3311    2.3  39.3   82.5   2.1577   5.1  429.9	UNKNOWN
346.1200   3.9386    1.1  36.9   65.5   2.7499  10.8 ------	UNKNOWN
 52.9668 -48.5106    2.4  48.1 -157.6   0.9275   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
190.500600 963.103200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
326.2631  38.4197    4.0  38.9  -39.7   1.7538   2.9    7.3	Cyg X-2
 23.0203  43.3653    3.5  51.1   19.6   6.5386   3.3 ------	UNKNOWN
331.6243 -18.0449    3.3  26.3 -161.9   1.3745   3.5 ------	UNKNOWN
317.0617 -48.4911    2.3  58.3 -172.3  10.4057   4.9 ------	UNKNOWN
306.1538 -43.3880    4.6  59.5 -161.7   9.0493   2.5 ------	UNKNOWN
324.3788  57.6259    3.9  56.3  -28.3   6.4713   2.9 ------	UNKNOWN
311.2437  40.8078    3.1  48.3  -50.0   7.3648   3.7 ------	UNKNOWN
305.0203   7.2351    4.4  41.1  -98.1   6.5298   2.7 ------	UNKNOWN
303.5000  -2.2338    3.5  43.1 -112.1   6.0183   3.3 ------	UNKNOWN

Plot creation:
Sun May 31 11:57:36 EDT 2015
