Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 13:00:27 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger231974
======================================================================

  Trigger: 00231974      Segment: 000

  BAT Trigger Time: 181443811.072   [s; MET]
      Trigger Stop: 181443819.264   [s; MET]
               UTC: 2006-10-02T01:03:29.592060    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 220.345605609545   Dec: 48.7365696281697  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.16
     Image Trigger?:     NO
     Rate S/N Ratio:     9.05538513813742  [ if not an image trigger ]
     Image S/N Ratio:    8.16

  Flight Position:   [ source = BAT ]
    RA: 220.345605609545   Dec: 48.7365696281697  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 220.358870294559   Dec: 48.7292052095614  [deg; J2000]
        { 14h 41m 26.1s , +48d 43' 45.1" }
         +/- 1.76765982208087 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.765720145403143 [arcmin] (formal 1-sigma fit error)
    SNR: 13.4800554571368

  Angular difference between Flight and Ground position is 0.686153 arcmin

  Partial Coding Fraction: 0.390625    [ including projection effects ]

  Duration
     T90: 17.6279999911785 +/- 1.96191027057147
        Measured from: -1.59999999403954
                   to: 16.027999997139     [s; relative to TRIGTIME]
     T50: 9.30000001192093 +/- 2.86882830417352
        Measured from: 3.08399999141693
                   to: 12.3840000033379     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -1.391999989748
                   to: -0.391999989748001     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -2.34799998998642
                   to: 16.8680000007153     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.318130   0.400795   0.284224   0.064711
           0.043394   0.040102   0.034606   0.028995 [error]
 Peak      0.023881   0.040577   0.021427   0.006217
           0.009888   0.008981   0.007854   0.006567 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.17e-07 1.88e-07 2.29e-07 5.47e-07 6.91e-07 1.08e-06   erg/cm2
              Error 2.23e-08 2.16e-08 3.46e-08 1.79e-07 8.20e-08 2.05e-07   erg/cm2
Peak flux Power-law 2.73e-01 2.70e-01 1.87e-01 2.05e-01 8.13e-01 9.36e-01   ph/cm2/s
              Error 1.46e-01 8.85e-02 6.49e-02 1.54e-01 2.49e-01 2.67e-01   ph/cm2/s

Fluence   Cutoff-PL 1.17e-07 1.89e-07 2.29e-07 5.40e-07 6.91e-07 1.07e-06   erg/cm2
              Error 2.24e-08 2.24e-08 3.48e-08 2.14e-07 8.15e-08 2.62e-07   erg/cm2
Peak flux Cutoff-PL 2.67e-01 2.74e-01 1.89e-01 1.74e-01 8.08e-01 9.02e-01   ph/cm2/s
              Error 1.58e-01 9.78e-02 7.02e-02 1.94e-01 2.54e-01 3.07e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 2.33e-01 3.09e-01 1.83e-01 1.59e-01 7.96e-01 9.20e-01   ph/cm2/s
              Error -------- -------- -------- -------- 2.42e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.717    0.202    -      -           3.89e-03 4.43e-04   53.530 57
CPL   1.724    0.221    9999.4   -0.0      3.88e-03 3.28e-03   53.540 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.530    0.530    -      -           6.46e-03 1.86e-03   63.510 57
CPL   1.475    1.545     470.4    0.0      6.87e-03 5.65e-02   63.500 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 18.496000 sec.
T50 in the 50-300 keV band: 10.944000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   19.216   -2.348   16.868
T90    17.628   -1.600   16.028
T50     9.300    3.084   12.384
Peak    1.000   -1.392   -0.392

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  220.3589    48.7292   0.0142    46.0938   -13.2474         1.1021629     13.480 TRIG_00231974

Foreground time interval of the image:
 -2.348  16.868 (delta_t =  19.216 [sec])
Background time interval of the image:
-168.371  -2.348 (delta_t = 166.023 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

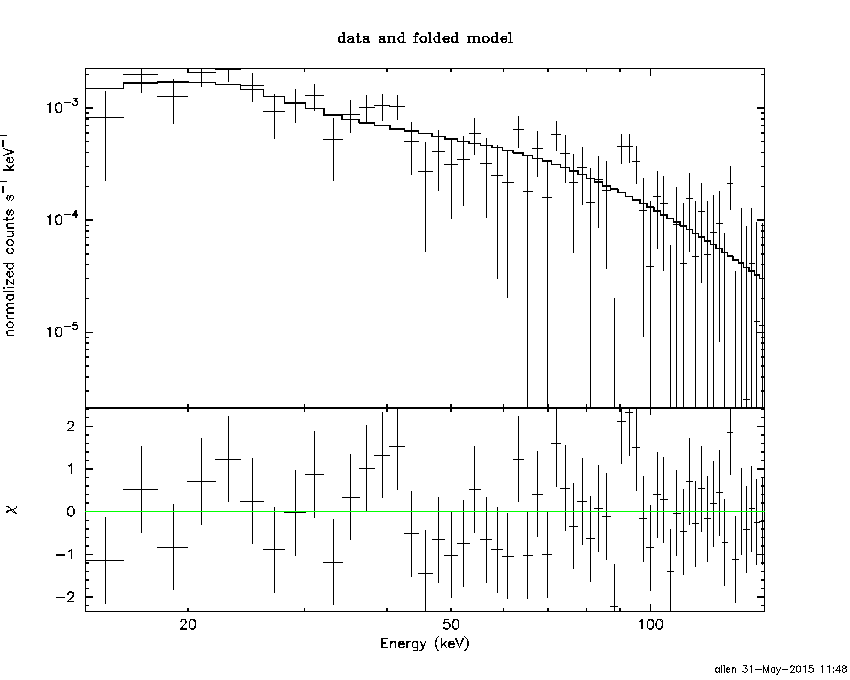

Power-law model

Time interval is from   -2.348 sec. to   16.868 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.71732     ( -0.200371   0.203932 )
Norm@50keV  : 3.88920E-03    ( -0.000445151   0.000440874 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.53 using 59 PHA bins.
# Reduced chi-squared =         0.9392 for     57 degrees of freedom
# Null hypothesis probability =   6.059017e-01

Photon flux (15-150 keV)    in 19.22 sec: 0.519694 ( -0.0600174  0.0603772 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.91199e-07 ( -8.17382e-08  8.23235e-08 ) ergs/cm2

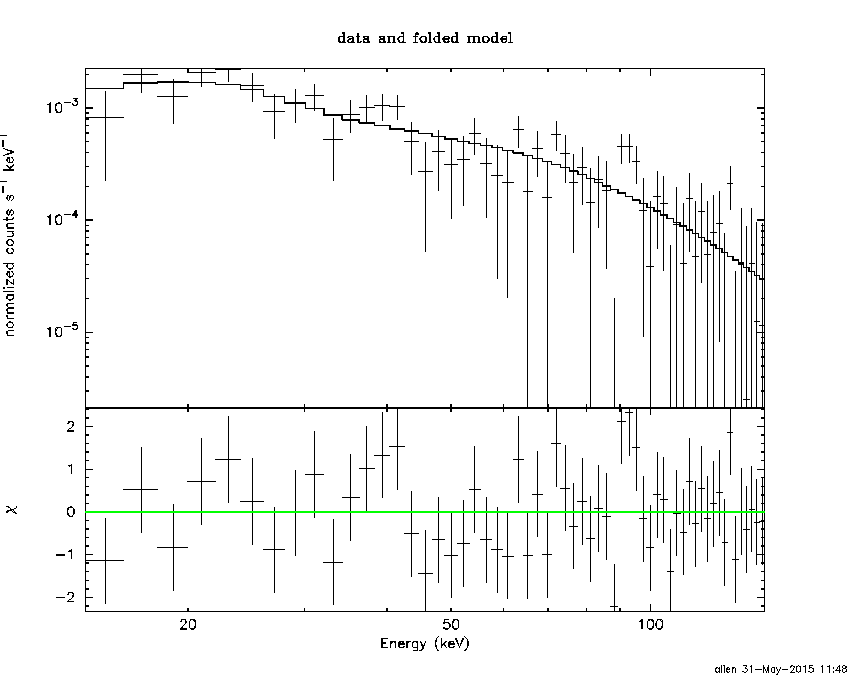

Cutoff power-law model

Time interval is from   -2.348 sec. to   16.868 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72408     ( -0.242347   0.200198 )
Epeak [keV] : 9999.36      ( -9999.35 -9999.36 )
Norm@50keV  : 3.87767E-03    ( -0.00260439   0.00394793 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.54 using 59 PHA bins.
# Reduced chi-squared =         0.9561 for     56 degrees of freedom
# Null hypothesis probability =   5.684396e-01

Photon flux (15-150 keV)    in 19.22 sec: 0.519382 ( -0.059937  0.059666 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.9054e-07 ( -8.0847e-08  8.22328e-08 ) ergs/cm2

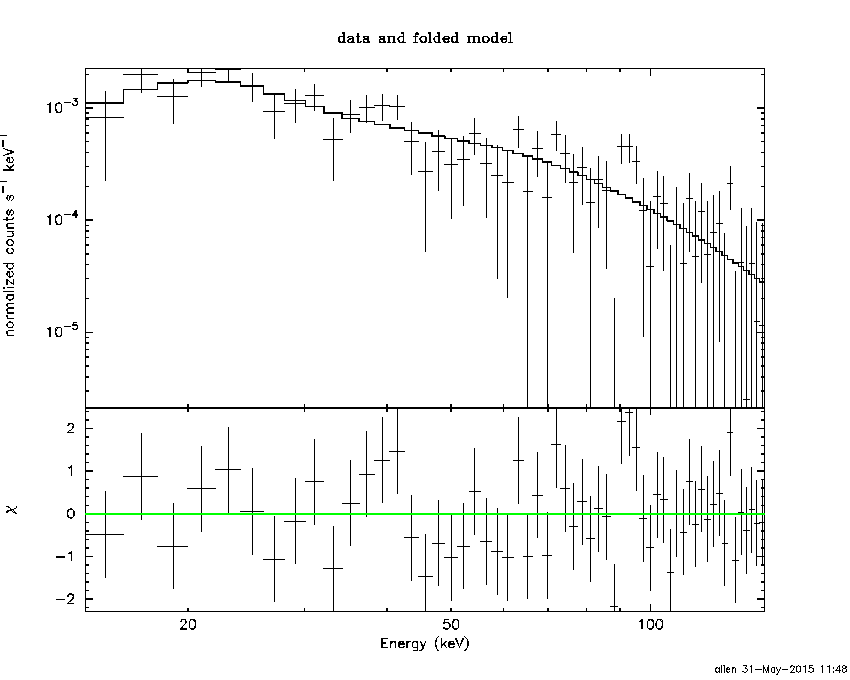

Band function

Time interval is from   -2.348 sec. to   16.868 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.69363   ( -4.69363   -4.69363 )
beta        : -1.78672    ( -0.239713   0.222241 )
Epeak [keV] : 23.2834      ( -23.2834 5.45892 )
Norm@50keV   : 447.764    ( -48.7125   3.1142e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.57 using 59 PHA bins.
# Reduced chi-squared =         0.9558 for     55 degrees of freedom
# Null hypothesis probability =   5.679958e-01

Photon flux (15-150 keV)    in 19.22 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

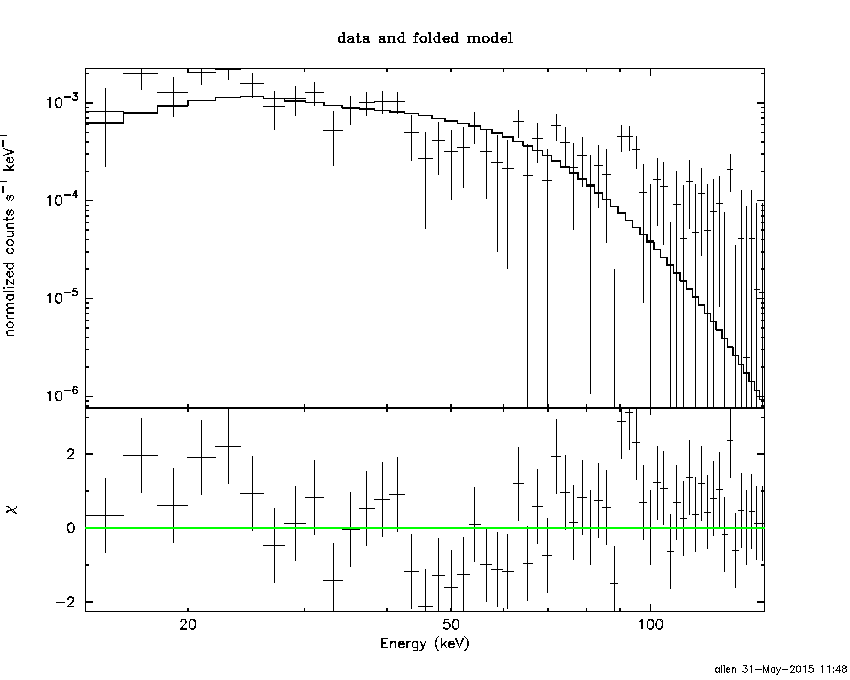

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.1284  (-2.17282  2.68991)
R^2/D10^2   : 8.64355E-02  (-0.0423911   0.0828546)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          85.10 using 59 PHA bins.
# Reduced chi-squared =          1.493 for     57 degrees of freedom
# Null hypothesis probability =   9.315834e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.072e-08   1.247e-08
25- 50  2.113e-07   3.285e-08
50-150  2.316e-07   5.838e-08
15-150  5.036e-07   7.813e-08

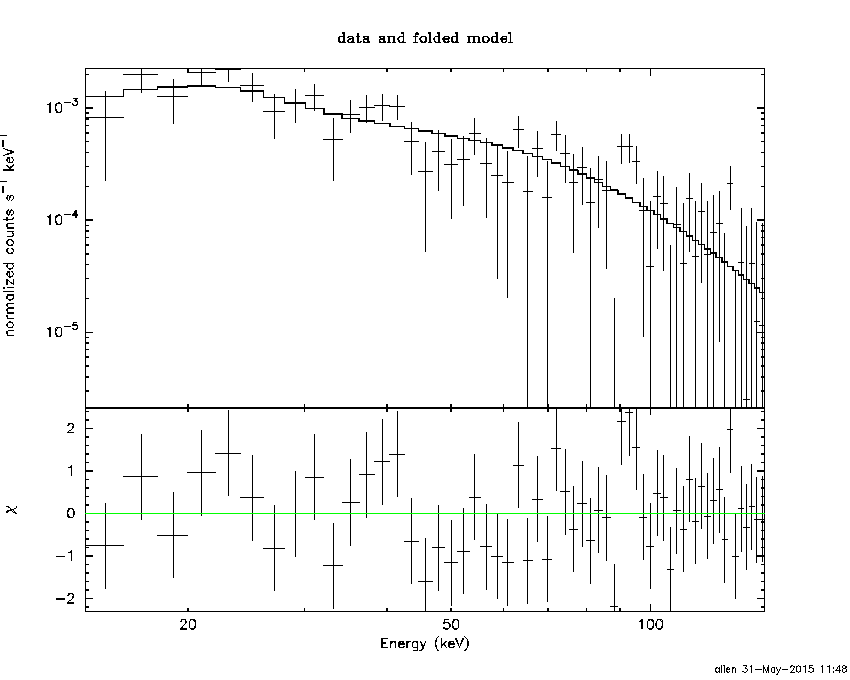

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 149.128       (-60.0788      -147.655)
Norm        : 2.10321       (-0.267242     0.380327)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.10 using 59 PHA bins.
# Reduced chi-squared =         0.9667 for     57 degrees of freedom
# Null hypothesis probability =   5.465589e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.039e-07   2.972e-08
25- 50  1.924e-07   7.271e-08
50-150  3.788e-07   2.108e-07
15-150  6.751e-07   3.342e-07

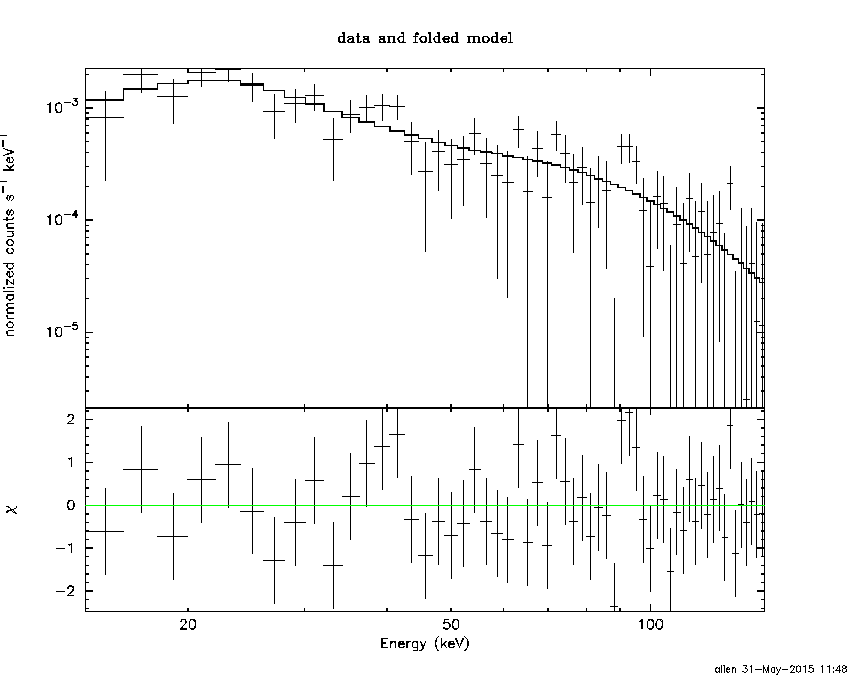

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.82321        (-1.44567      1.67729)
R1^2/D10^2  : 0.756965        (-0.422201      1.13785)
kT2 [keV]   : 31.1446        (-8.64353      20.5961)
R2^2/D10^2  : 3.14129E-03    (-0.00243931   0.00661495)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.69 using 59 PHA bins.
# Reduced chi-squared =         0.9216 for     55 degrees of freedom
# Null hypothesis probability =   6.399844e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.148e-07   4.881e-08
25- 50  1.940e-07   7.866e-08
50-150  3.989e-07   2.106e-07
15-150  7.077e-07   2.811e-07

Peak spectrum fit

Power-law model

Time interval is from   -1.392 sec. to   -0.392 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52957     ( -0.535815   0.524193 )
Norm@50keV  : 6.45949E-03    ( -0.0018598   0.00185338 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.51 using 59 PHA bins.
# Reduced chi-squared =          1.114 for     57 degrees of freedom
# Null hypothesis probability =   2.578939e-01

Photon flux (15-150 keV)    in 1 sec: 0.812978 ( -0.247042  0.251054 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.09932e-08 ( -1.84273e-08  1.87476e-08 ) ergs/cm2

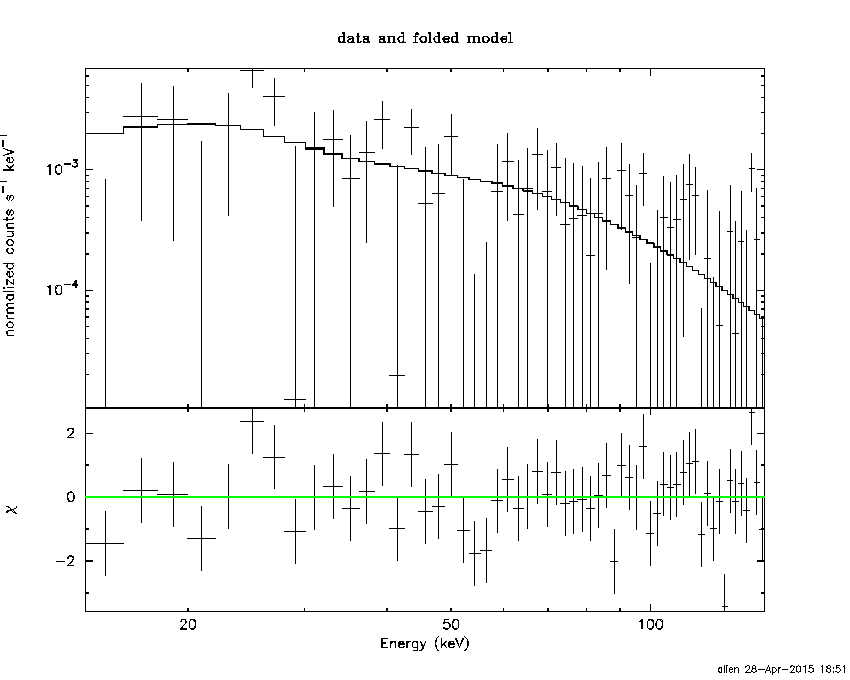

Cutoff power-law model

Time interval is from   -1.392 sec. to   -0.392 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.47528     ( -2.12662   0.962418 )
Epeak [keV] : 470.357      (   )
Norm@50keV  : 6.87296E-03    ( -0.0069543   0.106013 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.50 using 59 PHA bins.
# Reduced chi-squared =          1.134 for     56 degrees of freedom
# Null hypothesis probability =   2.291921e-01

Photon flux (15-150 keV)    in 1 sec: 0.807647 ( -0.254064  0.254753 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.03291e-08 ( -2.05061e-08  1.92746e-08 ) ergs/cm2

Band function

Time interval is from   -1.392 sec. to   -0.392 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.96101   ( -4.96101   -4.96101 )
beta        : -1.78821    ( -1.01807   0.647088 )
Epeak [keV] : 29.4692      ( -29.4692 67.2087 )
Norm@50keV   : 254.244    ( -71.1384   5.14161e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.13 using 59 PHA bins.
# Reduced chi-squared =          1.130 for     55 degrees of freedom
# Null hypothesis probability =   2.371941e-01

Photon flux (15-150 keV)    in 1 sec: 0.795684 ( 6.20432  -0.24058 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.9569  (-5.3767  10.5544)
R^2/D10^2   : 0.113141  (-0.109981   0.56322)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.48 using 59 PHA bins.
# Reduced chi-squared =          1.184 for     57 degrees of freedom
# Null hypothesis probability =   1.613290e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.657e-09   2.994e-09
25- 50  1.727e-08   1.045e-08
50-150  2.211e-08   1.484e-08
15-150  4.404e-08   2.756e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.362       (-199.363      -199.363)
Norm        : 3.32174       (-0.948443     1.40481)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.51 using 59 PHA bins.
# Reduced chi-squared =          1.114 for     57 degrees of freedom
# Null hypothesis probability =   2.578678e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.271e-09   5.000e-09
25- 50  1.591e-08   9.500e-09
50-150  3.490e-08   2.077e-08
15-150  5.908e-08   3.510e-08

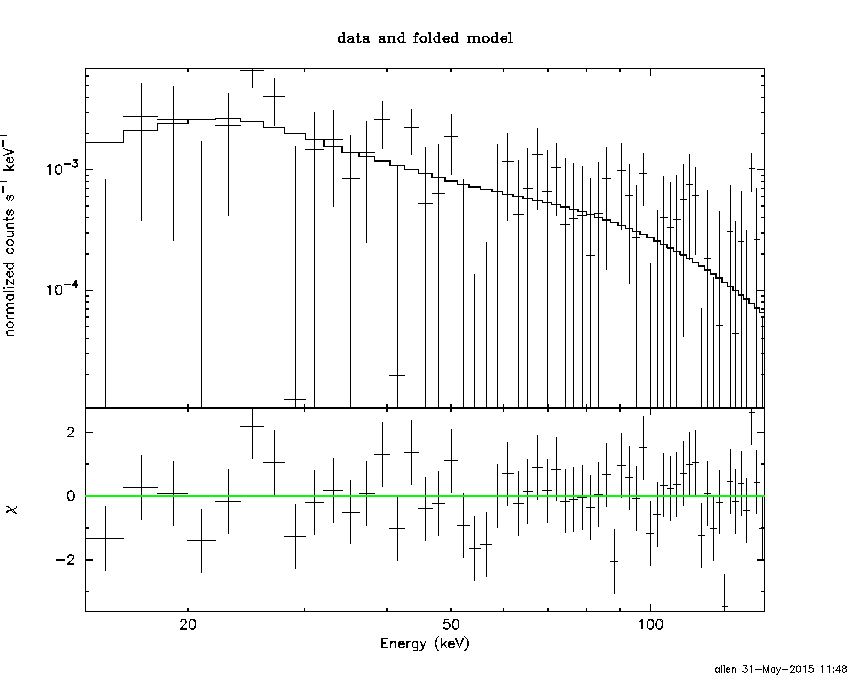

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.68664        (-2.9777      5.07464)
R1^2/D10^2  : 0.778278        (-0.655672      1.49023)
kT2 [keV]   : 38.3132        (-37.6995      -37.6999)
R2^2/D10^2  : 2.84206E-03    (-0.00293699   0.0260886)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.90 using 59 PHA bins.
# Reduced chi-squared =          1.125 for     55 degrees of freedom
# Null hypothesis probability =   2.433975e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.614e-09   5.720e-09
25- 50  1.688e-08   1.019e-08
50-150  3.686e-08   2.223e-08
15-150  6.235e-08   2.985e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.71732     ( -0.200371   0.203932 )
Norm@50keV  : 3.88920E-03    ( -0.000445151   0.000440874 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.53 using 59 PHA bins.
# Reduced chi-squared =         0.9392 for     57 degrees of freedom
# Null hypothesis probability =   6.059017e-01

Photon flux (15-150 keV)    in 19.22 sec: 0.519694 ( -0.0600174  0.0603772 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.91199e-07 ( -8.17382e-08  8.23235e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72408     ( -0.242347   0.200198 )
Epeak [keV] : 9999.36      ( -9999.35 -9999.36 )
Norm@50keV  : 3.87767E-03    ( -0.00260439   0.00394793 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.54 using 59 PHA bins.
# Reduced chi-squared =         0.9561 for     56 degrees of freedom
# Null hypothesis probability =   5.684396e-01

Photon flux (15-150 keV)    in 19.22 sec: 0.519382 ( -0.059937  0.059666 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.9054e-07 ( -8.0847e-08  8.22328e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.69363   ( -4.69363   -4.69363 )
beta        : -1.78672    ( -0.239713   0.222241 )
Epeak [keV] : 23.2834      ( -23.2834 5.45892 )
Norm@50keV   : 447.764    ( -48.7125   3.1142e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.57 using 59 PHA bins.
# Reduced chi-squared =         0.9558 for     55 degrees of freedom
# Null hypothesis probability =   5.679958e-01

Photon flux (15-150 keV)    in 19.22 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.88e-07
S(50-100 keV) = 2.29e-07

T90 vs. Hardness ratio plot

T90                                   = 17.6279999911785 sec.
Hardness ratio (energy fluence ratio) = 1.21809

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.25985
Count Ratio (50-100 keV) / (15-25 keV) = 0.893421

Mask shadow pattern

IMX = 1.011283800457363E+00, IMY = 2.380765705595664E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-168.371410 -2.348000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9780 -15.6428    0.2  29.6 -143.1   9.9860  52.5    0.2	Sco X-1
254.4707  35.3506   97.7  23.0   17.4   0.0180   0.1    0.8	Her X-1
256.0088 -37.8426    1.4  50.2 -163.6   3.2834   8.0    1.1	4U 1700-377
256.3285 -36.4811    9.7  48.9 -164.0   0.4343   1.2    6.2	GX 349+2
263.0421 -24.7693    3.8  38.0 -174.6   0.6654   3.0    2.3	GX 1+4
264.5963 -44.4263  239.8  57.5 -170.6   0.0407   0.0    6.4	4U 1735-44
268.3137  -1.4834    3.3  19.4  152.4   0.5264   3.5    3.7	SW J1753.5-0127
270.2148 -24.9427    5.7  40.3  175.7   0.4739   2.0    9.0	GX 5-1
270.3677 -25.5605    0.0  40.9  175.9   0.3691   1.5   11.5	GRS 1758-258
273.8879 -14.0225    4.7  32.6  161.3   0.5798   2.4    6.9	GX 17+2
275.8272 -30.3279    9.8  47.3  172.7  -0.4289  -1.2    5.6	H1820-303
284.9278 -24.9775    9.4  47.6  159.6  -0.5352  -1.2    6.8	HT1900.1-2455
288.8090  10.9474    1.6  33.5  106.6   2.2435   7.0    0.6	GRS 1915+105
262.9184 -33.8356    4.9  46.9 -171.6   0.6891   2.4    3.5	GX 354-0
203.6785  44.8367    2.4  54.0  -25.1   2.4525   4.9 ------	UNKNOWN
237.1724 -25.6136    2.0  41.6 -138.2   1.5270   5.7 ------	UNKNOWN
209.9666  35.3182    2.4  46.3  -34.7   1.6209   4.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-2.348000 16.868000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9934 -15.7845   11.5  29.7 -143.2  -0.0495  -1.0    8.7	Sco X-1
254.5496  35.2685   11.9  22.9   17.6   0.0456   1.0    6.3	Her X-1
255.9476 -37.7848    5.3  50.2 -163.6  -0.2214  -2.2    4.0	4U 1700-377
256.5231 -36.4780   18.9  48.9 -164.2  -0.0545  -0.6    5.4	GX 349+2
262.8524 -24.7023    3.6  37.9 -174.4  -0.1908  -3.2    8.9	GX 1+4
264.8087 -44.3786  184.6  57.5 -170.8  -0.0138  -0.1    5.1	4U 1735-44
268.3688  -1.4750    5.5  19.4  152.3   0.0970   2.1    1.3	SW J1753.5-0127
270.4100 -25.0594    5.8  40.5  175.5   0.1334   2.0    6.9	GX 5-1
270.3310 -25.7346    5.5  41.1  176.0  -0.1379  -2.1    1.6	GRS 1758-258
274.0084 -13.9798    5.7  32.6  161.1  -0.1192  -2.0    3.4	GX 17+2
275.8438 -30.3670    3.5  47.4  172.7   0.3297   3.3    4.2	H1820-303
285.0736 -25.0663    4.4  47.8  159.5  -0.3114  -2.6    9.0	HT1900.1-2455
288.9322  11.0291    6.9  33.6  106.4  -0.1422  -1.6    9.3	GRS 1915+105
263.0907 -33.9017    3.2  47.0 -171.8  -0.3073  -3.6    6.5	GX 354-0
220.3589  48.7292    0.9  46.1  -13.2   1.1020  13.5 ------	UNKNOWN
251.6240 -28.5932    2.2  41.1 -158.2   0.3272   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
116.028590 963.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6781  35.2778    0.0  28.5  156.9  -0.6623  -1.3   11.5	Her X-1
206.9047  24.6730    3.3  26.3  -99.9   1.9752   3.5 ------	UNKNOWN
147.7784  30.8455    4.8  56.3  -28.4   5.9593   2.4 ------	UNKNOWN
214.3744   4.2547    2.7  44.8 -119.9   7.8092   4.2 ------	UNKNOWN

Plot creation:
Sun May 31 11:49:31 EDT 2015
