batgrbproduct analysis for trigger=234905

batgrbproduct Analysis for Trigger=234905

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Sep 11 15:34:47 EDT 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger234905
======================================================================

  Trigger: 00234905      Segment: 000

  BAT Trigger Time: 183137949.184   [s; MET]
      Trigger Stop: 183137950.208   [s; MET]
               UTC: 2006-10-21T15:39:07.663300    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 145.134075795178   Dec: -21.9284421197878  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.12
     Image Trigger?:     NO
     Rate S/N Ratio:     19.313207915828  [ if not an image trigger ]
     Image S/N Ratio:    9.12

  Flight Position:   [ source = BAT ]
    RA: 145.134075795178   Dec: -21.9284421197878  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 145.148793923512   Dec: -21.9537581305796  [deg; J2000]
        { 09h 40m 35.7s , -21d 57' 13.5" }
         +/- 0.623033480857319 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.200341417891382 [arcmin] (formal 1-sigma fit error)
    SNR: 59.7961941635248

  Angular difference between Flight and Ground position is 1.725748 arcmin

  Partial Coding Fraction: 0.6484375    [ including projection effects ]

  Duration
     T90: 47.8200000226498 +/- 5.63259405640524
        Measured from: 1.57600000500679
                   to: 49.3960000276566     [s; relative to TRIGTIME]
     T50: 10.7639999985695 +/- 1.27006771456351
        Measured from: 3.15200001001358
                   to: 13.9160000085831     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 2.4360000193119
                   to: 3.4360000193119     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.00799998641014099
                   to: 64.9600000083447     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.074427   1.603145   1.415414   0.397512
           0.043679   0.046106   0.041201   0.034723 [error]
 Peak      0.159571   0.277796   0.247144   0.094189
           0.008468   0.010193   0.010130   0.008177 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.16e-07 6.64e-07 1.09e-06 4.06e-06 3.01e-06 6.13e-06   erg/cm2
              Error 2.14e-08 2.58e-08 4.16e-08 3.66e-07 1.04e-07 3.86e-07   erg/cm2
Peak flux Power-law 1.52e+00 1.91e+00 1.74e+00 2.76e+00 6.12e+00 7.94e+00   ph/cm2/s
              Error 1.30e-01 9.56e-02 8.37e-02 2.97e-01 2.59e-01 3.59e-01   ph/cm2/s

Fluence   Cutoff-PL 3.15e-07 6.66e-07 1.09e-06 3.75e-06 3.00e-06 5.82e-06   erg/cm2
              Error 2.29e-08 2.46e-08 3.16e-08 6.99e-07 1.13e-07 6.08e-07   erg/cm2
Peak flux Cutoff-PL 1.52e+00 1.91e+00 1.74e+00 2.74e+00 6.12e+00 7.91e+00   ph/cm2/s
              Error 1.27e-01 9.29e-02 8.34e-02 2.50e-01 2.57e-01 3.79e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.282    0.061    -      -           4.67e-03 1.50e-04   40.540 57
CPL   1.278    0.135    10000.0    0.0      4.69e-03 1.51e-04   40.560 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.134    0.078    -      -           5.26e-02 2.16e-03   68.950 57
CPL   1.129    0.079    10000.0    0.0      5.28e-02 2.17e-03   69.060 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 43.328000 sec.
T50 in the 50-300 keV band: 8.640000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   64.968   -0.008   64.960
T90    47.820    1.576   49.396
T50    10.764    3.152   13.916
Peak    1.000    2.436    3.436

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  145.1488   -21.9538   0.0032    25.2554   -62.4924         3.2401347     59.796 TRIG_00234905

Foreground time interval of the image:
 -0.008  10.517 (delta_t =  10.525 [sec])
Background time interval of the image:
-239.184  -0.008 (delta_t = 239.176 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

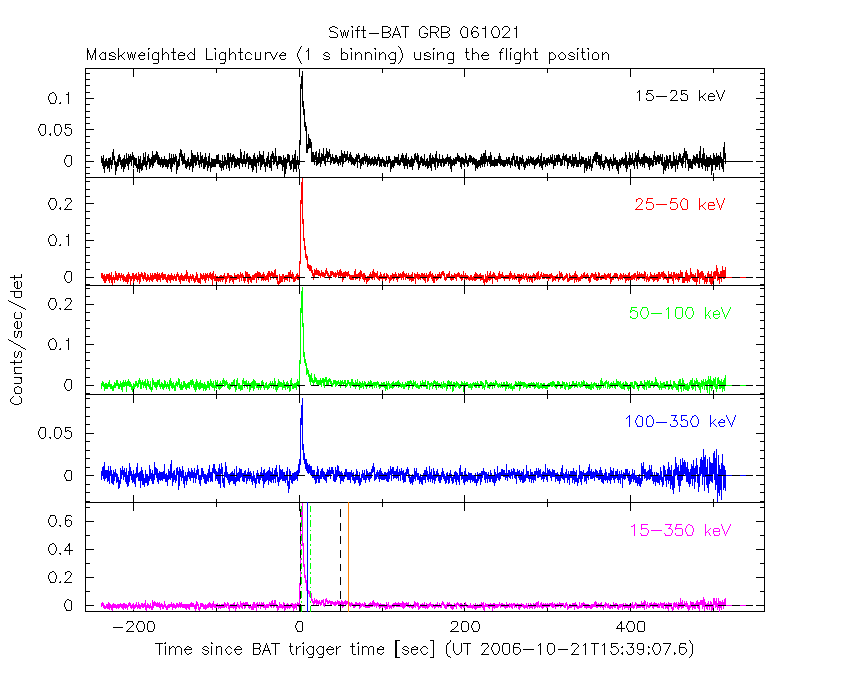

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

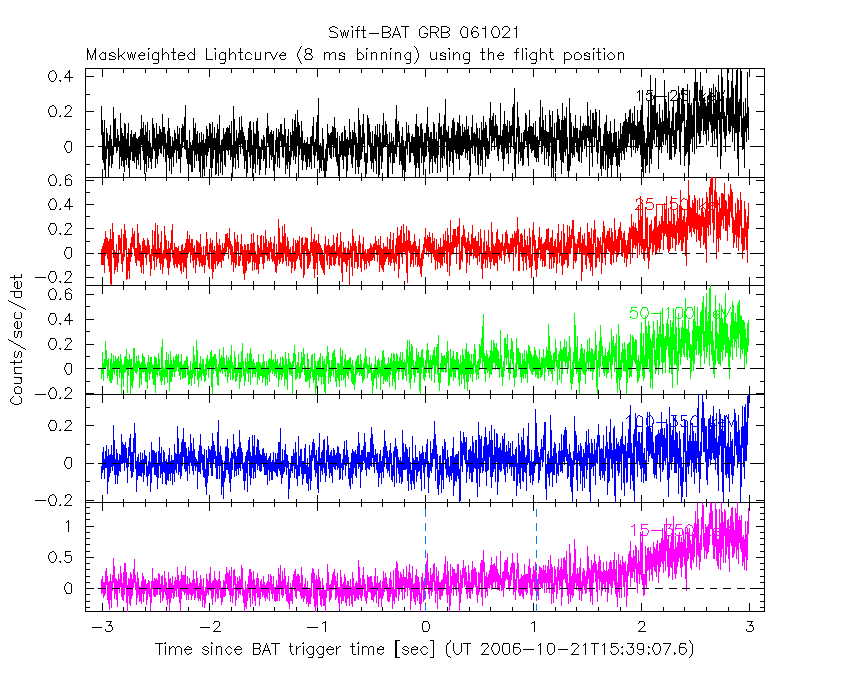

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

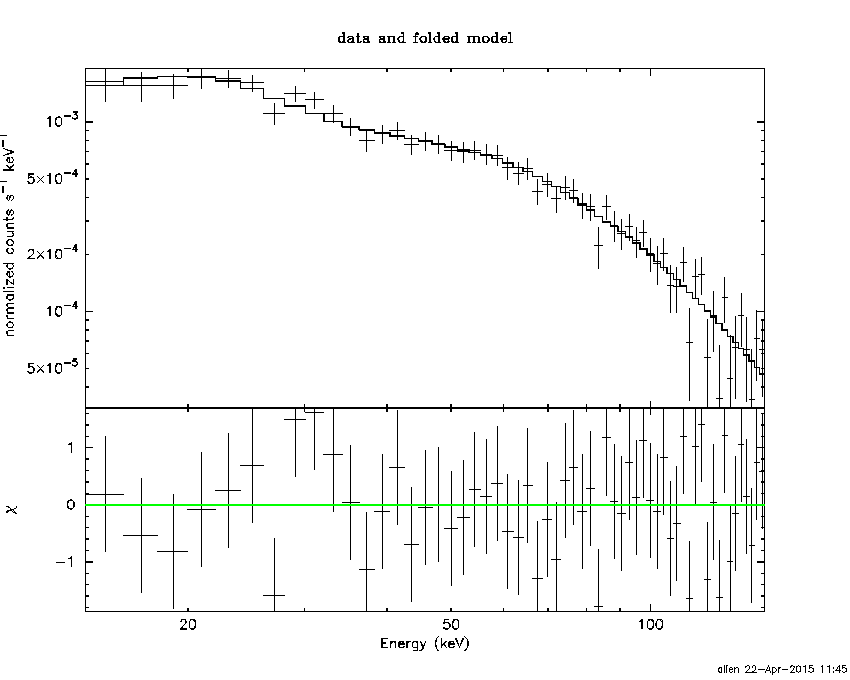

Power-law model

Time interval is from   -0.008 sec. to   64.960 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.28250     ( -0.0616236   0.0613626 )
Norm@50keV  : 4.67405E-03    ( -0.000150323   0.000150272 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.54 using 59 PHA bins.
# Reduced chi-squared =         0.7113 for     57 degrees of freedom
# Null hypothesis probability =   9.512246e-01

Photon flux (15-150 keV)    in 64.97 sec: 0.555869 ( -0.0192672  0.0193362 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.01386e-06 ( -1.04143e-07  1.04463e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.008 sec. to   64.960 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27847     ( -0.205453   0.0639197 )
Epeak [keV] : 1.00000E+04      (   )
Norm@50keV  : 4.69397E-03    ( -0.000150534   0.000150497 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.56 using 59 PHA bins.
# Reduced chi-squared =         0.7244 for     56 degrees of freedom
# Null hypothesis probability =   9.399984e-01

Photon flux (15-150 keV)    in 64.97 sec: 0.555897 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.00471e-06 ( -1.04615e-07  1.21747e-07 ) ergs/cm2

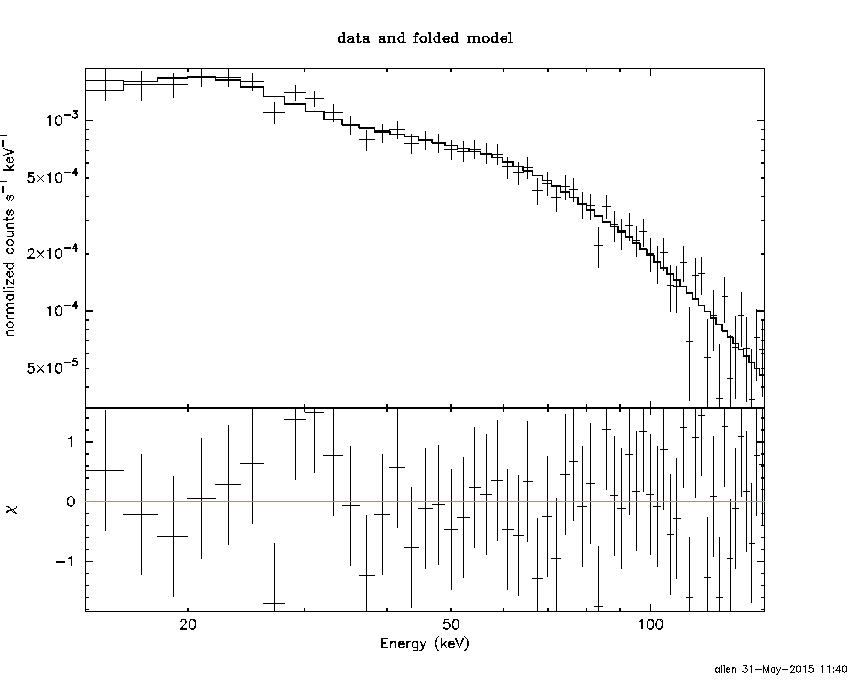

Band function

Time interval is from   -0.008 sec. to   64.960 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.762081   ( 0.835711   0.835711 )
beta        : -1.30160    ( -0.0857315   0.0745329 )
Epeak [keV] : 72.7665      ( -72.1681 509.158 )
Norm@50keV   : 1.03142E-02    ( -0.00597158   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.05 using 59 PHA bins.
# Reduced chi-squared =         0.7283 for     55 degrees of freedom
# Null hypothesis probability =   9.350223e-01

Photon flux (15-150 keV)    in 64.97 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

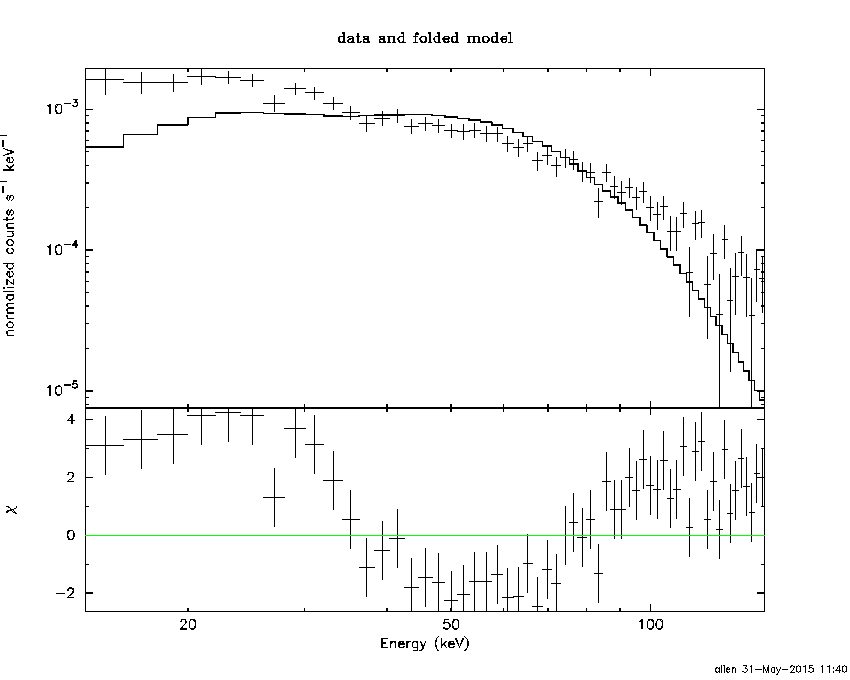

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 19.1471  (  )
R^2/D10^2   : 2.78556E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         259.08 using 59 PHA bins.
# Reduced chi-squared =         4.5453 for     57 degrees of freedom
# Null hypothesis probability =   1.501663e-27

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.301e-07   9.161e-09
25- 50  6.289e-07   3.037e-08
50-150  1.697e-06   9.063e-08
15-150  2.456e-06   1.098e-07

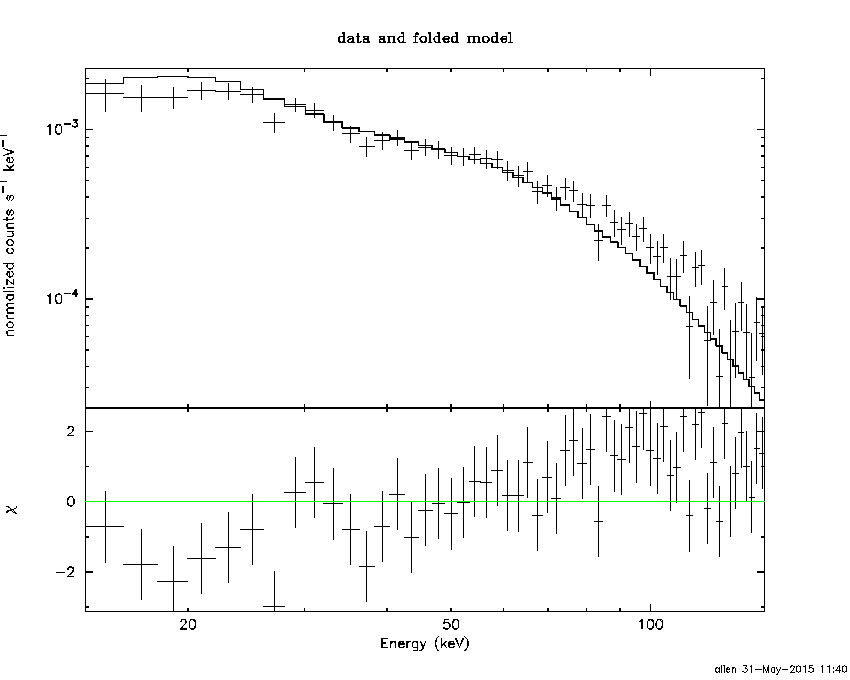

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 2.34197       (-0.0761053     0.0760662)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         106.76 using 59 PHA bins.
# Reduced chi-squared =         1.8730 for     57 degrees of freedom
# Null hypothesis probability =   7.249761e-05

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.790e-07   1.410e-08
25- 50  7.291e-07   2.631e-08
50-150  1.599e-06   5.295e-08
15-150  2.707e-06   9.453e-08

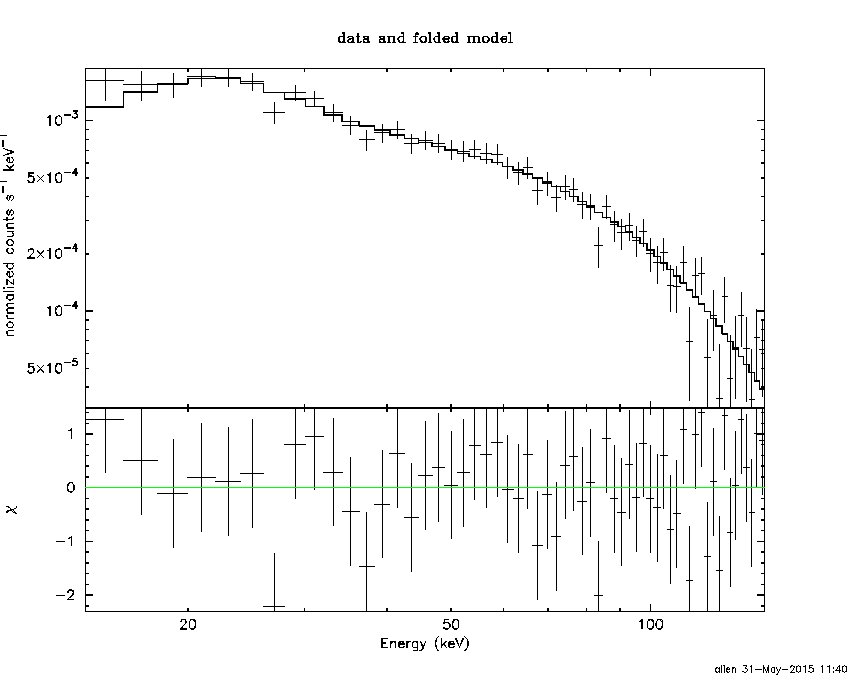

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.99743        (-0.899319      0.990041)
R1^2/D10^2  : 0.334534        (-0.104799      0.165886)
kT2 [keV]   : 34.4956        (-4.19371      6.09137)
R2^2/D10^2  : 3.44013E-03    (-0.00135261   0.00180183)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.43 using 59 PHA bins.
# Reduced chi-squared =         0.7533 for     55 degrees of freedom
# Null hypothesis probability =   9.120377e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.894e-07   3.343e-08
25- 50  6.870e-07   5.139e-08
50-150  2.059e-06   2.560e-07
15-150  3.035e-06   2.729e-07

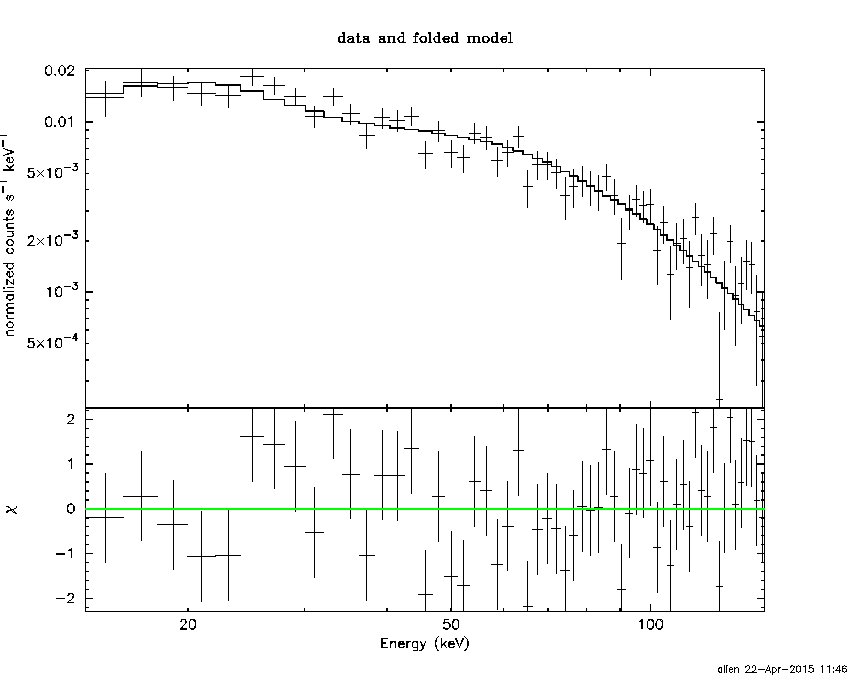

Peak spectrum fit

Power-law model

Time interval is from    2.436 sec. to    3.436 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.13396     ( -0.0777252   0.0773161 )
Norm@50keV  : 5.25598E-02    ( -0.00216087   0.00216066 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.95 using 59 PHA bins.
# Reduced chi-squared =          1.210 for     57 degrees of freedom
# Null hypothesis probability =   1.332620e-01

Photon flux (15-150 keV)    in 1 sec: 6.11820 ( -0.258571  0.258988 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.43717e-07 ( -2.53849e-08  2.54772e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    2.436 sec. to    3.436 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.12936     ( -0.084169   0.0736371 )
Epeak [keV] : 1.00000E+04      (   )
Norm@50keV  : 5.28306E-02    ( -0.00217071   0.00217067 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.06 using 59 PHA bins.
# Reduced chi-squared =          1.233 for     56 degrees of freedom
# Null hypothesis probability =   1.128818e-01

Photon flux (15-150 keV)    in 1 sec: 6.11709 ( -0.25714  0.25766 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.4251e-07 ( -2.4238e-08  2.6926e-08 ) ergs/cm2

Band function

Time interval is from    2.436 sec. to    3.436 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.438624   ( 0.75685   0.75685 )
beta        : -1.15735    ( -0.112776   0.0879181 )
Epeak [keV] : 65.2490      ( -64.4069 257.938 )
Norm@50keV   : 0.156738    ( -0.160288   2.60952e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.51 using 59 PHA bins.
# Reduced chi-squared =          1.246 for     55 degrees of freedom
# Null hypothesis probability =   1.041460e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

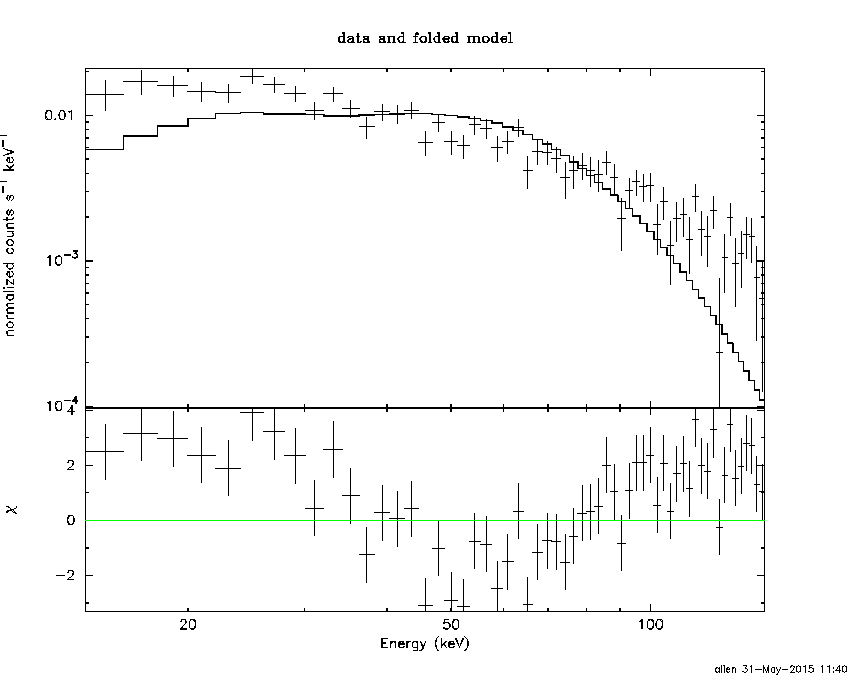

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 19.6072  (  )
R^2/D10^2   : 0.294936  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         233.65 using 59 PHA bins.
# Reduced chi-squared =         4.0992 for     57 degrees of freedom
# Null hypothesis probability =   2.996282e-23

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.203e-08   1.915e-09
25- 50  1.083e-07   6.350e-09
50-150  3.077e-07   2.510e-08
15-150  4.380e-07   2.195e-08

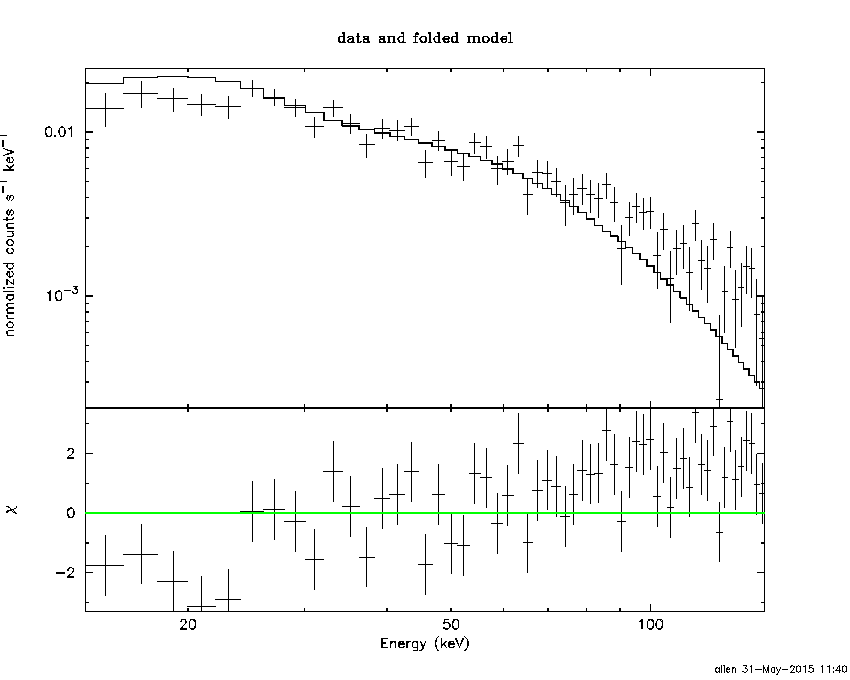

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 25.0878       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         154.65 using 59 PHA bins.
# Reduced chi-squared =         2.7131 for     57 degrees of freedom
# Null hypothesis probability =   5.959242e-11

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.247e-08   2.910e-09
25- 50  1.202e-07   5.950e-09
50-150  2.636e-07   1.165e-08
15-150  4.462e-07   2.130e-08

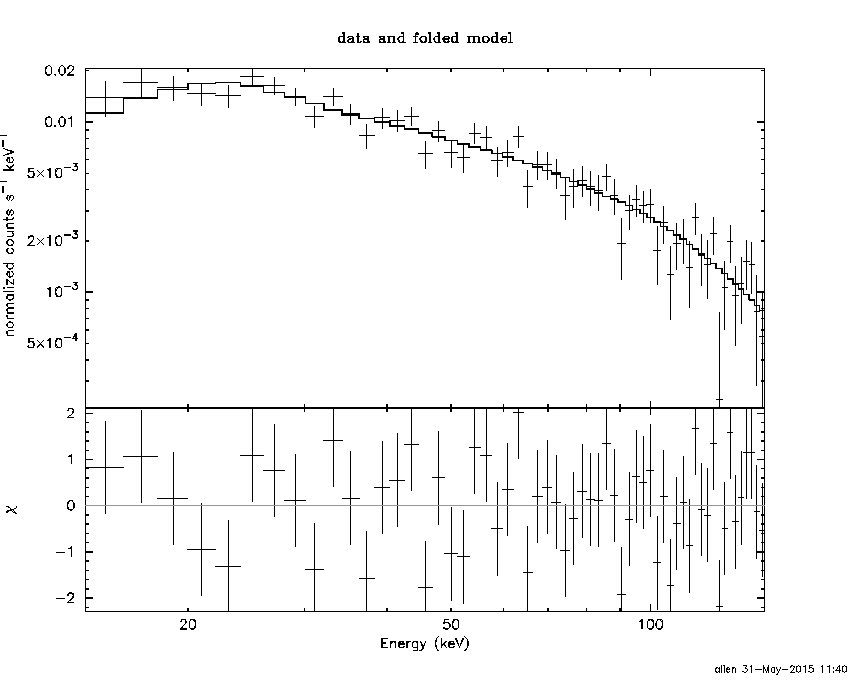

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.20589        (-1.08492      1.18502)
R1^2/D10^2  : 2.42847        (-0.742905      1.15582)
kT2 [keV]   : 52.7428        (-11.8289      25.9353)
R2^2/D10^2  : 1.32664E-02    (-0.00787433   0.0127313)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.08 using 59 PHA bins.
# Reduced chi-squared =          1.074 for     55 degrees of freedom
# Null hypothesis probability =   3.287432e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.439e-08   6.090e-09
25- 50  1.175e-07   1.324e-08
50-150  3.997e-07   1.022e-07
15-150  5.615e-07   1.280e-07

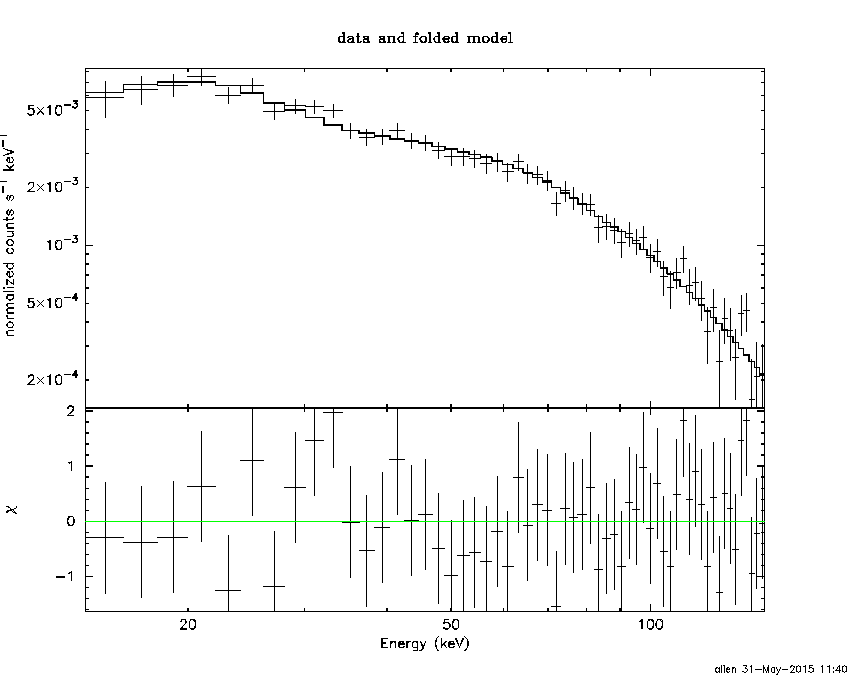

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.23261     ( -0.0519733   0.0517895 )
Norm@50keV  : 2.00728E-02    ( -0.000543703   0.000543301 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.94 using 59 PHA bins.
# Reduced chi-squared =         0.6657 for     57 degrees of freedom
# Null hypothesis probability =   9.755940e-01

Photon flux (15-150 keV)    in 10.52 sec: 2.36752 ( -0.0689731  0.0692009 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.12316e-06 ( -6.13436e-08  6.14926e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.22791     ( -0.0520599   0.0524207 )
Epeak [keV] : 9997.82      ( -9998.43 -9998.43 )
Norm@50keV  : 2.01635E-02    ( -0.000541845   0.00257995 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.01 using 59 PHA bins.
# Reduced chi-squared =         0.6787 for     56 degrees of freedom
# Null hypothesis probability =   9.686809e-01

Photon flux (15-150 keV)    in 10.52 sec: 2.36641 ( -0.06894  0.06909 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.12325e-06 ( -6.09844e-08  6.03743e-08 ) ergs/cm2

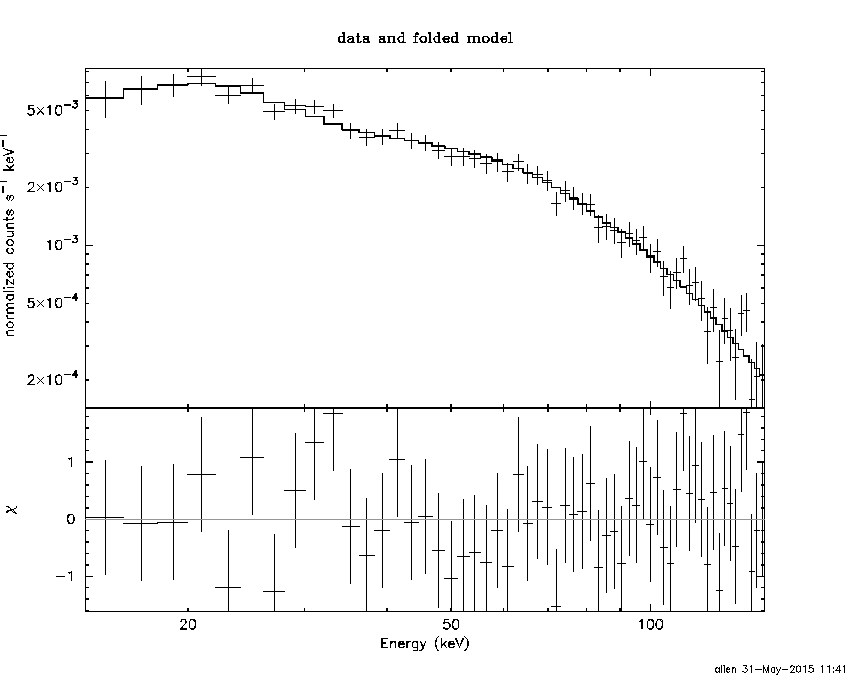

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.812390   ( 0.810375   0.810375 )
beta        : -1.24807    ( -0.0705289   0.0629228 )
Epeak [keV] : 88.9960      ( -87.7435 317.162 )
Norm@50keV   : 3.75744E-02    ( -0.0172811   1.22176e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.50 using 59 PHA bins.
# Reduced chi-squared =         0.6818 for     55 degrees of freedom
# Null hypothesis probability =   9.657994e-01

Photon flux (15-150 keV)    in 10.52 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.64e-07
S(50-100 keV) = 1.09e-06

T90 vs. Hardness ratio plot

T90                                   = 47.8200000226498 sec.
Hardness ratio (energy fluence ratio) = 1.64157

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.49209
Count Ratio (50-100 keV) / (15-25 keV) = 1.31737

Mask shadow pattern

IMX = 2.178837436603384E-01, IMY = 4.184145176900618E-01

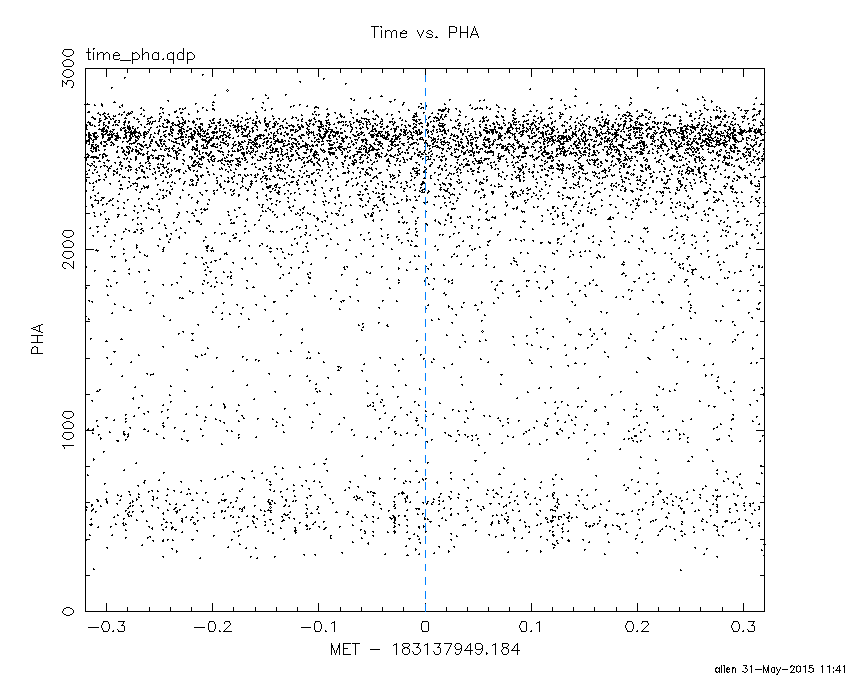

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

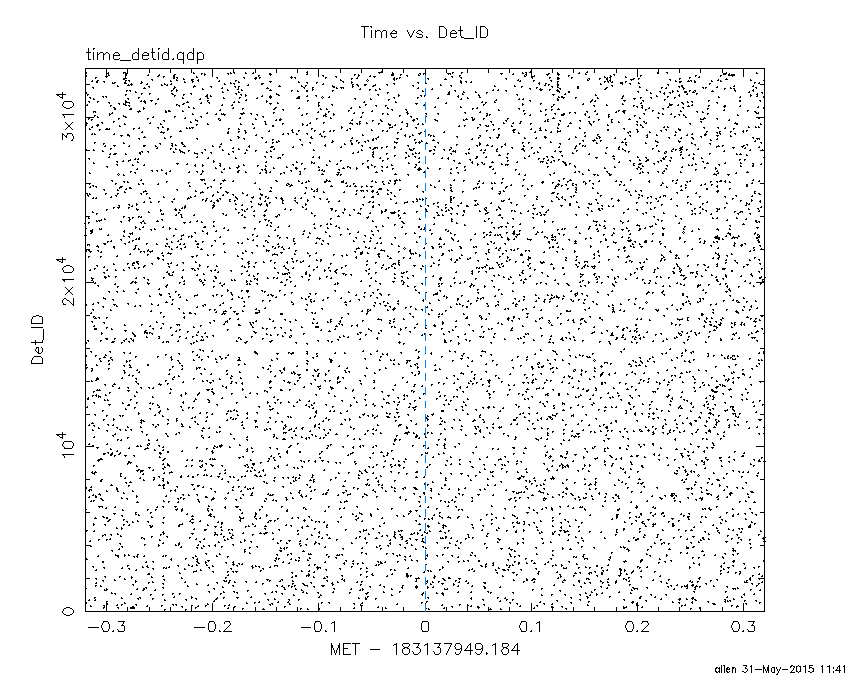

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

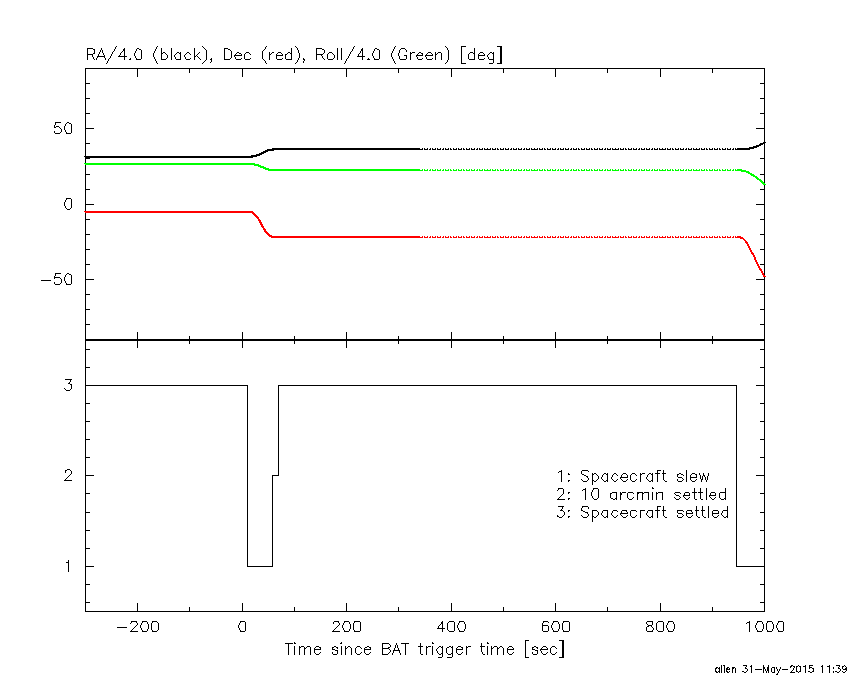

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.184000 -0.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5473 -40.5872    2.0  36.7  -28.9   1.2856   5.7    2.1	Vela X-1
105.0356  38.0284    2.4  47.1  141.0   3.0331   4.8 ------	UNKNOWN
131.2591  30.1155    2.8  35.5  171.5   0.9342   4.1 ------	UNKNOWN
127.2232  -8.3913    2.2   3.7  -38.3   0.7700   5.2 ------	UNKNOWN
131.8146 -49.9963    2.6  45.3  -21.9   1.2771   4.4 ------	UNKNOWN
126.5022 -57.7968    3.0  52.8  -17.0   1.6571   3.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.008000 10.516600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5160 -40.5553   69.1  36.6  -28.9   0.0103   0.2    0.6	Vela X-1
 87.1007   4.4126    2.9  39.8   86.4   0.5699   4.0 ------	UNKNOWN
110.5557  25.1555    2.9  33.6  137.9   0.2683   4.0 ------	UNKNOWN
148.6634  31.9211    2.6  42.8 -167.6   0.2751   4.4 ------	UNKNOWN
145.1488 -21.9538    0.2  25.3  -62.5   3.2402  59.8 ------	UNKNOWN
164.7017 -20.5178    2.2  40.8  -80.6   0.8808   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
58.916600 542.916000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5425 -40.5077    2.5  20.3   21.7   4.2401   4.6    2.9	Vela X-1
170.4896 -60.4762    6.2  42.4  -17.9   2.6432   1.9   10.2	Cen X-3
186.6266 -62.7617    1.1  49.4  -23.2  19.1577  10.3    1.0	GX 301-2
114.0665  -9.9792    2.5  32.1  107.2   7.9698   4.7 ------	UNKNOWN
103.2579 -69.9906    3.0  54.0   16.7  18.3723   3.9 ------	UNKNOWN
146.9080  29.4270    2.8  51.4 -177.7   9.7350   4.2 ------	UNKNOWN
173.9144 -63.0864    2.9  45.5  -17.5   6.3786   4.0 ------	UNKNOWN
161.2866   1.1403    2.7  28.0 -143.3   4.0455   4.3 ------	UNKNOWN

Plot creation:
Sun May 31 11:41:53 EDT 2015
