batgrbproduct analysis for trigger=235715

batgrbproduct Analysis for Trigger=235715

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 12:19:20 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger235715
======================================================================

  Trigger: 00235715      Segment: 000

  BAT Trigger Time: 183691584   [s; MET]
      Trigger Stop: 183691712   [s; MET]
               UTC: 2006-10-28T01:26:22.466000    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 97.2117735881431   Dec: 46.2699444035206  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.1
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.1

  Flight Position:   [ source = BAT ]
    RA: 97.2117735881431   Dec: 46.2699444035206  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 97.1872250788109   Dec: 46.2897368338446  [deg; J2000]
        { 06h 28m 44.9s , +46d 17' 23.1" }
         +/- 2.51095129091513 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.33099245056577 [arcmin] (formal 1-sigma fit error)
    SNR: 8.16433517246874

  Angular difference between Flight and Ground position is 1.564146 arcmin

  Partial Coding Fraction: 0.3554688    [ including projection effects ]

  Duration
     T90: 105.812000006437 +/- 36.9372000045884
        Measured from: 57.0200000107288
                   to: 162.832000017166     [s; relative to TRIGTIME]
     T50: 42.0320000052452 +/- 17.5047662030556
        Measured from: 79.8240000009537
                   to: 121.856000006199     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 79.9359999895096
                   to: 80.9359999895096     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 46.7879999876022
                   to: 166.143999993801     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.533122   0.547030   0.439639   0.144819
           0.081833   0.084725   0.074169   0.065460 [error]
 Peak      0.012696   0.033029   0.021660   0.018205
           0.008018   0.008280   0.007057   0.006267 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.55e-07 2.56e-07 3.20e-07 7.97e-07 9.54e-07 1.53e-06   erg/cm2
              Error 3.77e-08 3.86e-08 7.48e-08 3.97e-07 1.73e-07 4.62e-07   erg/cm2
Peak flux Power-law 1.48e-01 1.94e-01 1.88e-01 3.22e-01 6.36e-01 8.52e-01   ph/cm2/s
              Error 9.40e-02 7.52e-02 5.51e-02 2.30e-01 1.92e-01 2.49e-01   ph/cm2/s

Fluence   Cutoff-PL 1.56e-07 2.56e-07 3.19e-07 7.83e-07 9.52e-07 1.51e-06   erg/cm2
              Error 3.77e-08 3.84e-08 7.47e-08 6.25e-07 1.73e-07 6.96e-07   erg/cm2
Peak flux Cutoff-PL 1.54e-01 1.98e-01 1.86e-01 3.09e-01 6.41e-01 8.44e-01   ph/cm2/s
              Error 9.42e-02 7.69e-02 5.58e-02 3.04e-01 1.92e-01 2.84e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.676    0.290    -      -           8.62e-04 1.46e-04   51.240 57
CPL   2.018    0.000       7.5    0.0      5.68e-04 0.00e+00   50.940 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.052    0.559    -      -           5.51e-03 1.61e-03   58.540 57
CPL   1.064    0.612    9999.4    0.0      5.55e-03 1.21e-02   58.550 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  119.356   46.788  166.144
T90   105.812   57.020  162.832
T50    42.032   79.824  121.856
Peak    1.000   79.936   80.936

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   97.1872    46.2897   0.0237    30.1905   101.2201         1.2901305      8.164 TRIG_00235715

Foreground time interval of the image:
 46.788 136.101 (delta_t =  89.313 [sec])
Background time interval of the image:
-239.000  46.788 (delta_t = 285.788 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

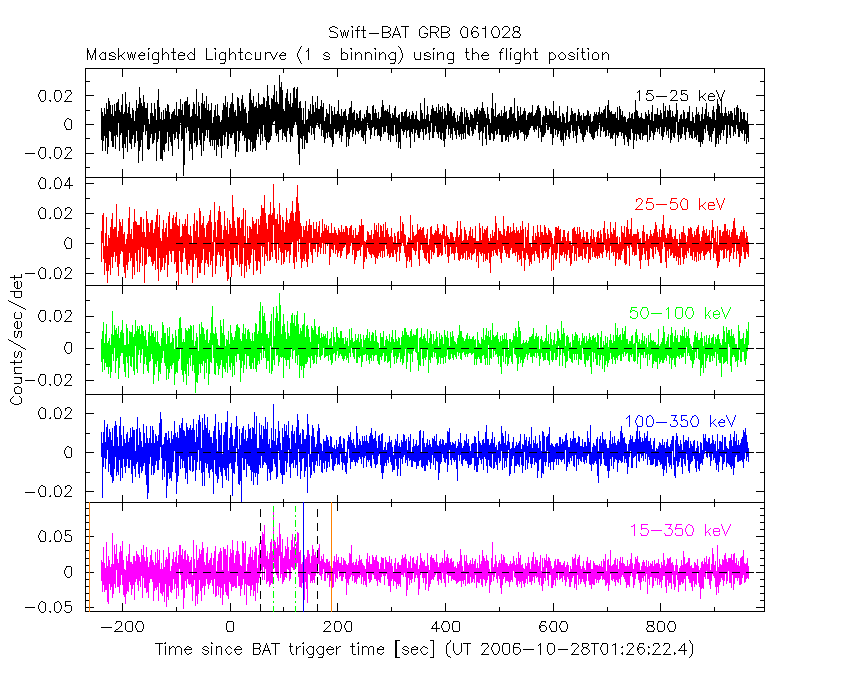

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 128.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 128.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 128.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

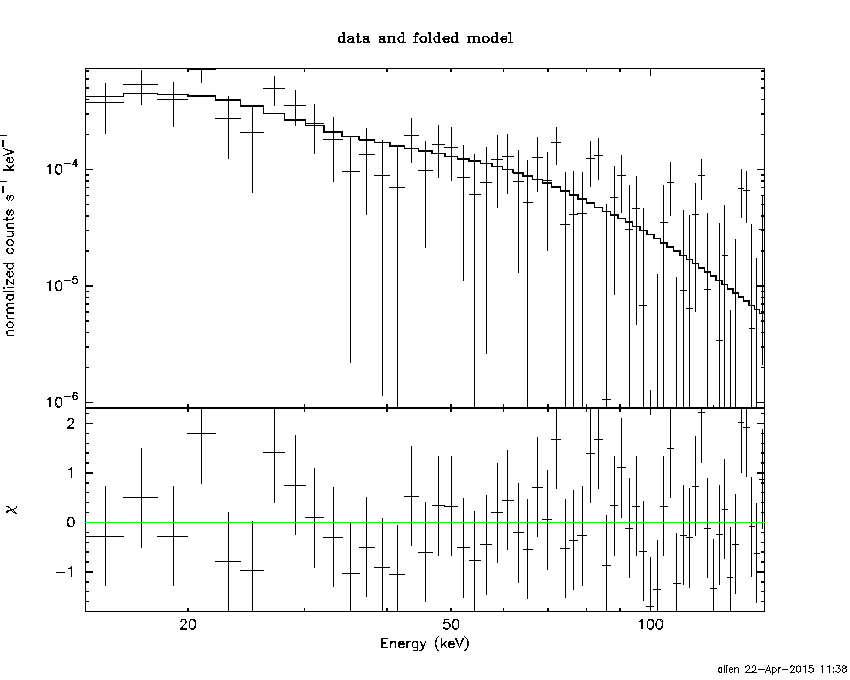

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   46.788 sec. to  166.144 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67597     ( -0.284205   0.296507 )
Norm@50keV  : 8.61542E-04    ( -0.000148017   0.000143067 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.24 using 59 PHA bins.
# Reduced chi-squared =         0.8989 for     57 degrees of freedom
# Null hypothesis probability =   6.899886e-01

Photon flux (15-150 keV)    in 119.4 sec: 0.113477 ( -0.0171255  0.0171434 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.54363e-07 ( -1.71138e-07  1.7478e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   46.788 sec. to  166.144 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.01807     (     )
Epeak [keV] : 7.53841      (   )
Norm@50keV  : 5.67779E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.94 using 59 PHA bins.
# Reduced chi-squared =         0.9097 for     56 degrees of freedom
# Null hypothesis probability =   6.662768e-01

Photon flux (15-150 keV)    in 119.4 sec: 0.113644 ( -0.017299  0.016998 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.52449e-07 ( -1.69303e-07  1.76732e-07 ) ergs/cm2

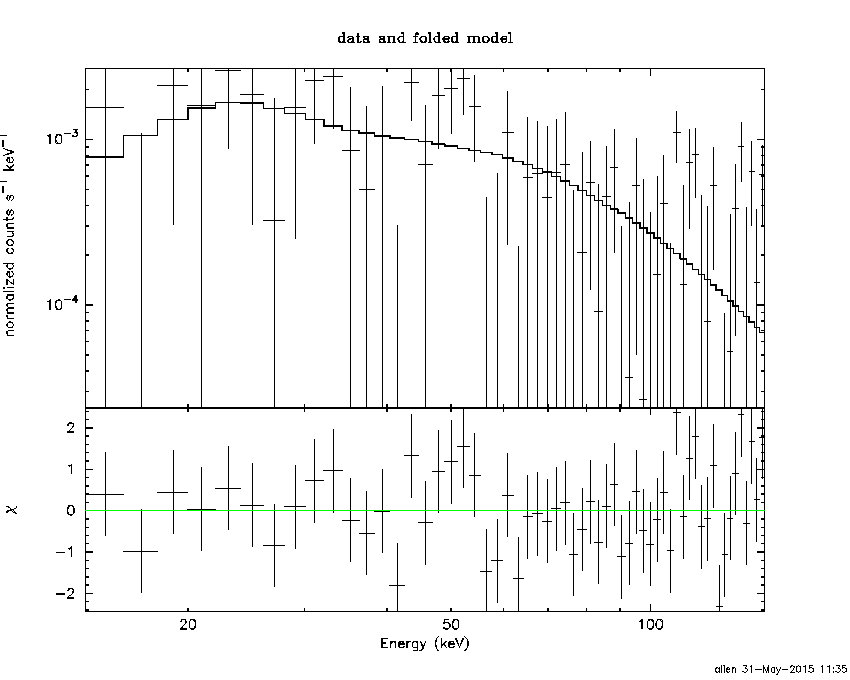

Band function

Time interval is from   46.788 sec. to  166.144 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.35132   ( 1.35132   1.35132 )
beta        : -1.67594    ( 1.67595   0.284348 )
Epeak [keV] : 21.0250      ( -21.034 9978.96 )
Norm@50keV   : 1.97696E-03    ( -0.00124445   1.28222 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.24 using 59 PHA bins.
# Reduced chi-squared =         0.9316 for     55 degrees of freedom
# Null hypothesis probability =   6.190847e-01

Photon flux (15-150 keV)    in 119.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

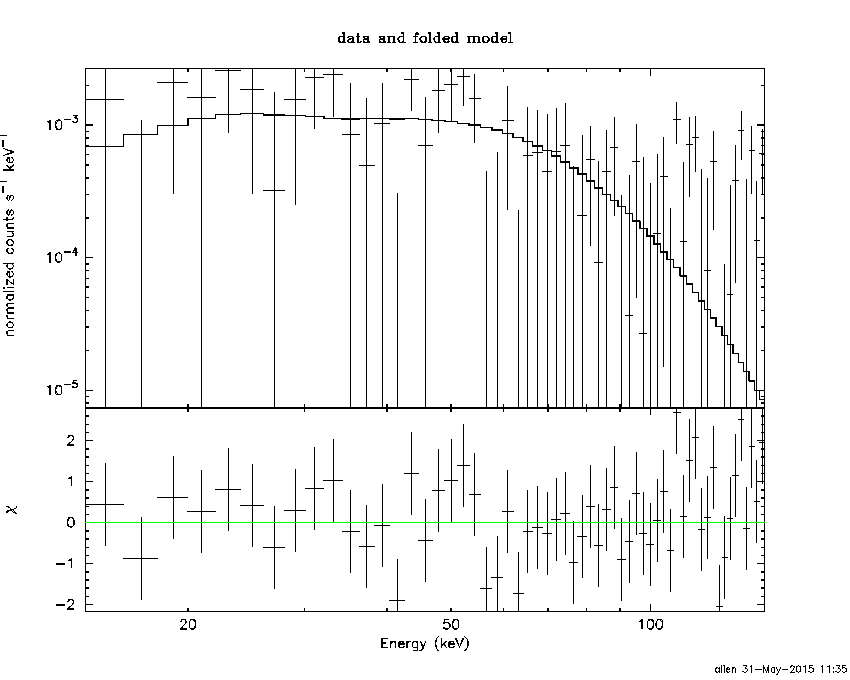

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.0261  (-3.28538  4.27164)
R^2/D10^2   : 1.94648E-02  (-0.019116   0.0358173)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.52 using 59 PHA bins.
# Reduced chi-squared =          1.272 for     57 degrees of freedom
# Null hypothesis probability =   8.064830e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.363e-08   2.799e-08
25- 50  2.887e-07   8.579e-08
50-150  3.100e-07   1.152e-07
15-150  6.823e-07   1.737e-07

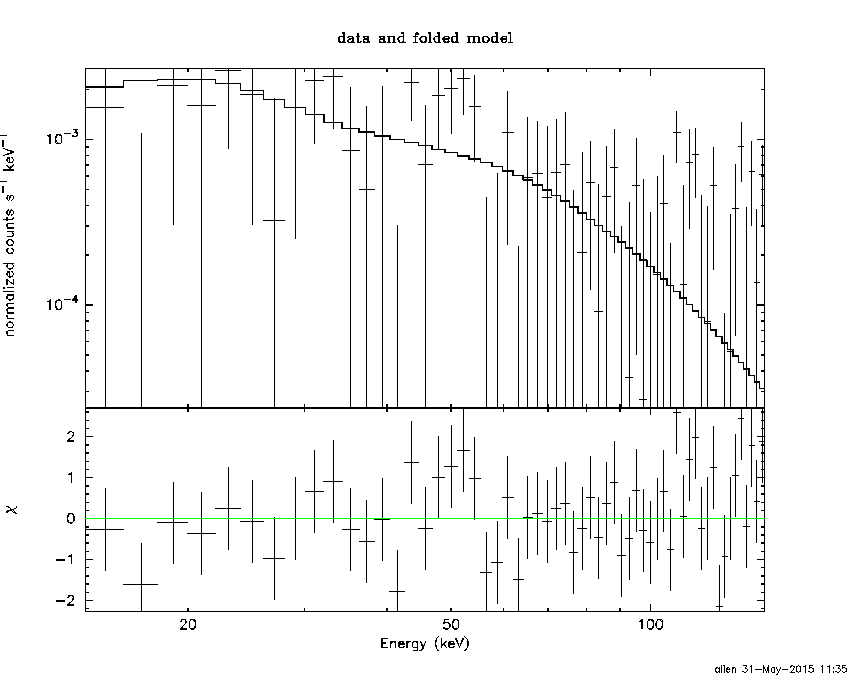

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 159.797       (-82.2566      -159.477)
Norm        : 0.462267       (-0.0748842     0.101651)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.84 using 59 PHA bins.
# Reduced chi-squared =         0.9271 for     57 degrees of freedom
# Null hypothesis probability =   6.317043e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.410e-07   7.797e-08
25- 50  2.636e-07   1.429e-07
50-150  5.338e-07   3.146e-07
15-150  9.384e-07   5.233e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.24773        (-1.45432      1.92785)
R1^2/D10^2  : 0.441251        (-0.31151      1.35499)
kT2 [keV]   : 27.0992        (-8.20732      21.3396)
R2^2/D10^2  : 1.27884E-03    (-0.00104658   0.00310329)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.30 using 59 PHA bins.
# Reduced chi-squared =         0.8963 for     55 degrees of freedom
# Null hypothesis probability =   6.913545e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.735e-07   9.496e-08
25- 50  2.237e-07   1.020e-07
50-150  5.951e-07   3.372e-07
15-150  9.923e-07   5.261e-07

Peak spectrum fit

Power-law model

Time interval is from   79.936 sec. to   80.936 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.05182     ( -0.610531   0.506503 )
Norm@50keV  : 5.50991E-03    ( -0.00164979   0.00157137 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.54 using 59 PHA bins.
# Reduced chi-squared =          1.027 for     57 degrees of freedom
# Null hypothesis probability =   4.185925e-01

Photon flux (15-150 keV)    in 1 sec: 0.636473 ( -0.191159  0.192801 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.85235e-08 ( -1.69433e-08  1.70828e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   79.936 sec. to   80.936 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.06370     ( -0.728833   0.494481 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 5.55462E-03    ( -0.0016606   0.0225649 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.55 using 59 PHA bins.
# Reduced chi-squared =          1.046 for     56 degrees of freedom
# Null hypothesis probability =   3.818875e-01

Photon flux (15-150 keV)    in 1 sec: 0.641202 ( -0.194785  0.188237 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.85792e-08 ( -1.69983e-08  1.66294e-08 ) ergs/cm2

Band function

Time interval is from   79.936 sec. to   80.936 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.85875   ( -4.85875   -4.85875 )
beta        : -1.21228    ( -0.91738   0.705525 )
Epeak [keV] : 32.6805      ( -32.6805 43.702 )
Norm@50keV   : 70.3057    ( -19.2916   2.23909e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.23 using 59 PHA bins.
# Reduced chi-squared =          1.059 for     55 degrees of freedom
# Null hypothesis probability =   3.573399e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.0608  (-5.95545  18.5959)
R^2/D10^2   : 4.09726E-02  (-0.0405671   0.119836)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.19 using 59 PHA bins.
# Reduced chi-squared =          1.109 for     57 degrees of freedom
# Null hypothesis probability =   2.669734e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.673e-09   1.690e-09
25- 50  1.239e-08   7.456e-09
50-150  2.937e-08   1.806e-08
15-150  4.444e-08   2.716e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-93.2143      -199.363)
Norm        : 2.71507       (-0.781147     0.781191)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.48 using 59 PHA bins.
# Reduced chi-squared =          1.079 for     57 degrees of freedom
# Null hypothesis probability =   3.187116e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.761e-09   4.118e-09
25- 50  1.300e-08   8.135e-09
50-150  2.852e-08   1.711e-08
15-150  4.829e-08   2.968e-08

Double BB

R1^2/D10^2  : 0.186939        (      )
kT2 [keV]   : 200.000        (      )
R2^2/D10^2  : 1.36985E-04    (-6.25993e-05   0.000807153)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.73 using 59 PHA bins.
#Fit statistic : Chi-Squared =          55.21 using 59 PHA bins.
#Fit statistic : Chi-Squared =          55.09 using 59 PHA bins.
# Reduced chi-squared =          1.013 for     55 degrees of freedom
# Reduced chi-squared =          1.004 for     55 degrees of freedom
# Reduced chi-squared =          1.002 for     55 degrees of freedom
# Null hypothesis probability =   4.471262e-01
# Null hypothesis probability =   4.665990e-01
# Null hypothesis probability =   4.713213e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.502e-09   2.916e-09
25- 50  1.322e-08   7.475e-09
50-150  4.408e-08   2.742e-08
15-150  6.180e-08   2.901e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67108     ( -0.286375   0.299315 )
Norm@50keV  : 1.00799E-03    ( -0.000176506   0.000171053 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.44 using 59 PHA bins.
# Reduced chi-squared =         0.7446 for     57 degrees of freedom
# Null hypothesis probability =   9.245982e-01

Photon flux (15-150 keV)    in 89.31 sec: 0.132548 ( -0.020595  0.0206215 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.35553e-07 ( -1.5282e-07  1.56053e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67559     ( -0.822603   0.295499 )
Epeak [keV] : 9999.18      ( -9999.32 -9999.33 )
Norm@50keV  : 1.00816E-03    ( -0.000176288   0.00164797 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.45 using 59 PHA bins.
# Reduced chi-squared =         0.7580 for     56 degrees of freedom
# Null hypothesis probability =   9.094258e-01

Photon flux (15-150 keV)    in 89.31 sec: 0.132658 ( -0.020774  0.020486 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.30654e-07 ( -1.53936e-07  1.58454e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.40733   ( 1.40733   1.40733 )
beta        : -1.67109    ( 1.67109   0.286381 )
Epeak [keV] : 12.9075      ( -12.9125 -12.9125 )
Norm@50keV   : 2.32202E-03    ( -0.00147969   0.0116826 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.44 using 59 PHA bins.
# Reduced chi-squared =         0.7717 for     55 degrees of freedom
# Null hypothesis probability =   8.921419e-01

Photon flux (15-150 keV)    in 89.31 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.56e-07
S(50-100 keV) = 3.20e-07

T90 vs. Hardness ratio plot

T90                                   = 105.812000006437 sec.
Hardness ratio (energy fluence ratio) = 1.25

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.02609
Count Ratio (50-100 keV) / (15-25 keV) = 0.82465

Mask shadow pattern

IMX = -1.132042114696700E-01, IMY = -5.706716966819677E-01

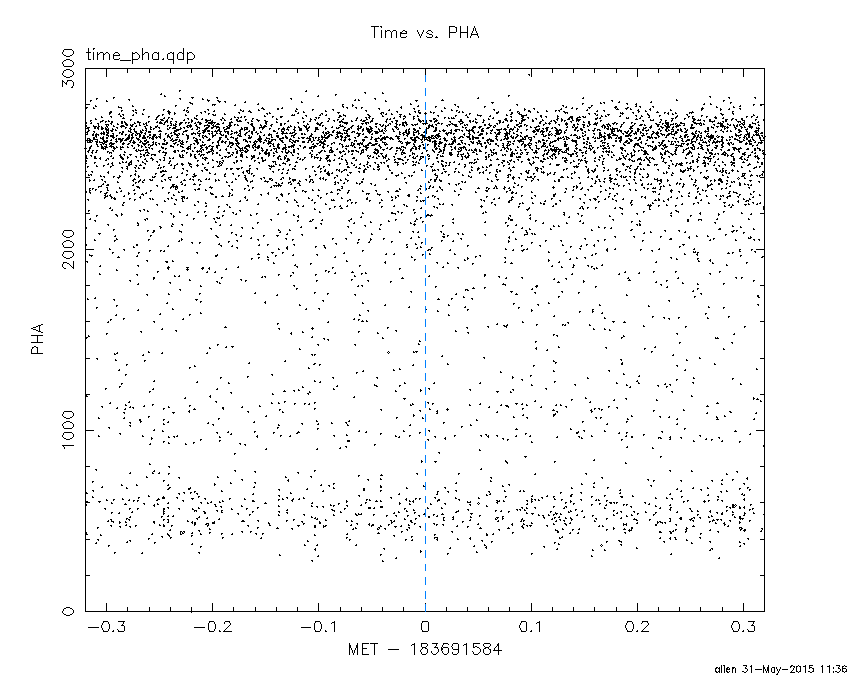

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 128.000000

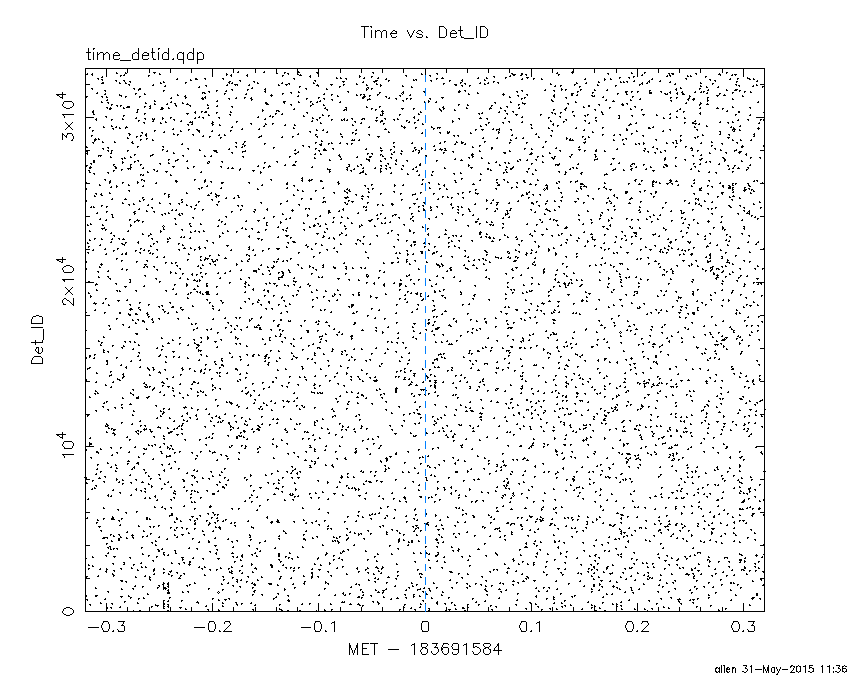

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 128.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 128.000000

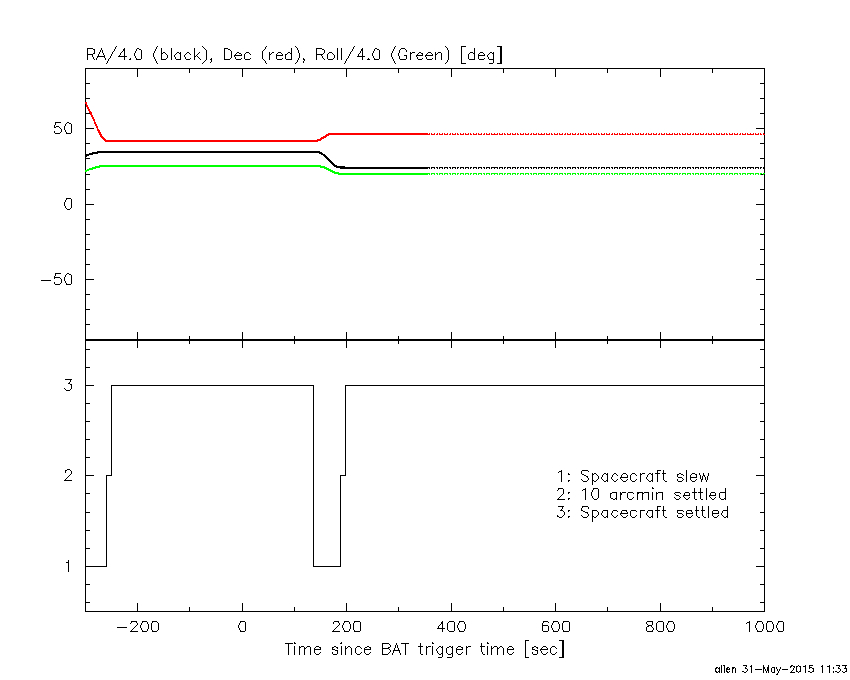

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 46.788000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 60.8739  81.0208    3.1  46.9  156.2   1.9265   3.7 ------	UNKNOWN
143.0461  39.0349    2.5   4.0  -57.8   0.7440   4.5 ------	UNKNOWN
151.2284  49.8128    3.2  11.5 -149.4   0.5883   3.6 ------	UNKNOWN
164.2009  -3.4208    3.2  50.7  -44.6   3.7120   3.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
46.788000 136.100590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
100.1911  12.9040    2.4  44.6   49.5   1.8484   4.7 ------	UNKNOWN
 73.4956  68.0501    2.2  42.8  138.2   1.3495   5.3 ------	UNKNOWN
 97.1872  46.2897    1.4  30.2  101.2   1.2899   8.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
187.900600 963.070000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6321  22.0161    0.2  26.6   38.3  33.5181  63.0    0.1	Crab
358.9662  65.2517    2.8  52.1  157.5   7.7562   4.1 ------	UNKNOWN
 59.4493  42.8450    2.6  26.9  105.7   2.6914   4.4 ------	UNKNOWN
 94.2213   5.0466    2.8  41.3   13.7   2.9228   4.1 ------	UNKNOWN
108.6389  -4.2187    3.7  51.5   -5.4   3.6476   3.2 ------	UNKNOWN

Plot creation:
Sun May 31 11:36:36 EDT 2015
