batgrbproduct analysis for trigger=239899

batgrbproduct Analysis for Trigger=239899

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 11:48:24 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger239899
======================================================================

  Trigger: 00239899      Segment: 000

  BAT Trigger Time: 185815350.592   [s; MET]
      Trigger Stop: 185815350.848   [s; MET]
               UTC: 2006-11-21T15:22:29.006780    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 147.251722976049   Dec: -13.1827450313483  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.08
     Image Trigger?:     NO
     Rate S/N Ratio:     16.7928556237467  [ if not an image trigger ]
     Image S/N Ratio:    8.08

  Flight Position:   [ source = BAT ]
    RA: 147.251722976049   Dec: -13.1827450313483  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 147.231548752313   Dec: -13.1858944746617  [deg; J2000]
        { 09h 48m 55.6s , -13d 11' 09.2" }
         +/- 0.891674516758905 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.267208502898628 [arcmin] (formal 1-sigma fit error)
    SNR: 35.8304414092398

  Angular difference between Flight and Ground position is 1.193601 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 81.2159999907017 +/- 46.4024221861536
        Measured from: 8.91200000047684
                   to: 90.1279999911785     [s; relative to TRIGTIME]
     T50: 7.48000001907349 +/- 0.104000011315713
        Measured from: 67.6959999799728
                   to: 75.1759999990463     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 74.4799999892712
                   to: 75.4799999892712     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.73199999332428
                   to: 121.415999978781     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     5.968763   8.086092   6.612529   1.813977
           0.059111   0.063638   0.057211   0.045082 [error]
 Peak      0.572442   0.930993   0.991793   0.322702
           0.010824   0.013756   0.014738   0.011147 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.68e-06 3.27e-06 4.95e-06 1.62e-05 1.39e-05 2.61e-05   erg/cm2
              Error 5.58e-08 6.31e-08 7.40e-08 5.95e-07 1.93e-07 6.04e-07   erg/cm2
Peak flux Power-law 4.95e+00 6.51e+00 6.29e+00 1.08e+01 2.13e+01 2.86e+01   ph/cm2/s
              Error 2.16e-01 1.67e-01 1.29e-01 5.11e-01 4.33e-01 5.80e-01   ph/cm2/s

Fluence   Cutoff-PL 1.68e-06 3.28e-06 4.95e-06 1.61e-05 1.39e-05 2.60e-05   erg/cm2
              Error -------- -------- -------- 8.23e-07 -------- 6.86e-07   erg/cm2
Peak flux Cutoff-PL 4.94e+00 6.52e+00 6.29e+00 1.07e+01 2.13e+01 2.85e+01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.403    0.028    -      -           1.18e-02 1.72e-04   27.420 57
CPL   1.399    0.033    10000.0    0.0      1.18e-02 1.68e-04   27.500 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.051    0.037    -      -           1.85e-01 3.59e-03   26.340 57
CPL   1.046    0.037    9999.4    0.0      1.86e-01 1.42e-02   26.350 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 27.712000 sec.
T50 in the 50-300 keV band: 7.040000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  122.148   -0.732  121.416
T90    81.216    8.912   90.128
T50     7.480   67.696   75.176
Peak    1.000   74.480   75.480

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  147.2315   -13.1859   0.0054     8.9874   166.1694         1.1958102     35.830 TRIG_00239899

Foreground time interval of the image:
 -0.732  10.909 (delta_t =  11.641 [sec])
Background time interval of the image:
-239.592  -0.732 (delta_t = 238.860 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

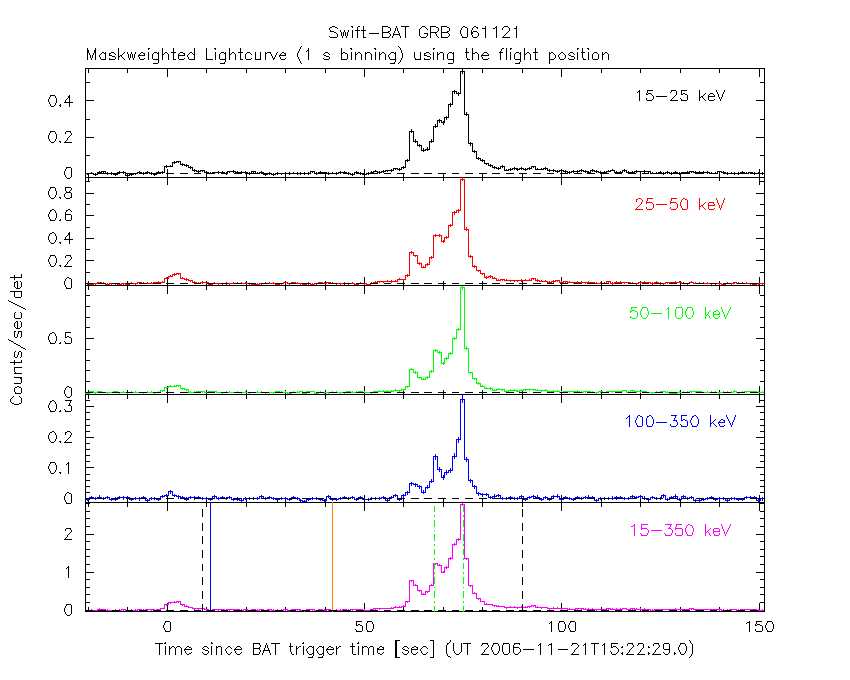

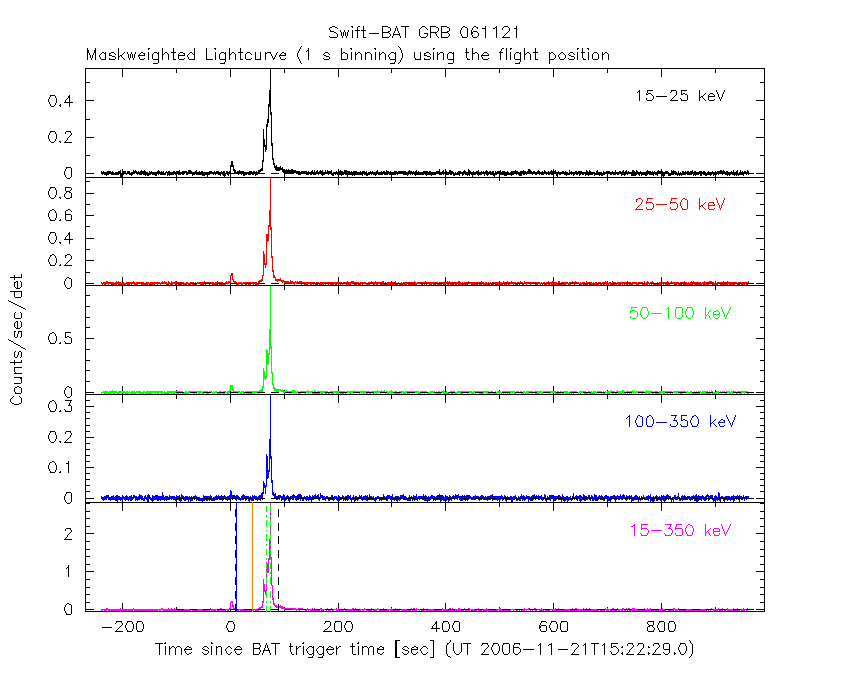

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

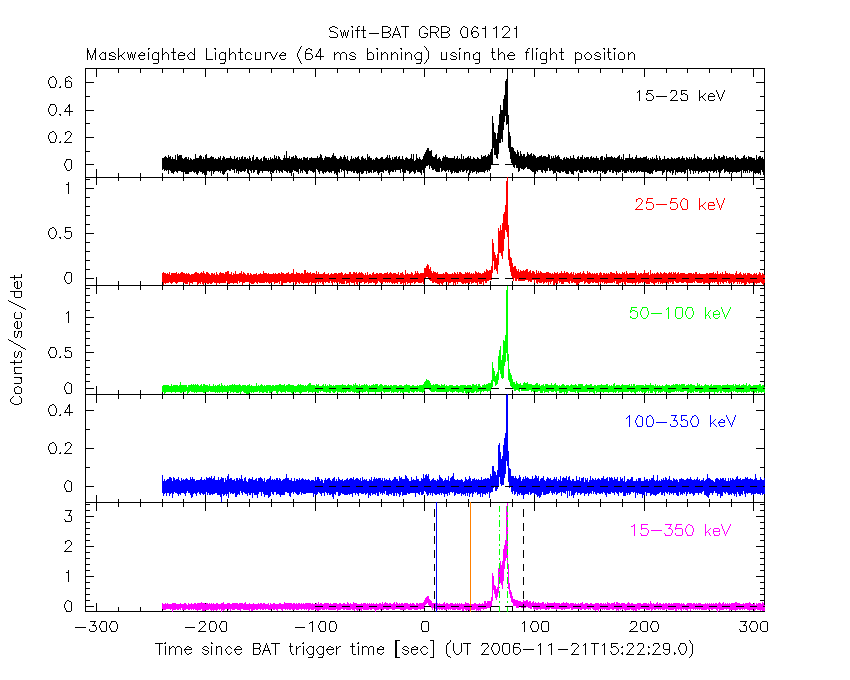

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

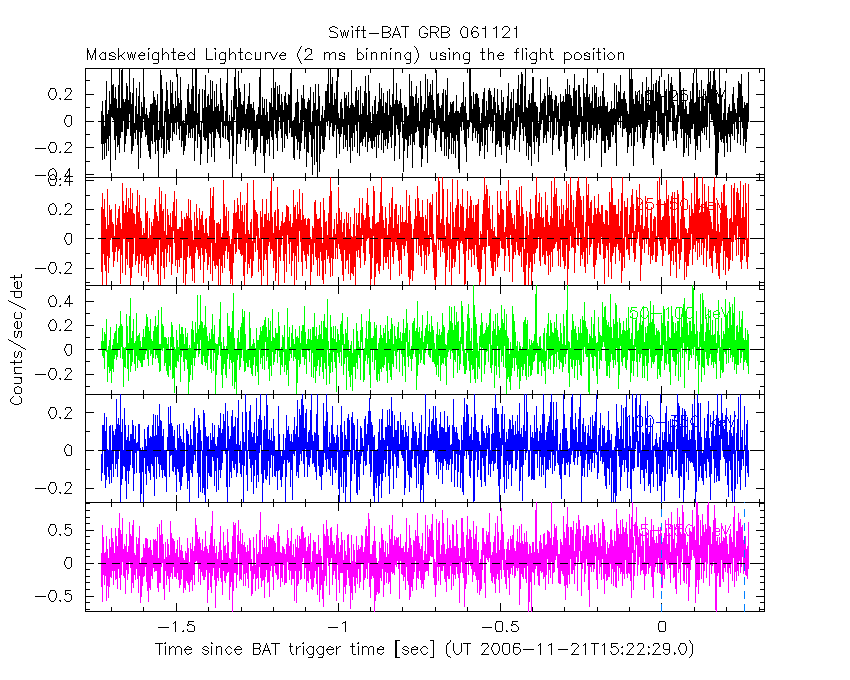

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

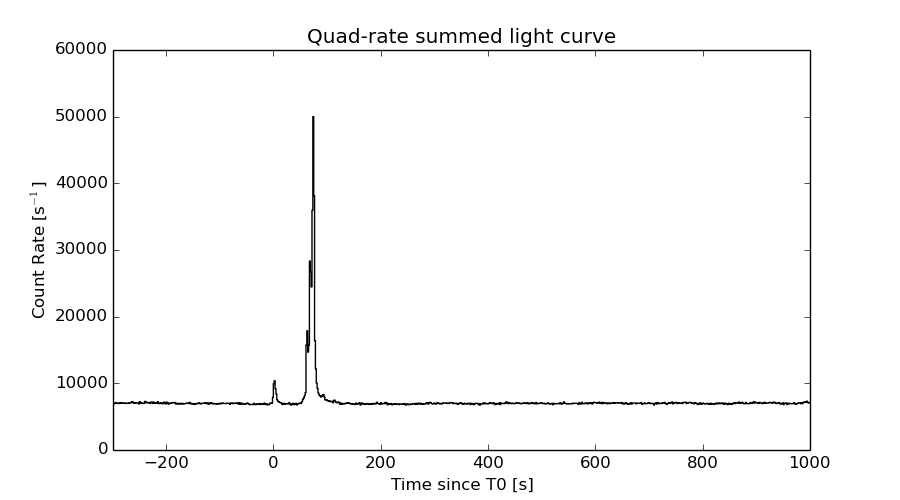

Quad-rate summed light curves (from T0-300s to T0+1000s)

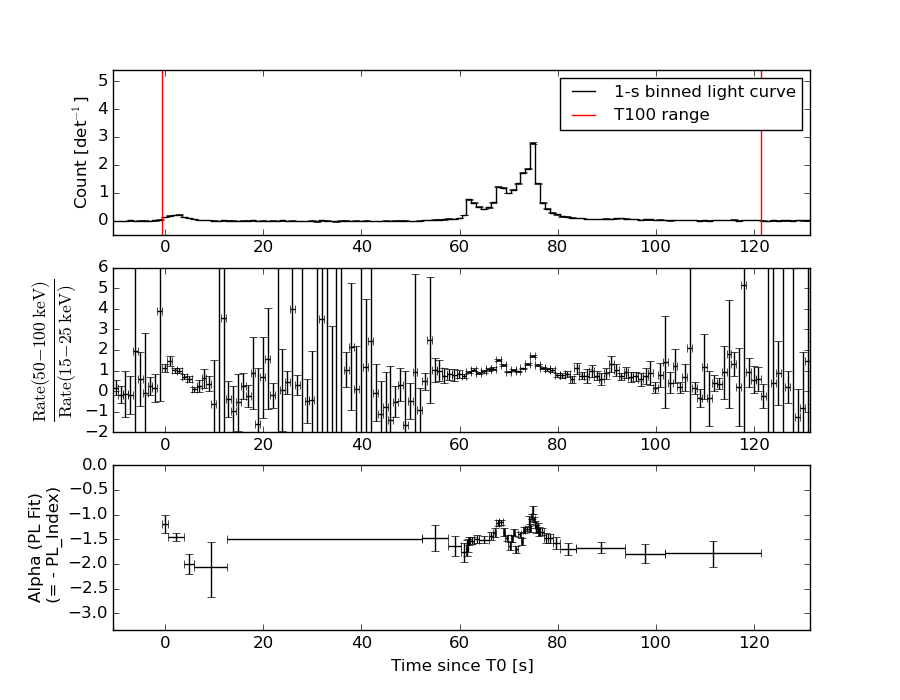

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

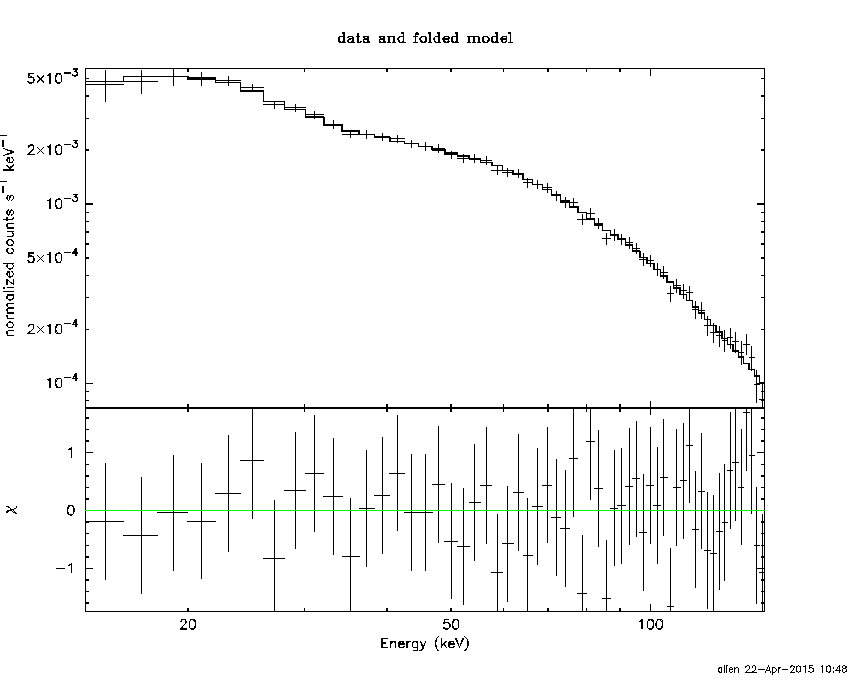

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.732 sec. to  121.416 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.40266     ( -0.0275955   0.0274472 )
Norm@50keV  : 1.17829E-02    ( -0.000172081   0.000171712 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          27.42 using 59 PHA bins.
# Reduced chi-squared =         0.4810 for     57 degrees of freedom
# Null hypothesis probability =   9.996839e-01

Photon flux (15-150 keV)    in 122.1 sec: 1.43580 ( -0.0251936  0.0252986 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.3894e-05 ( -1.93017e-07  1.93029e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.732 sec. to  121.416 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.39895     ( -0.029175   0.0362794 )
Epeak [keV] : 1.00000E+04      (   )
Norm@50keV  : 1.18242E-02    ( -0.000171994   0.000163811 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          27.50 using 59 PHA bins.
# Reduced chi-squared =         0.4910 for     56 degrees of freedom
# Null hypothesis probability =   9.995159e-01

Photon flux (15-150 keV)    in 122.1 sec: 1.43609 ( -0.02557  0.02366 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.3896e-05 ( 0  0 ) ergs/cm2

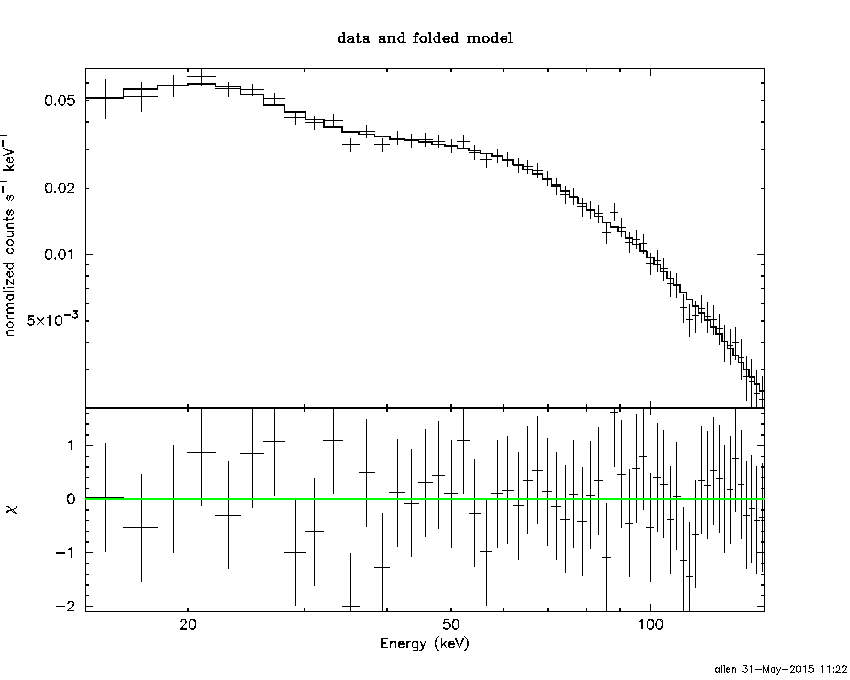

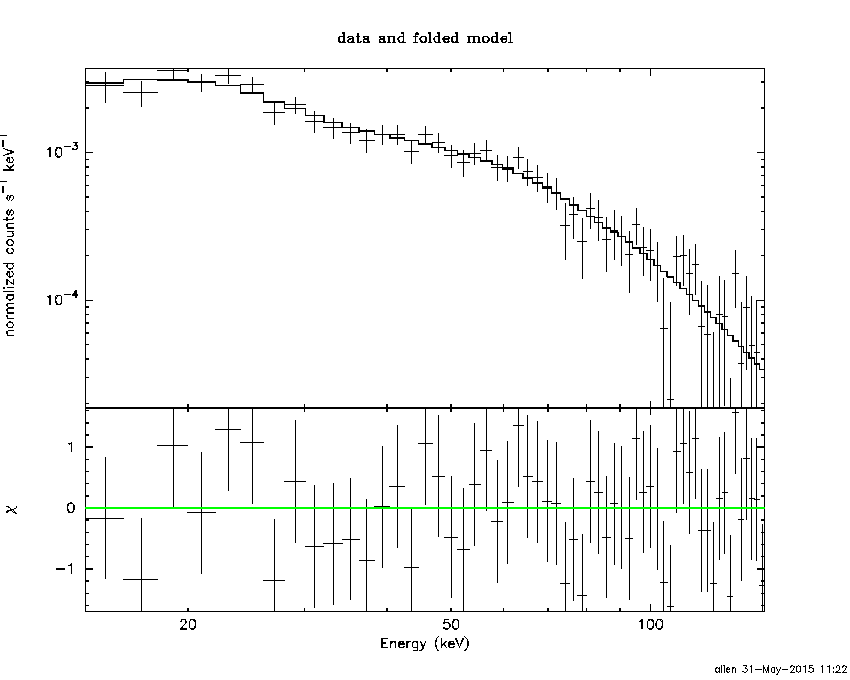

Band function

Time interval is from   -0.732 sec. to  121.416 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.676540   ( 0.971995   4.92393 )
beta        : -1.40460    ( 1.40432   0.0283876 )
Epeak [keV] : 42.8682      ( -58.7329 349.701 )
Norm@50keV   : 4.22081E-02    ( -0.0302611   723369 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          27.24 using 59 PHA bins.
# Reduced chi-squared =         0.4952 for     55 degrees of freedom
# Null hypothesis probability =   9.993878e-01

Photon flux (15-150 keV)    in 122.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

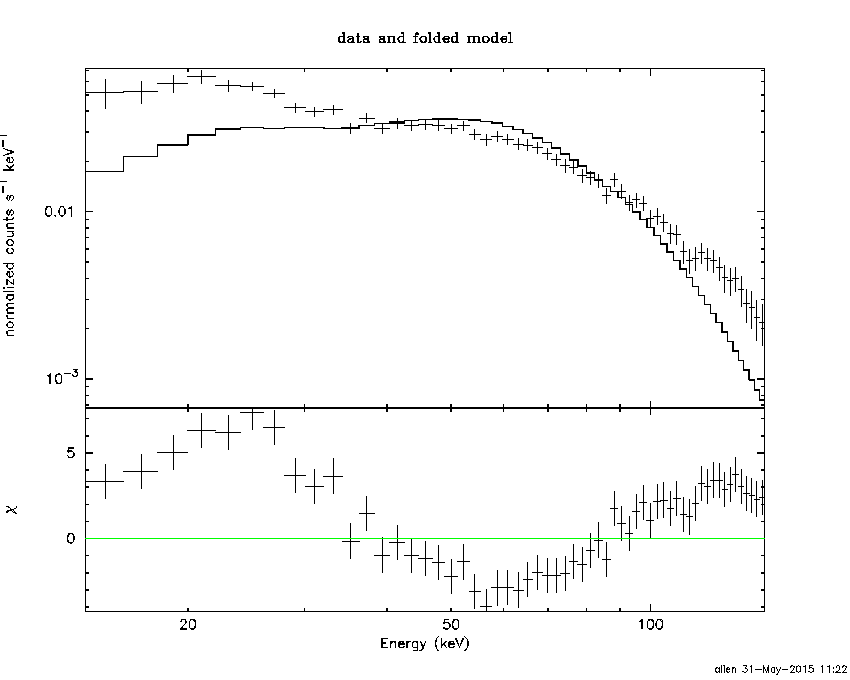

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.4858  (  )
R^2/D10^2   : 5.43564E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =        1110.23 using 59 PHA bins.
# Reduced chi-squared =        19.4777 for     57 degrees of freedom
# Null hypothesis probability =  4.477540e-195

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.317e-07   1.673e-08
25- 50  2.691e-06   6.288e-08
50-150  8.396e-06   1.685e-07
15-150  1.162e-05   1.636e-07

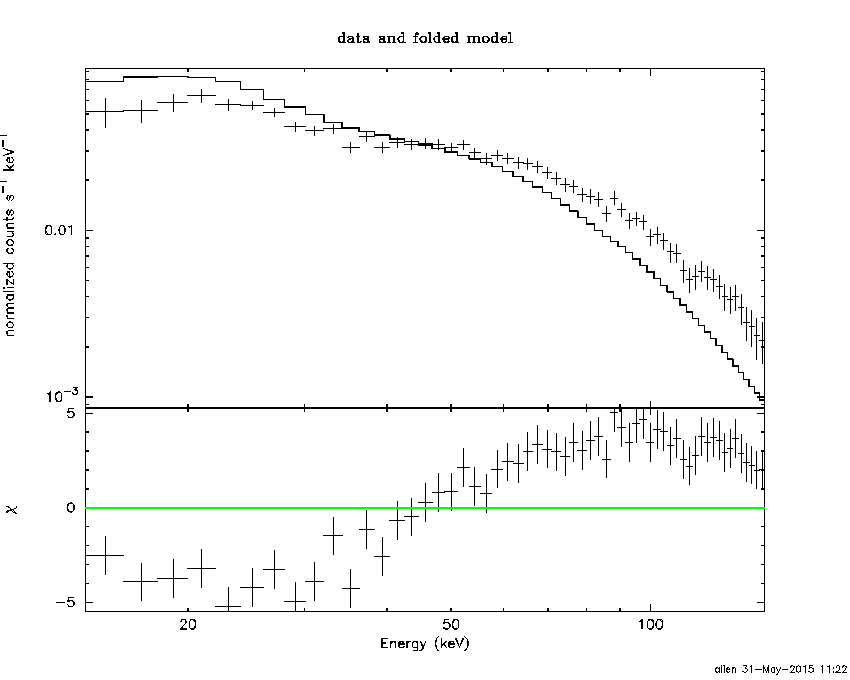

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 6.14644       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         228.50 using 59 PHA bins.
# Reduced chi-squared =         4.0087 for     57 degrees of freedom
# Null hypothesis probability =   2.152461e-22

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.869e-06   3.236e-08
25- 50  3.595e-06   6.105e-08
50-150  7.884e-06   1.258e-07
15-150  1.335e-05   2.198e-07

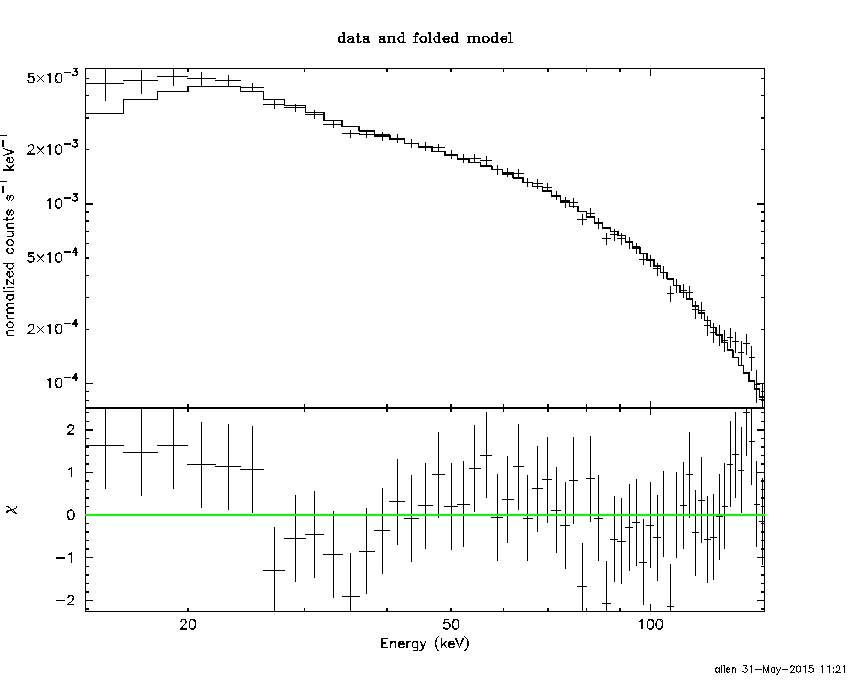

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.26343        (-0.474112      0.498442)
R1^2/D10^2  : 0.787977        (-0.143538      0.183654)
kT2 [keV]   : 33.3622        (-1.80054      2.13316)
R2^2/D10^2  : 8.74274E-03    (-0.00164941   0.00184182)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.43 using 59 PHA bins.
# Reduced chi-squared =          1.026 for     55 degrees of freedom
# Null hypothesis probability =   4.213554e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.389e-06   7.570e-08
25- 50  3.366e-06   8.181e-08
50-150  9.015e-06   2.332e-07
15-150  1.377e-05   3.053e-07

Peak spectrum fit

Power-law model

Time interval is from   74.480 sec. to   75.480 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.05095     ( -0.0365839   0.0364354 )
Norm@50keV  : 0.184644    ( -0.0035975   0.00359109 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          26.34 using 59 PHA bins.
# Reduced chi-squared =         0.4621 for     57 degrees of freedom
# Null hypothesis probability =   9.998329e-01

Photon flux (15-150 keV)    in 1 sec: 21.3273 ( -0.432278  0.4331 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.96178e-06 ( -4.00089e-08  4.00809e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   74.480 sec. to   75.480 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.04583     ( -0.0372635   0.0362659 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 0.185686    ( -0.00355533   0.0247812 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          26.35 using 59 PHA bins.
# Reduced chi-squared =         0.4705 for     56 degrees of freedom
# Null hypothesis probability =   9.997482e-01

Photon flux (15-150 keV)    in 1 sec: 21.3189 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.96222e-06 ( 0  0 ) ergs/cm2

Band function

Time interval is from   74.480 sec. to   75.480 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.834664   ( 0.834664   0.834664 )
beta        : -1.05095    ( -0.0364331   0.0365269 )
Epeak [keV] : 61.4903      ( -61.4903 -61.4903 )
Norm@50keV   : 0.315525    ( -0.109353   7.61396e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          26.34 using 59 PHA bins.
# Reduced chi-squared =         0.4789 for     55 degrees of freedom
# Null hypothesis probability =   9.996289e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 22.9608  (  )
R^2/D10^2   : 0.648620  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         502.39 using 59 PHA bins.
# Reduced chi-squared =         8.8139 for     57 degrees of freedom
# Null hypothesis probability =   1.581765e-72

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.202e-08   2.510e-09
25- 50  3.362e-07   9.500e-09
50-150  1.324e-06   3.900e-08
15-150  1.722e-06   3.950e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 90.0920       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         592.28 using 59 PHA bins.
# Reduced chi-squared =         10.391 for     57 degrees of freedom
# Null hypothesis probability =   4.342298e-90

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.243e-07   4.600e-09
25- 50  4.315e-07   9.100e-09
50-150  9.464e-07   1.940e-08
15-150  1.602e-06   3.200e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.11415        (-0.783055      0.867755)
R1^2/D10^2  : 9.67095        (-2.66763      3.95562)
kT2 [keV]   : 35.7301        (-2.59388      3.35015)
R2^2/D10^2  : 0.143969    (-0.0351321   0.0390928)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.17 using 59 PHA bins.
# Reduced chi-squared =         0.7485 for     55 degrees of freedom
# Null hypothesis probability =   9.168523e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.420e-07   1.080e-08
25- 50  3.776e-07   1.635e-08
50-150  1.452e-06   5.700e-08
15-150  1.971e-06   6.650e-08

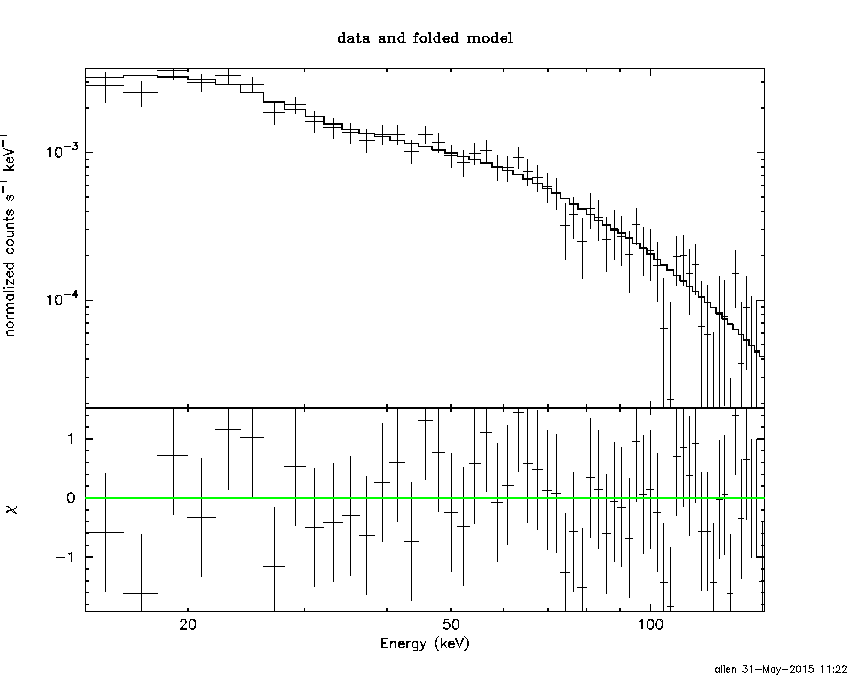

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.59093     ( -0.0871169   0.0877058 )
Norm@50keV  : 6.14934E-03    ( -0.000302128   0.000301052 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.02 using 59 PHA bins.
# Reduced chi-squared =         0.7020 for     57 degrees of freedom
# Null hypothesis probability =   9.572171e-01

Photon flux (15-150 keV)    in 11.64 sec: 0.788016 ( -0.0384111  0.038468 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.70159e-07 ( -3.55306e-08  3.57343e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.30307     ( -0.358896   0.319565 )
Epeak [keV] : 119.797      ( -41.335 -119.797 )
Norm@50keV  : 8.59850E-03    ( -0.00257021   0.00432843 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.83 using 59 PHA bins.
# Reduced chi-squared =         0.6755 for     56 degrees of freedom
# Null hypothesis probability =   9.702018e-01

Photon flux (15-150 keV)    in 11.64 sec: 0.774832 ( -0.041195  0.041177 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.53711e-07 ( -4.05165e-08  4.04676e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.28510   ( 1.2851   1.2851 )
beta        : -1.91395    ( 1.9151   0.36879 )
Epeak [keV] : 113.823      ( -113.775 -113.775 )
Norm@50keV   : 8.80664E-03    ( -0.002783   0.21936 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.83 using 59 PHA bins.
# Reduced chi-squared =         0.6878 for     55 degrees of freedom
# Null hypothesis probability =   9.626219e-01

Photon flux (15-150 keV)    in 11.64 sec: 0.774562 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.52808e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.27e-06
S(50-100 keV) = 4.95e-06

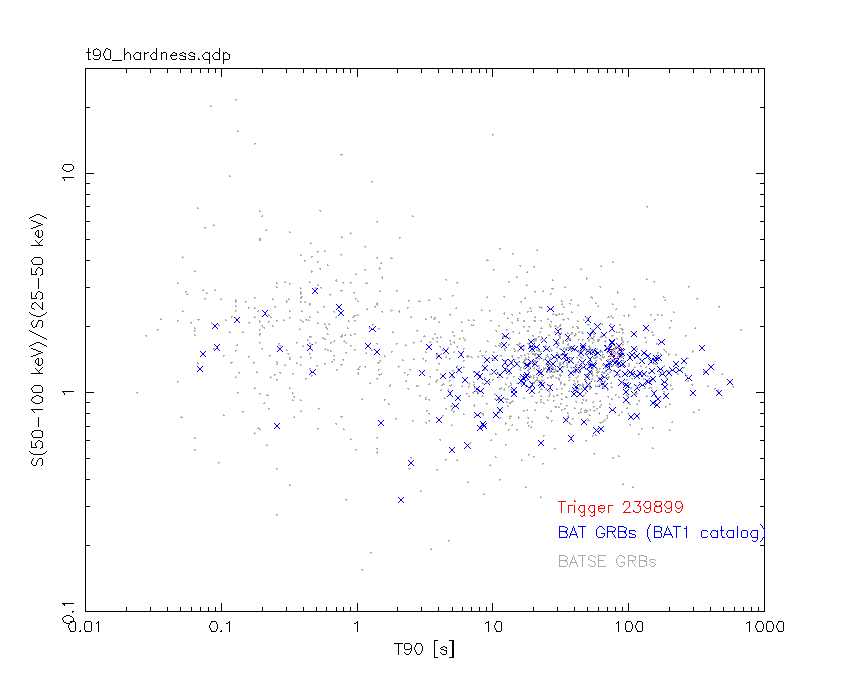

T90 vs. Hardness ratio plot

T90                                   = 81.2159999907017 sec.
Hardness ratio (energy fluence ratio) = 1.51376

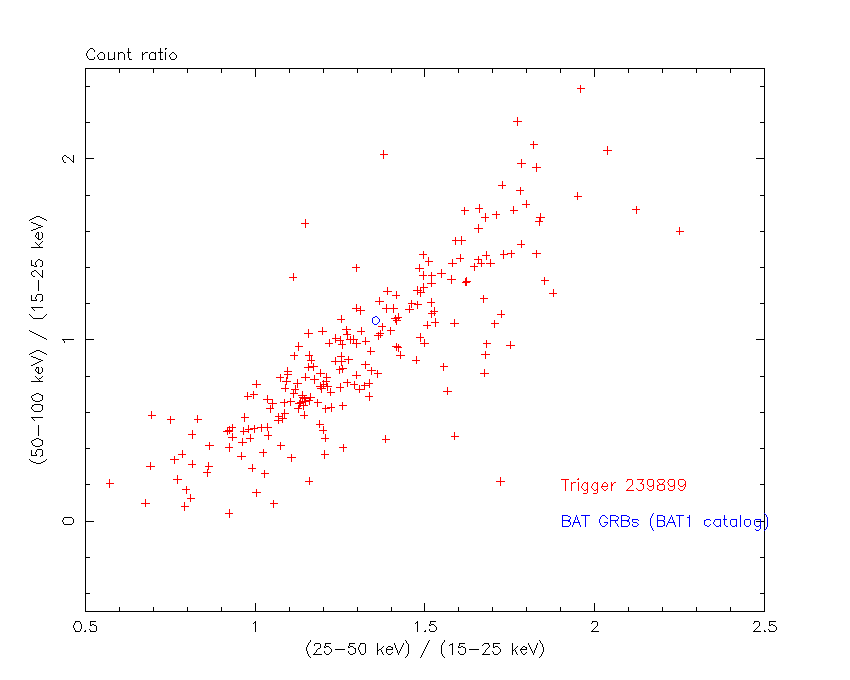

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.35473
Count Ratio (50-100 keV) / (15-25 keV) = 1.10786

Mask shadow pattern

IMX = -1.535740924399797E-01, IMY = -3.780838379738825E-02

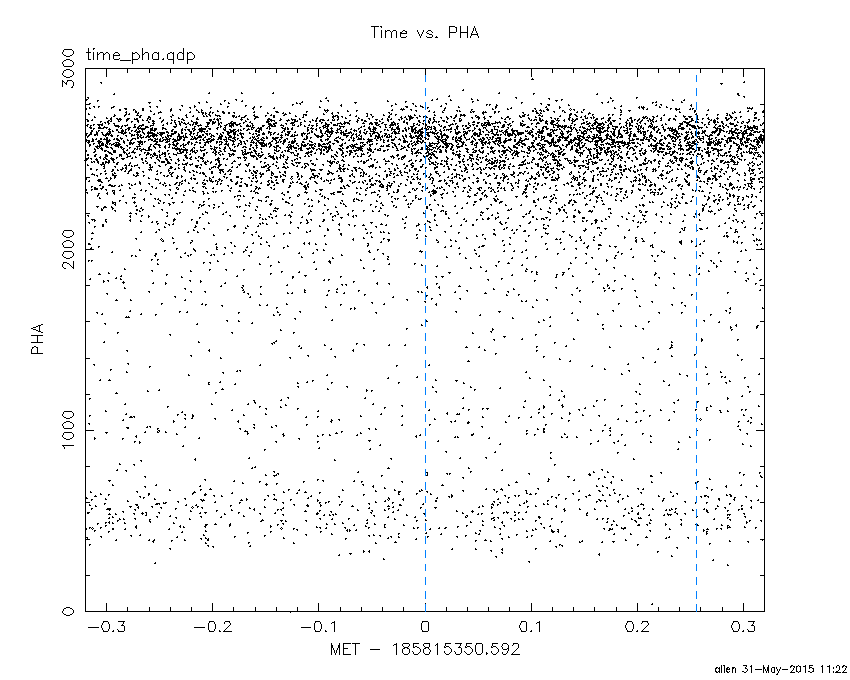

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

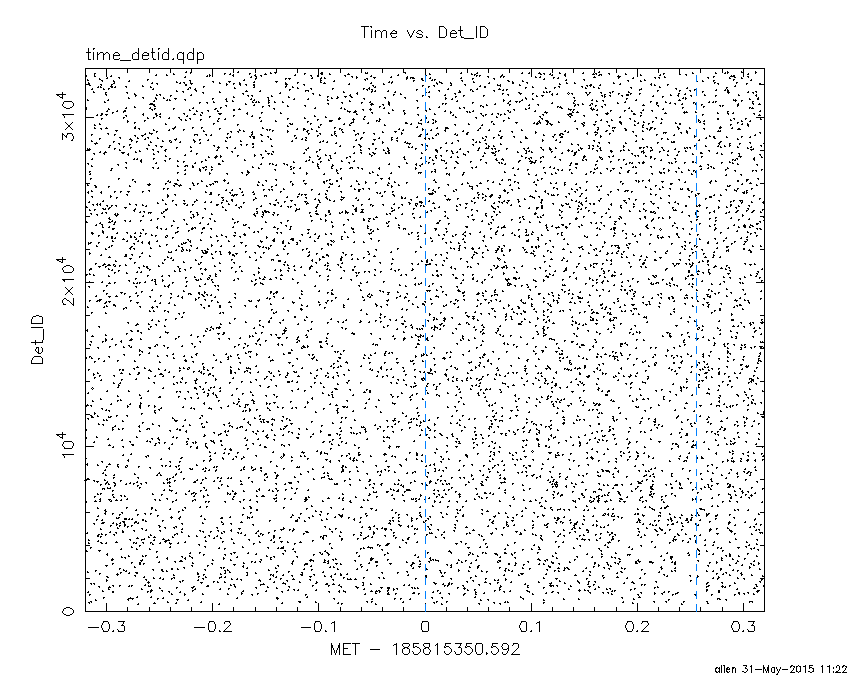

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

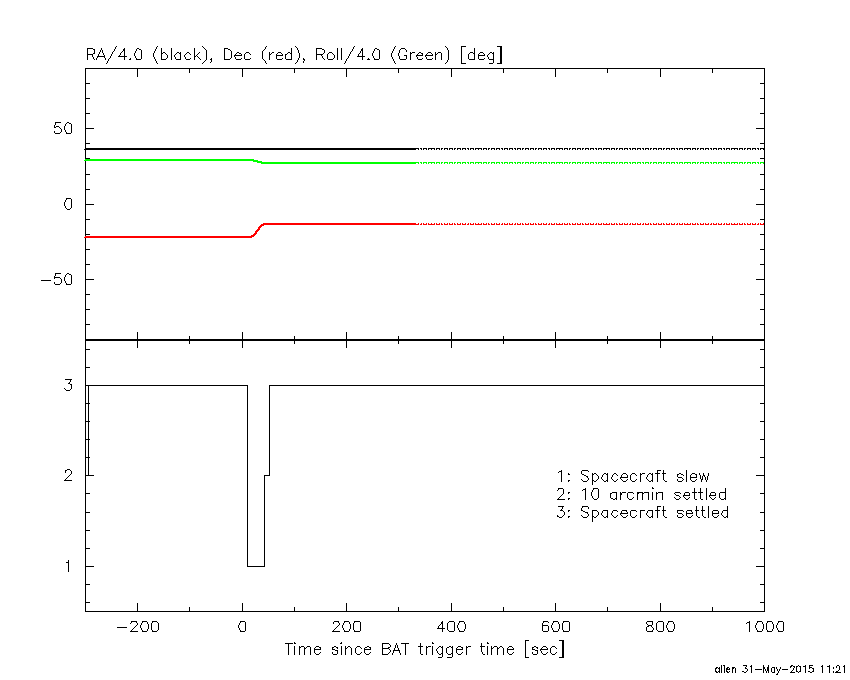

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.592000 -0.732000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5821 -40.5667    0.9  20.3   -5.6   1.8977  12.7    2.5	Vela X-1
170.4184 -60.6006    8.1  42.5  -45.0   0.4820   1.4    3.3	Cen X-3
136.5480  16.4498    2.1  39.3  140.0   1.8275   5.5 ------	UNKNOWN
130.2930  -6.1025    2.4  21.4  108.7   0.8640   4.9 ------	UNKNOWN
146.0765  -6.9176    3.0  15.1  156.6   0.5584   3.9 ------	UNKNOWN
174.1736  19.7780    2.6  50.5 -170.6   1.5578   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.732000 10.908610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.6690 -40.4445    5.1  20.2   -5.6   0.0764   2.3    9.2	Vela X-1
170.3946 -60.7551    6.4  42.6  -44.9   0.1280   1.8    8.3	Cen X-3
 98.8794 -48.9855    2.4  45.3   14.8   0.3539   4.9 ------	UNKNOWN
 90.7964 -58.6540    2.4  53.1    5.0   0.5787   4.8 ------	UNKNOWN
147.2315 -13.1859    0.3   9.0  166.2   1.1958  35.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
41.908580 962.499500

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5214 -40.5480    0.7  29.2   -0.9   9.1819  17.1    0.5	Vela X-1
170.1608 -60.7680    9.4  50.4  -33.7   2.1019   1.2    9.8	Cen X-3
128.9277  29.6215    2.8  46.3  138.4   6.8748   4.2 ------	UNKNOWN
155.0110  24.3674    3.1  38.3  172.0   2.4643   3.7 ------	UNKNOWN
150.2676   4.7779    3.0  18.2  170.3   1.6039   3.9 ------	UNKNOWN
147.2226 -13.1932    0.2   0.0   71.6  23.3642  52.3 ------	UNKNOWN
174.2161  31.2144    2.6  51.4 -169.6   5.8811   4.4 ------	UNKNOWN
162.1672 -36.6769    3.1  27.0  -46.4   2.1198   3.7 ------	UNKNOWN
174.4315 -15.6045    4.1  26.4 -100.8   1.6903   2.8 ------	UNKNOWN

Plot creation:
Sun May 31 11:23:01 EDT 2015
