batgrbproduct analysis for trigger=251634

batgrbproduct Analysis for Trigger=251634

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 11:22:59 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger251634
======================================================================

  Trigger: 00251634      Segment: 000

  BAT Trigger Time: 188019609.856   [s; MET]
      Trigger Stop: 188019610.112   [s; MET]
               UTC: 2006-12-17T03:40:08.217280    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 160.441664347489   Dec: -21.1182033163857  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.27
     Image Trigger?:     NO
     Rate S/N Ratio:     21.6333076527839  [ if not an image trigger ]
     Image S/N Ratio:    8.27

  Flight Position:   [ source = BAT ]
    RA: 160.441664347489   Dec: -21.1182033163857  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 160.401772484407   Dec: -21.1472640052747  [deg; J2000]
        { 10h 41m 36.4s , -21d 08' 50.2" }
         +/- 2.27439398045063 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.07858092435411 [arcmin] (formal 1-sigma fit error)
    SNR: 9.40394847777584

  Angular difference between Flight and Ground position is 2.832760 arcmin

  Partial Coding Fraction: 0.8515625    [ including projection effects ]

  Duration
     T90: 0.224000006914139 +/- 0.0432666368624544
        Measured from: 0.0480000078678131
                   to: 0.272000014781952     [s; relative to TRIGTIME]
     T50: 0.104000002145767 +/- 0.0432665955340684
        Measured from: 0.111999988555908
                   to: 0.215999990701675     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.342000007629395
                   to: 0.657999992370605     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.0279999971389771
                   to: 0.283999979496002     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.006580   0.015815   0.022916   0.011837
           0.002696   0.003020   0.003106   0.002448 [error]
 Peak      0.007362   0.032125   0.023781   0.009740
           0.004981   0.005295   0.004949   0.004041 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.02e-09 6.23e-09 1.57e-08 1.13e-07 4.27e-08 1.37e-07   erg/cm2
              Error 8.08e-10 1.47e-09 2.65e-09 4.89e-08 7.48e-09 4.96e-08   erg/cm2
Peak flux Power-law 1.28e-01 1.65e-01 1.55e-01 2.57e-01 5.35e-01 7.06e-01   ph/cm2/s
              Error 5.24e-02 4.24e-02 3.74e-02 1.30e-01 1.18e-01 1.66e-01   ph/cm2/s

Fluence   Cutoff-PL 2.05e-09 6.28e-09 1.57e-08 1.10e-07 4.26e-08 1.34e-07   erg/cm2
              Error 8.47e-10 -------- 2.76e-09 7.59e-08 7.48e-09 4.82e-08   erg/cm2
Peak flux Cutoff-PL 1.10e-01 1.78e-01 1.68e-01 1.12e-01 5.21e-01 5.67e-01   ph/cm2/s
              Error 5.98e-02 5.07e-02 4.48e-02 1.30e-01 1.21e-01 2.11e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.663    0.321    -      -           1.34e-02 2.43e-03   52.270 57
CPL   0.655    0.645    10000.0    0.0      1.35e-02 -5.53e-03   52.280 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.089    0.360    -      -           4.62e-03 1.00e-03   73.420 57
CPL   0.267    1.452     109.9    0.0      1.17e-02 0.00e+00   72.410 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.192000 sec.
T50 in the 50-300 keV band: 0.064000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.256    0.028    0.284
T90     0.224    0.048    0.272
T50     0.104    0.112    0.216
Peak    1.000   -0.342    0.658

Click here for the BAT GCN circular template

Special notes of this burst

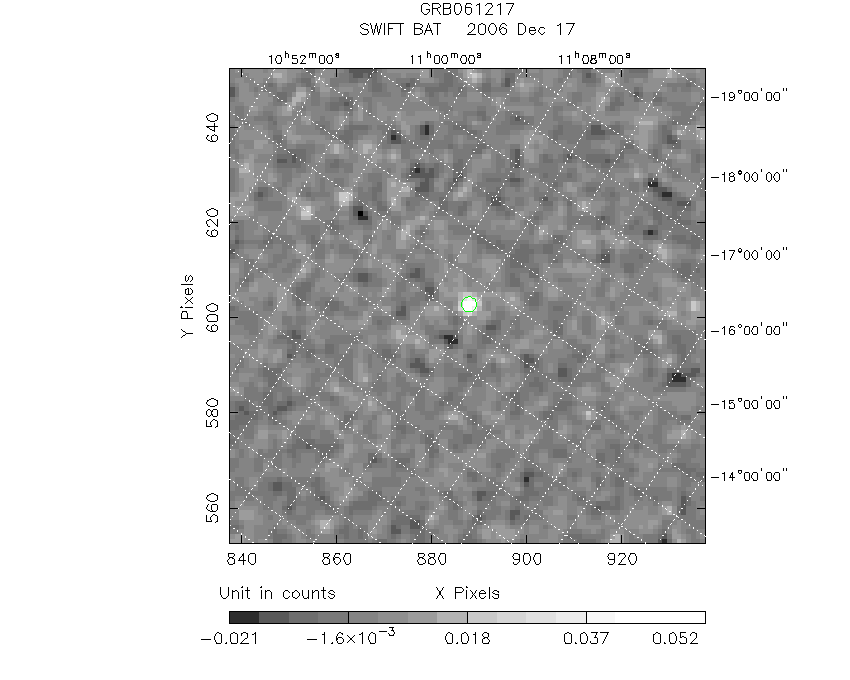

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  160.4018   -21.1473   0.0203    14.8813   -93.7177         0.0536185      9.404 TRIG_00251634

Foreground time interval of the image:
  0.028   0.284 (delta_t =   0.256 [sec])
Background time interval of the image:
-191.355   0.028 (delta_t = 191.383 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

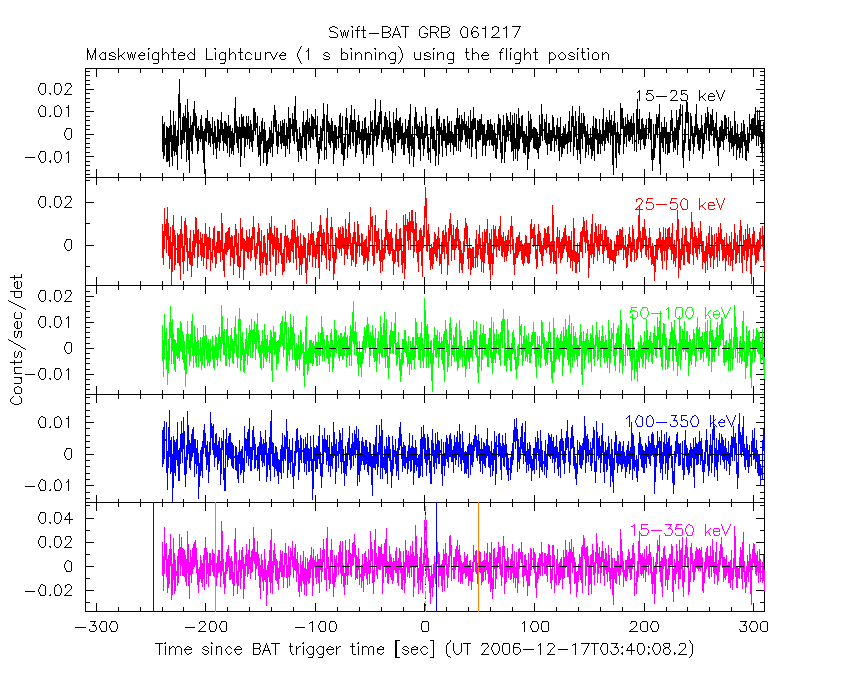

From T0-310 s to T0+310 s

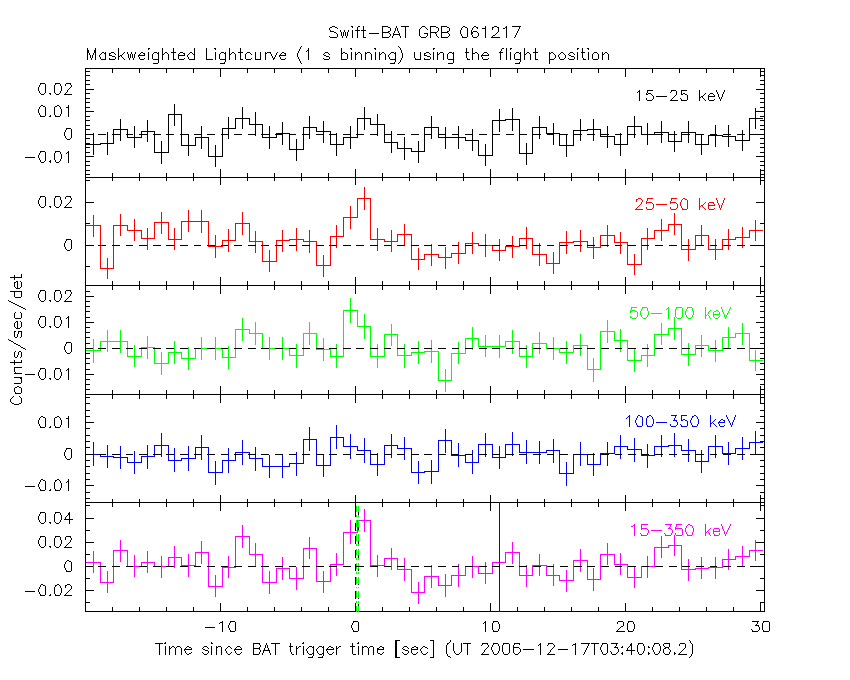

From T100_start - 20 s to T100_end + 30 s

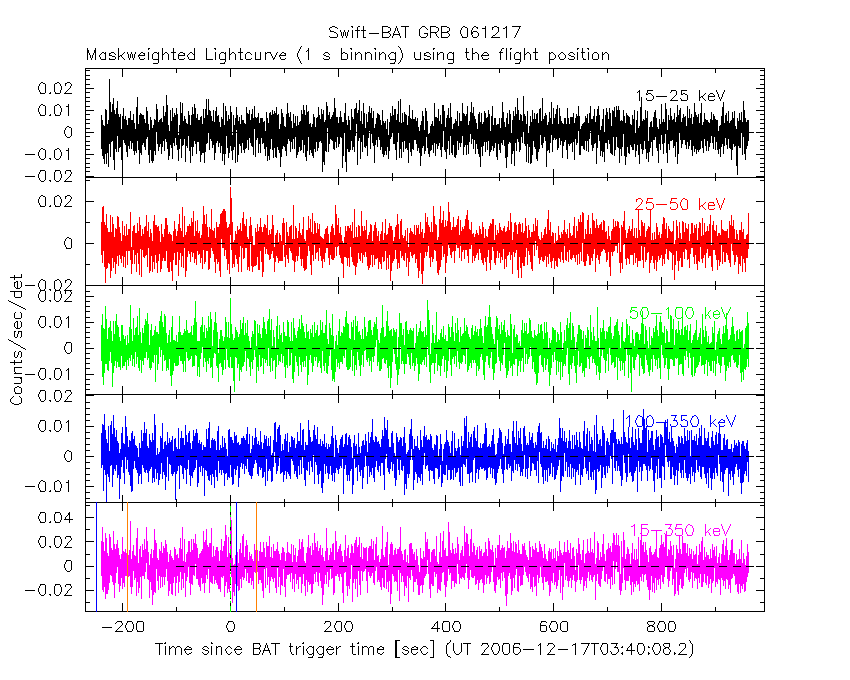

Full time interval

64 ms binning

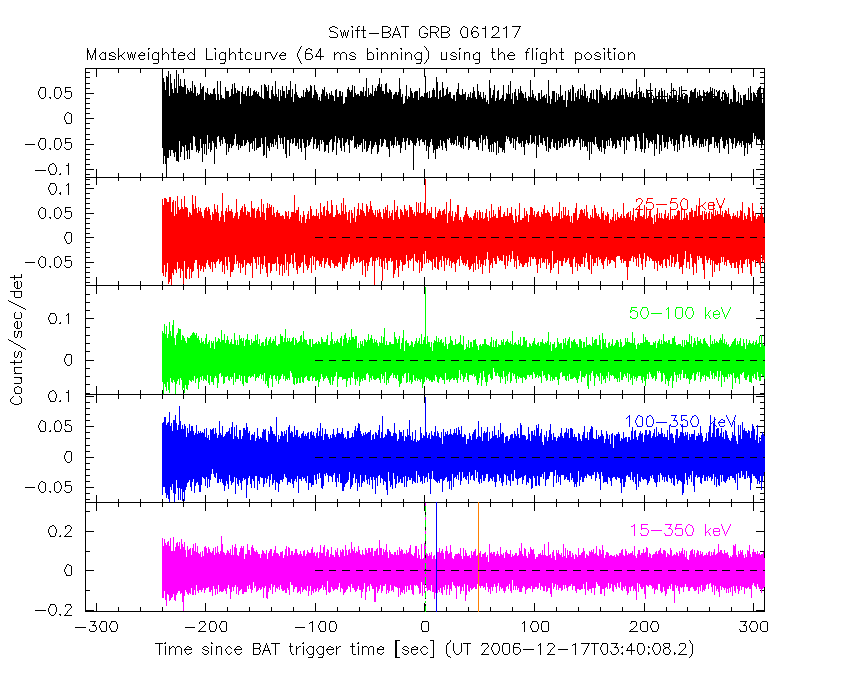

Full time interval

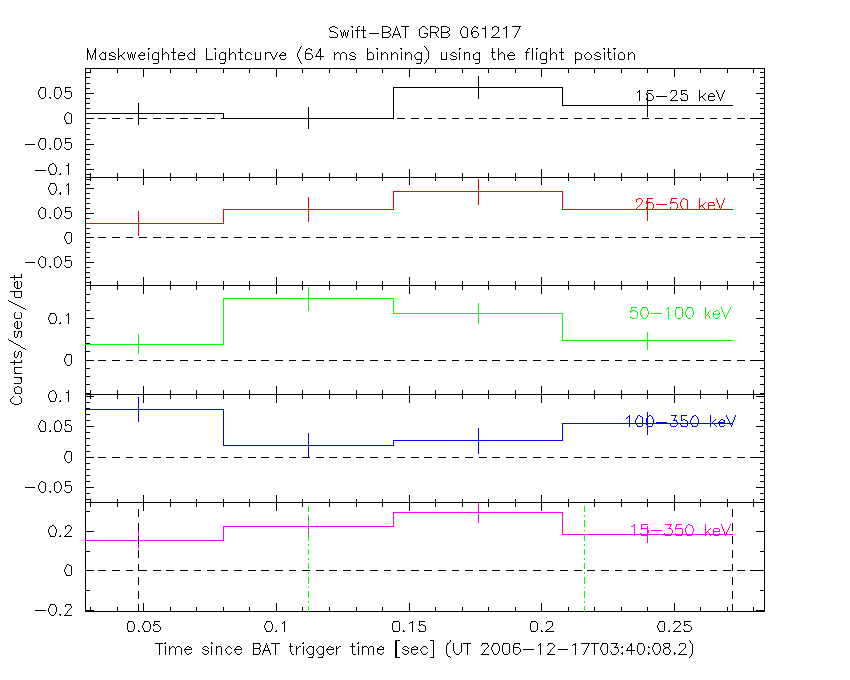

From T100_start to T100_end

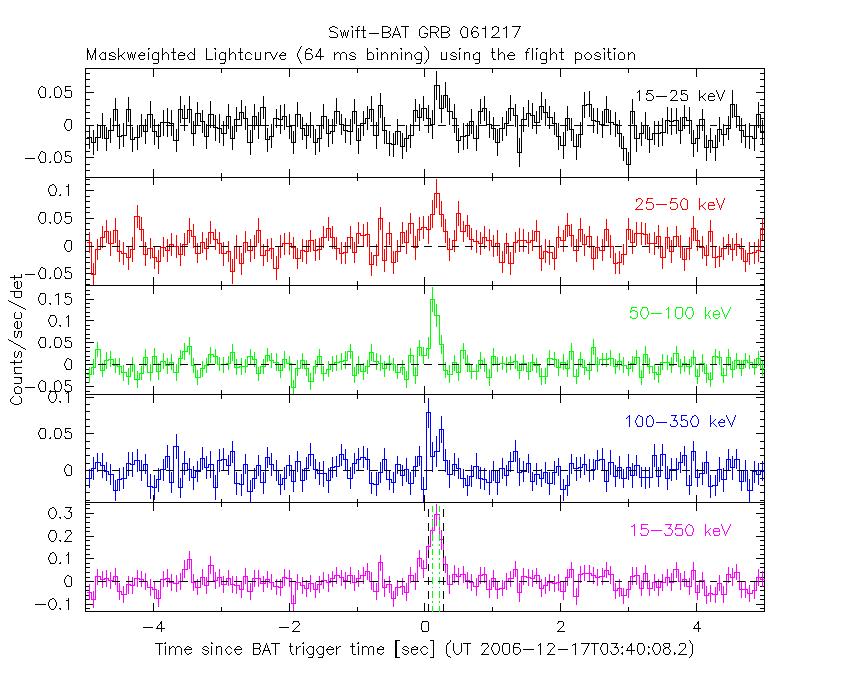

From T0-5 sec to T0+5 sec

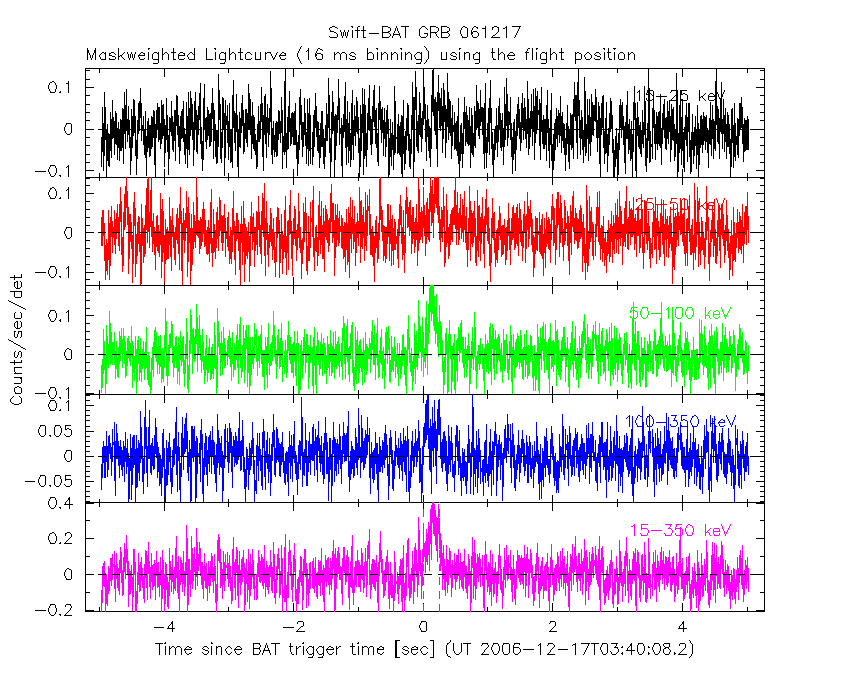

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

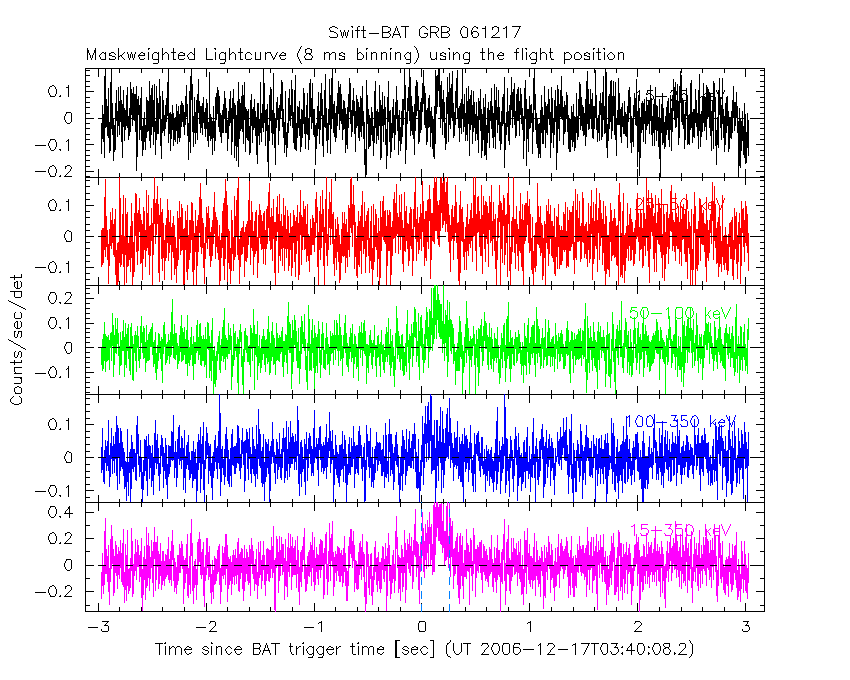

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

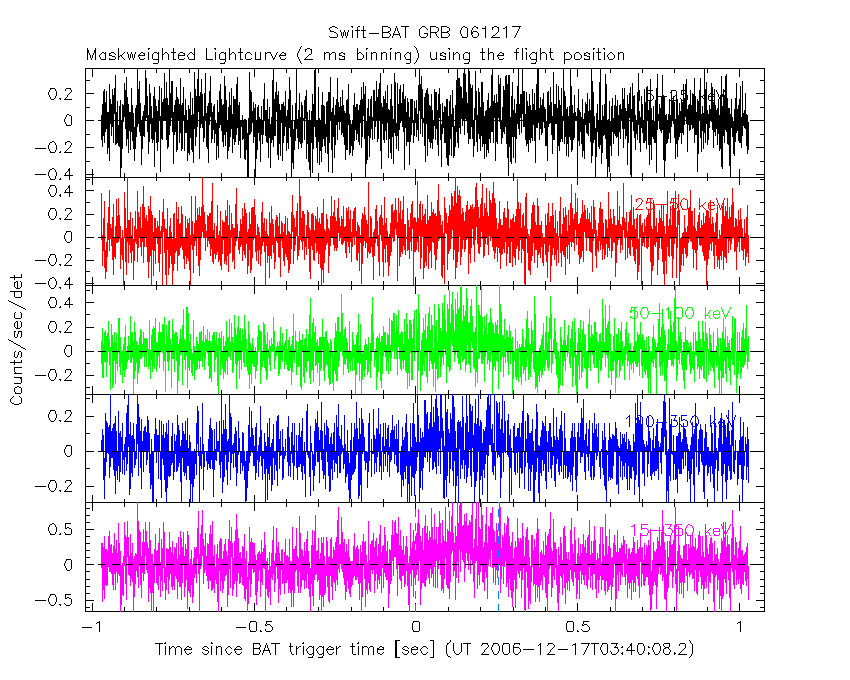

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

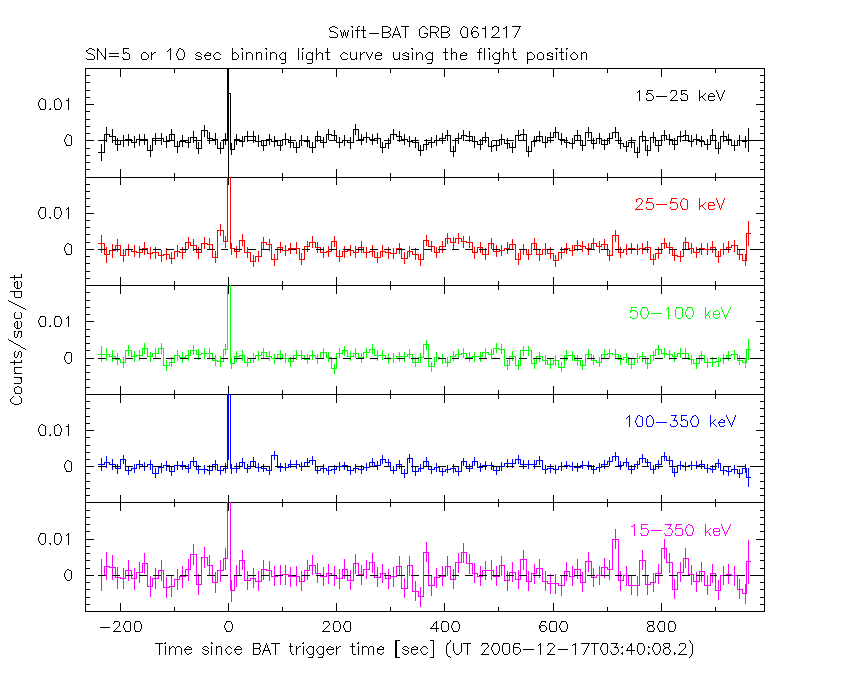

SN=5 or 10 sec. binning (whichever binning is satisfied first)

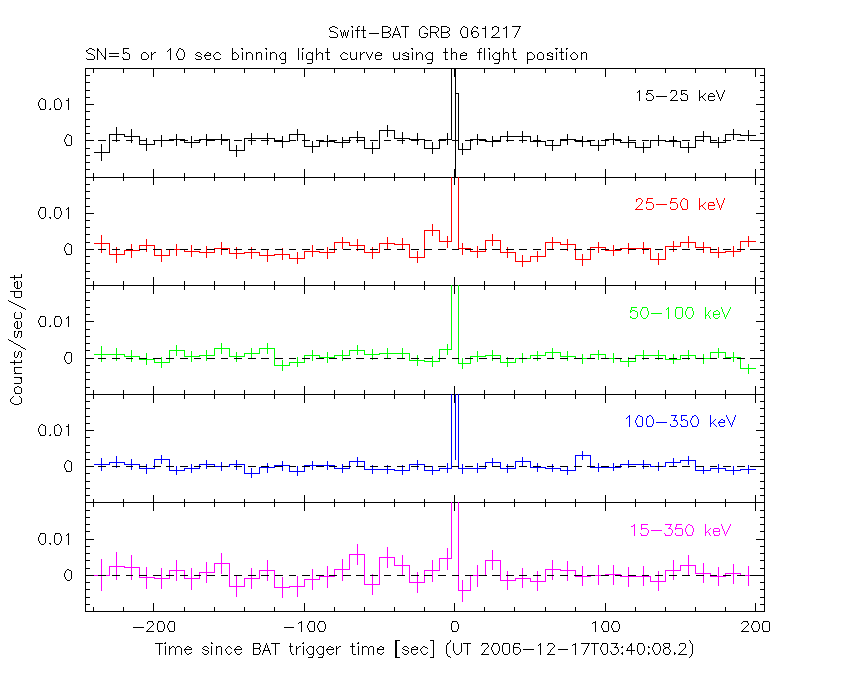

SN=5 or 10 sec. binning (T < 200 sec)

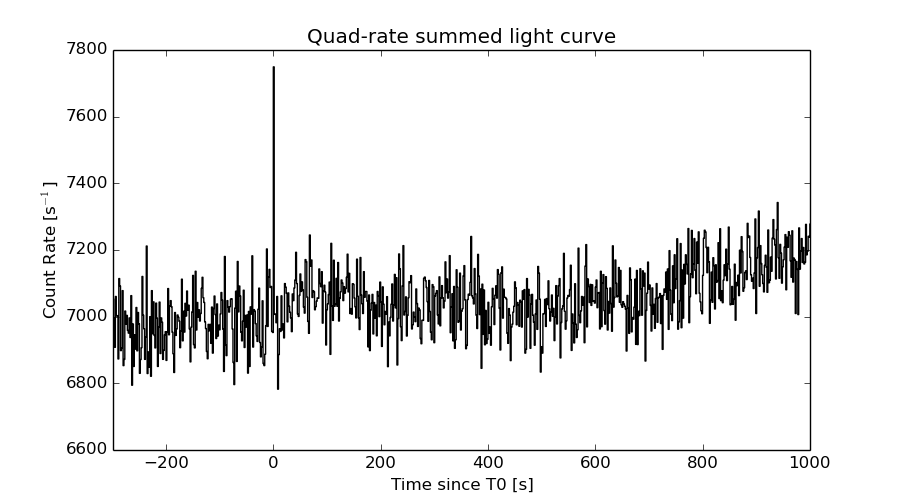

Quad-rate summed light curves (from T0-300s to T0+1000s)

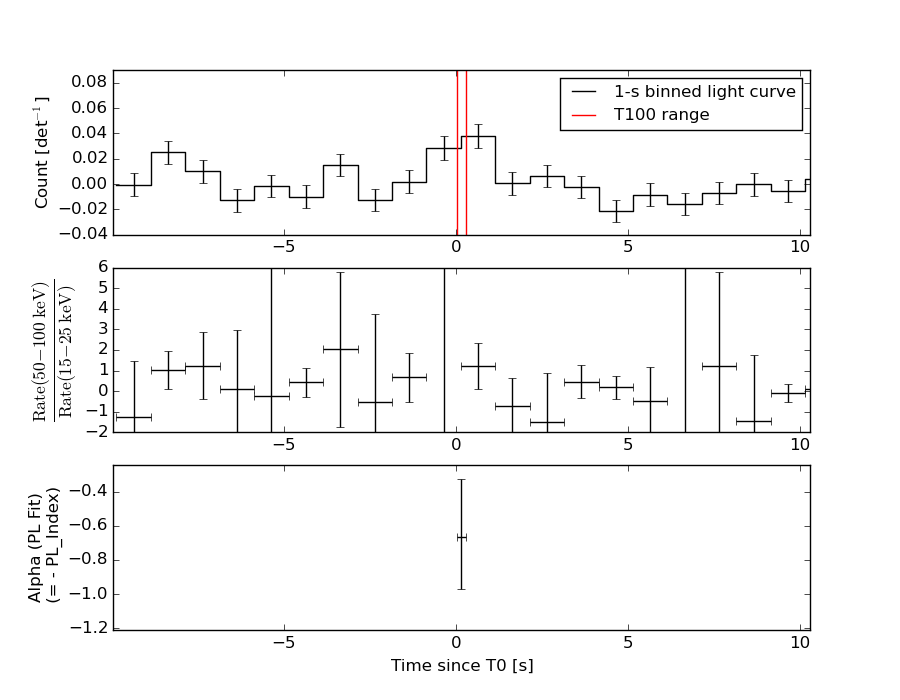

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

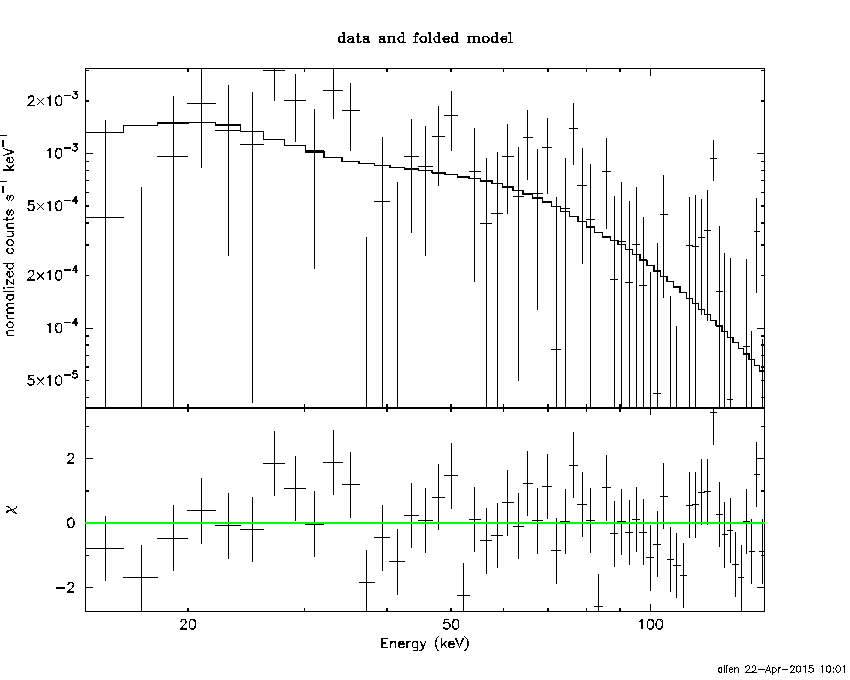

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    0.028 sec. to    0.284 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.663285     ( -0.335935   0.305464 )
Norm@50keV  : 1.34372E-02    ( -0.00247389   0.00238228 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.27 using 59 PHA bins.
# Reduced chi-squared =         0.9170 for     57 degrees of freedom
# Null hypothesis probability =   6.527864e-01

Photon flux (15-150 keV)    in 0.256 sec: 1.55816 ( -0.262704  0.26362 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.26975e-08 ( -7.45421e-09  7.49586e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.028 sec. to    0.284 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.655012     ( -0.902711   0.387864 )
Epeak [keV] : 1.00000E+04      (   )
Norm@50keV  : 1.35430E-02    ( -0.00248351   -0.0135439 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.28 using 59 PHA bins.
# Reduced chi-squared =         0.9337 for     56 degrees of freedom
# Null hypothesis probability =   6.162927e-01

Photon flux (15-150 keV)    in 0.256 sec: 1.55814 ( -0.26296  0.26312 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.25838e-08 ( -7.33901e-09  7.62419e-09 ) ergs/cm2

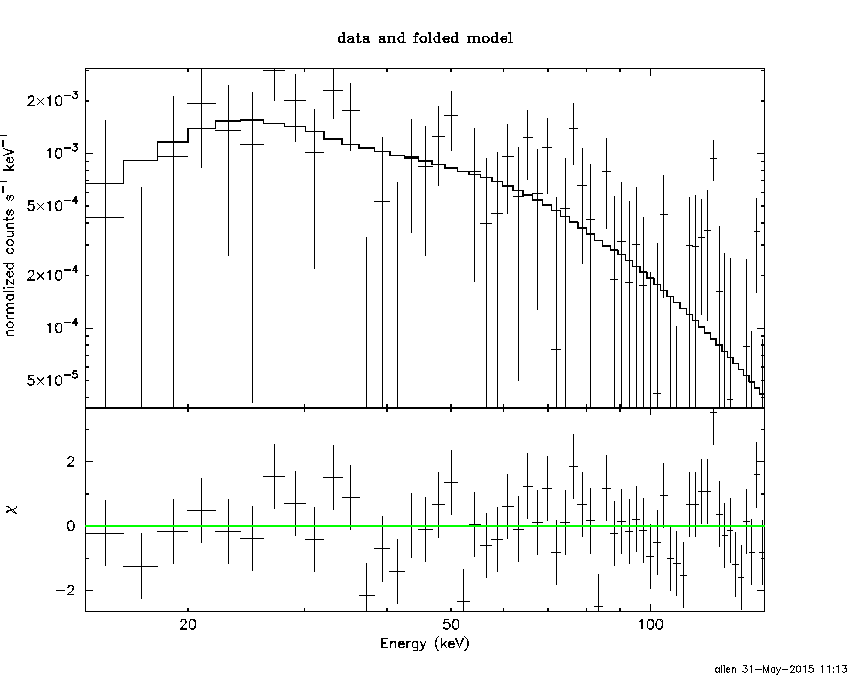

Band function

Time interval is from    0.028 sec. to    0.284 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.889117   ( 0.889117   0.889117 )
beta        : -0.663290    ( -0.305322   0.335942 )
Epeak [keV] : 16.4902      ( -16.4902 -16.4902 )
Norm@50keV   : 1.87076E-02    ( -0.00752731   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.27 using 59 PHA bins.
# Reduced chi-squared =         0.9504 for     55 degrees of freedom
# Null hypothesis probability =   5.795509e-01

Photon flux (15-150 keV)    in 0.256 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

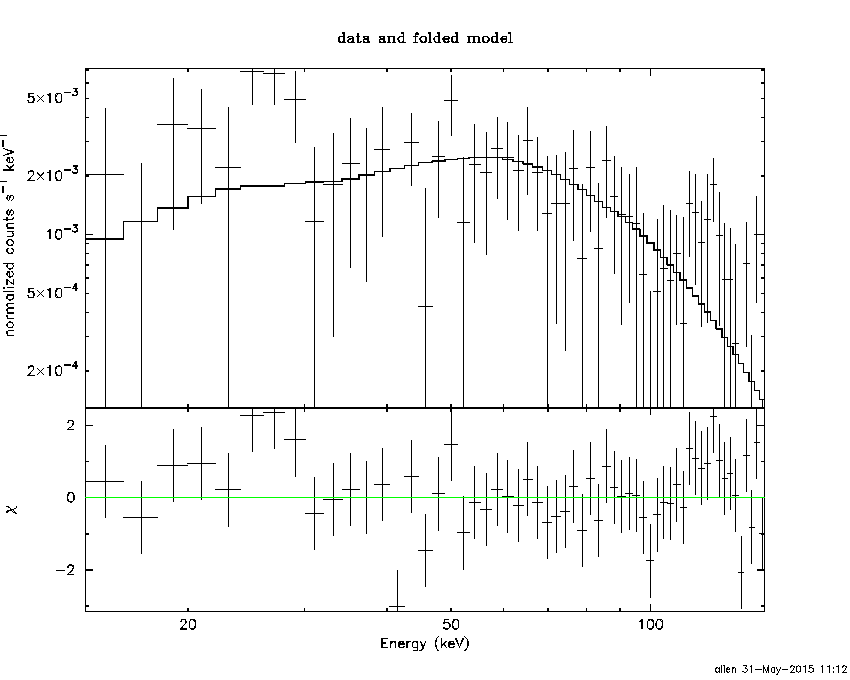

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 30.8518  (-7.31218  12.2404)
R^2/D10^2   : 2.19995E-02  (-0.0128911   0.0255884)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.30 using 59 PHA bins.
# Reduced chi-squared =          1.040 for     57 degrees of freedom
# Null hypothesis probability =   3.915989e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.242e-10   3.183e-10
25- 50  5.142e-09   1.834e-09
50-150  3.418e-08   1.214e-08
15-150  4.015e-08   1.408e-08

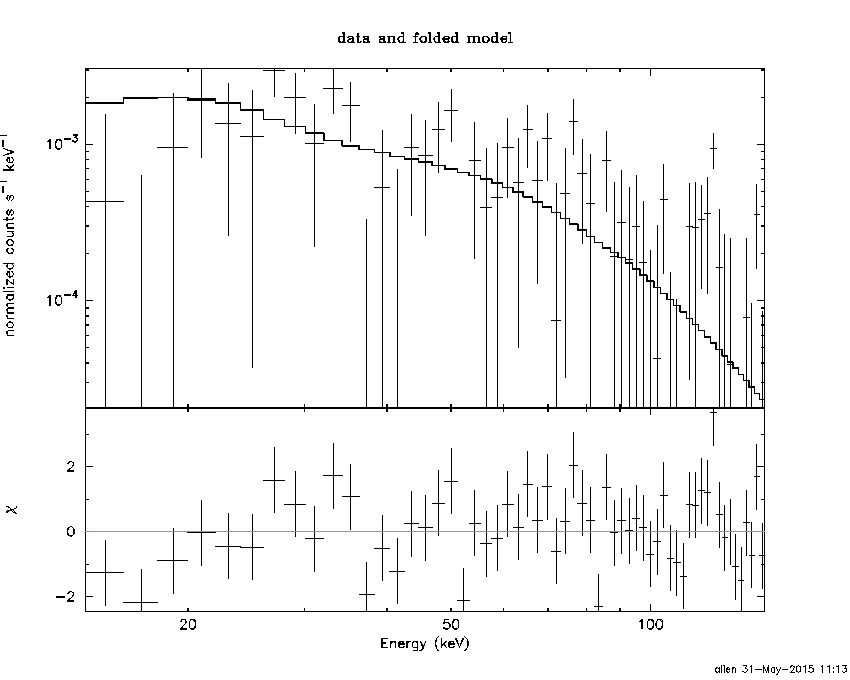

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 5.92503       (-1.0829     1.08289)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.59 using 59 PHA bins.
# Reduced chi-squared =          1.309 for     57 degrees of freedom
# Null hypothesis probability =   5.886334e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.776e-09   2.217e-09
25- 50  7.265e-09   4.212e-09
50-150  1.593e-08   9.199e-09
15-150  2.697e-08   1.553e-08

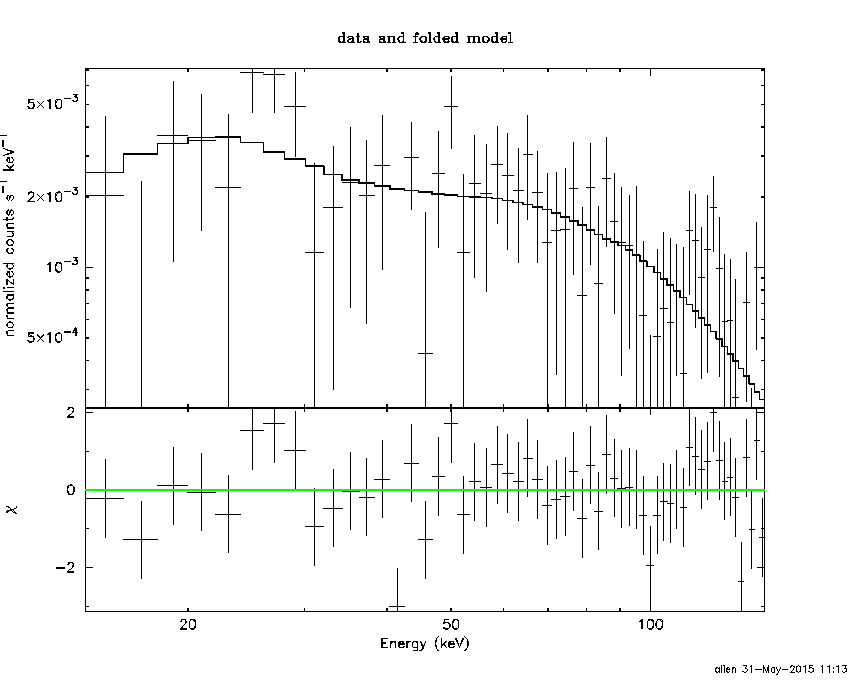

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.00325        (-3.511      10.0235)
R1^2/D10^2  : 0.656283        (-0.581663      1.98339)
kT2 [keV]   : 50.5601        (-19.8752      -50.6072)
R2^2/D10^2  : 5.46723E-03    (-0.00438729   0.0127253)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.53 using 59 PHA bins.
# Reduced chi-squared =         0.9370 for     55 degrees of freedom
# Null hypothesis probability =   6.078386e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.334e-09   1.427e-09
25- 50  6.215e-09   3.352e-09
50-150  3.556e-08   1.928e-08
15-150  4.410e-08   2.348e-08

Peak spectrum fit

Power-law model

Time interval is from   -0.342 sec. to    0.658 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.08893     ( -0.369445   0.350768 )
Norm@50keV  : 4.62007E-03    ( -0.00100124   0.00100004 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.42 using 59 PHA bins.
# Reduced chi-squared =          1.288 for     57 degrees of freedom
# Null hypothesis probability =   7.049367e-02

Photon flux (15-150 keV)    in 1 sec: 0.535352 ( -0.118131  0.118547 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.8476e-08 ( -1.14148e-08  1.15993e-08 ) ergs/cm2

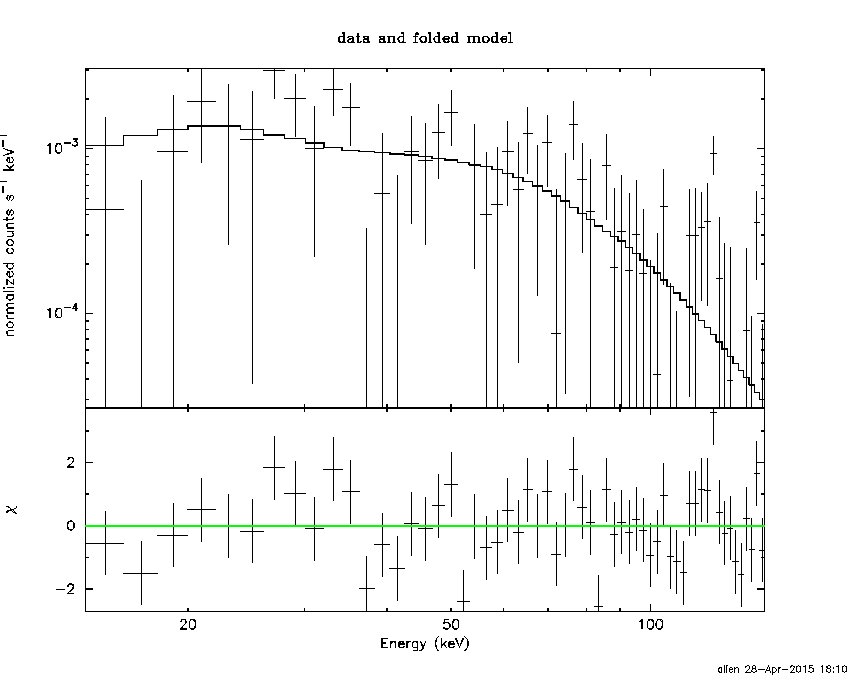

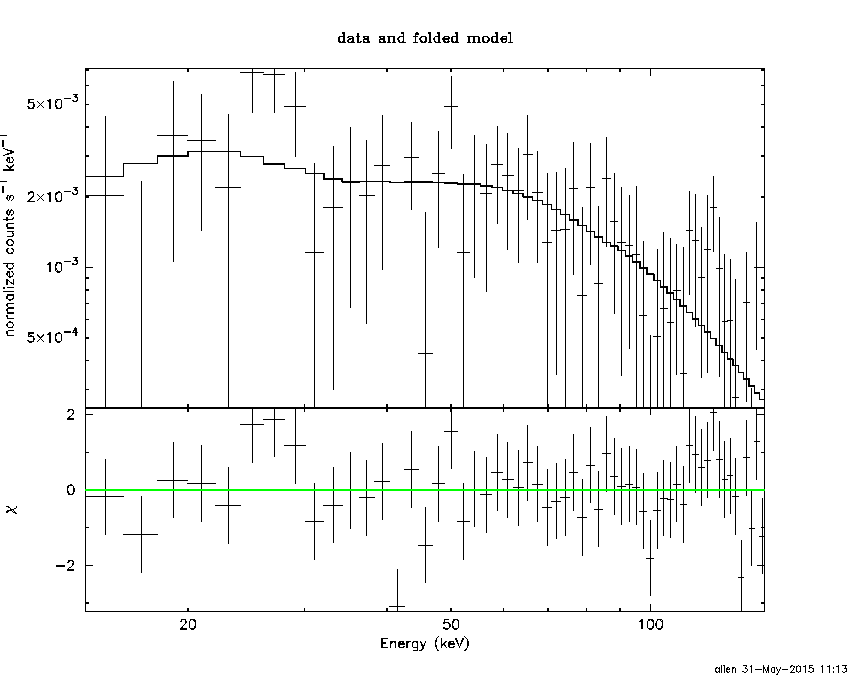

Cutoff power-law model

Time interval is from   -0.342 sec. to    0.658 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.267031     ( -1.90693   0.997791 )
Epeak [keV] : 109.882      (   )
Norm@50keV  : 1.16812E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.41 using 59 PHA bins.
# Reduced chi-squared =          1.293 for     56 degrees of freedom
# Null hypothesis probability =   6.911319e-02

Photon flux (15-150 keV)    in 1 sec: 0.521202 ( -0.120634  0.12096 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.57465e-08 ( -1.27094e-08  1.26372e-08 ) ergs/cm2

Band function

Time interval is from   -0.342 sec. to    0.658 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5.50393   -5 )
beta        : -1.45158    ( -0.600821   0.493623 )
Epeak [keV] : 35.3636      ( -11.7267 9.36157 )
Norm@50keV   : 52.2577    ( -10.9784   456.002 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.85 using 59 PHA bins.
# Reduced chi-squared =          1.270 for     55 degrees of freedom
# Null hypothesis probability =   8.566606e-02

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.65489e-08 ( -4.65419e-08  -1.16762e-08 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.7448  (-4.6579  6.74823)
R^2/D10^2   : 3.17861E-02  (-0.0200445   0.0496393)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.75 using 59 PHA bins.
# Reduced chi-squared =          1.311 for     57 degrees of freedom
# Null hypothesis probability =   5.741650e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.206e-09   8.917e-10
25- 50  1.051e-08   4.364e-09
50-150  2.706e-08   1.226e-08
15-150  3.977e-08   1.639e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 2.18449       (-0.488507     0.488488)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.22 using 59 PHA bins.
# Reduced chi-squared =          1.355 for     57 degrees of freedom
# Null hypothesis probability =   3.853576e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.442e-09   3.218e-09
25- 50  1.047e-08   6.145e-09
50-150  2.296e-08   1.350e-08
15-150  3.887e-08   2.291e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.63297        (-4.13737      -9.63781)
R1^2/D10^2  : 0.163866        (-0.146818      1.23354)
kT2 [keV]   : 34.4596        (-21.0452      -34.4906)
R2^2/D10^2  : 3.37271E-03    (-0.00323219   0.0326503)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.57 using 59 PHA bins.
# Reduced chi-squared =          1.301 for     55 degrees of freedom
# Null hypothesis probability =   6.595103e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.627e-09   2.114e-09
25- 50  1.092e-08   6.140e-09
50-150  3.260e-08   1.699e-08
15-150  4.715e-08   2.461e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.663285     ( -0.335935   0.305464 )
Norm@50keV  : 1.34372E-02    ( -0.00247389   0.00238228 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.27 using 59 PHA bins.
# Reduced chi-squared =         0.9170 for     57 degrees of freedom
# Null hypothesis probability =   6.527864e-01

Photon flux (15-150 keV)    in 0.256 sec: 1.55816 ( -0.262704  0.26362 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.26975e-08 ( -7.45421e-09  7.49586e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.655012     ( -0.902711   0.387864 )
Epeak [keV] : 1.00000E+04      (   )
Norm@50keV  : 1.35430E-02    ( -0.00248351   -0.0135439 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.28 using 59 PHA bins.
# Reduced chi-squared =         0.9337 for     56 degrees of freedom
# Null hypothesis probability =   6.162927e-01

Photon flux (15-150 keV)    in 0.256 sec: 1.55814 ( -0.26296  0.26312 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.25838e-08 ( -7.33901e-09  7.62419e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.889117   ( 0.889117   0.889117 )
beta        : -0.663290    ( -0.305322   0.335942 )
Epeak [keV] : 16.4902      ( -16.4902 -16.4902 )
Norm@50keV   : 1.87076E-02    ( -0.00752731   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.27 using 59 PHA bins.
# Reduced chi-squared =         0.9504 for     55 degrees of freedom
# Null hypothesis probability =   5.795509e-01

Photon flux (15-150 keV)    in 0.256 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.23e-09
S(50-100 keV) = 1.57e-08

T90 vs. Hardness ratio plot

T90                                   = 0.224000006914139 sec.
Hardness ratio (energy fluence ratio) = 2.52006

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.4035
Count Ratio (50-100 keV) / (15-25 keV) = 3.48267

Mask shadow pattern

IMX = -1.723001649683855E-02, IMY = 2.651703425182447E-01

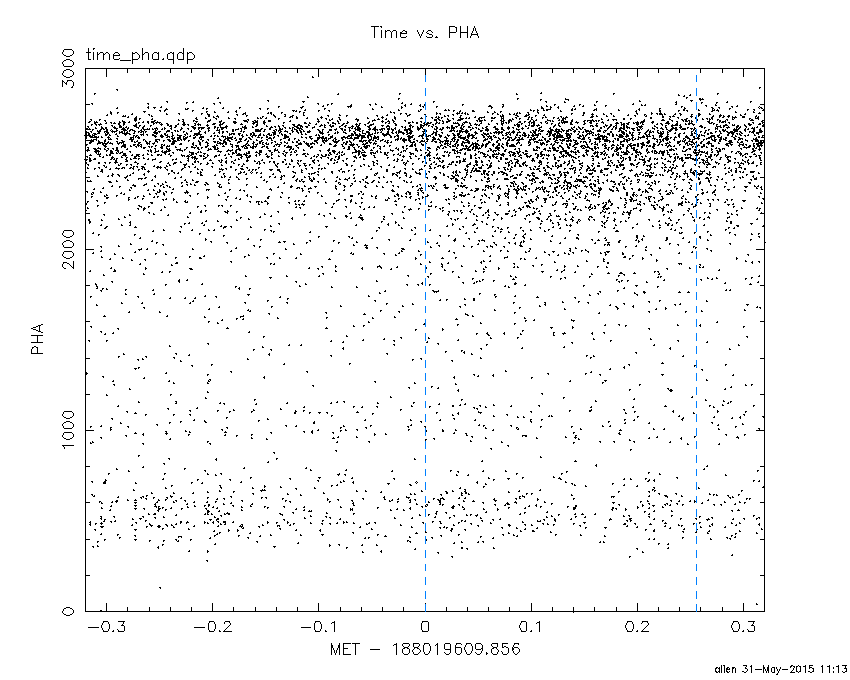

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

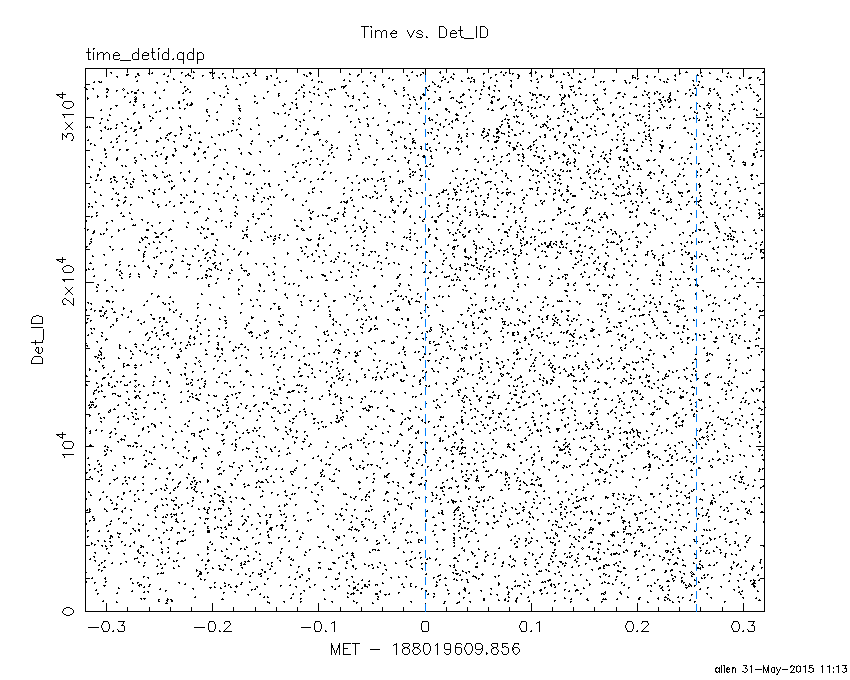

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

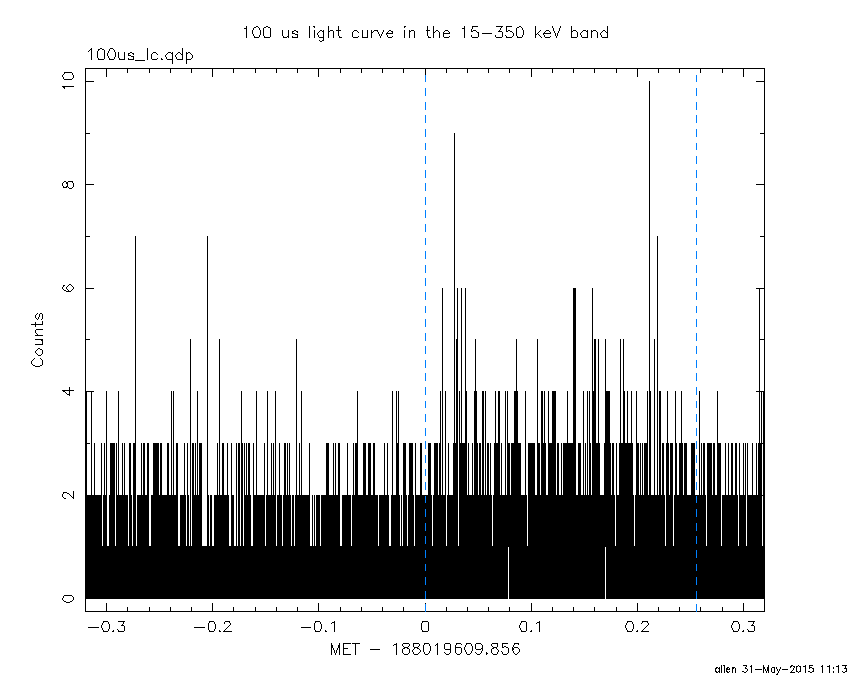

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

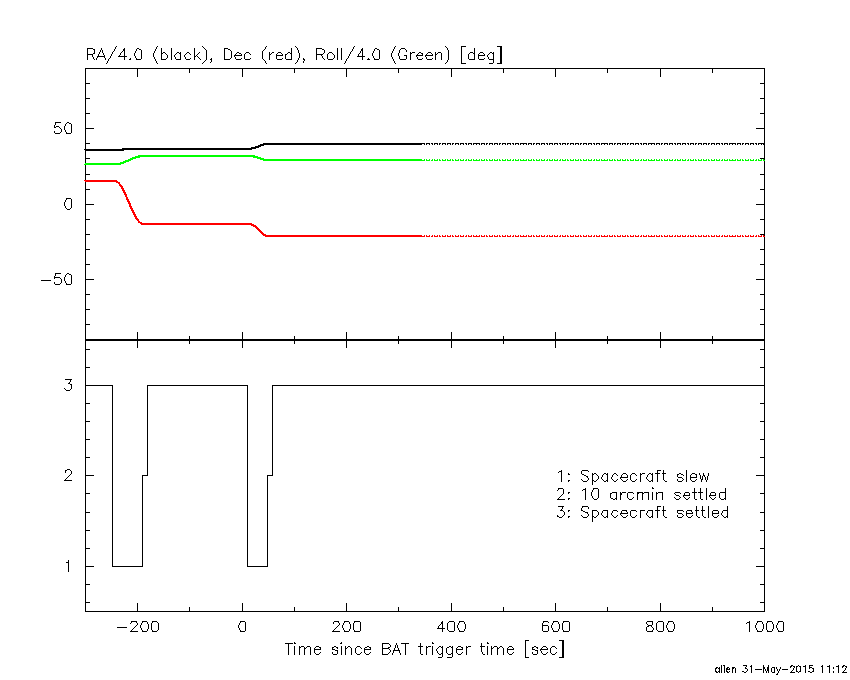

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-191.355410 0.028000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.7599 -40.5694   13.4  29.1  -19.7  -0.1198  -0.9   10.6	Vela X-1
151.2876 -40.2557    2.9  27.3  -44.5   0.6249   3.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.028000 0.284000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.3857 -40.6566    9.5  29.3  -19.2  -0.0069  -1.2    8.9	Vela X-1
109.5717   2.1599    2.0  40.4   71.9   0.1092   5.8 ------	UNKNOWN
162.7724  21.3568    2.1  37.8  166.3   0.0385   5.4 ------	UNKNOWN
106.7324 -41.3874    2.1  45.0    5.8   0.0535   5.6 ------	UNKNOWN
105.7201 -46.7104    2.3  48.2   -0.2   0.0566   5.0 ------	UNKNOWN
160.4017 -21.1473    1.2  14.9  -93.7   0.0536   9.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
48.444590 962.206400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5536 -40.5557   50.0  28.7   14.9   0.0957   0.2    1.1	Vela X-1
170.1993 -60.4861    4.5  40.0  -34.3   1.7310   2.5    8.9	Cen X-3
186.6299 -62.7935    5.8  45.3  -43.3   2.7551   2.0    1.6	GX 301-2
162.8572  25.6704    3.3  46.8  156.2   3.6549   3.5 ------	UNKNOWN
200.7911  23.3716    3.3  59.4 -163.1  11.3683   3.5 ------	UNKNOWN

Plot creation:
Sun May 31 11:14:01 EDT 2015
