batgrbproduct analysis for trigger=276205

batgrbproduct Analysis for Trigger=276205

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 20 10:38:47 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger276205
======================================================================

  Trigger: 00276205      Segment: 000

  BAT Trigger Time: 198669568   [s; MET]
      Trigger Stop: 198669632   [s; MET]
               UTC: 2007-04-19T09:59:26.099880    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 182.714045406784   Dec: 39.908351699379  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.8
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    10.8

  Flight Position:   [ source = BAT ]
    RA: 182.714045406784   Dec: 39.908351699379  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 182.751768813539   Dec: 39.8992224189556  [deg; J2000]
        { 12h 11m 00.4s , +39d 53' 57.2" }
         +/- 2.34769878819012 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.14157964187767 [arcmin] (formal 1-sigma fit error)
    SNR: 8.98730067972945

  Angular difference between Flight and Ground position is 1.820661 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 160 +/- 50.5964425626941
        Measured from: -31
                   to: 129     [s; relative to TRIGTIME]
     T50: 80 +/- 22.6274169979695
        Measured from: 1
                   to: 81     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 24.5
                   to: 25.5     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -31
                   to: 161     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.654622   0.620752   0.136435   0.122572
           0.059748   0.061548   0.053718   0.046285 [error]
 Peak      0.008659  -0.000812  -0.000703  -0.002258
           0.004296   0.004488   0.003841   0.003277 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.01e-07 2.18e-07 1.68e-07 2.13e-07 6.67e-07 8.00e-07   erg/cm2
              Error 2.84e-08 2.86e-08 4.33e-08 1.02e-07 1.01e-07 1.63e-07   erg/cm2
Peak flux Power-law 4.55e-02 9.57e-03 1.01e-03 1.16e-04 5.62e-02 5.62e-02   ph/cm2/s
              Error 5.14e-02 2.03e-02 9.42e-03 6.84e-02 7.01e-02 7.05e-02   ph/cm2/s

Fluence   Cutoff-PL 1.90e-07 2.52e-07 1.25e-07 1.73e-08 5.82e-07 5.84e-07   erg/cm2
              Error 3.15e-08 4.02e-08 5.62e-08 5.76e-08 9.87e-08 1.16e-07   erg/cm2
Peak flux Cutoff-PL 7.08e-02 4.98e-03 1.17e-07 8.97e-10 7.49e-02 7.61e-02   ph/cm2/s
              Error 6.84e-02 1.73e-02 5.36e-03 -------- 7.48e-02 --------   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.372    0.246    -      -           3.58e-04 6.78e-05   45.980 57
CPL   0.839    1.312      26.5   14.1      3.43e-03 1.74e-02   41.380 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.286    0.000    -      -           7.01e-05 3.65e-04   65.800 57
CPL   1.000    0.000      50.0    0.0      6.07e-04 0.00e+00   67.350 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  192.000  -31.000  161.000
T90   160.000  -31.000  129.000
T50    80.000    1.000   81.000
Peak    1.000   24.500   25.500

Click here for the BAT GCN circular template

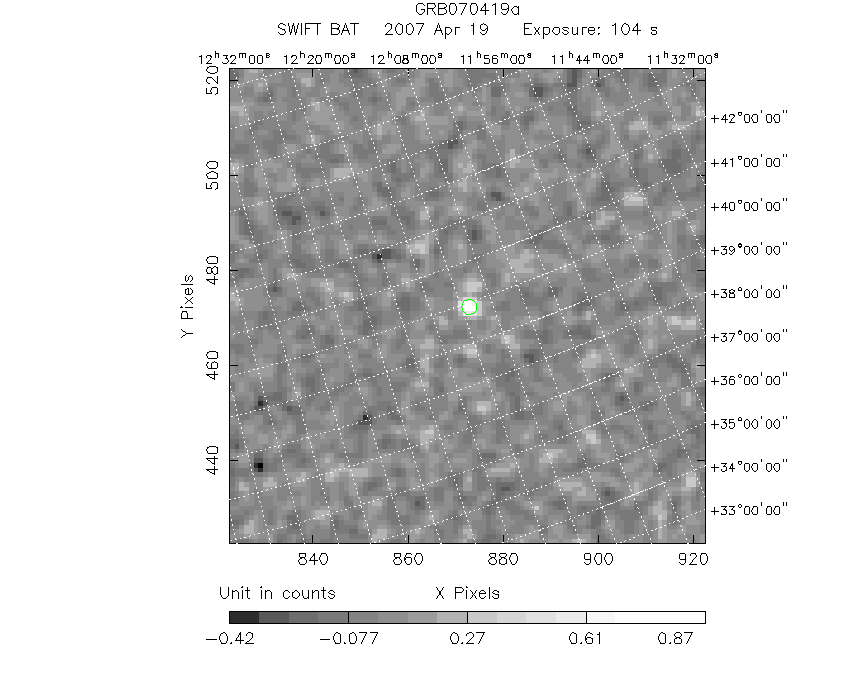

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  182.7518    39.8992   0.0214     0.9662    32.4700         0.9193433      8.987 TRIG_00276205

Foreground time interval of the image:
-31.000  73.301 (delta_t = 104.301 [sec])
Background time interval of the image:
-239.000 -31.000 (delta_t = 208.000 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

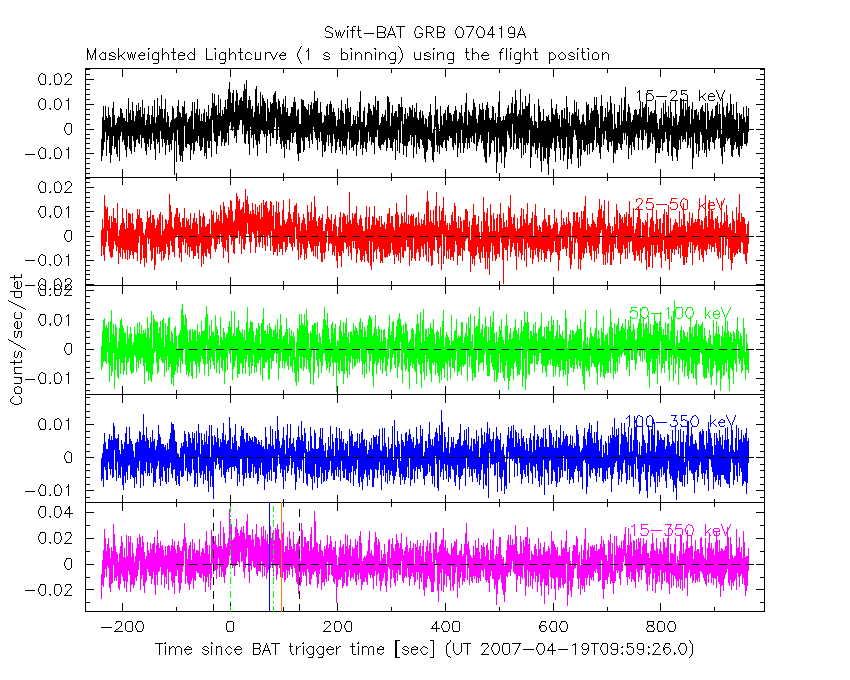

1 s binning

From T0-310 s to T0+310 s

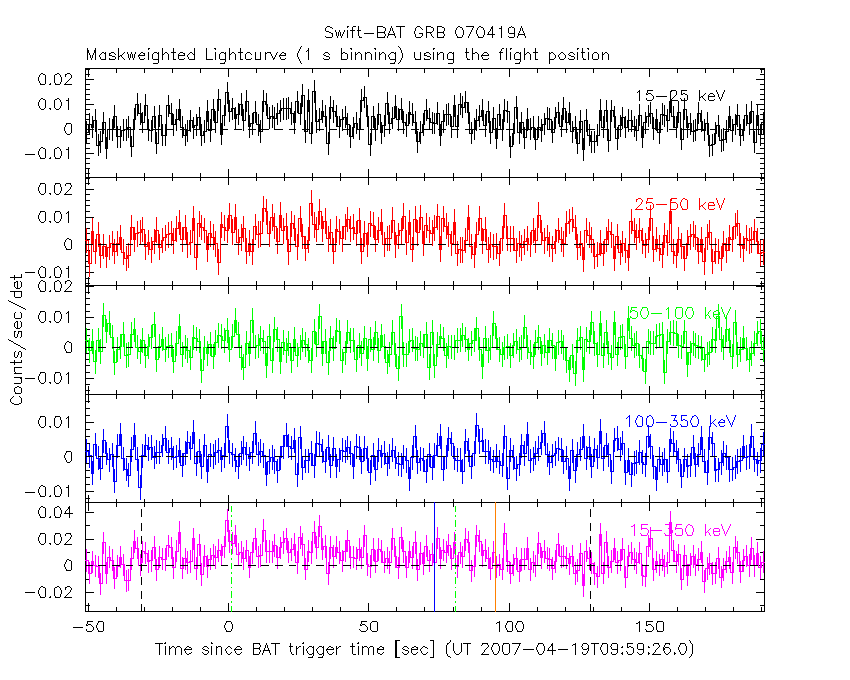

From T100_start - 20 s to T100_end + 30 s

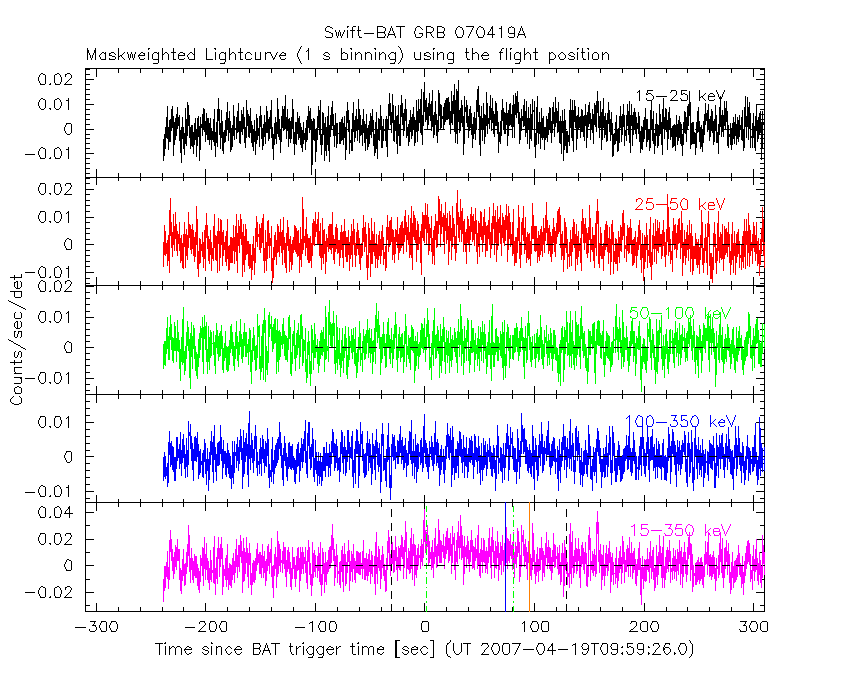

Full time interval

64 ms binning

Full time interval

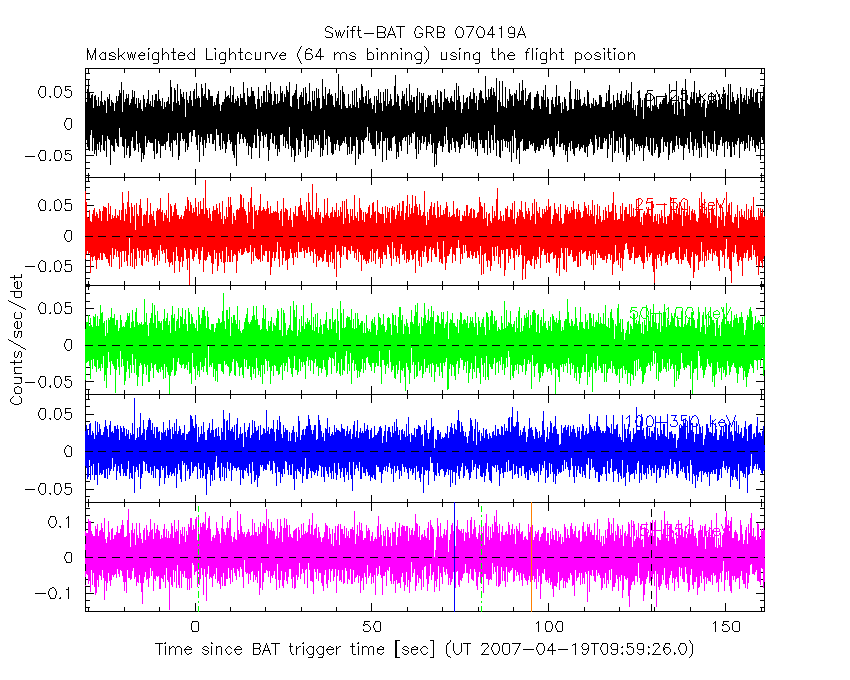

From T100_start to T100_end

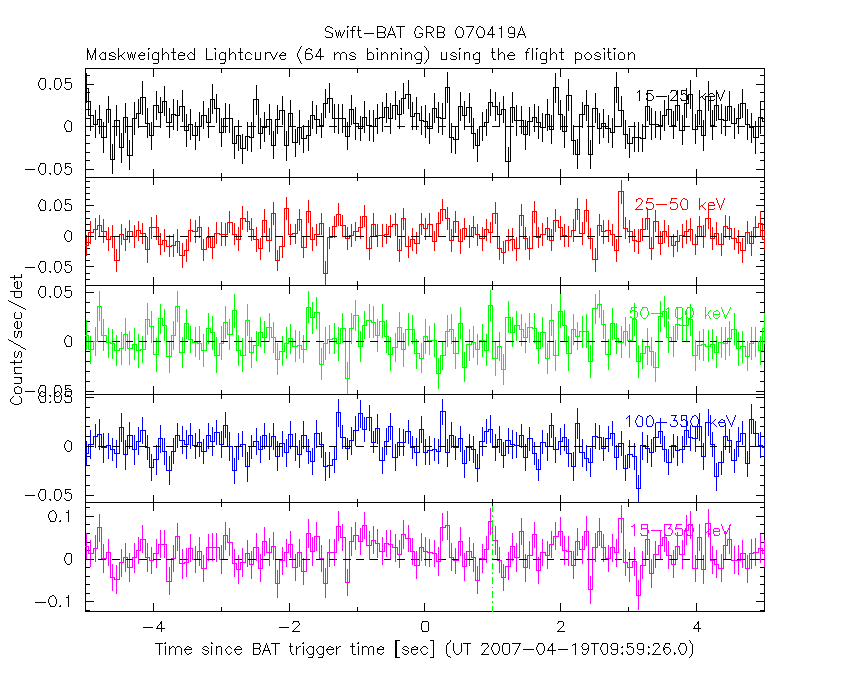

From T0-5 sec to T0+5 sec

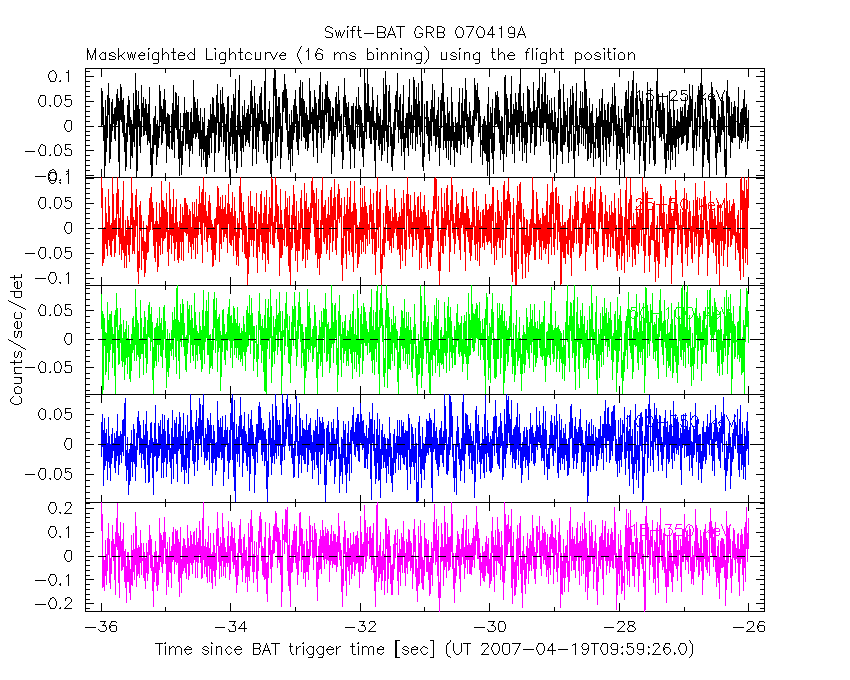

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

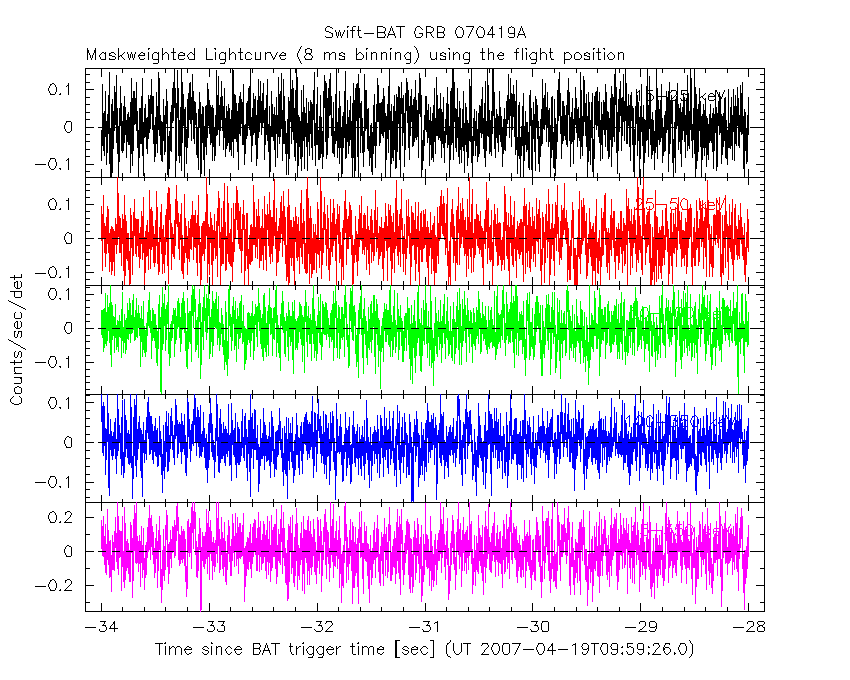

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

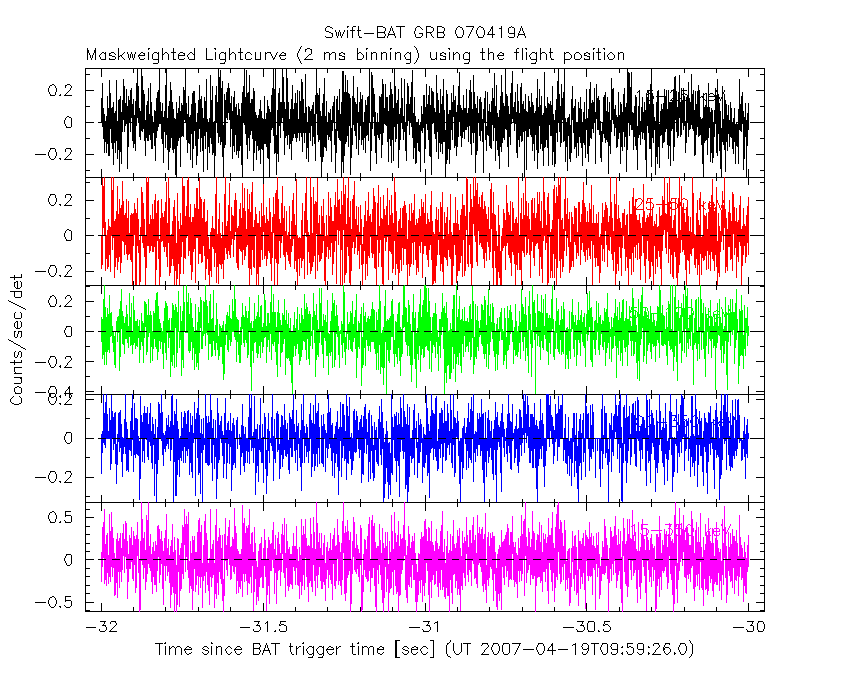

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

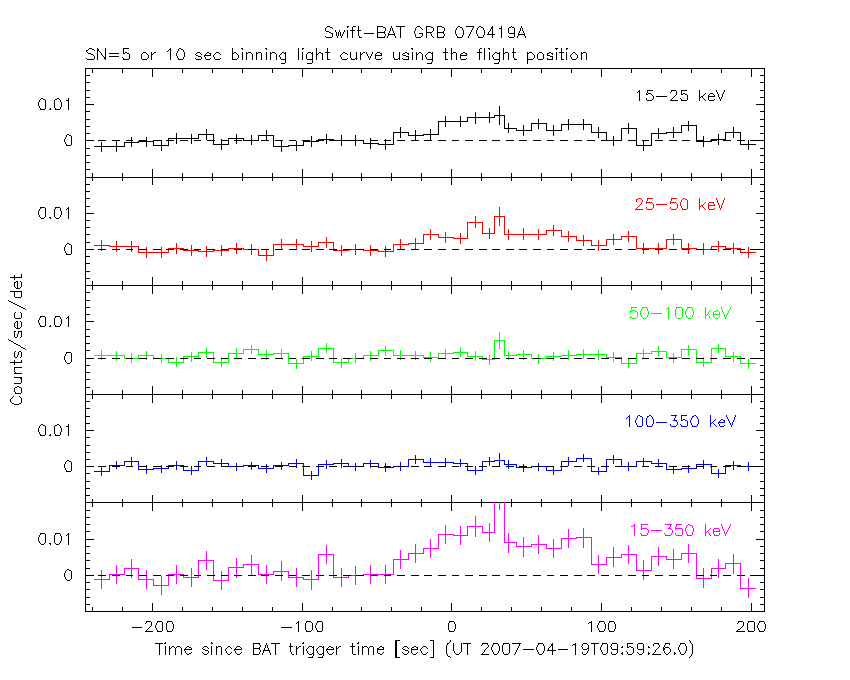

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -31.000 sec. to  161.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.37223     ( -0.234206   0.257175 )
Norm@50keV  : 3.58289E-04    ( -6.79785e-05   6.75317e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.98 using 59 PHA bins.
# Reduced chi-squared =         0.8066 for     57 degrees of freedom
# Null hypothesis probability =   8.517643e-01

Photon flux (15-150 keV)    in 192 sec: 6.52308E-02 ( -0.00753514  0.00753778 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.66933e-07 ( -9.85452e-08  1.02915e-07 ) ergs/cm2

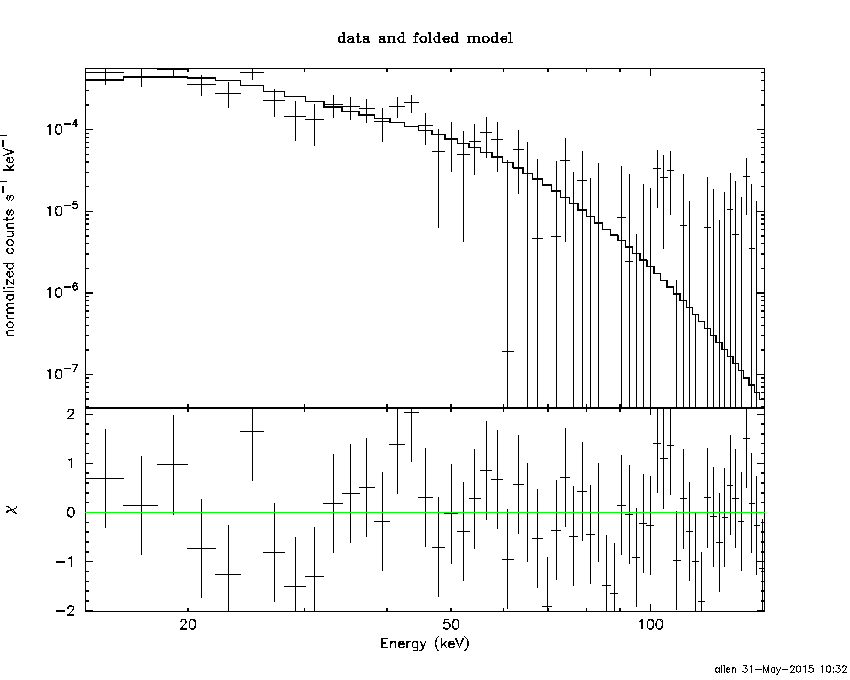

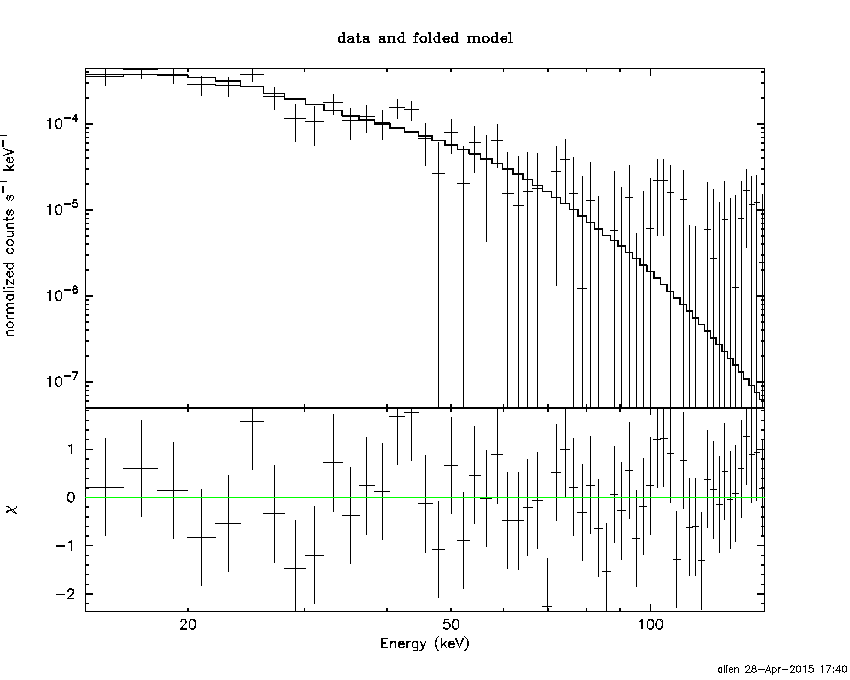

Cutoff power-law model

Time interval is from  -31.000 sec. to  161.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.838961     ( -1.55343   1.06959 )
Epeak [keV] : 26.4772      ( -21.076 7.1407 )
Norm@50keV  : 3.42793E-03    ( -0.00342799   0.0313621 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.38 using 59 PHA bins.
# Reduced chi-squared =         0.7389 for     56 degrees of freedom
# Null hypothesis probability =   9.278647e-01

Photon flux (15-150 keV)    in 192 sec: 6.27161E-02 ( -0.0075314  0.0076174 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.82019e-07 ( -8.88806e-08  1.08589e-07 ) ergs/cm2

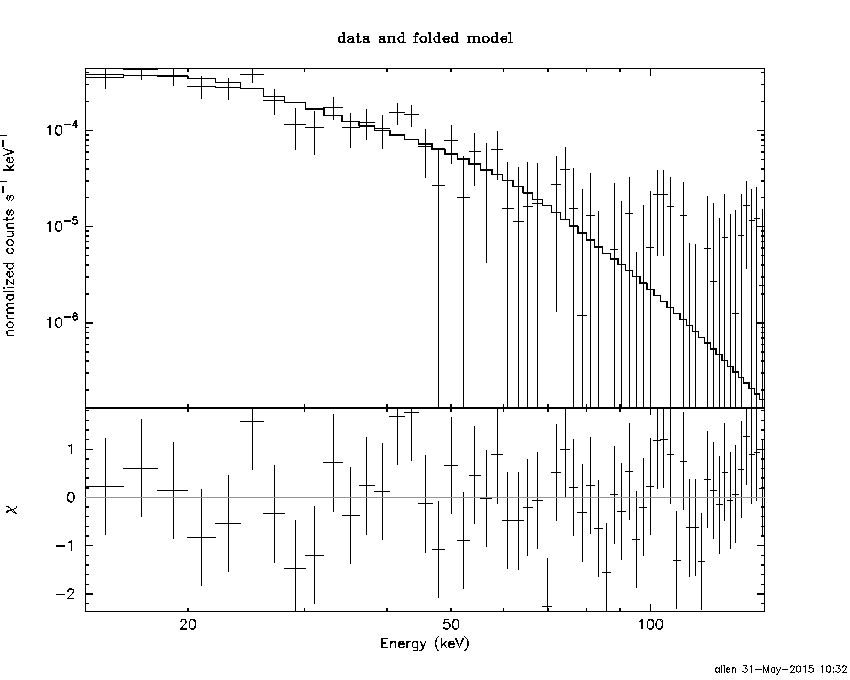

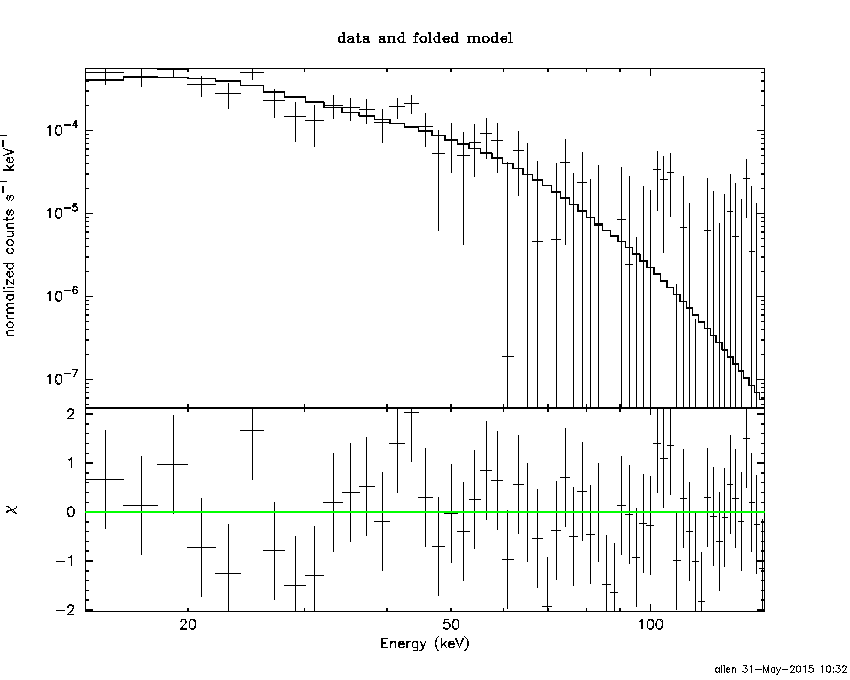

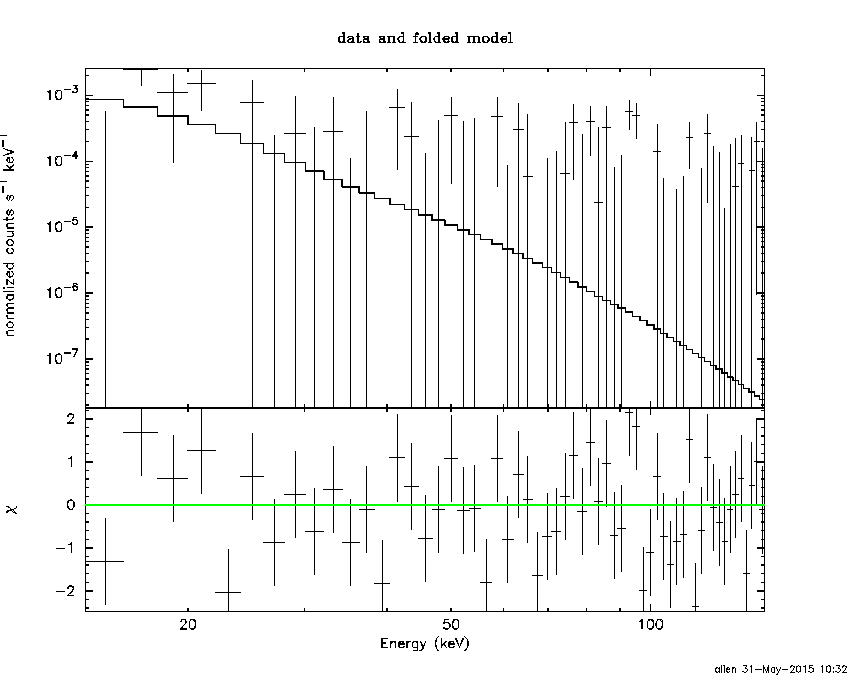

Band function

Time interval is from  -31.000 sec. to  161.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.697345   ( -0.765297   1.42974 )
beta        : -4.66332    ( 4.52581   2.00802 )
Epeak [keV] : 27.1411      ( -8.31663 6.89965 )
Norm@50keV   : 4.21759E-03    ( -0.00128658   0.0322384 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.35 using 59 PHA bins.
# Reduced chi-squared =         0.7519 for     55 degrees of freedom
# Null hypothesis probability =   9.135166e-01

Photon flux (15-150 keV)    in 192 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

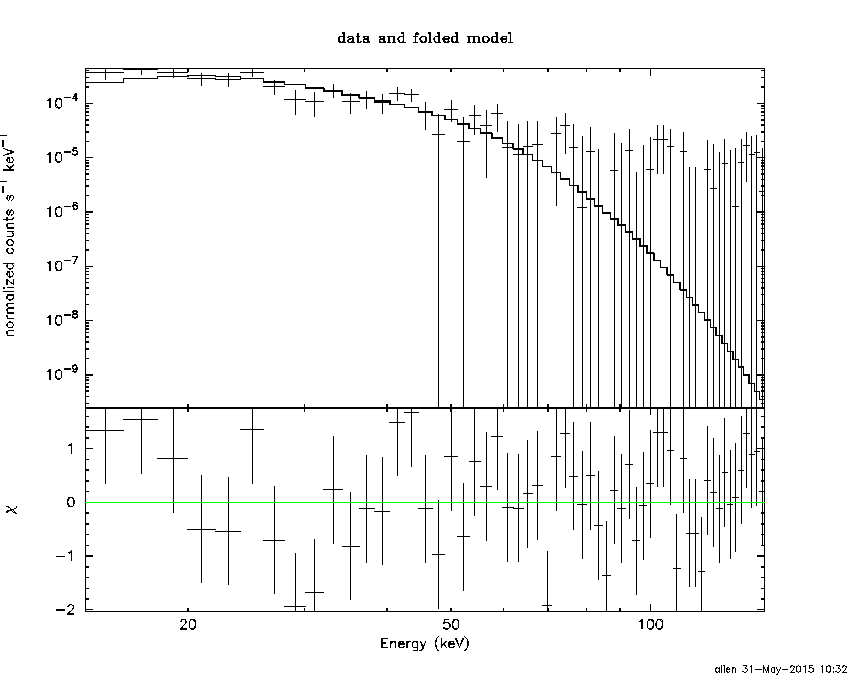

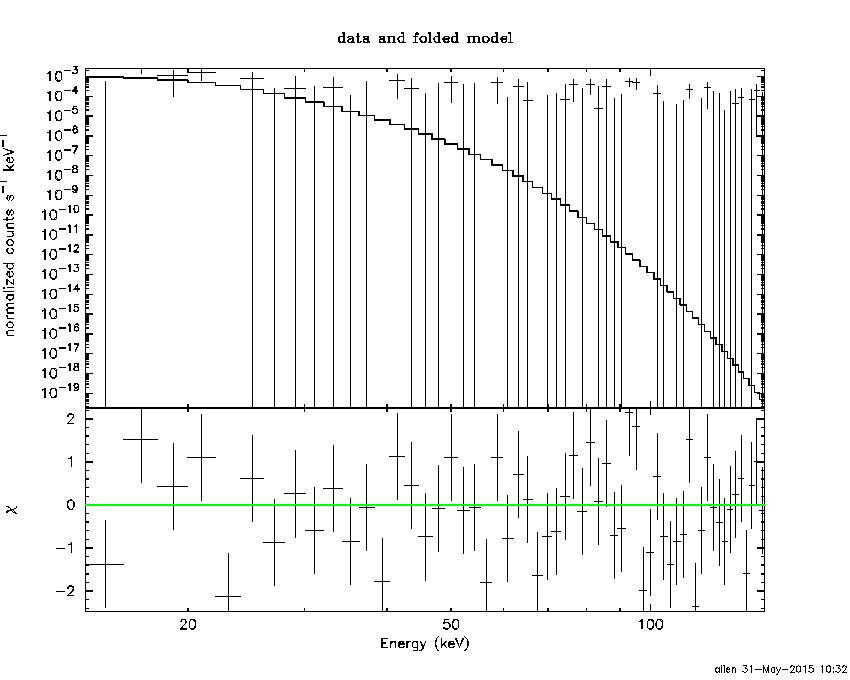

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.88924  (-0.926434  1.01714)
R^2/D10^2   : 7.68799E-02  (-0.0297245   0.0502703)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.34 using 59 PHA bins.
# Reduced chi-squared =         0.8304 for     57 degrees of freedom
# Null hypothesis probability =   8.155879e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.644e-07   3.123e-08
25- 50  2.808e-07   4.138e-08
50-150  7.041e-08   2.820e-08
15-150  5.156e-07   7.805e-08

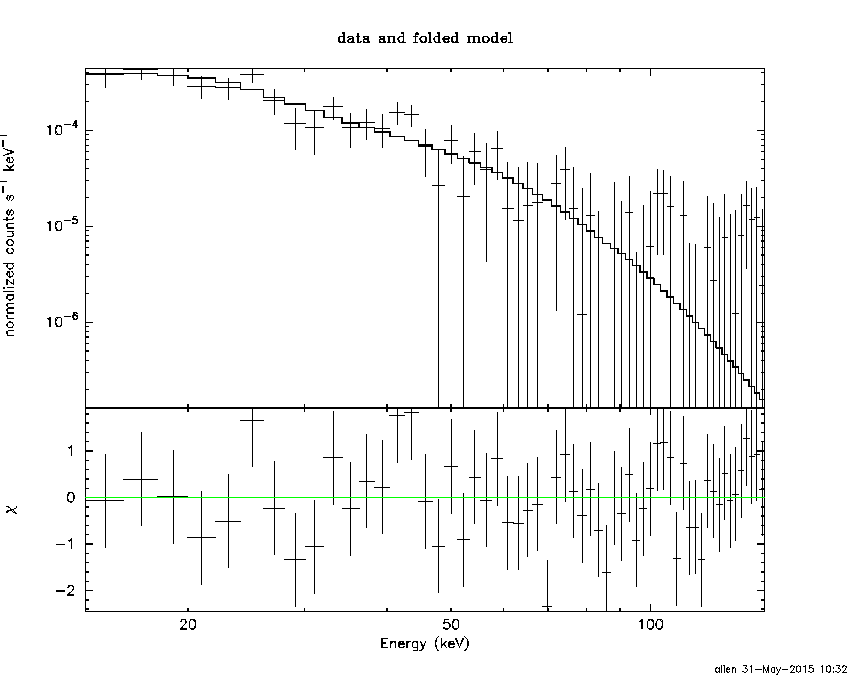

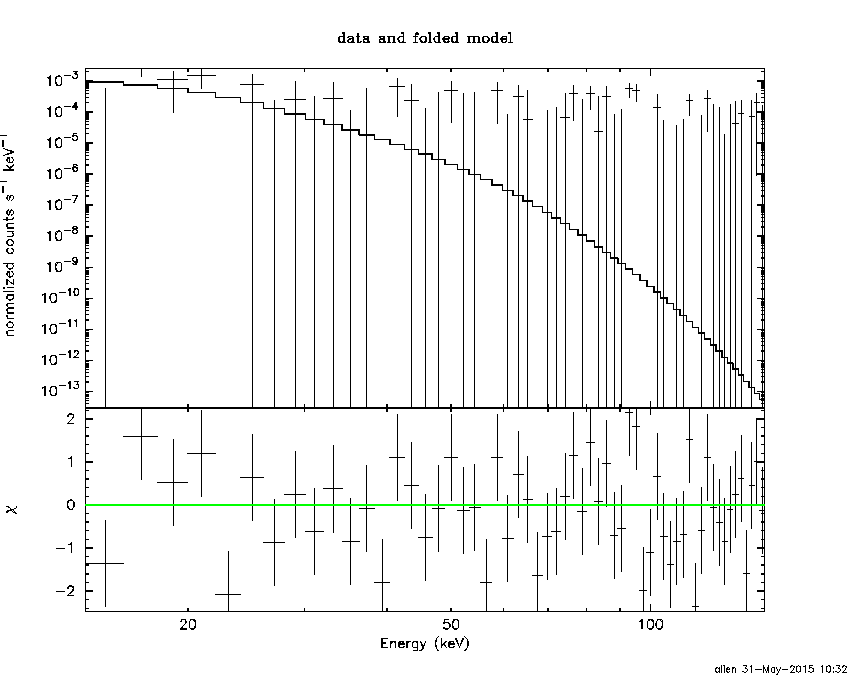

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 35.3999       (-8.67683      12.7678)
Norm        : 0.462479       (-0.0954792     0.12681)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.78 using 59 PHA bins.
# Reduced chi-squared =         0.7330 for     57 degrees of freedom
# Null hypothesis probability =   9.347874e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.949e-07   2.695e-08
25- 50  2.425e-07   3.960e-08
50-150  1.633e-07   6.201e-08
15-150  6.007e-07   9.869e-08

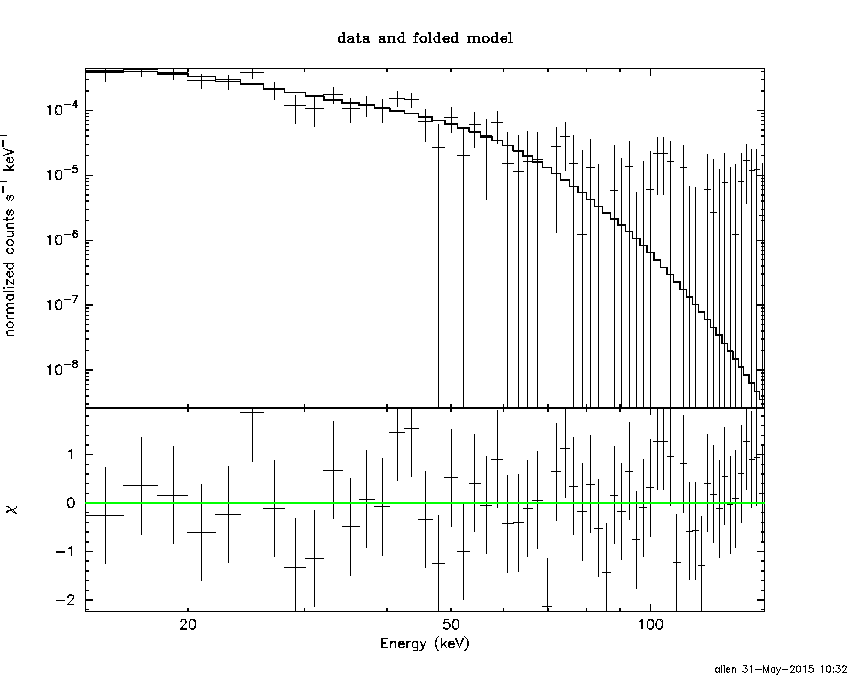

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.90653        (-1.53793      2.18911)
R1^2/D10^2  : 2.76046        (-2.54021      740.556)
kT2 [keV]   : 9.53120        (-1.5967      2.82857)
R2^2/D10^2  : 3.07787E-02    (-0.0225198   0.0388951)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.69 using 59 PHA bins.
# Reduced chi-squared =         0.7216 for     55 degrees of freedom
# Null hypothesis probability =   9.403451e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.885e-07   9.667e-08
25- 50  2.596e-07   1.401e-07
50-150  1.129e-07   6.844e-08
15-150  5.610e-07   2.401e-07

Peak spectrum fit

Power-law model

Time interval is from   24.500 sec. to   25.500 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.28552     ( -4.26872   -4.26872 )
Norm@50keV  : 7.01284E-05    ( -7.21972e-05   0.000657201 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.80 using 59 PHA bins.
# Reduced chi-squared =          1.154 for     57 degrees of freedom
# Null hypothesis probability =   1.984588e-01

Photon flux (15-150 keV)    in 1 sec: 5.61839E-02 ( -0.0561839  0.0839795 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.93952e-09 ( -1.94005e-09  4.84205e-09 ) ergs/cm2

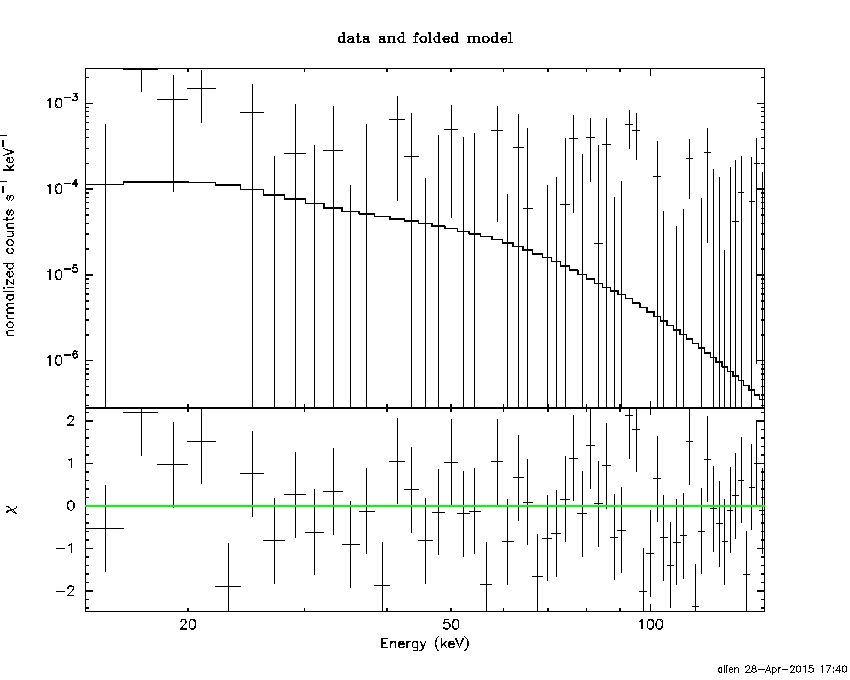

Cutoff power-law model

Time interval is from   24.500 sec. to   25.500 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 6.06564E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.35 using 59 PHA bins.
# Reduced chi-squared =          1.203 for     56 degrees of freedom
# Null hypothesis probability =   1.424863e-01

Photon flux (15-150 keV)    in 1 sec: 7.48882E-02 ( -0.0748882  0.0747338 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.29136e-09 ( -2.29136e-09  2.20338e-09 ) ergs/cm2

Band function

Time interval is from   24.500 sec. to   25.500 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.27145   ( 9.27145   9.27145 )
beta        : -4.33974    ( 4.25784   4.25784 )
Epeak [keV] : 198.859      ( -198.859 -198.859 )
Norm@50keV   : 8.90875E-03    ( -0.00992424   0.0891374 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.80 using 59 PHA bins.
# Reduced chi-squared =          1.196 for     55 degrees of freedom
# Null hypothesis probability =   1.510131e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.16873  (-3.22145  -3.22145)
R^2/D10^2   : 6.58300  (-6.41565   -6.41565)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.08 using 59 PHA bins.
# Reduced chi-squared =          1.142 for     57 degrees of freedom
# Null hypothesis probability =   2.160705e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.715e-09   1.160e-09
25- 50  3.014e-10   2.287e-10
50-150  7.479e-13   1.088e-12
15-150  2.017e-09   1.407e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 6.86498       (-6.85651      -6.85651)
Norm        : 5.13613       (-5.16104     -5.16104)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.43 using 59 PHA bins.
# Reduced chi-squared =          1.148 for     57 degrees of freedom
# Null hypothesis probability =   2.075170e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.543e-09   1.169e-09
25- 50  3.700e-10   2.568e-10
50-150  7.626e-12   1.953e-11
15-150  1.921e-09   1.655e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.18882        (-3.19766      -3.19766)
R1^2/D10^2  : 6.42821        (-6.32025      -6.32025)
kT2 [keV]   : 0.180923        (-0.180923      -0.180923)
R2^2/D10^2  : 5.62755E-04    (-0.0005652   -0.0005652)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.08 using 59 PHA bins.
# Reduced chi-squared =          1.183 for     55 degrees of freedom
# Null hypothesis probability =   1.658704e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.34915     ( -0.239253   0.26435 )
Norm@50keV  : 4.57709E-04    ( -9.03465e-05   8.9754e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.70 using 59 PHA bins.
# Reduced chi-squared =         0.9597 for     57 degrees of freedom
# Null hypothesis probability =   5.618227e-01

Photon flux (15-150 keV)    in 104.3 sec: 8.22343E-02 ( -0.0101321  0.0101373 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.60572e-07 ( -7.20366e-08  7.53258e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.393596     ( -1.6018   1.26542 )
Epeak [keV] : 29.8750      ( -6.80317 6.21078 )
Norm@50keV  : 7.64644E-03    ( -0.00792186   0.0713981 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.87 using 59 PHA bins.
# Reduced chi-squared =         0.8369 for     56 degrees of freedom
# Null hypothesis probability =   8.025520e-01

Photon flux (15-150 keV)    in 104.3 sec: 7.90625E-02 ( -0.0099644  0.0100579 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.04109e-07 ( -6.09154e-08  6.97611e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.433128   ( -1.20887   1.66082 )
beta        : -9.37167    ( 9.37167   19.3715 )
Epeak [keV] : 29.9920      ( -11.5453 6.23635 )
Norm@50keV   : 7.15240E-03    ( -0.00715087   0.072649 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.88 using 59 PHA bins.
# Reduced chi-squared =         0.8523 for     55 degrees of freedom
# Null hypothesis probability =   7.738623e-01

Photon flux (15-150 keV)    in 104.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.18e-07
S(50-100 keV) = 1.68e-07

T90 vs. Hardness ratio plot

T90                                   = 160 sec.
Hardness ratio (energy fluence ratio) = 0.770642

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.94826
Count Ratio (50-100 keV) / (15-25 keV) = 0.208418

Mask shadow pattern

IMX = 1.422897493336409E-02, IMY = -9.054389744997844E-03

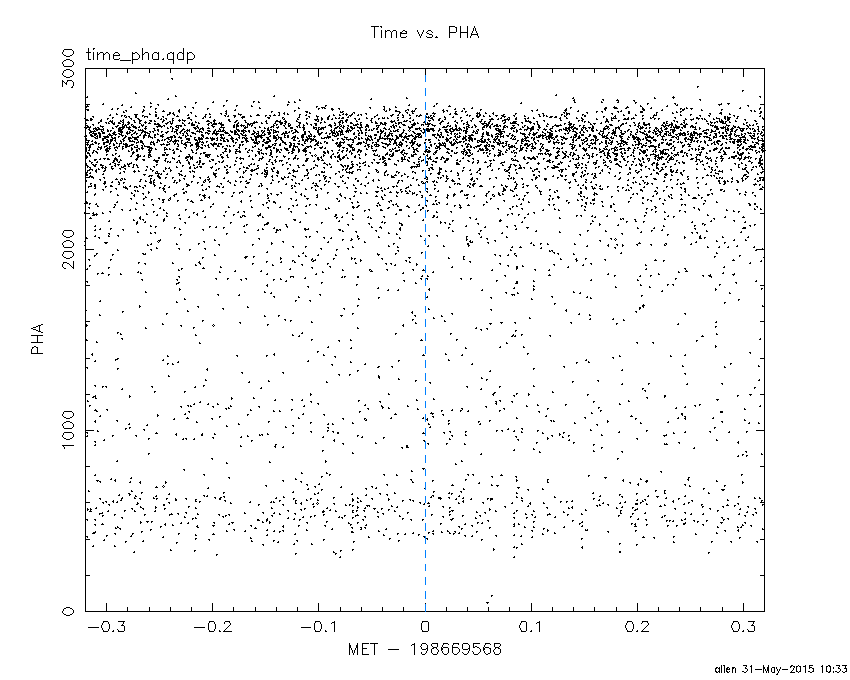

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

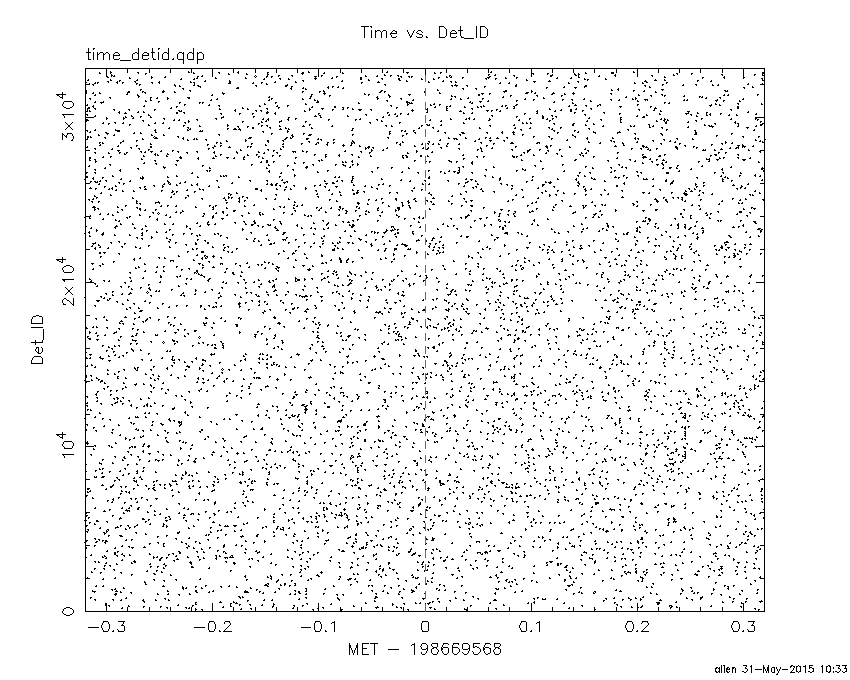

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

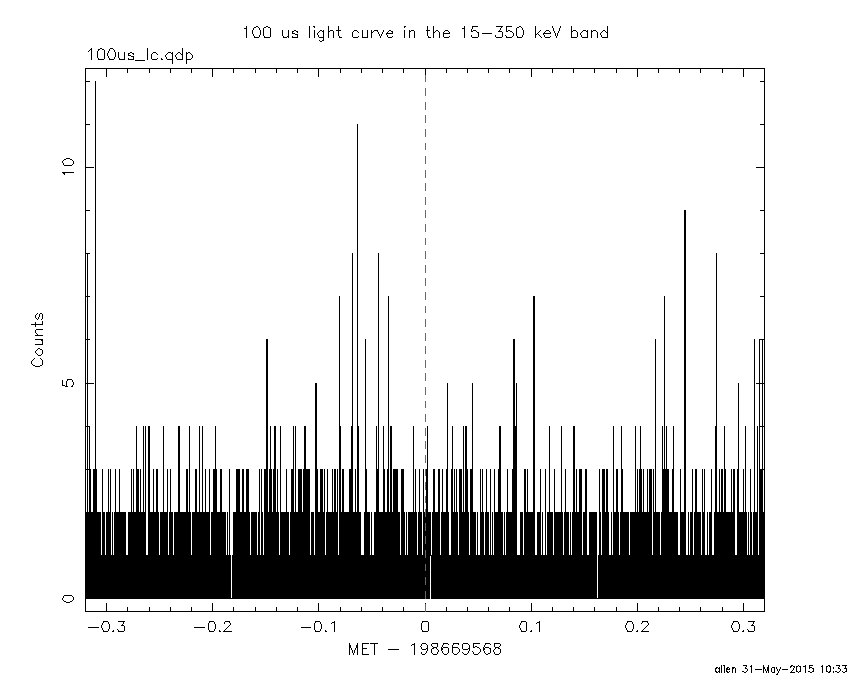

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

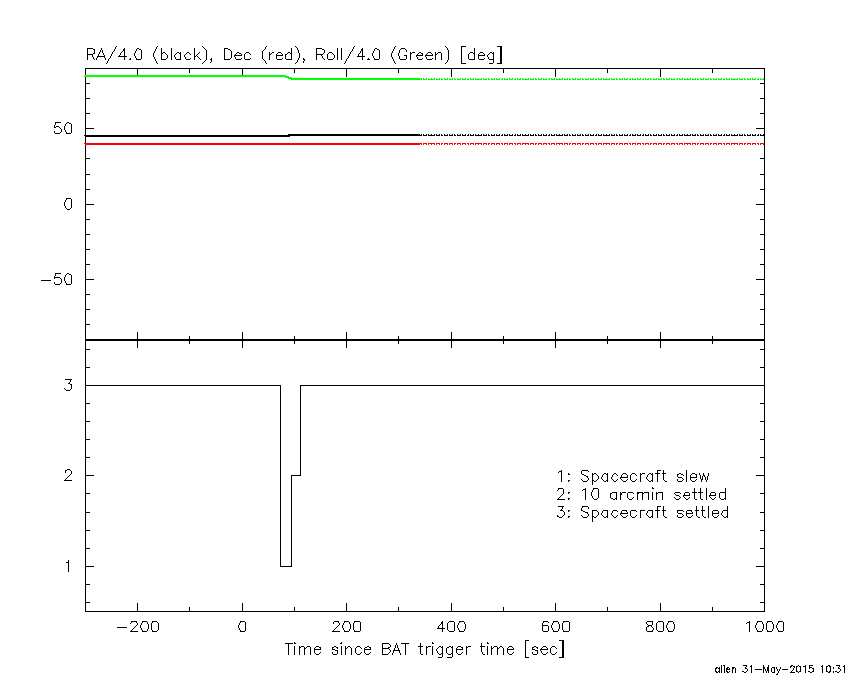

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -31.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4573  35.3424 1798.5  56.2    0.2  -0.0039  -0.0    0.0	Her X-1
217.6885  12.4208    2.6  42.1   51.3   1.9539   4.4 ------	UNKNOWN
242.9656  32.0034    2.9  49.4    9.6   1.3726   4.0 ------	UNKNOWN
176.4351  78.7044    3.3  38.7  -71.1   1.2200   3.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-31.000000 73.300600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5182  35.3614    4.7  56.3    0.2   1.3725   2.4    3.2	Her X-1
209.7209   7.7480    2.3  41.0   65.0   2.1529   5.1 ------	UNKNOWN
135.1876   2.5694    2.2  56.2  170.9   3.1040   5.3 ------	UNKNOWN
254.0483  32.8781    2.0  57.1    3.0   3.8686   5.7 ------	UNKNOWN
161.2271  27.3658    2.5  21.1  169.5   0.4567   4.6 ------	UNKNOWN
182.7519  39.8992    1.3   1.0   32.5   0.9187   9.0 ------	UNKNOWN
215.4759  51.1450    1.9  25.9  -16.1   0.6630   6.1 ------	UNKNOWN
262.5296  45.2343    2.2  57.2  -13.7   2.4576   5.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
95.100610 963.052400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5011  35.4243    5.9  55.4    9.2   4.2309   1.9    5.4	Her X-1
217.7200  43.6390    2.4  26.2    9.4   1.7860   4.7 ------	UNKNOWN
124.0158  62.1392    4.7  41.1  -98.2   6.4589   2.5 ------	UNKNOWN

Plot creation:
Sun May 31 10:33:23 EDT 2015
