batgrbproduct Analysis for Trigger=276321

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat May  9 19:28:51 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger276321
======================================================================

  Trigger: 00276321      Segment: 000

  BAT Trigger Time: 198742695.424   [s; MET]
      Trigger Stop: 198742697.472   [s; MET]
               UTC: 2007-04-20T06:18:13.522060    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 121.252999205293   Dec: -45.5608340567608  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.94
     Image Trigger?:     NO
     Rate S/N Ratio:     23.9374184071716  [ if not an image trigger ]
     Image S/N Ratio:    10.94

  Flight Position:   [ source = BAT ]
    RA: 121.252999205293   Dec: -45.5608340567608  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 121.245009841409   Dec: -45.5633398546012  [deg; J2000]
        { 08h 04m 58.8s , -45d 33' 48.0" }
         +/- 0.966693095300314 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.375880054179613 [arcmin] (formal 1-sigma fit error)
    SNR: 31.9252746370189

  Angular difference between Flight and Ground position is 0.367756 arcmin

  Partial Coding Fraction: 0.08398438    [ including projection effects ]

  Duration
     T90: 77.0240000188351 +/- 5.46696844651107
        Measured from: -23.2039999961853
                   to: 53.8200000226498     [s; relative to TRIGTIME]
     T50: 19.3120000064373 +/- 1.82200331459623
        Measured from: -5.5799999833107
                   to: 13.7320000231266     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 1.4040000140667
                   to: 2.4040000140667     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -29.136000007391
                   to: 100.275999993086     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     4.598422   7.582140   6.632324   1.688097
           0.163760   0.181227   0.164579   0.133979 [error]
 Peak      0.166879   0.287835   0.270190   0.099243
           0.022818   0.028462   0.026255   0.019215 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.96e-06 3.59e-06 5.05e-06 1.49e-05 1.45e-05 2.55e-05   erg/cm2
              Error 1.10e-07 1.18e-07 1.69e-07 1.12e-06 4.22e-07 1.21e-06   erg/cm2
Peak flux Power-law 2.16e+00 2.31e+00 1.76e+00 2.18e+00 7.06e+00 8.42e+00   ph/cm2/s
              Error 3.95e-01 2.63e-01 2.10e-01 5.32e-01 7.41e-01 8.60e-01   ph/cm2/s

Fluence   Cutoff-PL 1.79e-06 3.67e-06 5.24e-06 9.53e-06 1.42e-05 2.02e-05   erg/cm2
              Error 1.41e-07 1.29e-07 2.00e-07 2.28e-06 4.51e-07 2.29e-06   erg/cm2
Peak flux Cutoff-PL 1.99e+00 2.39e+00 1.84e+00 1.49e+00 6.97e+00 7.71e+00   ph/cm2/s
              Error 4.84e-01 3.01e-01 2.56e-01 7.81e-01 7.60e-01 1.23e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.507    0.051    -      -           1.18e-02 3.32e-04   53.740 57
CPL   1.132    0.212     130.3   57.8      1.74e-02 3.77e-03   43.910 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.395    0.169    -      -           5.80e-02 5.87e-03   50.820 57
CPL   1.009    0.616     138.5    0.0      8.89e-02 0.00e+00   49.850 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 82.240000 sec.
T50 in the 50-300 keV band: 23.104000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  129.412  -29.136  100.276
T90    77.024  -23.204   53.820
T50    19.312   -5.580   13.732
Peak    1.000    1.404    2.404

Click here for the BAT GCN circular template

Special notes of this burst

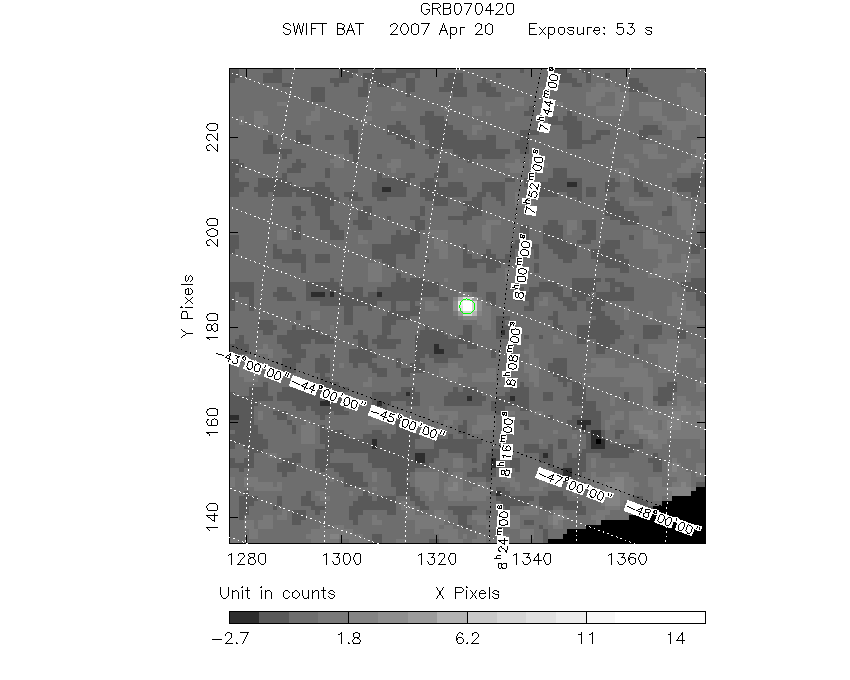

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  121.2450   -45.5633   0.0060    48.2831   146.8139        17.2951050     31.925 TRIG_00276321

Foreground time interval of the image:
-29.136  23.677 (delta_t =  52.813 [sec])
Background time interval of the image:
-239.424 -29.136 (delta_t = 210.288 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

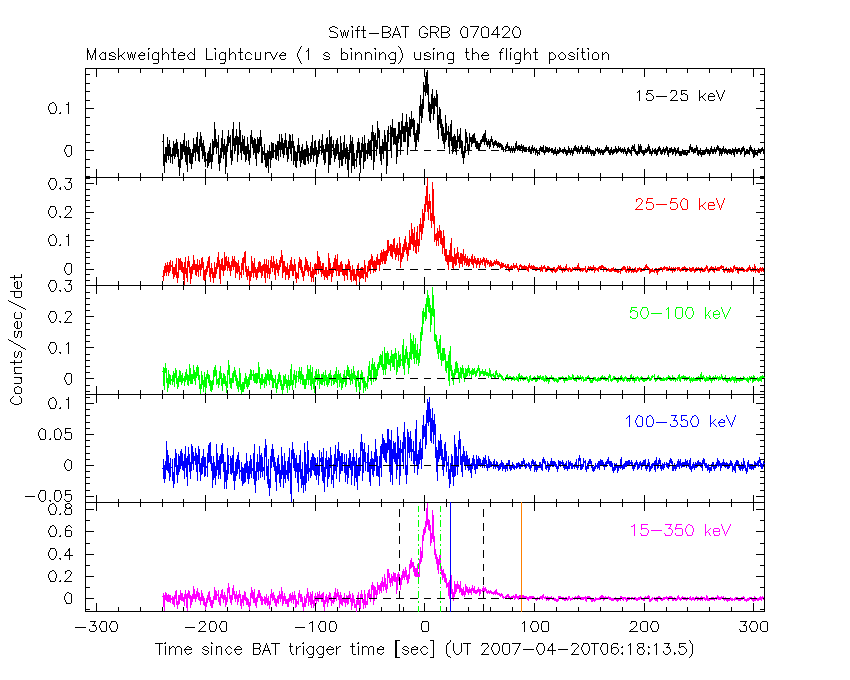

1 s binning

From T0-310 s to T0+310 s

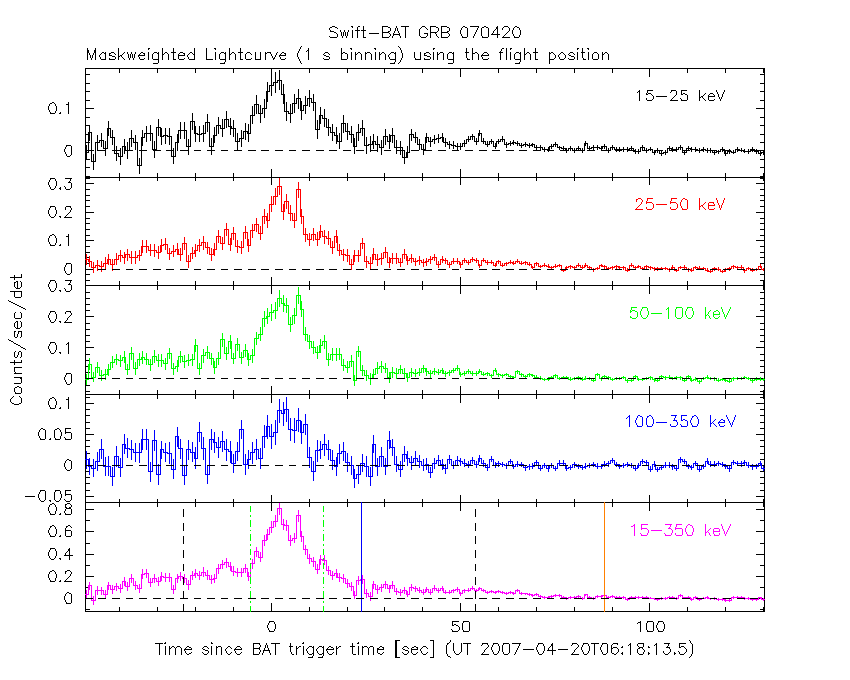

From T100_start - 20 s to T100_end + 30 s

Full time interval

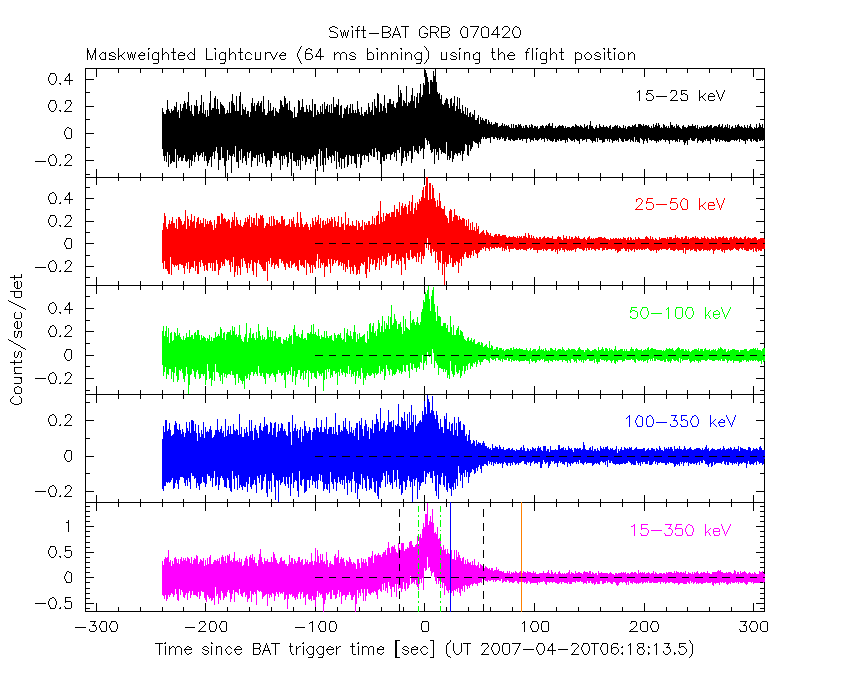

64 ms binning

Full time interval

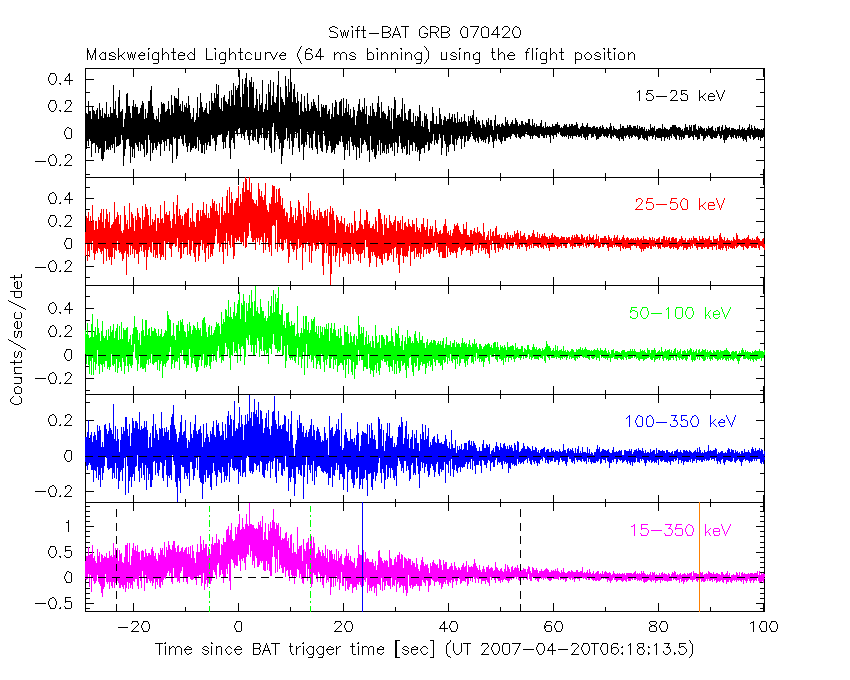

From T100_start to T100_end

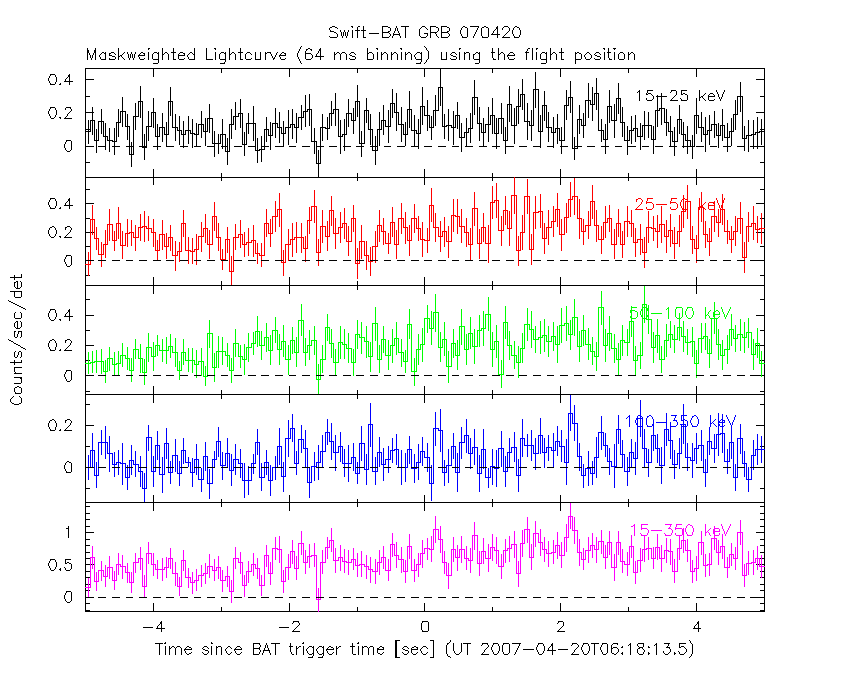

From T0-5 sec to T0+5 sec

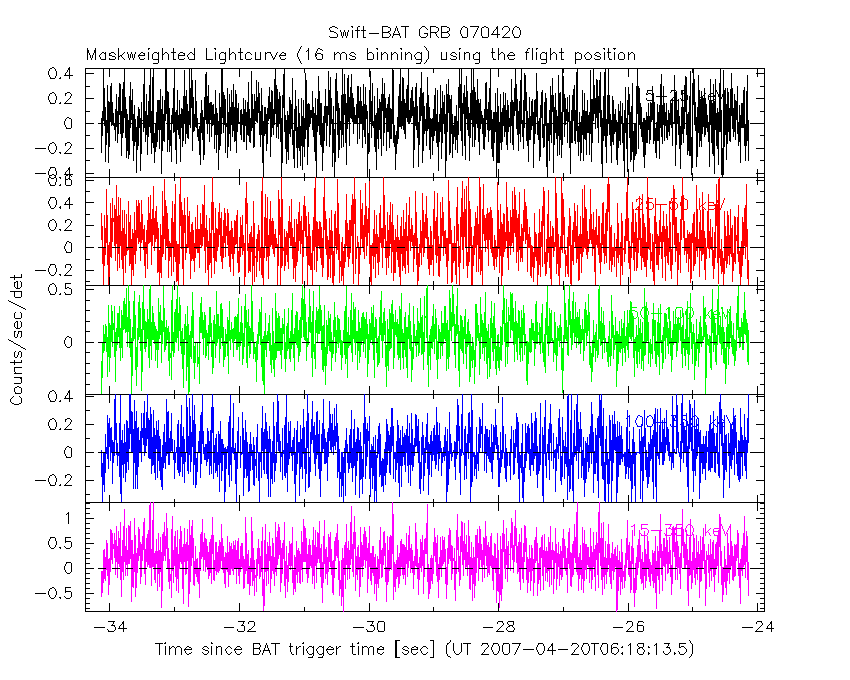

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

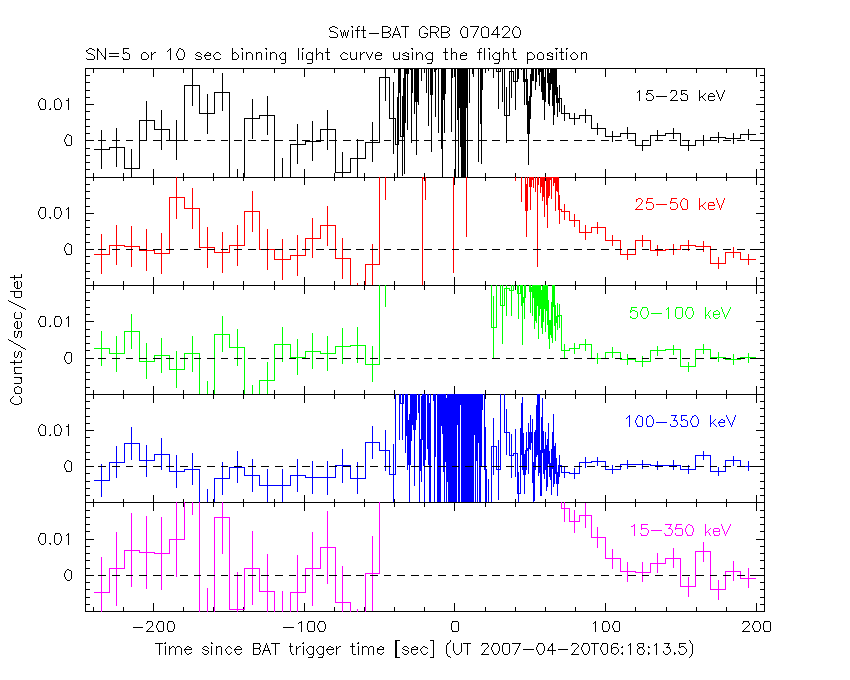

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

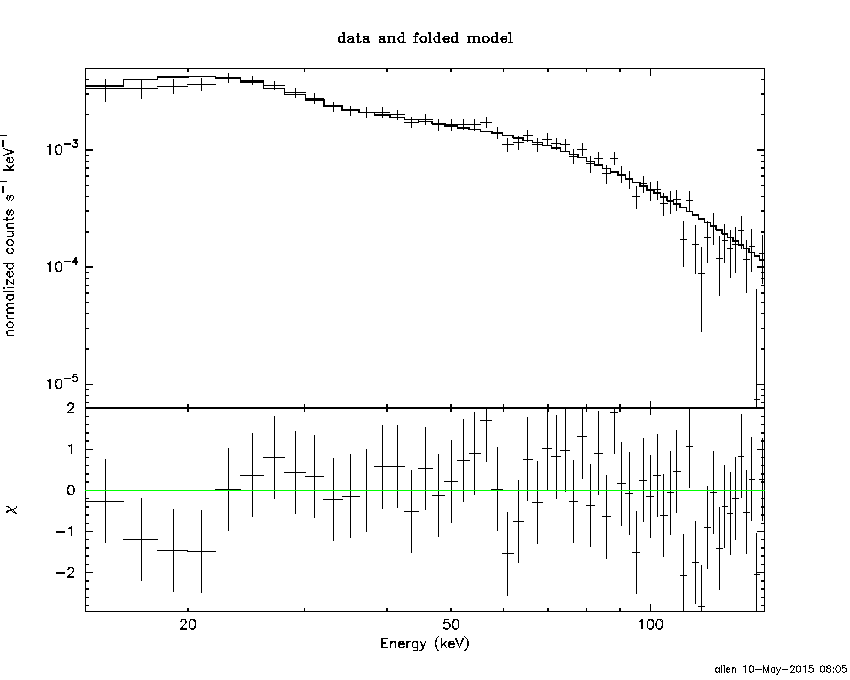

Power-law model

Time interval is from  -29.136 sec. to  100.276 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.50698     ( -0.0509565   0.0509578 )
Norm@50keV  : 1.17873E-02    ( -0.000332415   0.000332411 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.74 using 59 PHA bins.
# Reduced chi-squared =         0.9428 for     57 degrees of freedom
# Null hypothesis probability =   5.981293e-01

Photon flux (15-150 keV)    in 129.4 sec: 1.47429 ( -0.0465685  0.0467129 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.44531e-05 ( -4.22171e-07  4.22503e-07 ) ergs/cm2

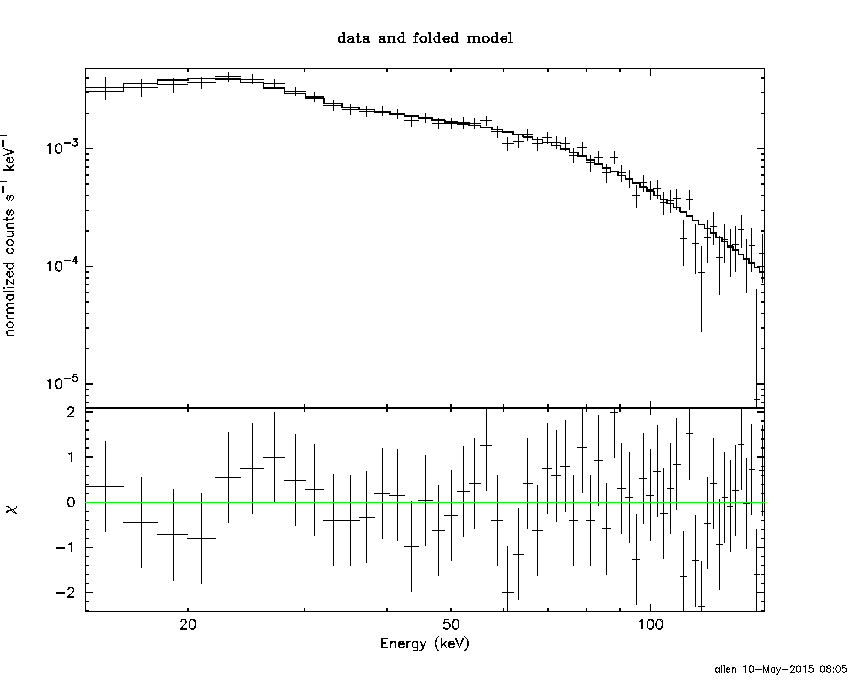

Cutoff power-law model

Time interval is from  -29.136 sec. to  100.276 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.13231     ( -0.216844   0.207276 )
Epeak [keV] : 130.335      ( -28.0953 87.4448 )
Norm@50keV  : 1.73864E-02    ( -0.0032848   0.00424934 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.91 using 59 PHA bins.
# Reduced chi-squared =         0.7841 for     56 degrees of freedom
# Null hypothesis probability =   8.795263e-01

Photon flux (15-150 keV)    in 129.4 sec: 1.43690 ( -0.05025  0.05046 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.41892e-05 ( -4.51347e-07  4.49924e-07 ) ergs/cm2

Band function

Time interval is from  -29.136 sec. to  100.276 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.13631   ( -0.1914   0.203697 )
beta        : -9.37124    ( 9.37166   19.3717 )
Epeak [keV] : 131.554      ( -17.3824 37.3506 )
Norm@50keV   : 1.73190E-02    ( -0.00240094   0.00267117 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.92 using 59 PHA bins.
# Reduced chi-squared =         0.7986 for     55 degrees of freedom
# Null hypothesis probability =   8.581924e-01

Photon flux (15-150 keV)    in 129.4 sec: 1.43706 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

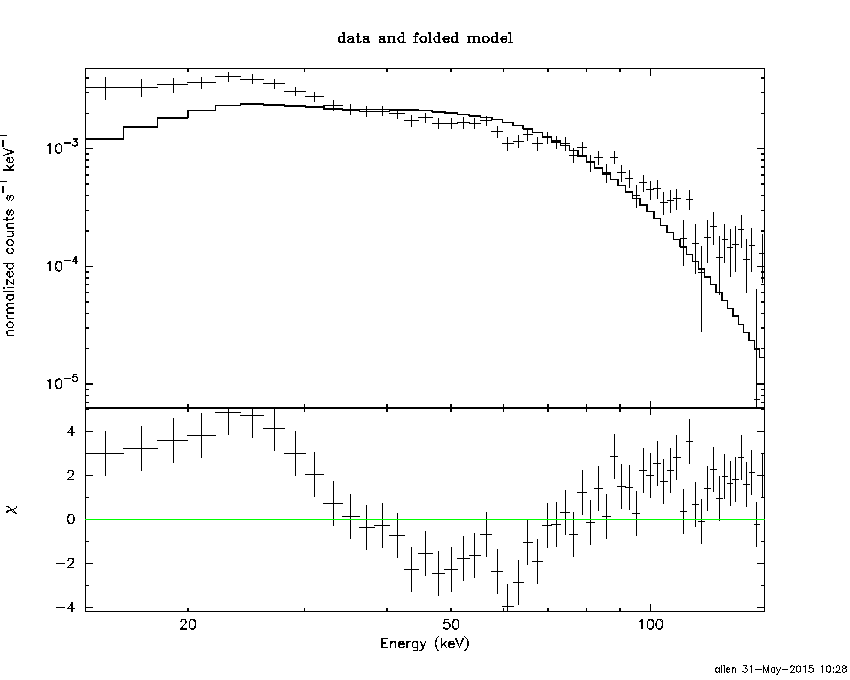

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.3585  (  )
R^2/D10^2   : 9.85486E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         281.21 using 59 PHA bins.
# Reduced chi-squared =         4.9335 for     57 degrees of freedom
# Null hypothesis probability =   2.191422e-31

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.779e-07   4.458e-08
25- 50  3.499e-06   1.508e-07
50-150  7.577e-06   3.694e-07
15-150  1.185e-05   3.520e-07

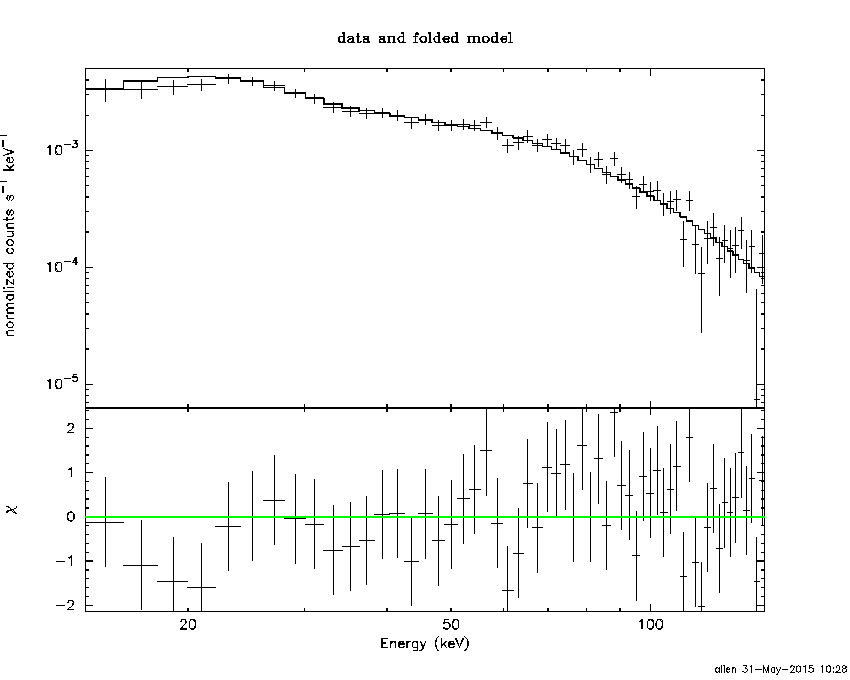

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 6.07601       (-0.171279     0.171276)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.86 using 59 PHA bins.
# Reduced chi-squared =         0.9098 for     57 degrees of freedom
# Null hypothesis probability =   6.679011e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.958e-06   5.758e-08
25- 50  3.767e-06   1.223e-07
50-150  8.261e-06   2.575e-07
15-150  1.399e-05   4.400e-07

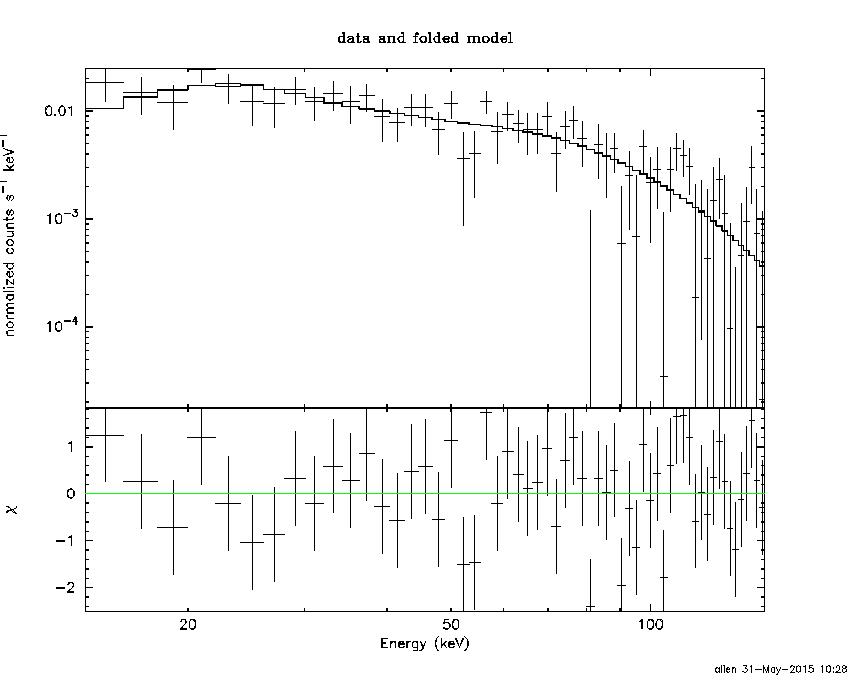

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.17431        (-0.757391      0.83274)
R1^2/D10^2  : 1.28303        (-0.401836      0.633817)
kT2 [keV]   : 26.1791        (-2.0543      2.62133)
R2^2/D10^2  : 1.90682E-02    (-0.0057393   0.00695455)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.98 using 59 PHA bins.
# Reduced chi-squared =         0.7814 for     55 degrees of freedom
# Null hypothesis probability =   8.805393e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.694e-06   1.650e-07
25- 50  3.684e-06   2.873e-07
50-150  8.750e-06   5.590e-07
15-150  1.413e-05   7.887e-07

Peak spectrum fit

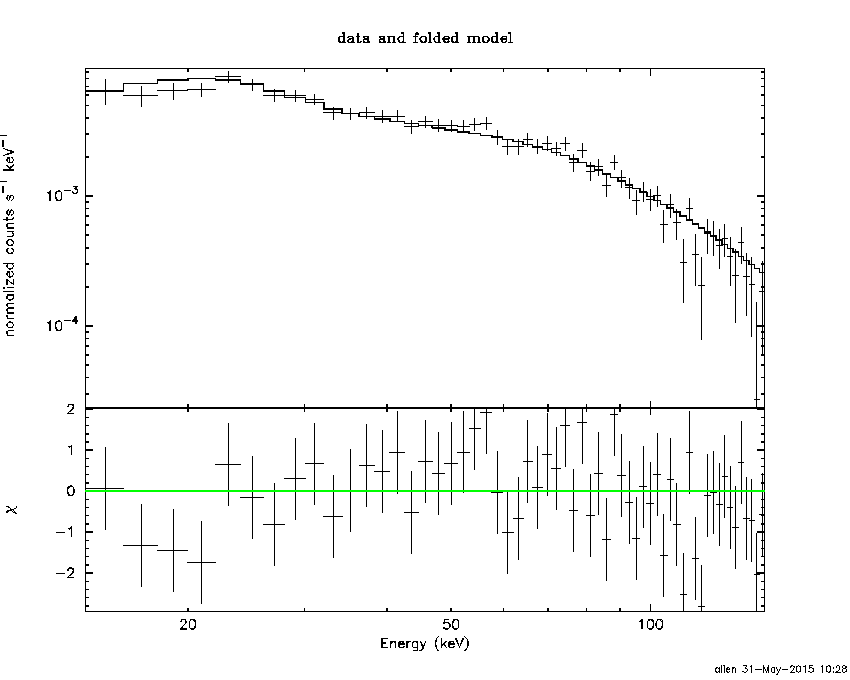

Power-law model

Time interval is from    1.404 sec. to    2.404 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.39511     ( -0.169085   0.169455 )
Norm@50keV  : 5.80484E-02    ( -0.00587169   0.0058638 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.82 using 59 PHA bins.
# Reduced chi-squared =         0.8916 for     57 degrees of freedom
# Null hypothesis probability =   7.047841e-01

Photon flux (15-150 keV)    in 1 sec: 7.06142 ( -0.740625  0.742201 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.61465e-07 ( -6.13163e-08  6.15742e-08 ) ergs/cm2

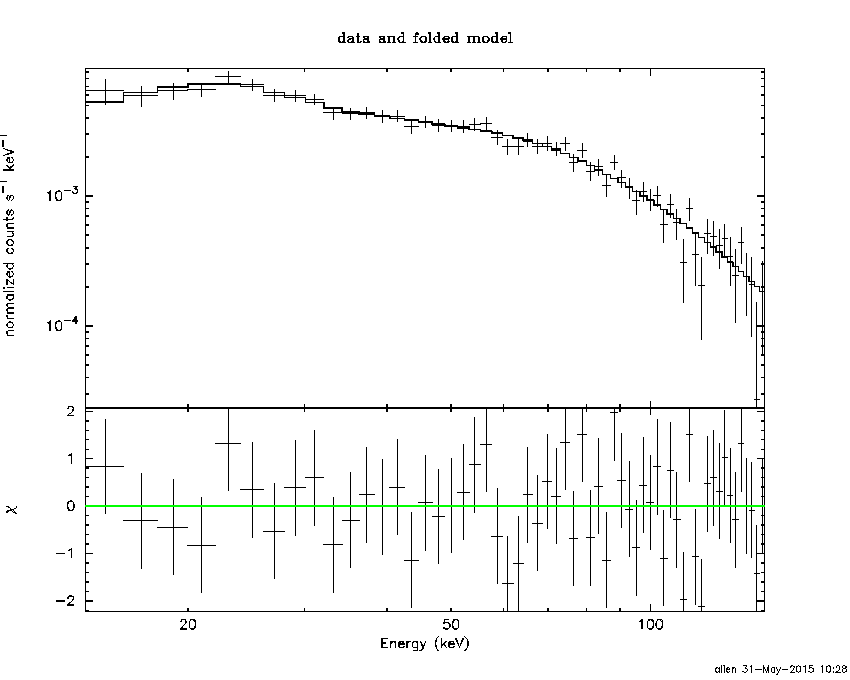

Cutoff power-law model

Time interval is from    1.404 sec. to    2.404 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00930     ( -0.760931   0.47131 )
Epeak [keV] : 138.510      (   )
Norm@50keV  : 8.88550E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.85 using 59 PHA bins.
# Reduced chi-squared =         0.8903 for     56 degrees of freedom
# Null hypothesis probability =   7.053055e-01

Photon flux (15-150 keV)    in 1 sec: 6.96605 ( -0.75986  0.75996 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.52773e-07 ( -6.4482e-08  6.3946e-08 ) ergs/cm2

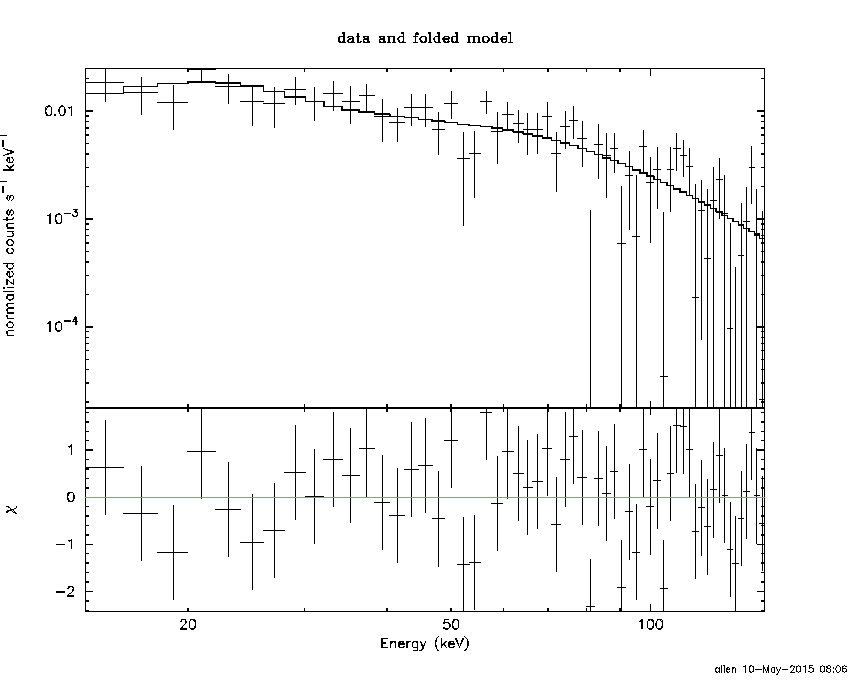

Band function

Time interval is from    1.404 sec. to    2.404 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.897191   ( 0.895729   0.895729 )
beta        : -1.68478    ( 1.69202   0.429124 )
Epeak [keV] : 111.607      ( -112.631 546.619 )
Norm@50keV   : 0.102857    ( -0.045456   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.79 using 59 PHA bins.
# Reduced chi-squared =         0.9052 for     55 degrees of freedom
# Null hypothesis probability =   6.734840e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

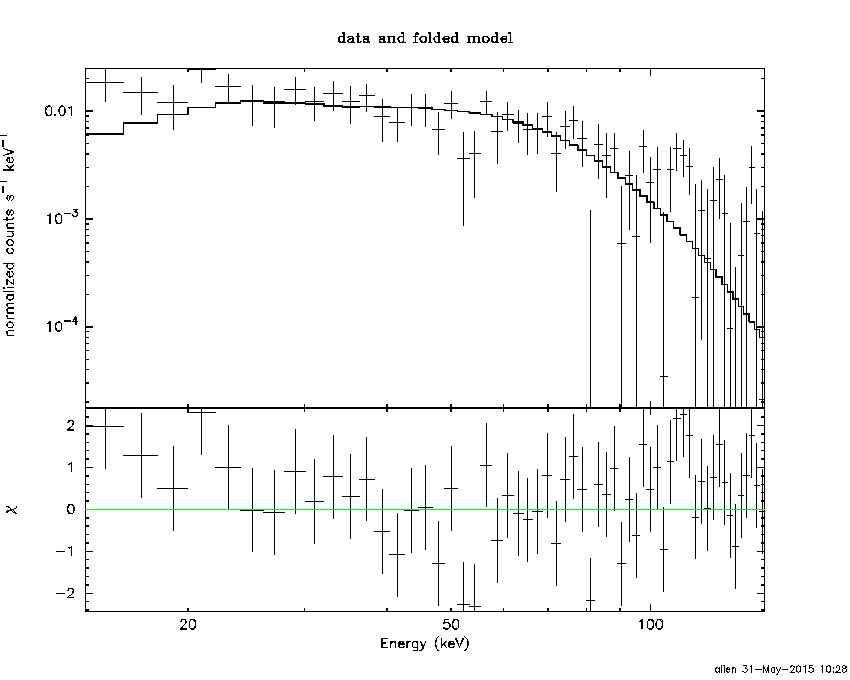

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.0254  (-2.08181  2.42459)
R^2/D10^2   : 0.539184  (-0.199595   0.308409)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.34 using 59 PHA bins.
# Reduced chi-squared =          1.217 for     57 degrees of freedom
# Null hypothesis probability =   1.265140e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.182e-08   6.340e-09
25- 50  1.410e-07   2.150e-08
50-150  2.918e-07   5.685e-08
15-150  4.646e-07   6.135e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 29.4350       (-2.97626     2.97607)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.82 using 59 PHA bins.
# Reduced chi-squared =         0.9267 for     57 degrees of freedom
# Null hypothesis probability =   6.323883e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.329e-08   2.085e-08
25- 50  1.410e-07   5.254e-08
50-150  3.092e-07   1.683e-07
15-150  5.235e-07   2.556e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.64847        (-3.36578      4.26216)
R1^2/D10^2  : 4.68604        (-3.29326      32.9402)
kT2 [keV]   : 27.1423        (-7.19796      36.3708)
R2^2/D10^2  : 8.64481E-02    (-0.0802018   0.0943676)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.16 using 59 PHA bins.
# Reduced chi-squared =         0.9303 for     55 degrees of freedom
# Null hypothesis probability =   6.219505e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.842e-08   3.141e-08
25- 50  1.398e-07   6.897e-08
50-150  3.530e-07   1.781e-07
15-150  5.512e-07   2.790e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.44447     ( -0.0528142   0.0527539 )
Norm@50keV  : 2.40068E-02    ( -0.00072047   0.00072038 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.92 using 59 PHA bins.
# Reduced chi-squared =          1.104 for     57 degrees of freedom
# Null hypothesis probability =   2.748061e-01

Photon flux (15-150 keV)    in 52.81 sec: 2.95447 ( -0.0985245  0.0988125 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.21443e-05 ( -3.76469e-07  3.76745e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.913792     ( -0.237266   0.225861 )
Epeak [keV] : 116.697      ( -19.4779 43.5408 )
Norm@50keV  : 4.13827E-02    ( -0.00835931   0.0110368 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.87 using 59 PHA bins.
# Reduced chi-squared =         0.8191 for     56 degrees of freedom
# Null hypothesis probability =   8.308741e-01

Photon flux (15-150 keV)    in 52.81 sec: 2.85767 ( -0.1051  0.10557 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.18706e-05 ( -3.9993e-07  3.98187e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.913760   ( -0.198396   0.246313 )
beta        : -10.0000    ( 10   1.06581e-14 )
Epeak [keV] : 116.677      ( -11.8001 43.543 )
Norm@50keV   : 4.13811E-02    ( -0.00836608   0.011025 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.87 using 59 PHA bins.
# Reduced chi-squared =         0.8340 for     55 degrees of freedom
# Null hypothesis probability =   8.048850e-01

Photon flux (15-150 keV)    in 52.81 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.18642e-05 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.59e-06
S(50-100 keV) = 5.05e-06

T90 vs. Hardness ratio plot

T90                                   = 77.0240000188351 sec.
Hardness ratio (energy fluence ratio) = 1.40669

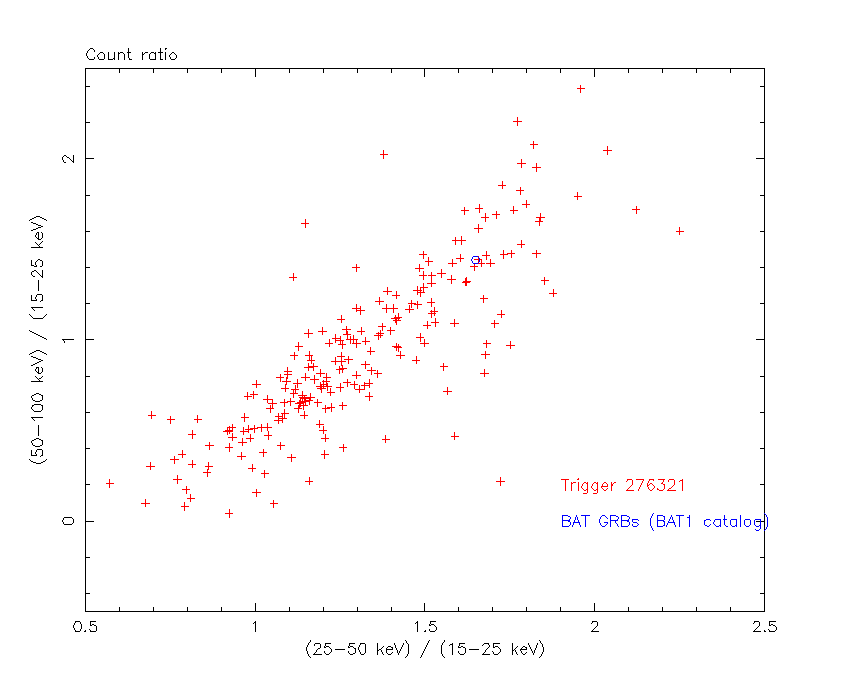

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.64886
Count Ratio (50-100 keV) / (15-25 keV) = 1.4423

Mask shadow pattern

IMX = -9.387541668664886E-01, IMY = -6.139774823812880E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

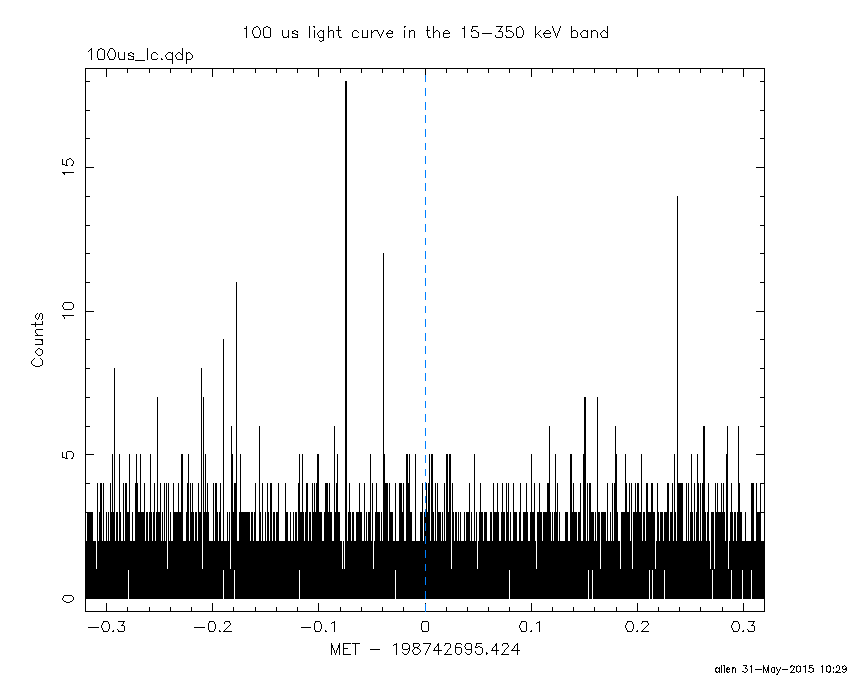

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

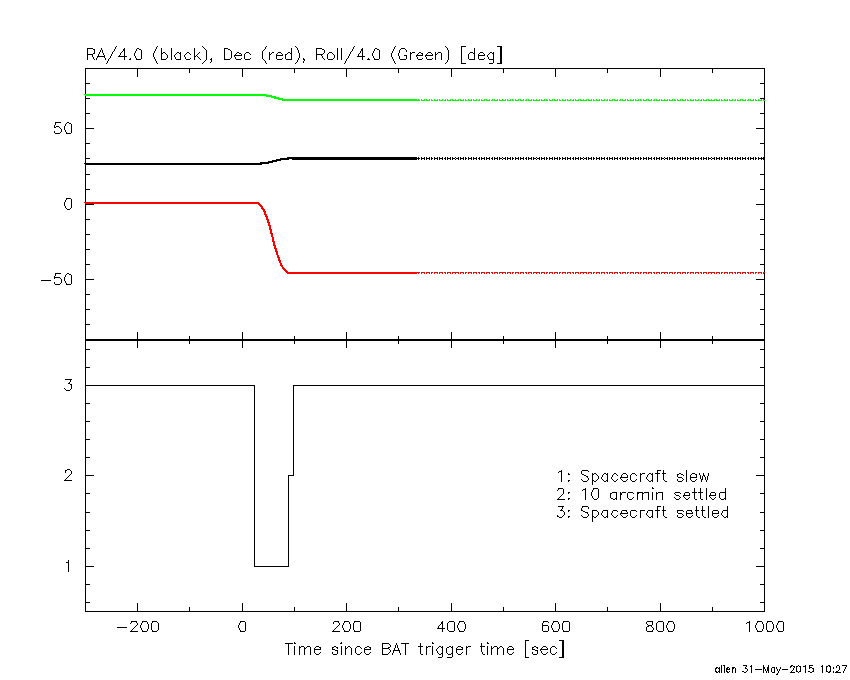

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.424000 -29.136000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6244  22.0166    0.3  31.1  -66.2   8.3941  36.7    0.5	Crab
142.0229  30.1576    2.5  43.9   25.1   1.4176   4.7 ------	UNKNOWN
113.1446 -12.5408    2.3  14.8  137.1   0.7075   5.0 ------	UNKNOWN
 85.5940 -49.7674    2.8  54.2  177.0   2.2606   4.1 ------	UNKNOWN
 67.9574 -24.4639    2.4  45.9 -146.7   1.6338   4.8 ------	UNKNOWN
 63.7116  -3.4825    3.3  43.8 -116.3   2.2696   3.5 ------	UNKNOWN
 77.6108  41.4706    3.2  48.4  -49.9   2.5549   3.6 ------	UNKNOWN
 69.0037  17.3697    2.9  41.0  -84.5   2.7205   3.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-29.136000 23.676600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6178  22.0160    7.6  31.1  -66.2   0.1715   1.5    0.9	Crab
121.2450 -45.5634    0.4  48.3  146.8  17.2891  31.9 ------	UNKNOWN
107.9475  -0.6480    2.4   1.9  139.9   0.4187   4.7 ------	UNKNOWN
 66.9577 -42.2312    2.4  56.6 -165.1   1.8282   4.8 ------	UNKNOWN
 60.6744 -15.1875    2.2  48.9 -131.5   1.8230   5.3 ------	UNKNOWN
 61.9379 -10.0652    3.0  46.5 -125.2   1.3584   3.8 ------	UNKNOWN
 62.5896  -7.2607    2.3  45.4 -121.5   1.7427   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
87.876580 962.606000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5317 -40.5605    0.5  11.6   64.0   8.6361  22.3    0.4	Vela X-1
170.2031 -60.6321    4.1  32.1  130.3   1.6949   2.8    3.4	Cen X-3
186.6571 -62.8135    3.0  39.8  134.0   3.6663   3.8    2.6	GX 301-2
202.3188 -64.5201    2.9  46.3  138.5   6.1138   4.1 ------	UNKNOWN
204.7562 -70.7743    1.9  45.6  147.2   7.6893   6.2 ------	UNKNOWN
120.2109 -23.8568    4.4  21.7   -8.0   0.9473   2.6 ------	UNKNOWN
108.0531 -66.5327    2.4  22.1 -171.6   1.9276   4.8 ------	UNKNOWN
102.3352  -5.8633    3.8  42.9  -33.7   2.0915   3.0 ------	UNKNOWN
 75.5074 -26.2478    3.2  41.0  -83.5   8.5032   3.6 ------	UNKNOWN

Plot creation:
Sun May 31 10:29:31 EDT 2015
