batgrbproduct Analysis for Trigger=279494

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 20 09:48:20 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger279494
======================================================================

  Trigger: 00279494      Segment: 000

  BAT Trigger Time: 201093660.352   [s; MET]
      Trigger Stop: 201093663.424   [s; MET]
               UTC: 2007-05-17T11:20:58.391320    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 277.579460915099   Dec: -62.3326989655416  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8
     Image Trigger?:     NO
     Rate S/N Ratio:     11.2694276695846  [ if not an image trigger ]
     Image S/N Ratio:    8

  Flight Position:   [ source = BAT ]
    RA: 277.579460915099   Dec: -62.3326989655416  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 277.561816884082   Dec: -62.3057749272213  [deg; J2000]
        { 18h 30m 14.8s , -62d 18' 20.8" }
         +/- 1.91741640538169 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.597992521740332 [arcmin] (formal 1-sigma fit error)
    SNR: 12.0015614472974

  Angular difference between Flight and Ground position is 1.688641 arcmin

  Partial Coding Fraction: 0.671875    [ including projection effects ]

  Duration
     T90: 7.82400000095367 +/- 1.63497403007117
        Measured from: 0.939999997615814
                   to: 8.76399999856949     [s; relative to TRIGTIME]
     T50: 3.99600002169609 +/- 0.995021597520976
        Measured from: 1.89599999785423
                   to: 5.89200001955032     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 1.36399999260902
                   to: 2.36399999260902     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.648000001907349
                   to: 9.17599999904633     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.152655   0.151012   0.086244   0.009892
           0.019997   0.019085   0.016110   0.013979 [error]
 Peak      0.045281   0.035517   0.029055   0.002773
           0.006988   0.006757   0.005644   0.004940 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.46e-08 6.39e-08 6.81e-08 1.35e-07 2.19e-07 3.11e-07   erg/cm2
              Error 8.72e-09 8.65e-09 1.51e-08 6.00e-08 3.52e-08 7.60e-08   erg/cm2
Peak flux Power-law 3.67e-01 3.09e-01 1.77e-01 1.50e-01 9.18e-01 1.00e+00   ph/cm2/s
              Error 9.83e-02 5.40e-02 4.66e-02 7.84e-02 1.61e-01 1.76e-01   ph/cm2/s

Fluence   Cutoff-PL 4.21e-08 6.98e-08 6.53e-08 3.97e-08 2.02e-07 2.17e-07   erg/cm2
              Error 9.60e-09 1.21e-08 1.85e-08 1.15e-07 4.08e-08 1.01e-07   erg/cm2
Peak flux Cutoff-PL 3.56e-01 3.17e-01 1.78e-01 1.08e-01 9.09e-01 9.59e-01   ph/cm2/s
              Error 1.09e-01 6.49e-02 4.91e-02 1.18e-01 1.65e-01 2.03e-01   ph/cm2/s

Fluence        Band 4.16e-08 7.12e-08 6.23e-08 9.29e-08 2.08e-07 2.68e-07   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 3.50e-01 3.21e-01 1.79e-01 9.67e-02 9.05e-01 9.47e-01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.908    0.249    -      -           2.79e-03 4.55e-04   73.080 57
CPL   1.180    1.159      46.4    0.0      7.40e-03 0.00e+00   71.630 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.804    0.322    -      -           6.65e-03 1.34e-03   62.960 57
CPL   1.557    1.090      81.1   -0.0      9.10e-03 2.22e-02   62.810 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 6.272000 sec.
T50 in the 50-300 keV band: 3.776000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    8.528    0.648    9.176
T90     7.824    0.940    8.764
T50     3.996    1.896    5.892
Peak    1.000    1.364    2.364

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  277.5618   -62.3058   0.0161    22.0118  -100.5814         0.4240162     12.002 TRIG_00279494

Foreground time interval of the image:
  0.648   9.176 (delta_t =   8.528 [sec])
Background time interval of the image:
-239.352   0.648 (delta_t = 240.000 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

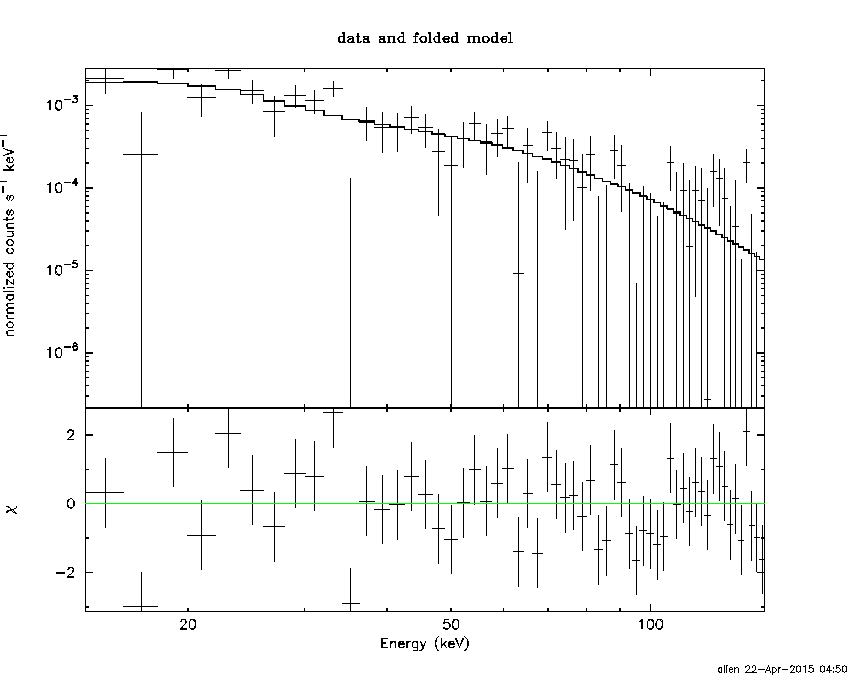

Power-law model

Time interval is from    0.648 sec. to    9.176 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.90761     ( -0.242214   0.25493 )
Norm@50keV  : 2.78739E-03    ( -0.000460336   0.000449233 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.08 using 59 PHA bins.
# Reduced chi-squared =          1.282 for     57 degrees of freedom
# Null hypothesis probability =   7.419871e-02

Photon flux (15-150 keV)    in 8.528 sec: 0.401318 ( -0.0545104  0.054538 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.18559e-07 ( -3.47681e-08  3.56897e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.648 sec. to    9.176 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.18036     ( -1.33212   0.985554 )
Epeak [keV] : 46.3580      (   )
Norm@50keV  : 7.39734E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.63 using 59 PHA bins.
# Reduced chi-squared =          1.279 for     56 degrees of freedom
# Null hypothesis probability =   7.784088e-02

Photon flux (15-150 keV)    in 8.528 sec: 0.390173 ( -0.056536  0.056643 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.01526e-07 ( -3.91316e-08  4.25684e-08 ) ergs/cm2

Band function

Time interval is from    0.648 sec. to    9.176 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.18079   ( -1.61102   0.722181 )
beta        : -10.00000    ( 10   6.34284e-11 )
Epeak [keV] : 46.3528      ( -14.5498 -46.3528 )
Norm@50keV   : 7.39238E-03    ( -0.000994079   0.0385422 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.63 using 59 PHA bins.
# Reduced chi-squared =          1.302 for     55 degrees of freedom
# Null hypothesis probability =   6.538476e-02

Photon flux (15-150 keV)    in 8.528 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.08042e-07 ( 0  0 ) ergs/cm2

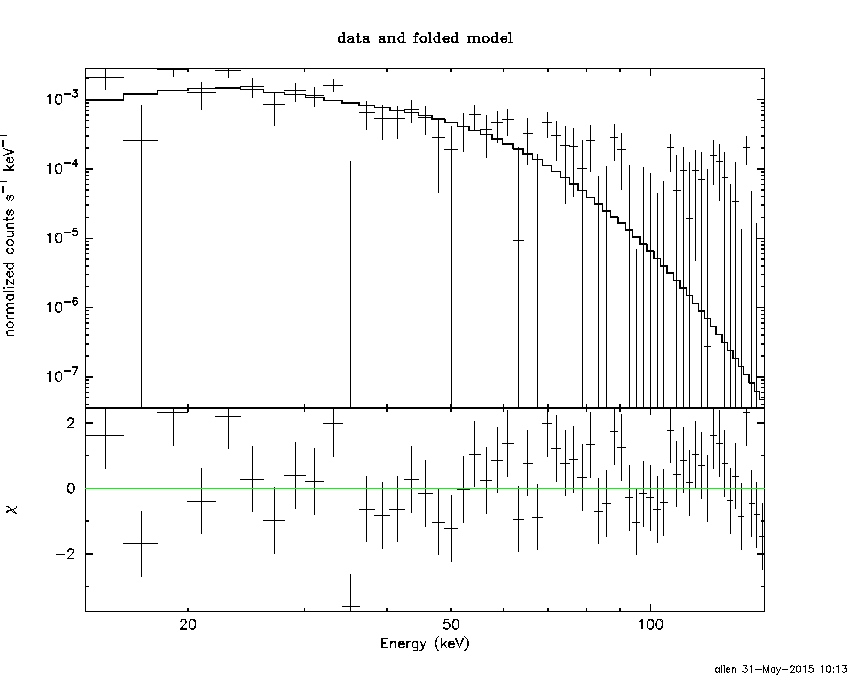

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.0317  (-1.54047  1.87578)
R^2/D10^2   : 0.185958  (-0.0895702   0.167845)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          80.42 using 59 PHA bins.
# Reduced chi-squared =          1.411 for     57 degrees of freedom
# Null hypothesis probability =   2.221028e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.254e-08   7.633e-09
25- 50  8.126e-08   1.549e-08
50-150  4.280e-08   1.443e-08
15-150  1.566e-07   2.865e-08

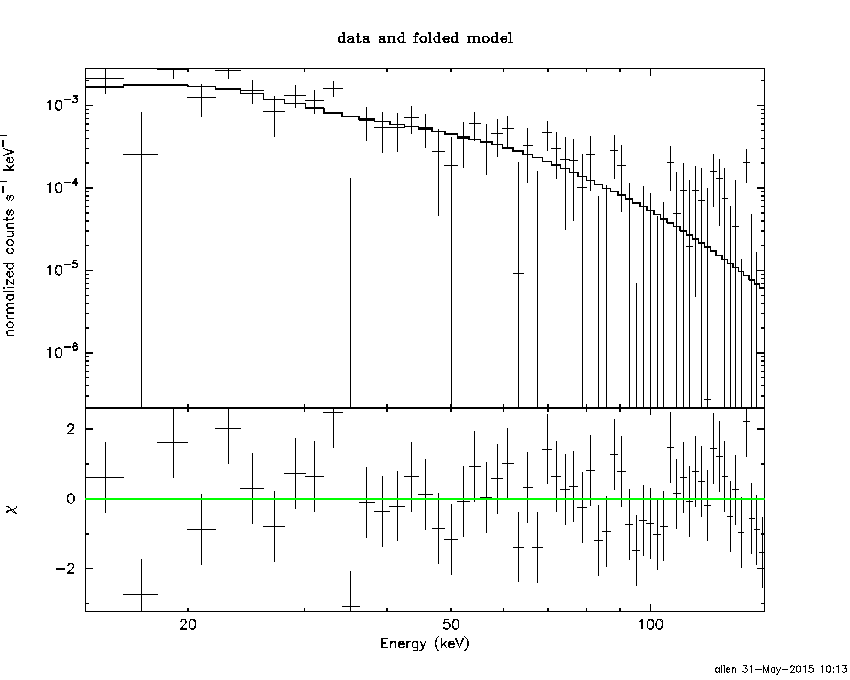

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 74.4116       (-26.1164      54.8329)
Norm        : 1.93685       (-0.373537     0.479044)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.63 using 59 PHA bins.
# Reduced chi-squared =          1.257 for     57 degrees of freedom
# Null hypothesis probability =   9.190209e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.263e-08   8.149e-09
25- 50  6.892e-08   1.162e-08
50-150  9.254e-08   4.638e-08
15-150  2.041e-07   5.155e-08

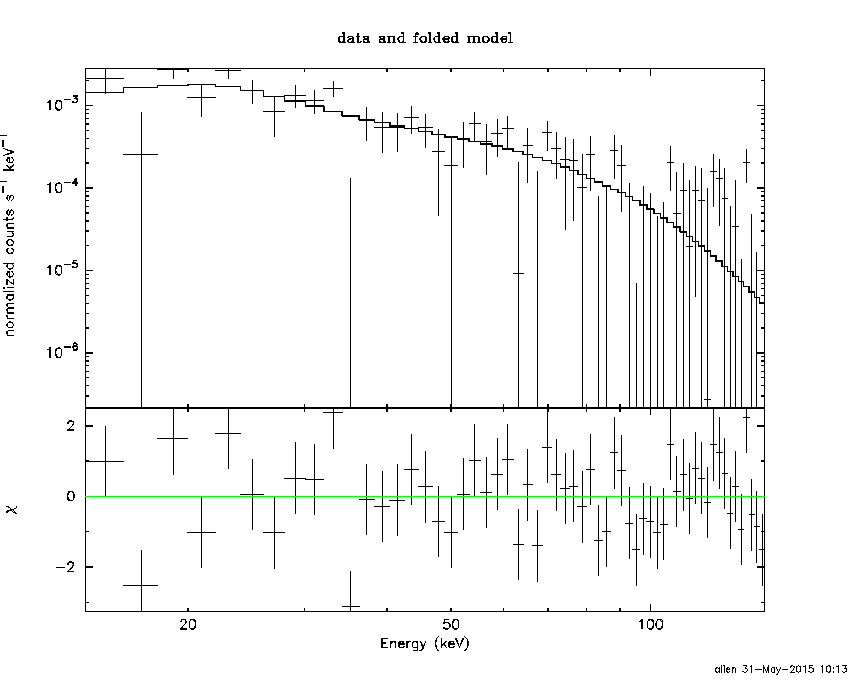

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.27990        (-2.00644      2.43782)
R1^2/D10^2  : 0.778524        (-0.511241      2.18489)
kT2 [keV]   : 20.1997        (-7.17794      37.4075)
R2^2/D10^2  : 8.62621E-03    (-0.00834888   0.0457102)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.33 using 59 PHA bins.
# Reduced chi-squared =          1.279 for     55 degrees of freedom
# Null hypothesis probability =   7.978749e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.280e-08   2.413e-08
25- 50  6.962e-08   3.527e-08
50-150  9.200e-08   5.351e-08
15-150  2.044e-07   1.063e-07

Peak spectrum fit

Power-law model

Time interval is from    1.364 sec. to    2.364 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.80367     ( -0.312665   0.330495 )
Norm@50keV  : 6.65175E-03    ( -0.00136086   0.00131589 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.96 using 59 PHA bins.
# Reduced chi-squared =          1.105 for     57 degrees of freedom
# Null hypothesis probability =   2.735556e-01

Photon flux (15-150 keV)    in 1 sec: 0.917905 ( -0.160907  0.161077 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.12281e-08 ( -1.24356e-08  1.27676e-08 ) ergs/cm2

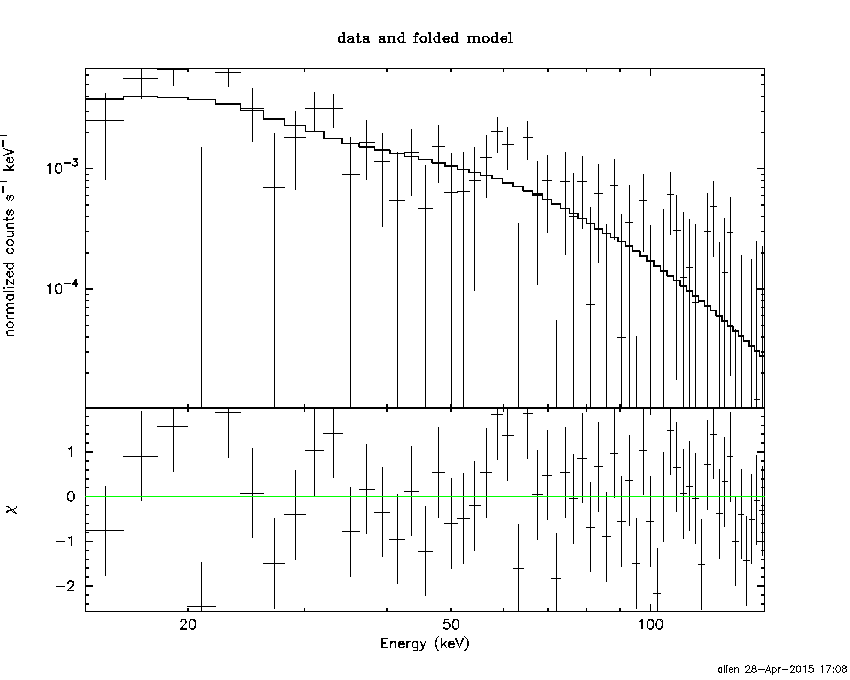

Cutoff power-law model

Time interval is from    1.364 sec. to    2.364 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55678     ( -1.323   0.857803 )
Epeak [keV] : 81.0810      ( -80.9413 -80.9685 )
Norm@50keV  : 9.09752E-03    ( -0.00582836   0.0384784 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.81 using 59 PHA bins.
# Reduced chi-squared =          1.122 for     56 degrees of freedom
# Null hypothesis probability =   2.476956e-01

Photon flux (15-150 keV)    in 1 sec: 0.909120 ( -0.165504  0.16511 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.98788e-08 ( -1.3553e-08  1.37731e-08 ) ergs/cm2

Band function

Time interval is from    1.364 sec. to    2.364 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.55631   ( -1.51249   1.26925 )
beta        : -10.0000    ( 10   5.32907e-15 )
Epeak [keV] : 81.0357      ( -50.6759 -81.0375 )
Norm@50keV   : 9.10027E-03    ( -0.00352835   0.038601 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.81 using 59 PHA bins.
# Reduced chi-squared =          1.142 for     55 degrees of freedom
# Null hypothesis probability =   2.191151e-01

Photon flux (15-150 keV)    in 1 sec: 0.904985 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.98298e-08 ( 0  0 ) ergs/cm2

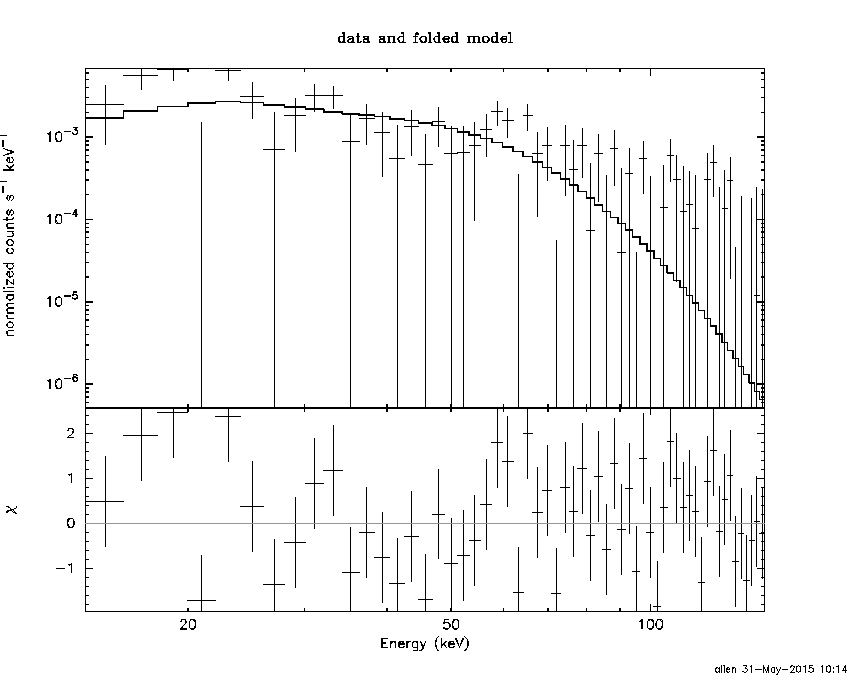

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.0565  (-2.71016  3.46117)
R^2/D10^2   : 0.212118  (-0.128092   0.334918)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.75 using 59 PHA bins.
# Reduced chi-squared =          1.276 for     57 degrees of freedom
# Null hypothesis probability =   7.802284e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.524e-09   2.275e-09
25- 50  2.065e-08   7.037e-09
50-150  1.810e-08   7.709e-09
15-150  4.527e-08   1.443e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 103.717       (-48.1799      -103.03)
Norm        : 4.00353       (-0.823661     1.2604)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.97 using 59 PHA bins.
# Reduced chi-squared =          1.105 for     57 degrees of freedom
# Null hypothesis probability =   2.733761e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.046e-08   2.883e-09
25- 50  1.822e-08   7.027e-09
50-150  3.014e-08   1.942e-08
15-150  5.883e-08   3.002e-08

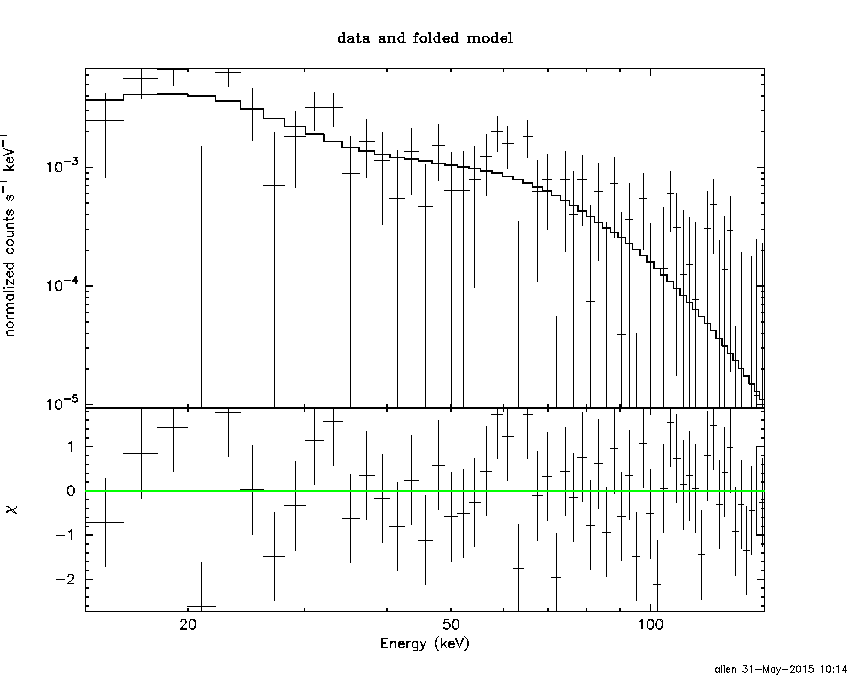

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.92929        (-2.00925      2.8103)
R1^2/D10^2  : 4.11978        (-3.33581      41.0289)
kT2 [keV]   : 19.6918        (-5.91384      13.9738)
R2^2/D10^2  : 2.85506E-02    (-0.0245228   0.0461432)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.97 using 59 PHA bins.
# Reduced chi-squared =          1.127 for     55 degrees of freedom
# Null hypothesis probability =   2.415237e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.161e-08   6.615e-09
25- 50  1.655e-08   8.475e-09
50-150  3.058e-08   1.852e-08
15-150  5.874e-08   3.089e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.90761     ( -0.242214   0.25493 )
Norm@50keV  : 2.78739E-03    ( -0.000460336   0.000449233 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.08 using 59 PHA bins.
# Reduced chi-squared =          1.282 for     57 degrees of freedom
# Null hypothesis probability =   7.419871e-02

Photon flux (15-150 keV)    in 8.528 sec: 0.401318 ( -0.0545104  0.054538 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.18559e-07 ( -3.47681e-08  3.56897e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.18036     ( -1.33212   0.88755 )
Epeak [keV] : 46.3580      ( -46.2979 -46.3567 )
Norm@50keV  : 7.39734E-03    ( -0.00739829   0.0384588 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.63 using 59 PHA bins.
# Reduced chi-squared =          1.279 for     56 degrees of freedom
# Null hypothesis probability =   7.784088e-02

Photon flux (15-150 keV)    in 8.528 sec: 0.390173 ( -0.056536  0.056643 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.01526e-07 ( -3.91316e-08  4.25684e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.18079   ( -1.61102   0.722181 )
beta        : -10.00000    ( 10   1.82822e-09 )
Epeak [keV] : 46.3528      ( -14.5498 -46.3528 )
Norm@50keV   : 7.39238E-03    ( -0.000994079   0.0385422 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.63 using 59 PHA bins.
# Reduced chi-squared =          1.302 for     55 degrees of freedom
# Null hypothesis probability =   6.538476e-02

Photon flux (15-150 keV)    in 8.528 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.08042e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.39e-08
S(50-100 keV) = 6.81e-08

T90 vs. Hardness ratio plot

T90                                   = 7.82400000095367 sec.
Hardness ratio (energy fluence ratio) = 1.06573

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.989237
Count Ratio (50-100 keV) / (15-25 keV) = 0.56496

Mask shadow pattern

IMX = -7.423612127503768E-02, IMY = 3.973917185799377E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

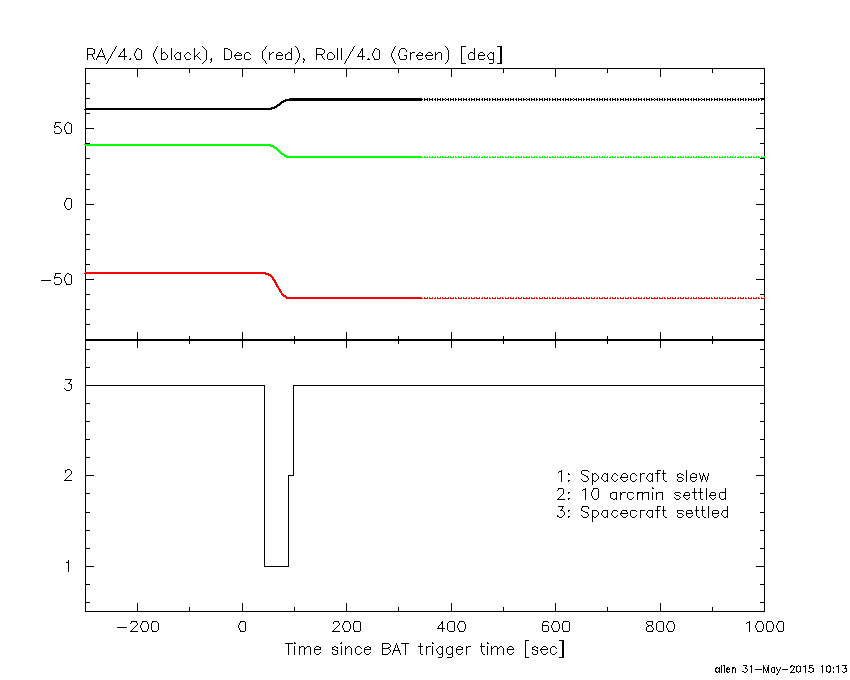

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.352000 0.648000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2689 -60.6673   13.0  47.4  -26.8   0.3721   0.9    3.0	Cen X-3
186.6668 -62.7726    1.0  39.4  -27.1   3.6507  11.8    0.3	GX 301-2
244.9837 -15.6362    0.4  30.8   99.2  10.5566  27.6    0.3	Sco X-1
255.9556 -37.8404    1.0   8.6  134.6   2.0042  11.4    1.5	4U 1700-377
256.3954 -36.4878    3.8  10.0  133.8   0.5636   3.0    4.3	GX 349+2
262.9489 -24.9325    4.2  22.8  139.0   0.6111   2.7   11.7	GX 1+4
264.6676 -44.5447    4.9   9.2 -161.8   0.4696   2.4    6.5	4U 1735-44
268.4258  -1.5451    9.2  46.7  135.2  -1.0778  -1.3    6.5	SW J1753.5-0127
270.2792 -25.1727    1.9  25.5  153.9   1.3769   6.1    5.6	GX 5-1
270.2210 -25.7541    3.7  25.0  154.5   0.6867   3.2    4.5	GRS 1758-258
273.9549 -13.9452    6.1  37.0  149.5   0.7124   1.9    6.2	GX 17+2
275.9517 -30.3839    2.3  24.4  170.9   1.0010   5.1    1.7	H1820-303
285.1063 -25.0305    6.7  33.8  175.5  -0.4013  -1.7    7.6	HT1900.1-2455
263.0010 -33.8058    1.3  14.8  151.3   1.6084   8.6    1.8	GX 354-0
195.9004 -51.5203    2.3  36.4   -7.7   1.2973   5.0 ------	UNKNOWN
149.2169 -71.5517    2.6  50.7  -44.4   5.0537   4.4 ------	UNKNOWN
324.0901 -46.9736    2.6  48.0 -129.0   4.2905   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.648000 9.176000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2759 -60.7079    3.0  47.4  -26.9   0.2296   3.8    5.2	Cen X-3
186.3725 -62.7093    4.2  39.6  -27.1   0.1242   2.7    8.6	GX 301-2
244.9166 -15.5025    6.9  30.9   99.1  -0.0875  -1.7    9.0	Sco X-1
255.9822 -37.9348    6.6   8.6  134.9  -0.0506  -1.8    5.4	4U 1700-377
256.3304 -36.4783    8.1  10.0  133.5   0.0411   1.4    6.1	GX 349+2
262.9469 -24.9334    0.0  22.8  139.0  -0.0498  -1.6   11.8	GX 1+4
264.6447 -44.3409   35.3   9.2 -163.1   0.0090   0.3    7.8	4U 1735-44
268.3294  -1.4107    5.7  46.8  135.0  -0.2925  -2.0    3.4	SW J1753.5-0127
270.0857 -25.0246    7.4  25.5  153.4  -0.0552  -1.6   11.3	GX 5-1
270.2505 -25.9327    0.0  24.8  154.8   0.0696   2.1   11.7	GRS 1758-258
273.9994 -14.0215    5.3  37.0  149.7  -0.1108  -2.2    1.0	GX 17+2
275.9777 -30.1822    5.0  24.5  170.6  -0.0732  -2.3   11.4	H1820-303
284.9320 -24.9581   14.3  33.8  175.2  -0.0302  -0.8    6.1	HT1900.1-2455
262.8868 -33.8446    7.1  14.7  151.0  -0.0447  -1.6    5.1	GX 354-0
287.5058  -4.3830    2.6  51.8  159.8   0.5571   4.4 ------	UNKNOWN
221.0013 -52.2546    2.4  21.0   -6.8   0.1353   4.8 ------	UNKNOWN
277.5618 -62.3058    1.0  22.0 -100.6   0.4240  12.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
88.948600 962.701900

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.6898 -60.6550   11.6  45.1    6.8  -0.9252  -1.0   11.2	Cen X-3
186.6463 -62.7722    0.4  38.4   12.8  18.3016  25.6    0.3	GX 301-2
255.9866 -37.8441    1.1  27.8  106.9   7.3086  10.2    0.0	4U 1700-377
256.4354 -36.4231   20.4  29.0  108.6   0.4336   0.6    0.0	GX 349+2
262.8650 -24.7929    7.6  38.8  123.8   1.9474   1.5    8.3	GX 1+4
264.7858 -44.2888   32.6  19.5  117.0   0.1781   0.4    9.8	4U 1735-44
270.2842 -25.0791    3.9  37.6  134.5   3.5945   3.0    0.0	GX 5-1
270.3023 -25.7432   25.0  36.9  134.4   0.5466   0.5    0.0	GRS 1758-258
274.0411 -14.1339    3.1  48.3  140.8   7.7577   3.7    6.2	GX 17+2
275.8493 -30.2342    6.7  32.1  142.6   1.4566   1.7    8.9	H1820-303
285.1135 -24.9908   10.0  37.7  156.6  -1.2769  -1.2    6.0	HT1900.1-2455
262.9389 -33.8488    1.9  30.0  120.5   4.2263   5.9    2.6	GX 354-0
318.4069 -11.0732    3.7  59.0 -166.2  13.2392   3.1 ------	UNKNOWN
336.7329 -27.2760    3.7  51.9 -138.7  11.4273   3.2 ------	UNKNOWN

Plot creation:
Sun May 31 10:15:13 EDT 2015
