batgrbproduct analysis for trigger=282073

batgrbproduct Analysis for Trigger=282073

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 20 09:01:18 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger282073
======================================================================

  Trigger: 00282073      Segment: 000

  BAT Trigger Time: 203322079.808   [s; MET]
      Trigger Stop: 203322080.832   [s; MET]
               UTC: 2007-06-12T06:21:17.791640    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 261.71324680189   Dec: -8.71856235251288  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.09
     Image Trigger?:     NO
     Rate S/N Ratio:     21.4009345590327  [ if not an image trigger ]
     Image S/N Ratio:    9.09

  Flight Position:   [ source = BAT ]
    RA: 261.71324680189   Dec: -8.71856235251288  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 261.712313126849   Dec: -8.74856210671172  [deg; J2000]
        { 17h 26m 51.0s , -08d 44' 54.8" }
         +/- 1.24831944001161 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.504350747718402 [arcmin] (formal 1-sigma fit error)
    SNR: 22.1569607736712

  Angular difference between Flight and Ground position is 1.800837 arcmin

  Partial Coding Fraction: 0.1796875    [ including projection effects ]

  Duration
     T90: 18 +/- 4.47213595499958
        Measured from: -9.80799999833107
                   to: 8.19200000166893     [s; relative to TRIGTIME]
     T50: 6 +/- 1.4142135623731
        Measured from: -2.80799999833107
                   to: 3.19200000166893     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.19200000166893
                   to: 1.19200000166893     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -13.8079999983311
                   to: 10.1920000016689     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.770081   1.063645   0.846330   0.167075
           0.071867   0.067296   0.058485   0.046637 [error]
 Peak      0.041583   0.101785   0.123027   0.028539
           0.015240   0.014837   0.015315   0.011101 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.61e-07 4.63e-07 6.29e-07 1.76e-06 1.82e-06 3.12e-06   erg/cm2
              Error 3.20e-08 3.44e-08 5.56e-08 3.36e-07 1.36e-07 3.76e-07   erg/cm2
Peak flux Power-law 5.32e-01 7.08e-01 6.92e-01 1.21e+00 2.33e+00 3.14e+00   ph/cm2/s
              Error 1.60e-01 1.35e-01 1.10e-01 3.91e-01 3.69e-01 5.00e-01   ph/cm2/s

Fluence   Cutoff-PL 2.38e-07 4.83e-07 6.53e-07 9.47e-07 1.77e-06 2.32e-06   erg/cm2
              Error 3.87e-08 4.02e-08 6.23e-08 5.93e-07 1.46e-07 6.11e-07   erg/cm2
Peak flux Cutoff-PL 3.03e-01 7.46e-01 8.48e-01 3.67e-01 2.17e+00 2.26e+00   ph/cm2/s
              Error 1.78e-01 1.63e-01 1.53e-01 3.01e-01 3.75e-01 4.73e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.558    0.121    -      -           8.08e-03 5.63e-04   58.250 57
CPL   1.085    0.491     100.8  426.2      1.37e-02 7.89e-03   55.180 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.033    0.243    -      -           2.02e-02 3.12e-03   68.720 57
CPL  -0.891    1.521      88.6   39.3      1.33e-01 3.58e-01   61.160 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 13.696000 sec.
T50 in the 50-300 keV band: 4.096000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   24.000  -13.808   10.192
T90    18.000   -9.808    8.192
T50     6.000   -2.808    3.192
Peak    1.000    0.192    1.192

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  261.7123    -8.7486   0.0087    35.5458    89.8350         3.0603078     22.157 TRIG_00282073

Foreground time interval of the image:
-13.808  10.192 (delta_t =  24.000 [sec])
Background time interval of the image:
-239.808 -13.808 (delta_t = 226.000 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

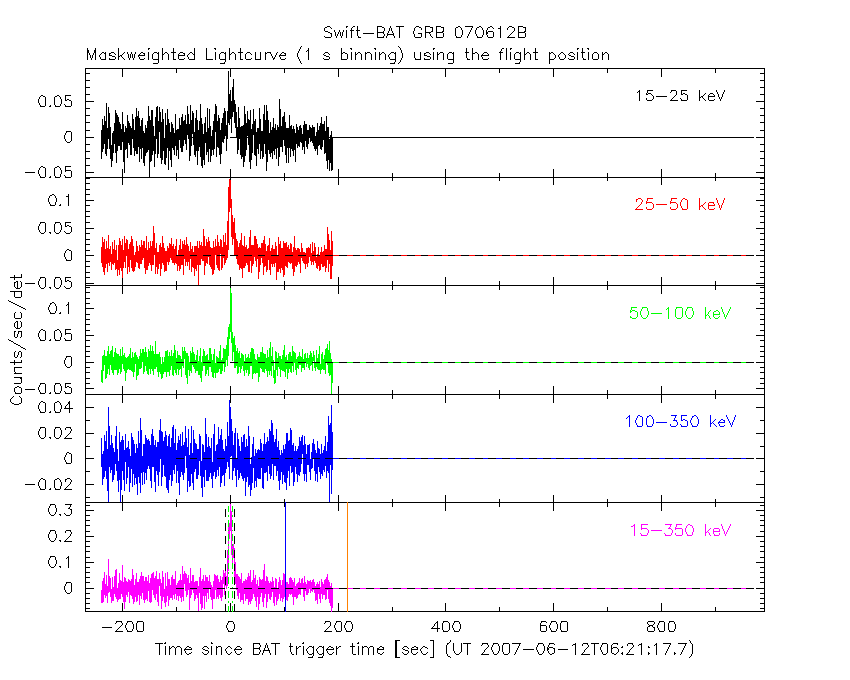

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -13.808 sec. to   10.192 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55836     ( -0.120405   0.121106 )
Norm@50keV  : 8.07506E-03    ( -0.000563968   0.00056295 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.25 using 59 PHA bins.
# Reduced chi-squared =          1.022 for     57 degrees of freedom
# Null hypothesis probability =   4.292928e-01

Photon flux (15-150 keV)    in 24 sec: 1.02475 ( -0.0744562  0.0746815 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82232e-06 ( -1.35292e-07  1.3587e-07 ) ergs/cm2

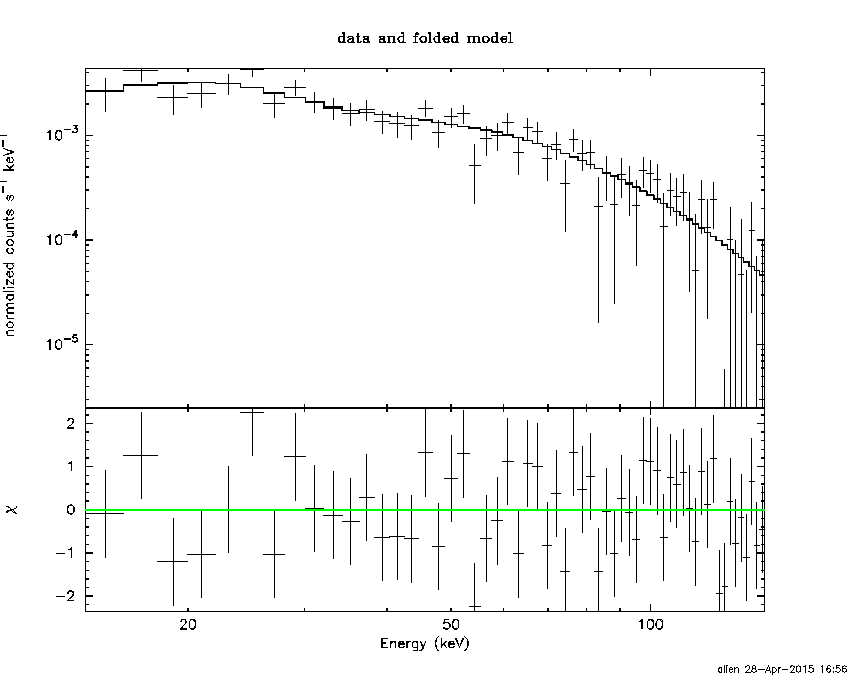

Cutoff power-law model

Time interval is from  -13.808 sec. to   10.192 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.08453     ( -0.517737   0.463271 )
Epeak [keV] : 100.751      ( -28.7361 823.58 )
Norm@50keV  : 1.37228E-02    ( -0.00543798   0.0103469 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.18 using 59 PHA bins.
# Reduced chi-squared =         0.9853 for     56 degrees of freedom
# Null hypothesis probability =   5.059459e-01

Photon flux (15-150 keV)    in 24 sec: 0.999357 ( -0.078269  0.078433 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.77096e-06 ( -1.45994e-07  1.45682e-07 ) ergs/cm2

Band function

Time interval is from  -13.808 sec. to   10.192 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.08457   ( -0.414672   0.494422 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 100.741      ( -25.6944 593.268 )
Norm@50keV   : 1.37208E-02    ( -0.00543743   0.0103475 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.18 using 59 PHA bins.
# Reduced chi-squared =          1.003 for     55 degrees of freedom
# Null hypothesis probability =   4.678892e-01

Photon flux (15-150 keV)    in 24 sec: 0.997980 ( 6.00202  -0.075599 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.5449  (-1.33196  1.4752)
R^2/D10^2   : 0.100383  (-0.027696   0.037895)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          97.64 using 59 PHA bins.
# Reduced chi-squared =          1.713 for     57 degrees of freedom
# Null hypothesis probability =   6.505834e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.211e-07   1.640e-08
25- 50  4.969e-07   4.884e-08
50-150  8.298e-07   1.099e-07
15-150  1.448e-06   1.177e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.357       (-57.2239      -199.361)
Norm        : 4.17391       (-0.28646     0.318594)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.58 using 59 PHA bins.
# Reduced chi-squared =         0.9750 for     57 degrees of freedom
# Null hypothesis probability =   5.285963e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.494e-07   2.152e-08
25- 50  4.798e-07   4.476e-08
50-150  1.052e-06   2.672e-07
15-150  1.782e-06   3.118e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.85488        (-1.52306      1.79528)
R1^2/D10^2  : 1.08932        (-0.585249      1.6153)
kT2 [keV]   : 24.4507        (-4.08853      6.83253)
R2^2/D10^2  : 1.61419E-02    (-0.00971981   0.0128172)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.12 using 59 PHA bins.
# Reduced chi-squared =         0.9841 for     55 degrees of freedom
# Null hypothesis probability =   5.080962e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.337e-07   8.039e-08
25- 50  4.820e-07   1.371e-07
50-150  1.054e-06   3.616e-07
15-150  1.770e-06   5.734e-07

Peak spectrum fit

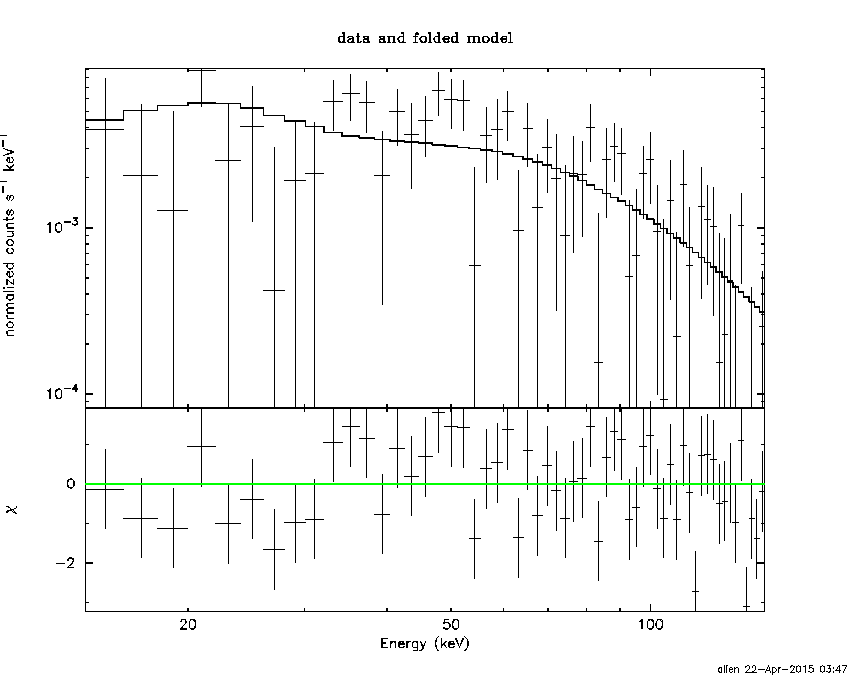

Power-law model

Time interval is from    0.192 sec. to    1.192 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.03323     ( -0.245829   0.239526 )
Norm@50keV  : 2.01874E-02    ( -0.00312756   0.00311285 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.72 using 59 PHA bins.
# Reduced chi-squared =          1.206 for     57 degrees of freedom
# Null hypothesis probability =   1.373650e-01

Photon flux (15-150 keV)    in 1 sec: 2.32872 ( -0.368056  0.370681 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.1578e-07 ( -3.42082e-08  3.44e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.192 sec. to    1.192 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.891414     ( -1.76722   1.27445 )
Epeak [keV] : 88.6410      ( -18.9798 59.642 )
Norm@50keV  : 0.133052    ( -0.133054   0.582348 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.16 using 59 PHA bins.
# Reduced chi-squared =          1.092 for     56 degrees of freedom
# Null hypothesis probability =   2.960972e-01

Photon flux (15-150 keV)    in 1 sec: 2.16886 ( -0.37126  0.37912 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.0255e-07 ( -3.7514e-08  3.7196e-08 ) ergs/cm2

Band function

Time interval is from    0.192 sec. to    1.192 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.17021   ( -1.0491   1.52995 )
beta        : -1.78465    ( 9.37166   19.3717 )
Epeak [keV] : 55.8018      ( -18.0571 50.7762 )
Norm@50keV   : 7.32622    ( -7.28524   4.00577 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.26 using 59 PHA bins.
# Reduced chi-squared =          1.096 for     55 degrees of freedom
# Null hypothesis probability =   2.913347e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.02479e-07 ( 0  0 ) ergs/cm2

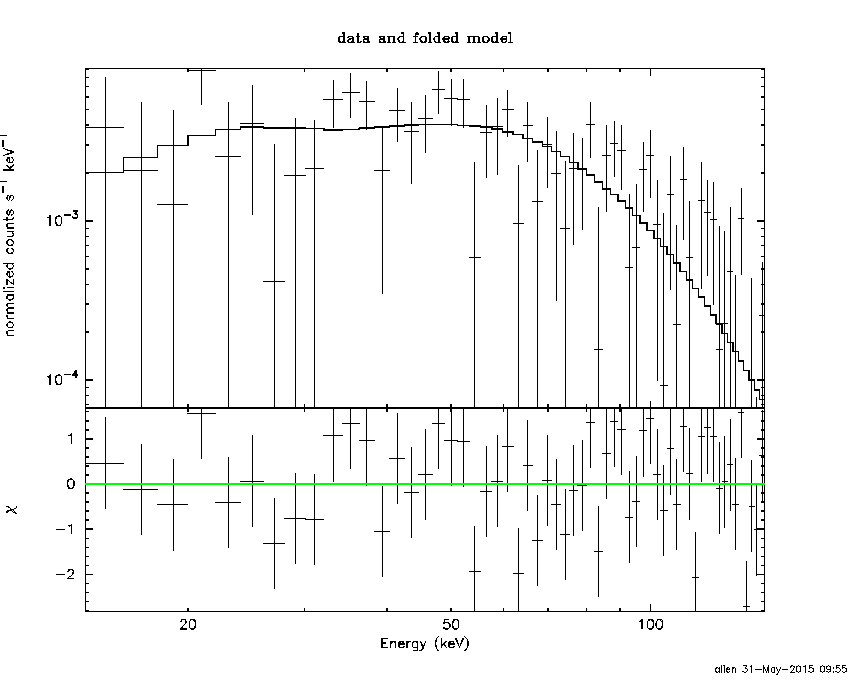

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.1321  (-3.22371  4.07451)
R^2/D10^2   : 0.100096  (-0.043633   0.071273)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.62 using 59 PHA bins.
# Reduced chi-squared =          1.081 for     57 degrees of freedom
# Null hypothesis probability =   3.142946e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.422e-09   2.401e-09
25- 50  4.346e-08   1.051e-08
50-150  1.447e-07   3.919e-08
15-150  1.966e-07   4.130e-08

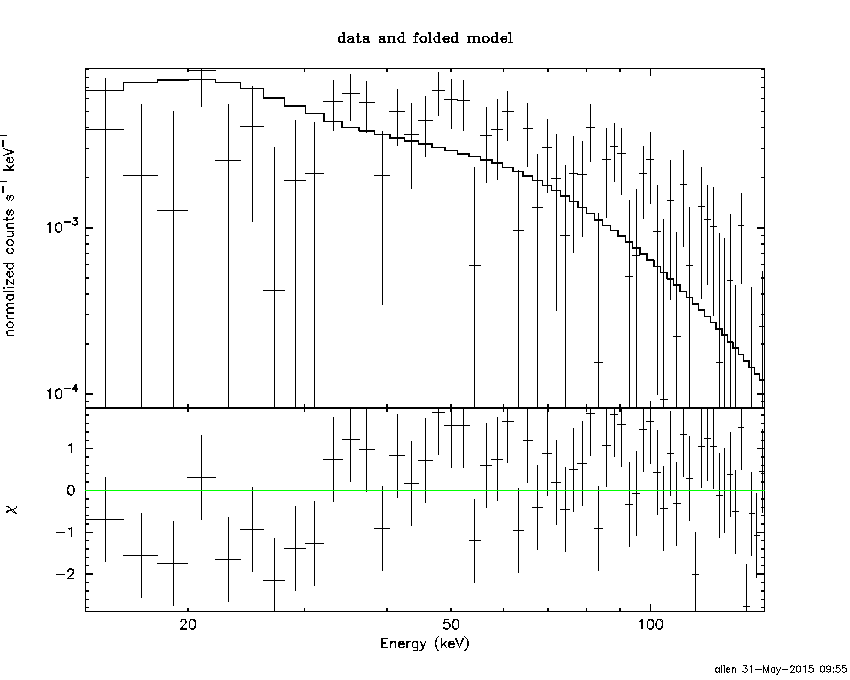

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 9.71213       (-1.53985     1.53957)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.52 using 59 PHA bins.
# Reduced chi-squared =          1.395 for     57 degrees of freedom
# Null hypothesis probability =   2.601747e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.418e-08   1.398e-08
25- 50  4.652e-08   2.646e-08
50-150  1.020e-07   5.675e-08
15-150  1.727e-07   9.730e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.119918        (0.822496      -0.119918)
R1^2/D10^2  : 3.79579E+15        (-3.79579e+15      -3.79579e+15)
kT2 [keV]   : 21.1320        (-3.22357      4.07464)
R2^2/D10^2  : 0.100099    (-0.043635   0.0712713)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.62 using 59 PHA bins.
# Reduced chi-squared =          1.120 for     55 degrees of freedom
# Null hypothesis probability =   2.512337e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55836     ( -0.120405   0.121106 )
Norm@50keV  : 8.07506E-03    ( -0.000563968   0.00056295 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.25 using 59 PHA bins.
# Reduced chi-squared =          1.022 for     57 degrees of freedom
# Null hypothesis probability =   4.292928e-01

Photon flux (15-150 keV)    in 24 sec: 1.02475 ( -0.0744562  0.0746815 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82232e-06 ( -1.35292e-07  1.3587e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.08453     ( -0.517737   0.463271 )
Epeak [keV] : 100.751      ( -28.7361 823.58 )
Norm@50keV  : 1.37228E-02    ( -0.00543798   0.0103469 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.18 using 59 PHA bins.
# Reduced chi-squared =         0.9853 for     56 degrees of freedom
# Null hypothesis probability =   5.059459e-01

Photon flux (15-150 keV)    in 24 sec: 0.999357 ( -0.078269  0.078433 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.77096e-06 ( -1.45994e-07  1.45682e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.08457   ( -0.414672   0.494422 )
beta        : -10.0000    ( 10   1.77636e-14 )
Epeak [keV] : 100.741      ( -25.6944 593.246 )
Norm@50keV   : 1.37208E-02    ( -0.00543743   0.0103475 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.18 using 59 PHA bins.
# Reduced chi-squared =          1.003 for     55 degrees of freedom
# Null hypothesis probability =   4.678892e-01

Photon flux (15-150 keV)    in 24 sec: 0.997980 ( 6.00202  -0.075599 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.63e-07
S(50-100 keV) = 6.29e-07

T90 vs. Hardness ratio plot

T90                                   = 18 sec.
Hardness ratio (energy fluence ratio) = 1.35853

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.38121
Count Ratio (50-100 keV) / (15-25 keV) = 1.09901

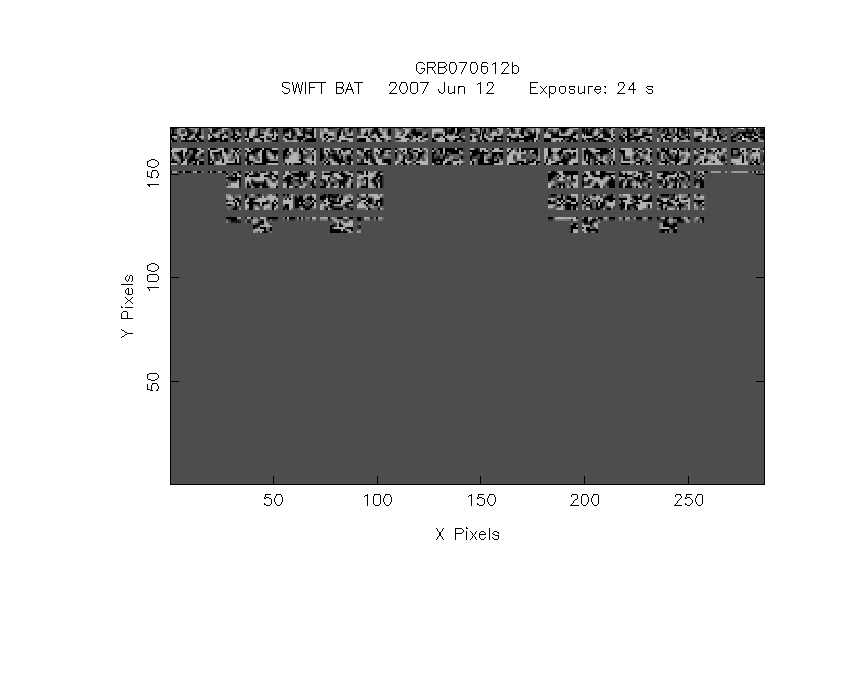

Mask shadow pattern

IMX = 2.057631575734852E-03, IMY = -7.144969436025950E-01

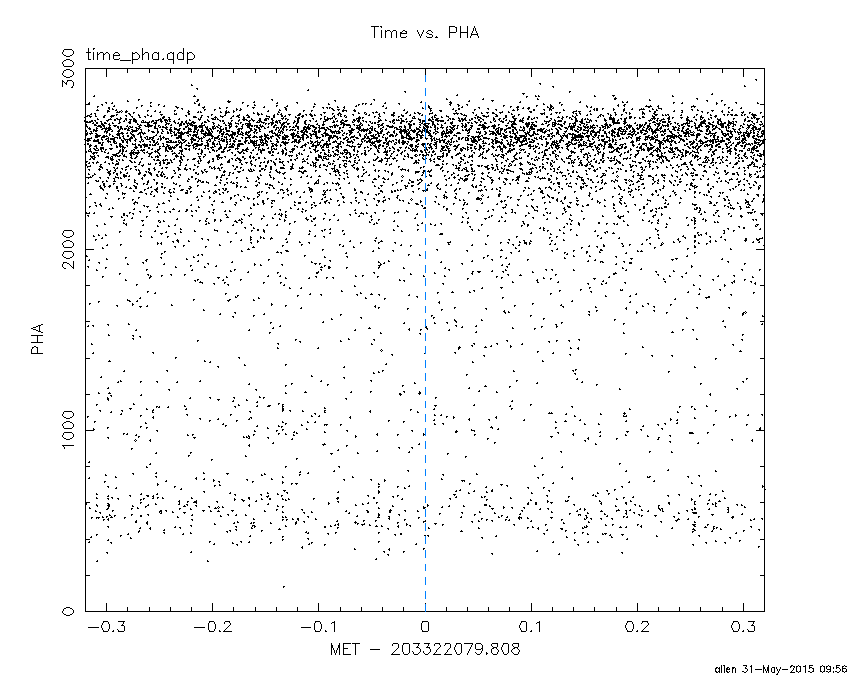

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.808000 -13.808000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9849 -15.6383    0.5  41.0   62.4  22.6915  22.5    0.3	Sco X-1
256.1359 -37.9461    4.2  22.0   31.7   0.5022   2.7    9.4	4U 1700-377
256.3283 -36.4039    2.3  22.2   35.8   0.9446   4.9    5.3	GX 349+2
262.8997 -24.7181    4.0  22.4   70.4   0.7155   2.9    6.2	GX 1+4
264.7999 -44.5758    5.1  16.0    9.7   0.3939   2.2    7.9	4U 1735-44
268.2823  -1.5354    5.8  39.2  104.7  -1.7238  -2.0    7.1	SW J1753.5-0127
270.4097 -25.1838   26.2  17.3   84.0  -0.0883  -0.4    9.3	GX 5-1
270.2740 -25.9034    4.1  16.8   82.1   0.5810   2.9    9.7	GRS 1758-258
274.0168 -13.9153    4.9  25.7  107.1   0.6721   2.3    7.3	GX 17+2
275.8995 -30.3488    5.7  10.2   85.9   0.4013   2.0    1.7	H1820-303
284.8027 -24.9046    0.0  13.1  132.8  -0.2457  -1.2   12.7	HT1900.1-2455
262.8799 -33.7645    5.1  17.7   47.6   0.4516   2.3    6.9	GX 354-0
314.1268  -8.9447    2.2  39.6 -179.0   1.4724   5.3 ------	UNKNOWN
263.8328 -50.6086    2.5  19.2   -7.4   0.8004   4.7 ------	UNKNOWN
313.4719 -30.2988    2.6  25.3 -148.4   0.8049   4.4 ------	UNKNOWN
311.0500 -84.3920    4.7  47.1  -53.1   2.6936   2.5 ------	UNKNOWN
340.6186 -53.8157    3.2  41.1  -98.1   4.7440   3.6 ------	UNKNOWN
341.9257 -42.5534    3.2  43.4 -114.6   3.3104   3.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-13.808000 10.192000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9690 -15.8071    6.9  40.9   62.2  -0.3425  -1.7   10.0	Sco X-1
256.0837 -37.9652    5.8  22.1   31.6  -0.1064  -2.0    8.6	4U 1700-377
256.5367 -36.5425   14.0  22.0   35.5  -0.0436  -0.8    8.7	GX 349+2
262.9534 -24.7802   18.2  22.3   70.4   0.0411   0.6    3.7	GX 1+4
264.7381 -44.4937    5.3  16.0   10.1   0.1035   2.2    2.6	4U 1735-44
268.2377  -1.3812    8.0  39.4  104.7  -0.3079  -1.4    8.9	SW J1753.5-0127
270.4431 -25.0384    4.2  17.4   84.3  -0.1590  -2.8    9.0	GX 5-1
270.3625 -25.8869   27.7  16.8   82.3   0.0236   0.4    9.2	GRS 1758-258
274.0077 -14.0363   27.3  25.6  107.0   0.0321   0.4    0.1	GX 17+2
275.8730 -30.4369   20.4  10.2   85.5  -0.0273  -0.6    5.0	H1820-303
284.9709 -25.0771    7.4  12.9  133.6  -0.0808  -1.5   10.0	HT1900.1-2455
262.8834 -33.7157    7.5  17.7   47.7  -0.0840  -1.5    8.9	GX 354-0
261.7123  -8.7486    0.5  35.5   89.8   3.0611  22.1 ------	UNKNOWN
302.6103 -23.4566    2.4  21.4 -177.0   0.2364   4.9 ------	UNKNOWN
252.1754 -67.7938    2.6  34.7  -29.0   0.2696   4.5 ------	UNKNOWN
196.9465 -69.3184    2.3  53.9  -23.8   0.7681   5.0 ------	UNKNOWN
336.9825 -66.8645    2.4  41.2  -78.0   0.8714   4.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
217.292590 640.492600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6368  35.3110   17.6  38.7  170.3   0.2560   0.7    9.0	Her X-1
268.2638  -1.5615    6.3  40.6  107.2   1.7816   1.8    9.0	SW J1753.5-0127
288.7972  10.9321    0.7  18.0   89.4   4.8588  16.9    0.8	GRS 1915+105
299.5794  35.1960    0.3   8.9 -120.5   7.9600  35.2    0.6	Cyg X-1
308.1004  40.9411    0.9  16.5  -99.0   3.1438  12.7    0.8	Cyg X-3
326.1749  38.3211   20.3  25.9  -68.7   0.1943   0.6    0.2	Cyg X-2
275.6349  -1.7219    3.0  35.9   98.1   2.2187   3.8 ------	UNKNOWN
231.0442  40.8487    2.7  56.9  179.1   6.8609   4.3 ------	UNKNOWN
285.9775  73.7671    2.7  48.0 -129.0   5.3816   4.3 ------	UNKNOWN

Plot creation:
Sun May 31 09:56:51 EDT 2015
