batgrbproduct analysis for trigger=284856

batgrbproduct Analysis for Trigger=284856

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 20 08:32:41 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger284856
======================================================================

  Trigger: 00284856      Segment: 000

  BAT Trigger Time: 206081971.712   [s; MET]
      Trigger Stop: 206081971.84   [s; MET]
               UTC: 2007-07-14T04:59:29.626060    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 57.8541785265274   Dec: 28.2952010314712  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.12
     Image Trigger?:     NO
     Rate S/N Ratio:     76.5963445602987  [ if not an image trigger ]
     Image S/N Ratio:    12.12

  Flight Position:   [ source = BAT ]
    RA: 57.8541785265274   Dec: 28.2952010314712  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 57.8580069318728   Dec: 28.2938793564468  [deg; J2000]
        { 03h 51m 25.9s , +28d 17' 38.0" }
         +/- 1.37861138043568 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.624620880094939 [arcmin] (formal 1-sigma fit error)
    SNR: 19.2271858352427

  Angular difference between Flight and Ground position is 0.217250 arcmin

  Partial Coding Fraction: 0.9375    [ including projection effects ]

  Duration
     T90: 65.636000007391 +/- 9.50873367717039
        Measured from: -0.496000021696091
                   to: 65.1399999856949     [s; relative to TRIGTIME]
     T50: 40.1800000071526 +/- 8.52704874666197
        Measured from: 0.123999983072281
                   to: 40.3039999902248     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.388000011444092
                   to: 0.611999988555908     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.792000025510788
                   to: 74.6399999856949     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.332500   0.392123   0.354491   0.144105
           0.040891   0.042994   0.039253   0.037870 [error]
 Peak      0.066627   0.115140   0.134143   0.055229
           0.005636   0.006609   0.006767   0.006027 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 8.57e-08 1.71e-07 2.65e-07 9.01e-07 7.39e-07 1.42e-06   erg/cm2
              Error 1.58e-08 1.91e-08 3.79e-08 2.82e-07 9.27e-08 3.11e-07   erg/cm2
Peak flux Power-law 5.48e-01 7.98e-01 8.66e-01 1.76e+00 2.75e+00 3.97e+00   ph/cm2/s
              Error 6.68e-02 5.74e-02 5.31e-02 2.46e-01 1.55e-01 2.68e-01   ph/cm2/s

Fluence   Cutoff-PL 8.30e-08 1.75e-07 2.67e-07 6.26e-07 7.23e-07 1.15e-06   erg/cm2
              Error 1.83e-08 2.35e-08 3.99e-08 5.70e-07 1.07e-07 5.38e-07   erg/cm2
Peak flux Cutoff-PL 5.47e-01 7.98e-01 8.67e-01 1.74e+00 2.75e+00 3.96e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.368    0.191    -      -           1.01e-03 1.10e-04   51.340 57
CPL   1.154    0.634     192.5    0.0      1.30e-03 1.44e-03   51.120 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.882    0.104    -      -           2.40e-02 1.35e-03   38.960 57
CPL   0.879    0.147    9999.4    0.0      2.41e-02 4.87e-03   38.990 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 1.728000 sec.
T50 in the 50-300 keV band: 0.896000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   75.432   -0.792   74.640
T90    65.636   -0.496   65.140
T50    40.180    0.124   40.304
Peak    1.000   -0.388    0.612

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   57.8580    28.2939   0.0100    13.1589   -74.7912         0.7654362     19.227 TRIG_00284856

Foreground time interval of the image:
 -0.792  16.589 (delta_t =  17.381 [sec])
Background time interval of the image:
-239.712  -0.792 (delta_t = 238.920 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

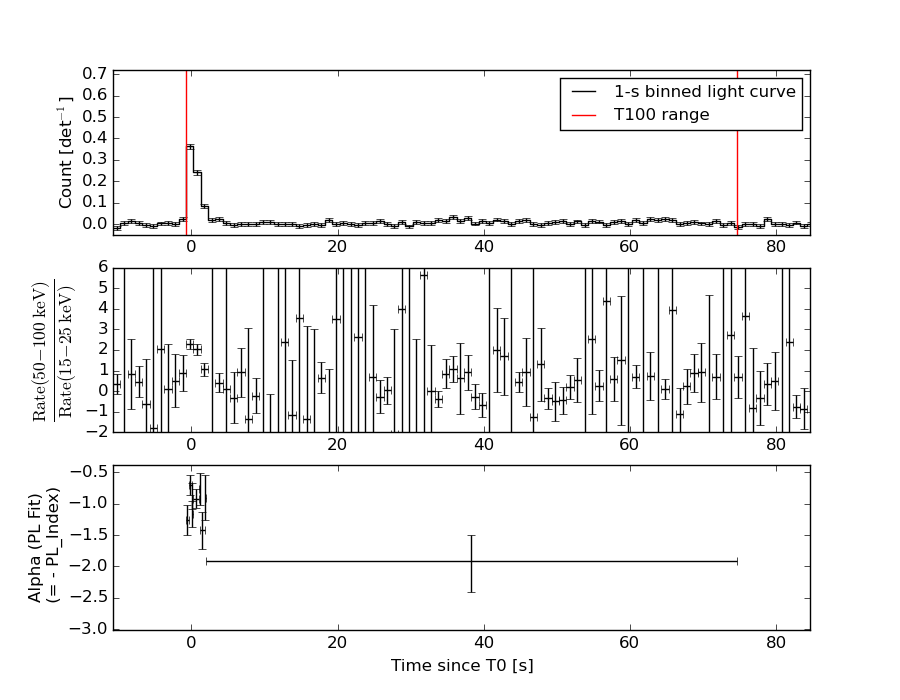

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.792 sec. to   74.640 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.36782     ( -0.191101   0.1914 )
Norm@50keV  : 1.00719E-03    ( -0.000110233   0.000109566 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.34 using 59 PHA bins.
# Reduced chi-squared =         0.9008 for     57 degrees of freedom
# Null hypothesis probability =   6.863172e-01

Photon flux (15-150 keV)    in 75.43 sec: 0.121791 ( -0.0130114  0.01302 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.39089e-07 ( -9.1965e-08  9.34691e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.792 sec. to   74.640 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.15378     ( -0.881761   0.386293 )
Epeak [keV] : 192.479      ( -192.563 -192.563 )
Norm@50keV  : 1.29994E-03    ( -0.000542383   0.00233166 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.12 using 59 PHA bins.
# Reduced chi-squared =         0.9128 for     56 degrees of freedom
# Null hypothesis probability =   6.599072e-01

Photon flux (15-150 keV)    in 75.43 sec: 0.120522 ( -0.013833  0.013702 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.23254e-07 ( -1.09315e-07  1.05465e-07 ) ergs/cm2

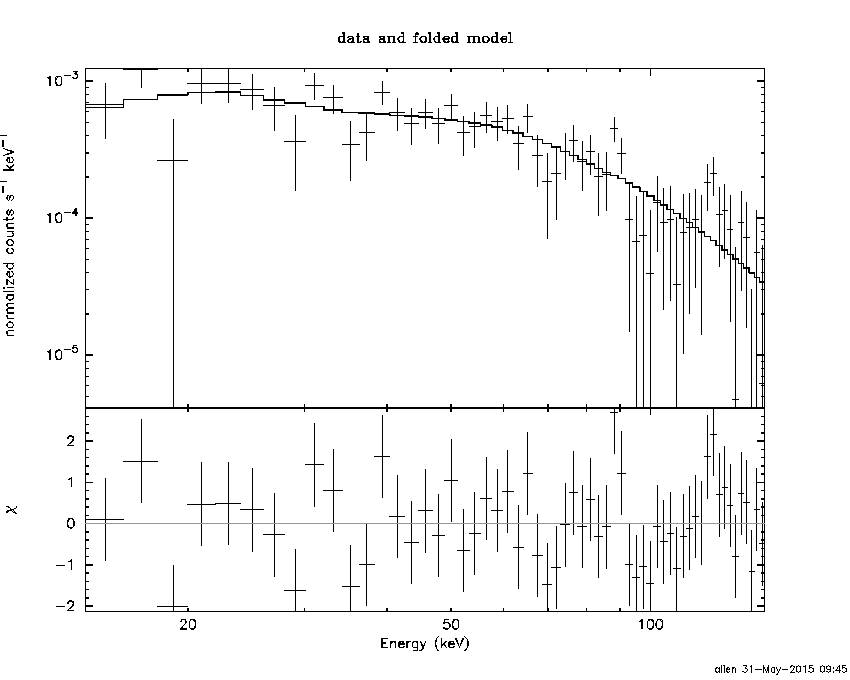

Band function

Time interval is from   -0.792 sec. to   74.640 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.911472   ( 0.911889   5.61777 )
beta        : -1.59024    ( 1.58075   0.383434 )
Epeak [keV] : 106.484      ( -107.032 -107.032 )
Norm@50keV   : 1.78035E-03    ( -0.000966554   1.0933 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.80 using 59 PHA bins.
# Reduced chi-squared =         0.9236 for     55 degrees of freedom
# Null hypothesis probability =   6.358821e-01

Photon flux (15-150 keV)    in 75.43 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.2365  (-1.96468  2.36114)
R^2/D10^2   : 1.32341E-02  (-0.00515888   0.00807973)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.66 using 59 PHA bins.
# Reduced chi-squared =          1.169 for     57 degrees of freedom
# Null hypothesis probability =   1.789243e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.839e-08   1.105e-08
25- 50  1.950e-07   3.074e-08
50-150  3.103e-07   7.336e-08
15-150  5.537e-07   8.135e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 0.495780       (-0.053036     0.053036)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.32 using 59 PHA bins.
# Reduced chi-squared =         0.9354 for     57 degrees of freedom
# Null hypothesis probability =   6.140147e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.358e-08   5.242e-08
25- 50  1.800e-07   9.881e-08
50-150  3.948e-07   2.164e-07
15-150  6.684e-07   3.652e-07

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 10.6464        (      )
R1^2/D10^2  : 3.57534E-02        (-0.0185695      0.0228445)
kT2 [keV]   : 64.3877        (-67.0004      -67.0005)
R2^2/D10^2  : 1.12987E-04    (-8.08909e-05   0.000440716)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.72 using 59 PHA bins.
#Fit statistic : Chi-Squared =          53.42 using 59 PHA bins.
# Reduced chi-squared =         0.9768 for     55 degrees of freedom
# Reduced chi-squared =         0.9712 for     55 degrees of freedom
# Null hypothesis probability =   5.234857e-01
# Null hypothesis probability =   5.353025e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.307e-08   4.168e-08
25- 50  1.707e-07   6.750e-08
50-150  4.180e-07   2.210e-07
15-150  6.718e-07   3.255e-07

Peak spectrum fit

Power-law model

Time interval is from   -0.388 sec. to    0.612 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.882076     ( -0.104985   0.103392 )
Norm@50keV  : 2.39804E-02    ( -0.00135538   0.00135024 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.96 using 59 PHA bins.
# Reduced chi-squared =         0.6834 for     57 degrees of freedom
# Null hypothesis probability =   9.675984e-01

Photon flux (15-150 keV)    in 1 sec: 2.75220 ( -0.155099  0.155236 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.71018e-07 ( -1.71263e-08  1.7213e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.388 sec. to    0.612 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.879389     ( -0.191564   0.101565 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 2.41124E-02    ( -0.00136254   0.00837008 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.99 using 59 PHA bins.
# Reduced chi-squared =         0.6962 for     56 degrees of freedom
# Null hypothesis probability =   9.592541e-01

Photon flux (15-150 keV)    in 1 sec: 2.75135 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.70735e-07 ( -1.669e-08  1.7429e-08 ) ergs/cm2

Band function

Time interval is from   -0.388 sec. to    0.612 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.916637   ( 0.916637   0.916637 )
beta        : -0.882076    ( -0.103384   0.105006 )
Epeak [keV] : 13.2348      ( -13.2348 -13.2348 )
Norm@50keV   : 3.58492E-02    ( -0.0128688   691382 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.96 using 59 PHA bins.
# Reduced chi-squared =         0.7083 for     55 degrees of freedom
# Null hypothesis probability =   9.500362e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 23.3398  (-1.95092  2.22403)
R^2/D10^2   : 8.28214E-02  (-0.019687   0.0250146)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          97.16 using 59 PHA bins.
# Reduced chi-squared =          1.704 for     57 degrees of freedom
# Null hypothesis probability =   7.275958e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.118e-09   9.105e-10
25- 50  4.440e-08   3.920e-09
50-150  1.806e-07   1.735e-08
15-150  2.331e-07   1.860e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 10.7235       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         148.17 using 59 PHA bins.
# Reduced chi-squared =         2.5996 for     57 degrees of freedom
# Null hypothesis probability =   4.786168e-10

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.670e-08   1.900e-09
25- 50  5.137e-08   4.605e-09
50-150  1.127e-07   3.347e-08
15-150  1.907e-07   3.510e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 11.2399        (-2.97025      2.66986)
R1^2/D10^2  : 0.491614        (-0.221576      0.615556)
kT2 [keV]   : 62.8323        (-24.8942      -62.931)
R2^2/D10^2  : 4.50822E-03    (-0.00271551   0.0125604)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.09 using 59 PHA bins.
# Reduced chi-squared =         0.7471 for     55 degrees of freedom
# Null hypothesis probability =   9.182386e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.465e-08   3.238e-09
25- 50  5.010e-08   1.333e-08
50-150  2.097e-07   9.562e-08
15-150  2.744e-07   9.997e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.990688     ( -0.149011   0.145445 )
Norm@50keV  : 2.92423E-03    ( -0.000239879   0.000239032 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.82 using 59 PHA bins.
# Reduced chi-squared =          1.014 for     57 degrees of freedom
# Null hypothesis probability =   4.447059e-01

Photon flux (15-150 keV)    in 17.38 sec: 0.336550 ( -0.0279628  0.0279915 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.51481e-07 ( -4.97344e-08  4.99274e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.623822     ( -0.678825   0.506115 )
Epeak [keV] : 208.807      ( -208.811 -208.811 )
Norm@50keV  : 4.30050E-03    ( -0.00154167   0.0042325 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.71 using 59 PHA bins.
# Reduced chi-squared =          1.013 for     56 degrees of freedom
# Null hypothesis probability =   4.482199e-01

Photon flux (15-150 keV)    in 17.38 sec: 0.330603 ( -0.029673  0.029311 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.37897e-07 ( -5.57603e-08  5.4886e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.328449   ( 0.784306   0.784306 )
beta        : -1.21471    ( 1.23043   0.330868 )
Epeak [keV] : 122.578      ( -121.028 234.885 )
Norm@50keV   : 6.25650E-03    ( -0.00349539   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.13 using 59 PHA bins.
# Reduced chi-squared =          1.021 for     55 degrees of freedom
# Null hypothesis probability =   4.322434e-01

Photon flux (15-150 keV)    in 17.38 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.71e-07
S(50-100 keV) = 2.65e-07

T90 vs. Hardness ratio plot

T90                                   = 65.636000007391 sec.
Hardness ratio (energy fluence ratio) = 1.54971

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.17932
Count Ratio (50-100 keV) / (15-25 keV) = 1.06614

Mask shadow pattern

IMX = 6.133183606488909E-02, IMY = 2.256021352703911E-01

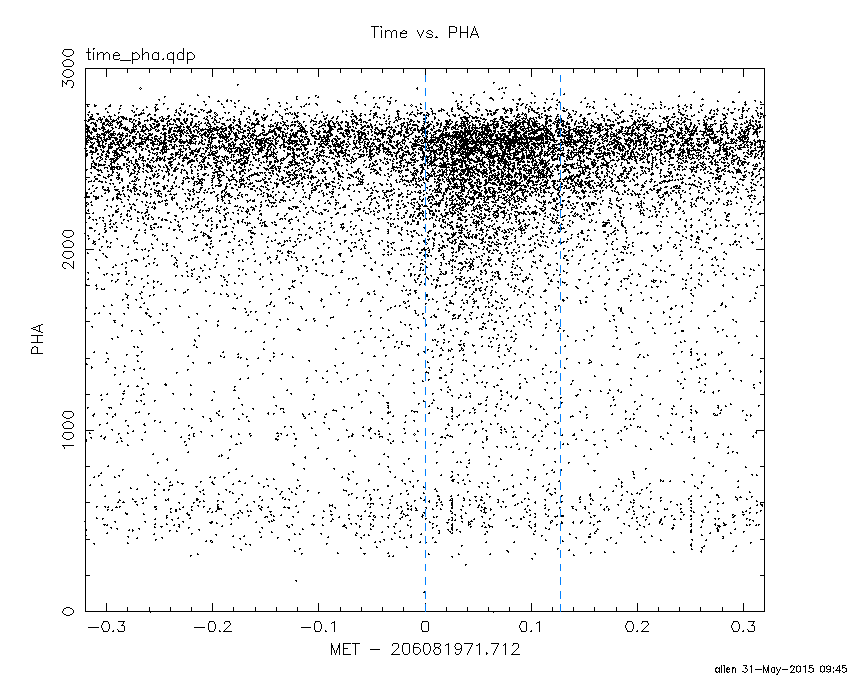

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.712000 -0.792000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6355  22.0197    0.5  37.3  -76.7   9.9636  24.4    0.3	Crab
  2.7555  78.3615    2.7  51.2 -179.1   1.8848   4.3 ------	UNKNOWN
 65.8802  -7.3724    2.6  43.6  -23.7   1.2445   4.5 ------	UNKNOWN
 79.0084  33.7353    2.3  30.6  -95.6   1.3887   5.1 ------	UNKNOWN
 94.1564  41.1172    2.5  42.4 -108.9   3.4068   4.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.792000 16.588590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.4543  21.9367    7.2  37.1  -76.5   0.1508   1.6   11.0	Crab
  7.2265  18.8591    1.9  34.2   89.4   0.6140   6.0 ------	UNKNOWN
  2.9835  29.9667    2.1  34.4  110.4   0.4982   5.5 ------	UNKNOWN
 31.4762  -5.3897    2.2  37.3   29.5   0.3644   5.2 ------	UNKNOWN
 57.8580  28.2939    0.6  13.2  -74.8   0.7655  19.2 ------	UNKNOWN
 75.3790  31.0026    2.2  27.8  -89.5   0.2899   5.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
50.788590 962.391300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6278  22.0126    0.2  24.1  -75.1  39.3700  61.3    0.3	Crab
 26.9041  52.3975    3.9  33.2  150.8   2.1986   3.0 ------	UNKNOWN
 75.7635  61.0816    3.8  34.9 -159.3   1.6818   3.0 ------	UNKNOWN
125.6337  82.4054    3.3  59.1 -166.1  12.2620   3.5 ------	UNKNOWN
103.8272  44.6027    2.2  39.8 -121.2   5.5468   5.1 ------	UNKNOWN

Plot creation:
Sun May 31 09:45:35 EDT 2015
