Special notes of this burst
Pre-slew 15.0-350.0 keV image (Event data)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
151.5656 44.3055 0.0163 12.4975 82.7443 0.5594325 11.797 TRIG_00293587
Foreground time interval of the image:
-11.008 13.568 (delta_t = 24.576 [sec])
Background time interval of the image:
-139.939 -11.008 (delta_t = 128.931 [sec])
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.

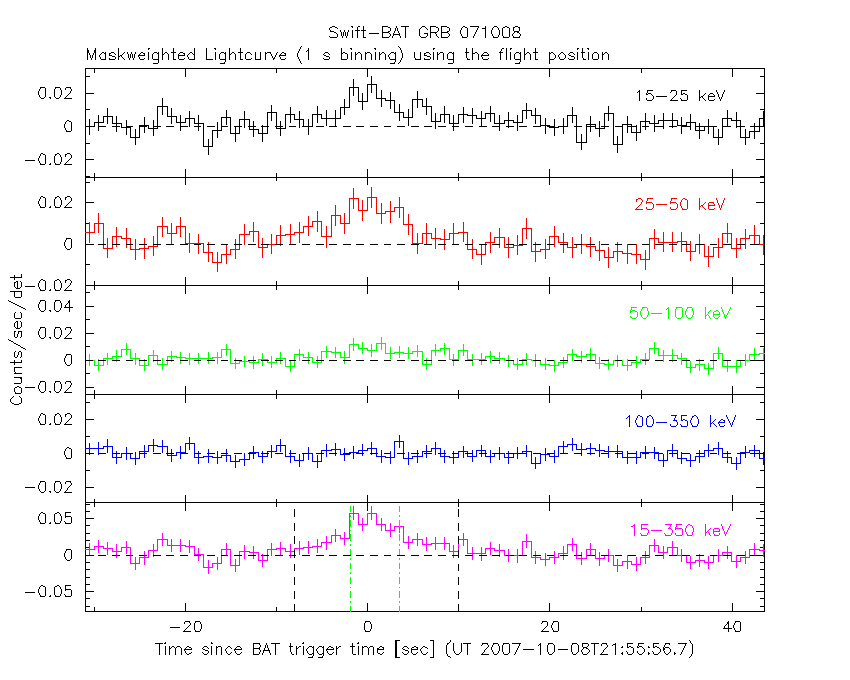

1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval

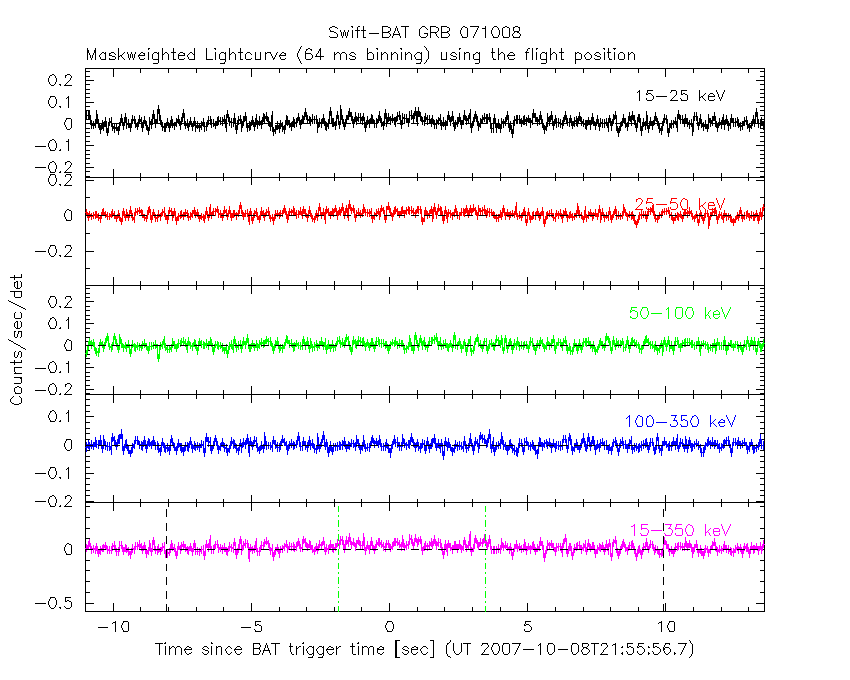

64 ms binning
Full time interval
From T100_start to T100_end
From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000
8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

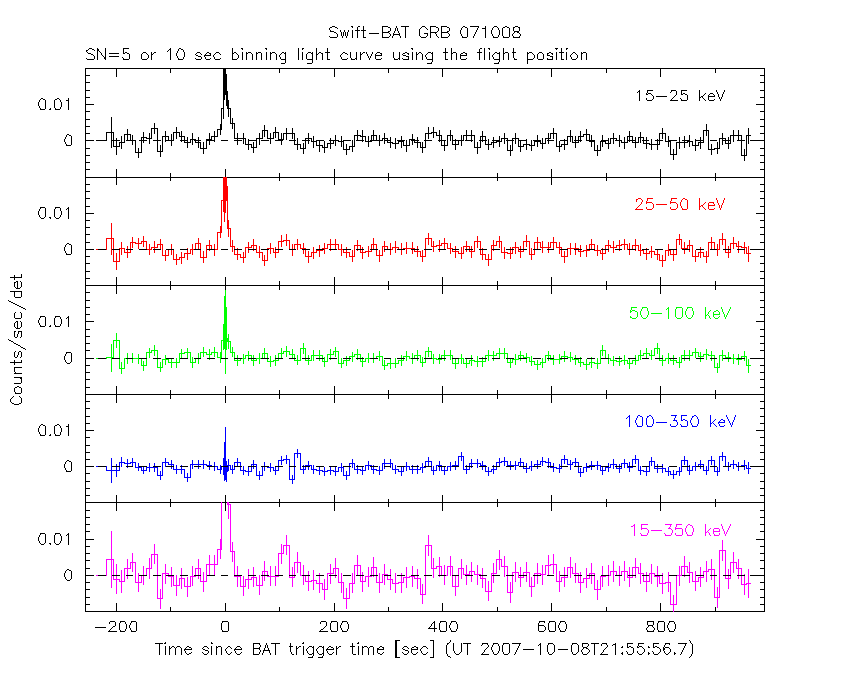

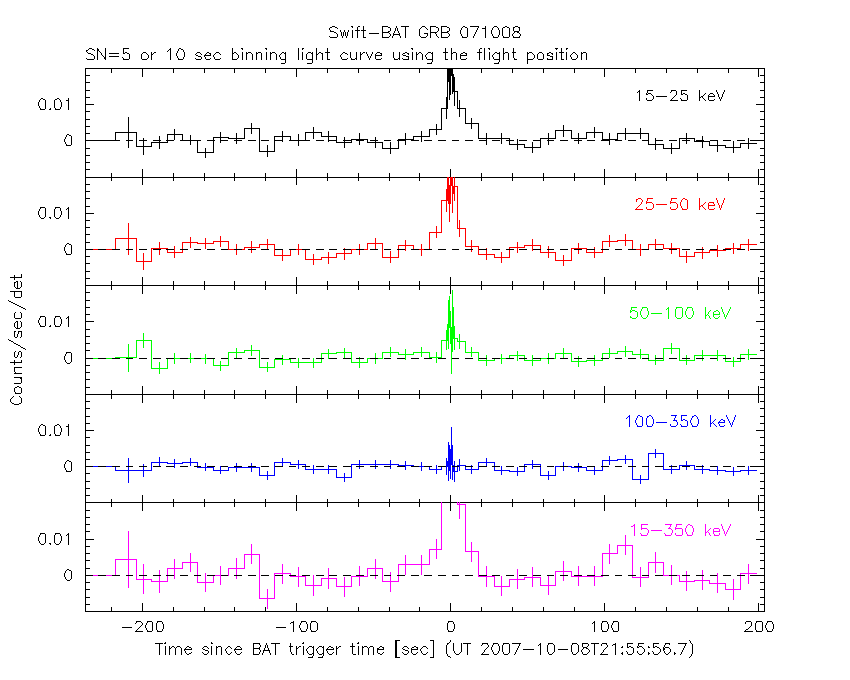

SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
Time averaged spectrum fit using the average DRM

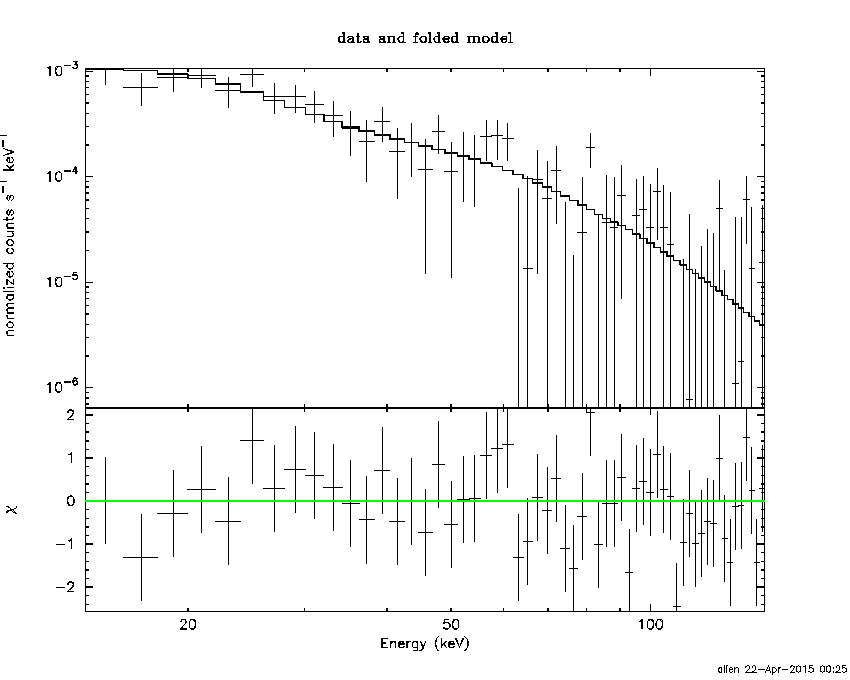

Power-law model
Time interval is from -11.008 sec. to 13.568 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.14419 ( -0.240176 0.262174 )
Norm@50keV : 1.08842E-03 ( -0.000202509 0.00019819 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 45.81 using 59 PHA bins.
# Reduced chi-squared = 0.8037 for 57 degrees of freedom
# Null hypothesis probability = 8.558285e-01
Photon flux (15-150 keV) in 24.58 sec: 0.175068 ( -0.0223628 0.0223668 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.49743e-07 ( -4.02446e-08 4.18194e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from -11.008 sec. to 13.568 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.10799 ( -1.40462 1.04826 )
Epeak [keV] : 32.6837 ( )
Norm@50keV : 4.70370E-03 ( )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 42.95 using 59 PHA bins.
# Reduced chi-squared = 0.7669 for 56 degrees of freedom
# Null hypothesis probability = 8.998061e-01
Photon flux (15-150 keV) in 24.58 sec: 0.170067 ( -0.022554 0.02269 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.25151e-07 ( -4.08473e-08 4.67976e-08 ) ergs/cm2

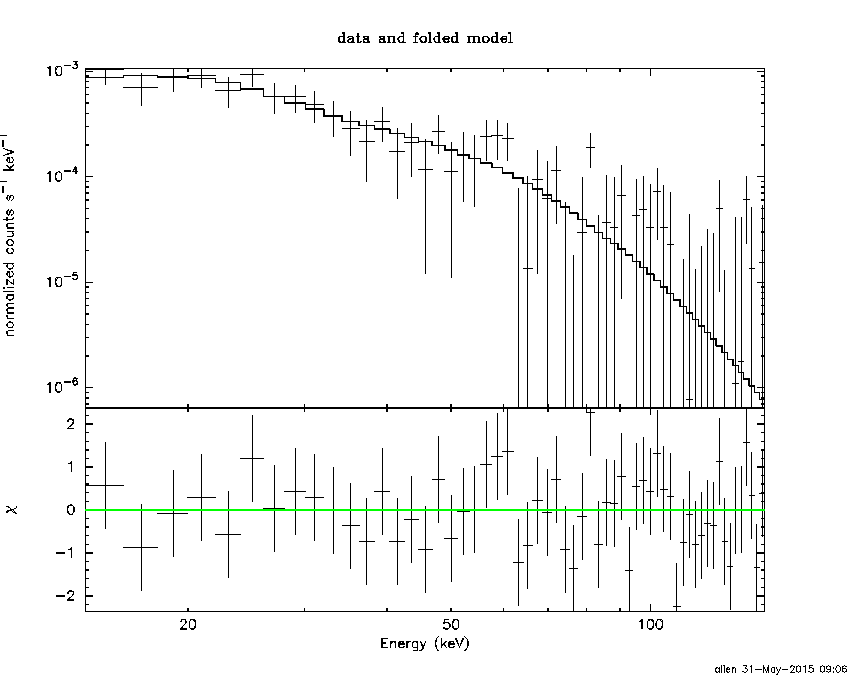

Band function
Time interval is from -11.008 sec. to 13.568 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -1.10683 ( -0.620552 1.07341 )
beta : -10.0000 ( 10 3.55271e-15 )
Epeak [keV] : 32.6811 ( -12.619 13.9783 )
Norm@50keV : 4.71120E-03 ( -0.0047112 0.0318658 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 42.95 using 59 PHA bins.
# Reduced chi-squared = 0.7809 for 55 degrees of freedom
# Null hypothesis probability = 8.811960e-01
Photon flux (15-150 keV) in 24.58 sec: 0.170096 ( 6.8299 -0.022569 ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 8.56696 (-1.19814 1.39636)
R^2/D10^2 : 0.149441 (-0.0665696 0.120159)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 50.75 using 59 PHA bins.
# Reduced chi-squared = 0.8904 for 57 degrees of freedom
# Null hypothesis probability = 7.070586e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 5.105e-08 1.057e-08
25- 50 1.003e-07 1.909e-08
50-150 3.282e-08 1.356e-08
15-150 1.842e-07 3.270e-08

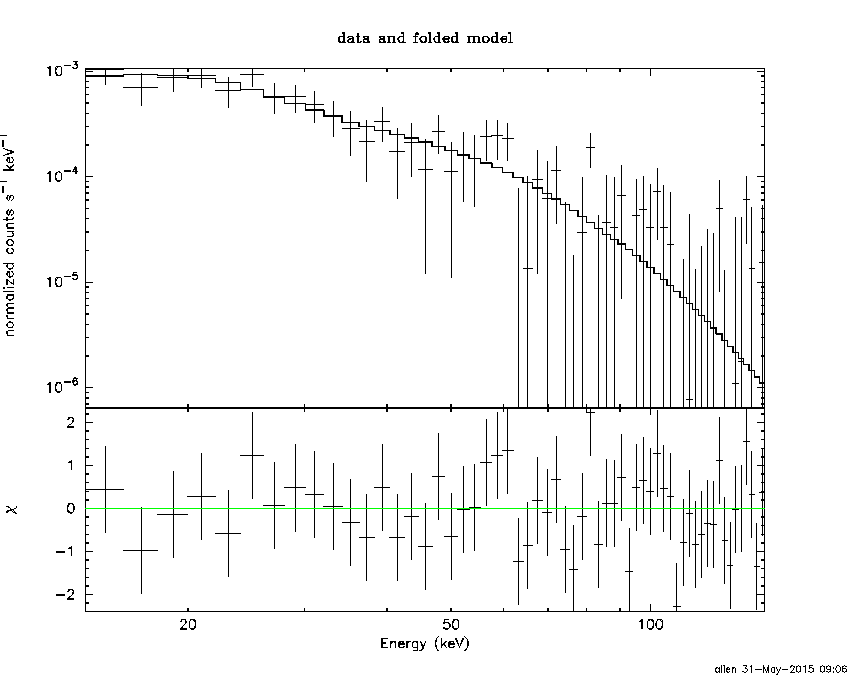

Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 49.0790 (-14.4327 24.5111)
Norm : 1.01092 (-0.200797 0.272152)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 43.04 using 59 PHA bins.
# Reduced chi-squared = 0.7551 for 57 degrees of freedom
# Null hypothesis probability = 9.144663e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 6.049e-08 1.008e-08
25- 50 8.631e-08 1.508e-08
50-150 8.233e-08 3.305e-08
15-150 2.291e-07 4.336e-08

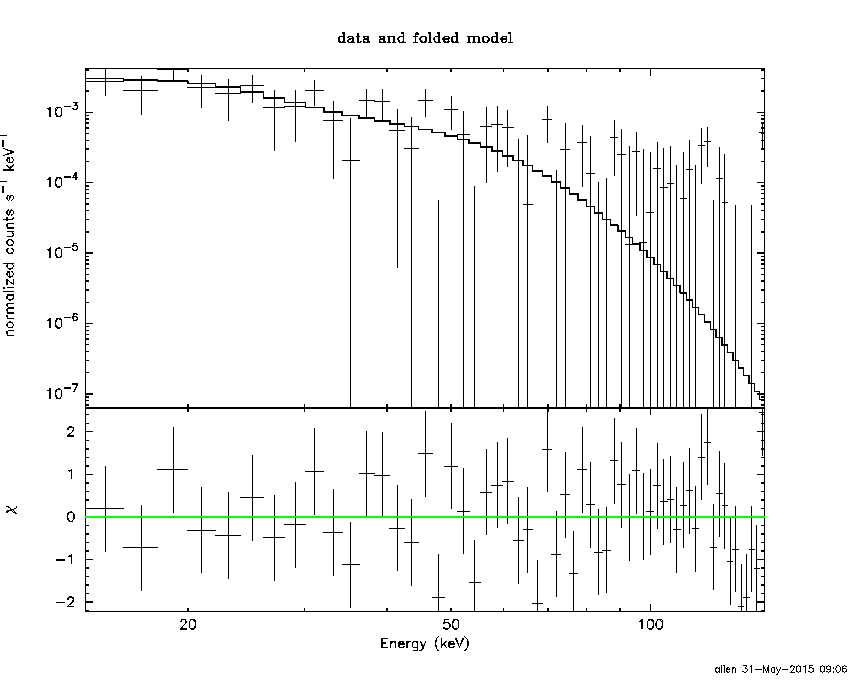

Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 5.39372 (-2.21311 2.0992)
R1^2/D10^2 : 0.606323 (-0.40024 3.89291)
kT2 [keV] : 15.2971 (-5.07354 13.449)
R2^2/D10^2 : 9.87090E-03 (-0.00920174 0.0528116)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 42.44 using 59 PHA bins.
# Reduced chi-squared = 0.7716 for 55 degrees of freedom
# Null hypothesis probability = 8.922891e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 6.047e-08 3.230e-08
25- 50 8.603e-08 4.342e-08
50-150 7.918e-08 4.651e-08
15-150 2.257e-07 1.168e-07
Peak spectrum fit
Power-law model
Time interval is from 0.172 sec. to 1.172 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.28526 ( -0.429843 0.522424 )
Norm@50keV : 2.82075E-03 ( -0.0010337 0.00101088 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 59.90 using 59 PHA bins.
# Reduced chi-squared = 1.051 for 57 degrees of freedom
# Null hypothesis probability = 3.708619e-01
Photon flux (15-150 keV) in 1 sec: 0.488939 ( -0.109665 0.109836 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.6885e-08 ( -7.81717e-09 8.45791e-09 ) ergs/cm2
Cutoff power-law model
Time interval is from 0.172 sec. to 1.172 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.47360 ( -3.45417 0.61678 )
Epeak [keV] : 22.9237 ( )
Norm@50keV : 9.38611E-03 ( )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 59.40 using 59 PHA bins.
# Reduced chi-squared = 1.061 for 56 degrees of freedom
# Null hypothesis probability = 3.528500e-01
Photon flux (15-150 keV) in 1 sec: 0.480090 ( -0.110087 0.111637 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.4546e-08 ( -7.8592e-09 9.9563e-09 ) ergs/cm2
Band function
Time interval is from 0.172 sec. to 1.172 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -0.948781 ( -2.41274 0.779547 )
beta : -2.91281 ( 2.91828 1.01689 )
Epeak [keV] : 25.6521 ( -26.0147 179.463 )
Norm@50keV : 2.18913E-02 ( -0.0188786 1135.2 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 59.31 using 59 PHA bins.
# Reduced chi-squared = 1.078 for 55 degrees of freedom
# Null hypothesis probability = 3.212333e-01
Photon flux (15-150 keV) in 1 sec: 0.485864 ( 6.51414 -0.116203 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.49636e-08 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 7.57327 (-1.75634 2.18867)
R^2/D10^2 : 0.682464 (-0.433572 1.28157)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 61.72 using 59 PHA bins.
# Reduced chi-squared = 1.083 for 57 degrees of freedom
# Null hypothesis probability = 3.111764e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 6.775e-09 3.072e-09
25- 50 1.076e-08 4.705e-09
50-150 2.350e-09 1.728e-09
15-150 1.988e-08 8.711e-09
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 38.9652 (-17.3539 41.0397)
Norm : 3.25187 (-1.12791 2.04475)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 59.41 using 59 PHA bins.
# Reduced chi-squared = 1.042 for 57 degrees of freedom
# Null hypothesis probability = 3.880395e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 7.400e-09 2.371e-09
25- 50 9.625e-09 3.702e-09
50-150 7.234e-09 4.829e-09
15-150 2.426e-08 9.545e-09
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 3.82395 (-3.83026 -3.83026)
R1^2/D10^2 : 6.03977 (-5.98166 -5.98166)
kT2 [keV] : 10.7206 (-10.7451 -10.7451)
R2^2/D10^2 : 0.127746 (-0.126153 1.01827)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 59.70 using 59 PHA bins.
# Reduced chi-squared = 1.085 for 55 degrees of freedom
# Null hypothesis probability = 3.087721e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 7.449e-09 4.019e-09
25- 50 9.735e-09 5.565e-09
50-150 5.320e-09 3.465e-09
15-150 2.250e-08 1.209e-08
Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.14419 ( -0.240176 0.262174 )
Norm@50keV : 1.08842E-03 ( -0.000202509 0.00019819 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 45.81 using 59 PHA bins.
# Reduced chi-squared = 0.8037 for 57 degrees of freedom
# Null hypothesis probability = 8.558285e-01
Photon flux (15-150 keV) in 24.58 sec: 0.175068 ( -0.0223628 0.0223668 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.49743e-07 ( -4.02446e-08 4.18194e-08 ) ergs/cm2
Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.10799 ( -1.40462 1.04826 )
Epeak [keV] : 32.6837 ( )
Norm@50keV : 4.70370E-03 ( )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 42.95 using 59 PHA bins.
# Reduced chi-squared = 0.7669 for 56 degrees of freedom
# Null hypothesis probability = 8.998061e-01
Photon flux (15-150 keV) in 24.58 sec: 0.170067 ( -0.022554 0.02269 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.25151e-07 ( -4.08473e-08 4.67976e-08 ) ergs/cm2
Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -1.10683 ( -0.620552 1.07341 )
beta : -10.0000 ( 10 1.77636e-14 )
Epeak [keV] : 32.6811 ( -12.619 13.9783 )
Norm@50keV : 4.71120E-03 ( -0.0047112 0.0318658 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 42.95 using 59 PHA bins.
# Reduced chi-squared = 0.7809 for 55 degrees of freedom
# Null hypothesis probability = 8.811960e-01
Photon flux (15-150 keV) in 24.58 sec: 0.170096 ( 6.8299 -0.022569 ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 7.81e-08
S(50-100 keV) = 7.07e-08
T90 vs. Hardness ratio plot
T90 = 17.9839999973774 sec.
Hardness ratio (energy fluence ratio) = 0.90525
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 0.910735
Count Ratio (50-100 keV) / (15-25 keV) = 0.461056
Mask shadow pattern
IMX = 2.799371261699209E-02, IMY = -2.198732670486664E-01
TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000
TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000
100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

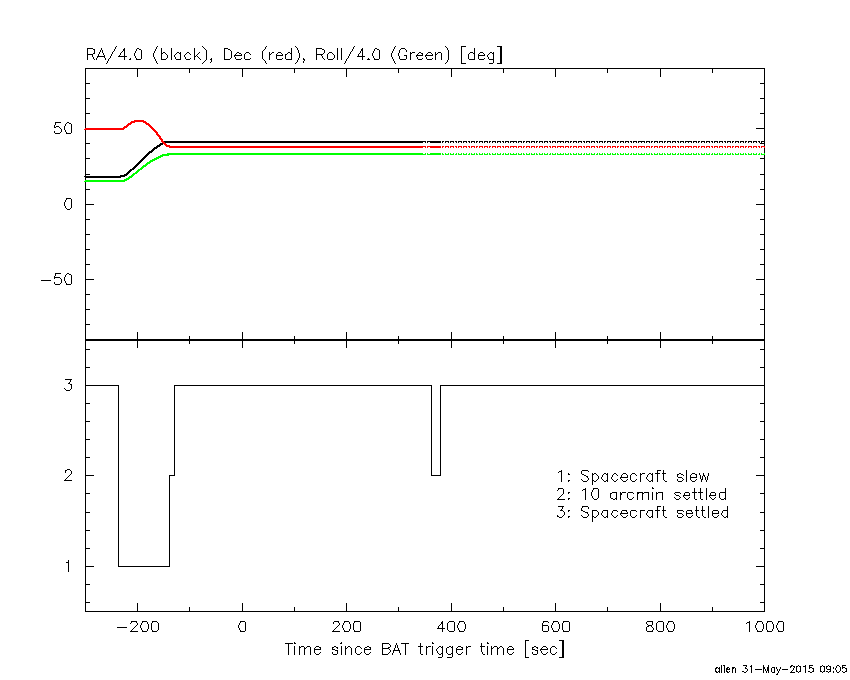

Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-139.939410 -11.008000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
157.2082 7.4205 2.6 31.7 -24.9 0.4939 4.3 ------ UNKNOWN
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-11.008000 13.568000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
151.5656 44.3055 1.0 12.5 82.7 0.5594 11.8 ------ UNKNOWN
220.1438 64.8128 2.4 41.0 170.0 0.3237 4.7 ------ UNKNOWN
168.2517 35.9640 2.0 2.8 -82.8 0.2238 5.7 ------ UNKNOWN
141.5145 -1.8676 2.1 45.9 -6.5 0.4390 5.5 ------ UNKNOWN
219.2586 34.4384 2.1 42.5 -143.8 0.4323 5.6 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
-239.040000 962.958500
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
115.3740 52.9875 2.9 37.5 88.5 5.7207 4.0 ------ UNKNOWN
142.0152 33.4683 2.6 19.9 42.2 2.0043 4.5 ------ UNKNOWN
132.2746 8.5812 3.0 42.3 12.9 2.7549 3.8 ------ UNKNOWN
251.8629 56.5514 3.7 56.9 179.3 10.1727 3.2 ------ UNKNOWN
148.4384 -13.4571 2.3 54.1 -20.5 7.0737 5.1 ------ UNKNOWN
199.7844 10.2891 5.5 41.1 -98.1 7.8123 2.1 ------ UNKNOWN
Plot creation:
Sun May 31 09:07:43 EDT 2015
