batgrbproduct Analysis for Trigger=301578

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Dec 24 14:20:26 EST 2014
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger301578
======================================================================

  Trigger: 00301578      Segment: 000

  BAT Trigger Time: 222754919.924   [s; MET]
      Trigger Stop: 222754919.988   [s; MET]
               UTC: 2008-01-23T04:21:57.402220    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 338.928685995783   Dec: -64.8899237672072  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.04
     Image Trigger?:     NO
     Rate S/N Ratio:     36.9864840178139  [ if not an image trigger ]
     Image S/N Ratio:    7.04

  Flight Position:   [ source = BAT ]
    RA: 338.928685995783   Dec: -64.8899237672072  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 338.929   Dec: -64.8899  [deg; J2000]
        { 22h 35m 43.0s , -64d -53' -23.6" }
        +/- 3.01180324954 [arcmin] (estimated 90% radius based on SNR)
    SNR: 6.29705086247


  Angular difference between Flight and Ground position is 0.008121 arcmin

  Partial Coding Fraction: 0.2050781    [ including projection effects ]

  Duration
     T90: 114.911999970675 +/- 55.267328797349
        Measured from: 0.0279999971389771
                   to: 114.939999967813     [s; relative to TRIGTIME]
     T50: 50.2719999849796 +/- 55.9885634028748
        Measured from: 8.8120000064373
                   to: 59.0839999914169     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.0480000078678131
                   to: 0.951999992132187     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.0119999945163727
                   to: 121.131999999285     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.422964   0.284330   0.291417  -0.011039
           0.091516   0.087083   0.074064   0.062707 [error]
 Peak     -0.002709   0.074689   0.068032   0.031129
           0.015005   0.015003   0.013920   0.012061 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.31e-07 1.70e-07 1.62e-07 2.74e-07 5.55e-07 7.38e-07   erg/cm2
              Error 4.64e-08 4.28e-08 7.21e-08 2.50e-07 1.65e-07 3.29e-07   erg/cm2
Peak flux Power-law 3.70e-01 4.65e-01 4.25e-01 6.77e-01 1.49e+00 1.94e+00   ph/cm2/s
              Error 1.94e-01 1.53e-01 1.09e-01 3.65e-01 4.07e-01 4.82e-01   ph/cm2/s

Fluence   Cutoff-PL 1.29e-07 1.72e-07 1.63e-07 2.16e-07 5.51e-07 6.66e-07   erg/cm2
              Error 4.95e-08 4.92e-08 7.46e-08 2.13e-07 1.71e-07 3.55e-07   erg/cm2
Peak flux Cutoff-PL 2.81e-01 4.77e-01 4.75e-01 3.42e-01 1.43e+00 1.57e+00   ph/cm2/s
              Error 2.24e-01 2.13e-01 1.42e-01 5.03e-01 4.13e-01 6.18e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.069    0.507    -      -           4.95e-04 1.61e-04   48.220 57
CPL   1.970    0.000      14.2    0.0      5.60e-04 0.00e+00   48.220 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.130    0.428    -      -           1.28e-02 3.30e-03   55.030 57
CPL   2.261    0.000      85.9    0.0      7.06e-04 0.00e+00   54.070 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.064000 sec.
T50 in the 50-300 keV band: 0.064000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  121.120    0.012  121.132
T90   114.912    0.028  114.940
T50    50.272    8.812   59.084
Peak    1.000   -0.048    0.952

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 50.0-350.0 keV image (Event data)

#RAcent DECcent POSerr Theta  Phi  Peak_Cts  SNR Name
338.929 -64.890 0.000 50.094 -26.299 0.050 6.297 TRIG_00301578

Image time interval: 0.000 to 0.064 [sec]

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

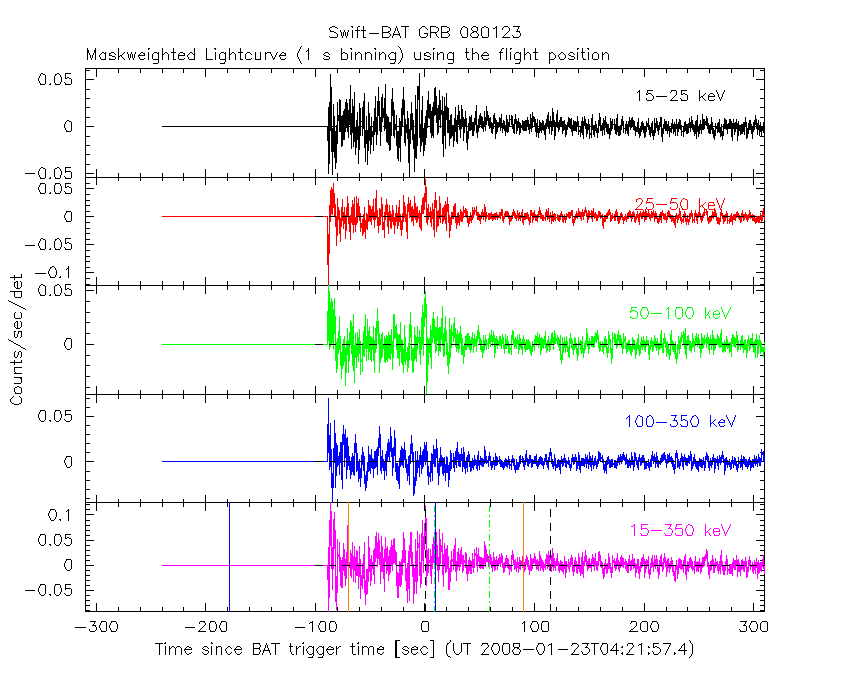

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

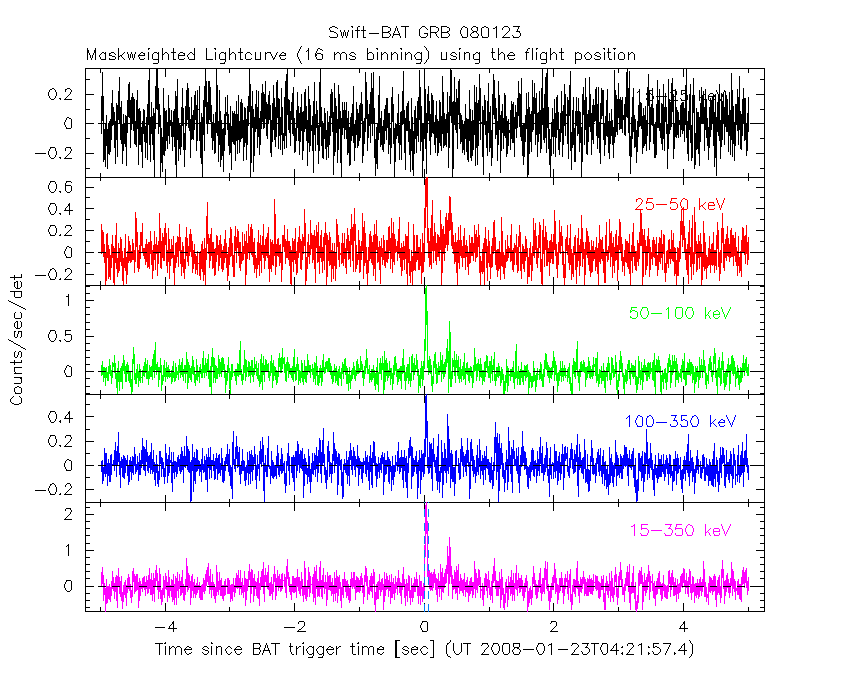

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

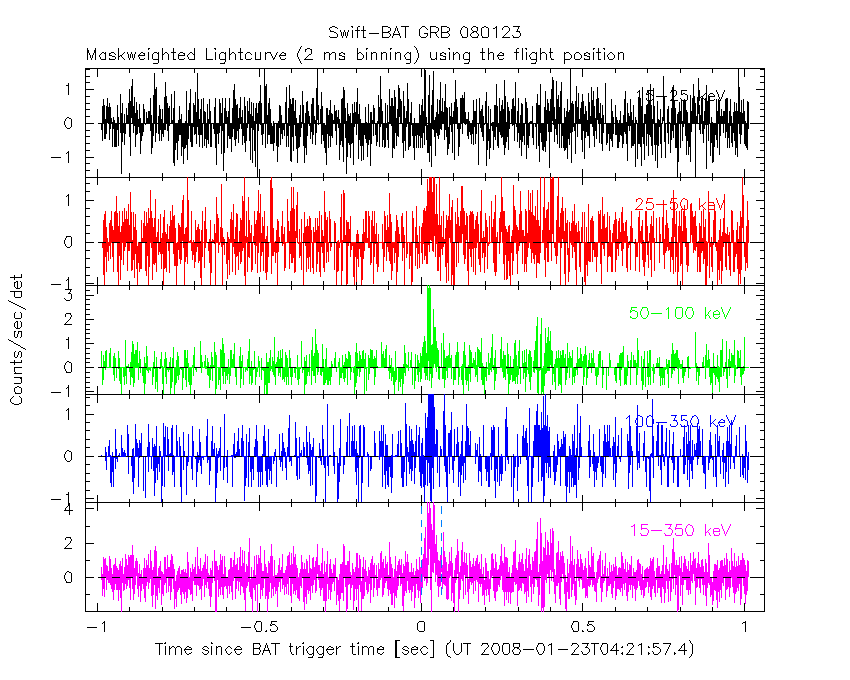

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    0.012 sec. to  121.132 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.06926     ( -0.467642   0.545964 )
Norm@50keV  : 4.94545E-04    ( -0.000166583   0.00015511 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.22 using 59 PHA bins.
# Reduced chi-squared =         0.8460 for     57 degrees of freedom
# Null hypothesis probability =   7.896269e-01

Photon flux (15-150 keV)    in 121.1 sec: 7.66454E-02 ( -0.0191444  0.0191643 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.54897e-07 ( -1.6186e-07  1.68599e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.012 sec. to  121.132 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.96991     (     )
Epeak [keV] : 14.2200      (   )
Norm@50keV  : 5.59778E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.22 using 59 PHA bins.
# Reduced chi-squared =         0.8611 for     56 degrees of freedom
# Null hypothesis probability =   7.606483e-01

Photon flux (15-150 keV)    in 121.1 sec: 7.64714E-02 ( -0.0195504  0.0192782 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.50931e-07 ( -1.69621e-07  1.7207e-07 ) ergs/cm2

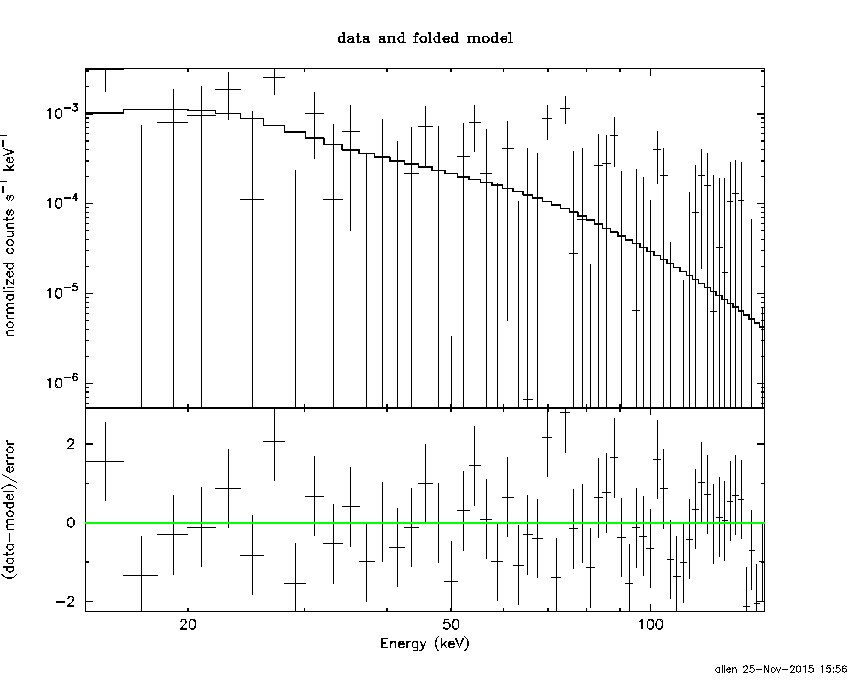

Band function

Time interval is from    0.012 sec. to  121.132 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.97044   ( -4.97044   -4.97044 )
beta        : -2.16502    ( -0.74784   0.525142 )
Epeak [keV] : 20.8595      ( -20.8595 93.2332 )
Norm@50keV   : 268.370    ( -66.4959   1.2242e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.07 using 59 PHA bins.
# Reduced chi-squared =         0.8740 for     55 degrees of freedom
# Null hypothesis probability =   7.345701e-01

Photon flux (15-150 keV)    in 121.1 sec: 7.58189E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.0339  (-4.02719  6.02569)
R^2/D10^2   : 3.29182E-02  (-0.0318023   0.212133)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.46 using 59 PHA bins.
# Reduced chi-squared =         0.9730 for     57 degrees of freedom
# Null hypothesis probability =   5.329014e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.183e-08   4.516e-08
25- 50  2.044e-07   1.093e-07
50-150  1.077e-07   7.599e-08
15-150  3.940e-07   2.374e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 66.9196       (-35.8534      -66.924)
Norm        : 0.378501       (-0.14257     0.233135)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.75 using 59 PHA bins.
# Reduced chi-squared =         0.8552 for     57 degrees of freedom
# Null hypothesis probability =   7.735527e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.170e-07   4.981e-08
25- 50  1.839e-07   8.416e-08
50-150  2.283e-07   1.782e-07
15-150  5.291e-07   2.585e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.32502        (-1.658      2.61691)
R1^2/D10^2  : 0.766876        (-0.66549      1.83579)
kT2 [keV]   : 19.4284        (-7.04197      15.9156)
R2^2/D10^2  : 2.21459E-03    (-0.00196407   0.00960627)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.65 using 59 PHA bins.
# Reduced chi-squared =         0.8483 for     55 degrees of freedom
# Null hypothesis probability =   7.809741e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.415e-07   8.435e-08
25- 50  1.510e-07   7.908e-08
50-150  2.696e-07   1.781e-07
15-150  5.621e-07   3.073e-07

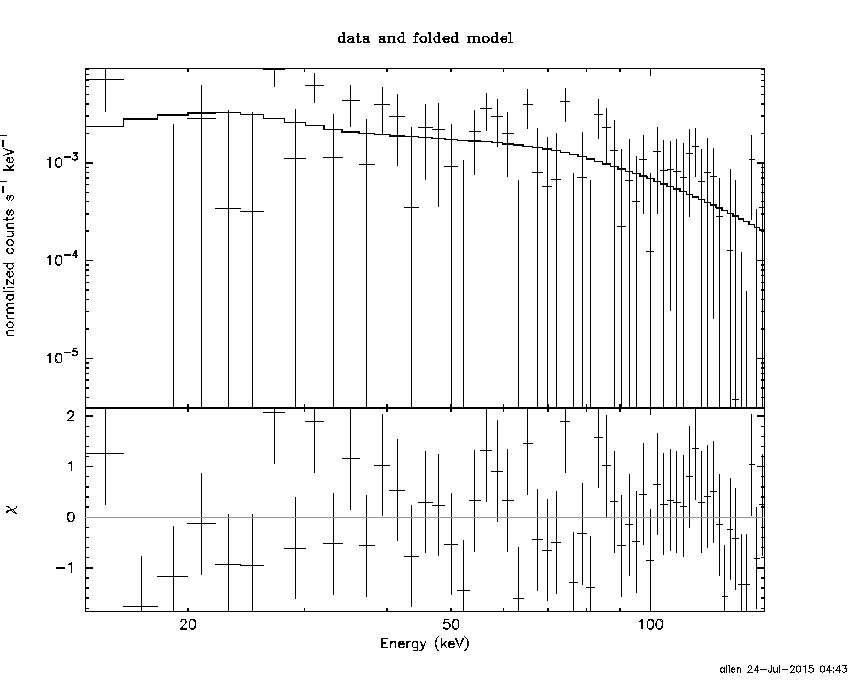

Peak spectrum fit

Power-law model

Time interval is from   -0.048 sec. to    0.952 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.12956     ( -0.442614   0.412389 )
Norm@50keV  : 1.28185E-02    ( -0.00332728   0.00327267 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.03 using 59 PHA bins.
# Reduced chi-squared =         0.9655 for     57 degrees of freedom
# Null hypothesis probability =   5.491572e-01

Photon flux (15-150 keV)    in 1 sec: 1.49162 ( -0.401845  0.411538 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.32785e-07 ( -3.34117e-08  3.35411e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.048 sec. to    0.952 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.26141     (     )
Epeak [keV] : 85.9259      (   )
Norm@50keV  : 7.05608E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.07 using 59 PHA bins.
# Reduced chi-squared =         0.9655 for     56 degrees of freedom
# Null hypothesis probability =   5.484333e-01

Photon flux (15-150 keV)    in 1 sec: 1.42899 ( -0.40308  0.42196 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.29241e-07 ( -3.53885e-08  3.4679e-08 ) ergs/cm2

Band function

Time interval is from   -0.048 sec. to    0.952 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.265280   ( -0.770879   2.44806 )
beta        : 10.0000    ( -10   -10 )
Epeak [keV] : 120.670      ( -120.67 -120.67 )
Norm@50keV   : 2.75561E-21    ( -8.12146e-22   2.54396e-14 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.04 using 59 PHA bins.
# Reduced chi-squared =         0.9825 for     55 degrees of freedom
# Null hypothesis probability =   5.113996e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.6339  (-6.02398  9.0585)
R^2/D10^2   : 5.53495E-02  (-0.0375506   0.108497)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.75 using 59 PHA bins.
# Reduced chi-squared =         0.9781 for     57 degrees of freedom
# Null hypothesis probability =   5.219201e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.831e-09   2.920e-09
25- 50  2.529e-08   1.384e-08
50-150  8.838e-08   4.274e-08
15-150  1.185e-07   5.889e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-79.6835      -200)
Norm        : 6.50786       (-1.6538     1.6538)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.73 using 59 PHA bins.
# Reduced chi-squared =          1.013 for     57 degrees of freedom
# Null hypothesis probability =   4.481789e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.622e-08   9.925e-09
25- 50  3.120e-08   1.838e-08
50-150  6.843e-08   4.141e-08
15-150  1.158e-07   6.840e-08

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 34.6723        (-34.7039      -34.7039)
R1^2/D10^2  : 9.21577E-03        (-0.00914938      0.0741217)
kT2 [keV]   : 10.3999        (-10.4138      -10.4138)
R2^2/D10^2  : 0.332929    (-0.332128   -0.332128)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.52 using 59 PHA bins.
#Fit statistic : Chi-Squared =          53.44 using 59 PHA bins.
# Reduced chi-squared =         0.9731 for     55 degrees of freedom
# Reduced chi-squared =         0.9716 for     55 degrees of freedom
# Null hypothesis probability =   5.314248e-01
# Null hypothesis probability =   5.344341e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.640e-09   5.305e-09
25- 50  3.007e-08   2.021e-08
50-150  9.209e-08   4.657e-08
15-150  1.308e-07   6.790e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.34921     ( -0.887387   1.42147 )
Norm@50keV  : 1.61694E-03    ( -0.00161694   0.00103139 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.87 using 59 PHA bins.
# Reduced chi-squared =          1.156 for     57 degrees of freedom
# Null hypothesis probability =   1.968666e-01

Photon flux (15-150 keV)    in 9.365 sec: 0.290521 ( -0.136032  0.136656 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.461e-07 ( -7.61051e-08  8.2031e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.84827     (     )
Epeak [keV] : 14.0477      (   )
Norm@50keV  : 3.02112E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.83 using 59 PHA bins.
# Reduced chi-squared =          1.176 for     56 degrees of freedom
# Null hypothesis probability =   1.731857e-01

Photon flux (15-150 keV)    in 9.365 sec: 0.286750 ( -0.1395  0.138949 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.43863e-07 ( -7.61899e-08  8.35592e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.99792   ( -0.00211384   0.198064 )
beta        : -9.37166    ( 9.37167   19.3717 )
Epeak [keV] : 0.264464      ( -0.264464 -0.264464 )
Norm@50keV   : 2.53373E-03    ( -0.00117528   0.00364408 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.82 using 59 PHA bins.
# Reduced chi-squared =          1.197 for     55 degrees of freedom
# Null hypothesis probability =   1.506103e-01

Photon flux (15-150 keV)    in 9.365 sec: 0.286527 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.4239e-07 ( -1.42325e-07  -7.50992e-08 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.70e-07
S(50-100 keV) = 1.62e-07

T90 vs. Hardness ratio plot

T90                                   = 114.911999970675 sec.
Hardness ratio (energy fluence ratio) = 0.952941

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.672232
Count Ratio (50-100 keV) / (15-25 keV) = 0.688988

Mask shadow pattern

IMX = 1.07195403911, IMY = 0.529777073925

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-70.223410 0.012000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.7597 -62.7182    3.4  43.8   45.1   1.1502   3.4    4.2	GX 301-2
244.9692 -15.6586    0.5  27.9  165.9   2.3056  23.4    1.3	Sco X-1
255.7804 -37.7549    7.1   4.5 -165.6   0.1407   1.6   11.1	4U 1700-377
256.2677 -36.3386    8.2   5.9 -163.4   0.1200   1.4    9.6	GX 349+2
263.0246 -24.8768   89.8  18.5 -149.6  -0.0117  -0.1    7.9	GX 1+4
264.6747 -44.5140   17.1   7.4  -61.2  -0.0596  -0.7    4.8	4U 1735-44
268.4314  -1.4178    3.9  42.5 -152.9   0.4398   2.9    4.3	SW J1753.5-0127
270.2172 -24.9452    3.7  21.3 -132.2   0.3019   3.2    8.8	GX 5-1
270.4628 -25.7154    7.2  20.8 -130.5   0.1552   1.6    8.8	GRS 1758-258
274.0112 -14.0640    2.2  32.5 -137.1   0.5828   5.2    1.7	GX 17+2
276.1191 -30.3887    8.3  20.6 -111.0   0.1331   1.4   10.1	H1820-303
285.1312 -24.8261    5.4  30.2 -108.4  -0.2955  -2.1    7.7	HT1900.1-2455
263.1169 -33.8138    3.1  10.5 -133.2   0.3188   3.7    6.5	GX 354-0
244.2452 -58.9966    2.9  18.1   25.2   0.3349   4.0 ------	UNKNOWN
256.0880 -20.5814    2.3  21.6 -170.3   0.4306   5.1 ------	UNKNOWN
323.0197 -46.6195    3.1  47.2  -53.1   1.5601   3.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.012000 9.376590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.7543 -62.7331   16.8  43.8   45.1  -0.0793  -0.7    3.5	GX 301-2
244.8608 -15.7447    5.2  27.8  165.7  -0.0804  -2.2    9.3	Sco X-1
256.0639 -37.9568    3.0   4.3 -162.3   0.1161   3.9    7.7	4U 1700-377
256.6114 -36.3587   14.7   5.9 -160.8   0.0239   0.8    9.3	GX 349+2
263.1008 -24.8358    5.1  18.6 -149.4  -0.0683  -2.3    7.4	GX 1+4
264.6428 -44.4548    4.6   7.3  -61.6   0.0723   2.5    4.3	4U 1735-44
268.4834  -1.4191   27.0  42.5 -152.8   0.0224   0.4    7.2	SW J1753.5-0127
270.3733 -25.1636    9.7  21.2 -131.5   0.0424   1.2    7.0	GX 5-1
270.4231 -25.8651    4.6  20.6 -130.3  -0.0897  -2.5    9.8	GRS 1758-258
274.0771 -14.0926    9.0  32.5 -136.9  -0.0564  -1.3    5.3	GX 17+2
276.1271 -30.4152   74.1  20.6 -111.0  -0.0055  -0.2   10.9	H1820-303
285.1818 -24.9031    6.5  30.2 -108.2   0.0851   1.8    8.0	HT1900.1-2455
262.9579 -33.7465    7.5  10.5 -134.0  -0.0473  -1.5    5.5	GX 354-0
275.0188 -30.5705    2.0  19.7 -112.5   0.2069   5.8 ------	UNKNOWN
322.7604 -56.8572    2.2  44.3  -39.4   0.3500   5.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
90.176600 962.099200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.5492 -62.6268    0.0  50.9  149.3   5.3569   2.3    9.1	GX 301-2
256.0792 -37.7788    5.3  53.4 -149.0   3.5844   2.2    5.9	4U 1700-377
256.5087 -36.5235   11.8  54.3 -147.8   2.1295   1.0    7.0	GX 349+2
264.7302 -44.4586  202.1  44.2 -146.7   0.0517   0.1    0.8	4U 1735-44
237.3231 -58.9547    3.5  43.0 -178.9   2.2373   3.3 ------	UNKNOWN
 11.6166 -24.4720    3.1  45.5   -3.1   3.3338   3.8 ------	UNKNOWN
243.5149 -37.4772    4.6  58.7 -159.1   8.2710   2.5 ------	UNKNOWN
341.8193 -14.8863    3.9  50.0  -43.0   7.3667   3.0 ------	UNKNOWN
305.7897 -29.4933    4.7  40.9  -93.2   6.4318   2.5 ------	UNKNOWN

Plot creation:
Wed Nov 25 15:57:26 EST 2015
