batgrbproduct analysis for trigger=303105

batgrbproduct Analysis for Trigger=303105

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 20 04:26:04 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger303105
======================================================================

  Trigger: 00303105      Segment: 000

  BAT Trigger Time: 224530476.032   [s; MET]
      Trigger Stop: 224530480.128   [s; MET]
               UTC: 2008-02-12T17:34:33.462080    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 231.106540249564   Dec: -22.7519170931094  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.18
     Image Trigger?:     NO
     Rate S/N Ratio:     10.5356537528527  [ if not an image trigger ]
     Image S/N Ratio:    7.18

  Flight Position:   [ source = BAT ]
    RA: 231.106540249564   Dec: -22.7519170931094  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 231.145119911576   Dec: -22.7376214715578  [deg; J2000]
        { 15h 24m 34.8s , -22d 44' 15.4" }
         +/- 1.48508149503431 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.568481594872744 [arcmin] (formal 1-sigma fit error)
    SNR: 17.2886398661311

  Angular difference between Flight and Ground position is 2.300646 arcmin

  Partial Coding Fraction: 0.3554688    [ including projection effects ]

  Duration
     T90: 126.312000006437 +/- 13.1998475874045
        Measured from: -54.7680000066757
                   to: 71.5439999997616     [s; relative to TRIGTIME]
     T50: 50.3360000252724 +/- 15.6678316505333
        Measured from: -16.5960000157356
                   to: 33.7400000095367     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 3.77599999308586
                   to: 4.77599999308586     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -62.2319999933243
                   to: 78.1119999885559     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.066767   2.049645   1.472653   0.307487
           0.119039   0.111430   0.098250   0.084172 [error]
 Peak      0.020164   0.049205   0.053276   0.013124
           0.010655   0.010211   0.009619   0.007820 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.49e-07 8.19e-07 1.15e-06 3.37e-06 3.29e-06 5.78e-06   erg/cm2
              Error 5.17e-08 5.80e-08 9.41e-08 5.89e-07 2.32e-07 6.58e-07   erg/cm2
Peak flux Power-law 2.83e-01 3.52e-01 3.18e-01 5.00e-01 1.13e+00 1.45e+00   ph/cm2/s
              Error 1.29e-01 9.91e-02 7.14e-02 2.43e-01 2.63e-01 3.14e-01   ph/cm2/s

Fluence   Cutoff-PL 3.52e-07 9.10e-07 1.23e-06 8.15e-07 3.01e-06 3.30e-06   erg/cm2
              Error 6.30e-08 7.28e-08 1.11e-07 4.49e-07 2.59e-07 5.04e-07   erg/cm2
Peak flux Cutoff-PL 2.41e-01 3.60e-01 3.41e-01 3.07e-01 1.10e+00 1.25e+00   ph/cm2/s
              Error 1.64e-01 1.08e-01 9.38e-02 3.10e-01 2.74e-01 4.30e-01   ph/cm2/s

Fluence        Band 3.32e-07 9.32e-07 1.17e-06 1.71e-06 3.05e-06 4.15e-06   erg/cm2
              Error -------- 9.33e-08 1.40e-07 -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.513    0.111    -      -           2.48e-03 1.63e-04   78.630 57
CPL   0.230    0.598      69.9   13.1      1.06e-02 7.91e-03   60.460 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.145    0.379    -      -           9.65e-03 2.12e-03   54.430 57
CPL   0.570    0.792     146.2    0.0      1.71e-02 5.95e-02   54.050 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 121.024000 sec.
T50 in the 50-300 keV band: 35.648000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  140.344  -62.232   78.112
T90   126.312  -54.768   71.544
T50    50.336  -16.596   33.740
Peak    1.000    3.776    4.776

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  231.1451   -22.7376   0.0111    41.5334    15.3097         4.1734030     17.289 TRIG_00303105

Foreground time interval of the image:
-62.232  36.869 (delta_t =  99.101 [sec])
Background time interval of the image:
-239.032 -62.232 (delta_t = 176.800 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

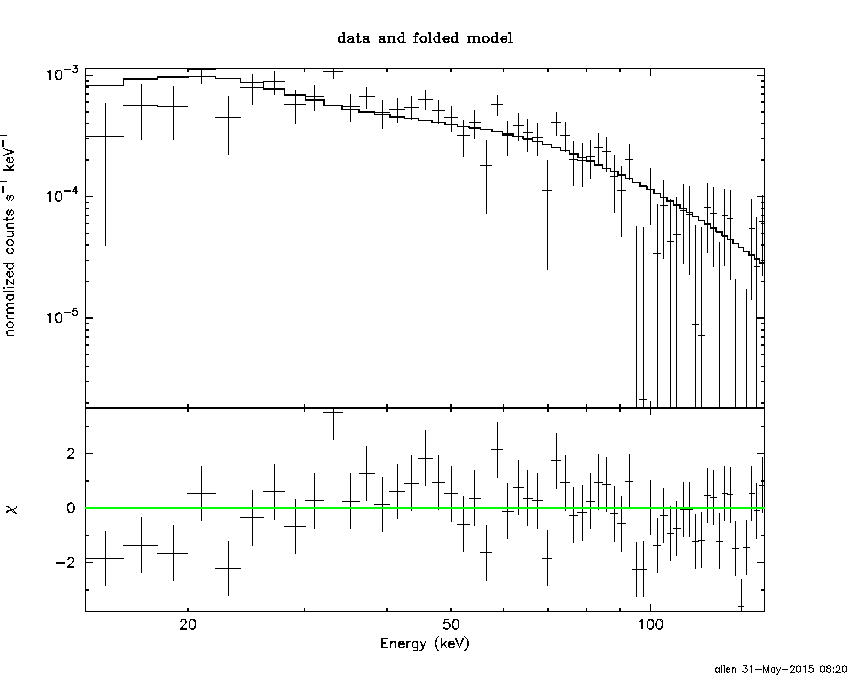

Power-law model

Time interval is from  -62.232 sec. to   78.112 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.51318     ( -0.110629   0.110903 )
Norm@50keV  : 2.47827E-03    ( -0.000163566   0.000163405 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          78.63 using 59 PHA bins.
# Reduced chi-squared =          1.379 for     57 degrees of freedom
# Null hypothesis probability =   3.037999e-02

Photon flux (15-150 keV)    in 140.3 sec: 0.310495 ( -0.0213102  0.0213734 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.29147e-06 ( -2.31499e-07  2.32561e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -62.232 sec. to   78.112 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.230016     ( -0.639781   0.556345 )
Epeak [keV] : 69.9110      ( -9.09548 17.1524 )
Norm@50keV  : 1.05884E-02    ( -0.00487054   0.0109526 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.46 using 59 PHA bins.
# Reduced chi-squared =          1.080 for     56 degrees of freedom
# Null hypothesis probability =   3.180118e-01

Photon flux (15-150 keV)    in 140.3 sec: 0.290610 ( -0.022702  0.02281 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.01467e-06 ( -2.57899e-07  2.60425e-07 ) ergs/cm2

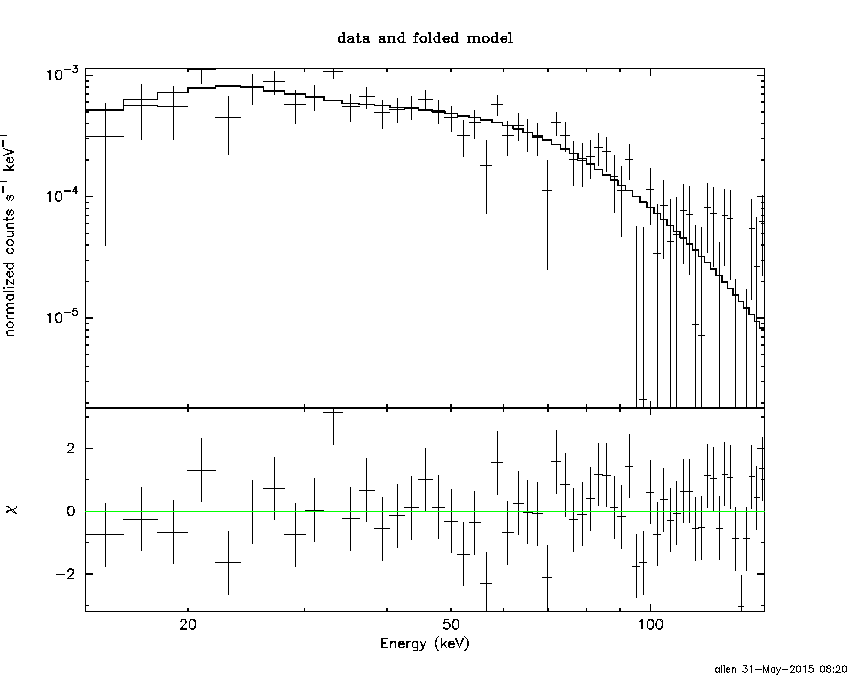

Band function

Time interval is from  -62.232 sec. to   78.112 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.229873   ( -0.343235   0.55669 )
beta        : -10.00000    ( 10   1.12107e-07 )
Epeak [keV] : 69.8975      ( -7.52376 17.1409 )
Norm@50keV   : 1.05908E-02    ( -0.000682387   0.0109641 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.46 using 59 PHA bins.
# Reduced chi-squared =          1.099 for     55 degrees of freedom
# Null hypothesis probability =   2.852649e-01

Photon flux (15-150 keV)    in 140.3 sec: 0.289020 ( 6.71098  -0.022854 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.04952e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.0798  (-1.0728  1.17386)
R^2/D10^2   : 3.52487E-02  (-0.00834754   0.0107453)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.59 using 59 PHA bins.
# Reduced chi-squared =          1.344 for     57 degrees of freedom
# Null hypothesis probability =   4.276469e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.352e-07   2.897e-08
25- 50  9.393e-07   7.899e-08
50-150  1.457e-06   1.833e-07
15-150  2.631e-06   1.978e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.361       (-51.3835      -199.363)
Norm        : 1.27909       (-0.0830424     0.0832037)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.77 using 59 PHA bins.
# Reduced chi-squared =          1.242 for     57 degrees of freedom
# Null hypothesis probability =   1.038686e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.469e-07   3.458e-08
25- 50  8.596e-07   7.225e-08
50-150  1.885e-06   4.878e-07
15-150  3.192e-06   5.317e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.73979        (-3.12563      2.87449)
R1^2/D10^2  : 9.94665E-02        (-0.0453998      0.157103)
kT2 [keV]   : 25.4742        (-7.09243      34.3434)
R2^2/D10^2  : 3.40764E-03    (-0.00321758   0.0110725)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.73 using 59 PHA bins.
# Reduced chi-squared =          1.086 for     55 degrees of freedom
# Null hypothesis probability =   3.079070e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.204e-07   1.163e-07
25- 50  9.450e-07   3.430e-07
50-150  1.775e-06   7.986e-07
15-150  3.041e-06   1.111e-06

Peak spectrum fit

Power-law model

Time interval is from    3.776 sec. to    4.776 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.14498     ( -0.39165   0.366774 )
Norm@50keV  : 9.65464E-03    ( -0.00213598   0.00210728 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.43 using 59 PHA bins.
# Reduced chi-squared =         0.9549 for     57 degrees of freedom
# Null hypothesis probability =   5.720802e-01

Photon flux (15-150 keV)    in 1 sec: 1.12526 ( -0.260748  0.264816 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.95378e-08 ( -2.18355e-08  2.19368e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    3.776 sec. to    4.776 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.570436     ( -2.15537   -0.570442 )
Epeak [keV] : 146.222      ( -146.224 -146.224 )
Norm@50keV  : 1.71485E-02    ( -0.00933878   0.109653 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.05 using 59 PHA bins.
# Reduced chi-squared =         0.9652 for     56 degrees of freedom
# Null hypothesis probability =   5.489683e-01

Photon flux (15-150 keV)    in 1 sec: 1.09555 ( -0.271056  0.27597 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.75413e-08 ( -2.31993e-08  2.27607e-08 ) ergs/cm2

Band function

Time interval is from    3.776 sec. to    4.776 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.120652   ( 0.341287   0.341287 )
beta        : -1.36962    ( 1.45932   0.669695 )
Epeak [keV] : 87.3122      ( -86.596 251.637 )
Norm@50keV   : 3.13491E-02    ( -0.0334756   420.347 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.95 using 59 PHA bins.
# Reduced chi-squared =         0.9810 for     55 degrees of freedom
# Null hypothesis probability =   5.146791e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.0582  (-4.76671  7.05585)
R^2/D10^2   : 4.52167E-02  (-0.0278694   0.0616002)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.48 using 59 PHA bins.
# Reduced chi-squared =         0.9909 for     57 degrees of freedom
# Null hypothesis probability =   4.944429e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.784e-09   1.874e-09
25- 50  1.948e-08   8.191e-09
50-150  6.441e-08   3.293e-08
15-150  8.767e-08   2.971e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 4.85992       (-1.06391     1.06364)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.87 using 59 PHA bins.
# Reduced chi-squared =          1.015 for     57 degrees of freedom
# Null hypothesis probability =   4.430582e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.211e-08   7.270e-09
25- 50  2.330e-08   1.332e-08
50-150  5.110e-08   3.001e-08
15-150  8.650e-08   5.025e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 10.1860        (-10.5194      -10.5194)
R1^2/D10^2  : 0.257813        (-0.232727      -0.232727)
kT2 [keV]   : 34.1730        (-36.86      -36.86)
R2^2/D10^2  : 7.23959E-03    (-0.00546492   0.0538155)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.05 using 59 PHA bins.
# Reduced chi-squared =         0.9826 for     55 degrees of freedom
# Null hypothesis probability =   5.110969e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.697e-09   4.267e-09
25- 50  2.187e-08   1.249e-08
50-150  6.883e-08   3.696e-08
15-150  9.740e-08   4.697e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.40456     ( -0.124377   0.123635 )
Norm@50keV  : 2.73411E-03    ( -0.000207223   0.000207214 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          90.04 using 59 PHA bins.
# Reduced chi-squared =          1.580 for     57 degrees of freedom
# Null hypothesis probability =   3.445370e-03

Photon flux (15-150 keV)    in 99.1 sec: 0.333309 ( -0.0267013  0.026816 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.61563e-06 ( -2.09752e-07  2.10589e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.185903     ( -0.753191   0.645176 )
Epeak [keV] : 71.6870      ( -9.00572 15.7694 )
Norm@50keV  : 1.57960E-02    ( -0.00789434   0.0196005 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.46 using 59 PHA bins.
# Reduced chi-squared =          1.222 for     56 degrees of freedom
# Null hypothesis probability =   1.227196e-01

Photon flux (15-150 keV)    in 99.1 sec: 0.309150 ( -0.027886  0.02811 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.37813e-06 ( -2.28019e-07  2.30883e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.186135   ( -0.43916   0.574409 )
beta        : -10.00000    ( 10   1.81319e-06 )
Epeak [keV] : 71.6721      ( -7.46006 15.7528 )
Norm@50keV   : 1.58024E-02    ( -0.00117085   0.0196298 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.46 using 59 PHA bins.
# Reduced chi-squared =          1.245 for     55 degrees of freedom
# Null hypothesis probability =   1.050078e-01

Photon flux (15-150 keV)    in 99.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.38484e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.19e-07
S(50-100 keV) = 1.15e-06

T90 vs. Hardness ratio plot

T90                                   = 126.312000006437 sec.
Hardness ratio (energy fluence ratio) = 1.40415

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.92136
Count Ratio (50-100 keV) / (15-25 keV) = 1.38048

Mask shadow pattern

IMX = 8.543328397660819E-01, IMY = -2.338748405639205E-01

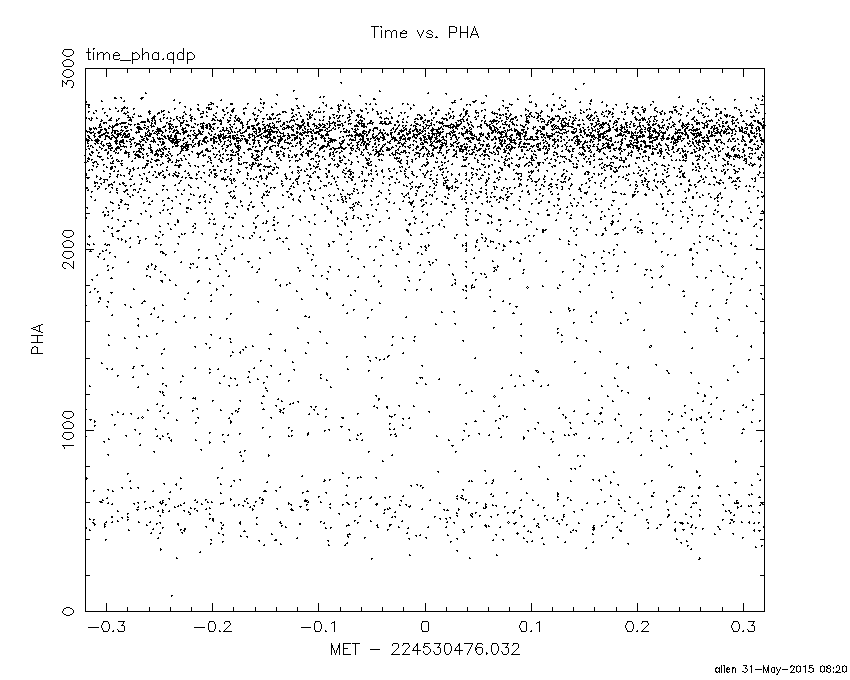

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

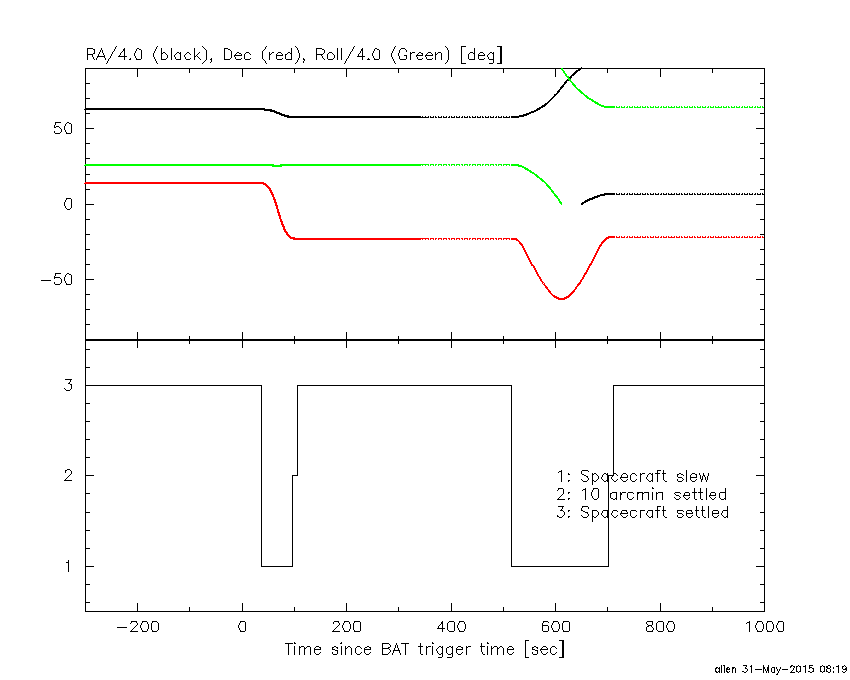

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.032000 -62.232000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9786 -15.6401    0.3  30.1   -1.1   9.0067  45.1    0.1	Sco X-1
254.3264  35.4812    6.2  21.8  173.4   0.3212   1.9   10.5	Her X-1
255.8620 -37.8218    6.5  51.8  -17.9  -0.7492  -1.8    6.1	4U 1700-377
256.6221 -36.3214   10.7  50.4  -18.9   0.4391   1.1   10.9	GX 349+2
262.9886 -24.7345   51.0  40.2  -29.9   0.0545   0.2    1.3	GX 1+4
268.2640  -1.5122    3.4  22.8  -62.3   0.6472   3.3    7.2	SW J1753.5-0127
270.0831 -25.2056    0.0  43.1  -38.6  -0.1707  -0.5   13.3	GX 5-1
270.1280 -25.8716    5.4  43.7  -38.2  -0.6802  -2.1   12.2	GRS 1758-258
273.8705 -13.9863    3.0  35.7  -53.0   1.0325   3.9    8.4	GX 17+2
275.9572 -30.2928    6.5  50.1  -41.3   1.2232   1.8    4.8	H1820-303
288.9773  10.9987   14.5  36.9 -103.3  -0.3608  -0.8   11.0	GRS 1915+105
299.5656  35.1924    1.5  48.3 -138.5   4.4367   7.9    1.3	Cyg X-1
262.9866 -33.8841    8.1  49.0  -26.2   0.5792   1.4    3.0	GX 354-0
279.7263  67.6563    4.0  56.9  179.2   3.0565   2.9 ------	UNKNOWN
281.2548  46.2409    2.4  41.0 -161.5   1.2304   4.8 ------	UNKNOWN
267.2806 -26.5990    1.7  43.3  -34.4   2.0094   6.6 ------	UNKNOWN
282.8961 -20.4108    2.4  46.2  -56.2   3.4292   4.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-62.232000 36.868610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0996 -15.6536   10.4  30.1   -1.4   0.1650   1.1    7.0	Sco X-1
254.2811  35.3444   10.4  21.7  173.3  -0.1483  -1.1    8.6	Her X-1
255.9613 -37.8584   38.8  51.9  -18.0   0.1013   0.3    1.5	4U 1700-377
256.3724 -36.2719    0.0  50.3  -18.6  -0.4730  -1.6    9.6	GX 349+2
263.0198 -24.8440    3.1  40.3  -29.9   0.7524   3.7    5.9	GX 1+4
268.2265  -1.4104    3.9  22.7  -62.4  -0.4275  -2.9    8.9	SW J1753.5-0127
270.2851 -25.0774  491.3  43.1  -38.9   0.0059   0.0    0.1	GX 5-1
270.3010 -25.7441  392.1  43.7  -38.5   0.0078   0.0    0.1	GRS 1758-258
273.8916 -13.9261    7.2  35.6  -53.1  -0.3375  -1.6    9.4	GX 17+2
276.0405 -30.4160    6.0  50.2  -41.3   0.9975   1.9    6.7	H1820-303
288.7070  10.8525    7.0  36.6 -103.0   0.4851   1.6    7.8	GRS 1915+105
299.4255  35.2034    6.2  48.2 -138.5  -0.7542  -1.9    8.1	Cyg X-1
262.8660 -33.8850    7.4  49.0  -26.1  -0.5103  -1.6    6.8	GX 354-0
232.1741  34.3856    2.3  26.9  130.0   0.8127   5.0 ------	UNKNOWN
244.4008  46.9397    2.3  33.6  158.2   0.8676   5.0 ------	UNKNOWN
231.1451 -22.7376    0.7  41.5   15.3   4.1732  17.3 ------	UNKNOWN
239.9667   6.3782    2.8  13.4   44.1   0.5512   4.1 ------	UNKNOWN
285.6902  34.4458    2.5  37.3 -143.0   0.8523   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
95.668600 516.368600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.9099 -62.6776    6.7  49.7   10.6   1.6284   1.7    8.9	GX 301-2
244.9723 -15.6389    0.2  14.9 -130.4  23.2652  73.9    0.4	Sco X-1
255.9384 -37.8320    3.1  26.1  -63.3   1.5961   3.7    2.4	4U 1700-377
256.4876 -36.5546   10.4  25.9  -66.3   0.4801   1.1    8.3	GX 349+2
262.9970 -24.6141   29.3  29.2  -94.2   0.1907   0.4    7.9	GX 1+4
264.5835 -44.3533    8.8  34.9  -57.9  -0.6723  -1.3    9.0	4U 1735-44
268.3691  -1.4459   27.4  42.0 -129.4   0.3165   0.4    0.4	SW J1753.5-0127
270.1891 -25.1050    6.4  35.7  -92.5   1.4098   1.8    5.4	GX 5-1
270.1370 -25.7679   33.3  35.6  -91.3   0.2692   0.3    9.1	GRS 1758-258
273.9005 -13.9888    8.8  41.4 -108.8   1.6493   1.3    6.8	GX 17+2
275.9101 -30.3700  225.6  40.5  -83.6   0.0693   0.1    0.8	H1820-303
263.0090 -33.8311    2.5  30.0  -75.5   2.2325   4.6    1.0	GX 354-0
187.1186 -50.8293    4.7  44.0   24.9   2.0944   2.4 ------	UNKNOWN
176.4634 -64.3310    2.1  54.6   11.5  10.0141   5.4 ------	UNKNOWN
199.9153 -55.2276    2.0  39.8   13.2   3.0841   5.9 ------	UNKNOWN
184.8675 -74.8003    3.3  57.3   -1.2   7.3856   3.5 ------	UNKNOWN
264.0291 -24.7910    2.2  30.1  -93.7   2.7321   5.2 ------	UNKNOWN
267.3201 -26.6523    2.7  33.0  -89.9   2.6718   4.4 ------	UNKNOWN
279.7843 -52.0234    3.0  47.2  -53.3   5.6823   3.8 ------	UNKNOWN

Plot creation:
Sun May 31 08:20:52 EDT 2015
