batgrbproduct analysis for trigger=310785

batgrbproduct Analysis for Trigger=310785

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed May  6 17:38:36 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger310785
======================================================================

  Trigger: 00310785      Segment: 000

  BAT Trigger Time: 231510376.192   [s; MET]
      Trigger Stop: 231510376.256   [s; MET]
               UTC: 2008-05-03T12:26:13.429140    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 286.617169964645   Dec: 68.7780078042036  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.79
     Image Trigger?:     NO
     Rate S/N Ratio:     20.1990098767242  [ if not an image trigger ]
     Image S/N Ratio:    8.79

  Flight Position:   [ source = BAT ]
    RA: 286.617169964645   Dec: 68.7780078042036  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 286.617   Dec: 68.778  [deg; J2000]
        { 19h 06m 28.1s , +68d 46' 40.8" }
        +/- 2.40455375227 [arcmin] (estimated 90% radius based on SNR)
    SNR: 8.6864077563


  Angular difference between Flight and Ground position is 0.003721 arcmin

  Partial Coding Fraction: 0.7578125    [ including projection effects ]

  Duration
     T90: 176 +/- 48
        Measured from: -2.19200000166893
                   to: 173.807999998331     [s; relative to TRIGTIME]
     T50: 64 +/- 16
        Measured from: 13.8079999983311
                   to: 77.8079999983311     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 37.3079999983311
                   to: 38.3079999983311     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -2.19200000166893
                   to: 221.807999998331     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.346465   1.419820   0.852922   0.233665
           0.073703   0.076213   0.067349   0.060187 [error]
 Peak      0.022110   0.027603   0.032855  -0.001375
           0.005174   0.005402   0.004822   0.004001 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.02e-07 5.88e-07 6.43e-07 1.32e-06 2.04e-06 2.95e-06   erg/cm2
              Error 3.89e-08 3.62e-08 6.53e-08 2.75e-07 1.48e-07 3.36e-07   erg/cm2
Peak flux Power-law 2.07e-01 2.20e-01 1.66e-01 2.04e-01 6.72e-01 7.98e-01   ph/cm2/s
              Error 6.65e-02 4.35e-02 3.95e-02 1.02e-01 1.24e-01 1.53e-01   ph/cm2/s

Fluence   Cutoff-PL 3.93e-07 6.01e-07 6.41e-07 9.23e-07 1.99e-06 2.56e-06   erg/cm2
              Error 4.40e-08 4.59e-08 6.78e-08 5.74e-07 1.77e-07 5.47e-07   erg/cm2
Peak flux Cutoff-PL 1.99e-01 2.24e-01 1.70e-01 1.66e-01 6.66e-01 7.60e-01   ph/cm2/s
              Error 7.72e-02 4.79e-02 4.40e-02 -------- 1.26e-01 1.86e-01   ph/cm2/s

Fluence        Band 3.87e-07 6.03e-07 6.30e-07 1.16e-06 2.00e-06 2.79e-06   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 1.98e-01 2.24e-01 1.70e-01 1.65e-01 6.66e-01 7.57e-01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.873    0.120    -      -           9.89e-04 7.19e-05   40.340 57
CPL   1.679    0.453      73.2   -8.2      1.26e-03 7.39e-04   39.800 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.405    0.330    -      -           5.51e-03 1.04e-03   58.570 57
CPL   1.202    1.453     203.8    0.0      6.90e-03 1.31e-02   58.490 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 77.504000 sec.
T50 in the 50-300 keV band: 34.176000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  224.000   -2.192  221.808
T90   176.000   -2.192  173.808
T50    64.000   13.808   77.808
Peak    1.000   37.308   38.308

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 25.0-100.0 keV image (Event data)

#RAcent DECcent POSerr Theta  Phi  Peak_Cts  SNR Name
286.617 68.778 0.000 32.336 -6.729 0.026 8.686 TRIG_00310785

Image time interval: 0.000 to 0.064 [sec]

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

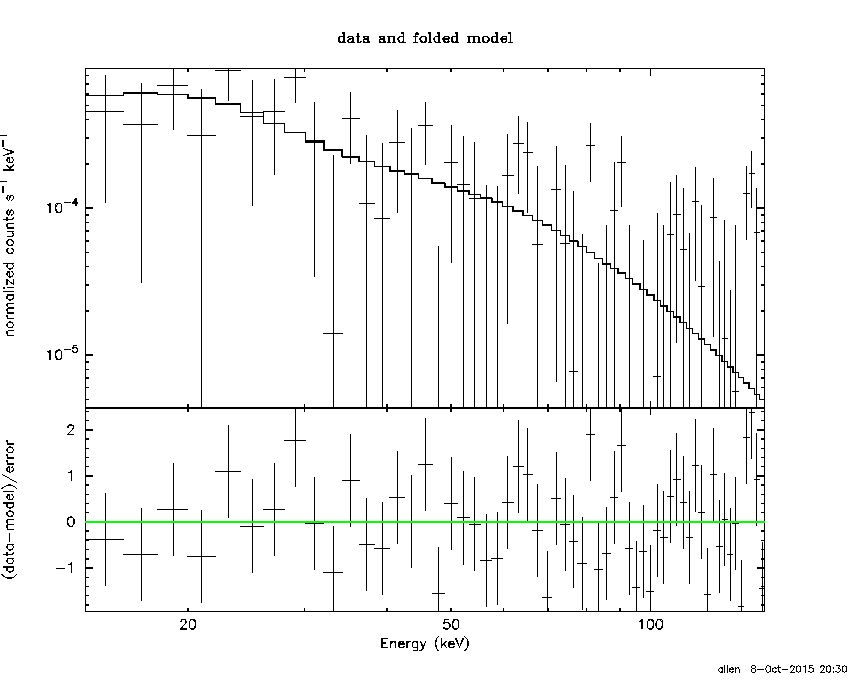

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -2.192 sec. to  221.808 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.87271     ( -0.118815   0.12159 )
Norm@50keV  : 9.88582E-04    ( -7.23395e-05   7.14028e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.34 using 59 PHA bins.
# Reduced chi-squared =         0.7077 for     57 degrees of freedom
# Null hypothesis probability =   9.536366e-01

Photon flux (15-150 keV)    in 224 sec: 0.140257 ( -0.00876362  0.00877098 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.03573e-06 ( -1.4748e-07  1.49243e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -2.192 sec. to  221.808 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67943     ( -0.488465   0.417134 )
Epeak [keV] : 73.2223      ( -56.876 -73.2228 )
Norm@50keV  : 1.26439E-03    ( -0.000413436   0.00106474 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.80 using 59 PHA bins.
# Reduced chi-squared =         0.7106 for     56 degrees of freedom
# Null hypothesis probability =   9.500640e-01

Photon flux (15-150 keV)    in 224 sec: 0.138771 ( -0.009378  0.009344 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.99252e-06 ( -1.77076e-07  1.76615e-07 ) ergs/cm2

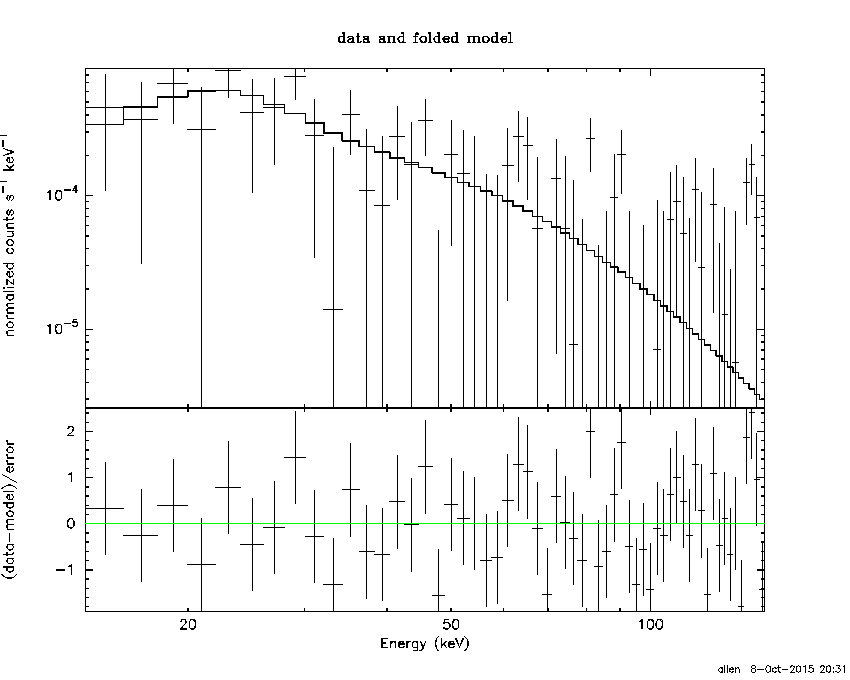

Band function

Time interval is from   -2.192 sec. to  221.808 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.62289   ( -2.62289   -2.62289 )
beta        : -1.92725    ( -0.166027   0.139718 )
Epeak [keV] : 22.2927      ( -22.2927 96.1778 )
Norm@50keV   : 3.97412    ( -3.97407   145.916 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.09 using 59 PHA bins.
# Reduced chi-squared =         0.7107 for     55 degrees of freedom
# Null hypothesis probability =   9.483364e-01

Photon flux (15-150 keV)    in 224 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.99881e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.0289  (-0.886228  0.970673)
R^2/D10^2   : 4.37427E-02  (-0.0119014   0.0163148)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         103.30 using 59 PHA bins.
# Reduced chi-squared =         1.8123 for     57 degrees of freedom
# Null hypothesis probability =   1.707338e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.492e-07   2.929e-08
25- 50  7.069e-07   5.107e-08
50-150  4.867e-07   7.750e-08
15-150  1.443e-06   1.159e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 87.1501       (-18.0961      26.7703)
Norm        : 0.634588       (-0.0589723     0.0687498)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.46 using 59 PHA bins.
# Reduced chi-squared =         0.7273 for     57 degrees of freedom
# Null hypothesis probability =   9.394484e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.705e-07   3.640e-08
25- 50  6.222e-07   3.830e-08
50-150  9.286e-07   3.152e-07
15-150  1.921e-06   3.054e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.54978        (-0.995376      1.15806)
R1^2/D10^2  : 0.407684        (-0.201734      0.477398)
kT2 [keV]   : 20.1276        (-3.48287      5.64375)
R2^2/D10^2  : 3.55631E-03    (-0.00215907   0.00396612)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.41 using 59 PHA bins.
# Reduced chi-squared =         0.7347 for     55 degrees of freedom
# Null hypothesis probability =   9.296069e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.932e-07   8.333e-08
25- 50  5.878e-07   1.100e-07
50-150  9.513e-07   3.064e-07
15-150  1.932e-06   4.627e-07

Peak spectrum fit

Power-law model

Time interval is from   37.308 sec. to   38.308 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.40498     ( -0.327633   0.332562 )
Norm@50keV  : 5.50960E-03    ( -0.00104355   0.00103161 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.57 using 59 PHA bins.
# Reduced chi-squared =          1.028 for     57 degrees of freedom
# Null hypothesis probability =   4.175866e-01

Photon flux (15-150 keV)    in 1 sec: 0.671729 ( -0.124242  0.124449 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.31833e-08 ( -1.12164e-08  1.1442e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   37.308 sec. to   38.308 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.20242     ( -1.30545   1.59997 )
Epeak [keV] : 203.809      ( -224.027 -224.027 )
Norm@50keV  : 6.89533E-03    ( -0.00676418   0.0194401 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.49 using 59 PHA bins.
# Reduced chi-squared =          1.044 for     56 degrees of freedom
# Null hypothesis probability =   3.840467e-01

Photon flux (15-150 keV)    in 1 sec: 0.666408 ( -0.125142  0.127395 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.26274e-08 ( -1.17191e-08  1.18408e-08 ) ergs/cm2

Band function

Time interval is from   37.308 sec. to   38.308 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.25678   ( -0.426149   0.883341 )
beta        : -9.37166    ( 9.37167   19.3717 )
Epeak [keV] : 288.785      ( -221.564 -287.151 )
Norm@50keV   : 6.46071E-03    ( -0.00193172   0.0168889 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.50 using 59 PHA bins.
# Reduced chi-squared =          1.064 for     55 degrees of freedom
# Null hypothesis probability =   3.482427e-01

Photon flux (15-150 keV)    in 1 sec: 0.665808 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.7175  (-4.20904  5.30288)
R^2/D10^2   : 3.65626E-02  (-0.020482   0.0487279)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.33 using 59 PHA bins.
# Reduced chi-squared =          1.164 for     57 degrees of freedom
# Null hypothesis probability =   1.863091e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.531e-09   1.039e-09
25- 50  1.205e-08   4.704e-09
50-150  3.092e-08   1.211e-08
15-150  4.550e-08   1.537e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-89.4828      -199.363)
Norm        : 2.75542       (-0.505246     0.505246)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.20 using 59 PHA bins.
# Reduced chi-squared =          1.039 for     57 degrees of freedom
# Null hypothesis probability =   3.953673e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.861e-09   4.006e-09
25- 50  1.320e-08   7.605e-09
50-150  2.895e-08   1.648e-08
15-150  4.901e-08   2.817e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.89165        (-2.00069      2.64241)
R1^2/D10^2  : 2.52308        (-2.07169      25.2681)
kT2 [keV]   : 24.6654        (-6.16843      11.2541)
R2^2/D10^2  : 1.29694E-02    (-0.00905698   0.0226488)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.45 using 59 PHA bins.
# Reduced chi-squared =          1.008 for     55 degrees of freedom
# Null hypothesis probability =   4.576547e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.997e-09   4.104e-09
25- 50  1.125e-08   5.956e-09
50-150  3.528e-08   2.087e-08
15-150  5.353e-08   2.852e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.91933     ( -0.474427   0.540937 )
Norm@50keV  : 9.47516E-04    ( -0.000334956   0.000319268 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.91 using 59 PHA bins.
# Reduced chi-squared =         0.9984 for     57 degrees of freedom
# Null hypothesis probability =   4.785894e-01

Photon flux (15-150 keV)    in 14.1 sec: 0.137108 ( -0.0370707  0.0370711 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.22858e-07 ( -4.01939e-08  4.27392e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.918742     ( -4.11211   1.22895 )
Epeak [keV] : 41.7723      (   )
Norm@50keV  : 3.85222E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.38 using 59 PHA bins.
# Reduced chi-squared =          1.007 for     56 degrees of freedom
# Null hypothesis probability =   4.606644e-01

Photon flux (15-150 keV)    in 14.1 sec: 0.132932 ( -0.0376987  0.038266 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.08969e-07 ( -4.20865e-08  5.2204e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.78591   ( -4.78591   -4.78591 )
beta        : -2.36466    ( -1.36358   0.715963 )
Epeak [keV] : 26.9651      ( -26.9651 8.11879 )
Norm@50keV   : 68.6017    ( -18.2401   1.46536e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.65 using 59 PHA bins.
# Reduced chi-squared =          1.012 for     55 degrees of freedom
# Null hypothesis probability =   4.502166e-01

Photon flux (15-150 keV)    in 14.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.1437e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.88e-07
S(50-100 keV) = 6.43e-07

T90 vs. Hardness ratio plot

T90                                   = 176 sec.
Hardness ratio (energy fluence ratio) = 1.09354

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.05448
Count Ratio (50-100 keV) / (15-25 keV) = 0.633453

Mask shadow pattern

IMX = 0.628686079164, IMY = 0.0741715436521

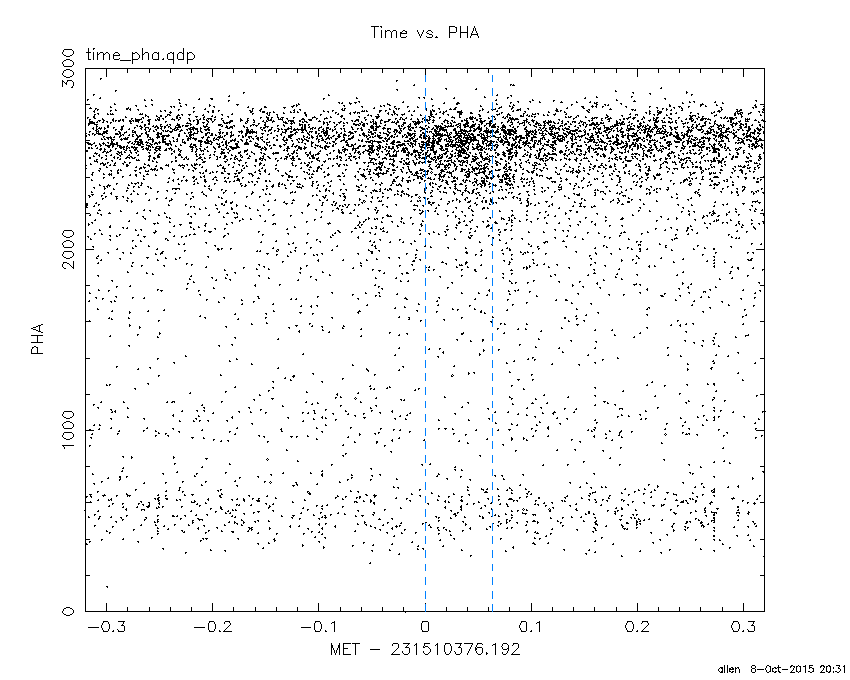

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

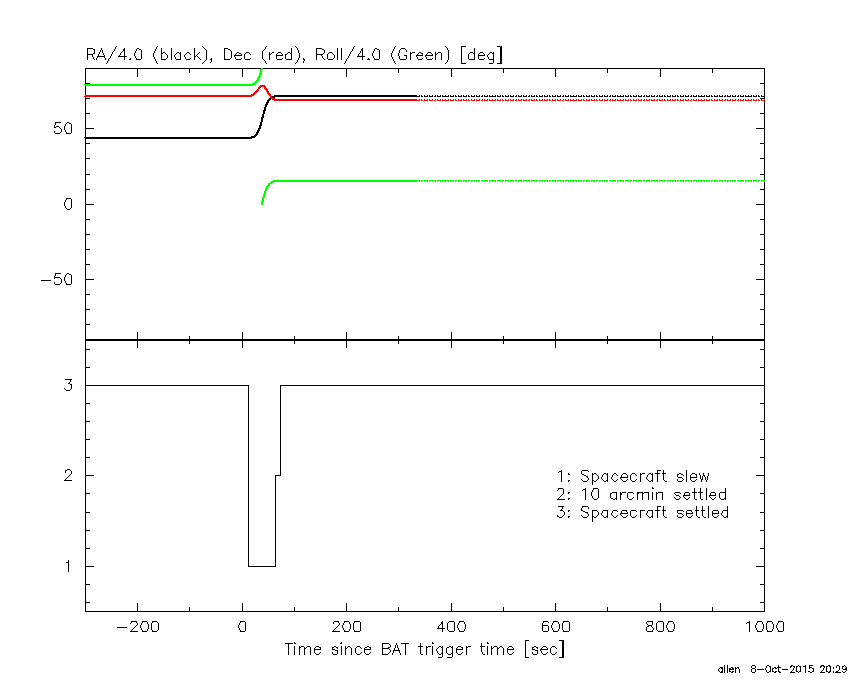

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-751.791400 -634.155000
-239.192000 -2.192000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
136.8662  19.4539    4.9  56.9  179.2   3.2774   2.4 ------	UNKNOWN
107.1371  56.0783    2.6  31.7 -128.5   1.1799   4.4 ------	UNKNOWN
332.2716  50.8877    4.8  56.3  -28.3   2.8038   2.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-2.192000 11.908590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
255.9805  65.7414    2.5  27.4   15.6   0.1868   4.6 ------	UNKNOWN
286.6595  68.7730    2.1  32.3   -6.7   0.2189   5.4 ------	UNKNOWN
  4.9828  71.6963    2.2  36.5  -50.8   0.2830   5.2 ------	UNKNOWN
 72.1440  59.0365    2.2  39.1  -98.4   0.5789   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
64.108580 962.902000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4698  35.2915    3.1  37.9   73.3   5.2145   3.7    3.1	Her X-1
299.5883  35.1989    0.2  34.3    9.4  31.2079  49.0    0.2	Cyg X-1
308.0662  40.9672    2.1  30.0   -5.1   3.1084   5.5    2.2	Cyg X-3
326.1119  38.3791    3.5  37.1  -27.4   2.2533   3.3    4.4	Cyg X-2
279.7490  58.4702    3.2  10.7   48.0   1.5419   3.6 ------	UNKNOWN
146.7658  50.7235    5.2  56.9  179.2   7.5359   2.2 ------	UNKNOWN
302.1740  61.9005    3.0   9.4  -22.3   1.7427   3.8 ------	UNKNOWN
314.5537  13.7849    2.4  57.8   -4.2  13.0364   4.8 ------	UNKNOWN
137.4894  51.8710    3.4  57.2 -173.8   9.9532   3.4 ------	UNKNOWN
319.0851  15.0524    3.0  57.5   -9.6   9.8358   3.8 ------	UNKNOWN
  7.4905  50.1753    3.4  41.2  -77.8   8.5033   3.4 ------	UNKNOWN

Plot creation:
Thu Oct  8 20:31:30 EDT 2015
