Special notes of this burst
Pre-slew 15.0-350.0 keV image (Event data)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
101.8179 -63.2158 0.0191 38.9834 1.5785 0.2882383 10.089 TRIG_00315819
Foreground time interval of the image:
-1.704 2.208 (delta_t = 3.912 [sec])
Background time interval of the image:
-227.611 -1.704 (delta_t = 225.907 [sec])
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.
1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval
64 ms binning
Full time interval
From T100_start to T100_end
From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
Time averaged spectrum fit using the average DRM
Power-law model
Time interval is from -1.704 sec. to 2.208 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.44811 ( -0.223518 0.223006 )
Norm@50keV : 5.55752E-03 ( -0.000785486 0.000782991 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 61.99 using 59 PHA bins.
# Reduced chi-squared = 1.088 for 57 degrees of freedom
# Null hypothesis probability = 3.026274e-01
Photon flux (15-150 keV) in 3.912 sec: 0.684562 ( -0.0974064 0.097613 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.08119e-07 ( -3.17153e-08 3.20623e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from -1.704 sec. to 2.208 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.409375 ( -1.39761 1.00561 )
Epeak [keV] : 71.3058 ( -20.2231 426.524 )
Norm@50keV : 2.01156E-02 ( -0.0201184 0.0976562 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 58.89 using 59 PHA bins.
# Reduced chi-squared = 1.052 for 56 degrees of freedom
# Null hypothesis probability = 3.703364e-01
Photon flux (15-150 keV) in 3.912 sec: 0.664137 ( -0.099949 0.099924 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.90548e-07 ( -3.71969e-08 3.71562e-08 ) ergs/cm2
Band function
Time interval is from -1.704 sec. to 2.208 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : 4.94605 ( -4.61171 -4.94605 )
beta : -1.91250 ( -0.600149 0.35159 )
Epeak [keV] : 33.7269 ( -7.38926 6.22522 )
Norm@50keV : 96.1113 ( -12.9551 359.453 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 52.98 using 59 PHA bins.
# Reduced chi-squared = 0.9633 for 55 degrees of freedom
# Null hypothesis probability = 5.520825e-01
Photon flux (15-150 keV) in 3.912 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 1.95563e-07 ( -1.95535e-07 -3.37093e-08 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 13.4921 (-2.02986 2.52726)
R^2/D10^2 : 0.118242 (-0.054445 0.0938725)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 63.91 using 59 PHA bins.
# Reduced chi-squared = 1.121 for 57 degrees of freedom
# Null hypothesis probability = 2.468484e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.784e-08 5.191e-09
25- 50 6.389e-08 1.404e-08
50-150 7.510e-08 2.310e-08
15-150 1.568e-07 3.386e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 199.363 (-80.9727 -199.363)
Norm : 2.84335 (-0.393785 0.39379)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 60.80 using 59 PHA bins.
# Reduced chi-squared = 1.067 for 57 degrees of freedom
# Null hypothesis probability = 3.407582e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.770e-08 1.585e-08
25- 50 5.328e-08 2.997e-08
50-150 1.169e-07 6.557e-08
15-150 1.978e-07 1.103e-07
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 9.91773 (-2.61025 2.80274)
R1^2/D10^2 : 0.282086 (-0.139988 0.233757)
kT2 [keV] : 46.3984 (-53.3751 -61.0561)
R2^2/D10^2 : 1.08412E-03 (-0.000423699 0.0116688)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 53.90 using 59 PHA bins.
# Reduced chi-squared = 0.9800 for 55 degrees of freedom
# Null hypothesis probability = 5.166345e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.310e-08 1.239e-08
25- 50 6.166e-08 3.146e-08
50-150 1.125e-07 6.102e-08
15-150 1.973e-07 9.753e-08
Peak spectrum fit
Power-law model
Time interval is from 0.044 sec. to 1.044 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.25650 ( -0.322382 0.307315 )
Norm@50keV : 7.97299E-03 ( -0.00157563 0.00157349 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 71.56 using 59 PHA bins.
# Reduced chi-squared = 1.255 for 57 degrees of freedom
# Null hypothesis probability = 9.289216e-02
Photon flux (15-150 keV) in 1 sec: 0.944021 ( -0.194109 0.1952 ) ph/cm2/s
Energy fluence (15-150 keV) : 7.9655e-08 ( -1.6607e-08 1.67586e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from 0.044 sec. to 1.044 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.389097 ( -1.70775 1.01288 )
Epeak [keV] : 91.9716 ( -33.9537 -92.0092 )
Norm@50keV : 2.23802E-02 ( -0.0223561 0.153817 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 70.10 using 59 PHA bins.
# Reduced chi-squared = 1.252 for 56 degrees of freedom
# Null hypothesis probability = 9.739486e-02
Photon flux (15-150 keV) in 1 sec: 0.926239 ( -0.194621 0.196101 ) ph/cm2/s
Energy fluence (15-150 keV) : 7.50419e-08 ( -1.8889e-08 1.83555e-08 ) ergs/cm2
Band function
Time interval is from 0.044 sec. to 1.044 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : 5.00000 ( -4.48323 -5 )
beta : -1.69832 ( -0.603739 0.442699 )
Epeak [keV] : 33.4766 ( -7.16954 7.84054 )
Norm@50keV : 145.339 ( -39.0985 449.153 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 64.56 using 59 PHA bins.
# Reduced chi-squared = 1.174 for 55 degrees of freedom
# Null hypothesis probability = 1.772310e-01
Photon flux (15-150 keV) in 1 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 7.66898e-08 ( -7.66828e-08 -1.65881e-08 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 15.7351 (-3.54905 5.11626)
R^2/D10^2 : 9.85723E-02 (-0.0610472 0.14126)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 73.58 using 59 PHA bins.
# Reduced chi-squared = 1.291 for 57 degrees of freedom
# Null hypothesis probability = 6.877739e-02
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 5.064e-09 2.315e-09
25- 50 2.101e-08 8.205e-09
50-150 3.612e-08 1.437e-08
15-150 6.219e-08 2.102e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 200.000 ( )
Norm : 3.99217 (-0.795807 0.795722)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 72.99 using 59 PHA bins.
# Reduced chi-squared = 1.281 for 57 degrees of freedom
# Null hypothesis probability = 7.521461e-02
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 9.942e-09 5.795e-09
25- 50 1.912e-08 1.093e-08
50-150 4.194e-08 2.435e-08
15-150 7.101e-08 4.101e-08
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 51.5165 (-32.1425 -53.232)
R1^2/D10^2 : 1.53474E-03 (-0.0012745 0.026232)
kT2 [keV] : 10.2254 (-3.52781 4.57043)
R2^2/D10^2 : 0.333216 (-0.224495 0.784586)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 66.91 using 59 PHA bins.
# Reduced chi-squared = 1.216 for 55 degrees of freedom
# Null hypothesis probability = 1.303091e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 7.581e-09 4.560e-09
25- 50 2.149e-08 1.288e-08
50-150 4.995e-08 2.768e-08
15-150 7.903e-08 3.710e-08

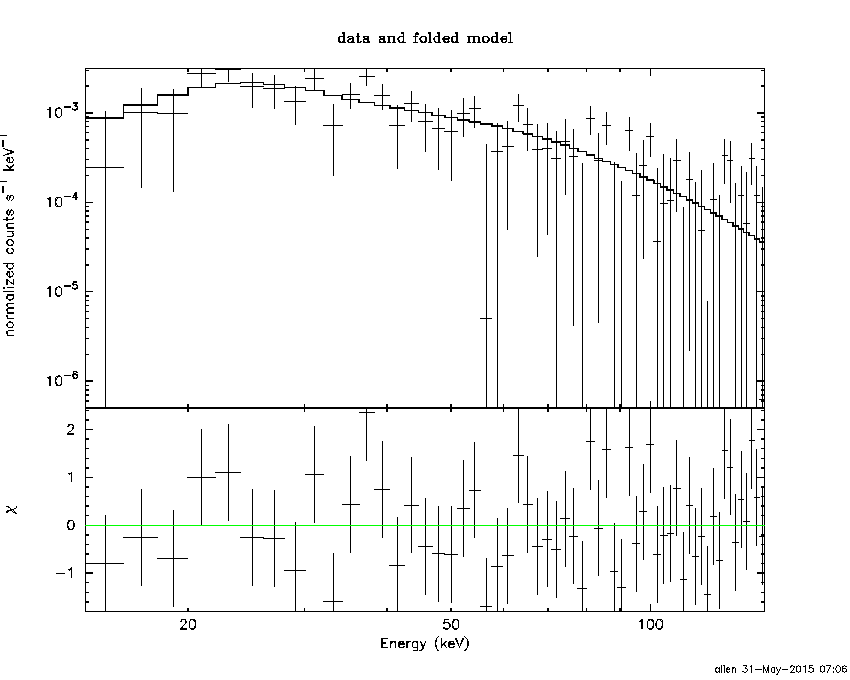

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.44811 ( -0.223518 0.223006 )
Norm@50keV : 5.55752E-03 ( -0.000785486 0.000782991 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 61.99 using 59 PHA bins.
# Reduced chi-squared = 1.088 for 57 degrees of freedom
# Null hypothesis probability = 3.026274e-01
Photon flux (15-150 keV) in 3.912 sec: 0.684562 ( -0.0974064 0.097613 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.08119e-07 ( -3.17153e-08 3.20623e-08 ) ergs/cm2
Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.409375 ( -1.39761 1.00561 )
Epeak [keV] : 71.3058 ( -20.2231 426.524 )
Norm@50keV : 2.01156E-02 ( -0.0201184 0.0976562 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 58.89 using 59 PHA bins.
# Reduced chi-squared = 1.052 for 56 degrees of freedom
# Null hypothesis probability = 3.703364e-01
Photon flux (15-150 keV) in 3.912 sec: 0.664137 ( -0.099949 0.099924 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.90548e-07 ( -3.71969e-08 3.71562e-08 ) ergs/cm2
Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : 4.94605 ( -4.61171 -4.94605 )
beta : -1.91250 ( -0.600149 0.35159 )
Epeak [keV] : 33.7269 ( -7.38926 6.22522 )
Norm@50keV : 96.1113 ( -12.9551 359.453 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 52.98 using 59 PHA bins.
# Reduced chi-squared = 0.9633 for 55 degrees of freedom
# Null hypothesis probability = 5.520825e-01
Photon flux (15-150 keV) in 3.912 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 1.95563e-07 ( -1.95535e-07 -3.37093e-08 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 5.02e-08
S(50-100 keV) = 7.35e-08
T90 vs. Hardness ratio plot
T90 = 3.5160000026226 sec.
Hardness ratio (energy fluence ratio) = 1.46414
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 2.23931
Count Ratio (50-100 keV) / (15-25 keV) = 1.4478
Mask shadow pattern
IMX = 8.089964360281273E-01, IMY = -2.229359305045227E-02
TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-227.611410 -1.704000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2682 -15.5844 2.4 46.0 139.1 2.9705 4.8 ------ UNKNOWN
23.2523 -34.0071 2.6 24.6 122.1 0.8735 4.4 ------ UNKNOWN
36.0451 -59.5958 2.6 25.1 54.8 0.8903 4.4 ------ UNKNOWN
107.2370 -25.5319 2.5 46.8 -54.3 4.0600 4.6 ------ UNKNOWN
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-1.704000 2.208000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
101.8179 -63.2158 1.1 39.0 1.6 0.2883 10.1 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
78.388600 962.571300
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
135.7073 -40.5020 8.9 30.2 -33.7 0.7371 1.3 8.7 Vela X-1
170.5993 -60.6404 5.0 30.9 26.1 1.2440 2.3 8.4 Cen X-3
186.6620 -62.7788 0.3 35.7 37.5 25.3118 36.1 0.5 GX 301-2
6.1423 -47.2621 3.1 51.3 148.8 9.5492 3.8 ------ UNKNOWN
97.0096 -36.9597 6.0 26.4 -99.9 1.3687 2.0 ------ UNKNOWN
138.3493 -18.9697 3.5 50.7 -44.5 10.0803 3.4 ------ UNKNOWN
96.9287 -22.2416 6.5 41.1 -98.1 6.6745 1.8 ------ UNKNOWN
Plot creation:
Sun May 31 07:06:35 EDT 2015
