batgrbproduct Analysis for Trigger=318101

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 23:46:16 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger318101
======================================================================

  Trigger: 00318101      Segment: 000

  BAT Trigger Time: 238839207.932   [s; MET]
      Trigger Stop: 238839207.996   [s; MET]
               UTC: 2008-07-27T08:13:24.959660    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 276.869989337883   Dec: 1.17214157120085  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.73
     Image Trigger?:     NO
     Rate S/N Ratio:     38.2230297072328  [ if not an image trigger ]
     Image S/N Ratio:    10.73

  Flight Position:   [ source = BAT ]
    RA: 276.869989337883   Dec: 1.17214157120085  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 276.870989833797   Dec: 1.17146338741443  [deg; J2000]
        { 18h 27m 29.0s , +01d 10' 17.3" }
         +/- 0.561629285745347 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.158594091910801 [arcmin] (formal 1-sigma fit error)
    SNR: 69.3501356236702

  Angular difference between Flight and Ground position is 0.072511 arcmin

  Partial Coding Fraction: 0.6875    [ including projection effects ]

  Duration
     T90: 8.66400000452995 +/- 0.145602189925778
        Measured from: 0.0919999778270721
                   to: 8.75599998235703     [s; relative to TRIGTIME]
     T50: 6.31600001454353 +/- 0.110634524953673
        Measured from: 1.01199999451637
                   to: 7.32800000905991     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.0400000214576721
                   to: 0.959999978542328     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.236000001430511
                   to: 9.50399997830391     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.770853   1.453200   1.562249   0.501614
           0.026802   0.028545   0.027684   0.021116 [error]
 Peak      0.162509   0.300906   0.376484   0.130754
           0.009796   0.011470   0.011779   0.008953 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.51e-07 6.11e-07 1.18e-06 5.64e-06 3.20e-06 7.69e-06   erg/cm2
              Error 1.27e-08 1.81e-08 2.84e-08 3.26e-07 7.47e-08 3.35e-07   erg/cm2
Peak flux Power-law 1.54e+00 2.22e+00 2.38e+00 4.75e+00 7.61e+00 1.09e+01   ph/cm2/s
              Error 1.27e-01 1.10e-01 9.42e-02 4.21e-01 2.93e-01 4.63e-01   ph/cm2/s

Fluence   Cutoff-PL 2.38e-07 6.14e-07 1.21e-06 4.55e-06 3.18e-06 6.61e-06   erg/cm2
              Error 1.72e-08 1.87e-08 3.59e-08 1.05e-06 7.77e-08 8.07e-07   erg/cm2
Peak flux Cutoff-PL 1.46e+00 2.23e+00 2.43e+00 4.03e+00 7.55e+00 1.02e+01   ph/cm2/s
              Error 1.67e-01 1.14e-01 1.17e-01 9.42e-01 3.04e-01 8.77e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.045    0.042    -      -           3.09e-02 7.16e-04   44.490 57
CPL   0.864    0.167     385.7 1186.8      3.67e-02 4.52e-03   40.910 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.898    0.068    -      -           6.63e-02 2.55e-03   47.780 57
CPL   0.731    0.232     459.7    0.0      7.80e-02 1.63e-02   46.550 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 8.192000 sec.
T50 in the 50-300 keV band: 6.272000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    9.740   -0.236    9.504
T90     8.664    0.092    8.756
T50     6.316    1.012    7.328
Peak    1.000   -0.040    0.960

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  276.8710     1.1715   0.0028    27.2378    28.7244         4.2499306     69.350 TRIG_00318101

Foreground time interval of the image:
 -0.236   8.969 (delta_t =   9.205 [sec])
Background time interval of the image:
-375.831 -272.868 (delta_t = 102.963 [sec])
-239.932  -0.236 (delta_t = 239.696 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

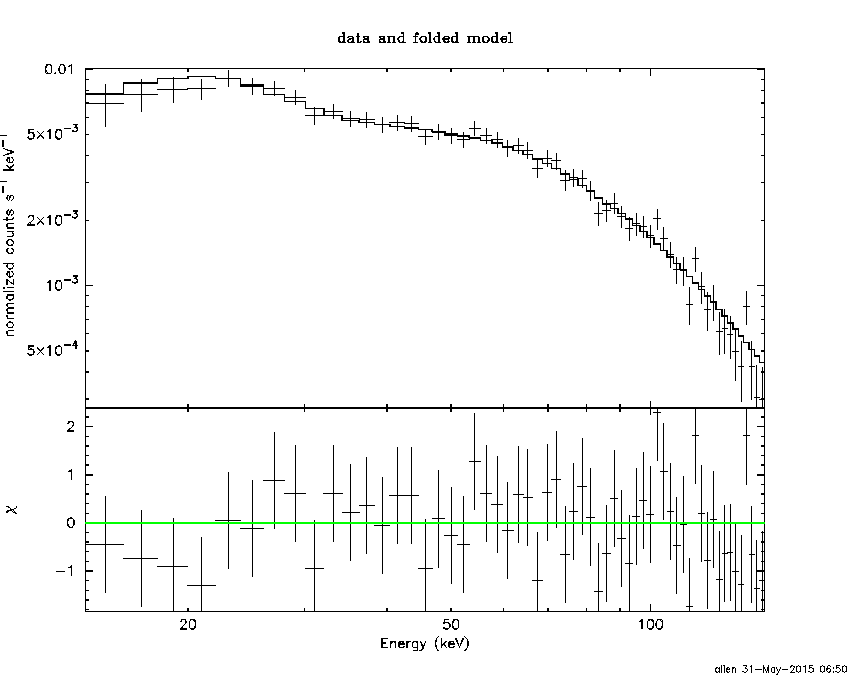

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.236 sec. to    9.504 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.04542     ( -0.0419122   0.0416801 )
Norm@50keV  : 3.08787E-02    ( -0.000717056   0.000715643 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.49 using 59 PHA bins.
# Reduced chi-squared =         0.7805 for     57 degrees of freedom
# Null hypothesis probability =   8.862805e-01

Photon flux (15-150 keV)    in 9.74 sec: 3.56516 ( -0.0863814  0.0865932 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.20145e-06 ( -7.47085e-08  7.47965e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.236 sec. to    9.504 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.864159     ( -0.169948   0.163215 )
Epeak [keV] : 385.724      ( -155.063 2218.46 )
Norm@50keV  : 3.66510E-02    ( -0.00284783   0.00618693 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.91 using 59 PHA bins.
# Reduced chi-squared =         0.7305 for     56 degrees of freedom
# Null hypothesis probability =   9.350410e-01

Photon flux (15-150 keV)    in 9.74 sec: 3.52695 ( -0.09227  0.09254 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.18163e-06 ( -7.79005e-08  7.75986e-08 ) ergs/cm2

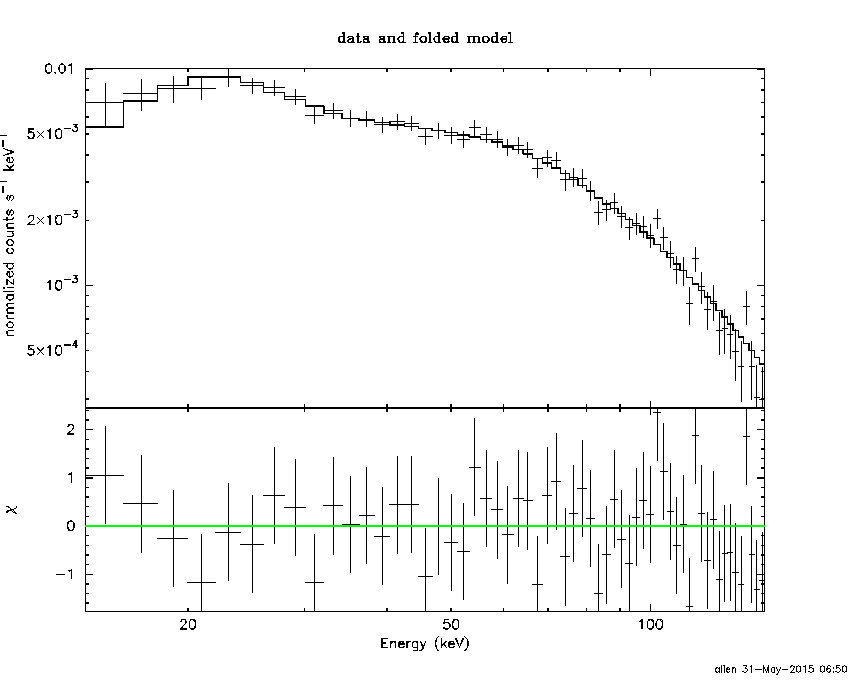

Band function

Time interval is from   -0.236 sec. to    9.504 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.99994   ( -4.99994   -4.99994 )
beta        : -1.06877    ( -0.0441953   0.0441636 )
Epeak [keV] : 27.3803      ( -27.3803 3.34596 )
Norm@50keV   : 1238.72    ( -27.4627   4.57181e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.89 using 59 PHA bins.
# Reduced chi-squared =         0.7797 for     55 degrees of freedom
# Null hypothesis probability =   8.825533e-01

Photon flux (15-150 keV)    in 9.74 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 23.2961  (  )
R^2/D10^2   : 0.104122  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         340.52 using 59 PHA bins.
# Reduced chi-squared =         5.9739 for     57 degrees of freedom
# Null hypothesis probability =   5.380619e-42

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.912e-08   4.792e-09
25- 50  5.416e-07   2.036e-08
50-150  2.195e-06   6.964e-08
15-150  2.835e-06   7.938e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 15.2923       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         485.23 using 59 PHA bins.
# Reduced chi-squared =         8.5129 for     57 degrees of freedom
# Null hypothesis probability =   3.247804e-69

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.709e-07   9.350e-09
25- 50  7.135e-07   1.778e-08
50-150  1.565e-06   3.750e-08
15-150  2.649e-06   6.185e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.85776        (-0.917549      1.01225)
R1^2/D10^2  : 1.20120        (-0.331789      0.494577)
kT2 [keV]   : 36.3909        (-3.0883      4.14289)
R2^2/D10^2  : 2.22890E-02    (-0.00639008   0.0073869)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.58 using 59 PHA bins.
# Reduced chi-squared =         0.7378 for     55 degrees of freedom
# Null hypothesis probability =   9.268299e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.169e-07   2.265e-08
25- 50  6.299e-07   3.234e-08
50-150  2.355e-06   1.427e-07
15-150  3.202e-06   1.544e-07

Peak spectrum fit

Power-law model

Time interval is from   -0.040 sec. to    0.960 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.897788     ( -0.0683234   0.0675828 )
Norm@50keV  : 6.62900E-02    ( -0.0025527   0.00254154 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.78 using 59 PHA bins.
# Reduced chi-squared =         0.8382 for     57 degrees of freedom
# Null hypothesis probability =   8.028314e-01

Photon flux (15-150 keV)    in 1 sec: 7.60849 ( -0.292978  0.293223 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.44594e-07 ( -3.01466e-08  3.02027e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.040 sec. to    0.960 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.731229     ( -0.270918   0.192993 )
Epeak [keV] : 459.657      ( -459.657 -459.657 )
Norm@50keV  : 7.79789E-02    ( -0.00994731   0.0226561 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.55 using 59 PHA bins.
# Reduced chi-squared =         0.8313 for     56 degrees of freedom
# Null hypothesis probability =   8.118458e-01

Photon flux (15-150 keV)    in 1 sec: 7.55476 ( -0.30365  0.30382 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.40367e-07 ( -3.13e-08  3.1168e-08 ) ergs/cm2

Band function

Time interval is from   -0.040 sec. to    0.960 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -0.924842    ( -0.0719845   0.0721119 )
Epeak [keV] : 26.2172      ( -26.2173 4.27423 )
Norm@50keV   : 3087.94    ( -114.369   7.28347e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.37 using 59 PHA bins.
# Reduced chi-squared =         0.8250 for     55 degrees of freedom
# Null hypothesis probability =   8.193718e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 24.5810  (  )
R^2/D10^2   : 0.197894  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         149.06 using 59 PHA bins.
# Reduced chi-squared =         2.6152 for     57 degrees of freedom
# Null hypothesis probability =   3.603674e-10

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.096e-08   1.655e-09
25- 50  1.179e-07   7.050e-09
50-150  5.293e-07   3.080e-08
15-150  6.681e-07   3.025e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 30.6195       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         298.23 using 59 PHA bins.
# Reduced chi-squared =         5.2321 for     57 degrees of freedom
# Null hypothesis probability =   2.193009e-34

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.625e-08   3.245e-09
25- 50  1.467e-07   5.950e-09
50-150  3.217e-07   1.450e-08
15-150  5.446e-07   2.175e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.05956        (-1.41287      1.77172)
R1^2/D10^2  : 3.01331        (-1.34453      2.65977)
kT2 [keV]   : 36.0042        (-4.20789      6.60825)
R2^2/D10^2  : 5.60604E-02    (-0.0223981   0.0264919)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.33 using 59 PHA bins.
# Reduced chi-squared =         0.8424 for     55 degrees of freedom
# Null hypothesis probability =   7.910747e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.568e-08   8.890e-09
25- 50  1.297e-07   1.625e-08
50-150  5.726e-07   6.085e-08
15-150  7.480e-07   6.965e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.02224     ( -0.0420529   0.0418116 )
Norm@50keV  : 3.18347E-02    ( -0.000744115   0.000742543 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.56 using 59 PHA bins.
# Reduced chi-squared =         0.7642 for     57 degrees of freedom
# Null hypothesis probability =   9.049805e-01

Photon flux (15-150 keV)    in 9.205 sec: 3.66975 ( -0.0889489  0.0891803 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.14416e-06 ( -7.36354e-08  7.37276e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.835001     ( -0.17112   0.146971 )
Epeak [keV] : 384.978      ( -152.505 1830.48 )
Norm@50keV  : 3.79623E-02    ( -0.00295431   0.00641329 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.78 using 59 PHA bins.
# Reduced chi-squared =         0.7104 for     56 degrees of freedom
# Null hypothesis probability =   9.502332e-01

Photon flux (15-150 keV)    in 9.205 sec: 3.62984 ( -0.09488  0.09516 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.1248e-06 ( -7.66408e-08  7.63371e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.99995   ( -4.99995   -4.99995 )
beta        : -1.04221    ( -0.0440151   0.044014 )
Epeak [keV] : 26.8782      ( -26.8782 3.54891 )
Norm@50keV   : 1398.23    ( -31.0861   4.81834e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.12 using 59 PHA bins.
# Reduced chi-squared =         0.7657 for     55 degrees of freedom
# Null hypothesis probability =   8.988690e-01

Photon flux (15-150 keV)    in 9.205 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.11e-07
S(50-100 keV) = 1.18e-06

T90 vs. Hardness ratio plot

T90                                   = 8.66400000452995 sec.
Hardness ratio (energy fluence ratio) = 1.93126

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.88518
Count Ratio (50-100 keV) / (15-25 keV) = 2.02665

Mask shadow pattern

IMX = 4.514183272895041E-01, IMY = -2.473942593577021E-01

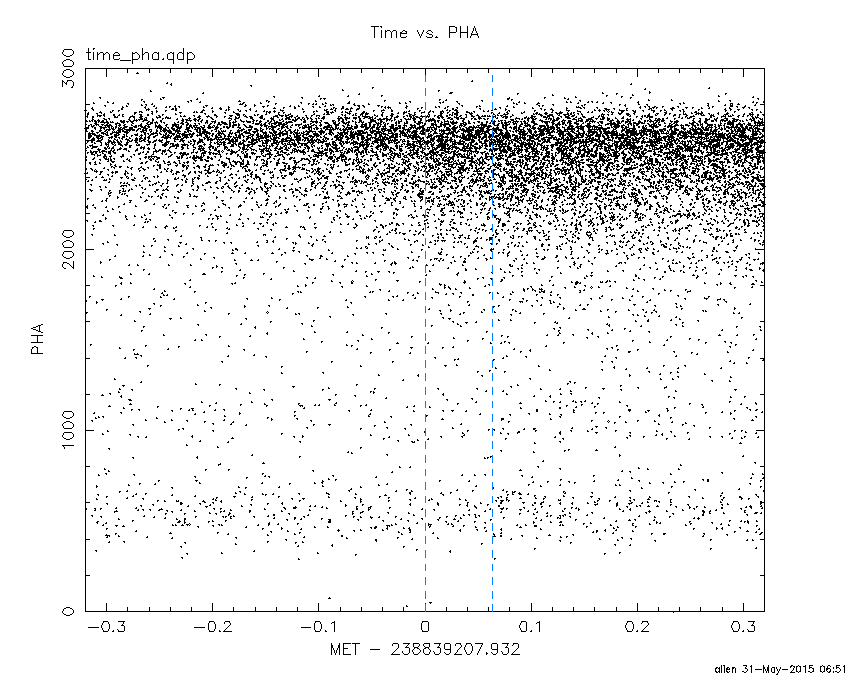

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

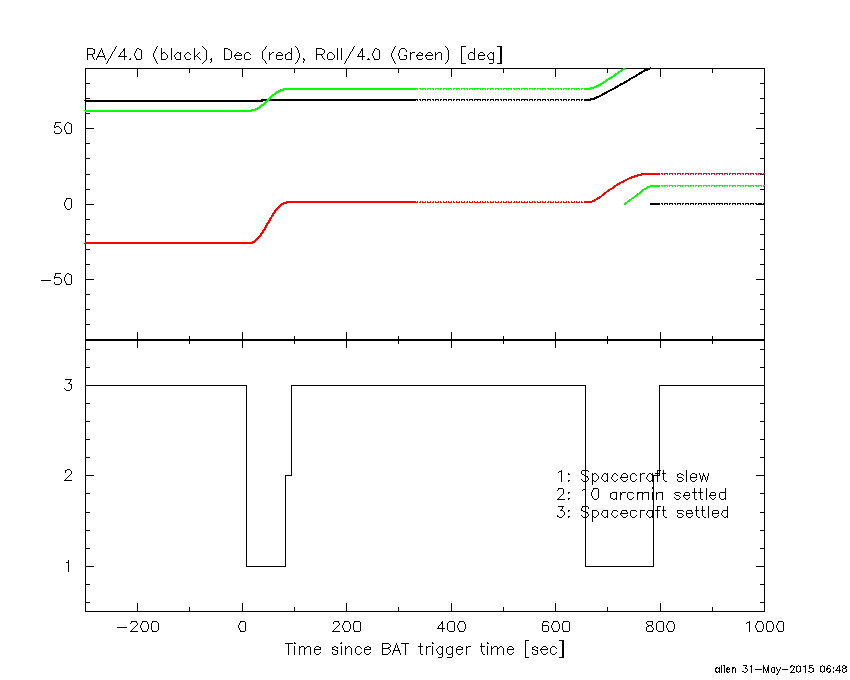

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-375.831400 -272.868400
-239.932000 -0.236000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9817 -15.6326    0.3  29.1  -52.2  12.5978  36.8    0.5	Sco X-1
255.9078 -37.8101    1.8  19.5 -109.1   1.7379   6.2    4.3	4U 1700-377
256.2565 -36.3331    4.1  18.5 -105.6   0.7974   2.8   10.2	GX 349+2
263.2150 -24.8393    0.0  10.0  -63.2   0.4156   1.6   12.6	GX 1+4
264.8726 -44.3492   10.4  19.9 -137.2   0.2734   1.1    8.2	4U 1735-44
268.3485  -1.4151    2.5  25.2    9.0   1.3313   4.7    2.5	SW J1753.5-0127
270.2906 -25.0798    3.0   3.6  -54.2   1.0686   3.9    0.4	GX 5-1
270.2637 -25.7788    3.2   3.5  -65.3   1.0047   3.6    3.0	GRS 1758-258
274.0218 -14.0373    0.8  11.9   22.0   3.2667  13.8    0.9	GX 17+2
275.7437 -30.3544    4.6   4.6 -173.9   0.6874   2.5    9.4	H1820-303
284.9453 -24.7966    7.4   9.8  108.5   0.3811   1.6    8.9	HT1900.1-2455
288.8381  10.9296    1.7  39.5   45.8   4.6010   6.9    2.5	GRS 1915+105
263.2091 -33.9146    3.7  12.4 -109.7   0.8440   3.1   12.0	GX 354-0
287.4268   6.2411    3.3  34.7   46.5   1.5764   3.5 ------	UNKNOWN
339.5633 -68.1915    3.6  56.9  179.1   5.9014   3.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.236000 8.968600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0970 -15.7518   16.8  29.0  -52.3  -0.0467  -0.7    9.5	Sco X-1
255.7922 -37.8454    3.3  19.6 -109.0  -0.2072  -3.5    9.2	4U 1700-377
256.5877 -36.2998    3.4  18.2 -106.0   0.1999   3.4   10.4	GX 349+2
262.9117 -24.6189    8.2  10.3  -62.2   0.0773   1.4    9.3	GX 1+4
264.7396 -44.4499   15.3  20.0 -137.1   0.0421   0.8    0.1	4U 1735-44
268.3905  -1.6040    5.4  25.0    9.0   0.1249   2.1    9.2	SW J1753.5-0127
270.4289 -25.0026   43.4   3.5  -52.5   0.0130   0.3    9.1	GX 5-1
270.3837 -25.7025    9.0   3.4  -63.9  -0.0658  -1.3    5.0	GRS 1758-258
273.8670 -14.0959    6.0  11.9   21.3   0.0999   1.9    8.8	GX 17+2
275.9494 -30.3773   61.0   4.7 -175.9  -0.0101  -0.2    1.4	H1820-303
285.1855 -24.8568   13.5  10.0  109.0   0.0463   0.9    9.0	HT1900.1-2455
288.8203  11.0116    5.1  39.6   45.8   0.3168   2.3    4.2	GRS 1915+105
263.1108 -33.6967    4.8  12.3 -108.7   0.1276   2.4   10.3	GX 354-0
276.8710   1.1715    0.2  27.2   28.7   4.2498  69.3 ------	UNKNOWN
332.6135 -79.3812    3.1  58.9 -167.7   1.1466   3.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
83.168590 656.268590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0008 -15.6568    0.4  35.7 -155.1  16.1821  27.6    1.6	Sco X-1
254.3037  35.2615   11.7  40.0  -64.9   1.8317   1.0    9.0	Her X-1
256.0232 -37.9153    3.7  43.6  168.4   2.6430   3.1    4.6	4U 1700-377
256.5114 -36.4705    6.3  42.1  169.0   1.5167   1.8    4.6	GX 349+2
262.9108 -24.8657    6.3  29.4  170.9   0.9626   1.8    9.0	GX 1+4
264.7693 -44.4298    4.7  46.9  156.2   3.2977   2.5    1.7	4U 1735-44
268.3778  -1.4619    1.8   8.9 -142.9   2.9484   6.3    0.8	SW J1753.5-0127
270.3036 -25.2715    0.0  27.2  157.4   1.0511   1.8   11.6	GX 5-1
270.3390 -25.7314    7.9  27.6  157.1   0.9218   1.6    2.1	GRS 1758-258
273.9812 -14.0468    1.4  15.5  154.9   3.5482   8.3    1.6	GX 17+2
275.9199 -30.3509    5.3  31.5  145.9   1.5309   2.2    1.0	H1820-303
285.1414 -25.0327    6.6  27.4  127.9  -1.0563  -1.7    8.8	HT1900.1-2455
288.8150  10.9733    0.6  15.4   14.2   8.2066  20.4    1.9	GRS 1915+105
299.5662  35.2178    0.4  40.1   -6.4  18.8654  29.6    1.5	Cyg X-1
308.1956  40.9099    5.8  48.8   -4.2   2.1177   2.0    4.6	Cyg X-3
263.1194 -33.8138    4.8  37.3  163.3   1.7907   2.4    6.6	GX 354-0
313.9614 -12.7530    3.1  39.3   76.2   6.7306   3.7 ------	UNKNOWN
314.1883 -12.3117    3.7  39.4   75.5   5.9947   3.4 ------	UNKNOWN
267.3173 -48.6008    3.4  50.5  152.5   6.6141   3.4 ------	UNKNOWN
302.7436  -7.4416    2.2  27.2   73.2   3.2979   5.2 ------	UNKNOWN
252.2535 -34.2455    2.4  42.3  175.1   3.6357   4.9 ------	UNKNOWN
	UNKNOWN
	UNKNOWN
	UNKNOWN

Plot creation:
Sun May 31 06:51:24 EDT 2015
