batgrbproduct analysis for trigger=323898

batgrbproduct Analysis for Trigger=323898

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 23:02:20 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger323898
======================================================================

  Trigger: 00323898      Segment: 000

  BAT Trigger Time: 242326548.48   [s; MET]
      Trigger Stop: 242326550.528   [s; MET]
               UTC: 2008-09-05T16:55:45.405420    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 301.72269381416   Dec: -62.5711596742389  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.01
     Image Trigger?:     NO
     Rate S/N Ratio:     15.7797338380595  [ if not an image trigger ]
     Image S/N Ratio:    8.01

  Flight Position:   [ source = BAT ]
    RA: 301.72269381416   Dec: -62.5711596742389  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 301.754461576474   Dec: -62.5736454178581  [deg; J2000]
        { 20h 07m 01.1s , -62d 34' 25.1" }
         +/- 1.76469757091916 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.744304482374927 [arcmin] (formal 1-sigma fit error)
    SNR: 13.5123925794075

  Angular difference between Flight and Ground position is 0.890564 arcmin

  Partial Coding Fraction: 0.3789062    [ including projection effects ]

  Duration
     T90: 120.936000019312 +/- 28.0583333245587
        Measured from: 0.412000000476837
                   to: 121.348000019789     [s; relative to TRIGTIME]
     T50: 77.863999992609 +/- 4.54336660090605
        Measured from: 5.37600001692772
                   to: 83.2400000095367     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 2.45600000023842
                   to: 3.45600000023842     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.727999985218048
                   to: 149.692000001669     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.927172   1.140975   0.793344   0.163443
           0.080699   0.080492   0.068641   0.058955 [error]
 Peak      0.050674   0.059996   0.063534   0.016283
           0.010242   0.010187   0.009243   0.007644 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.87e-07 4.80e-07 6.10e-07 1.55e-06 1.81e-06 2.93e-06   erg/cm2
              Error 3.81e-08 3.88e-08 6.73e-08 3.65e-07 1.59e-07 4.19e-07   erg/cm2
Peak flux Power-law 5.11e-01 5.34e-01 3.94e-01 4.68e-01 1.62e+00 1.91e+00   ph/cm2/s
              Error 1.58e-01 9.87e-02 7.44e-02 1.90e-01 2.74e-01 3.03e-01   ph/cm2/s

Fluence   Cutoff-PL 2.84e-07 4.84e-07 6.13e-07 1.37e-06 1.80e-06 2.74e-06   erg/cm2
              Error 4.25e-08 4.45e-08 6.98e-08 6.84e-07 1.72e-07 6.63e-07   erg/cm2
Peak flux Cutoff-PL 5.12e-01 5.34e-01 3.94e-01 4.64e-01 1.62e+00 1.90e+00   ph/cm2/s
              Error 1.56e-01 9.96e-02 7.83e-02 2.42e-01 2.71e-01 3.01e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.655    0.143    -      -           1.29e-03 1.07e-04   62.310 57
CPL   1.581    0.657     277.1    0.0      1.41e-03 1.03e-03   62.250 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.439    0.290    -      -           1.32e-02 2.09e-03   72.450 57
CPL   2.455    0.000     155.7    0.0      3.58e-03 0.00e+00   71.540 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 86.528000 sec.
T50 in the 50-300 keV band: 69.696000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  150.420   -0.728  149.692
T90   120.936    0.412  121.348
T50    77.864    5.376   83.240
Peak    1.000    2.456    3.456

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  301.7545   -62.5736   0.0142    44.7677   177.6964         1.2740764     13.512 TRIG_00323898

Foreground time interval of the image:
 -0.728  25.221 (delta_t =  25.949 [sec])
Background time interval of the image:
-239.480  -0.728 (delta_t = 238.752 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.728 sec. to  149.692 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.65476     ( -0.142114   0.144024 )
Norm@50keV  : 1.29328E-03    ( -0.000107045   0.000106193 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.31 using 59 PHA bins.
# Reduced chi-squared =          1.093 for     57 degrees of freedom
# Null hypothesis probability =   2.930122e-01

Photon flux (15-150 keV)    in 150.4 sec: 0.169136 ( -0.0136368  0.0136712 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.80815e-06 ( -1.58334e-07  1.59567e-07 ) ergs/cm2

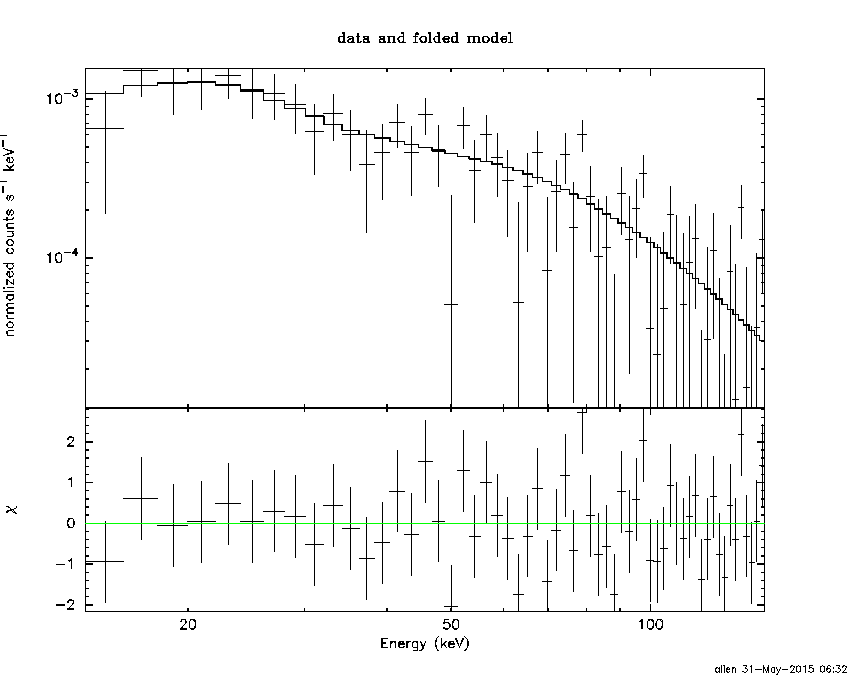

Cutoff power-law model

Time interval is from   -0.728 sec. to  149.692 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.58072     ( -0.550819   0.762885 )
Epeak [keV] : 277.099      ( -277.1 -277.1 )
Norm@50keV  : 1.41226E-03    ( -0.000804601   0.00125906 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.25 using 59 PHA bins.
# Reduced chi-squared =          1.112 for     56 degrees of freedom
# Null hypothesis probability =   2.636366e-01

Photon flux (15-150 keV)    in 150.4 sec: 0.168498 ( -0.014256  0.01409 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.79814e-06 ( -1.75622e-07  1.68162e-07 ) ergs/cm2

Band function

Time interval is from   -0.728 sec. to  149.692 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.20489   ( 1.21692   1.21692 )
beta        : -1.73190    ( 1.73075   0.212132 )
Epeak [keV] : 64.6616      ( -66.1444 -66.1444 )
Norm@50keV   : 2.42392E-03    ( -0.00109944   324.2 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.09 using 59 PHA bins.
# Reduced chi-squared =          1.129 for     55 degrees of freedom
# Null hypothesis probability =   2.383125e-01

Photon flux (15-150 keV)    in 150.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.3549  (-1.41524  1.63431)
R^2/D10^2   : 2.72805E-02  (-0.00930163   0.0138063)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         109.08 using 59 PHA bins.
# Reduced chi-squared =         1.9136 for     57 degrees of freedom
# Null hypothesis probability =   4.030902e-05

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.551e-07   2.279e-08
25- 50  5.497e-07   5.587e-08
50-150  6.294e-07   1.131e-07
15-150  1.334e-06   1.290e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 160.261       (-52.5295      -159.632)
Norm        : 0.689739       (-0.060106     0.0751662)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.15 using 59 PHA bins.
# Reduced chi-squared =          1.108 for     57 degrees of freedom
# Null hypothesis probability =   2.680744e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.648e-07   3.158e-08
25- 50  4.955e-07   1.190e-07
50-150  1.005e-06   4.957e-07
15-150  1.765e-06   6.025e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.09796        (-1.48154      1.56026)
R1^2/D10^2  : 0.191744        (-0.0939548      0.248876)
kT2 [keV]   : 28.3557        (-6.67632      13.2198)
R2^2/D10^2  : 1.43617E-03    (-0.00101865   0.00239175)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.63 using 59 PHA bins.
# Reduced chi-squared =          1.139 for     55 degrees of freedom
# Null hypothesis probability =   2.238832e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.649e-07   8.408e-08
25- 50  5.023e-07   1.268e-07
50-150  1.039e-06   5.185e-07
15-150  1.806e-06   6.142e-07

Peak spectrum fit

Power-law model

Time interval is from    2.456 sec. to    3.456 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43876     ( -0.289103   0.29177 )
Norm@50keV  : 1.31756E-02    ( -0.00208904   0.00208491 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.45 using 59 PHA bins.
# Reduced chi-squared =          1.271 for     57 degrees of freedom
# Null hypothesis probability =   8.147226e-02

Photon flux (15-150 keV)    in 1 sec: 1.61923 ( -0.273398  0.275078 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.26346e-07 ( -2.14145e-08  2.15238e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    2.456 sec. to    3.456 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.45455     (     )
Epeak [keV] : 155.661      (   )
Norm@50keV  : 3.57589E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.54 using 59 PHA bins.
# Reduced chi-squared =          1.277 for     56 degrees of freedom
# Null hypothesis probability =   7.889205e-02

Photon flux (15-150 keV)    in 1 sec: 1.61924 ( -0.27383  0.26813 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.26238e-07 ( -2.1242e-08  2.1494e-08 ) ergs/cm2

Band function

Time interval is from    2.456 sec. to    3.456 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.20264   ( 1.20264   1.20264 )
beta        : -1.43870    ( -0.291227   0.289566 )
Epeak [keV] : 23.7512      ( -23.7512 -23.7512 )
Norm@50keV   : 2.65091E-02    ( -0.0154119   0.175127 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.45 using 59 PHA bins.
# Reduced chi-squared =          1.317 for     55 degrees of freedom
# Null hypothesis probability =   5.739662e-02

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.3517  (-3.66004  4.79593)
R^2/D10^2   : 9.11543E-02  (-0.0498288   0.105285)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          84.84 using 59 PHA bins.
# Reduced chi-squared =          1.488 for     57 degrees of freedom
# Null hypothesis probability =   9.803405e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.108e-09   2.041e-09
25- 50  2.865e-08   8.835e-09
50-150  7.039e-08   2.148e-08
15-150  1.051e-07   2.733e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 6.70873       (-1.06727     1.06712)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.78 using 59 PHA bins.
# Reduced chi-squared =          1.294 for     57 degrees of freedom
# Null hypothesis probability =   6.670584e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.671e-08   9.805e-09
25- 50  3.215e-08   1.812e-08
50-150  7.051e-08   3.972e-08
15-150  1.194e-07   6.725e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.81089        (-4.12787      4.51634)
R1^2/D10^2  : 7.00107        (-6.00208      -6.47431)
kT2 [keV]   : 25.1894        (-7.22287      26.8802)
R2^2/D10^2  : 2.78300E-02    (-0.0240989   0.048256)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.15 using 59 PHA bins.
# Reduced chi-squared =          1.330 for     55 degrees of freedom
# Null hypothesis probability =   5.130552e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.761e-08   1.020e-08
25- 50  2.603e-08   1.197e-08
50-150  8.207e-08   4.746e-08
15-150  1.257e-07   5.395e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.57278     ( -0.204091   0.205566 )
Norm@50keV  : 3.23419E-03    ( -0.000377935   0.000376387 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.06 using 59 PHA bins.
# Reduced chi-squared =         0.9484 for     57 degrees of freedom
# Null hypothesis probability =   5.860399e-01

Photon flux (15-150 keV)    in 25.95 sec: 0.412181 ( -0.0499236  0.0501842 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.87624e-07 ( -9.75954e-08  9.81883e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55975     ( -0.806922   1.04463 )
Epeak [keV] : 9649.46      ( -8888.54 -8888.54 )
Norm@50keV  : 3.24641E-03    ( -0.00217131   0.00478376 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.07 using 59 PHA bins.
# Reduced chi-squared =         0.9655 for     56 degrees of freedom
# Null hypothesis probability =   5.483305e-01

Photon flux (15-150 keV)    in 25.95 sec: 0.411413 ( -0.051251  0.050676 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.8923e-07 ( -1.06055e-07  9.63757e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.79241   ( -4.79241   -4.79241 )
beta        : -1.61616    ( -0.230837   0.218928 )
Epeak [keV] : 21.9850      ( -21.985 7.49112 )
Norm@50keV   : 555.884    ( -63.6692   2.04792e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.61 using 59 PHA bins.
# Reduced chi-squared =         0.9747 for     55 degrees of freedom
# Null hypothesis probability =   5.278609e-01

Photon flux (15-150 keV)    in 25.95 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.80e-07
S(50-100 keV) = 6.10e-07

T90 vs. Hardness ratio plot

T90                                   = 120.936000019312 sec.
Hardness ratio (energy fluence ratio) = 1.27083

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.2306
Count Ratio (50-100 keV) / (15-25 keV) = 0.85566

Mask shadow pattern

IMX = -9.911229326485734E-01, IMY = -3.986939987938913E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.480000 -0.728000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9680 -15.6343    1.1  40.8  -85.4   7.7834  10.0    0.8	Sco X-1
255.9934 -37.8500    0.5  33.5 -124.4   6.7367  24.8    0.5	4U 1700-377
256.5336 -36.4341    8.9  32.5 -122.3   0.3557   1.3    4.8	GX 349+2
262.8457 -24.6985   15.0  23.7 -101.8   0.1683   0.8    9.3	GX 1+4
264.6071 -44.5766    7.7  32.1 -141.5   0.3053   1.5    9.6	4U 1735-44
268.3421  -1.3863    2.0  25.8  -42.7   1.0745   5.8    4.3	SW J1753.5-0127
270.3794 -25.1720    4.8  17.2 -107.7   0.4185   2.4    7.6	GX 5-1
270.3382 -25.8853    7.7  17.5 -109.9   0.2587   1.5    8.7	GRS 1758-258
274.1365 -14.1751    4.4  13.8  -65.3   0.4569   2.6   11.3	GX 17+2
275.8198 -30.2327    2.3  15.6 -131.9   0.7965   5.0    9.7	H1820-303
284.8704 -24.9192    6.1   6.6 -150.3   0.3193   1.9    9.0	HT1900.1-2455
288.8009  10.9456    0.7  29.8    9.1   3.6656  17.1    0.2	GRS 1915+105
262.9868 -33.8367    2.2  26.6 -122.3   1.0982   5.2    0.2	GX 354-0
294.1953  10.7979    3.3  30.4   19.6   0.7387   3.5 ------	UNKNOWN
293.2212  14.7006    2.4  34.0   16.5   1.0517   4.9 ------	UNKNOWN
264.2293  26.6995    2.0  50.9  -20.4   2.4681   5.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.728000 25.220590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8088 -15.7399    0.0  41.0  -85.6  -0.3345  -1.6   11.5	Sco X-1
255.9792 -37.8291   15.6  33.5 -124.3   0.0600   0.7    1.0	4U 1700-377
256.4517 -36.4233    5.3  32.5 -122.3   0.1767   2.2    0.8	GX 349+2
262.8435 -24.7725  174.0  23.8 -102.0   0.0042   0.1    9.2	GX 1+4
264.5532 -44.3824    6.5  32.0 -141.1  -0.1103  -1.8    9.1	4U 1735-44
268.4504  -1.3956    7.3  25.7  -42.5   0.0912   1.6    6.0	SW J1753.5-0127
270.2557 -25.0926    6.5  17.3 -107.3  -0.0954  -1.8    1.7	GX 5-1
270.1981 -25.8598    3.9  17.6 -109.7  -0.1626  -3.0    9.0	GRS 1758-258
273.9164 -13.8953    4.7  14.1  -64.5  -0.1341  -2.4    9.9	GX 17+2
276.0870 -30.2178    0.0  15.5 -132.5   0.0267   0.5   12.3	H1820-303
284.8840 -25.0376    9.6   6.7 -150.8  -0.0583  -1.2   10.8	HT1900.1-2455
288.8525  11.0167    4.0  29.9    9.1  -0.1686  -2.9    5.3	GRS 1915+105
262.8113 -33.9038    8.8  26.7 -122.3  -0.0814  -1.3    9.8	GX 354-0
322.1499   2.3262    2.5  40.0   68.5   0.8311   4.6 ------	UNKNOWN
301.7545 -62.5737    0.9  44.8  177.7   1.2739  13.5 ------	UNKNOWN
281.6138 -68.9887    1.9  50.3 -170.3   0.6779   6.1 ------	UNKNOWN
264.9394  31.3239    2.0  54.7  -17.0   0.9438   5.7 ------	UNKNOWN
241.6019 -35.7443    1.9  43.8 -115.5   1.2984   6.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
92.020600 779.120600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
255.9934 -37.8415    0.4  37.0  -28.6  13.4808  29.0    0.4	4U 1700-377
256.5913 -36.4124   10.2  37.9  -26.7   0.5562   1.1    7.6	GX 349+2
263.0266 -24.8286    5.3  45.6  -11.2   1.3499   2.2    5.1	GX 1+4
264.9265 -44.5593    9.0  27.7  -25.5   0.4392   1.3   10.2	4U 1735-44
270.3090 -25.2299   33.5  42.8   -2.6   0.2111   0.3    9.1	GX 5-1
270.1926 -25.7724    2.6  42.3   -3.1   2.6124   4.4    6.2	GRS 1758-258
273.8943 -14.0264    7.8  52.4    6.5   1.5320   1.5    6.5	GX 17+2
275.8603 -30.3675    2.1  36.2    1.8   2.4760   5.4    3.3	H1820-303
285.0613 -24.8943    3.6  39.3   17.1   1.6140   3.2    2.1	HT1900.1-2455
262.9691 -33.8509    1.9  37.5  -17.2   2.7834   6.1    1.4	GX 354-0
283.8035 -30.3357    3.0  34.2   13.2   1.5251   3.8 ------	UNKNOWN
283.4629 -66.5727    2.7   8.8  -83.9   1.4837   4.3 ------	UNKNOWN

Plot creation:
Sun May 31 06:33:33 EDT 2015
