Special notes of this burst
Pre-slew 15.0-350.0 keV image (Event data)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
163.6264 69.0639 0.0171 30.0425 -58.9416 0.9975319 11.289 TRIG_00324907
Foreground time interval of the image:
-2.592 35.736 (delta_t = 38.328 [sec])
Background time interval of the image:
-214.731 -2.592 (delta_t = 212.139 [sec])
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.

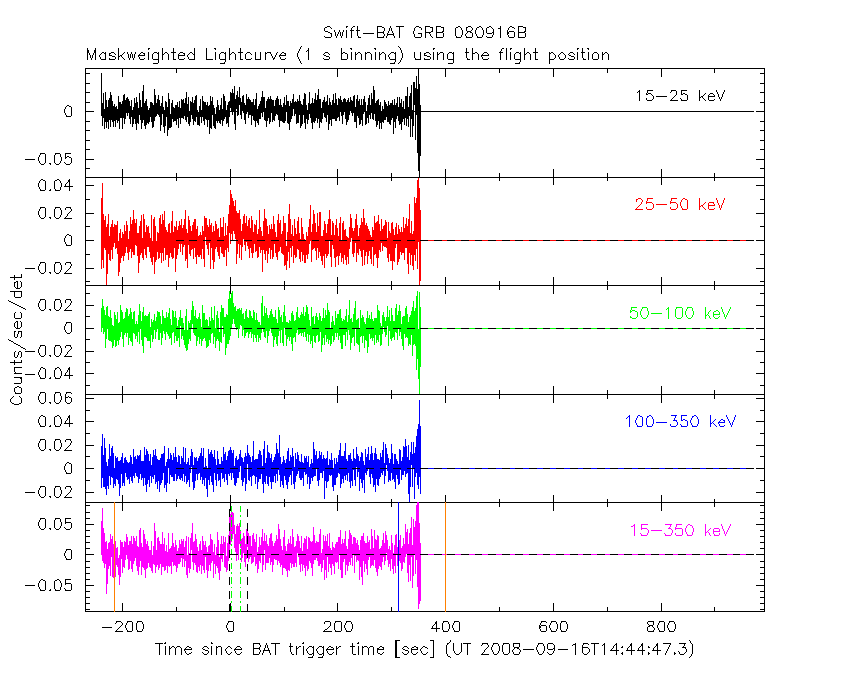

1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval
64 ms binning
Full time interval
From T100_start to T100_end
From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000
8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000
SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
Time averaged spectrum fit using the average DRM

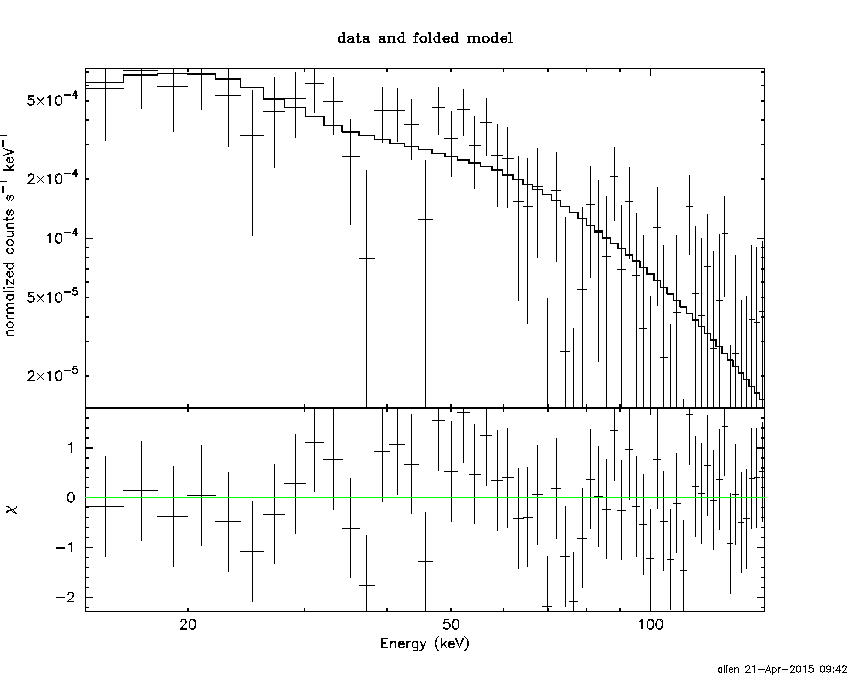

Power-law model
Time interval is from -2.592 sec. to 35.736 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.42791 ( -0.224672 0.226132 )
Norm@50keV : 1.73155E-03 ( -0.000229229 0.000227493 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 47.13 using 59 PHA bins.
# Reduced chi-squared = 0.8269 for 57 degrees of freedom
# Null hypothesis probability = 8.212868e-01
Photon flux (15-150 keV) in 38.33 sec: 0.212244 ( -0.0273698 0.0273995 ) ph/cm2/s
Energy fluence (15-150 keV) : 6.37765e-07 ( -9.39269e-08 9.55996e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from -2.592 sec. to 35.736 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.859678 ( -1.29441 0.812875 )
Epeak [keV] : 96.0642 ( -38.6903 -96.1454 )
Norm@50keV : 3.42994E-03 ( -0.00187586 0.0125333 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 46.21 using 59 PHA bins.
# Reduced chi-squared = 0.8252 for 56 degrees of freedom
# Null hypothesis probability = 8.214277e-01
Photon flux (15-150 keV) in 38.33 sec: 0.206689 ( -0.029537 0.029125 ) ph/cm2/s
Energy fluence (15-150 keV) : 6.02969e-07 ( -1.12874e-07 1.13242e-07 ) ergs/cm2

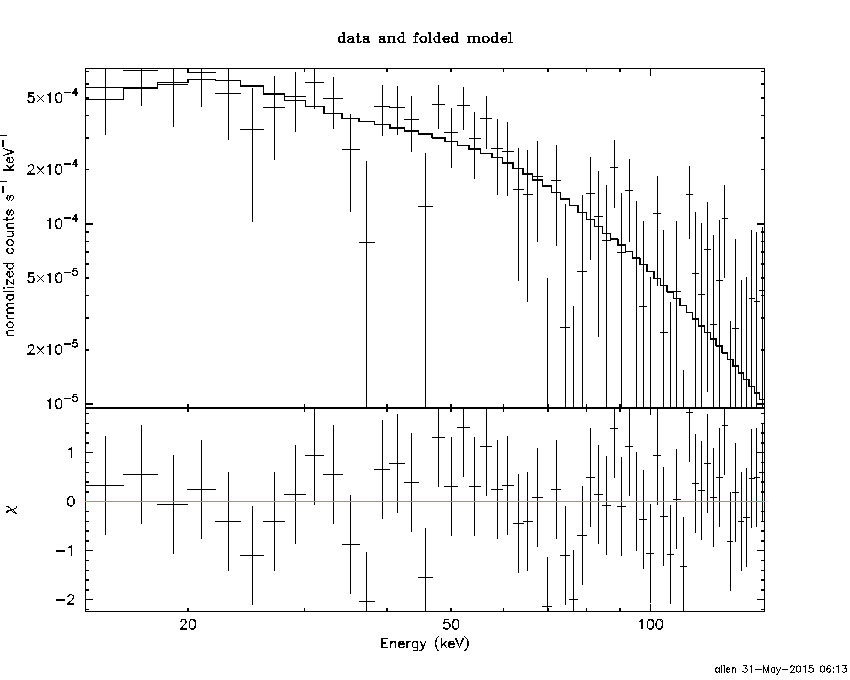

Band function
Time interval is from -2.592 sec. to 35.736 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -0.506887 ( 0.438167 0.438167 )
beta : -1.83383 ( 1.86929 0.580987 )
Epeak [keV] : 71.1782 ( -68.8889 71.0391 )
Norm@50keV : 5.50966E-03 ( -0.00613169 293.147 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 45.49 using 59 PHA bins.
# Reduced chi-squared = 0.8271 for 55 degrees of freedom
# Null hypothesis probability = 8.160697e-01
Photon flux (15-150 keV) in 38.33 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 6.02931e-07 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 14.4097 (-1.9989 2.46609)
R^2/D10^2 : 2.82063E-02 (-0.0120098 0.0195491)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 53.06 using 59 PHA bins.
# Reduced chi-squared = 0.9310 for 57 degrees of freedom
# Null hypothesis probability = 6.234569e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 4.727e-08 1.172e-08
25- 50 1.809e-07 3.360e-08
50-150 2.508e-07 7.214e-08
15-150 4.790e-07 8.477e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 199.363 (-73.0391 -199.363)
Norm : 0.871254 (-0.111065 0.111065)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 47.13 using 59 PHA bins.
# Reduced chi-squared = 0.8269 for 57 degrees of freedom
# Null hypothesis probability = 8.213087e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 8.316e-08 4.692e-08
25- 50 1.600e-07 8.682e-08
50-150 3.508e-07 1.934e-07
15-150 5.940e-07 3.312e-07
Double BB
R1^2/D10^2 : 5.03276E-02 (-0.0287196 0.0454605)
kT2 [keV] : 200.000 ( )
R2^2/D10^2 : 2.26400E-05 (-1.30622e-05 0.000152469)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 47.92 using 59 PHA bins.
#Fit statistic : Chi-Squared = 45.73 using 59 PHA bins.
#Fit statistic : Chi-Squared = 45.51 using 59 PHA bins.
# Reduced chi-squared = 0.8713 for 55 degrees of freedom
# Reduced chi-squared = 0.8314 for 55 degrees of freedom
# Reduced chi-squared = 0.8274 for 55 degrees of freedom
# Null hypothesis probability = 7.394865e-01
# Null hypothesis probability = 8.090884e-01
# Null hypothesis probability = 8.156050e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 7.190e-08 3.039e-08
25- 50 1.598e-07 5.301e-08
50-150 2.970e-07 1.134e-07
15-150 5.288e-07 1.728e-07
Peak spectrum fit
Power-law model
Time interval is from 1.392 sec. to 2.392 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.960132 ( -0.717244 0.605247 )
Norm@50keV : 4.72059E-03 ( -0.00154517 0.00141923 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 61.67 using 59 PHA bins.
# Reduced chi-squared = 1.082 for 57 degrees of freedom
# Null hypothesis probability = 3.126218e-01
Photon flux (15-150 keV) in 1 sec: 0.542488 ( -0.168958 0.169953 ) ph/cm2/s
Energy fluence (15-150 keV) : 5.17814e-08 ( -1.63457e-08 1.65169e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from 1.392 sec. to 2.392 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.990108 ( -0.849417 0.577165 )
Epeak [keV] : 9999.36 ( -9999.36 -9999.36 )
Norm@50keV : 4.77212E-03 ( -0.00156763 0.0094597 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 61.70 using 59 PHA bins.
# Reduced chi-squared = 1.102 for 56 degrees of freedom
# Null hypothesis probability = 2.797704e-01
Photon flux (15-150 keV) in 1 sec: 0.548337 ( -0.175834 0.164568 ) ph/cm2/s
Energy fluence (15-150 keV) : 5.18907e-08 ( -1.63209e-08 1.57195e-08 ) ergs/cm2

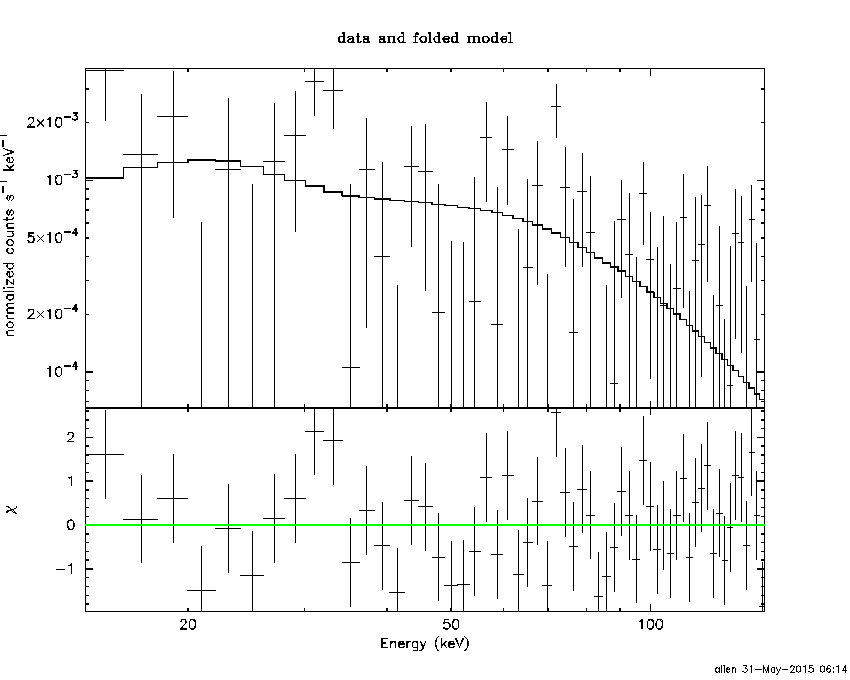

Band function
Time interval is from 1.392 sec. to 2.392 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -0.900781 ( 0.898138 0.898138 )
beta : -0.984867 ( -0.60173 0.722209 )
Epeak [keV] : 12.7181 ( -12.5391 -12.5391 )
Norm@50keV : 7.23559E-03 ( -0.00397136 0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 61.68 using 59 PHA bins.
# Reduced chi-squared = 1.121 for 55 degrees of freedom
# Null hypothesis probability = 2.496141e-01
Photon flux (15-150 keV) in 1 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 30.6896 (-13.2863 50.2267)
R^2/D10^2 : 6.85620E-03 (-0.00673931 0.0304332)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 66.21 using 59 PHA bins.
# Reduced chi-squared = 1.162 for 57 degrees of freedom
# Null hypothesis probability = 1.888866e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 9.961e-10 6.500e-10
25- 50 6.202e-09 3.902e-09
50-150 4.088e-08 2.535e-08
15-150 4.808e-08 2.951e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 199.360 (-100.717 -199.363)
Norm : 2.25685 (-0.689983 0.689966)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 64.99 using 59 PHA bins.
# Reduced chi-squared = 1.140 for 57 degrees of freedom
# Null hypothesis probability = 2.182740e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 5.620e-09 3.549e-09
25- 50 1.081e-08 6.770e-09
50-150 2.371e-08 1.450e-08
15-150 4.014e-08 2.464e-08

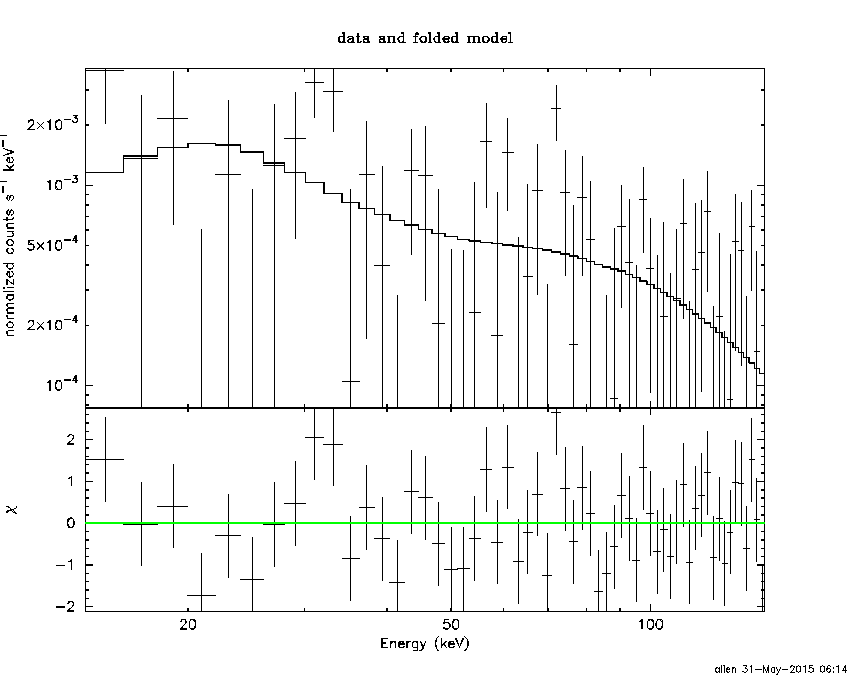

Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 7.34921 (-7.3483 6.64979)
R1^2/D10^2 : 0.481069 (-0.439156 831.353)
kT2 [keV] : 72.6878 (-72.6877 -72.6878)
R2^2/D10^2 : 7.63665E-04 (-0.000671981 0.0175818)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 60.17 using 59 PHA bins.
# Reduced chi-squared = 1.094 for 55 degrees of freedom
# Null hypothesis probability = 2.940716e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 4.703e-09 2.977e-09
25- 50 9.092e-09 5.360e-09
50-150 4.276e-08 2.445e-08
15-150 5.656e-08 2.859e-08
Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.42791 ( -0.224672 0.226132 )
Norm@50keV : 1.73155E-03 ( -0.000229229 0.000227493 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 47.13 using 59 PHA bins.
# Reduced chi-squared = 0.8269 for 57 degrees of freedom
# Null hypothesis probability = 8.212868e-01
Photon flux (15-150 keV) in 38.33 sec: 0.212244 ( -0.0273698 0.0273995 ) ph/cm2/s
Energy fluence (15-150 keV) : 6.37765e-07 ( -9.39269e-08 9.55996e-08 ) ergs/cm2
Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.859678 ( -1.29441 0.812875 )
Epeak [keV] : 96.0642 ( -38.6903 -96.1454 )
Norm@50keV : 3.42994E-03 ( -0.00187586 0.0125333 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 46.21 using 59 PHA bins.
# Reduced chi-squared = 0.8252 for 56 degrees of freedom
# Null hypothesis probability = 8.214277e-01
Photon flux (15-150 keV) in 38.33 sec: 0.206689 ( -0.029537 0.029125 ) ph/cm2/s
Energy fluence (15-150 keV) : 6.02969e-07 ( -1.12874e-07 1.13242e-07 ) ergs/cm2
Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -0.506887 ( 0.438167 0.438167 )
beta : -1.83383 ( 1.86929 0.580987 )
Epeak [keV] : 71.1782 ( -68.8889 71.0391 )
Norm@50keV : 5.50966E-03 ( -0.00613169 293.147 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 45.49 using 59 PHA bins.
# Reduced chi-squared = 0.8271 for 55 degrees of freedom
# Null hypothesis probability = 8.160697e-01
Photon flux (15-150 keV) in 38.33 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 6.02931e-07 ( 0 0 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 1.52e-07
S(50-100 keV) = 2.26e-07
T90 vs. Hardness ratio plot
T90 = 33.5439999997616 sec.
Hardness ratio (energy fluence ratio) = 1.48684
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 1.36693
Count Ratio (50-100 keV) / (15-25 keV) = 1.16308
Mask shadow pattern
IMX = 2.983725448065760E-01, IMY = 4.954300609552840E-01
TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000
TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000
100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

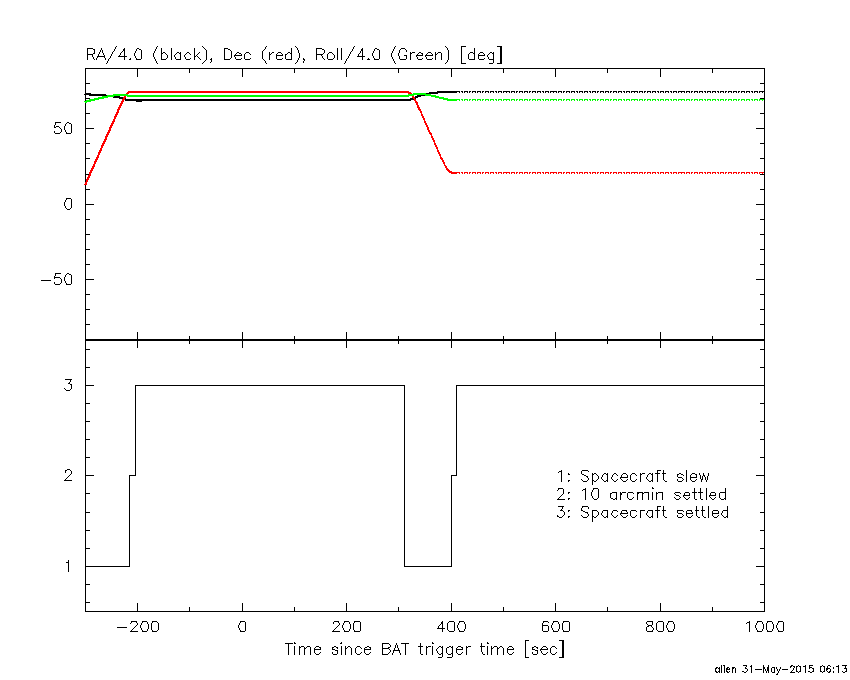

Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-214.731400 -2.592000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4152 35.3414 1.5 40.5 -171.1 2.0124 7.5 2.1 Her X-1
299.5773 35.2094 0.6 41.1 131.6 8.9936 17.8 0.8 Cyg X-1
308.1010 41.0058 3.4 36.8 119.2 1.5672 3.4 3.2 Cyg X-3
258.9515 30.0997 2.5 45.2 -177.6 1.4651 4.6 ------ UNKNOWN
239.1568 19.9465 3.4 57.9 -156.8 3.9803 3.4 ------ UNKNOWN
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-2.592000 35.736000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.5796 35.2397 7.3 40.5 -171.3 0.1534 1.6 8.6 Her X-1
299.5985 35.2347 8.3 41.1 131.5 -0.2758 -1.4 2.0 Cyg X-1
307.9541 40.8857 7.9 36.9 119.5 0.2465 1.5 8.1 Cyg X-3
59.2889 47.6390 2.3 55.5 11.2 1.7835 5.1 ------ UNKNOWN
163.6264 69.0639 1.0 30.0 -58.9 0.9975 11.3 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
400.068590 962.683300
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4658 35.2974 4.0 41.1 -66.2 3.6517 2.9 2.7 Her X-1
268.2938 -1.4055 3.4 37.1 -129.7 2.1955 3.4 5.3 SW J1753.5-0127
270.3058 -25.0771 6.4 53.6 -154.2 2.2728 1.8 1.2 GX 5-1
270.3258 -25.7510 4.9 54.1 -154.7 3.0896 2.3 1.3 GRS 1758-258
274.0279 -14.0040 2.8 42.4 -149.7 2.8745 4.1 2.3 GX 17+2
275.9279 -30.5190 5.8 55.8 -162.8 -3.0133 -2.0 9.1 H1820-303
284.9241 -24.9281 15.0 47.7 -169.6 0.6052 0.8 6.1 HT1900.1-2455
288.7881 10.9661 0.6 13.7 -141.5 6.9501 19.9 1.4 GRS 1915+105
299.5976 35.2084 0.1 14.3 -3.0 27.8432 80.7 0.5 Cyg X-1
308.1252 40.9539 1.0 21.6 13.5 4.0170 11.1 0.7 Cyg X-3
326.2381 38.2099 4.0 29.5 41.5 1.4187 2.9 7.4 Cyg X-2
317.9565 18.9386 3.2 18.3 86.3 1.3889 3.6 ------ UNKNOWN
298.7561 43.8189 2.9 22.9 -6.1 1.4534 4.0 ------ UNKNOWN
300.9529 57.2693 3.3 36.4 -4.2 1.8556 3.5 ------ UNKNOWN
253.6559 27.6558 2.6 41.3 -77.9 7.1444 4.4 ------ UNKNOWN
257.7452 2.9571 2.5 43.6 -115.1 8.0535 4.6 ------ UNKNOWN
Plot creation:
Sun May 31 06:15:03 EDT 2015
