batgrbproduct analysis for trigger=325268

batgrbproduct Analysis for Trigger=325268

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 22:25:49 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger325268
======================================================================

  Trigger: 00325268      Segment: 000

  BAT Trigger Time: 243475516.16   [s; MET]
      Trigger Stop: 243475516.672   [s; MET]
               UTC: 2008-09-19T00:05:13.051580    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 265.288933640242   Dec: -42.3961038809504  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    6.57
     Image Trigger?:     NO
     Rate S/N Ratio:     26  [ if not an image trigger ]
     Image S/N Ratio:    6.57

  Flight Position:   [ source = BAT ]
    RA: 265.288933640242   Dec: -42.3961038809504  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 265.227296792695   Dec: -42.3700466440115  [deg; J2000]
        { 17h 40m 54.6s , -42d 22' 12.2" }
         +/- 1.91305287867778 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.921355200917208 [arcmin] (formal 1-sigma fit error)
    SNR: 12.0406871816966

  Angular difference between Flight and Ground position is 3.147461 arcmin

  Partial Coding Fraction: 0.9921875    [ including projection effects ]

  Duration
     T90: 0.599999994039536 +/- 0.0840951674734262
        Measured from: 0.120000004768372
                   to: 0.719999998807907     [s; relative to TRIGTIME]
     T50: 0.328000009059906 +/- 0.0850411706287281
        Measured from: 0.236000001430511
                   to: 0.564000010490417     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.0740000009536743
                   to: 0.925999999046326     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.0920000076293945
                   to: 0.759999990463257     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.020270   0.034365   0.034188   0.017558
           0.004887   0.004805   0.004340   0.003786 [error]
 Peak      0.022026   0.038715   0.038705   0.018690
           0.005849   0.005682   0.005072   0.004433 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.03e-09 1.30e-08 2.69e-08 1.42e-07 7.25e-08 1.87e-07   erg/cm2
              Error 1.59e-09 2.38e-09 4.06e-09 5.35e-08 1.08e-08 5.48e-08   erg/cm2
Peak flux Power-law 1.83e-01 2.52e-01 2.56e-01 4.73e-01 8.43e-01 1.16e+00   ph/cm2/s
              Error 6.06e-02 4.99e-02 4.00e-02 1.70e-01 1.30e-01 1.87e-01   ph/cm2/s

Fluence   Cutoff-PL 5.09e-09 1.31e-08 2.69e-08 1.39e-07 7.24e-08 1.84e-07   erg/cm2
              Error 1.62e-09 2.38e-09 4.06e-09 6.78e-08 1.08e-08 5.54e-08   erg/cm2
Peak flux Cutoff-PL 1.84e-01 2.53e-01 2.56e-01 4.67e-01 8.43e-01 1.16e+00   ph/cm2/s
              Error 5.12e-02 5.10e-02 4.35e-02 2.38e-01 1.31e-01 2.56e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.949    0.267    -      -           9.86e-03 1.41e-03   51.820 57
CPL   0.943    0.501    10000.0    0.0      9.92e-03 1.40e-03   51.840 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.977    0.277    -      -           7.33e-03 1.11e-03   62.100 57
CPL   0.974    0.328    9999.4    0.0      7.37e-03 7.12e-03   62.110 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.640000 sec.
T50 in the 50-300 keV band: 0.320000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.668    0.092    0.760
T90     0.600    0.120    0.720
T50     0.328    0.236    0.564
Peak    1.000   -0.074    0.926

Click here for the BAT GCN circular template

Special notes of this burst

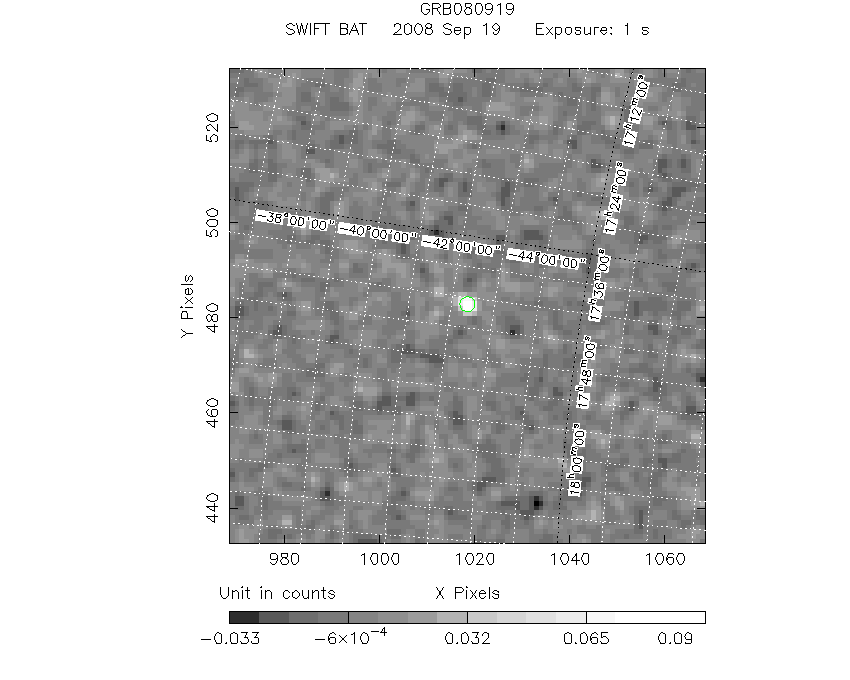

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  265.2273   -42.3700   0.0159    16.2770  -177.4286         0.1061385     12.041 TRIG_00325268

Foreground time interval of the image:
  0.092   0.760 (delta_t =   0.668 [sec])
Background time interval of the image:
-179.459   0.092 (delta_t = 179.551 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

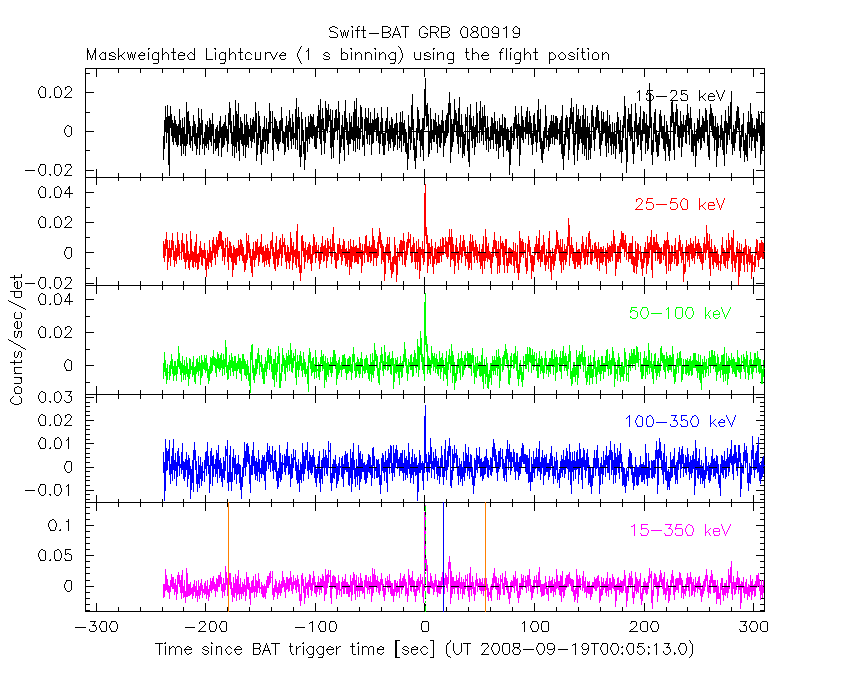

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

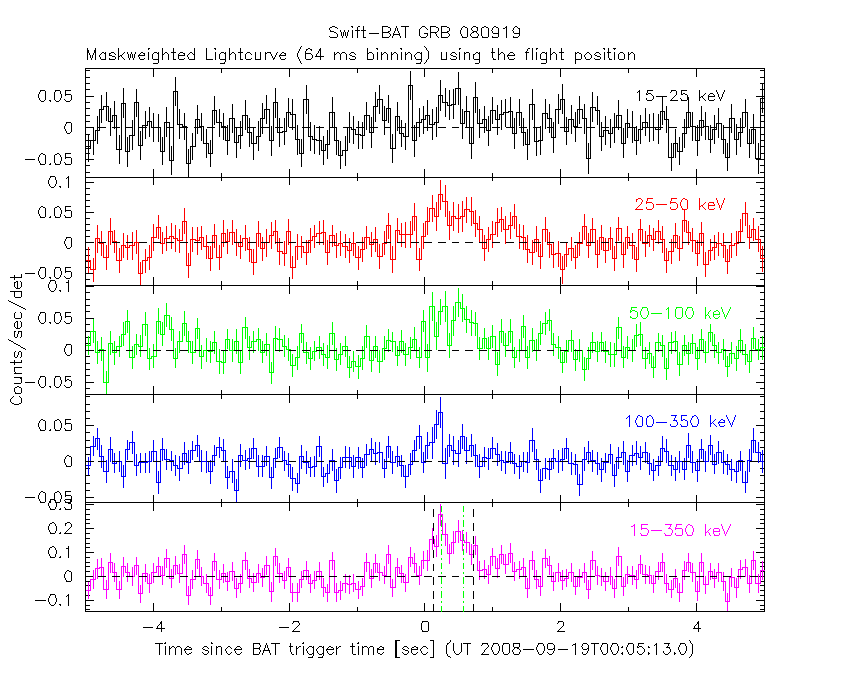

From T0-5 sec to T0+5 sec

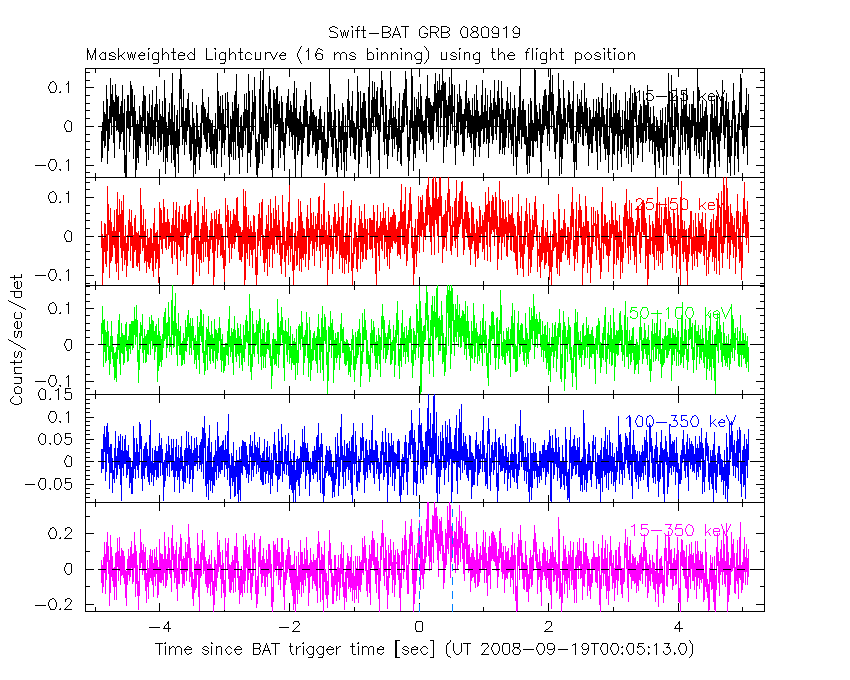

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

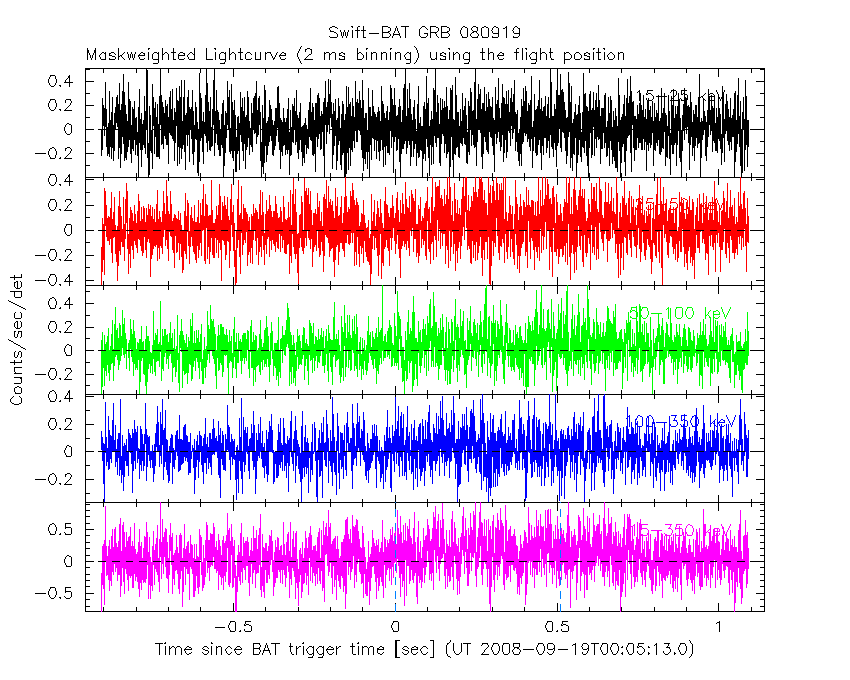

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

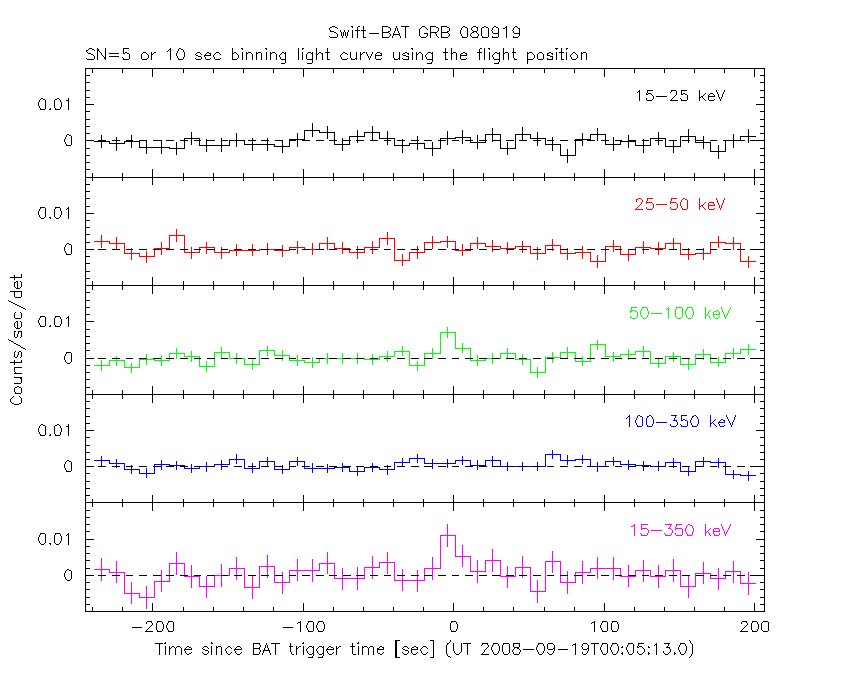

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

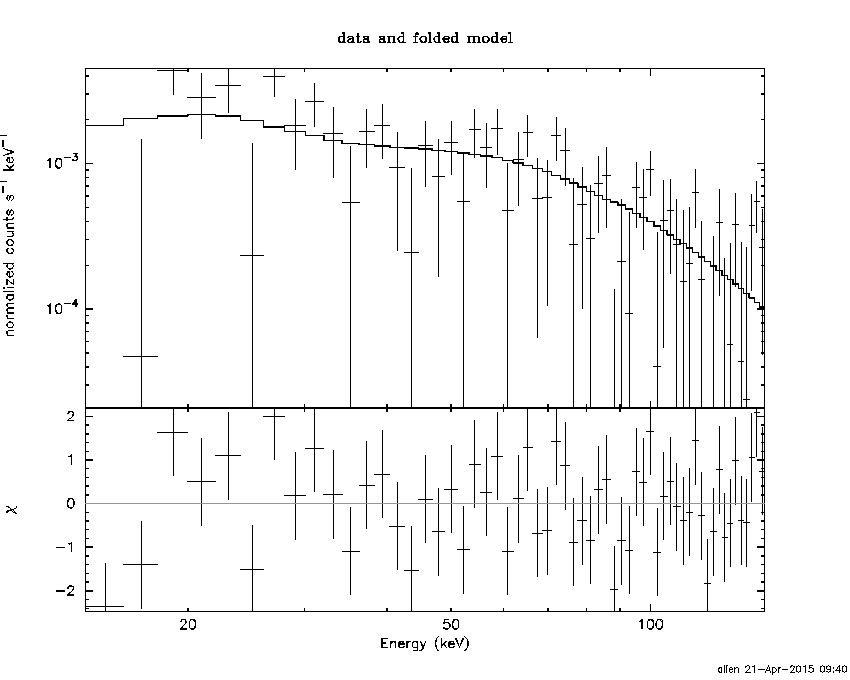

Power-law model

Time interval is from    0.092 sec. to    0.760 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.949078     ( -0.276205   0.258528 )
Norm@50keV  : 9.85758E-03    ( -0.00142475   0.00140456 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.82 using 59 PHA bins.
# Reduced chi-squared =         0.9092 for     57 degrees of freedom
# Null hypothesis probability =   6.690865e-01

Photon flux (15-150 keV)    in 0.668 sec: 1.13251 ( -0.164525  0.165412 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.25341e-08 ( -1.07547e-08  1.08385e-08 ) ergs/cm2

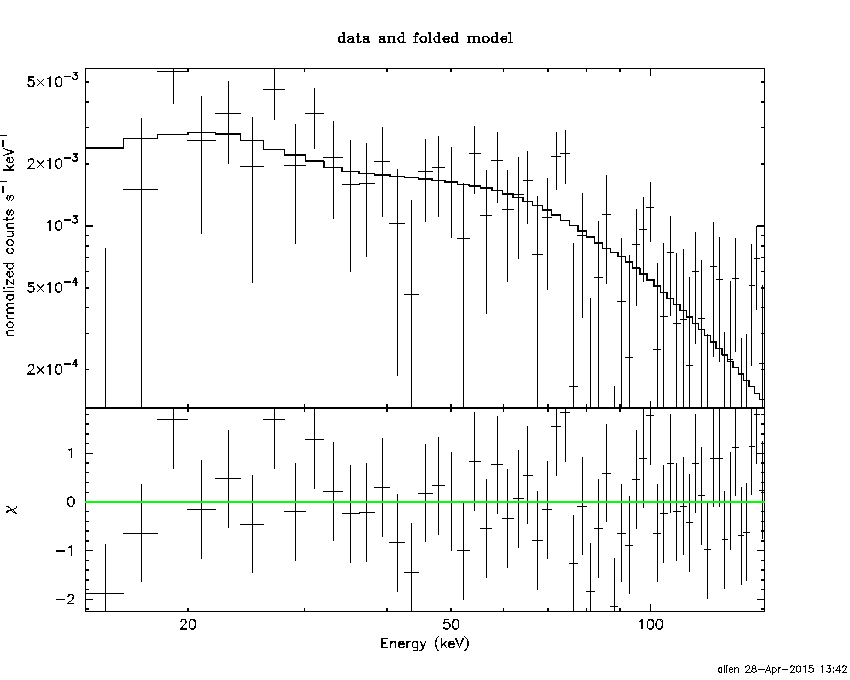

Cutoff power-law model

Time interval is from    0.092 sec. to    0.760 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.943279     ( -0.681213   0.3215 )
Epeak [keV] : 1.00000E+04      (   )
Norm@50keV  : 9.91883E-03    ( -0.00142942   0.00136223 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.84 using 59 PHA bins.
# Reduced chi-squared =         0.9257 for     56 degrees of freedom
# Null hypothesis probability =   6.330940e-01

Photon flux (15-150 keV)    in 0.668 sec: 1.13482 ( -0.167111  0.16299 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.23925e-08 ( -1.06114e-08  1.09038e-08 ) ergs/cm2

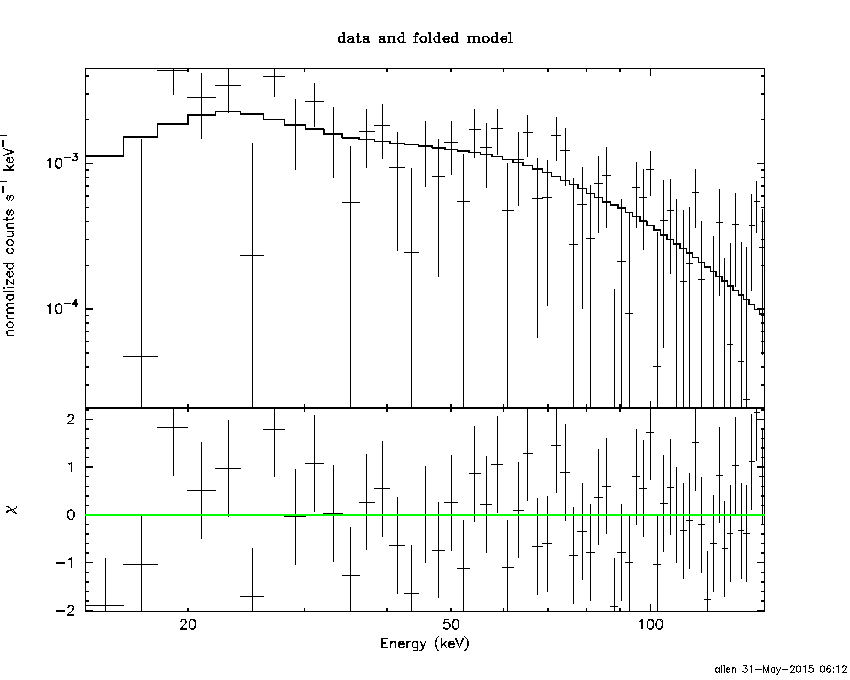

Band function

Time interval is from    0.092 sec. to    0.760 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -4.96295   -4.96295 )
beta        : -1.02958    ( -0.309928   0.304153 )
Epeak [keV] : 28.2902      ( -28.2902 10.7729 )
Norm@50keV   : 321.264    ( -43.9231   1.8174e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.51 using 59 PHA bins.
# Reduced chi-squared =         0.9185 for     55 degrees of freedom
# Null hypothesis probability =   6.464627e-01

Photon flux (15-150 keV)    in 0.668 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

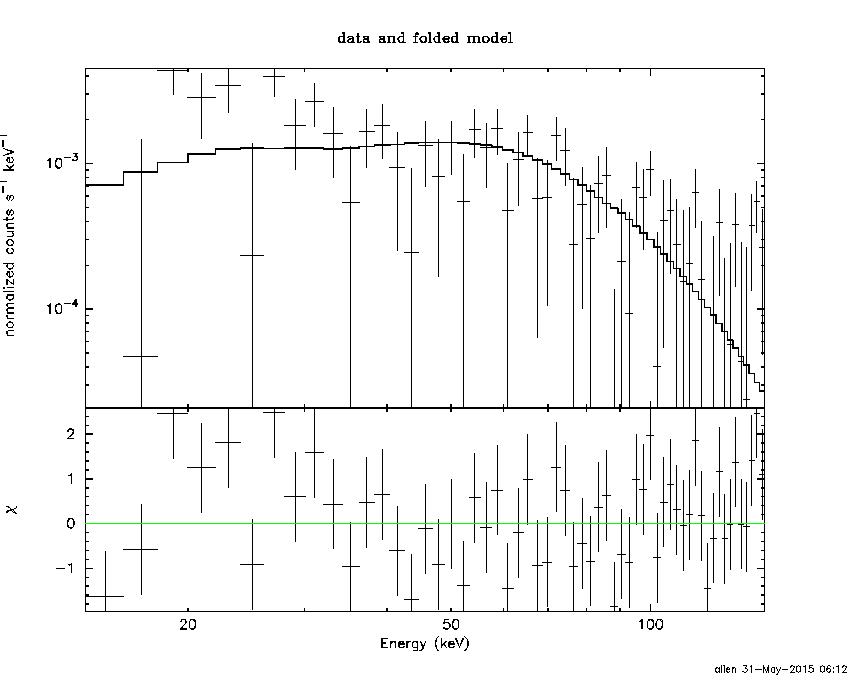

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 23.7084  (-4.85786  7.07235)
R^2/D10^2   : 3.12741E-02  (-0.0168666   0.0329147)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.00 using 59 PHA bins.
# Reduced chi-squared =          1.140 for     57 degrees of freedom
# Null hypothesis probability =   2.181874e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.097e-09   6.379e-10
25- 50  1.157e-08   3.306e-09
50-150  4.849e-08   1.247e-08
15-150  6.215e-08   1.495e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 4.69688       (-0.682468     0.682409)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.04 using 59 PHA bins.
# Reduced chi-squared =          1.176 for     57 degrees of freedom
# Null hypothesis probability =   1.706396e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.815e-09   4.486e-09
25- 50  1.503e-08   8.313e-09
50-150  3.297e-08   1.842e-08
15-150  5.582e-08   3.113e-08

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.84179        (-3.98746      6.22689)
R1^2/D10^2  : 0.347467        (      )
kT2 [keV]   : 69.1869        (-39.4969      -70.6871)
R2^2/D10^2  : 1.52736E-03    (-0.00106758   0.0107162)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.13 using 59 PHA bins.
#Fit statistic : Chi-Squared =          50.22 using 59 PHA bins.
# Reduced chi-squared =         0.9296 for     55 degrees of freedom
# Reduced chi-squared =         0.9130 for     55 degrees of freedom
# Null hypothesis probability =   6.233303e-01
# Null hypothesis probability =   6.576507e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.211e-09   3.236e-09
25- 50  1.313e-08   7.351e-09
50-150  5.200e-08   2.996e-08
15-150  7.034e-08   3.781e-08

Peak spectrum fit

Power-law model

Time interval is from   -0.074 sec. to    0.926 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.976523     ( -0.285715   0.267605 )
Norm@50keV  : 7.32970E-03    ( -0.00111484   0.0011018 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.10 using 59 PHA bins.
# Reduced chi-squared =          1.090 for     57 degrees of freedom
# Null hypothesis probability =   2.993229e-01

Photon flux (15-150 keV)    in 1 sec: 0.842909 ( -0.129673  0.130533 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.99291e-08 ( -1.25181e-08  1.26295e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.074 sec. to    0.926 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.974145     ( -0.389283   0.267182 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 7.37487E-03    ( -0.00109989   0.013145 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.11 using 59 PHA bins.
# Reduced chi-squared =          1.109 for     56 degrees of freedom
# Null hypothesis probability =   2.677402e-01

Photon flux (15-150 keV)    in 1 sec: 0.843246 ( -0.132612  0.129089 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.98882e-08 ( -1.32459e-08  1.26018e-08 ) ergs/cm2

Band function

Time interval is from   -0.074 sec. to    0.926 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.95780   ( -4.9578   -4.9578 )
beta        : -1.11224    ( -0.337571   0.32541 )
Epeak [keV] : 30.9479      ( -30.9479 9.39246 )
Norm@50keV   : 140.175    ( -20.2411   1.19944e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.81 using 59 PHA bins.
# Reduced chi-squared =          1.087 for     55 degrees of freedom
# Null hypothesis probability =   3.053850e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 22.4534  (-4.57562  6.56392)
R^2/D10^2   : 2.75162E-02  (-0.0149142   0.0293752)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.77 using 59 PHA bins.
# Reduced chi-squared =          1.259 for     57 degrees of freedom
# Null hypothesis probability =   9.009757e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.543e-09   8.050e-10
25- 50  1.361e-08   3.514e-09
50-150  5.127e-08   1.560e-08
15-150  6.743e-08   1.766e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 3.51042       (-0.538888     0.538783)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.55 using 59 PHA bins.
# Reduced chi-squared =          1.308 for     57 degrees of freedom
# Null hypothesis probability =   5.927016e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.747e-09   4.980e-09
25- 50  1.683e-08   9.505e-09
50-150  3.690e-08   2.054e-08
15-150  6.248e-08   3.489e-08

Double BB

R1^2/D10^2  : 0.249565        (      )
kT2 [keV]   : 57.7183        (-16.4411      -58.9117)
R2^2/D10^2  : 1.59789E-03    (-0.00122763   0.00892316)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.77 using 59 PHA bins.
#Fit statistic : Chi-Squared =          60.78 using 59 PHA bins.
#Fit statistic : Chi-Squared =          60.76 using 59 PHA bins.
# Reduced chi-squared =          1.305 for     55 degrees of freedom
# Reduced chi-squared =          1.105 for     55 degrees of freedom
# Reduced chi-squared =          1.105 for     55 degrees of freedom
# Null hypothesis probability =   6.397613e-02
# Null hypothesis probability =   2.754532e-01
# Null hypothesis probability =   2.762227e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.949078     ( -0.276205   0.258528 )
Norm@50keV  : 9.85758E-03    ( -0.00142475   0.00140456 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.82 using 59 PHA bins.
# Reduced chi-squared =         0.9092 for     57 degrees of freedom
# Null hypothesis probability =   6.690865e-01

Photon flux (15-150 keV)    in 0.668 sec: 1.13251 ( -0.164525  0.165412 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.25341e-08 ( -1.07547e-08  1.08385e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.943279     ( -0.681213   0.3215 )
Epeak [keV] : 1.00000E+04      (   )
Norm@50keV  : 9.91883E-03    ( -0.00142942   0.00136223 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.84 using 59 PHA bins.
# Reduced chi-squared =         0.9257 for     56 degrees of freedom
# Null hypothesis probability =   6.330940e-01

Photon flux (15-150 keV)    in 0.668 sec: 1.13482 ( -0.167111  0.16299 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.23925e-08 ( -1.06114e-08  1.08396e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -4.96295   -4.96295 )
beta        : -1.02958    ( -0.309928   0.304153 )
Epeak [keV] : 28.2902      ( -28.2902 10.7729 )
Norm@50keV   : 321.264    ( -43.9231   1.8174e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.51 using 59 PHA bins.
# Reduced chi-squared =         0.9185 for     55 degrees of freedom
# Null hypothesis probability =   6.464627e-01

Photon flux (15-150 keV)    in 0.668 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.30e-08
S(50-100 keV) = 2.69e-08

T90 vs. Hardness ratio plot

T90                                   = 0.599999994039536 sec.
Hardness ratio (energy fluence ratio) = 2.06923

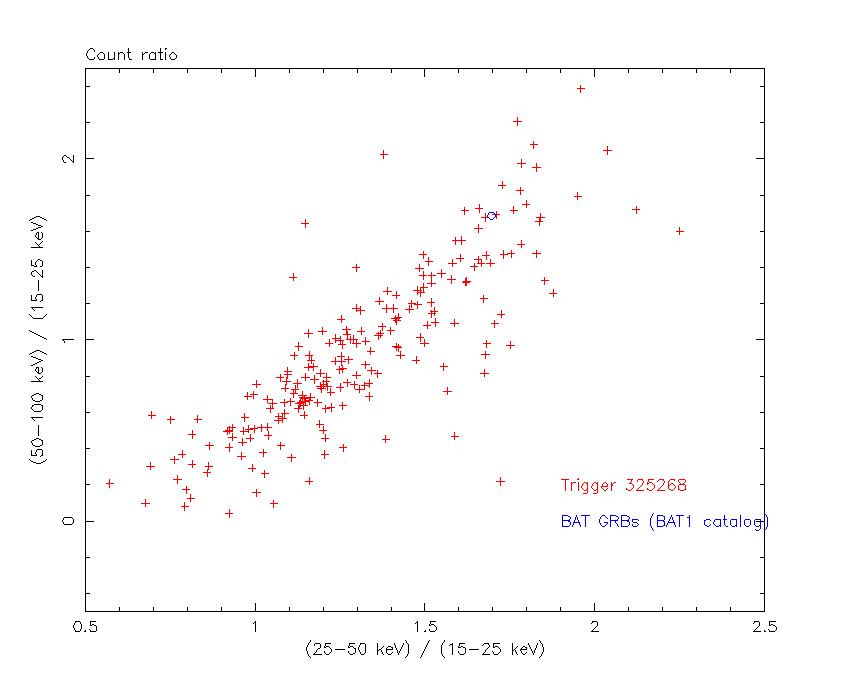

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.69536
Count Ratio (50-100 keV) / (15-25 keV) = 1.68663

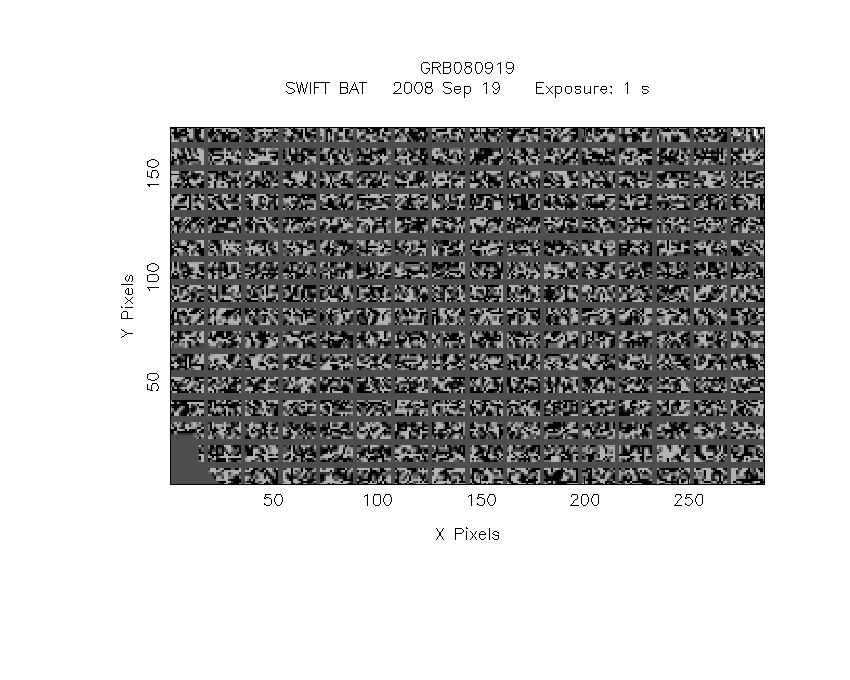

Mask shadow pattern

IMX = -2.916905386315400E-01, IMY = 1.309972520275702E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

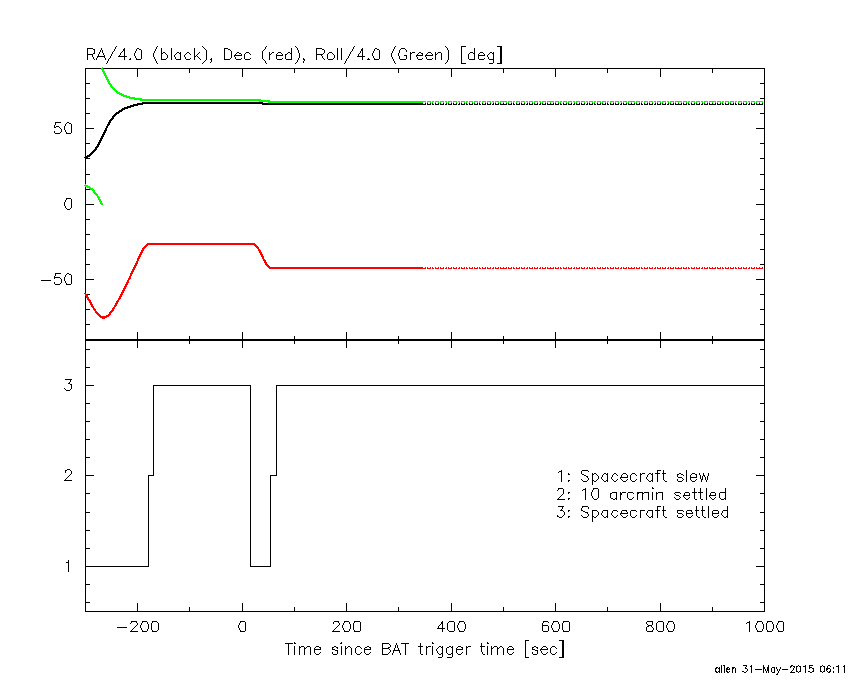

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-179.459360 0.092000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9810 -15.6443    0.3  24.4  -75.0   9.4795  43.5    0.3	Sco X-1
255.9589 -37.8532    8.2  15.7 -146.7   0.2137   1.4    1.4	4U 1700-377
256.4227 -36.4014    2.5  14.4 -143.5   0.7202   4.6    1.4	GX 349+2
263.0269 -24.8792    4.8   5.2  -81.3   0.3865   2.4    8.1	GX 1+4
264.8915 -44.3623  202.5  18.3 -177.9  -0.0096  -0.1    8.3	4U 1735-44
268.3386  -1.4492    1.6  24.9   -6.7   1.2274   7.1    1.8	SW J1753.5-0127
270.3634 -24.9501    4.4   2.1   44.0   0.4158   2.6    8.9	GX 5-1
270.2174 -25.7299    3.2   1.6   62.4   0.5813   3.6    4.7	GRS 1758-258
273.9860 -14.0325    1.4  13.3   17.3   1.2730   8.2    1.2	GX 17+2
275.8713 -30.3842    2.0   7.6  117.7   0.9069   5.9    3.0	H1820-303
285.0554 -24.9528    5.6  14.9   82.1   0.3693   2.1    2.2	HT1900.1-2455
288.8198  10.9484    2.2  42.2   24.2   1.6670   5.3    1.3	GRS 1915+105
262.9640 -33.8378    1.8   8.9 -154.8   0.9735   6.3    1.3	GX 354-0
289.4577  19.7286    2.8  50.3   19.6   2.0486   4.1 ------	UNKNOWN
289.7864  12.5629    2.9  44.0   24.3   1.3329   3.9 ------	UNKNOWN
242.2216 -66.0501    2.7  43.0 -170.9   1.0489   4.3 ------	UNKNOWN
261.1584  -2.0146    2.2  25.3  -23.7   0.8334   5.3 ------	UNKNOWN
255.7088  -7.0780    2.5  22.8  -40.9   0.8007   4.7 ------	UNKNOWN
213.5665 -57.0339    2.6  49.3 -150.2   1.9053   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.092000 0.760000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0260 -15.5095    5.0  24.4  -74.7  -0.0279  -2.3    8.3	Sco X-1
255.7870 -37.8825    7.3  15.8 -146.4   0.0130   1.6    9.7	4U 1700-377
256.4236 -36.4101    9.3  14.4 -143.5   0.0105   1.2    1.0	GX 349+2
263.1674 -24.7975   14.5   5.1  -80.0   0.0069   0.8    9.2	GX 1+4
264.7710 -44.4580  211.9  18.4 -177.6  -0.0005  -0.1    1.3	4U 1735-44
268.3101  -1.3228    2.6  25.0   -6.8   0.0442   4.5    8.5	SW J1753.5-0127
270.3458 -25.2134   12.3   2.0   49.6   0.0086   1.0    8.7	GX 5-1
270.4211 -25.7700   17.2   1.8   65.9  -0.0070  -0.8    6.6	GRS 1758-258
273.9920 -14.1474    4.7  13.2   17.5  -0.0219  -2.4    6.7	GX 17+2
275.9620 -30.2194    8.2   7.6  116.3  -0.0126  -1.4    9.1	H1820-303
285.2036 -25.0153    6.8  15.1   82.5   0.0165   1.7   10.7	HT1900.1-2455
288.7585  11.0006   36.5  42.2   24.1  -0.0059  -0.3    4.1	GRS 1915+105
263.1824 -33.7674    6.2   8.8 -155.5  -0.0159  -1.9   10.4	GX 354-0
303.8371   6.8229    2.4  47.6   44.7   0.2055   4.8 ------	UNKNOWN
303.4407   7.8431    2.2  48.1   43.3   0.2283   5.2 ------	UNKNOWN
265.2274 -42.3700    1.0  16.3 -177.4   0.1061  11.9 ------	UNKNOWN
259.0569  31.8920    2.8  58.9  -15.6   0.2362   4.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
54.940590 962.917000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6436 -62.7940    2.5  48.2 -144.9   6.7446   4.6    1.5	GX 301-2
244.9722 -15.6448    0.2  31.9  -41.0  50.0373  68.4    0.5	Sco X-1
255.9857 -37.8097    3.3   8.5  -62.1   2.0162   3.5    2.1	4U 1700-377
256.4183 -36.3978    1.6   9.1  -53.6   4.2751   7.1    1.7	GX 349+2
262.9594 -24.8405    3.7  17.6   -8.8   1.7816   3.1    6.3	GX 1+4
264.6716 -44.4331    7.9   2.1 -169.7   0.9111   1.5    3.2	4U 1735-44
268.3789  -1.4114    2.6  41.1    2.9   3.9357   4.4    2.6	SW J1753.5-0127
270.2887 -25.0821  123.0  17.8   13.2   0.0532   0.1    0.3	GX 5-1
270.3026 -25.7430    4.0  17.1   13.7   1.6767   2.9    0.0	GRS 1758-258
273.9798 -14.0518    1.3  29.3   15.6   5.8316   8.8    1.8	GX 17+2
275.8922 -30.4354    3.5  14.7   37.0   1.9612   3.3    4.4	H1820-303
285.1685 -25.0502   14.8  23.8   47.9   0.5698   0.8   10.6	HT1900.1-2455
262.9698 -33.8383    1.6   8.7  -14.6   4.0819   7.2    1.0	GX 354-0
338.5211 -61.6803    3.3  46.0  139.1   8.4053   3.5 ------	UNKNOWN
283.5952 -16.9947    2.7  29.8   35.4   2.8790   4.3 ------	UNKNOWN
243.6341 -84.1233    3.1  42.2 -178.6   3.4042   3.7 ------	UNKNOWN
255.1519 -41.6742    1.6   7.6  -89.8   3.8511   7.2 ------	UNKNOWN
213.0649 -34.2178    3.2  41.1  -98.2  13.1254   3.6 ------	UNKNOWN

Plot creation:
Sun May 31 06:13:17 EDT 2015
