batgrbproduct analysis for trigger=330353

batgrbproduct Analysis for Trigger=330353

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This page will be updated for up to 8 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.41
    Process Start Time (local time): Fri Oct  3 19:02:29 EDT 2008
             Host Name: gcn5
   Current Working Dir: /local/data/raid2/prebascript/trigger330353/GCN5_download_cron
======================================================================

  Trigger: 00330353      Segment: 000

  BAT Trigger Time: 244718892.024   [s; MET]
      Trigger Stop: 244718892.088   [s; MET]
               UTC: 2008-10-03T09:28:08.878460    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 237.711315745411   Dec: -54.3193323736566  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.49
     Image Trigger?:     NO
     Rate S/N Ratio:     24.2487113059643  [ if not an image trigger ]
     Image S/N Ratio:    12.49

  Flight Position:   [ source = BAT ]
    RA: 237.711315745411   Dec: -54.3193323736566  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 237.856536437009   Dec: -54.4460064770027  [deg; J2000]
        { 15h 51m 25.6s , -54d 26' 45.6" }
         +/- 8.35798274186355 [arcmin] (estimated 90% radius based on SNR)
         +/- 7.73295957271479 [arcmin] (formal 1-sigma fit error)
    SNR: 1.46497618796714

  Angular difference between Flight and Ground position is 9.138678 arcmin

  Partial Coding Fraction: 0.953125    [ including projection effects ]

  Duration
     T90: 615.06400001049 +/- 264.583602352755
        Measured from: -2.46399989724159
                   to: 612.600000113249     [s; relative to TRIGTIME]
     T50: 615.06400001049 +/- 368.347903742417
        Measured from: -2.46399989724159
                   to: 612.600000113249     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 523.636000007391
                   to: 524.636000007391     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -2.46399998664856
                   to: 612.600000023842     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.473923   0.174253   0.462314   0.112436
           0.132465   0.124164   0.115849   0.120782 [error]
 Peak      0.086870   0.154902   0.054773  -0.006048
           0.006336   0.006617   0.005218   0.004788 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.10e-07 1.85e-07 2.35e-07 5.99e-07 6.96e-07 1.13e-06   erg/cm2
              Error 5.95e-08 5.71e-08 1.27e-07 8.62e-07 2.84e-07 8.92e-07   erg/cm2
Peak flux Power-law 1.04e+00 8.42e-01 4.59e-01 3.66e-01 2.51e+00 2.67e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s

Fluence   Cutoff-PL 1.10e-07 1.85e-07 2.35e-07 5.93e-07 6.95e-07 1.12e-06   erg/cm2
              Error 5.95e-08 5.72e-08 1.27e-07 8.55e-07 2.84e-07 8.86e-07   erg/cm2
Peak flux Cutoff-PL 6.89e-01 1.18e+00 4.41e-01 1.78e-02 2.32e+00 2.32e+00   ph/cm2/s
              Error 9.91e-02 8.00e-02 5.72e-02 1.19e-02 1.46e-01 1.46e-01   ph/cm2/s

Fluence        Band 1.18e-07 1.79e-07 2.33e-07 5.81e-07 6.91e-07 9.92e-07   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 6.49e-01 1.18e+00 4.31e-01 1.41e-02 2.27e+00 2.27e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.652    0.752    -      -           1.22e-04 4.64e-05   69.510 57
CPL   2.616    0.000     201.2    0.0      4.18e-05 0.00e+00   68.480 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.815    0.000    -      -           1.77e-02 0.00e+00  168.290 57
CPL  -1.732    0.796      43.8    2.3      1.89e+00 2.51e+00   55.310 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 310.080000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  615.064   -2.464  612.600
T90   615.064   -2.464  612.600
T50   615.064   -2.464  612.600
Peak    1.000  523.636  524.636

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  237.8565 -54.4460 0.1300   19.3 -146.2       0.0873     1.5  TRIG_00330353
------------------------------------------

Foreground time interval of the image:
 -2.464  12.777 (delta_t =  15.241 [sec])
Background time interval of the image:
-14.723  -2.464 (delta_t =  12.259 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

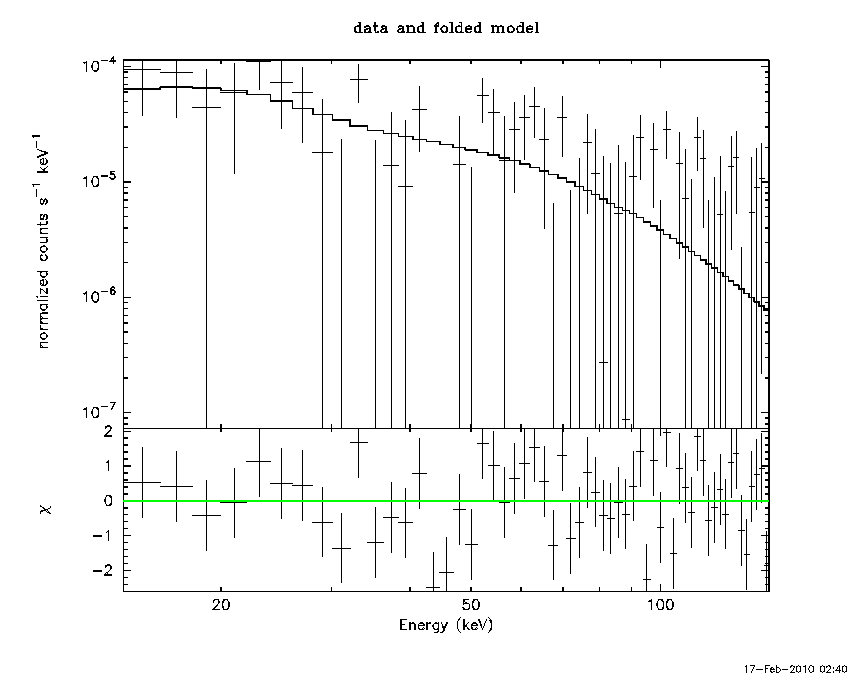

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-2.464000 147.086000
147.976000 386.466000
387.976000 612.600000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.65181     ( -0.709717   0.79439 )
Norm@50keV  : 1.22079E-04    ( -4.97536e-05   4.29649e-05 )
------------------------------------------------------------
# Chi-Squared =          69.51 using 59 PHA bins.
# Reduced chi-squared =          1.220 for     57 degrees of freedom
# Null hypothesis probability =   1.236257e-01

Photon flux (15-150 keV)    in 612.7 sec: 1.59560E-02 ( -0.00491208  0.00491505 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.95623e-07 ( -2.73719e-07  2.94834e-07 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-2.464000 147.086000
147.976000 386.466000
387.976000 612.600000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.61580     (     )
Epeak [keV] : 201.208      (   )
Norm@50keV  : 4.17699E-05    (     )
------------------------------------------------------------
# Chi-Squared =          68.48 using 59 PHA bins.
# Reduced chi-squared =          1.223 for     56 degrees of freedom
# Null hypothesis probability =   1.223455e-01

Photon flux (15-150 keV)    in 612.7 sec: 1.59473E-02 ( -0.0049103  0.0049135 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.95365e-07 ( -2.73724e-07  2.94935e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-2.464000 147.086000
147.976000 386.466000
387.976000 612.600000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.25597   ( 1.2617   1.2617 )
beta        : -1.63429    ( 1.64229   0.700141 )
Epeak [keV] : 30.4819      ( -28.605 -28.605 )
Norm@50keV   : 2.80747E-04    ( -0.000283184   1.60741 )
------------------------------------------------------------
# Chi-Squared =          69.52 using 59 PHA bins.
# Reduced chi-squared =          1.264 for     55 degrees of freedom
# Null hypothesis probability =   9.004391e-02

Photon flux (15-150 keV)    in 612.7 sec: 1.589168E-02 ( -0.00488435  0.00487876 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.90721e-07 ( -2.20719e-07  2.12693e-07 ) ergs/cm2

Peak spectrum fit

Power-law model

Time interval is from  523.636 sec. to  524.636 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.81504     (     )
Norm@50keV  : 1.76737E-02    (     )
------------------------------------------------------------
# Chi-Squared =         168.29 using 59 PHA bins.
# Reduced chi-squared =         2.9524 for     57 degrees of freedom
# Null hypothesis probability =   6.374573e-13

Photon flux (15-150 keV)    in 1 sec: 2.50760 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.62283e-07 ( 0  0 ) ergs/cm2

Cutoff power-law model

Time interval is from  523.636 sec. to  524.636 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.73208     ( -0.853474   0.738465 )
Epeak [keV] : 43.7872      ( -2.15117 2.4213 )
Norm@50keV  : 1.88543    ( -1.16509   3.85352 )
------------------------------------------------------------
# Chi-Squared =          55.31 using 59 PHA bins.
# Reduced chi-squared =         0.9876 for     56 degrees of freedom
# Null hypothesis probability =   5.011096e-01

Photon flux (15-150 keV)    in 1 sec: 2.32305 ( -0.1461  0.1463 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.37648e-07 ( -9.523e-09  9.897e-09 ) ergs/cm2

Band function

Time interval is from  523.636 sec. to  524.636 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.74100   ( -0.615055   0.97589 )
beta        : -9.99952    ( 6678.11   6688.11 )
Epeak [keV] : 43.7078      ( -2.07973 2.49199 )
Norm@50keV   : 1.91722    ( -1.19541   3.80281 )
------------------------------------------------------------
# Chi-Squared =          55.31 using 59 PHA bins.
# Reduced chi-squared =          1.006 for     55 degrees of freedom
# Null hypothesis probability =   4.628416e-01

Photon flux (15-150 keV)    in 1 sec: 2.26725 ( -0.06987  0.13474 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.35457e-07 ( -9.415e-09  8.147e-09 ) ergs/cm2

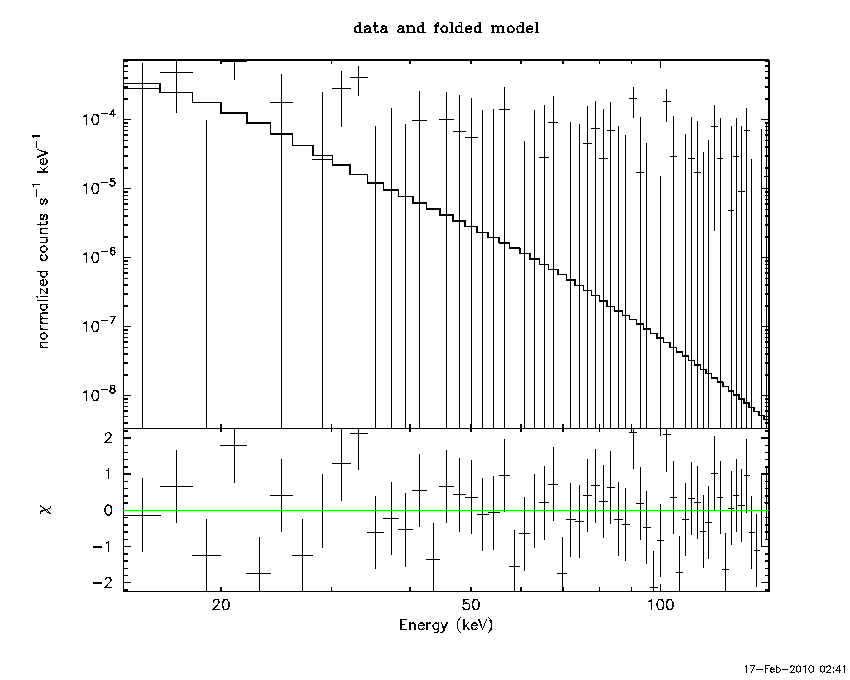

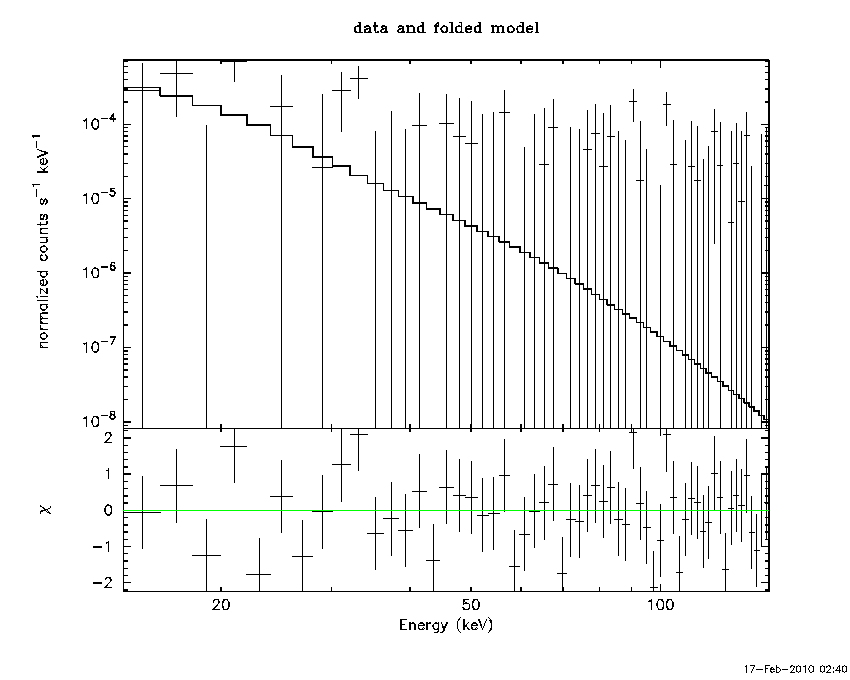

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.17364     ( -4.17727   -4.17727 )
Norm@50keV  : 3.07916E-05    ( -3.05668e-05   0.000292517 )
------------------------------------------------------------
# Chi-Squared =          53.44 using 59 PHA bins.
# Reduced chi-squared =         0.9376 for     57 degrees of freedom
# Null hypothesis probability =   6.093299e-01

Photon flux (15-150 keV)    in 15.24 sec: 2.16198E-02 ( -0.0216198  0.0320491 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.12468e-08 ( -1.12468e-08  3.40285e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.90756     (     )
Epeak [keV] : 0.950965      (   )
Norm@50keV  : 1.87689E-03    (     )
------------------------------------------------------------
# Chi-Squared =          53.51 using 59 PHA bins.
# Reduced chi-squared =         0.9555 for     56 degrees of freedom
# Null hypothesis probability =   5.697737e-01

Photon flux (15-150 keV)    in 15.24 sec: 2.16052E-02 ( -0.0216052  0.0320426 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.12448e-08 ( -1.12448e-08  3.40236e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.97910   ( 5.05184   5.05184 )
beta        : -4.93270    ( 4.72754   4.72754 )
Epeak [keV] : 18.6390      ( -18.639 -18.639 )
Norm@50keV   : 1.91447E-03    ( -0.00275044   0.0411852 )
------------------------------------------------------------
# Chi-Squared =          53.46 using 59 PHA bins.
# Reduced chi-squared =         0.9720 for     55 degrees of freedom
# Null hypothesis probability =   5.336842e-01

Photon flux (15-150 keV)    in 15.24 sec: 2.151528E-02 ( -0.0215153  0.0290744 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.1182e-08 ( -1.1182e-08  3.40349e-08 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.84554e-07
S(50-100 keV) = 2.34838e-07

T90 vs. Hardness ratio plot

T90                                   = 615.06400001049 sec.
Hardness ratio (energy fluence ratio) = 1.27246

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.367682
Count Ratio (50-100 keV) / (15-25 keV) = 0.975504

Mask shadow pattern

IMX = 0, IMY = 0

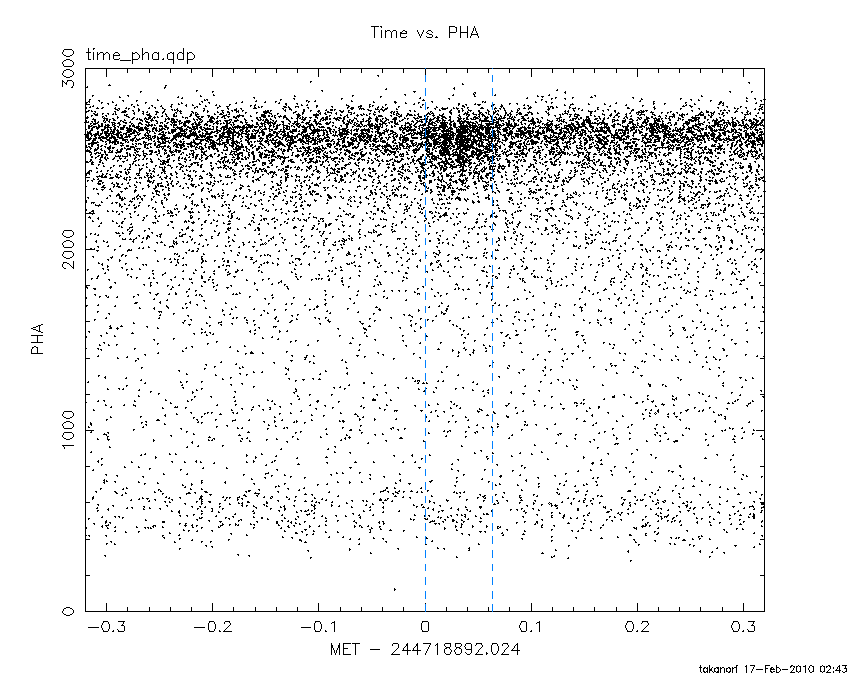

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

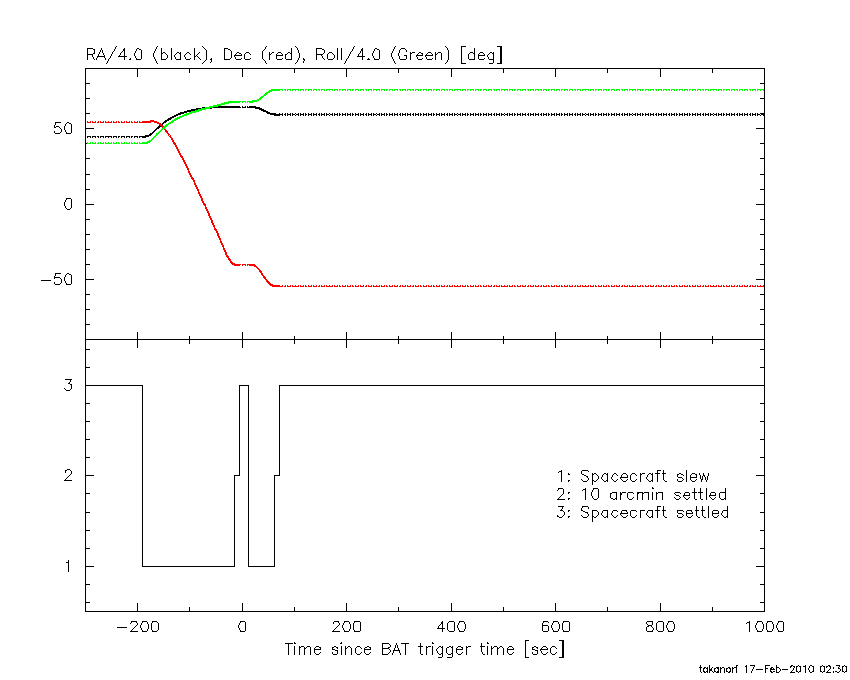

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-14.723400 -2.464000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2368 -60.6501    5.1  54.4 -144.8  -0.4855  -2.3    2.8	Cen X-3
186.5734 -62.6523    6.8  46.4 -145.1  -0.1457  -1.7    7.4	GX 301-2
244.9125 -15.6942    1.0  26.7  -28.9   0.4561  11.3    5.0	Sco X-1
255.9748 -37.6936    5.0   2.6  -23.1   0.0832   2.3    9.0	4U 1700-377
256.4929 -36.4988    5.3   3.7  -10.4   0.0795   2.2    5.3	GX 349+2
263.0203 -24.7988    4.5  16.1   17.7   0.0933   2.6    3.3	GX 1+4
264.6369 -44.4790    2.5   7.0  128.8   0.1636   4.6    4.9	4U 1735-44
268.3767  -1.4549    3.8  40.0   15.8   0.1845   3.0    0.5	SW J1753.5-0127
270.3886 -25.1539    7.4  18.6   38.6  -0.0621  -1.6    7.2	GX 5-1
270.2534 -25.8935   11.3  17.9   39.6   0.0412   1.0    9.4	GRS 1758-258
273.9330 -14.1841    7.8  29.8   32.4  -0.0773  -1.5    9.8	GX 17+2
275.9412 -30.2325   66.6  18.2   61.1  -0.0069  -0.2    8.1	H1820-303
285.1797 -24.8434    7.1  28.0   63.6  -0.0866  -1.6    9.1	HT1900.1-2455
330.3379 -62.7700    3.1  47.6  141.8   0.5990   3.7 ------	UNKNOWN
274.0263  11.6666    2.1  54.1   18.7   1.1946   5.5 ------	UNKNOWN
266.6137 -32.3053    2.3  10.9   45.3   0.1813   4.9 ------	UNKNOWN
150.5113 -81.5191    2.3  52.8 -171.6   0.5028   5.0 ------	UNKNOWN
141.8306 -74.9042    2.2  57.5 -165.6   0.9001   5.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-2.464000 12.776630

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.4111 -60.6272    6.7  54.4 -144.8   0.6038   1.7    2.8	Cen X-3
186.6429 -62.6187   10.8  46.4 -145.1   0.1543   1.1    9.1	GX 301-2
244.8757 -15.7122    4.1  26.6  -29.2  -0.1927  -2.9    7.4	Sco X-1
256.0198 -37.8749    6.2   2.4  -24.8   0.1075   1.8    2.4	4U 1700-377
256.2553 -36.3104    6.1   3.9  -13.4   0.1114   1.9   11.0	GX 349+2
263.0219 -24.7033    5.3  16.2   17.4  -0.1307  -2.2    2.6	GX 1+4
264.6965 -44.4170    4.0   7.0  128.5  -0.1653  -2.9    2.8	4U 1735-44
268.3027  -1.5216   70.8  39.9   15.6   0.0161   0.2    5.7	SW J1753.5-0127
270.2740 -25.0086    7.1  18.6   38.0   0.1055   1.6    4.3	GX 5-1
270.4149 -25.8834    6.5  18.0   39.9  -0.1155  -1.8   10.4	GRS 1758-258
273.9569 -14.1831   11.5  29.8   32.4   0.0841   1.0    9.3	GX 17+2
275.7624 -30.4250    4.3  17.9   61.2   0.1737   2.7    9.1	H1820-303
285.1927 -24.8837    3.5  27.9   63.6   0.2781   3.3    8.8	HT1900.1-2455

Post-slew image of 15-350 keV band

Time interval of the image:
61.176600 147.086000
147.976000 386.466000
387.976000 828.936000
829.976000 962.990900

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3161 -60.6230  595.5  35.2 -161.9  -0.0137  -0.0    0.0	Cen X-3
186.4125 -62.7481    5.2  27.3 -162.4   1.1980   2.2    6.8	GX 301-2
244.9851 -15.6453    0.3  39.1  -22.6  33.1600  43.5    0.4	Sco X-1
256.0115 -37.8593    1.3  20.6   10.9   4.2549   8.7    1.5	4U 1700-377
256.4468 -36.4931    3.0  22.0    9.8   2.0229   3.8    4.2	GX 349+2
263.0808 -24.7699    5.1  35.0    8.9   1.5051   2.2    4.2	GX 1+4
264.7081 -44.5951   13.9  19.9   38.1   0.4564   0.8    8.8	4U 1735-44
270.3934 -25.1269    6.5  37.8   19.0   1.3843   1.8    6.6	GX 5-1
270.3658 -25.7731    4.9  37.3   19.5   1.7976   2.3    3.9	GRS 1758-258
274.0353 -14.0298    6.1  49.2   15.6   2.6913   1.9    1.8	GX 17+2
276.0059 -30.4125    4.0  36.3   30.8   2.3477   2.9    5.0	H1820-303
285.0191 -24.9493    5.6  45.4   35.4   3.2664   2.1    2.0	HT1900.1-2455
266.5711 -32.2294    1.3  30.1   20.8   5.4212   8.7 ------	UNKNOWN
263.0181 -33.7861    1.9  27.1   17.4   3.5829   6.1 ------	UNKNOWN

Plot creation:
Wed Feb 17 02:44:10 EST 2010
