batgrbproduct analysis for trigger=331093

batgrbproduct Analysis for Trigger=331093

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 22:08:14 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger331093
======================================================================

  Trigger: 00331093      Segment: 000

  BAT Trigger Time: 245188692.544   [s; MET]
      Trigger Stop: 245188694.592   [s; MET]
               UTC: 2008-10-08T19:58:09.384500    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 279.987257236876   Dec: -57.4643799585525  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10
     Image Trigger?:     NO
     Rate S/N Ratio:     19.7737199332852  [ if not an image trigger ]
     Image S/N Ratio:    10

  Flight Position:   [ source = BAT ]
    RA: 279.987257236876   Dec: -57.4643799585525  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 279.96819305153   Dec: -57.4375697162417  [deg; J2000]
        { 18h 39m 52.4s , -57d 26' 15.3" }
         +/- 1.00331538982712 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.366707801772723 [arcmin] (formal 1-sigma fit error)
    SNR: 30.2736541930644

  Angular difference between Flight and Ground position is 1.722317 arcmin

  Partial Coding Fraction: 0.8125    [ including projection effects ]

  Duration
     T90: 187.824000030756 +/- 38.2284553731243
        Measured from: -43.3720000088215
                   to: 144.452000021935     [s; relative to TRIGTIME]
     T50: 111.108000010252 +/- 1.9575658398699
        Measured from: 1.50799998641014
                   to: 112.615999996662     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 7.52399998903275
                   to: 8.52399998903275     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -65.8880000114441
                   to: 195.912000000477     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     2.109706   2.870847   1.815992   0.425950
           0.088334   0.085187   0.072912   0.063513 [error]
 Peak      0.039011   0.057280   0.056434   0.007094
           0.006321   0.006272   0.005615   0.004457 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 6.54e-07 1.11e-06 1.45e-06 3.80e-06 4.25e-06 7.01e-06   erg/cm2
              Error 4.51e-08 4.48e-08 7.37e-08 4.28e-07 1.74e-07 4.77e-07   erg/cm2
Peak flux Power-law 3.79e-01 4.19e-01 3.30e-01 4.29e-01 1.29e+00 1.56e+00   ph/cm2/s
              Error 7.98e-02 5.33e-02 4.61e-02 1.27e-01 1.49e-01 1.84e-01   ph/cm2/s

Fluence   Cutoff-PL 6.21e-07 1.14e-06 1.46e-06 2.50e-06 4.15e-06 5.73e-06   erg/cm2
              Error 5.48e-08 5.21e-08 7.77e-08 9.91e-07 2.04e-07 1.04e-06   erg/cm2
Peak flux Cutoff-PL 3.50e-01 4.29e-01 3.42e-01 2.96e-01 1.26e+00 1.42e+00   ph/cm2/s
              Error 9.66e-02 5.89e-02 5.28e-02 2.64e-01 1.57e-01 2.64e-01   ph/cm2/s

Fluence        Band 5.85e-07 1.17e-06 1.42e-06 3.28e-06 4.14e-06 6.46e-06   erg/cm2
              Error -------- 4.52e-08 7.71e-08 5.88e-07 1.93e-07 6.32e-07   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.623    0.071    -      -           1.74e-03 6.69e-05   49.250 57
CPL   1.349    0.284     118.2  955.5      2.39e-03 7.79e-04   46.330 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.343    0.203    -      -           1.07e-02 1.22e-03   54.410 57
CPL   0.989    0.651     152.8    0.0      1.58e-02 0.00e+00   53.730 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 131.392000 sec.
T50 in the 50-300 keV band: 105.472000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  261.800  -65.888  195.912
T90   187.824  -43.372  144.452
T50   111.108    1.508  112.616
Peak    1.000    7.524    8.524

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  279.9682   -57.4376   0.0063    21.4334   143.6024         3.8264819     30.274 TRIG_00331093

Foreground time interval of the image:
-65.888  31.157 (delta_t =  97.045 [sec])
Background time interval of the image:
-755.343 -657.490 (delta_t =  97.854 [sec])
-239.544 -65.888 (delta_t = 173.656 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

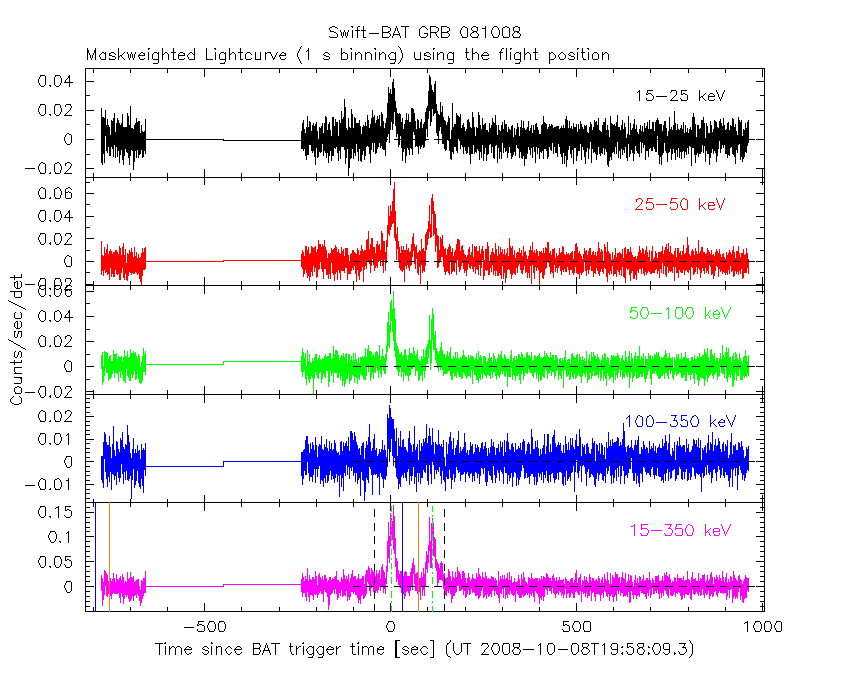

From T0-310 s to T0+310 s

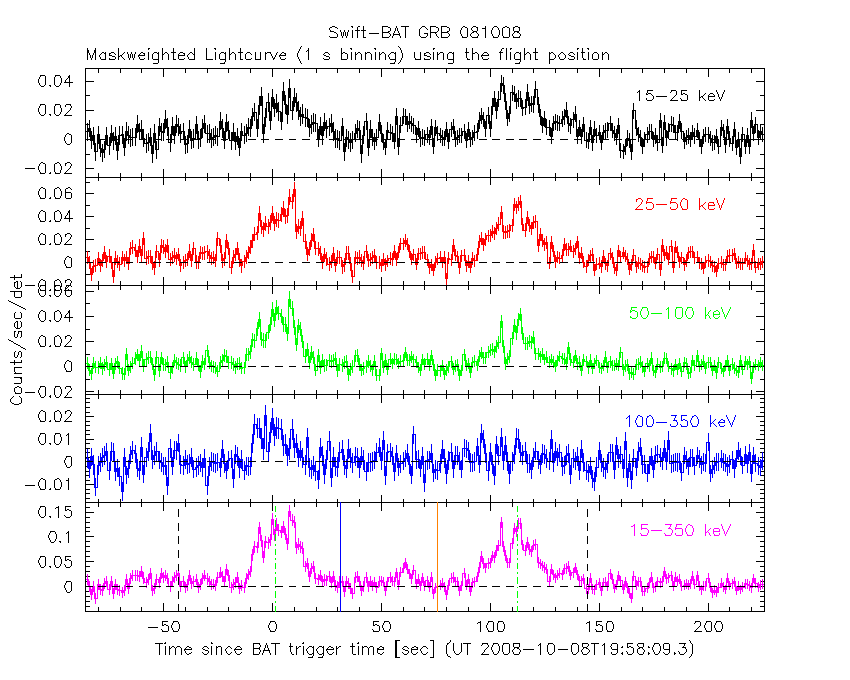

From T100_start - 20 s to T100_end + 30 s

Full time interval

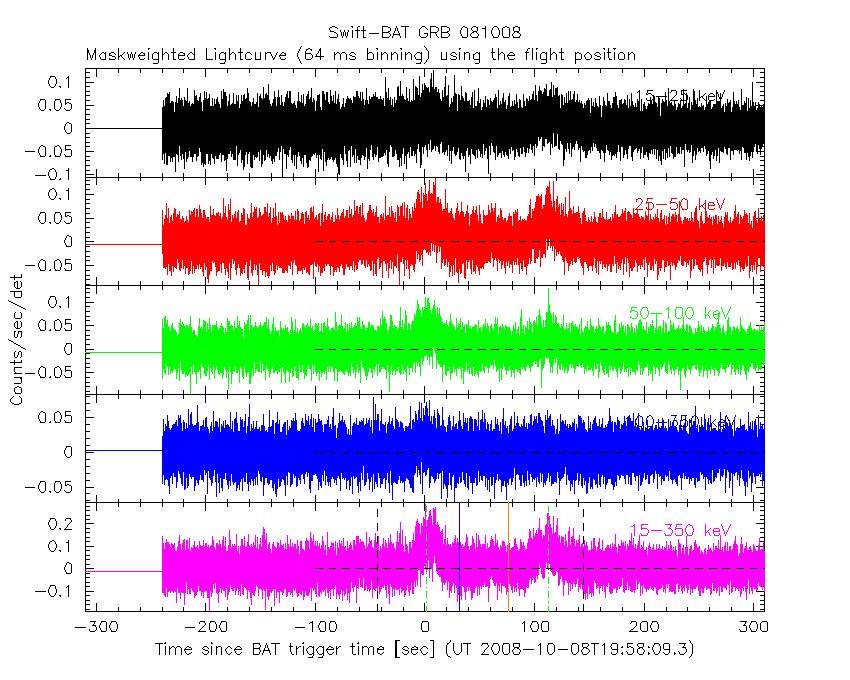

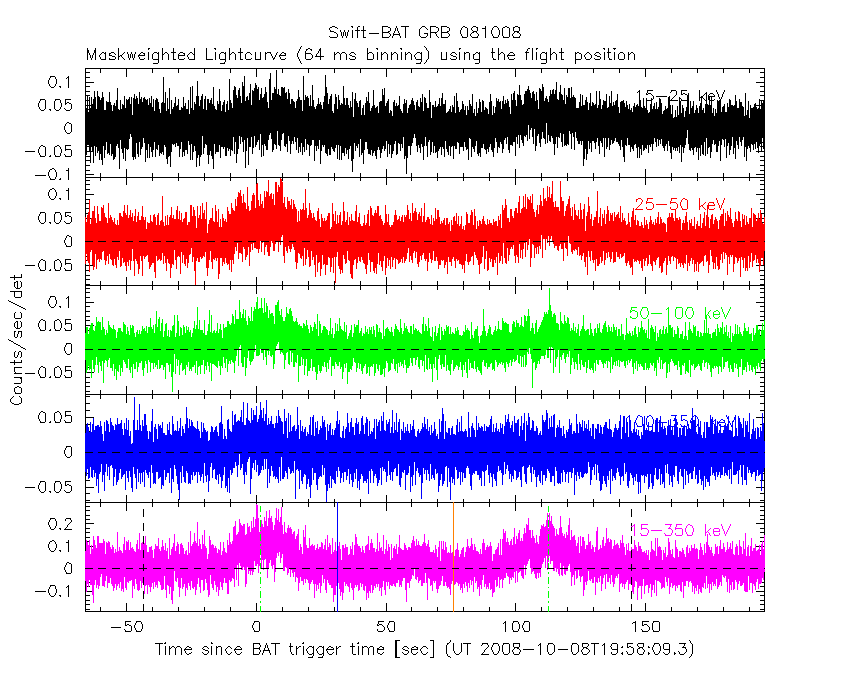

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

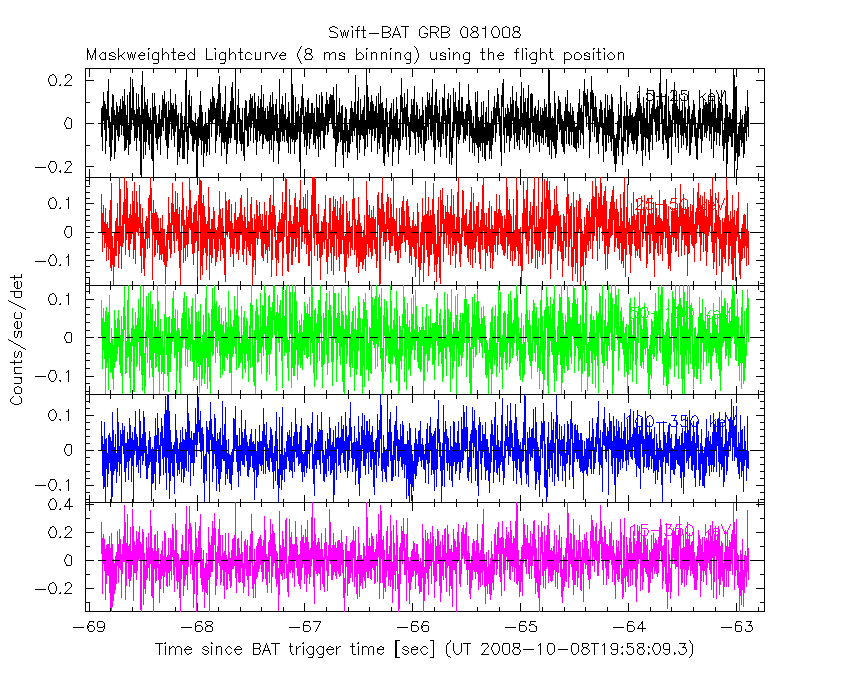

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

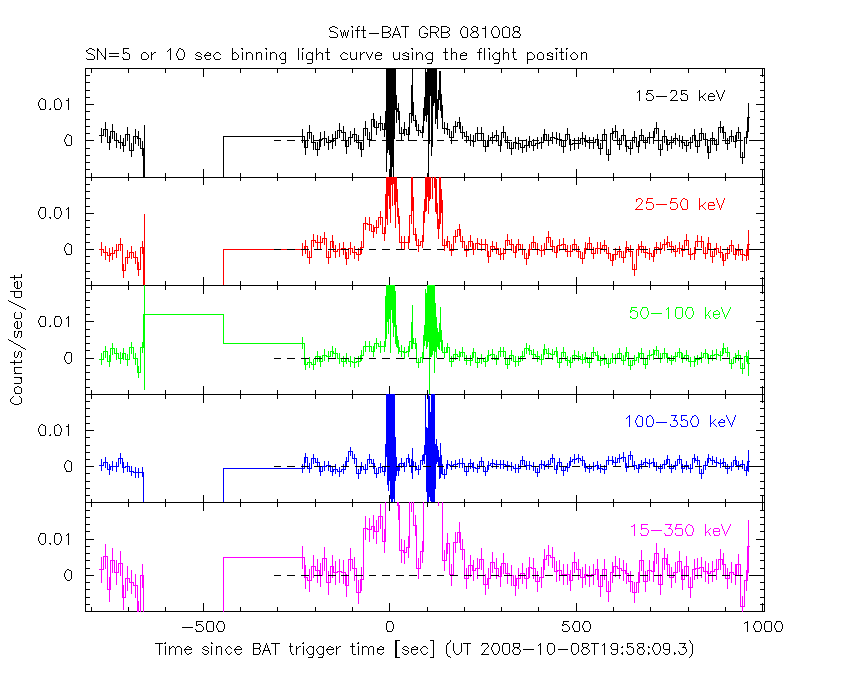

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -65.888 sec. to  195.912 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.62337     ( -0.0710292   0.0712831 )
Norm@50keV  : 1.74187E-03    ( -6.69985e-05   6.68685e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.25 using 59 PHA bins.
# Reduced chi-squared =         0.8640 for     57 degrees of freedom
# Null hypothesis probability =   7.575742e-01

Photon flux (15-150 keV)    in 261.8 sec: 0.225489 ( -0.0089747  0.00899718 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.25318e-06 ( -1.74007e-07  1.74679e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -65.888 sec. to  195.912 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34871     ( -0.293757   0.274026 )
Epeak [keV] : 118.170      ( -37.2307 1873.81 )
Norm@50keV  : 2.38834E-03    ( -0.000624538   0.000934056 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.33 using 59 PHA bins.
# Reduced chi-squared =         0.8273 for     56 degrees of freedom
# Null hypothesis probability =   8.181732e-01

Photon flux (15-150 keV)    in 261.8 sec: 0.221304 ( -0.009831  0.009848 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.14882e-06 ( -2.04204e-07  2.03392e-07 ) ergs/cm2

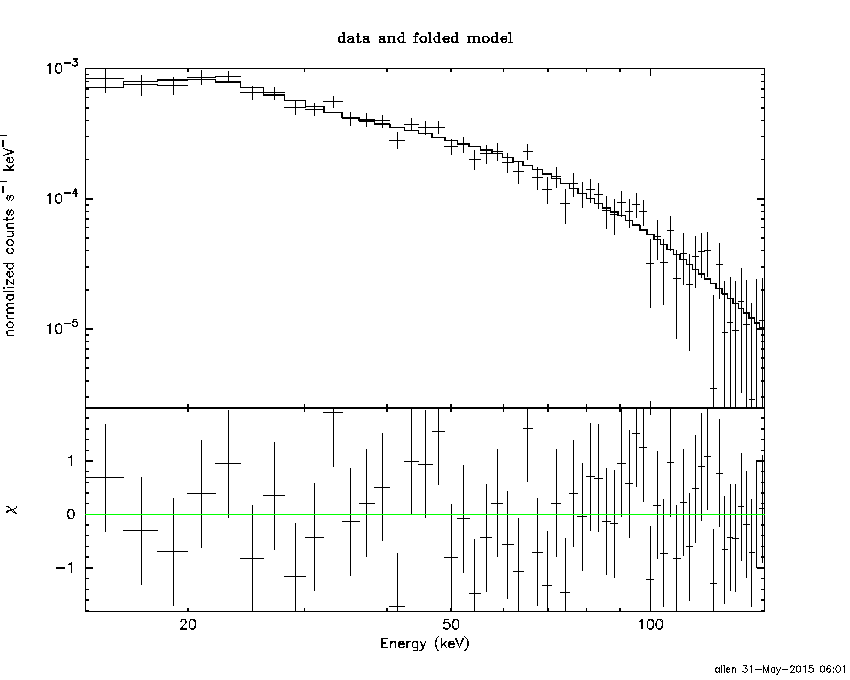

Band function

Time interval is from  -65.888 sec. to  195.912 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.575374   ( -0.595367   4.1762 )
beta        : -1.75670    ( -0.182282   0.137037 )
Epeak [keV] : 49.3934      ( -21.4514 75.2939 )
Norm@50keV   : 7.43199E-03    ( -0.00747772   25.9896 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.46 using 59 PHA bins.
# Reduced chi-squared =         0.7902 for     55 degrees of freedom
# Null hypothesis probability =   8.693256e-01

Photon flux (15-150 keV)    in 261.8 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.14068e-06 ( -4.13885e-06  -1.93784e-07 ) ergs/cm2

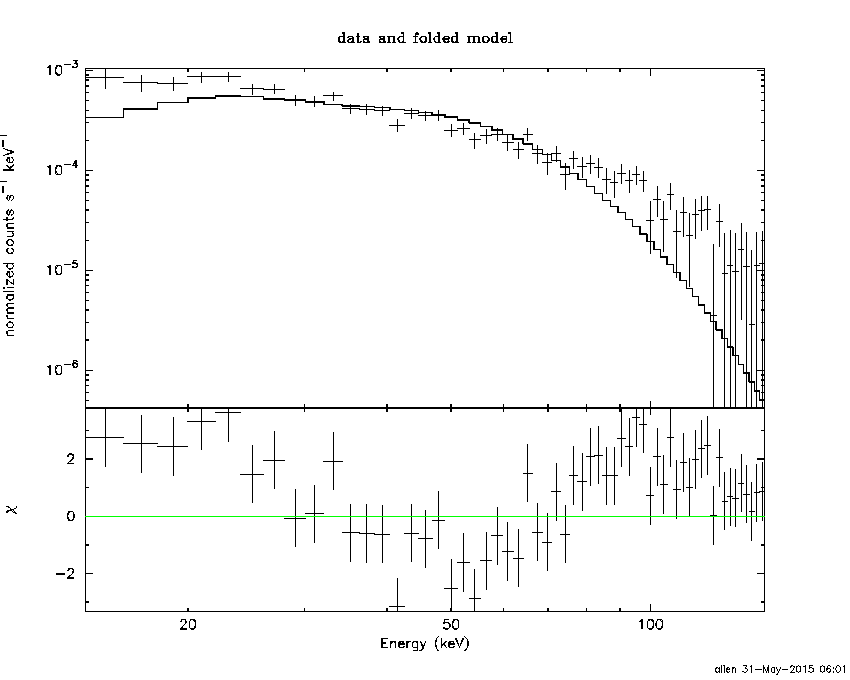

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.9816  (  )
R^2/D10^2   : 3.06711E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         189.18 using 59 PHA bins.
# Reduced chi-squared =         3.3189 for     57 degrees of freedom
# Null hypothesis probability =   4.406636e-16

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.316e-07   2.644e-08
25- 50  1.232e-06   5.890e-08
50-150  1.584e-06   1.245e-07
15-150  3.148e-06   1.532e-07

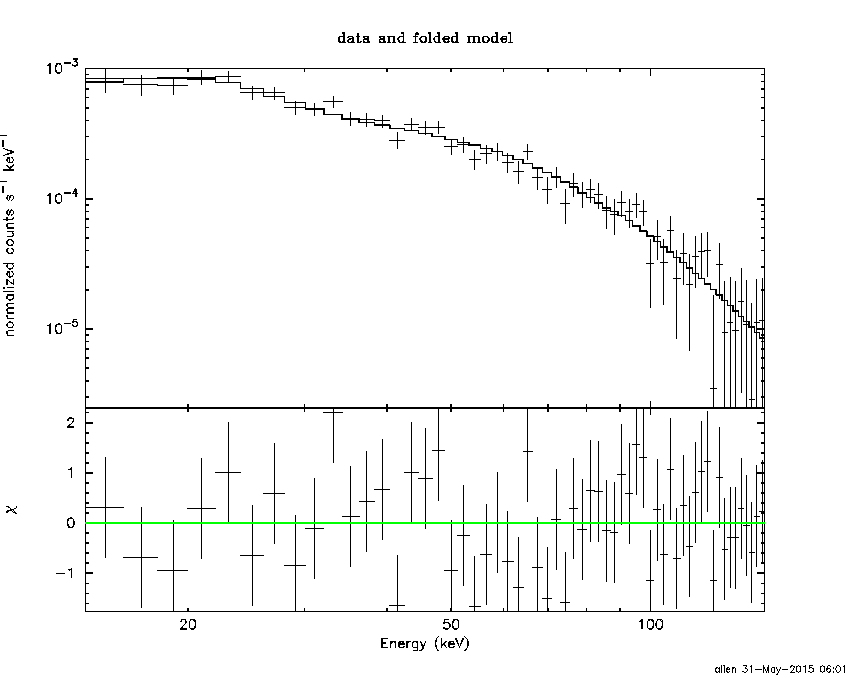

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 167.689       (-30.7902      -167.675)
Norm        : 0.915399       (-0.0402438     0.0437665)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.36 using 59 PHA bins.
# Reduced chi-squared =         0.8133 for     57 degrees of freedom
# Null hypothesis probability =   8.420383e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.091e-07   3.770e-08
25- 50  1.147e-06   9.412e-08
50-150  2.365e-06   6.788e-07
15-150  4.121e-06   7.383e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.87009        (-0.899906      0.9276)
R1^2/D10^2  : 0.169618        (-0.0511073      0.0834581)
kT2 [keV]   : 29.2265        (-4.51149      6.91591)
R2^2/D10^2  : 1.66724E-03    (-0.000850906   0.00139904)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.24 using 59 PHA bins.
# Reduced chi-squared =         0.8044 for     55 degrees of freedom
# Null hypothesis probability =   8.500548e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.505e-07   6.283e-08
25- 50  1.197e-06   1.164e-07
50-150  2.411e-06   4.644e-07
15-150  4.159e-06   6.977e-07

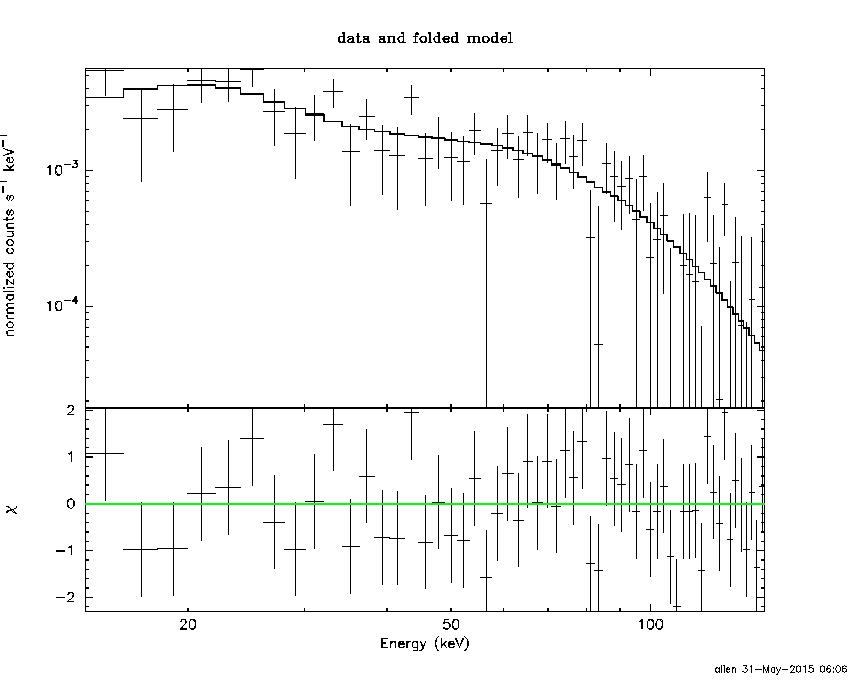

Peak spectrum fit

Power-law model

Time interval is from    7.524 sec. to    8.524 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34307     ( -0.202893   0.203346 )
Norm@50keV  : 1.06988E-02    ( -0.00122181   0.0012194 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.41 using 59 PHA bins.
# Reduced chi-squared =         0.9546 for     57 degrees of freedom
# Null hypothesis probability =   5.727679e-01

Photon flux (15-150 keV)    in 1 sec: 1.28707 ( -0.149289  0.149625 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.04656e-07 ( -1.33425e-08  1.34929e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    7.524 sec. to    8.524 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.989272     ( -0.843848   0.458046 )
Epeak [keV] : 152.823      ( -152.828 -152.828 )
Norm@50keV  : 1.57591E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.73 using 59 PHA bins.
# Reduced chi-squared =         0.9595 for     56 degrees of freedom
# Null hypothesis probability =   5.612349e-01

Photon flux (15-150 keV)    in 1 sec: 1.26404 ( -0.15682  0.15657 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.02339e-07 ( -1.43496e-08  1.4351e-08 ) ergs/cm2

Band function

Time interval is from    7.524 sec. to    8.524 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.991760   ( -0.535152   0.724791 )
beta        : -10.0000    ( 10   1.77636e-14 )
Epeak [keV] : 152.324      ( -74.0794 -152.502 )
Norm@50keV   : 1.57689E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.73 using 59 PHA bins.
# Reduced chi-squared =         0.9769 for     55 degrees of freedom
# Null hypothesis probability =   5.231833e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

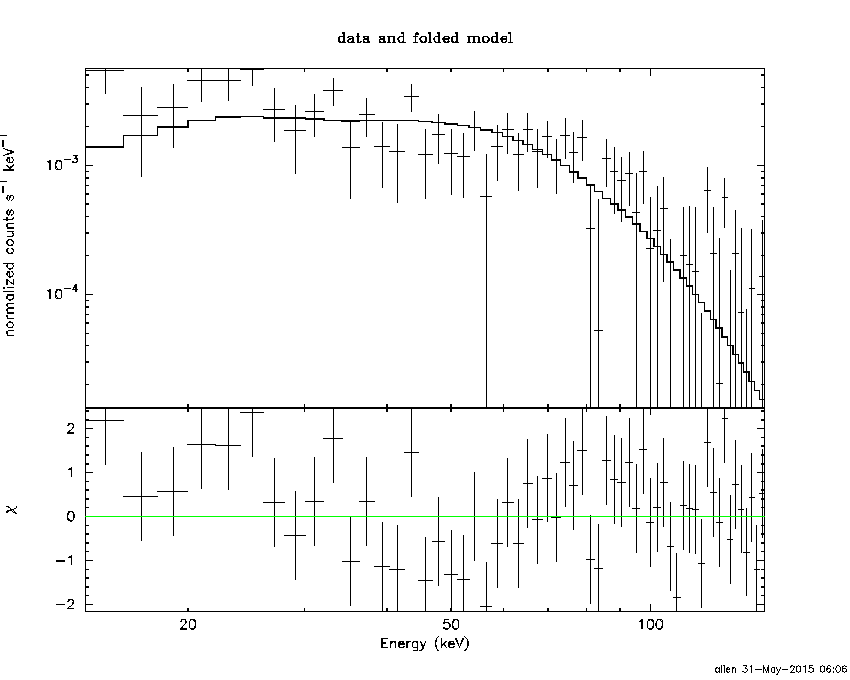

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.1422  (-2.65107  3.13772)
R^2/D10^2   : 7.82630E-02  (-0.032129   0.0546438)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.09 using 59 PHA bins.
# Reduced chi-squared =          1.212 for     57 degrees of freedom
# Null hypothesis probability =   1.308346e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.144e-09   1.215e-09
25- 50  2.393e-08   3.735e-09
50-150  5.729e-08   1.395e-08
15-150  8.637e-08   1.476e-08

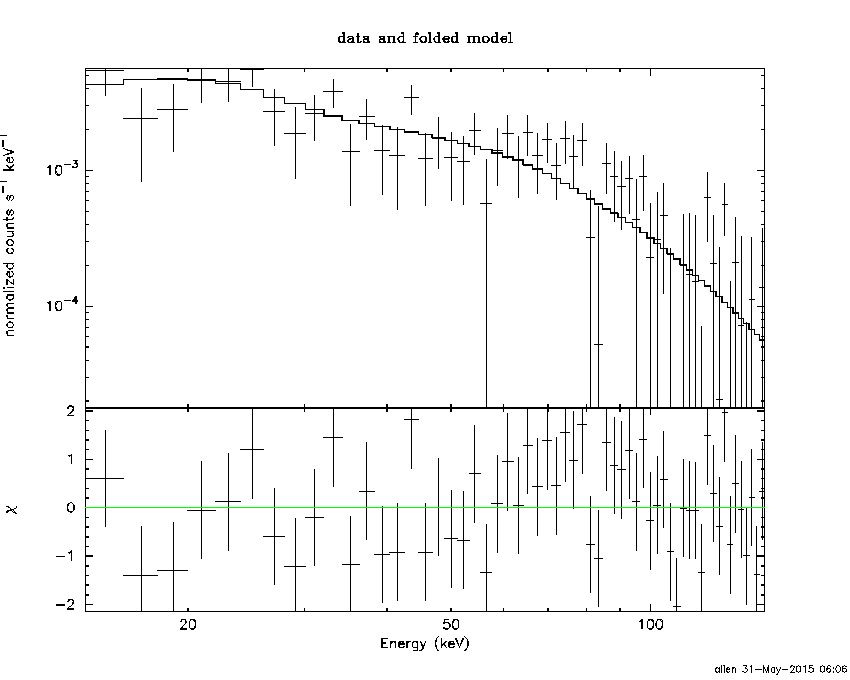

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 5.31479       (-0.605084     0.605025)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.96 using 59 PHA bins.
# Reduced chi-squared =         0.9993 for     57 degrees of freedom
# Null hypothesis probability =   4.765384e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.324e-08   7.335e-09
25- 50  2.547e-08   1.396e-08
50-150  5.585e-08   3.079e-08
15-150  9.456e-08   5.160e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.83708        (-1.83351      2.40695)
R1^2/D10^2  : 2.13390        (-1.52404      7.7545)
kT2 [keV]   : 25.1620        (-4.94108      8.26716)
R2^2/D10^2  : 2.30116E-02    (-0.0141775   0.0108328)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.03 using 59 PHA bins.
# Reduced chi-squared =         0.9278 for     55 degrees of freedom
# Null hypothesis probability =   6.270677e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.180e-08   5.737e-09
25- 50  2.306e-08   9.647e-09
50-150  6.805e-08   2.937e-08
15-150  1.029e-07   4.395e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.36774     ( -0.0840951   0.0837063 )
Norm@50keV  : 2.46999E-03    ( -0.000113917   0.000113904 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.18 using 59 PHA bins.
# Reduced chi-squared =          1.266 for     57 degrees of freedom
# Null hypothesis probability =   8.483864e-02

Photon flux (15-150 keV)    in 97.04 sec: 0.298672 ( -0.0145916  0.014627 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.33181e-06 ( -1.16673e-07  1.17086e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.05810     ( -0.347357   0.303812 )
Epeak [keV] : 159.528      ( -58.1203 -159.529 )
Norm@50keV  : 3.48145E-03    ( -0.000966026   0.00158266 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.47 using 59 PHA bins.
# Reduced chi-squared =          1.241 for     56 degrees of freedom
# Null hypothesis probability =   1.065931e-01

Photon flux (15-150 keV)    in 97.04 sec: 0.293416 ( -0.015525  0.015544 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.27741e-06 ( -1.3146e-07  1.30567e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.75021   ( -4.54892   -4.05309 )
beta        : -1.51959    ( -0.130293   0.118197 )
Epeak [keV] : 37.3242      ( -4.62788 35.2433 )
Norm@50keV   : 0.276811    ( -0.280502   27.8485 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.48 using 59 PHA bins.
# Reduced chi-squared =          1.136 for     55 degrees of freedom
# Null hypothesis probability =   2.277988e-01

Photon flux (15-150 keV)    in 97.04 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.11e-06
S(50-100 keV) = 1.45e-06

T90 vs. Hardness ratio plot

T90                                   = 187.824000030756 sec.
Hardness ratio (energy fluence ratio) = 1.30631

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.36078
Count Ratio (50-100 keV) / (15-25 keV) = 0.86078

Mask shadow pattern

IMX = -3.159848729512354E-01, IMY = -2.329440581907557E-01

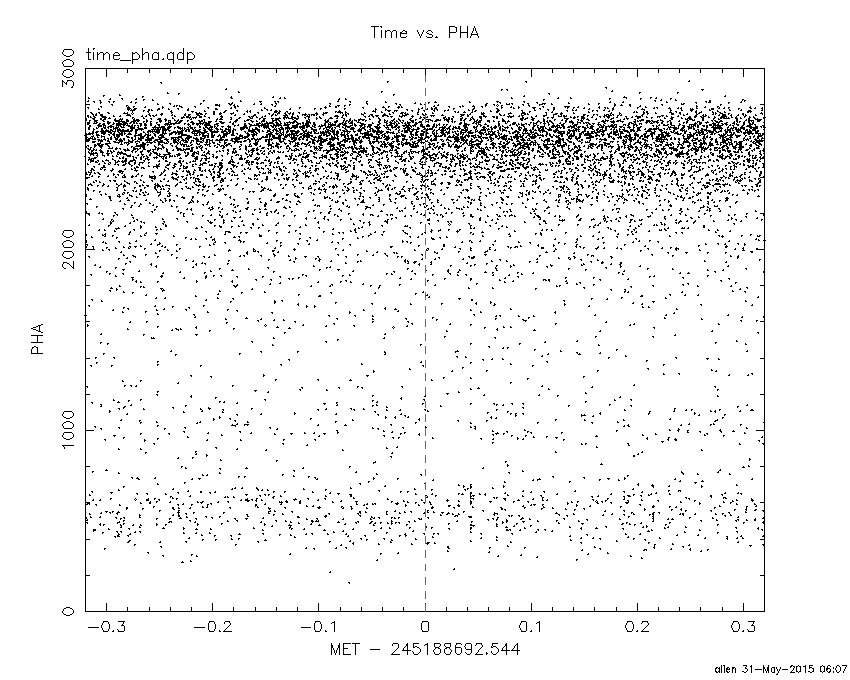

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

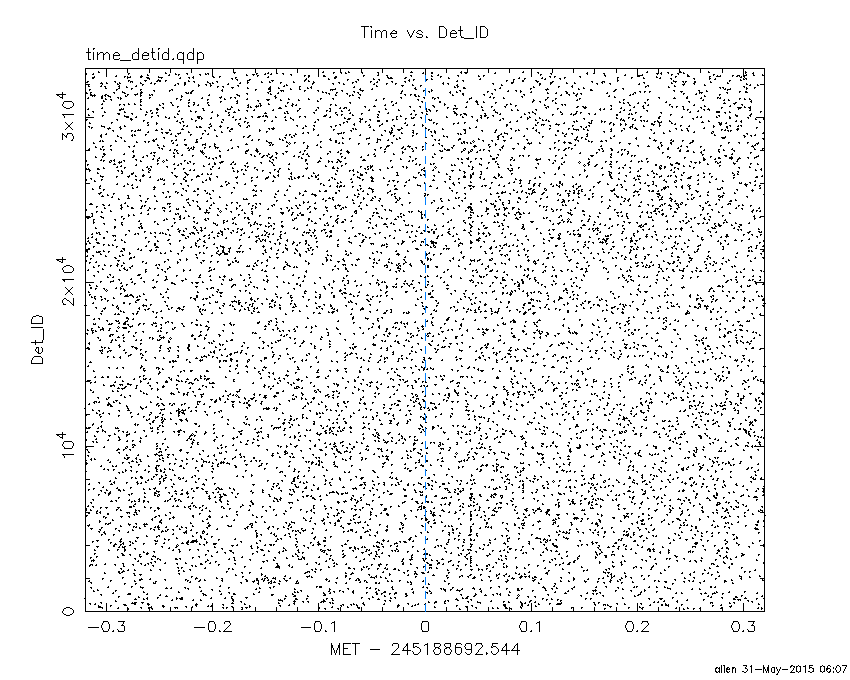

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

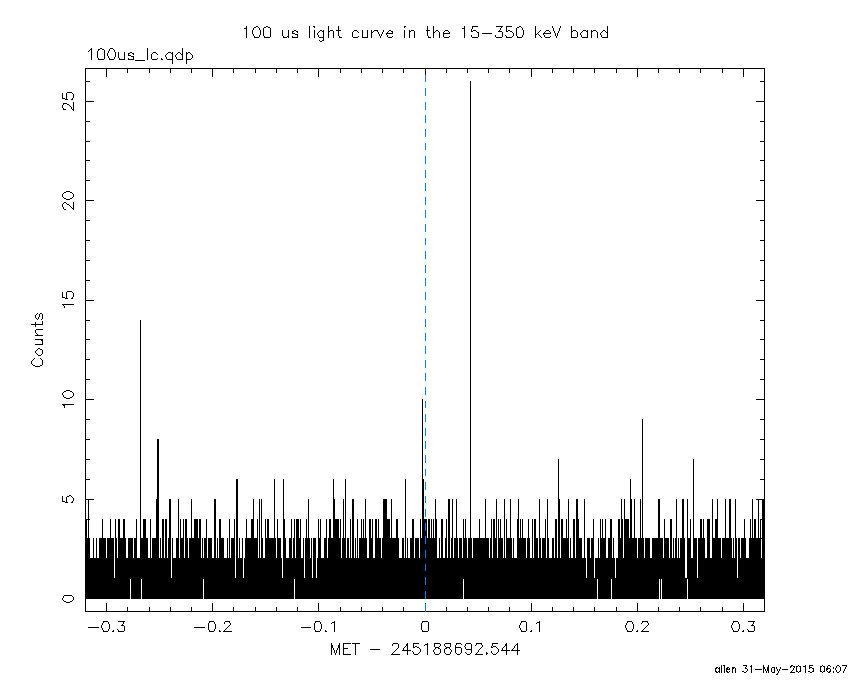

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-755.343390 -657.489800
-239.544000 -65.888000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3510 -60.6936    8.6  55.2 -148.9   1.7832   1.3    4.4	Cen X-3
186.6547 -62.8185    3.4  47.2 -149.0   1.5613   3.4    2.9	GX 301-2
244.9681 -15.6470    0.3  27.9  -36.8   8.0932  34.3    0.8	Sco X-1
255.7891 -37.8772   15.6   3.9  -55.3   0.1448   0.7    9.6	4U 1700-377
256.3535 -36.4654    3.5   4.7  -38.8   0.6446   3.3    4.7	GX 349+2
263.0046 -24.7157    7.1  16.0    5.8   0.3064   1.6    1.8	GX 1+4
264.8713 -44.4471   15.1   5.6  131.7   0.1402   0.8    5.5	4U 1735-44
268.3888  -1.4294    2.0  39.9    8.3   1.7836   5.9    1.9	SW J1753.5-0127
270.3367 -25.1308    1.9  17.8   28.1   1.1789   6.0    4.2	GX 5-1
270.3492 -25.7614    4.2  17.2   29.1   0.5394   2.8    2.8	GRS 1758-258
274.0554 -14.0934    5.3  29.3   24.2   0.5064   2.2    4.5	GX 17+2
275.8608 -30.3355    2.5  16.7   52.1   0.9488   4.5    3.8	H1820-303
285.1104 -24.7739    9.1  26.5   55.9  -0.3282  -1.3    9.7	HT1900.1-2455
263.0306 -33.8266    1.6   7.2   18.0   1.4528   7.4    2.1	GX 354-0
266.5530 -32.2155    1.2  10.0   30.8   2.0379   9.6 ------	UNKNOWN
255.1979 -41.6370    1.7   3.5 -116.3   1.2260   6.7 ------	UNKNOWN
226.7241  -3.8793    4.4  47.0  -53.2   2.4941   2.6 ------	UNKNOWN
215.4734 -22.6366    2.5  41.1  -83.5   4.3952   4.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-65.888000 31.156620

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2942 -60.7450    5.3  55.2 -149.0  -1.1862  -2.2    7.3	Cen X-3
186.5951 -62.9191   16.6  47.2 -149.1   0.1626   0.7    9.1	GX 301-2
244.8286 -15.6417   24.5  27.9  -37.1  -0.0621  -0.5    8.7	Sco X-1
255.9212 -37.8348   14.2   3.9  -53.8   0.0869   0.8    3.1	4U 1700-377
256.2481 -36.4209    6.3   4.8  -39.3  -0.1911  -1.9    9.0	GX 349+2
262.8980 -24.8881  175.4  15.8    5.6   0.0074   0.1   10.5	GX 1+4
264.5339 -44.4359   31.3   5.4  133.4   0.0385   0.4    9.0	4U 1735-44
268.4840  -1.4506  614.6  39.9    8.4  -0.0033  -0.0    7.0	SW J1753.5-0127
270.4383 -25.1271    6.4  17.8   28.3  -0.2107  -1.8    8.9	GX 5-1
270.3454 -25.8034    7.5  17.2   29.2  -0.1806  -1.5    4.3	GRS 1758-258
273.8608 -13.9534    5.3  29.3   23.7   0.2998   2.2    9.8	GX 17+2
275.7508 -30.3439    7.5  16.6   51.9  -0.1779  -1.5    9.1	H1820-303
285.1815 -24.8402    6.2  26.5   56.1   0.2954   1.9    9.3	HT1900.1-2455
262.9148 -33.9810    7.1   7.0   17.7   0.1688   1.6    9.5	GX 354-0
306.6726 -28.7465    2.5  40.0   82.5   2.1223   4.6 ------	UNKNOWN
 15.8339 -79.8626    2.3  54.6  163.3   3.4156   5.1 ------	UNKNOWN
298.7740 -69.2083    3.1  35.3  151.6   0.6374   3.8 ------	UNKNOWN
 23.3104 -83.0223    2.0  53.6  167.3   3.0121   5.9 ------	UNKNOWN
279.9682 -57.4376    0.4  21.4  143.6   3.8262  30.3 ------	UNKNOWN
275.0389 -53.7486    1.9  16.9  141.6   0.6823   6.2 ------	UNKNOWN
217.1420 -54.6138    2.1  31.3 -136.8   0.7388   5.4 ------	UNKNOWN
	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
75.956590 962.513000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3137 -60.6238   82.0  49.8 -143.1   0.2027   0.1    0.1	Cen X-3
186.6047 -62.7380    1.8  42.7 -138.0   5.9816   6.3    2.4	GX 301-2
244.9676 -15.6290    0.9  49.3  -47.1  26.9011  12.2    1.0	Sco X-1
255.7440 -37.9376    0.0  25.2  -50.0   0.3486   0.7   12.8	4U 1700-377
256.2931 -36.3989    2.9  26.3  -47.3   2.0820   4.0    7.0	GX 349+2
262.9972 -24.8899    9.8  34.8  -28.0   0.6480   1.2    8.7	GX 1+4
264.9549 -44.3296   14.2  16.1  -42.3  -0.3472  -0.8   11.6	4U 1735-44
268.2859  -1.4597   14.1  56.8  -14.4   1.5859   0.8    4.9	SW J1753.5-0127
270.3187 -25.0675    1.4  33.1  -16.5   4.2378   8.1    2.0	GX 5-1
270.3160 -25.7864    3.7  32.4  -16.7   1.5998   3.1    2.7	GRS 1758-258
273.9052 -14.0244    5.7  43.7   -8.9   1.5002   2.0    5.9	GX 17+2
275.9167 -30.3446    2.7  27.3   -8.0   1.9743   4.3    1.4	H1820-303
285.1812 -24.9754   10.2  32.7    8.4   0.6012   1.1    8.6	HT1900.1-2455
262.9727 -33.8359    1.1  26.3  -33.6   4.6075  10.4    0.8	GX 354-0
279.9916 -57.4523    1.4   0.0  106.5   4.2476   8.4 ------	UNKNOWN
278.9050  -5.9766    2.3  51.5   -1.7   5.2591   5.0 ------	UNKNOWN
277.3173 -23.7466    2.2  33.8   -4.7   3.5071   5.3 ------	UNKNOWN
276.4749 -31.5710    2.6  26.0   -7.2   1.9459   4.5 ------	UNKNOWN
266.5416 -32.2277    0.7  26.8  -26.2   7.4664  16.5 ------	UNKNOWN
257.3179 -44.1057    2.3  19.4  -56.7   2.3599   5.1 ------	UNKNOWN
255.1558 -41.6521    1.4  22.3  -56.0   4.3738   8.3 ------	UNKNOWN

Plot creation:
Sun May 31 06:07:27 EDT 2015
