batgrbproduct analysis for trigger=332931

batgrbproduct Analysis for Trigger=332931

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 21:10:58 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger332931
======================================================================

  Trigger: 00332931      Segment: 000

  BAT Trigger Time: 246937440   [s; MET]
      Trigger Stop: 246937504   [s; MET]
               UTC: 2008-10-29T01:43:56.788020    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 346.703787157334   Dec: -68.159638914543  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    11.49
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    11.49

  Flight Position:   [ source = BAT ]
    RA: 346.703787157334   Dec: -68.159638914543  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 346.761947245779   Dec: -68.1701997611752  [deg; J2000]
        { 23h 07m 02.9s , -68d 10' 12.7" }
         +/- 2.09465946373624 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.925258207746063 [arcmin] (formal 1-sigma fit error)
    SNR: 10.577545717326

  Angular difference between Flight and Ground position is 1.444329 arcmin

  Partial Coding Fraction: 0.5859375    [ including projection effects ]

  Duration
     T90: 275.104000031948 +/- 48.9548761810702
        Measured from: -24.0640000104904
                   to: 251.040000021458     [s; relative to TRIGTIME]
     T50: 106.511999994516 +/- 37.2252639035916
        Measured from: 15.5480000078678
                   to: 122.060000002384     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 20.5719999969006
                   to: 21.5719999969006     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -36.2560000121593
                   to: 270.243999987841     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.656352   1.262595   0.918684   0.320510
           0.109706   0.114528   0.102133   0.090530 [error]
 Peak      0.019444   0.017710   0.009729   0.008874
           0.006339   0.006703   0.005947   0.005177 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.60e-07 5.06e-07 7.63e-07 2.50e-06 2.14e-06 4.02e-06   erg/cm2
              Error 4.88e-08 5.78e-08 9.97e-08 7.11e-07 2.47e-07 7.80e-07   erg/cm2
Peak flux Power-law 1.72e-01 1.50e-01 9.00e-02 8.12e-02 4.47e-01 4.93e-01   ph/cm2/s
              Error 9.45e-02 5.68e-02 4.79e-02 9.74e-02 1.68e-01 1.88e-01   ph/cm2/s

Fluence   Cutoff-PL 2.47e-07 5.23e-07 7.81e-07 1.58e-06 2.10e-06 3.13e-06   erg/cm2
              Error 5.69e-08 6.97e-08 1.09e-07 1.06e-06 2.70e-07 1.10e-06   erg/cm2
Peak flux Cutoff-PL 1.48e-01 1.73e-01 9.22e-02 2.07e-02 4.30e-01 4.34e-01   ph/cm2/s
              Error 1.08e-01 7.81e-02 7.49e-02 5.16e-02 1.72e-01 1.98e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.407    0.181    -      -           7.25e-04 7.63e-05   67.290 57
CPL   1.101    0.625     149.7    0.0      1.03e-03 9.44e-04   66.720 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.739    0.672    -      -           3.32e-03 1.41e-03   44.010 57
CPL   0.446    3.429      53.0    0.0      1.74e-02 8.18e+00   43.390 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 163.840000 sec.
T50 in the 50-300 keV band: 77.248000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  306.500  -36.256  270.244
T90   275.104  -24.064  251.040
T50   106.512   15.548  122.060
Peak    1.000   20.572   21.572

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  346.7619   -68.1702   0.0181    38.5132   -23.0966         3.2692915     10.578 TRIG_00332931

Foreground time interval of the image:
-36.256 270.244 (delta_t = 306.500 [sec])
Background time interval of the image:
-556.799 -465.950 (delta_t =  90.849 [sec])
-239.000 -36.256 (delta_t = 202.744 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -36.256 sec. to  270.244 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.40691     ( -0.181523   0.18053 )
Norm@50keV  : 7.25083E-04    ( -7.6356e-05   7.61502e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.29 using 59 PHA bins.
# Reduced chi-squared =          1.180 for     57 degrees of freedom
# Null hypothesis probability =   1.654318e-01

Photon flux (15-150 keV)    in 306.5 sec: 8.84411E-02 ( -0.00958126  0.00960466 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.1444e-06 ( -2.45601e-07  2.47423e-07 ) ergs/cm2

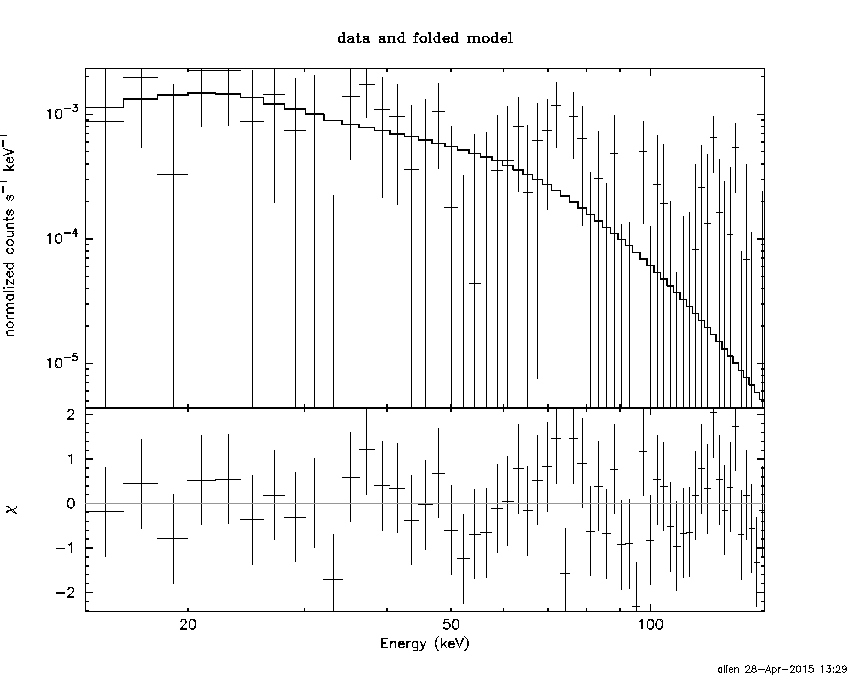

Cutoff power-law model

Time interval is from  -36.256 sec. to  270.244 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.10066     ( -0.791957   0.45772 )
Epeak [keV] : 149.662      ( -149.686 -149.686 )
Norm@50keV  : 1.03196E-03    ( -0.000407219   0.00148068 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.72 using 59 PHA bins.
# Reduced chi-squared =          1.191 for     56 degrees of freedom
# Null hypothesis probability =   1.547010e-01

Photon flux (15-150 keV)    in 306.5 sec: 8.73305E-02 ( -0.0099144  0.0099099 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.0991e-06 ( -2.72411e-07  2.68031e-07 ) ergs/cm2

Band function

Time interval is from  -36.256 sec. to  270.244 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.484969   ( 0.124151   0.124151 )
beta        : -1.60056    ( 1.59526   0.294471 )
Epeak [keV] : 45.2454      ( -45.1447 156.105 )
Norm@50keV   : 1.09980E-02    ( -0.011424   10.8567 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.27 using 59 PHA bins.
# Reduced chi-squared =          1.187 for     55 degrees of freedom
# Null hypothesis probability =   1.617862e-01

Photon flux (15-150 keV)    in 306.5 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.6875  (-2.09203  2.50788)
R^2/D10^2   : 8.70532E-03  (-0.00351654   0.00569404)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          85.90 using 59 PHA bins.
# Reduced chi-squared =          1.507 for     57 degrees of freedom
# Null hypothesis probability =   7.975857e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.363e-07   2.820e-08
25- 50  5.640e-07   8.705e-08
50-150  9.627e-07   1.951e-07
15-150  1.663e-06   2.299e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 0.366897       (-0.0384098     0.0384059)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.50 using 59 PHA bins.
# Reduced chi-squared =          1.202 for     57 degrees of freedom
# Null hypothesis probability =   1.414821e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.800e-07   1.552e-07
25- 50  5.387e-07   2.953e-07
50-150  1.181e-06   6.481e-07
15-150  2.000e-06   1.087e-06

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.88527        (-2.36149      2.80545)
R1^2/D10^2  : 4.40305E-02        (-0.0246786      0.0698164)
kT2 [keV]   : 36.6158        (-13.2542      122.102)
R2^2/D10^2  : 3.71035E-04    (-0.000354992   0.00137622)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.84 using 59 PHA bins.
# Reduced chi-squared =          1.179 for     55 degrees of freedom
# Null hypothesis probability =   1.709445e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.270e-07   9.790e-08
25- 50  5.681e-07   2.484e-07
50-150  1.343e-06   6.838e-07
15-150  2.138e-06   9.216e-07

Peak spectrum fit

Power-law model

Time interval is from   20.572 sec. to   21.572 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73900     ( -0.631925   0.711834 )
Norm@50keV  : 3.31807E-03    ( -0.00144476   0.00137176 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.01 using 59 PHA bins.
# Reduced chi-squared =         0.7721 for     57 degrees of freedom
# Null hypothesis probability =   8.961031e-01

Photon flux (15-150 keV)    in 1 sec: 0.446851 ( -0.168323  0.168556 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.06375e-08 ( -1.30108e-08  1.37312e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   20.572 sec. to   21.572 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.446331     ( -5.12493   1.73279 )
Epeak [keV] : 53.0208      ( -53.0207 -53.0207 )
Norm@50keV  : 1.73604E-02    ( -0.0173609   16.3467 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.39 using 59 PHA bins.
# Reduced chi-squared =         0.7749 for     56 degrees of freedom
# Null hypothesis probability =   8.906983e-01

Photon flux (15-150 keV)    in 1 sec: 0.429956 ( -0.170922  0.172466 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.76509e-08 ( -1.22991e-08  1.50597e-08 ) ergs/cm2

Band function

Time interval is from   20.572 sec. to   21.572 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.508280   ( -1.4766   4.02345 )
beta        : -9.37087    ( 8.71888   18.7189 )
Epeak [keV] : 53.5710      ( -53.571 236.161 )
Norm@50keV   : 1.60115E-02    ( -0.0160358   905513 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.39 using 59 PHA bins.
# Reduced chi-squared =         0.7890 for     55 degrees of freedom
# Null hypothesis probability =   8.709343e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.78396e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.0737  (-4.2744  6.79667)
R^2/D10^2   : 0.110969  (-0.110751   0.438048)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.12 using 59 PHA bins.
# Reduced chi-squared =         0.7740 for     57 degrees of freedom
# Null hypothesis probability =   8.940246e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.423e-09   2.253e-09
25- 50  1.085e-08   6.835e-09
50-150  9.549e-09   6.970e-09
15-150  2.382e-08   1.523e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 99.9942       (-101.011      -101.011)
Norm        : 2.00806       (-0.832806     1.4037)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.62 using 59 PHA bins.
# Reduced chi-squared =         0.7653 for     57 degrees of freedom
# Null hypothesis probability =   9.038074e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.248e-09   3.299e-09
25- 50  9.075e-09   6.005e-09
50-150  1.471e-08   1.201e-08
15-150  2.903e-08   2.053e-08

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 16.3170        (      )
R1^2/D10^2  : 2.84562E-02        (-0.0249184      0.396706)
kT2 [keV]   : 5.82953        (-6.03308      192.175)
R2^2/D10^2  : 0.728309    (-0.66537   -0.66537)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.41 using 59 PHA bins.
#Fit statistic : Chi-Squared =          43.34 using 59 PHA bins.
# Reduced chi-squared =         0.7892 for     55 degrees of freedom
# Reduced chi-squared =         0.7880 for     55 degrees of freedom
# Null hypothesis probability =   8.706714e-01
# Null hypothesis probability =   8.722345e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.732e-09   3.017e-09
25- 50  9.662e-09   5.750e-09
50-150  1.190e-08   8.510e-09
15-150  2.629e-08   1.491e-08

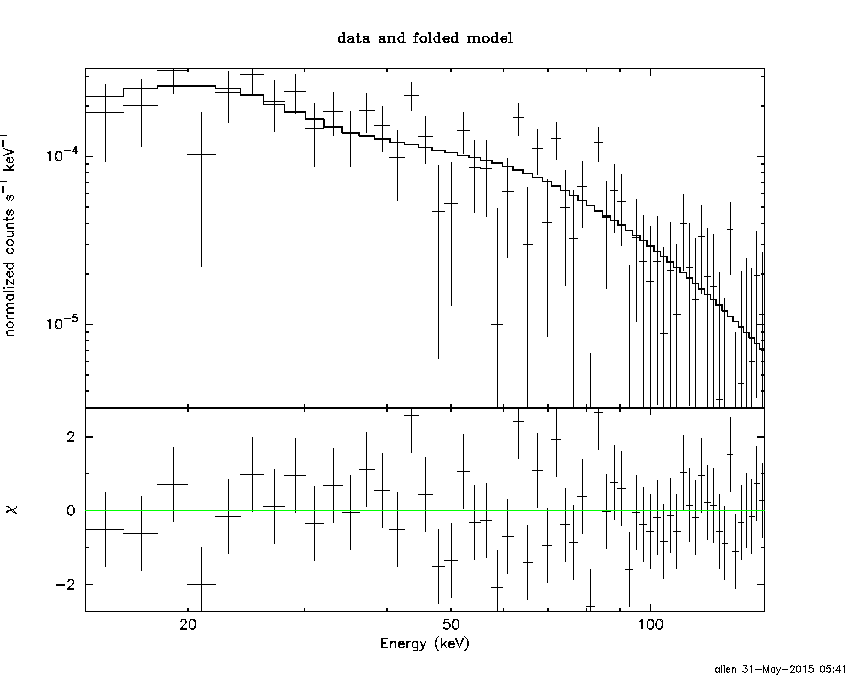

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.40691     ( -0.181523   0.18053 )
Norm@50keV  : 7.25083E-04    ( -7.6356e-05   7.61502e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.29 using 59 PHA bins.
# Reduced chi-squared =          1.180 for     57 degrees of freedom
# Null hypothesis probability =   1.654318e-01

Photon flux (15-150 keV)    in 306.5 sec: 8.84411E-02 ( -0.00958126  0.00960466 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.1444e-06 ( -2.45601e-07  2.47423e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.10066     ( -0.791957   0.45772 )
Epeak [keV] : 149.662      ( -149.686 -149.686 )
Norm@50keV  : 1.03196E-03    ( -0.000407219   0.00148068 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.72 using 59 PHA bins.
# Reduced chi-squared =          1.191 for     56 degrees of freedom
# Null hypothesis probability =   1.547010e-01

Photon flux (15-150 keV)    in 306.5 sec: 8.73305E-02 ( -0.0099144  0.0099099 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.0991e-06 ( -2.72411e-07  2.68031e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.484969   ( 0.124151   0.124151 )
beta        : -1.60056    ( 1.59526   0.294471 )
Epeak [keV] : 45.2454      ( -45.1447 156.105 )
Norm@50keV   : 1.09980E-02    ( -0.011424   10.8596 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.27 using 59 PHA bins.
# Reduced chi-squared =          1.187 for     55 degrees of freedom
# Null hypothesis probability =   1.617862e-01

Photon flux (15-150 keV)    in 306.5 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.06e-07
S(50-100 keV) = 7.63e-07

T90 vs. Hardness ratio plot

T90                                   = 275.104000031948 sec.
Hardness ratio (energy fluence ratio) = 1.50791

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.92366
Count Ratio (50-100 keV) / (15-25 keV) = 1.39968

Mask shadow pattern

IMX = 7.320249024235598E-01, IMY = 3.121838585141472E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-556.799400 -465.950000
-239.000000 -36.256000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5107 -40.5694    5.3  46.1 -136.8   1.0889   2.2    1.2	Vela X-1
 38.9445 -20.9913    2.6  39.3   75.7   3.0135   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-36.256000 270.244000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.7118 -40.7121    4.6  46.1 -136.5   1.4248   2.5   12.6	Vela X-1
338.6058 -48.0346    2.4  52.7   -2.1   3.0775   4.9 ------	UNKNOWN
346.7620 -68.1702    1.1  38.5  -23.1   3.2706  10.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
836.500600 983.093400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4472 -40.6243    1.9  31.2   31.0   0.9509   6.2    5.6	Vela X-1
170.5211 -60.5758    5.7  41.8  -16.2   0.3662   2.0    6.7	Cen X-3
186.3979 -62.9492    0.0  46.9  -24.8   0.0160   0.1   12.9	GX 301-2
138.7719  17.6044    2.4  43.3  136.8   1.7823   4.8 ------	UNKNOWN
127.4043 -31.4850    2.2  33.4   51.6   1.0410   5.2 ------	UNKNOWN
162.4623   6.8552    2.5  26.0  171.1   0.6003   4.7 ------	UNKNOWN
173.4278  36.9657    2.4  57.2 -179.1   3.2238   4.9 ------	UNKNOWN

Plot creation:
Sun May 31 05:42:05 EDT 2015
