batgrbproduct analysis for trigger=333427

batgrbproduct Analysis for Trigger=333427

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 21:00:27 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger333427
======================================================================

  Trigger: 00333427      Segment: 000

  BAT Trigger Time: 247340682.752   [s; MET]
      Trigger Stop: 247340684.8   [s; MET]
               UTC: 2008-11-02T17:44:39.527920    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 331.182421230354   Dec: 52.99333778508  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.52
     Image Trigger?:     NO
     Rate S/N Ratio:     14  [ if not an image trigger ]
     Image S/N Ratio:    8.52

  Flight Position:   [ source = BAT ]
    RA: 331.182421230354   Dec: 52.99333778508  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 331.180275443501   Dec: 52.9922552262831  [deg; J2000]
        { 22h 04m 43.3s , +52d 59' 32.1" }
         +/- 1.14347271049501 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.419501003585147 [arcmin] (formal 1-sigma fit error)
    SNR: 25.1153167268121

  Angular difference between Flight and Ground position is 0.101116 arcmin

  Partial Coding Fraction: 0.3632812    [ including projection effects ]

  Duration
     T90: 50.3199999928474 +/- 12.6093471912768
        Measured from: -17.3400000035763
                   to: 32.9799999892712     [s; relative to TRIGTIME]
     T50: 16.7520000040531 +/- 4.93076547613347
        Measured from: -5.0160000026226
                   to: 11.7360000014305     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.0640000104904175
                   to: 1.06400001049042     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -20.0760000050068
                   to: 45.8120000064373     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.096401   1.388040   0.895936   0.293457
           0.073006   0.078627   0.074478   0.077443 [error]
 Peak      0.035907   0.048488   0.073268   0.025678
           0.009542   0.010918   0.010328   0.009842 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.63e-07 6.05e-07 7.65e-07 1.93e-06 2.27e-06 3.66e-06   erg/cm2
              Error 3.92e-08 3.99e-08 7.55e-08 4.04e-07 1.75e-07 4.68e-07   erg/cm2
Peak flux Power-law 3.43e-01 4.54e-01 4.42e-01 7.69e-01 1.49e+00 2.01e+00   ph/cm2/s
              Error 1.19e-01 9.65e-02 8.21e-02 3.13e-01 2.61e-01 3.72e-01   ph/cm2/s

Fluence   Cutoff-PL 3.54e-07 6.17e-07 7.67e-07 1.38e-06 2.22e-06 3.12e-06   erg/cm2
              Error 4.52e-08 5.01e-08 7.79e-08 7.82e-07 2.09e-07 8.81e-07   erg/cm2
Peak flux Cutoff-PL 3.09e-01 4.62e-01 4.63e-01 5.36e-01 1.47e+00 1.77e+00   ph/cm2/s
              Error 1.53e-01 1.04e-01 1.05e-01 4.18e-01 2.73e-01 5.32e-01   ph/cm2/s

Fluence        Band 3.44e-07 6.28e-07 7.50e-07 1.67e-06 2.22e-06 3.39e-06   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.662    0.124    -      -           3.71e-03 2.66e-04   32.690 57
CPL   1.475    0.409     129.7  -32.1      4.67e-03 2.73e-03   32.250 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.038    0.301    -      -           1.29e-02 2.21e-03   59.030 57
CPL   0.656    1.152     205.1    0.0      1.90e-02 3.97e-02   58.770 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 31.424000 sec.
T50 in the 50-300 keV band: 17.280000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   65.888  -20.076   45.812
T90    50.320  -17.340   32.980
T50    16.752   -5.016   11.736
Peak    1.000    0.064    1.064

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  331.1803    52.9923   0.0077    32.7270    50.5117         3.7362482     25.115 TRIG_00333427

Foreground time interval of the image:
-20.076  28.349 (delta_t =  48.425 [sec])
Background time interval of the image:
-239.752 -20.076 (delta_t = 219.676 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -20.076 sec. to   45.812 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.66195     ( -0.122695   0.124629 )
Norm@50keV  : 3.70910E-03    ( -0.000266941   0.000264311 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          32.69 using 59 PHA bins.
# Reduced chi-squared =         0.5736 for     57 degrees of freedom
# Null hypothesis probability =   9.959904e-01

Photon flux (15-150 keV)    in 65.89 sec: 0.486242 ( -0.0320788  0.0321048 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.27029e-06 ( -1.74264e-07  1.76349e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -20.076 sec. to   45.812 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.47482     ( -0.5237   0.294954 )
Epeak [keV] : 129.719      ( -65.4963 -129.784 )
Norm@50keV  : 4.67097E-03    ( -0.00131492   0.00413714 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          32.25 using 59 PHA bins.
# Reduced chi-squared =         0.5758 for     56 degrees of freedom
# Null hypothesis probability =   9.954661e-01

Photon flux (15-150 keV)    in 65.89 sec: 0.481129 ( -0.034594  0.051275 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.22423e-06 ( -2.11118e-07  2.07481e-07 ) ergs/cm2

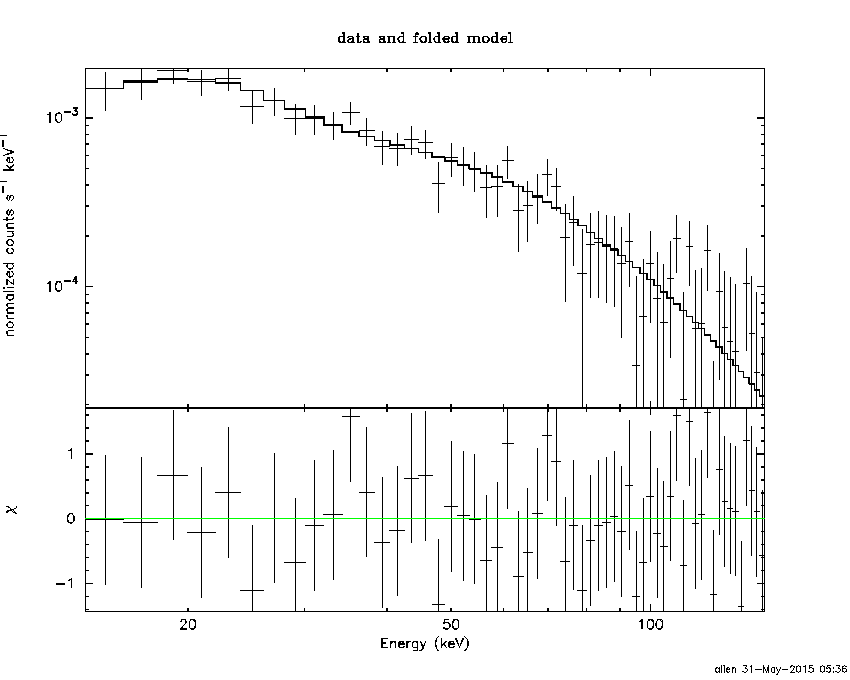

Band function

Time interval is from  -20.076 sec. to   45.812 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.13627   ( 1.12406   1.12406 )
beta        : -1.78244    ( 1.78666   0.220651 )
Epeak [keV] : 61.4487      ( -60.6383 -60.6383 )
Norm@50keV   : 7.67166E-03    ( -0.00451283   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          31.64 using 59 PHA bins.
# Reduced chi-squared =         0.5753 for     55 degrees of freedom
# Null hypothesis probability =   9.951801e-01

Photon flux (15-150 keV)    in 65.89 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.21881e-06 ( 0  0 ) ergs/cm2

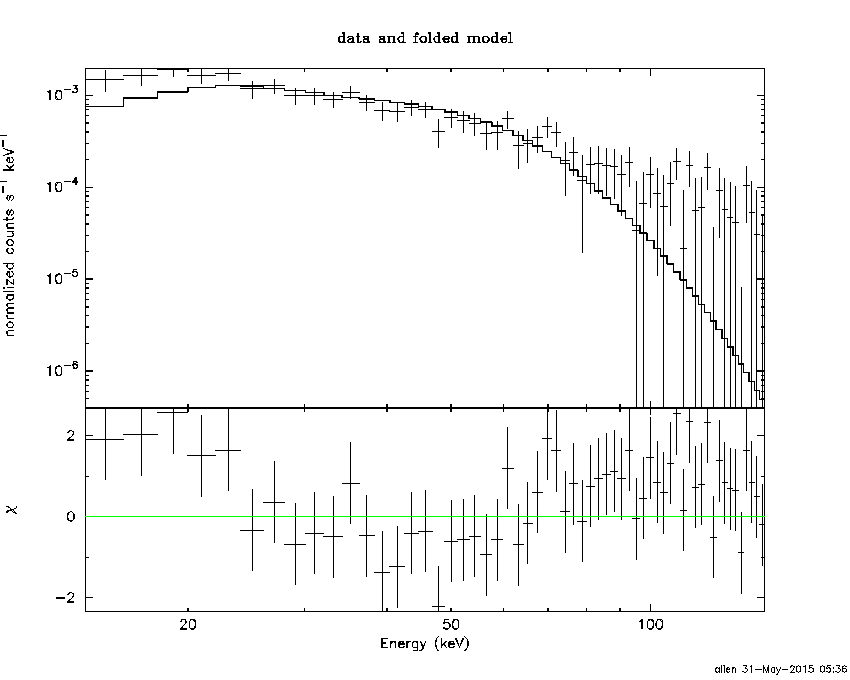

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.4841  (-1.02664  1.14226)
R^2/D10^2   : 9.99149E-02  (-0.0271956   0.0367651)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          80.91 using 59 PHA bins.
# Reduced chi-squared =          1.420 for     57 degrees of freedom
# Null hypothesis probability =   2.034987e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.175e-07   2.685e-08
25- 50  7.164e-07   5.581e-08
50-150  6.888e-07   1.101e-07
15-150  1.623e-06   1.308e-07

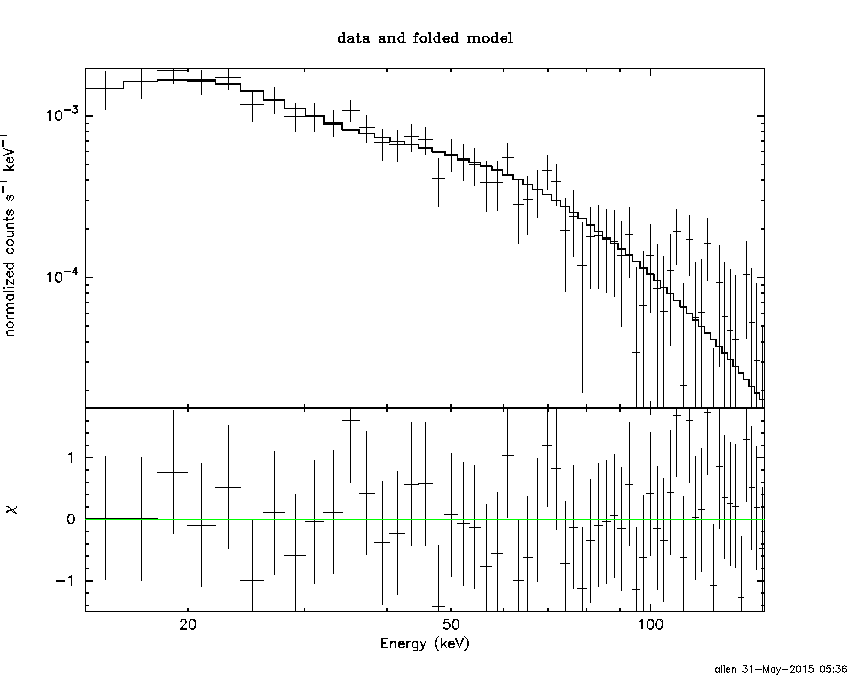

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 146.742       (-42.9523      -145.59)
Norm        : 1.99511       (-0.14812     0.18774)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          32.66 using 59 PHA bins.
# Reduced chi-squared =         0.5729 for     57 degrees of freedom
# Null hypothesis probability =   9.960495e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.382e-07   3.304e-08
25- 50  6.249e-07   8.773e-08
50-150  1.222e-06   4.704e-07
15-150  2.186e-06   5.528e-07

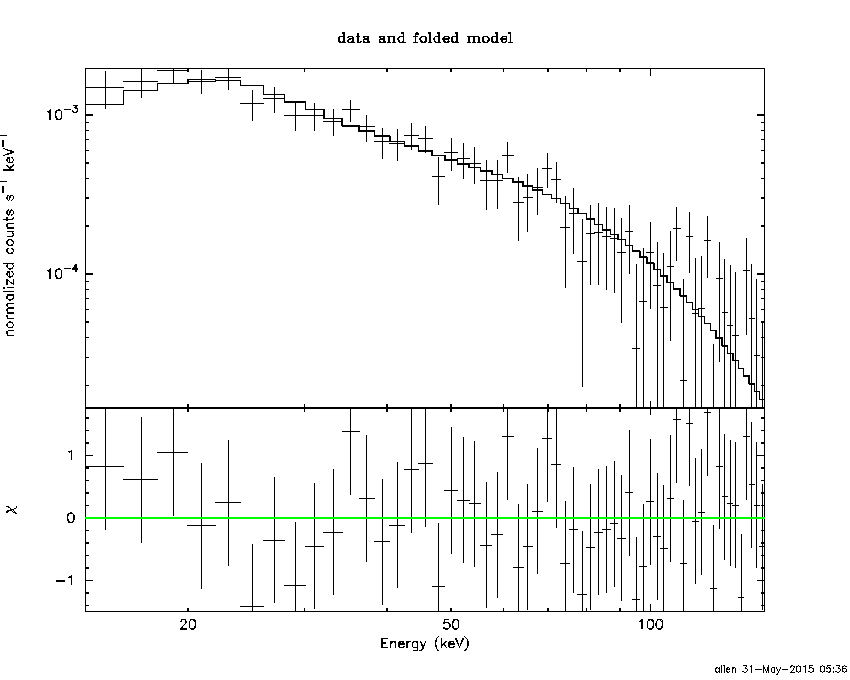

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.27000        (-1.79237      1.79284)
R1^2/D10^2  : 0.498270        (-0.241885      0.584874)
kT2 [keV]   : 27.1537        (-7.88775      21.0281)
R2^2/D10^2  : 4.55023E-03    (-0.00364416   0.00935501)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.46 using 59 PHA bins.
# Reduced chi-squared =         0.6447 for     55 degrees of freedom
# Null hypothesis probability =   9.812097e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.261e-07   6.790e-08
25- 50  6.428e-07   1.465e-07
50-150  1.246e-06   6.024e-07
15-150  2.215e-06   6.945e-07

Peak spectrum fit

Power-law model

Time interval is from    0.064 sec. to    1.064 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.03757     ( -0.307038   0.294545 )
Norm@50keV  : 1.29281E-02    ( -0.00221503   0.00220512 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.03 using 59 PHA bins.
# Reduced chi-squared =          1.036 for     57 degrees of freedom
# Null hypothesis probability =   4.011369e-01

Photon flux (15-150 keV)    in 1 sec: 1.49182 ( -0.260689  0.261879 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.37986e-07 ( -2.54086e-08  2.56157e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.064 sec. to    1.064 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.656391     ( -1.661   0.643338 )
Epeak [keV] : 205.138      ( -205.094 -205.094 )
Norm@50keV  : 1.90280E-02    ( -0.00806412   0.071285 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.77 using 59 PHA bins.
# Reduced chi-squared =          1.049 for     56 degrees of freedom
# Null hypothesis probability =   3.744519e-01

Photon flux (15-150 keV)    in 1 sec: 1.46864 ( -0.27604  0.27041 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.35901e-07 ( -2.7072e-08  2.6631e-08 ) ergs/cm2

Band function

Time interval is from    0.064 sec. to    1.064 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.656954   ( 0.853409   0.853409 )
beta        : -1.38515    ( 1.39999   2.02019 )
Epeak [keV] : 200.501      ( -191.619 808.314 )
Norm@50keV   : 1.91478E-02    ( -0.00726267   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.73 using 59 PHA bins.
# Reduced chi-squared =          1.068 for     55 degrees of freedom
# Null hypothesis probability =   3.403065e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

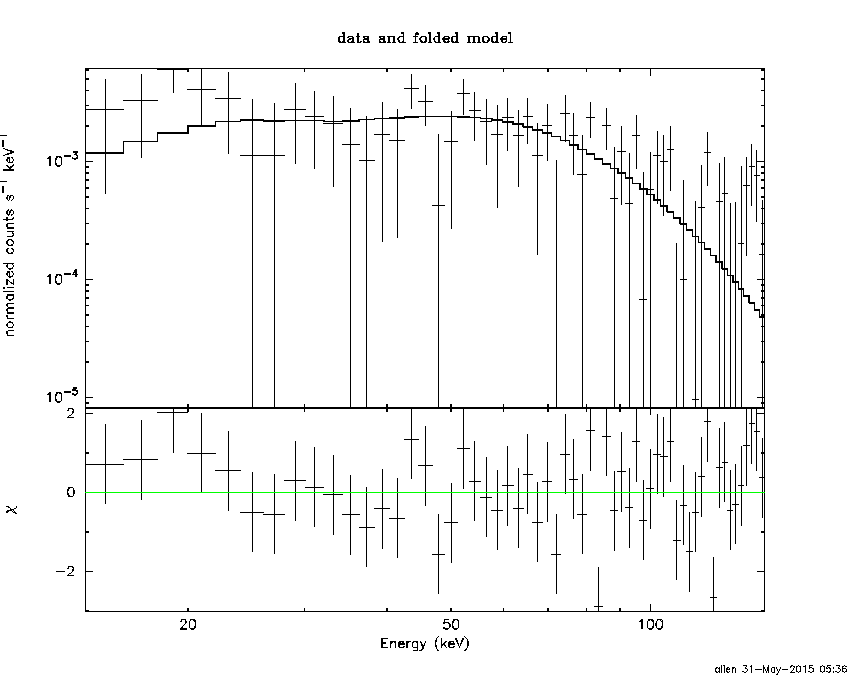

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.8805  (-4.17852  5.85434)
R^2/D10^2   : 5.43815E-02  (-0.0285982   0.053121)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.33 using 59 PHA bins.
# Reduced chi-squared =          1.093 for     57 degrees of freedom
# Null hypothesis probability =   2.924225e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.830e-09   1.843e-09
25- 50  2.546e-08   8.305e-09
50-150  9.105e-08   3.234e-08
15-150  1.213e-07   3.484e-08

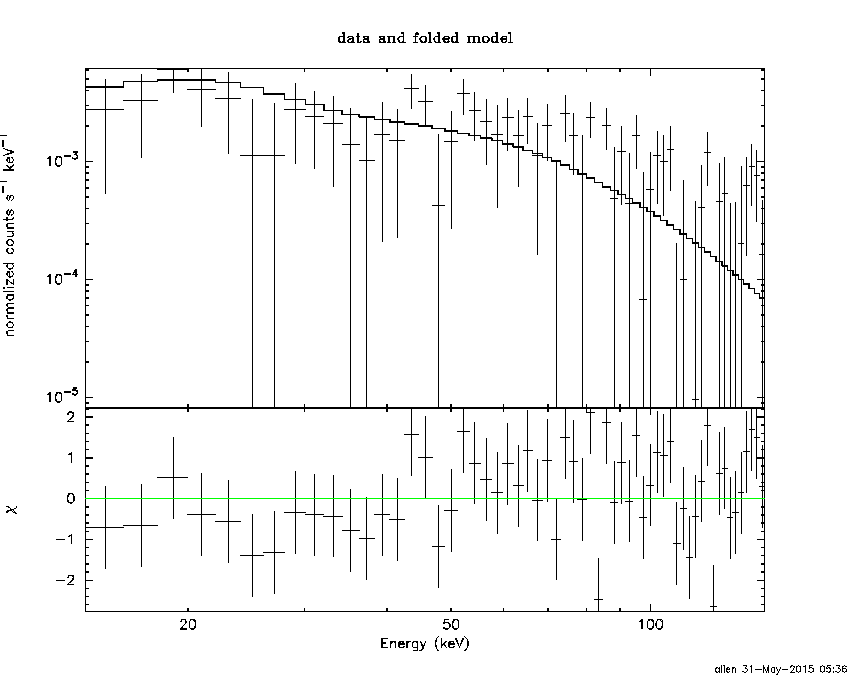

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 6.09472       (-1.07729     1.07721)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.18 using 59 PHA bins.
# Reduced chi-squared =          1.179 for     57 degrees of freedom
# Null hypothesis probability =   1.677080e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.518e-08   8.850e-09
25- 50  2.921e-08   1.686e-08
50-150  6.406e-08   3.715e-08
15-150  1.084e-07   6.145e-08

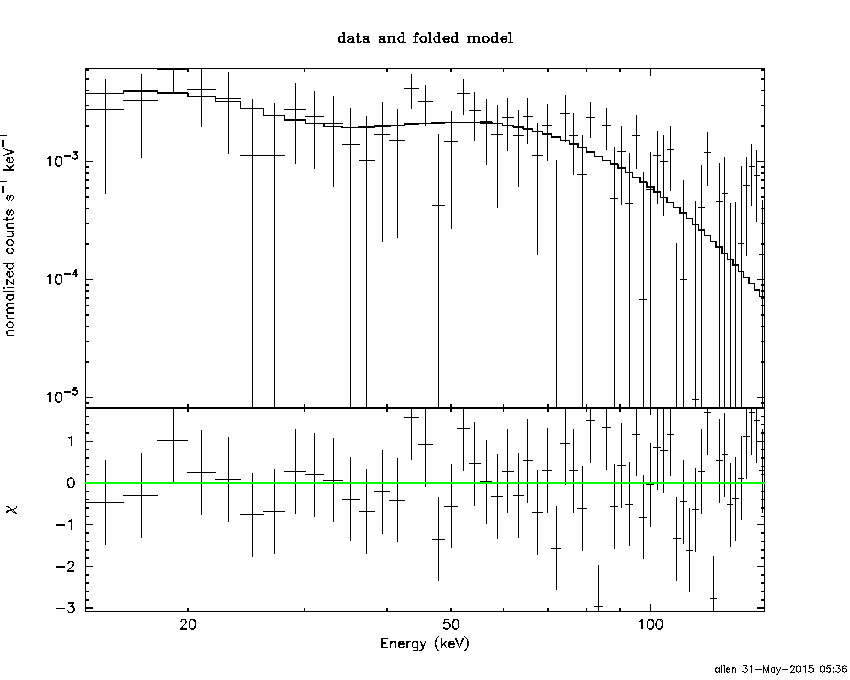

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.59811        (-1.96691      5.48385)
R1^2/D10^2  : 14.3169        (-13.9787      2294.04)
kT2 [keV]   : 24.9277        (-5.38341      9.91335)
R2^2/D10^2  : 3.43289E-02    (-0.0216586   0.027498)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.11 using 59 PHA bins.
# Reduced chi-squared =          1.038 for     55 degrees of freedom
# Null hypothesis probability =   3.964800e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.132e-08   6.147e-09
25- 50  2.303e-08   9.814e-09
50-150  9.693e-08   4.630e-08
15-150  1.313e-07   5.378e-08

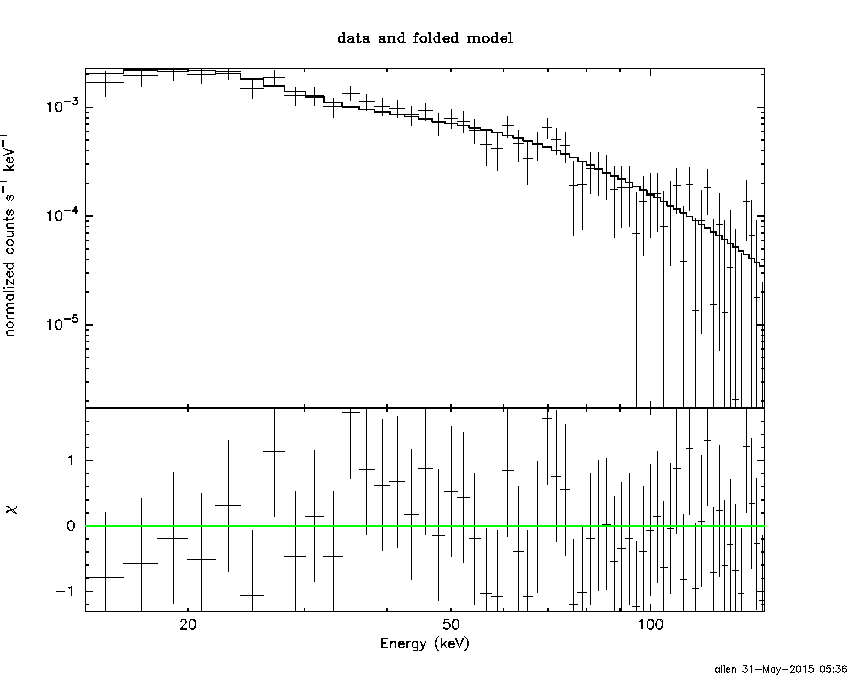

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.61668     ( -0.111194   0.112613 )
Norm@50keV  : 4.82353E-03    ( -0.000317153   0.000314873 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          34.12 using 59 PHA bins.
# Reduced chi-squared =         0.5986 for     57 degrees of freedom
# Null hypothesis probability =   9.930329e-01

Photon flux (15-150 keV)    in 48.42 sec: 0.623090 ( -0.0383964  0.038428 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.17994e-06 ( -1.5458e-07  1.56173e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.14143     ( -0.510187   0.451513 )
Epeak [keV] : 84.2877      ( -22.7882 433.374 )
Norm@50keV  : 8.61342E-03    ( -0.00357555   0.00729549 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          30.88 using 59 PHA bins.
# Reduced chi-squared =         0.5514 for     56 degrees of freedom
# Null hypothesis probability =   9.974465e-01

Photon flux (15-150 keV)    in 48.42 sec: 0.607263 ( -0.041246  0.041103 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.07493e-06 ( -1.83275e-07  1.84737e-07 ) ergs/cm2

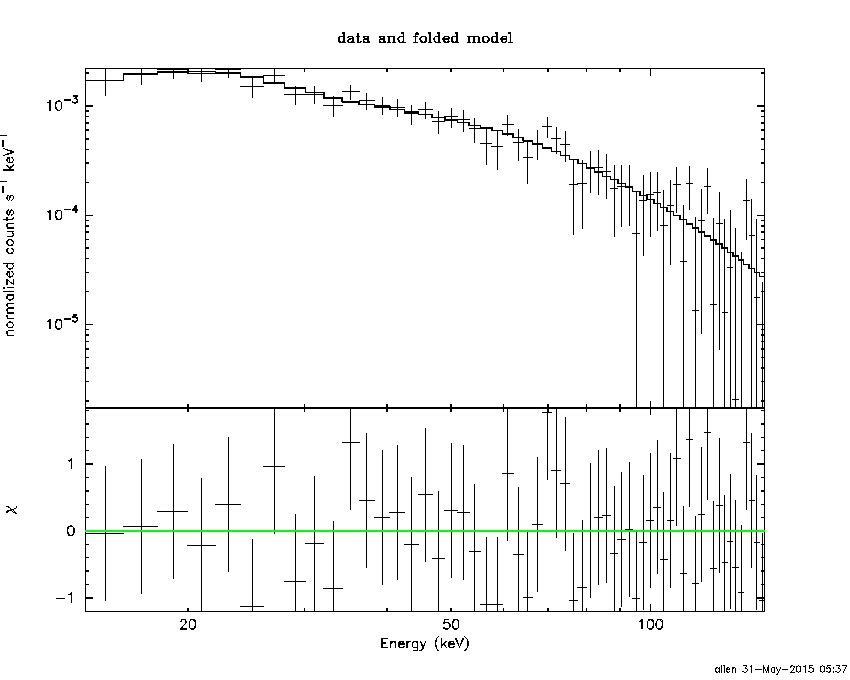

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.783766   ( -0.683292   5.04049 )
beta        : -1.86855    ( 1.86911   0.25307 )
Epeak [keV] : 58.2432      ( -33.4261 147.789 )
Norm@50keV   : 1.46131E-02    ( -0.00506384   296.769 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          30.03 using 59 PHA bins.
# Reduced chi-squared =         0.5460 for     55 degrees of freedom
# Null hypothesis probability =   9.975718e-01

Photon flux (15-150 keV)    in 48.42 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.05e-07
S(50-100 keV) = 7.65e-07

T90 vs. Hardness ratio plot

T90                                   = 50.3199999928474 sec.
Hardness ratio (energy fluence ratio) = 1.26446

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.266
Count Ratio (50-100 keV) / (15-25 keV) = 0.817161

Mask shadow pattern

IMX = 4.086775134310253E-01, IMY = -4.959717974243960E-01

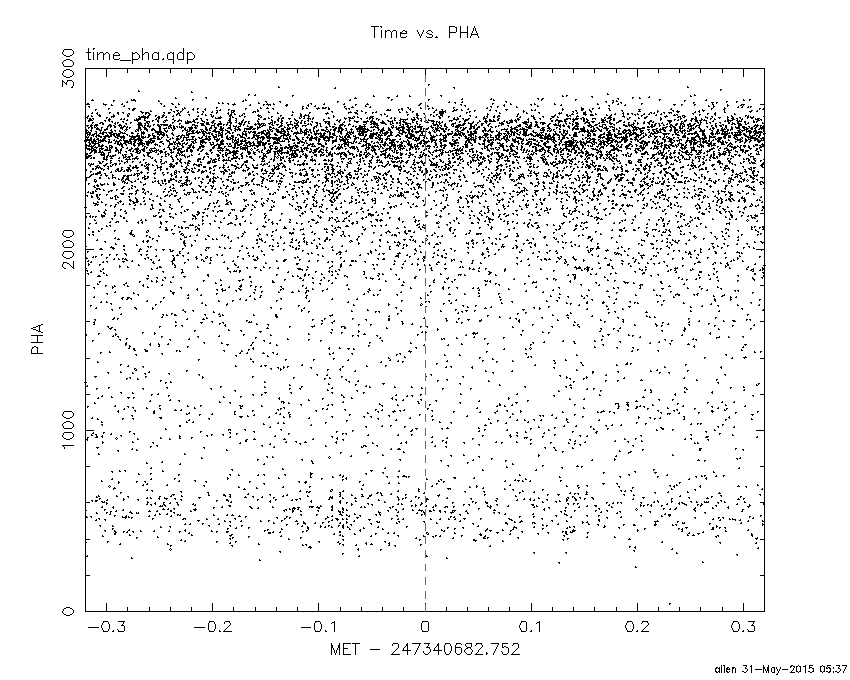

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

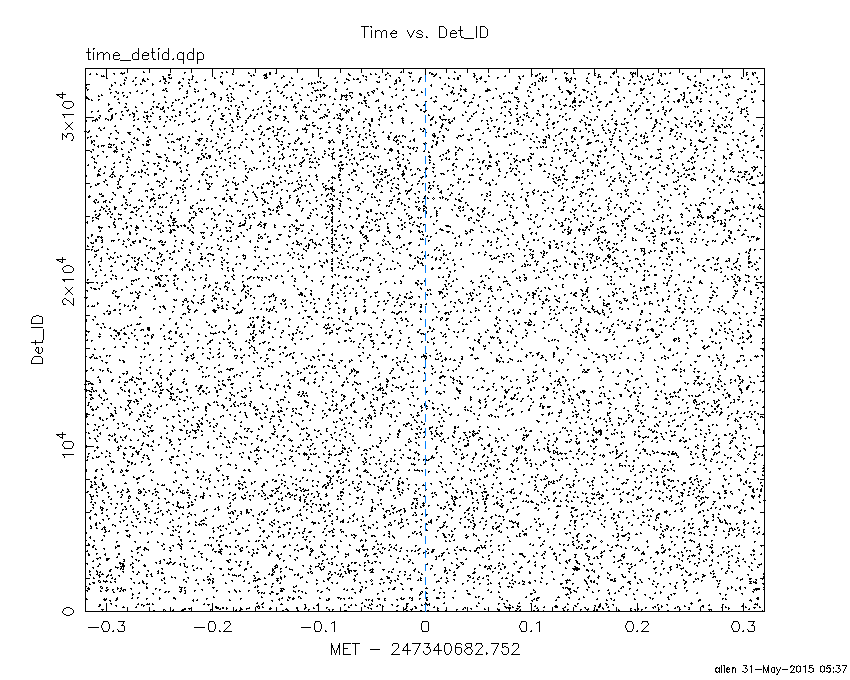

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

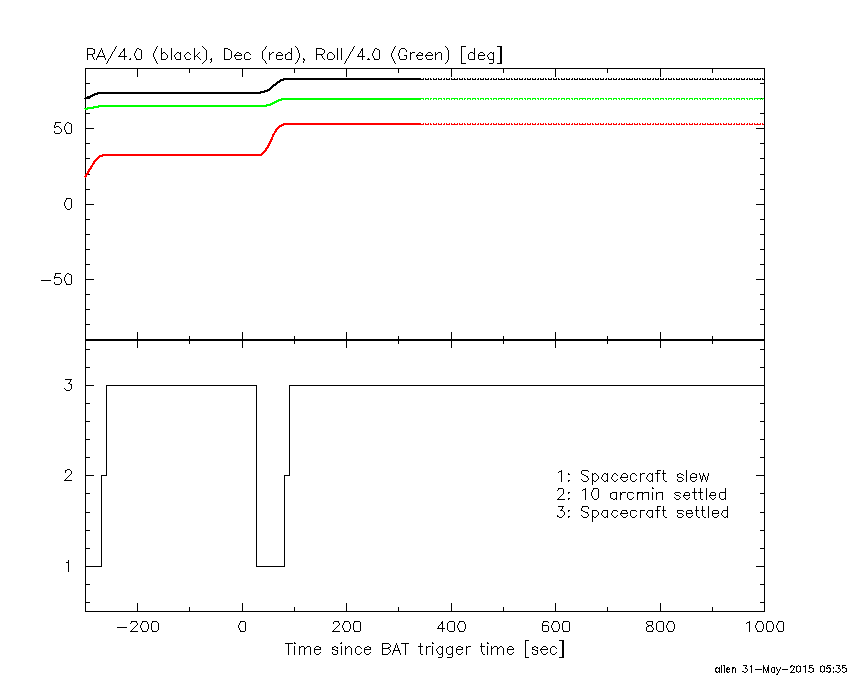

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.752000 -20.076000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4721  35.3754   10.9  34.1  -63.0  -0.3742  -1.1    2.1	Her X-1
268.4074  -1.4246    5.0  42.5 -127.0   1.2166   2.3    2.9	SW J1753.5-0127
274.0723 -13.9016    0.0  50.7 -142.1  -0.4308  -0.6    9.0	GX 17+2
284.9091 -24.8958    7.4  58.1 -158.2  -2.2656  -1.5    7.1	HT1900.1-2455
288.7859  10.9392    1.7  22.3 -151.5   1.4697   6.9    0.8	GRS 1915+105
299.6030  35.2047    0.2   4.3   57.5   9.0588  46.6    0.7	Cyg X-1
308.2754  40.9933    7.1  13.3   55.9   0.3306   1.6    7.9	Cyg X-3
326.0027  38.4801    0.0  25.3   77.7   0.6626   2.2   12.4	Cyg X-2
255.8983  13.2789    3.3  41.0  -98.0   3.6408   3.5 ------	UNKNOWN
234.8677  41.9535    2.7  48.4  -50.0   4.8837   4.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-20.076000 28.348600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2703  35.3172   28.6  34.3  -63.1   0.0551   0.4    9.3	Her X-1
268.4375  -1.5692   17.5  42.6 -127.1   0.1338   0.7    8.1	SW J1753.5-0127
274.0654 -14.0506    3.7  50.8 -142.2   1.0071   3.2    3.6	GX 17+2
285.0897 -24.9971    5.7  58.2 -158.4   0.9375   2.0    5.4	HT1900.1-2455
288.6181  11.0612    0.0  22.2 -151.0   0.1572   1.8   12.7	GRS 1915+105
299.4648  35.3382    6.5   4.3   55.1   0.1518   1.8   10.2	Cyg X-1
307.9142  40.9376   13.9  13.0   55.4   0.0755   0.8    8.9	Cyg X-3
326.0655  38.2895    6.2  25.4   78.1  -0.2399  -1.9    5.4	Cyg X-2
331.1803  52.9922    0.5  32.7   50.5   3.7368  25.1 ------	UNKNOWN
320.9842 -11.3914    2.2  49.9  157.1   1.6258   5.2 ------	UNKNOWN
215.8207  62.7601    2.4  57.1  -22.2   1.9614   4.8 ------	UNKNOWN
265.5354  -4.5811    2.3  46.7 -126.2   1.8695   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
81.148590 962.348700

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5903  35.1972    0.2  28.4 -125.1  34.7769  51.8    0.3	Cyg X-1
307.8912  41.0473   11.4  19.7 -127.0   0.5471   1.0   11.4	Cyg X-3
326.0859  38.2183    3.4  15.2 -173.7   1.7947   3.4    7.4	Cyg X-2
324.3203  18.9708    2.9  34.4 -177.6   2.6657   4.0 ------	UNKNOWN
354.9229  84.6028    3.8  32.1   -4.9   1.9162   3.1 ------	UNKNOWN
238.3213  72.5381    3.0  41.1  -36.1   3.3823   3.8 ------	UNKNOWN

Plot creation:
Sun May 31 05:37:30 EDT 2015
