batgrbproduct Analysis for Trigger=335715

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 20:22:17 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger335715
======================================================================

  Trigger: 00335715      Segment: 000

  BAT Trigger Time: 249462312.192   [s; MET]
      Trigger Stop: 249462320.384   [s; MET]
               UTC: 2008-11-27T07:05:08.903800    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 332.09265321205   Dec: 6.85939107792509  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.25
     Image Trigger?:     NO
     Rate S/N Ratio:     8.42614977317636  [ if not an image trigger ]
     Image S/N Ratio:    7.25

  Flight Position:   [ source = BAT ]
    RA: 332.09265321205   Dec: 6.85939107792509  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 332.0823951619   Dec: 6.84381693017392  [deg; J2000]
        { 22h 08m 19.8s , +06d 50' 37.7" }
         +/- 2.33254644561019 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.991046344579726 [arcmin] (formal 1-sigma fit error)
    SNR: 9.07081944969431

  Angular difference between Flight and Ground position is 1.116523 arcmin

  Partial Coding Fraction: 0.515625    [ including projection effects ]

  Duration
     T90: 17.3000000119209 +/- 3.54516966255674
        Measured from: -9.21999999880791
                   to: 8.08000001311302     [s; relative to TRIGTIME]
     T50: 8.54800000786781 +/- 3.52388478836441
        Measured from: -4.03999999165535
                   to: 4.50800001621246     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -4.59200000762939
                   to: -3.59200000762939     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -10.7120000123978
                   to: 8.53599998354912     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.287636   0.227198   0.171459   0.009593
           0.034745   0.036179   0.032935   0.030583 [error]
 Peak      0.041736   0.017142   0.012955   0.011269
           0.008060   0.008059   0.007650   0.007142 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 9.26e-08 1.22e-07 1.19e-07 2.06e-07 4.02e-07 5.40e-07   erg/cm2
              Error 1.95e-08 1.80e-08 3.25e-08 1.14e-07 7.27e-08 1.48e-07   erg/cm2
Peak flux Power-law 3.57e-01 2.26e-01 9.27e-02 5.15e-02 7.02e-01 7.27e-01   ph/cm2/s
              Error 1.43e-01 7.48e-02 5.91e-02 7.04e-02 2.12e-01 2.24e-01   ph/cm2/s

Fluence   Cutoff-PL 9.24e-08 1.23e-07 1.20e-07 2.08e-07 4.02e-07 5.46e-07   erg/cm2
              Error 1.95e-08 1.38e-08 3.26e-08 1.69e-07 5.40e-08 1.65e-07   erg/cm2
Peak flux Cutoff-PL 3.58e-01 2.26e-01 9.13e-02 4.94e-02 7.01e-01 7.26e-01   ph/cm2/s
              Error 1.44e-01 8.35e-02 -------- 7.01e-02 2.12e-01 2.25e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.044    0.304    -      -           2.26e-03 4.41e-04   48.930 57
CPL   2.129    0.000      64.7    0.0      2.00e-03 0.00e+00   48.750 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.288    0.712    -      -           4.04e-03 1.96e-03   66.350 57
CPL   2.376    1.181     176.2    0.0      3.58e-03 3.37e-01   66.340 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   19.248  -10.712    8.536
T90    17.300   -9.220    8.080
T50     8.548   -4.040    4.508
Peak    1.000   -4.592   -3.592

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  332.0824     6.8438   0.0212    42.4819  -171.4140         0.6596626      9.071 TRIG_00335715

Foreground time interval of the image:
-10.712   8.536 (delta_t =  19.248 [sec])
Background time interval of the image:
-239.192 -10.712 (delta_t = 228.480 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

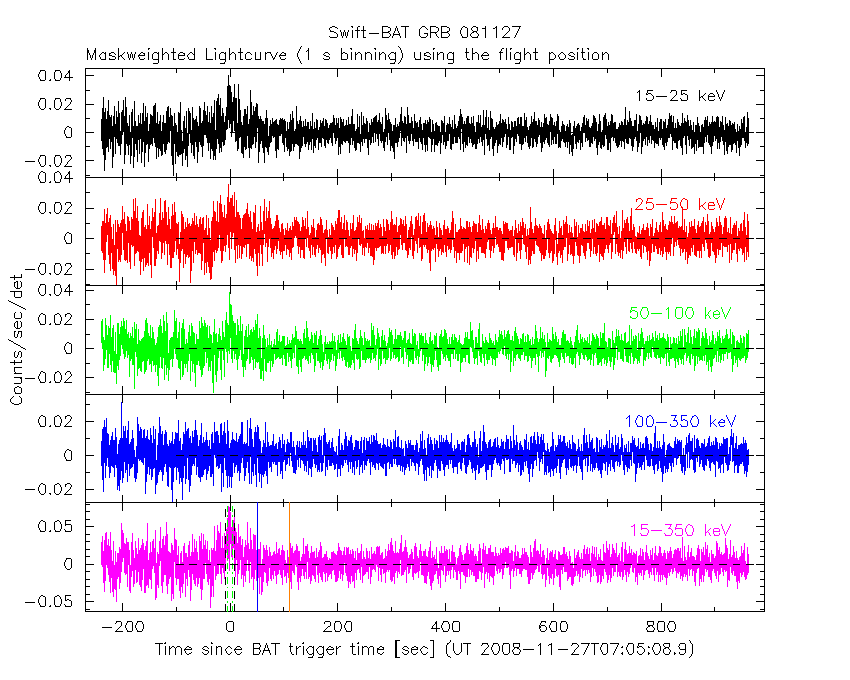

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

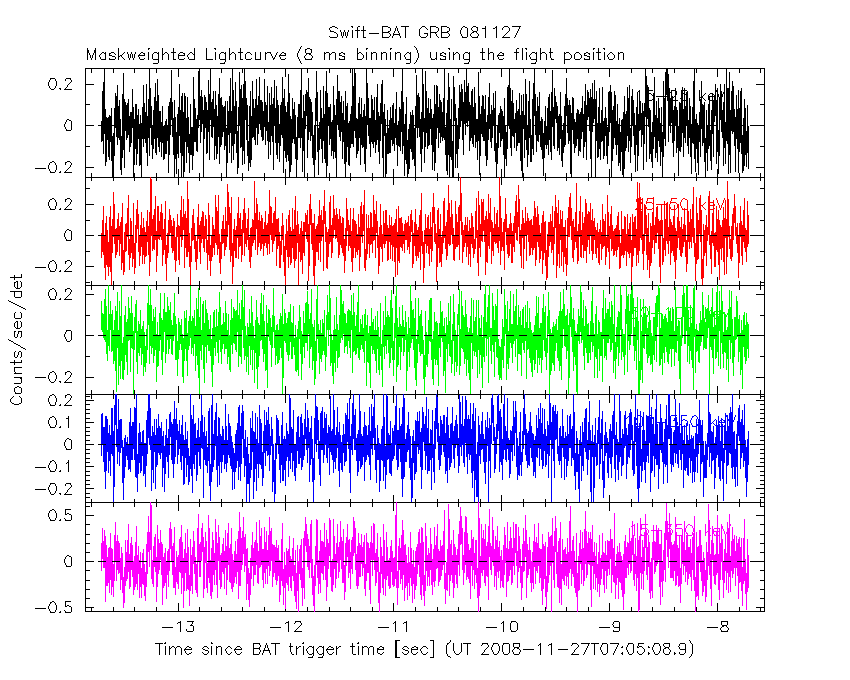

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -10.712 sec. to    8.536 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.04359     ( -0.289721   0.317987 )
Norm@50keV  : 2.25716E-03    ( -0.000452062   0.00043018 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.93 using 59 PHA bins.
# Reduced chi-squared =         0.8584 for     57 degrees of freedom
# Null hypothesis probability =   7.677471e-01

Photon flux (15-150 keV)    in 19.25 sec: 0.345541 ( -0.0500296  0.0500498 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.0178e-07 ( -7.16281e-08  7.37741e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -10.712 sec. to    8.536 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.12896     (     )
Epeak [keV] : 64.7133      (   )
Norm@50keV  : 1.99636E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.75 using 59 PHA bins.
# Reduced chi-squared =         0.8706 for     56 degrees of freedom
# Null hypothesis probability =   7.430814e-01

Photon flux (15-150 keV)    in 19.25 sec: 0.345662 ( -0.050369  0.049884 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.02265e-07 ( -3.63863e-08  7.15503e-08 ) ergs/cm2

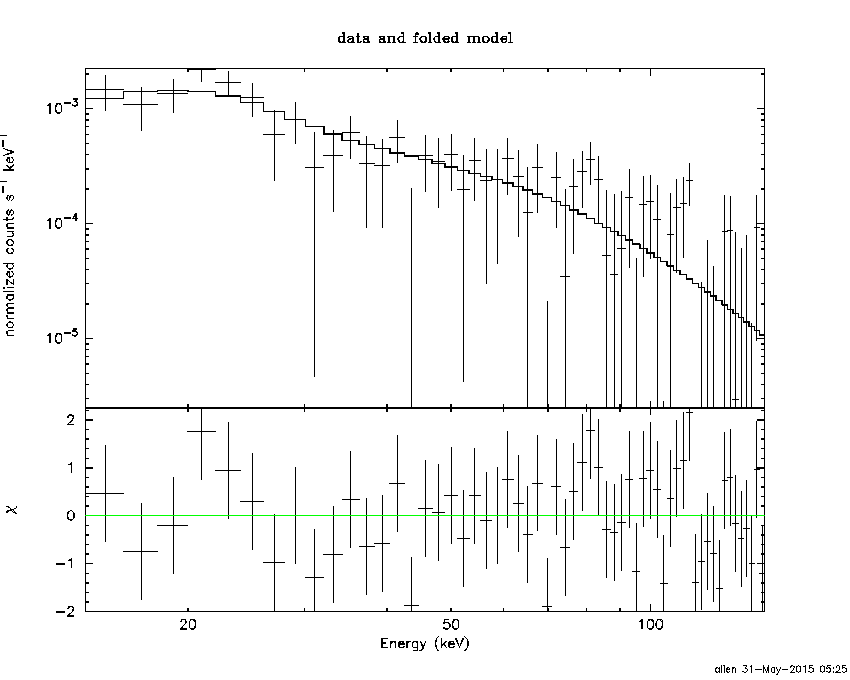

Band function

Time interval is from  -10.712 sec. to    8.536 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.893659   ( 1.17773   1.17773 )
beta        : -2.09041    ( 2.06321   0.305686 )
Epeak [keV] : 20.6754      ( -21.2406 -21.2406 )
Norm@50keV   : 0.565404    ( -0.551299   643.24 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.82 using 59 PHA bins.
# Reduced chi-squared =         0.8876 for     55 degrees of freedom
# Null hypothesis probability =   7.084555e-01

Photon flux (15-150 keV)    in 19.25 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

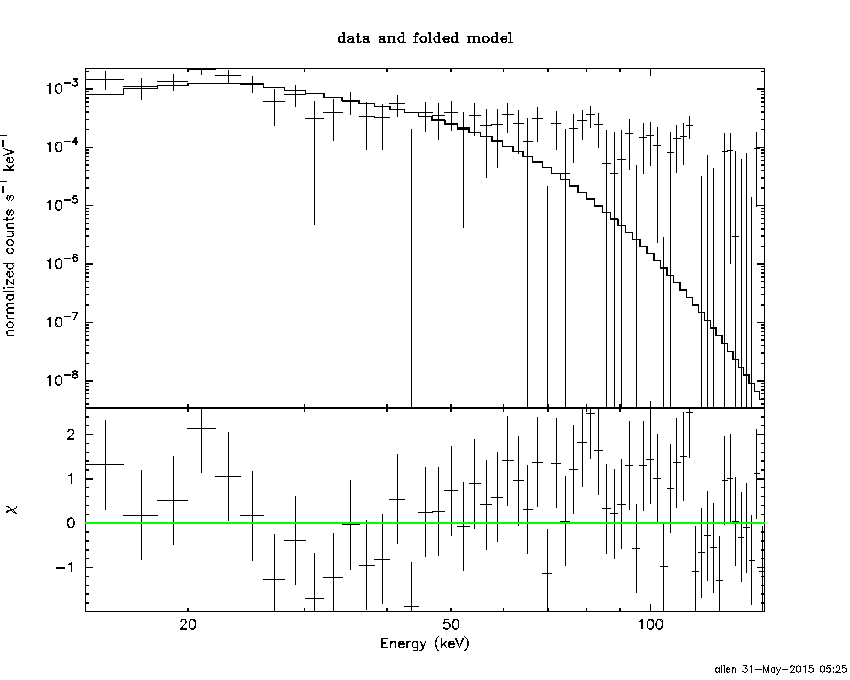

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.31515  (-1.90065  2.94651)
R^2/D10^2   : 0.304513  (-0.298745   0.555329)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.77 using 59 PHA bins.
# Reduced chi-squared =          1.242 for     57 degrees of freedom
# Null hypothesis probability =   1.038926e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.531e-08   2.089e-08
25- 50  1.408e-07   4.061e-08
50-150  4.191e-08   2.026e-08
15-150  2.580e-07   6.606e-08

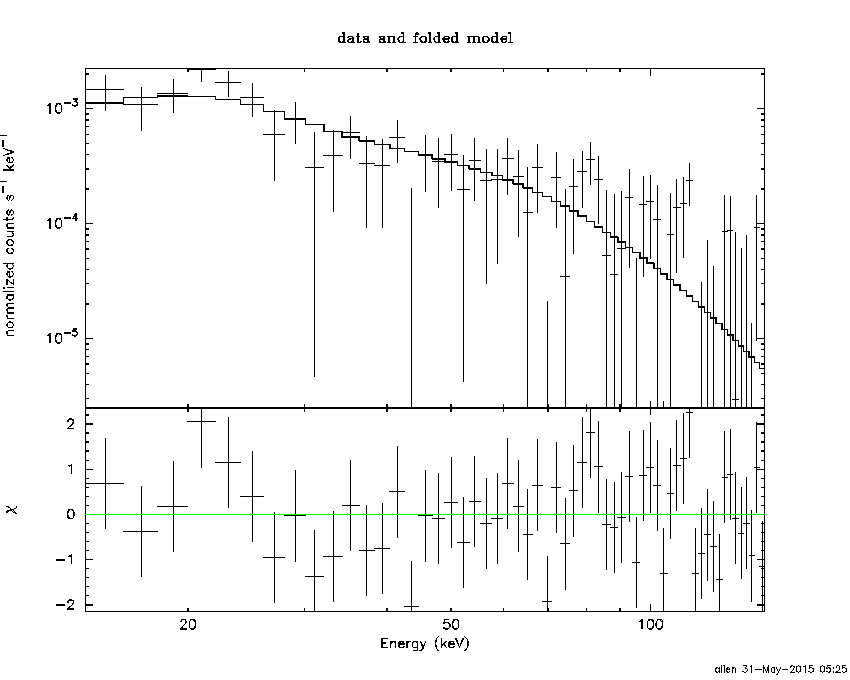

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 68.9707       (-27.791      62.4614)
Norm        : 1.67942       (-0.37805     0.542978)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.88 using 59 PHA bins.
# Reduced chi-squared =         0.9101 for     57 degrees of freedom
# Null hypothesis probability =   6.671731e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.281e-08   1.574e-08
25- 50  1.312e-07   2.326e-08
50-150  1.667e-07   8.963e-08
15-150  3.807e-07   9.519e-08

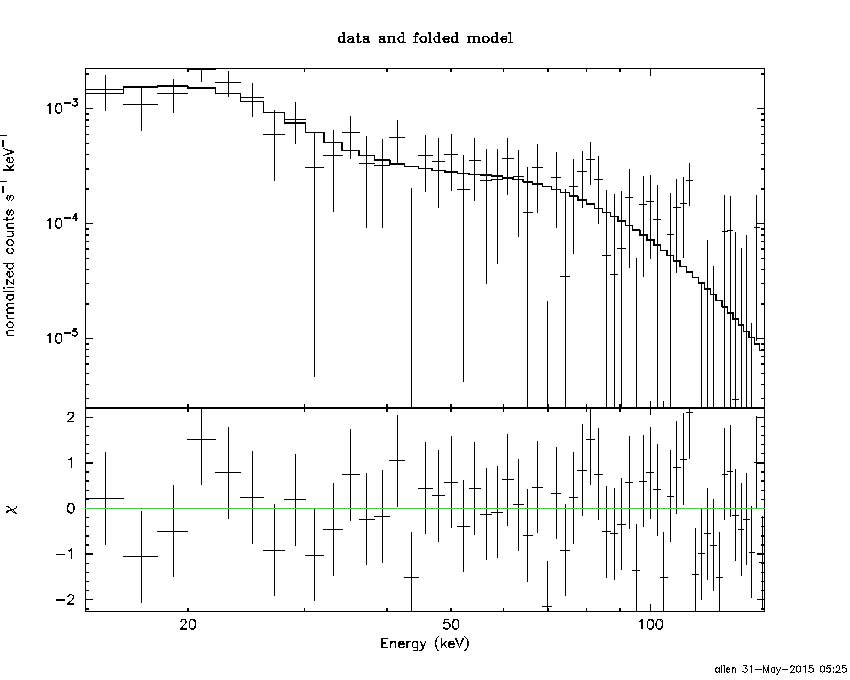

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.72970        (-1.08453      1.3598)
R1^2/D10^2  : 2.47016        (-1.63162      3.19387)
kT2 [keV]   : 23.1389        (-6.64541      12.6282)
R2^2/D10^2  : 5.24377E-03    (-0.00401509   0.00790489)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.62 using 59 PHA bins.
# Reduced chi-squared =         0.8294 for     55 degrees of freedom
# Null hypothesis probability =   8.123181e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.019e-07   5.496e-08
25- 50  1.055e-07   5.080e-08
50-150  2.142e-07   1.309e-07
15-150  4.215e-07   1.998e-07

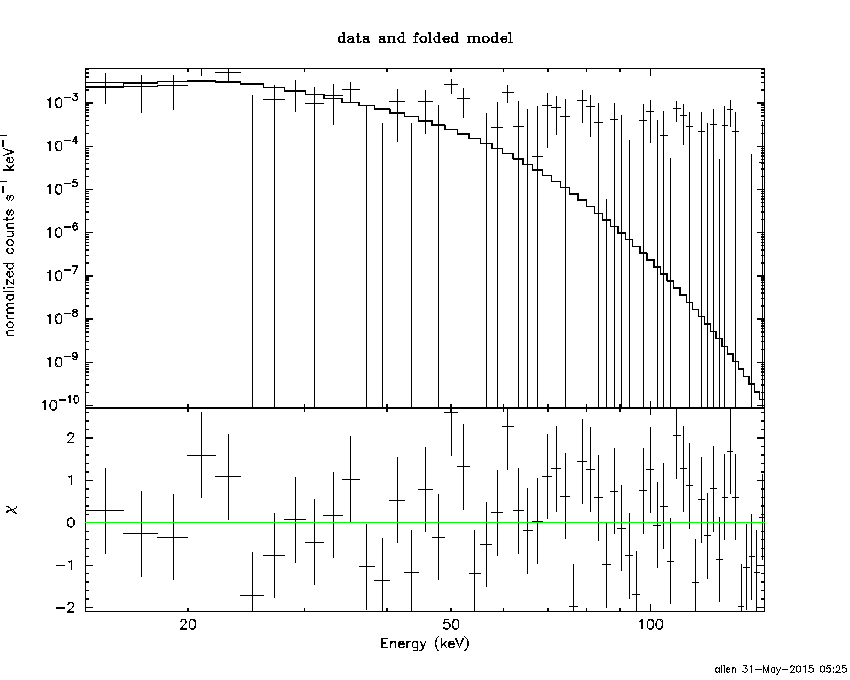

Peak spectrum fit

Power-law model

Time interval is from   -4.592 sec. to   -3.592 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.28805     ( -0.620107   0.803295 )
Norm@50keV  : 4.04305E-03    ( -0.00201273   0.00191088 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.35 using 59 PHA bins.
# Reduced chi-squared =          1.164 for     57 degrees of freedom
# Null hypothesis probability =   1.856650e-01

Photon flux (15-150 keV)    in 1 sec: 0.701891 ( -0.212375  0.212436 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.85513e-08 ( -1.46609e-08  1.61927e-08 ) ergs/cm2

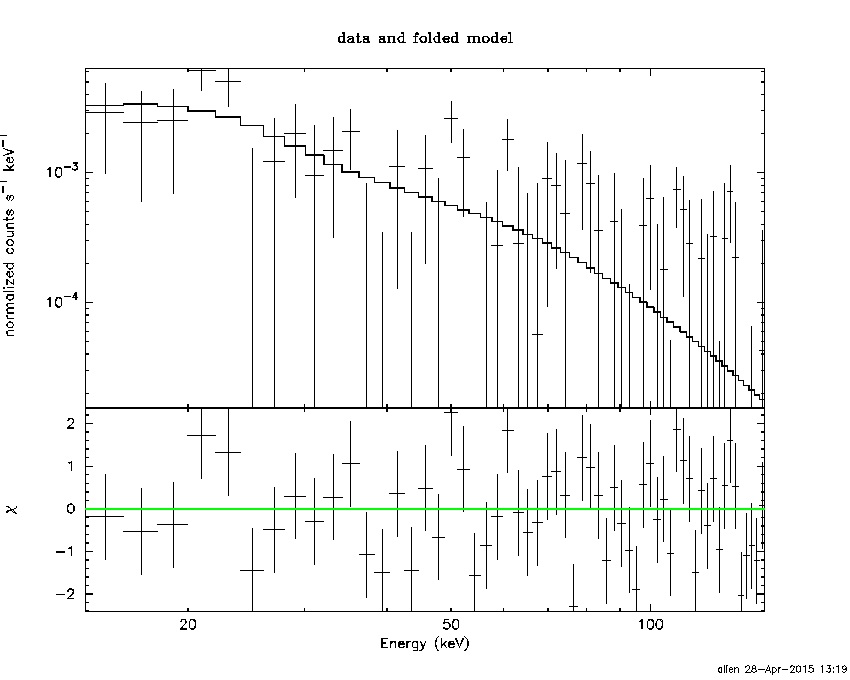

Cutoff power-law model

Time interval is from   -4.592 sec. to   -3.592 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.37567     ( -2.32844   0.0329405 )
Epeak [keV] : 176.247      (   )
Norm@50keV  : 3.57619E-03    ( -0.00362764   0.671225 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.34 using 59 PHA bins.
# Reduced chi-squared =          1.185 for     56 degrees of freedom
# Null hypothesis probability =   1.622939e-01

Photon flux (15-150 keV)    in 1 sec: 0.701423 ( -0.21205  0.211905 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.84141e-08 ( -1.59998e-08  1.63287e-08 ) ergs/cm2

Band function

Time interval is from   -4.592 sec. to   -3.592 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -2.00814   ( 2.00814   2.00814 )
beta        : -2.28805    ( -0.80297   0.620187 )
Epeak [keV] : 0.203134      ( -0.203134 -0.203134 )
Norm@50keV   : 0.549509    ( 0.822496   -0.549509 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.35 using 59 PHA bins.
# Reduced chi-squared =          1.206 for     55 degrees of freedom
# Null hypothesis probability =   1.403962e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.38933  (-2.16572  4.29511)
R^2/D10^2   : 1.84359  (-1.82353   9.53331)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.68 using 59 PHA bins.
# Reduced chi-squared =          1.222 for     57 degrees of freedom
# Null hypothesis probability =   1.208968e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.089e-08   6.770e-09
25- 50  1.241e-08   7.765e-09
50-150  1.461e-09   1.285e-09
15-150  2.476e-08   1.570e-08

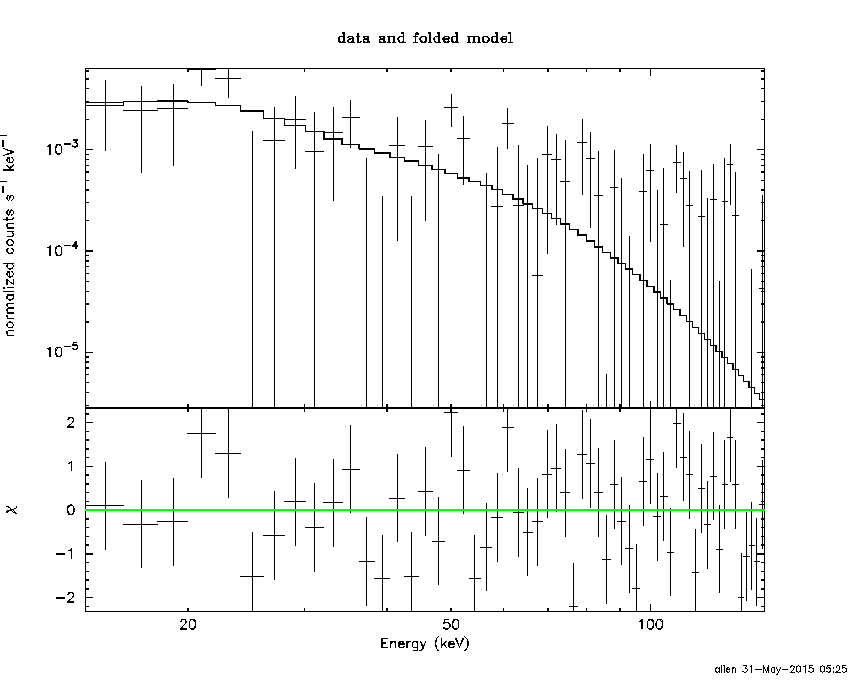

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 41.3921       (-25.3025      112.953)
Norm        : 4.39362       (-2.05664     6.06726)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.99 using 59 PHA bins.
# Reduced chi-squared =          1.175 for     57 degrees of freedom
# Null hypothesis probability =   1.716452e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.020e-08   6.064e-09
25- 50  1.362e-08   7.949e-09
50-150  1.093e-08   8.344e-09
15-150  3.476e-08   2.215e-08

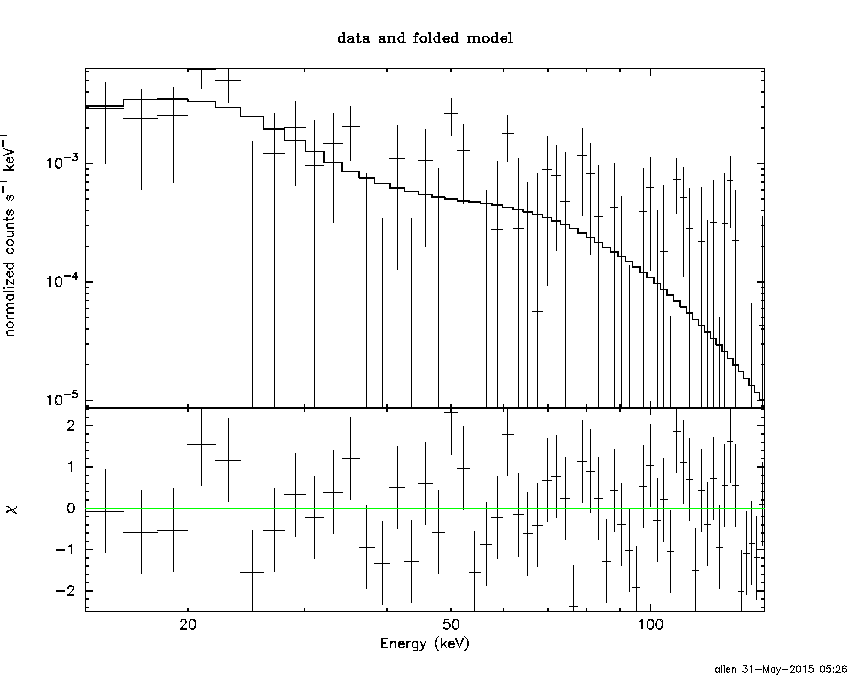

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.63740        (-1.98869      2.82599)
R1^2/D10^2  : 6.07285        (-5.24206      79.2676)
kT2 [keV]   : 21.4566        (-18.8077      -21.4592)
R2^2/D10^2  : 1.13450E-02    (-0.0113139   0.357844)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.46 using 59 PHA bins.
# Reduced chi-squared =          1.190 for     55 degrees of freedom
# Null hypothesis probability =   1.579968e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.180e-08   7.325e-09
25- 50  1.093e-08   6.080e-09
50-150  1.766e-08   1.169e-08
15-150  4.039e-08   2.143e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.04359     ( -0.289721   0.317987 )
Norm@50keV  : 2.25716E-03    ( -0.000452062   0.00043018 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.93 using 59 PHA bins.
# Reduced chi-squared =         0.8584 for     57 degrees of freedom
# Null hypothesis probability =   7.677471e-01

Photon flux (15-150 keV)    in 19.25 sec: 0.345541 ( -0.0500296  0.0500498 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.0178e-07 ( -7.16281e-08  7.37741e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.12896     (     )
Epeak [keV] : 64.7133      (   )
Norm@50keV  : 1.99636E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.75 using 59 PHA bins.
# Reduced chi-squared =         0.8706 for     56 degrees of freedom
# Null hypothesis probability =   7.430814e-01

Photon flux (15-150 keV)    in 19.25 sec: 0.345662 ( -0.050369  0.049884 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.02265e-07 ( -3.63863e-08  7.15503e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.893659   ( 1.17773   1.17773 )
beta        : -2.09041    ( 2.06321   0.305686 )
Epeak [keV] : 20.6754      ( -21.2406 -21.2406 )
Norm@50keV   : 0.565404    ( -0.551299   643.21 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.82 using 59 PHA bins.
# Reduced chi-squared =         0.8876 for     55 degrees of freedom
# Null hypothesis probability =   7.084555e-01

Photon flux (15-150 keV)    in 19.25 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.22e-07
S(50-100 keV) = 1.19e-07

T90 vs. Hardness ratio plot

T90                                   = 17.3000000119209 sec.
Hardness ratio (energy fluence ratio) = 0.97541

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.78988
Count Ratio (50-100 keV) / (15-25 keV) = 0.596097

Mask shadow pattern

IMX = -9.054860239403703E-01, IMY = 1.367151129898282E-01

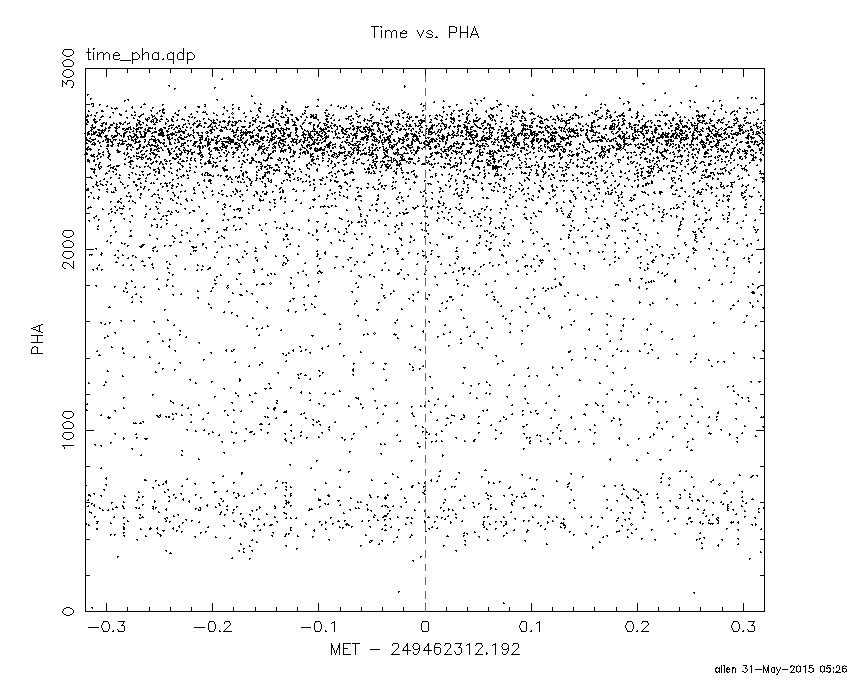

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

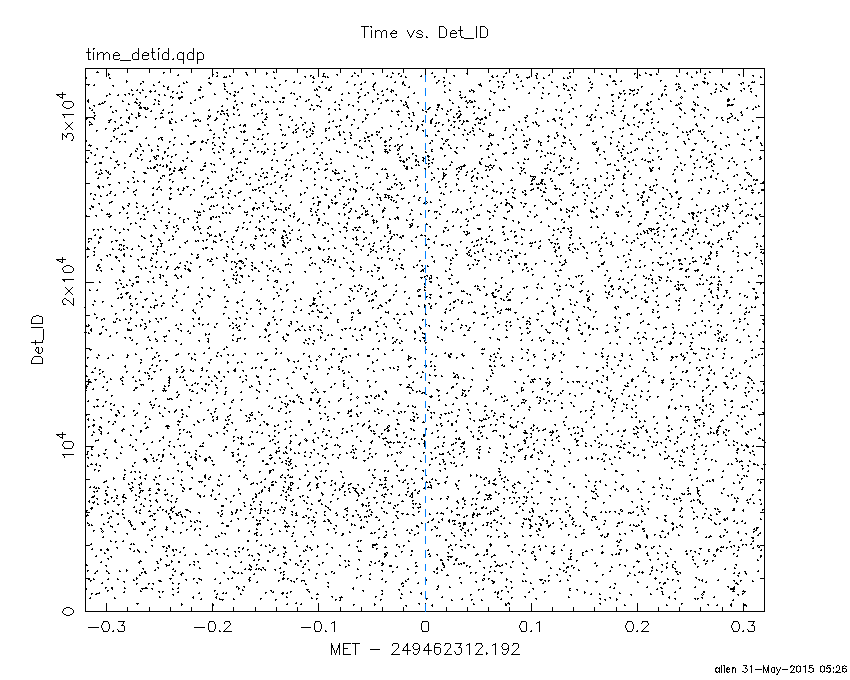

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.192000 -10.712000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5958  35.2016    0.3  22.2  -97.4   8.2143  38.9    0.3	Cyg X-1
308.0861  40.8143    7.9  13.5  -98.9   0.2656   1.5    8.4	Cyg X-3
326.1306  38.2875    3.2  10.6 -169.9   0.6907   3.6    2.8	Cyg X-2
333.9836  53.1449    2.6   7.9   73.2   0.7471   4.4 ------	UNKNOWN
278.0933  27.2273    3.1  41.0  -83.6   2.9663   3.8 ------	UNKNOWN
298.0759   8.3950    2.0  45.7 -122.3   4.7971   5.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-10.712000 8.536000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5434  35.2406   15.1  22.2  -97.2  -0.0428  -0.8    3.3	Cyg X-1
307.8582  41.0059    4.9  13.5  -97.8  -0.1089  -2.4   11.9	Cyg X-3
325.9791  38.3061    4.9  10.5 -169.2  -0.1010  -2.4    9.1	Cyg X-2
 53.2118  70.7070    2.1  44.7   49.2   1.0952   5.6 ------	UNKNOWN
 16.0232  63.5023    2.2  31.6   63.6   0.3982   5.2 ------	UNKNOWN
332.0824   6.8438    1.3  42.5 -171.4   0.6597   9.1 ------	UNKNOWN
317.9253  -6.2731    2.3  55.2 -152.0   0.9820   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
111.108600 784.239000
785.808000 962.864000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
288.7508  10.9009    1.8  43.0  -60.0  10.9442   6.3    3.9	GRS 1915+105
299.5907  35.2137    0.3  41.1  -20.4  29.8264  44.1    0.7	Cyg X-1
307.9250  41.0283   28.6  40.4   -7.1  -0.2908  -0.4    9.5	Cyg X-3
326.2464  38.2327    7.5  31.8   12.7   0.8127   1.5    6.4	Cyg X-2
350.9950  40.6969    2.8  37.8   45.0   3.8214   4.2 ------	UNKNOWN
340.8826  12.3138    3.8  10.2   78.6   1.2438   3.1 ------	UNKNOWN
358.5853 -41.5010    3.8  54.1  177.0   6.4730   3.0 ------	UNKNOWN
282.3449  23.2865    3.0  50.5  -44.0   9.6578   3.8 ------	UNKNOWN

Plot creation:
Sun May 31 05:26:43 EDT 2015
