batgrbproduct analysis for trigger=337889

batgrbproduct Analysis for Trigger=337889

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Sep 11 12:38:05 EDT 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger337889
======================================================================

  Trigger: 00337889      Segment: 000

  BAT Trigger Time: 251569275.2   [s; MET]
      Trigger Stop: 251569275.712   [s; MET]
               UTC: 2008-12-21T16:21:11.847580    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 15.8049817084335   Dec: -24.5258354741473  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.37
     Image Trigger?:     NO
     Rate S/N Ratio:     12.8452325786651  [ if not an image trigger ]
     Image S/N Ratio:    8.37

  Flight Position:   [ source = BAT ]
    RA: 15.8049817084335   Dec: -24.5258354741473  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 15.8011401299552   Dec: -24.5413761046146  [deg; J2000]
        { 01h 03m 12.3s , -24d 32' 29.0" }
         +/- 0.675898739010228 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.151390562887296 [arcmin] (formal 1-sigma fit error)
    SNR: 53.2285473370551

  Angular difference between Flight and Ground position is 0.955724 arcmin

  Partial Coding Fraction: 0.6171875    [ including projection effects ]

  Duration
     T90: 33.9079999923706 +/- 0.921650681212753
        Measured from: 4.61600002646446
                   to: 38.5240000188351     [s; relative to TRIGTIME]
     T50: 9.14400002360344 +/- 0.138621815705944
        Measured from: 19.9160000085831
                   to: 29.0600000321865     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 21.4240000247955
                   to: 22.4240000247955     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.283999979496002
                   to: 112.316000014544     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     9.632042  12.717831   8.323238   1.446389
           0.071673   0.079141   0.071153   0.060432 [error]
 Peak      0.453024   0.817017   0.708130   0.186145
           0.012099   0.015388   0.015110   0.009494 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.40e-06 5.37e-06 6.38e-06 1.47e-05 1.94e-05 2.99e-05   erg/cm2
              Error 1.05e-07 9.63e-08 1.01e-07 5.41e-07 2.71e-07 5.73e-07   erg/cm2
Peak flux Power-law 5.01e+00 5.77e+00 4.77e+00 6.64e+00 1.79e+01 2.22e+01   ph/cm2/s
              Error 2.40e-01 1.68e-01 1.28e-01 3.78e-01 4.59e-01 5.40e-01   ph/cm2/s

Fluence   Cutoff-PL 2.98e-06 5.42e-06 6.65e-06 9.22e-06 1.89e-05 2.43e-05   erg/cm2
              Error 1.43e-07 1.01e-07 1.22e-07 1.04e-06 3.03e-07 1.10e-06   erg/cm2
Peak flux Cutoff-PL 4.41e+00 5.91e+00 5.05e+00 4.28e+00 1.75e+01 1.97e+01   ph/cm2/s
              Error 3.06e-01 1.83e-01 1.62e-01 6.53e-01 4.80e-01 8.27e-01   ph/cm2/s

Fluence        Band -------- -------- -------- 9.65e-06 -------- 2.48e-05   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.751    0.027    -      -           1.87e-02 2.64e-04   78.060 57
CPL   1.298    0.119      90.4    9.8      2.92e-02 3.35e-03   32.710 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.273    0.042    -      -           1.51e-01 3.63e-03  100.950 57
CPL   0.787    0.180     141.9   35.7      2.50e-01 4.58e-02   77.340 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 29.568000 sec.
T50 in the 50-300 keV band: 7.424000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  112.600   -0.284  112.316
T90    33.908    4.616   38.524
T50     9.144   19.916   29.060
Peak    1.000   21.424   22.424

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   15.8011   -24.5414   0.0036    27.1282    37.5053         3.1141926     53.229 TRIG_00337889

Foreground time interval of the image:
 -0.284  10.101 (delta_t =  10.385 [sec])
Background time interval of the image:
-239.200  -0.284 (delta_t = 238.916 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

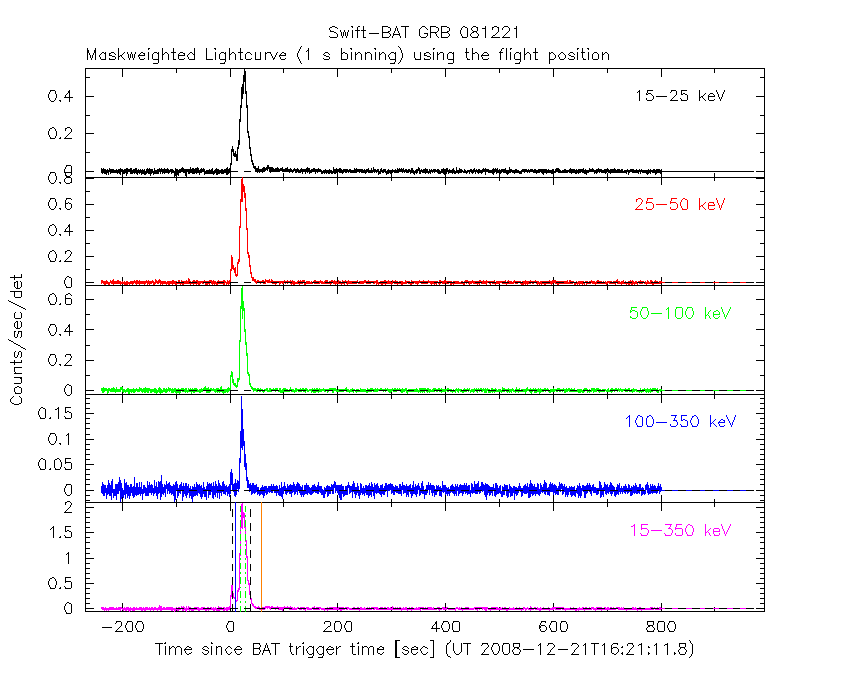

From T0-310 s to T0+310 s

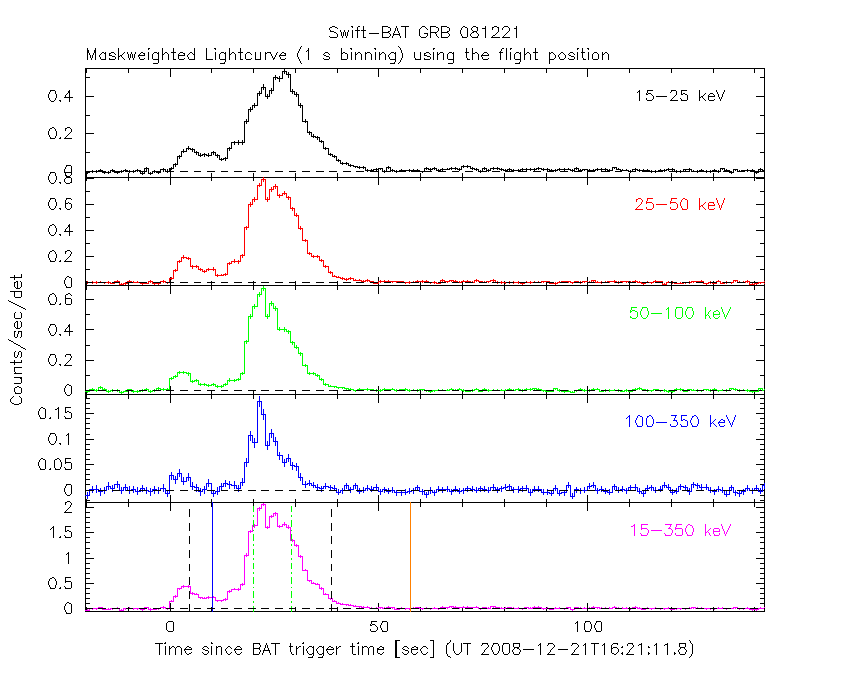

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.284 sec. to  112.316 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.75092     ( -0.0268375   0.0268029 )
Norm@50keV  : 1.86933E-02    ( -0.000264354   0.000264261 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          78.06 using 59 PHA bins.
# Reduced chi-squared =          1.369 for     57 degrees of freedom
# Null hypothesis probability =   3.348131e-02

Photon flux (15-150 keV)    in 112.6 sec: 2.52850 ( -0.0466588  0.0469021 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.94214e-05 ( -2.71462e-07  2.71486e-07 ) ergs/cm2

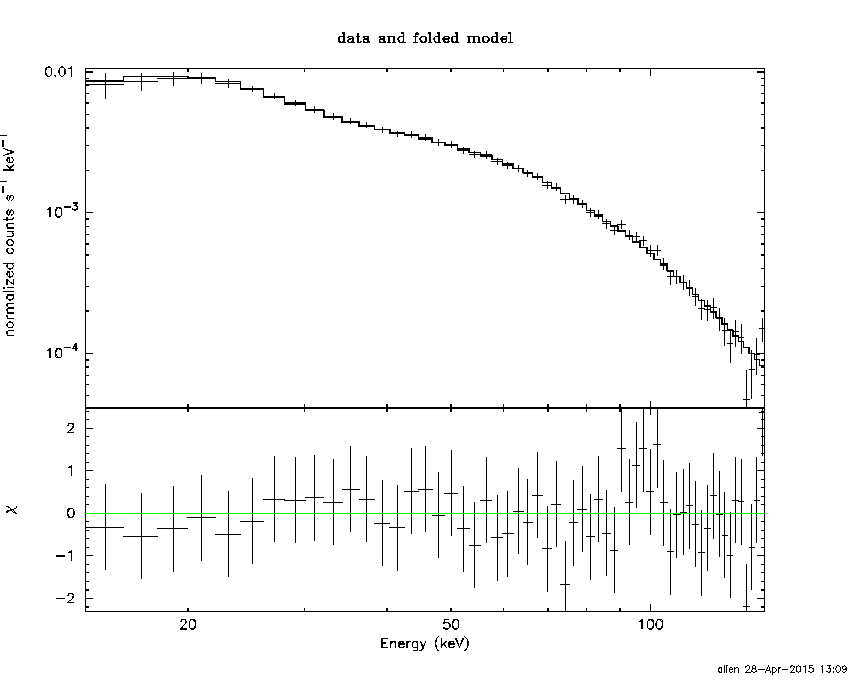

Cutoff power-law model

Time interval is from   -0.284 sec. to  112.316 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29812     ( -0.120915   0.118054 )
Epeak [keV] : 90.3881      ( -7.65203 11.9361 )
Norm@50keV  : 2.91617E-02    ( -0.00311991   0.00357769 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          32.71 using 59 PHA bins.
# Reduced chi-squared =         0.5841 for     56 degrees of freedom
# Null hypothesis probability =   9.945452e-01

Photon flux (15-150 keV)    in 112.6 sec: 2.40657 ( -0.05398  0.0545 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.88863e-05 ( -3.02894e-07  3.02781e-07 ) ergs/cm2

Band function

Time interval is from   -0.284 sec. to  112.316 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.29808   ( -0.0731837   0.0927312 )
beta        : -9.99998    ( 9.99987   19.9999 )
Epeak [keV] : 90.3701      ( -7.58359 11.8233 )
Norm@50keV   : 2.91588E-02    ( -0.00224134   0.00789126 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          32.71 using 59 PHA bins.
# Reduced chi-squared =         0.5948 for     55 degrees of freedom
# Null hypothesis probability =   9.926934e-01

Photon flux (15-150 keV)    in 112.6 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.5747  (  )
R^2/D10^2   : 0.175619  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         919.97 using 59 PHA bins.
# Reduced chi-squared =         16.140 for     57 degrees of freedom
# Null hypothesis probability =  5.304918e-156

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.114e-06   3.457e-08
25- 50  4.828e-06   1.042e-07
50-150  9.391e-06   2.016e-07
15-150  1.533e-05   2.252e-07

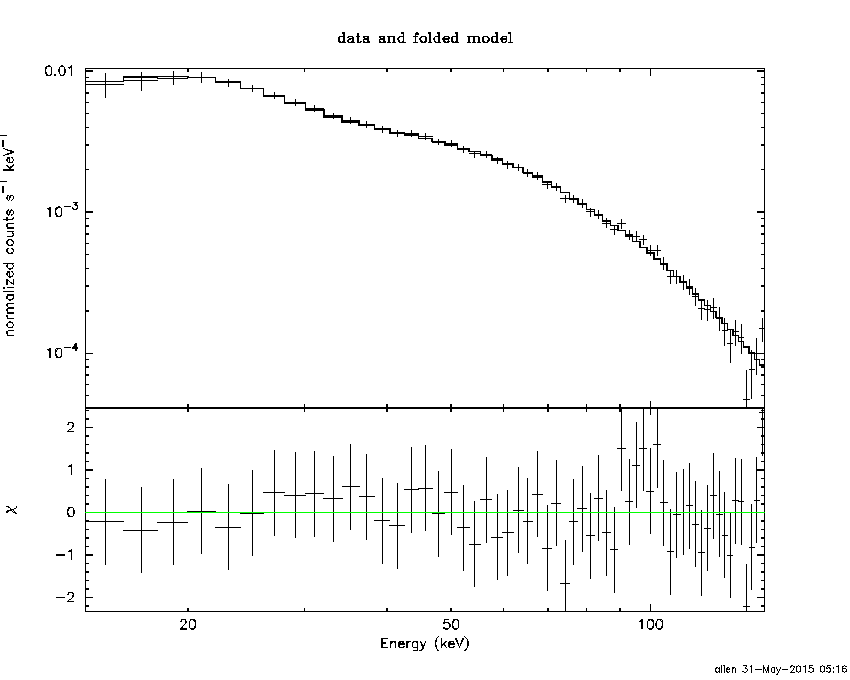

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 144.728       (      )
Norm        : 10.0925       (-0.186094     0.280338)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          32.78 using 59 PHA bins.
# Reduced chi-squared =         0.5751 for     57 degrees of freedom
# Null hypothesis probability =   9.958434e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.890e-06   1.284e-07
25- 50  5.341e-06   1.999e-07
50-150  1.045e-05   1.930e-06
15-150  1.868e-05   1.993e-06

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.82172        (-0.440131      0.455397)
R1^2/D10^2  : 1.75442        (-0.313393      0.403811)
kT2 [keV]   : 25.7742        (-1.24153      1.44175)
R2^2/D10^2  : 2.64920E-02    (-0.00520904   0.005902)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.10 using 59 PHA bins.
# Reduced chi-squared =         0.7837 for     55 degrees of freedom
# Null hypothesis probability =   8.777206e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.487e-06   1.407e-07
25- 50  5.565e-06   1.458e-07
50-150  1.044e-05   2.753e-07
15-150  1.849e-05   3.772e-07

Peak spectrum fit

Power-law model

Time interval is from   21.424 sec. to   22.424 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27298     ( -0.0416825   0.0416145 )
Norm@50keV  : 0.151181    ( -0.00363302   0.00363243 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         100.95 using 59 PHA bins.
# Reduced chi-squared =         1.7710 for     57 degrees of freedom
# Null hypothesis probability =   3.005099e-04

Photon flux (15-150 keV)    in 1 sec: 17.9495 ( -0.459122  0.459693 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.50404e-06 ( -3.83601e-08  3.83891e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   21.424 sec. to   22.424 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.786637     ( -0.183532   0.176347 )
Epeak [keV] : 141.901      ( -23.9473 47.4684 )
Norm@50keV  : 0.250025    ( -0.0407379   0.0507849 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.34 using 59 PHA bins.
# Reduced chi-squared =          1.381 for     56 degrees of freedom
# Null hypothesis probability =   3.098637e-02

Photon flux (15-150 keV)    in 1 sec: 17.5225 ( -0.4791  0.4803 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.47364e-06 ( 0  0 ) ergs/cm2

Band function

Time interval is from   21.424 sec. to   22.424 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.104578   ( -0.498255   0.963848 )
beta        : -1.50639    ( -0.120902   0.100834 )
Epeak [keV] : 72.8217      ( -19.6678 27.325 )
Norm@50keV   : 0.613987    ( -0.336107   1.99178 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.01 using 59 PHA bins.
# Reduced chi-squared =          1.218 for     55 degrees of freedom
# Null hypothesis probability =   1.284406e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.6778  (  )
R^2/D10^2   : 1.02709  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         336.29 using 59 PHA bins.
# Reduced chi-squared =         5.8998 for     57 degrees of freedom
# Null hypothesis probability =   3.162894e-41

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.086e-08   3.230e-09
25- 50  3.367e-07   1.175e-08
50-150  8.602e-07   3.495e-08
15-150  1.268e-06   3.450e-08

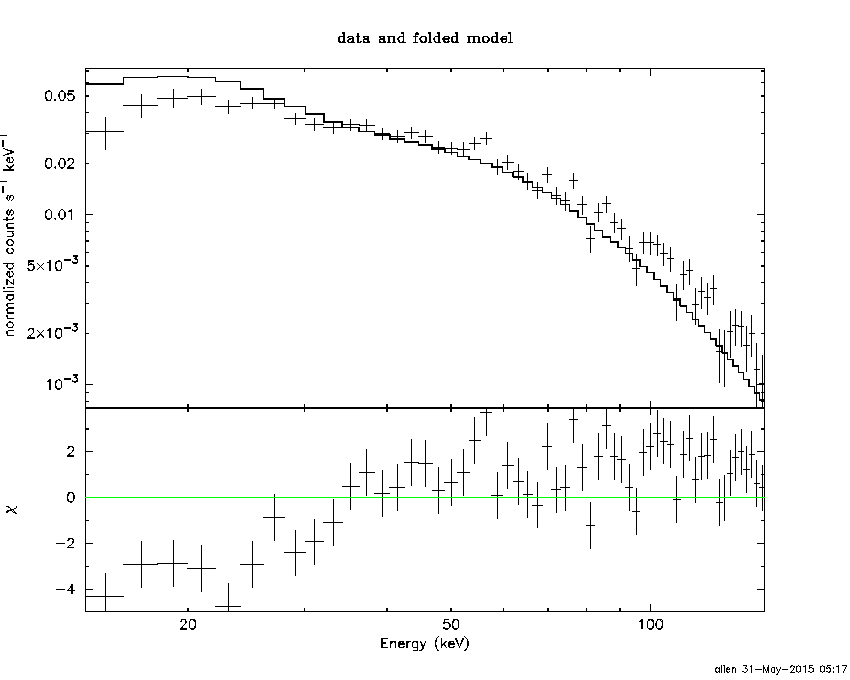

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 75.8183       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         223.22 using 59 PHA bins.
# Reduced chi-squared =         3.9162 for     57 degrees of freedom
# Null hypothesis probability =   1.593855e-21

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.888e-07   4.650e-09
25- 50  3.632e-07   8.650e-09
50-150  7.965e-07   1.995e-08
15-150  1.349e-06   3.400e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 10.3752        (-0.97242      0.998737)
R1^2/D10^2  : 4.61286        (-0.988814      1.40092)
kT2 [keV]   : 37.4867        (-4.93678      7.64912)
R2^2/D10^2  : 7.50092E-02    (-0.0334523   0.0471209)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.27 using 59 PHA bins.
# Reduced chi-squared =          1.259 for     55 degrees of freedom
# Null hypothesis probability =   9.341943e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.165e-07   1.010e-08
25- 50  3.629e-07   1.985e-08
50-150  9.934e-07   1.285e-07
15-150  1.473e-06   1.230e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.68172     ( -0.0570581   0.0573004 )
Norm@50keV  : 1.94312E-02    ( -0.000604663   0.000603676 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.57 using 59 PHA bins.
# Reduced chi-squared =          1.063 for     57 degrees of freedom
# Null hypothesis probability =   3.482081e-01

Photon flux (15-150 keV)    in 10.38 sec: 2.56442 ( -0.0832344  0.083443 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.87029e-06 ( -6.09615e-08  6.1132e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.20861     ( -0.258322   0.243001 )
Epeak [keV] : 82.9419      ( -13.595 35.516 )
Norm@50keV  : 3.34755E-02    ( -0.00799182   0.0113542 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.95 using 59 PHA bins.
# Reduced chi-squared =         0.8741 for     56 degrees of freedom
# Null hypothesis probability =   7.365817e-01

Photon flux (15-150 keV)    in 10.38 sec: 2.48164 ( -0.09212  0.09238 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.79374e-06 ( -7.24628e-08  7.22033e-08 ) ergs/cm2

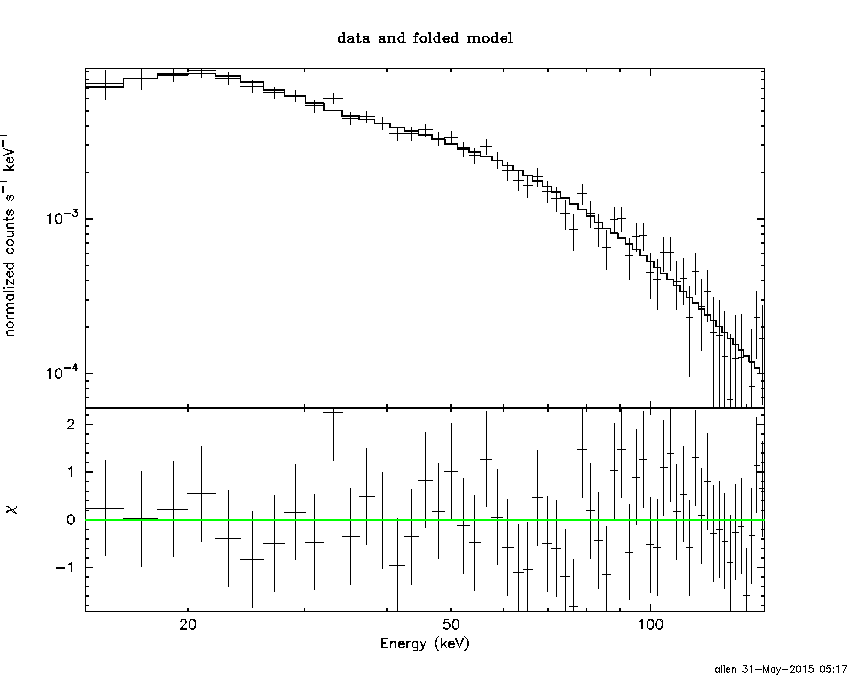

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.544491   ( -0.764319   1.39648 )
beta        : -1.92036    ( -0.183055   0.137493 )
Epeak [keV] : 51.7222      ( -13.3708 18.3868 )
Norm@50keV   : 8.45750E-02    ( -0.0556688   0.699727 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.26 using 59 PHA bins.
# Reduced chi-squared =         0.7683 for     55 degrees of freedom
# Null hypothesis probability =   8.959785e-01

Photon flux (15-150 keV)    in 10.38 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.79283e-06 ( -1.79276e-06  -6.8425e-08 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.37e-06
S(50-100 keV) = 6.38e-06

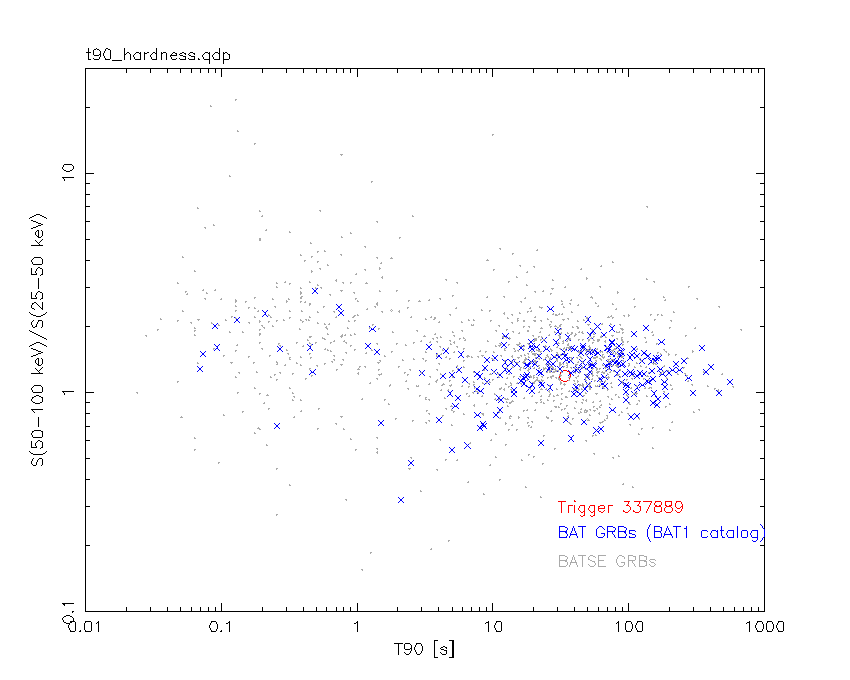

T90 vs. Hardness ratio plot

T90                                   = 33.9079999923706 sec.
Hardness ratio (energy fluence ratio) = 1.18808

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.32037
Count Ratio (50-100 keV) / (15-25 keV) = 0.86412

Mask shadow pattern

IMX = 4.064442062771055E-01, IMY = -3.119349231663726E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

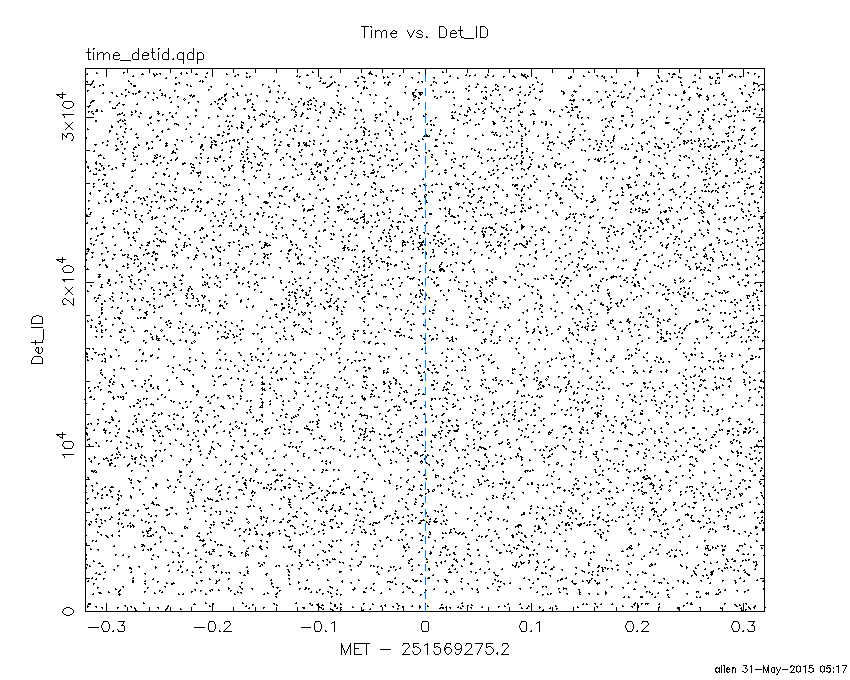

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.200000 -0.284000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 23.6112 -37.5464    3.0  16.8   66.2   0.7686   3.9 ------	UNKNOWN
322.8780 -79.0908    2.6  32.1 -139.4   0.9495   4.4 ------	UNKNOWN
329.4885 -46.5972    2.6  26.5  -70.4   1.0243   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.284000 10.100580

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 74.3773 -47.0763    2.3  41.0  136.0   0.6428   5.1 ------	UNKNOWN
  5.5161  -6.8684    2.7  44.6   19.4   0.4199   4.3  528.1	UNKNOWN
 15.8011 -24.5414    0.2  27.1   37.5   3.1142  53.2 ------	UNKNOWN
329.3329 -60.0040    2.3  24.0 -101.6   0.2593   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
57.500600 784.500600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 51.7884 -21.2512    2.2  33.2  119.7   3.9071   5.1 ------	UNKNOWN
 35.3107  -1.5484    2.5  29.7   70.3   2.8980   4.6 ------	UNKNOWN
357.2430   7.0106    2.4  36.3   -4.3   2.5899   4.8  451.8	UNKNOWN
357.7401   5.7042    2.6  35.0   -4.6   2.3906   4.3  368.0	UNKNOWN
354.6919 -47.6952    2.9  28.6 -121.6   1.7650   4.0 ------	UNKNOWN
328.4714 -10.2938    4.1  47.1  -53.1   6.2996   2.8 ------	UNKNOWN

Plot creation:
Sun May 31 05:18:04 EDT 2015
