batgrbproduct analysis for trigger=341504

batgrbproduct Analysis for Trigger=341504

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 18:57:10 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger341504
======================================================================

  Trigger: 00341504      Segment: 000

  BAT Trigger Time: 254956039.744   [s; MET]
      Trigger Stop: 254956040   [s; MET]
               UTC: 2009-01-29T21:07:15.287600    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 269.091866815445   Dec: -32.8258331356111  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    11.36
     Image Trigger?:     NO
     Rate S/N Ratio:     24.1246761636296  [ if not an image trigger ]
     Image S/N Ratio:    11.36

  Flight Position:   [ source = BAT ]
    RA: 269.091866815445   Dec: -32.8258331356111  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 269.105558815306   Dec: -32.7923594392183  [deg; J2000]
        { 17h 56m 25.3s , -32d 47' 32.5" }
         +/- 0.679220234842424 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.252632377131203 [arcmin] (formal 1-sigma fit error)
    SNR: 52.857085747433

  Angular difference between Flight and Ground position is 2.123796 arcmin

  Partial Coding Fraction: 0.890625    [ including projection effects ]

  Duration
     T90: 17.6240000128746 +/- 2.62417682817886
        Measured from: 0.395999997854233
                   to: 18.0200000107288     [s; relative to TRIGTIME]
     T50: 7.03999999165535 +/- 0.440218143582139
        Measured from: 2.10000002384186
                   to: 9.14000001549721     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 1.00400000810623
                   to: 2.00400000810623     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.211999982595444
                   to: 26.7199999988079     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.334372   1.554283   0.905741   0.140244
           0.036348   0.034906   0.029977   0.025901 [error]
 Peak      0.116618   0.186738   0.130909   0.034123
           0.007875   0.008361   0.007485   0.005921 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.16e-07 6.27e-07 7.09e-07 1.52e-06 2.21e-06 3.27e-06   erg/cm2
              Error 2.39e-08 2.03e-08 3.14e-08 1.50e-07 7.19e-08 1.70e-07   erg/cm2
Peak flux Power-law 1.18e+00 1.24e+00 9.16e-01 1.09e+00 3.76e+00 4.43e+00   ph/cm2/s
              Error 1.15e-01 7.24e-02 6.24e-02 1.56e-01 2.05e-01 2.43e-01   ph/cm2/s

Fluence   Cutoff-PL 3.98e-07 6.38e-07 7.14e-07 1.08e-06 2.16e-06 2.83e-06   erg/cm2
              Error 3.02e-08 2.30e-08 3.26e-08 3.47e-07 8.76e-08 4.07e-07   erg/cm2
Peak flux Cutoff-PL 1.10e+00 1.27e+00 9.41e-01 7.37e-01 3.69e+00 4.05e+00   ph/cm2/s
              Error 1.40e-01 8.30e-02 6.94e-02 3.23e-01 2.17e-01 2.86e-01   ph/cm2/s

Fluence        Band 3.89e-07 6.40e-07 7.02e-07 1.35e-06 2.16e-06 3.09e-06   erg/cm2
              Error -------- -------- 3.61e-08 -------- 8.53e-08 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.824    0.062    -      -           8.91e-03 2.86e-04   46.180 57
CPL   1.598    0.247      88.0  -32.3      1.15e-02 3.24e-03   43.600 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.434    0.096    -      -           3.06e-02 1.66e-03   52.110 57
CPL   1.088    0.389     134.2  -43.5      4.54e-02 2.06e-02   49.580 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 12.160000 sec.
T50 in the 50-300 keV band: 5.056000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   26.932   -0.212   26.720
T90    17.624    0.396   18.020
T50     7.040    2.100    9.140
Peak    1.000    1.004    2.004

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  269.1056   -32.7924   0.0036    18.1521  -129.2073         4.0466769     52.857 TRIG_00341504

Foreground time interval of the image:
 -0.212  26.720 (delta_t =  26.932 [sec])
Background time interval of the image:
-119.744 -119.607 (delta_t =   0.137 [sec])
-118.744  -0.212 (delta_t = 118.532 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

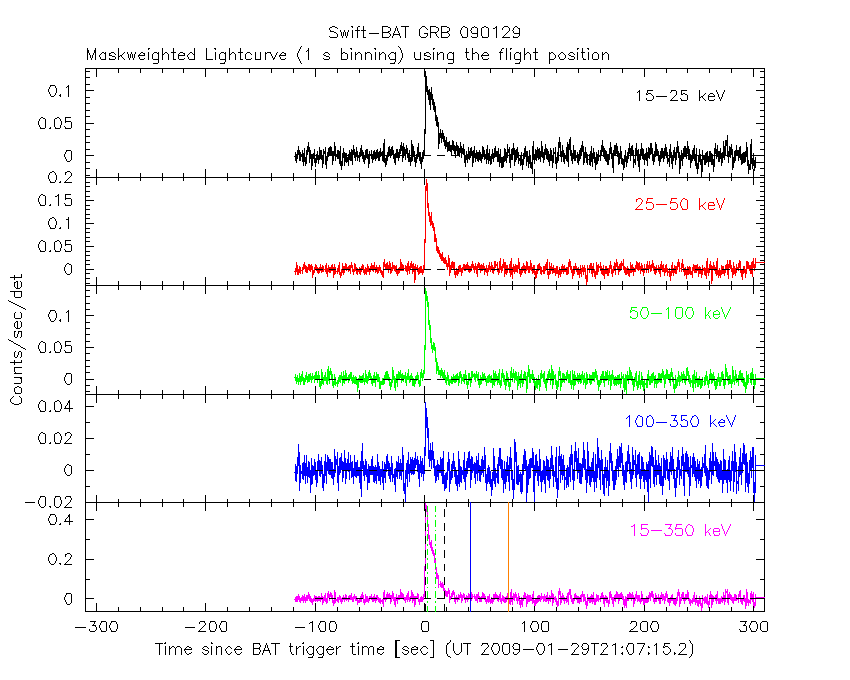

1 s binning

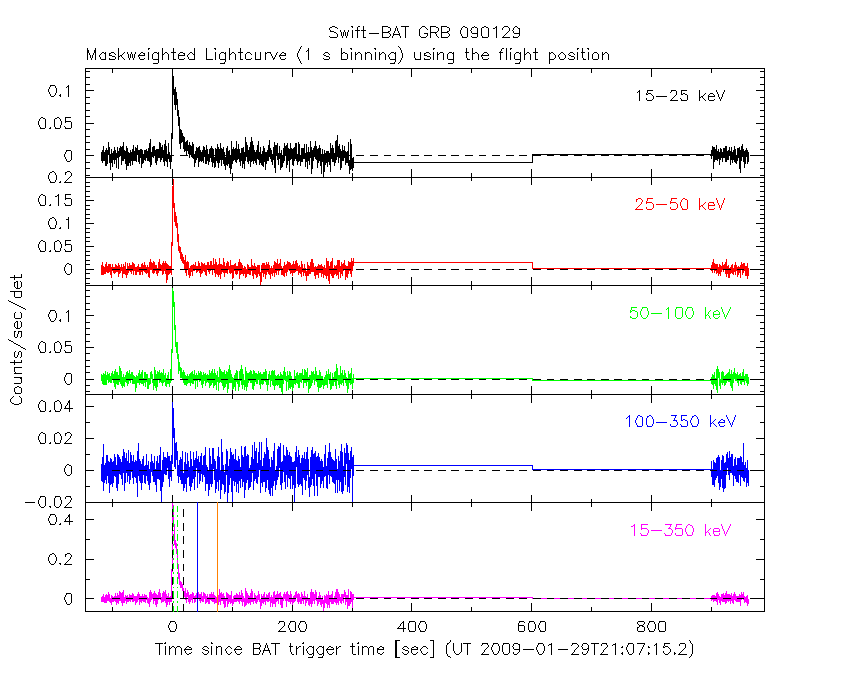

From T0-310 s to T0+310 s

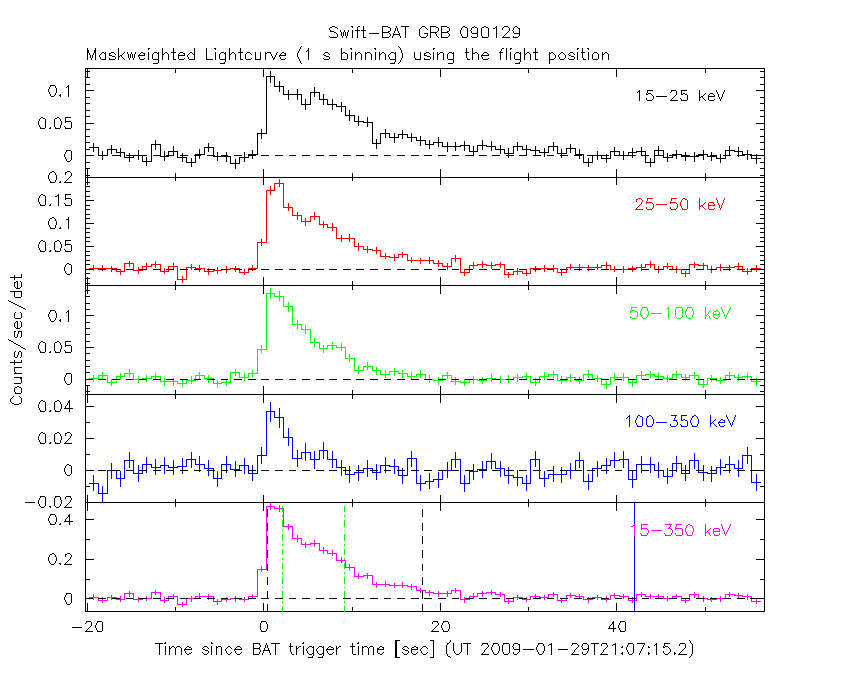

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

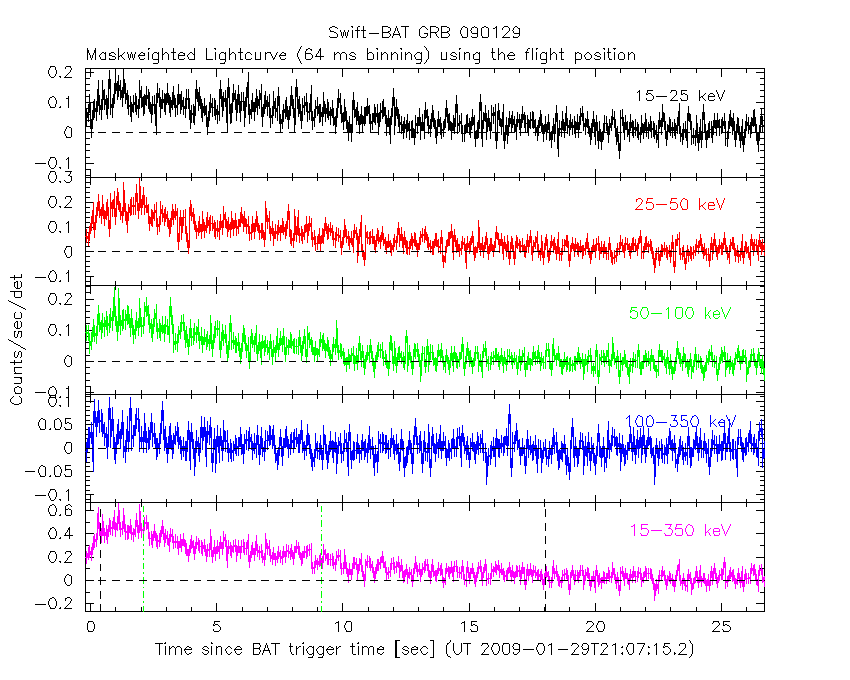

From T100_start to T100_end

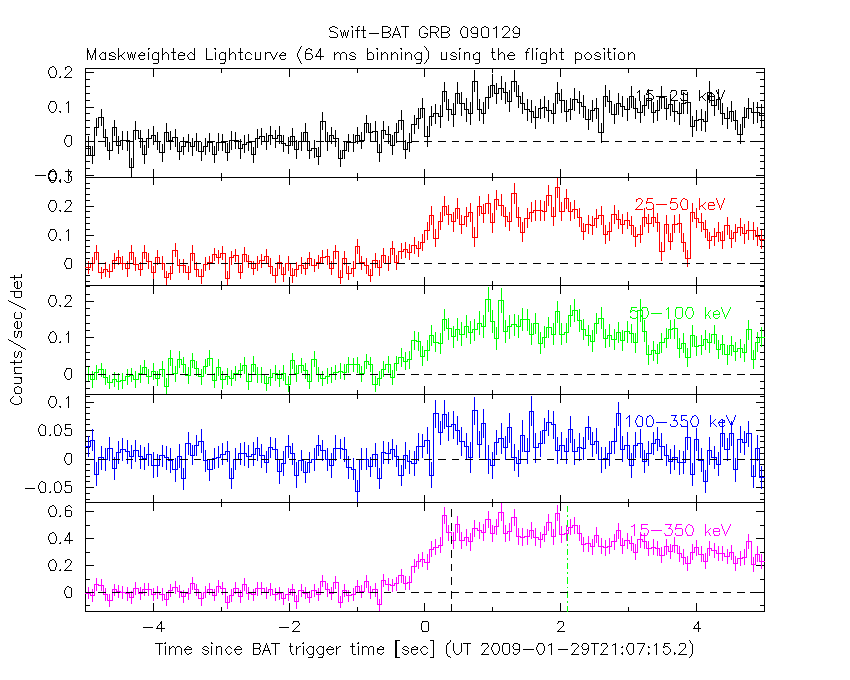

From T0-5 sec to T0+5 sec

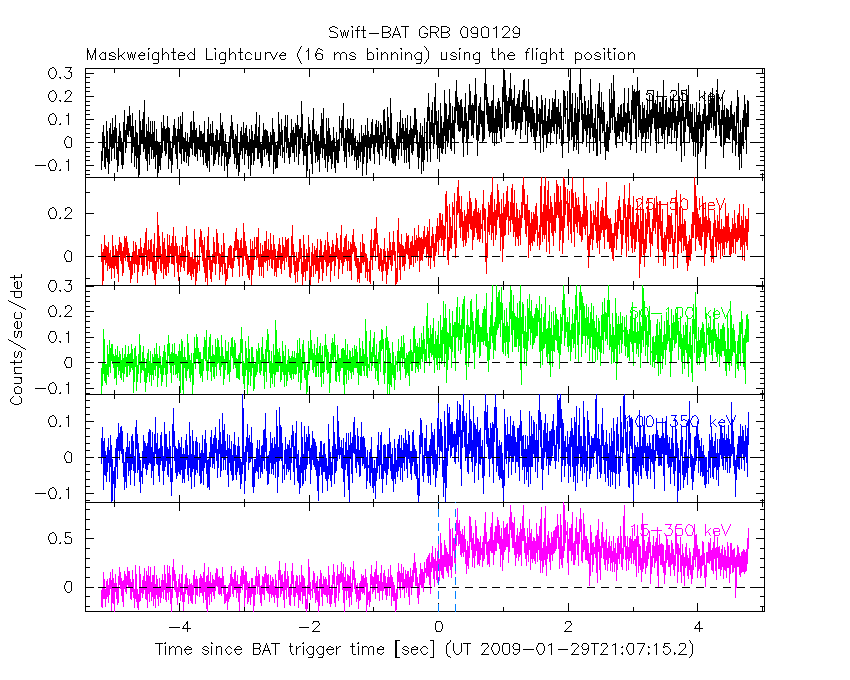

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

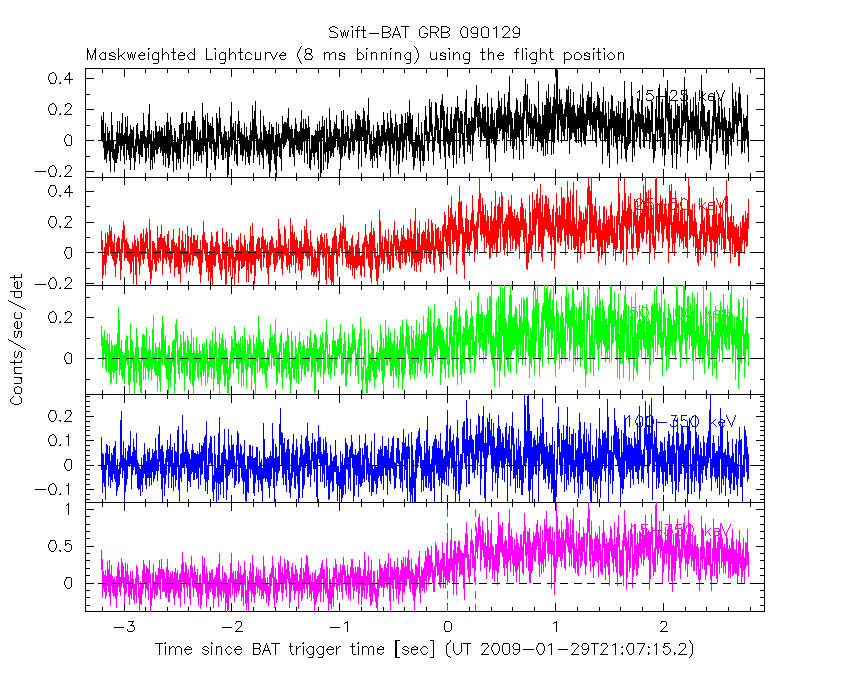

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

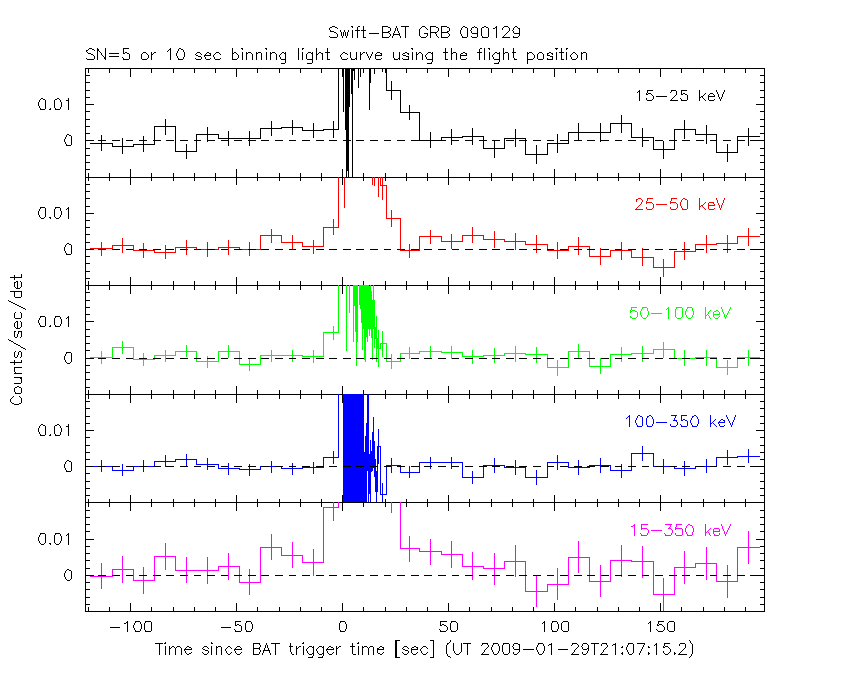

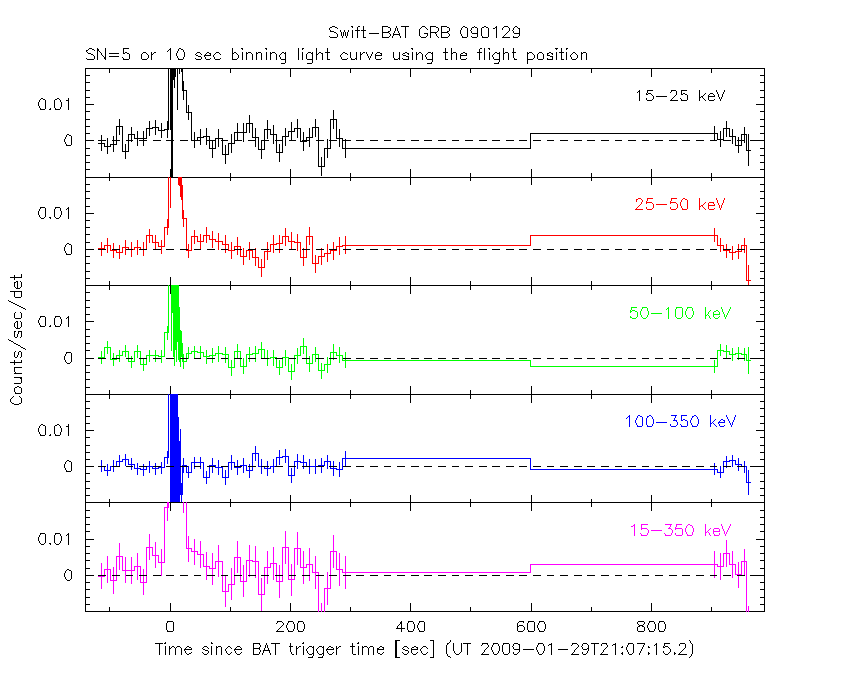

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

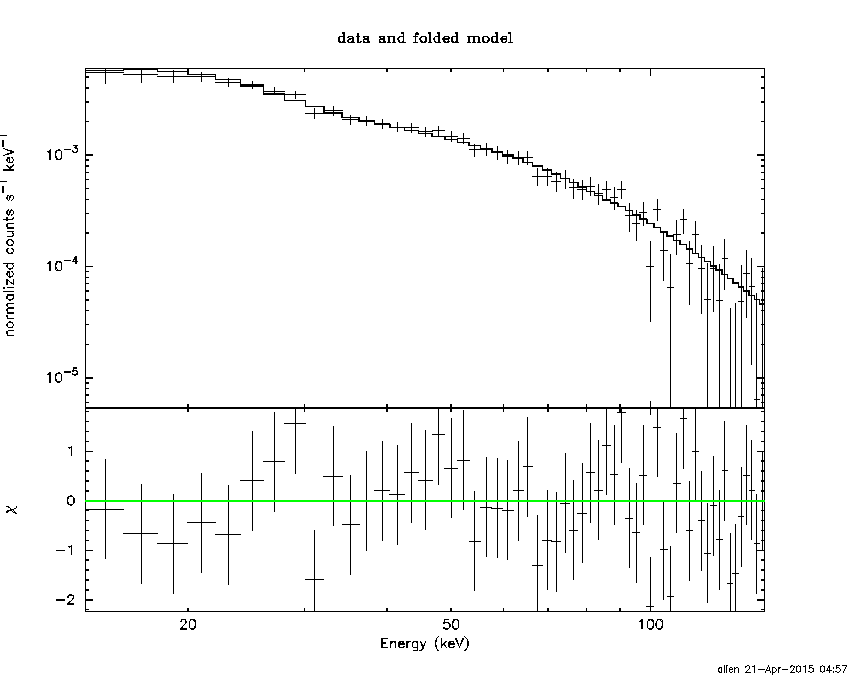

Power-law model

Time interval is from   -0.212 sec. to   26.720 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.82394     ( -0.0621259   0.0625572 )
Norm@50keV  : 8.91379E-03    ( -0.000286178   0.000285331 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.18 using 59 PHA bins.
# Reduced chi-squared =         0.8102 for     57 degrees of freedom
# Null hypothesis probability =   8.466841e-01

Photon flux (15-150 keV)    in 26.93 sec: 1.23989 ( -0.0417345  0.041914 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.2083e-06 ( -7.18253e-08  7.20582e-08 ) ergs/cm2

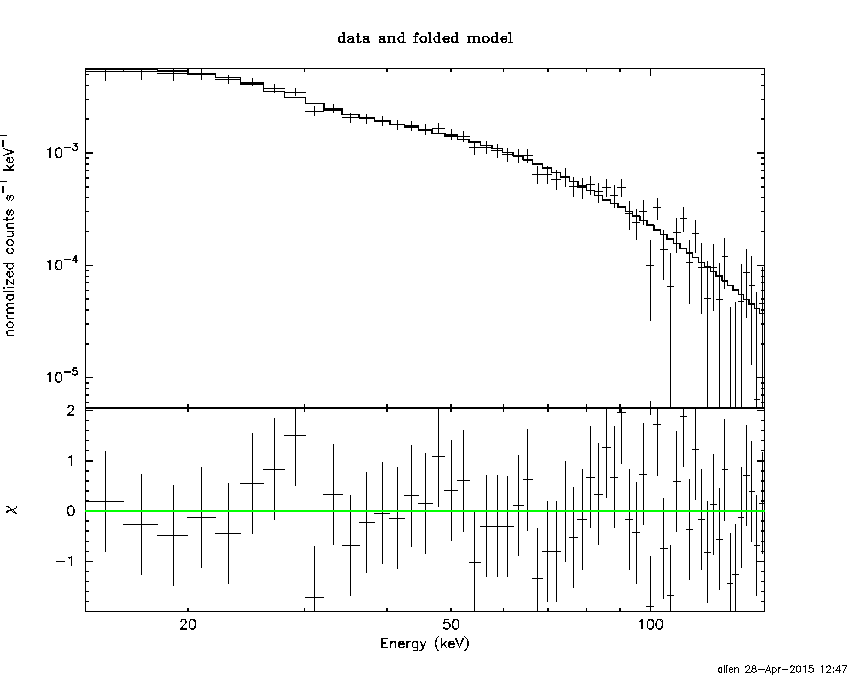

Cutoff power-law model

Time interval is from   -0.212 sec. to   26.720 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.59751     ( -0.254569   0.238986 )
Epeak [keV] : 88.0198      ( -23.3398 -88.0198 )
Norm@50keV  : 1.15444E-02    ( -0.00268708   0.00379569 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.60 using 59 PHA bins.
# Reduced chi-squared =         0.7785 for     56 degrees of freedom
# Null hypothesis probability =   8.863868e-01

Photon flux (15-150 keV)    in 26.93 sec: 1.21611 ( -0.0481  0.04832 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.16111e-06 ( -8.77514e-08  8.75306e-08 ) ergs/cm2

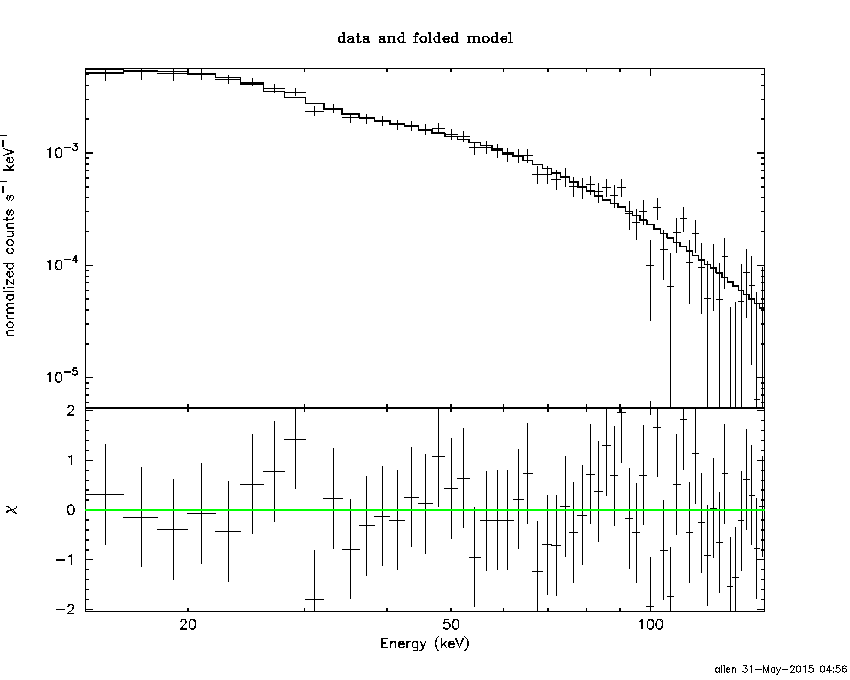

Band function

Time interval is from   -0.212 sec. to   26.720 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.44935   ( 1.44934   2.80422 )
beta        : -1.93621    ( 1.93619   0.140296 )
Epeak [keV] : 62.6692      ( -62.6671 -62.6671 )
Norm@50keV   : 1.42481E-02    ( -0.00469774   932.677 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.57 using 59 PHA bins.
# Reduced chi-squared =         0.7922 for     55 degrees of freedom
# Null hypothesis probability =   8.667362e-01

Photon flux (15-150 keV)    in 26.93 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.16301e-06 ( -2.16282e-06  -8.55162e-08 ) ergs/cm2

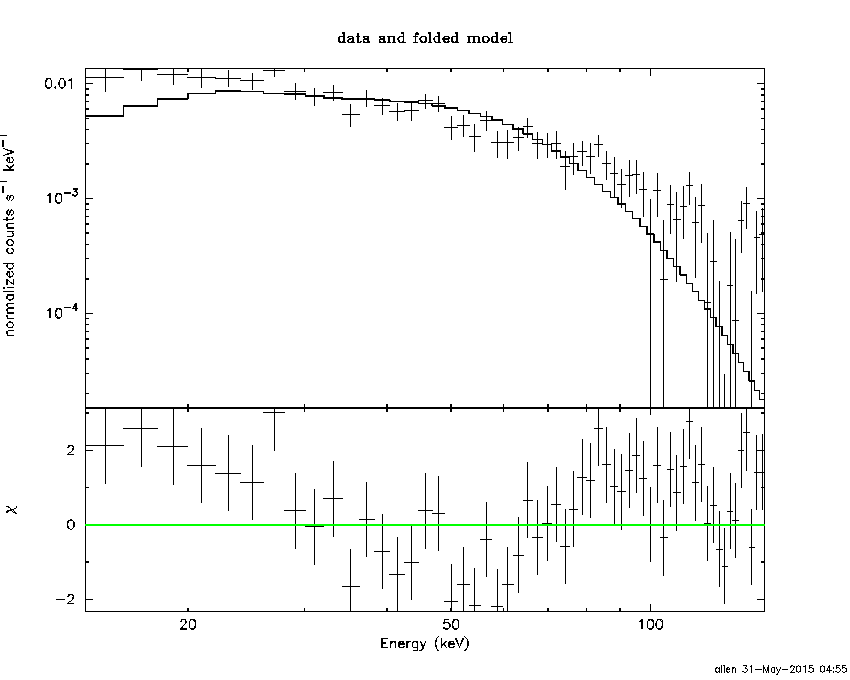

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.9778  (  )
R^2/D10^2   : 0.206235  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         260.86 using 59 PHA bins.
# Reduced chi-squared =         4.5764 for     57 degrees of freedom
# Null hypothesis probability =   7.438373e-28

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.984e-07   1.212e-08
25- 50  6.820e-07   2.262e-08
50-150  7.255e-07   4.780e-08
15-150  1.606e-06   5.453e-08

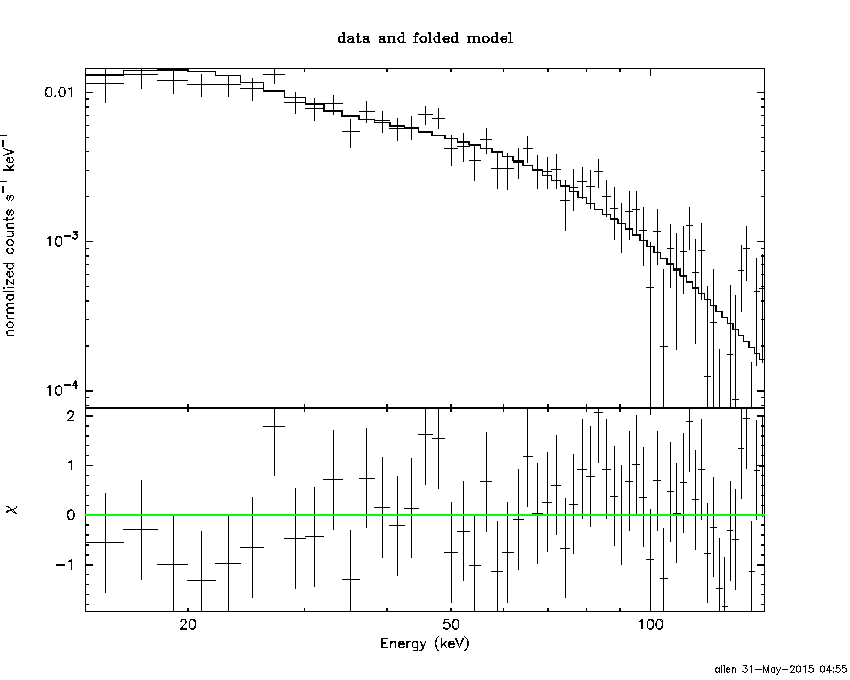

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 103.864       (-11.3257      18.9043)
Norm        : 5.31565       (-0.286248     0.246151)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.56 using 59 PHA bins.
# Reduced chi-squared =         0.8344 for     57 degrees of freedom
# Null hypothesis probability =   8.091008e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.741e-07   2.666e-08
25- 50  6.518e-07   2.760e-08
50-150  1.079e-06   2.565e-07
15-150  2.105e-06   2.771e-07

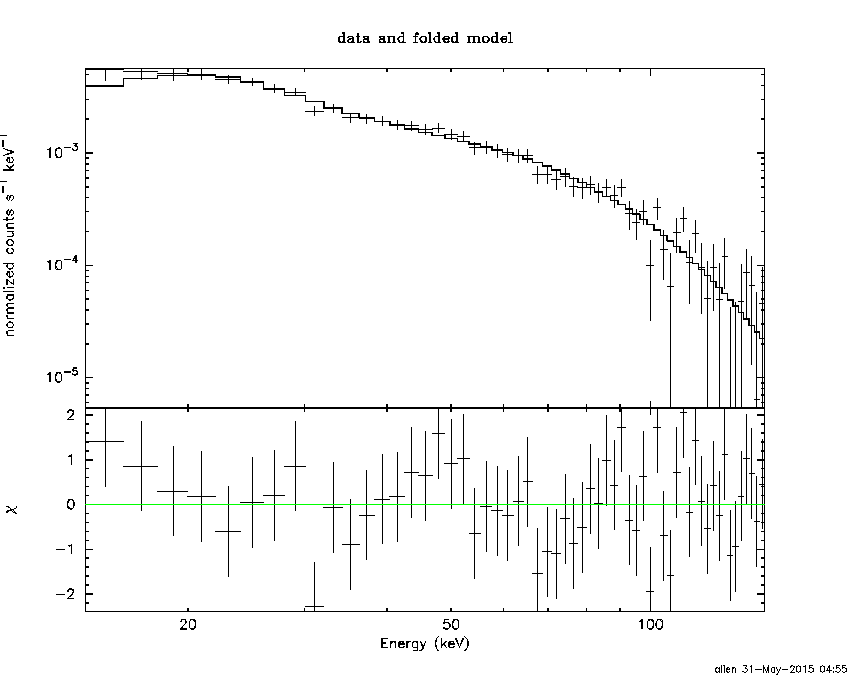

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.54390        (-0.721573      0.767508)
R1^2/D10^2  : 1.82702        (-0.595305      1.00728)
kT2 [keV]   : 23.1189        (-2.49723      3.32023)
R2^2/D10^2  : 1.88029E-02    (-0.00752006   0.0106612)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.61 using 59 PHA bins.
# Reduced chi-squared =         0.9020 for     55 degrees of freedom
# Null hypothesis probability =   6.799945e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.628e-07   4.457e-08
25- 50  6.421e-07   4.794e-08
50-150  1.111e-06   1.268e-07
15-150  2.116e-06   1.684e-07

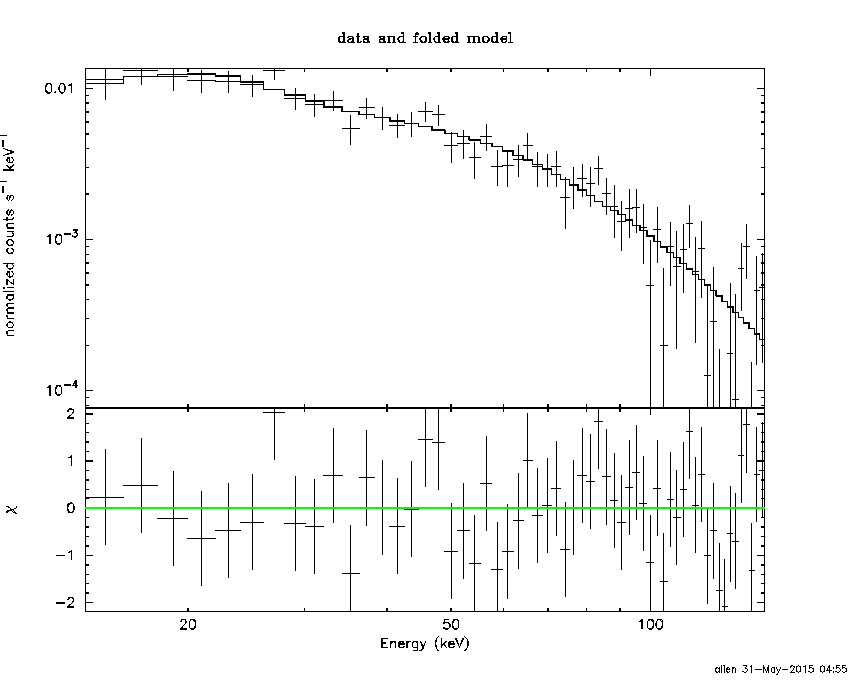

Peak spectrum fit

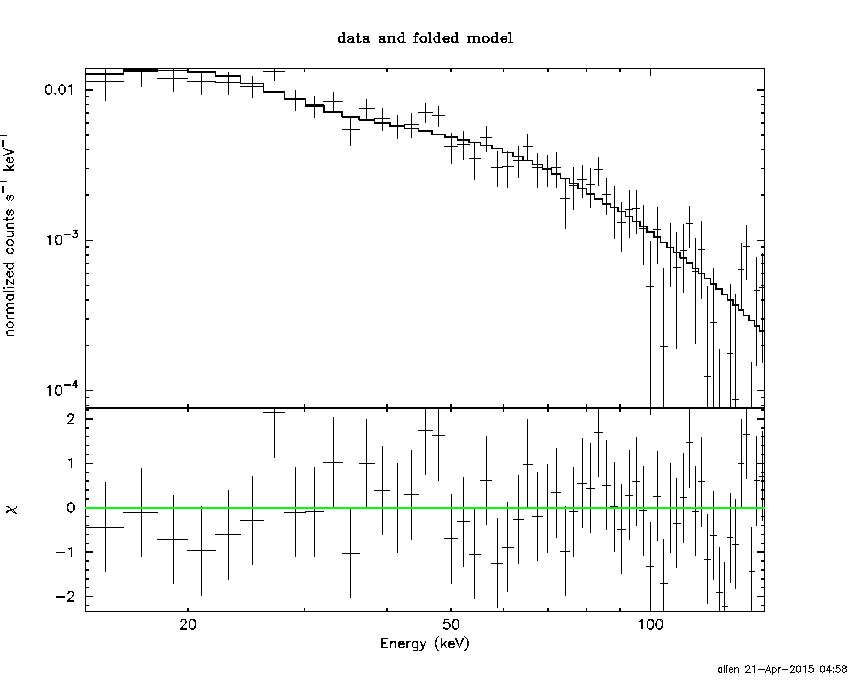

Power-law model

Time interval is from    1.004 sec. to    2.004 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43377     ( -0.0961552   0.0965682 )
Norm@50keV  : 3.06030E-02    ( -0.00166569   0.00165991 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.11 using 59 PHA bins.
# Reduced chi-squared =         0.9141 for     57 degrees of freedom
# Null hypothesis probability =   6.588123e-01

Photon flux (15-150 keV)    in 1 sec: 3.75646 ( -0.205122  0.205359 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.93741e-07 ( -1.77623e-08  1.78719e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    1.004 sec. to    2.004 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.08832     ( -0.405773   0.372574 )
Epeak [keV] : 134.236      ( -47.2423 -134.236 )
Norm@50keV  : 4.53999E-02    ( -0.0151728   0.0259342 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.58 using 59 PHA bins.
# Reduced chi-squared =         0.8854 for     56 degrees of freedom
# Null hypothesis probability =   7.149164e-01

Photon flux (15-150 keV)    in 1 sec: 3.68794 ( -0.21749  0.21741 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.8568e-07 ( -2.0007e-08  1.9932e-08 ) ergs/cm2

Band function

Time interval is from    1.004 sec. to    2.004 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.698382   ( -0.714594   5.10635 )
beta        : -1.58806    ( 1.58751   0.188116 )
Epeak [keV] : 70.9934      ( -39.2493 606.98 )
Norm@50keV   : 8.04396E-02    ( -0.0494231   1938.54 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.19 using 59 PHA bins.
# Reduced chi-squared =         0.8943 for     55 degrees of freedom
# Null hypothesis probability =   6.952661e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.5086  (  )
R^2/D10^2   : 0.379389  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         115.96 using 59 PHA bins.
# Reduced chi-squared =         2.0344 for     57 degrees of freedom
# Null hypothesis probability =   6.588219e-06

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.899e-08   1.970e-09
25- 50  7.777e-08   6.030e-09
50-150  1.291e-07   1.365e-08
15-150  2.259e-07   1.530e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 15.3672       (-0.825516     0.825529)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.07 using 59 PHA bins.
# Reduced chi-squared =         0.9486 for     57 degrees of freedom
# Null hypothesis probability =   5.856005e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.844e-08   2.380e-09
25- 50  7.395e-08   4.700e-09
50-150  1.622e-07   3.340e-08
15-150  2.746e-07   2.245e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.65011        (-1.38317      1.51935)
R1^2/D10^2  : 2.69122        (-1.14393      2.46472)
kT2 [keV]   : 27.9476        (-4.87809      8.36847)
R2^2/D10^2  : 3.92703E-02    (-0.0232307   0.039754)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.11 using 59 PHA bins.
# Reduced chi-squared =         0.8929 for     55 degrees of freedom
# Null hypothesis probability =   6.981419e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.250e-08   6.910e-09
25- 50  7.442e-08   1.448e-08
50-150  1.794e-07   5.154e-08
15-150  2.863e-07   5.745e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.82394     ( -0.0621259   0.0625572 )
Norm@50keV  : 8.91379E-03    ( -0.000286178   0.000285331 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.18 using 59 PHA bins.
# Reduced chi-squared =         0.8102 for     57 degrees of freedom
# Null hypothesis probability =   8.466841e-01

Photon flux (15-150 keV)    in 26.93 sec: 1.23989 ( -0.0417345  0.041914 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.2083e-06 ( -7.18253e-08  7.20582e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.59751     ( -0.254569   0.238986 )
Epeak [keV] : 88.0198      ( -23.3398 -88.0198 )
Norm@50keV  : 1.15444E-02    ( -0.00268708   0.00379569 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.60 using 59 PHA bins.
# Reduced chi-squared =         0.7785 for     56 degrees of freedom
# Null hypothesis probability =   8.863868e-01

Photon flux (15-150 keV)    in 26.93 sec: 1.21611 ( -0.0481  0.04832 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.16111e-06 ( -8.77514e-08  8.75306e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.44935   ( 1.44934   2.80422 )
beta        : -1.93621    ( 1.93619   0.140296 )
Epeak [keV] : 62.6692      ( -62.6671 -62.6671 )
Norm@50keV   : 1.42481E-02    ( -0.00469774   932.677 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.57 using 59 PHA bins.
# Reduced chi-squared =         0.7922 for     55 degrees of freedom
# Null hypothesis probability =   8.667362e-01

Photon flux (15-150 keV)    in 26.93 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.16301e-06 ( -2.16282e-06  -8.55162e-08 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.27e-07
S(50-100 keV) = 7.09e-07

T90 vs. Hardness ratio plot

T90                                   = 17.6240000128746 sec.
Hardness ratio (energy fluence ratio) = 1.13078

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.1648
Count Ratio (50-100 keV) / (15-25 keV) = 0.678777

Mask shadow pattern

IMX = -2.072476352934535E-01, IMY = 2.540448039391481E-01

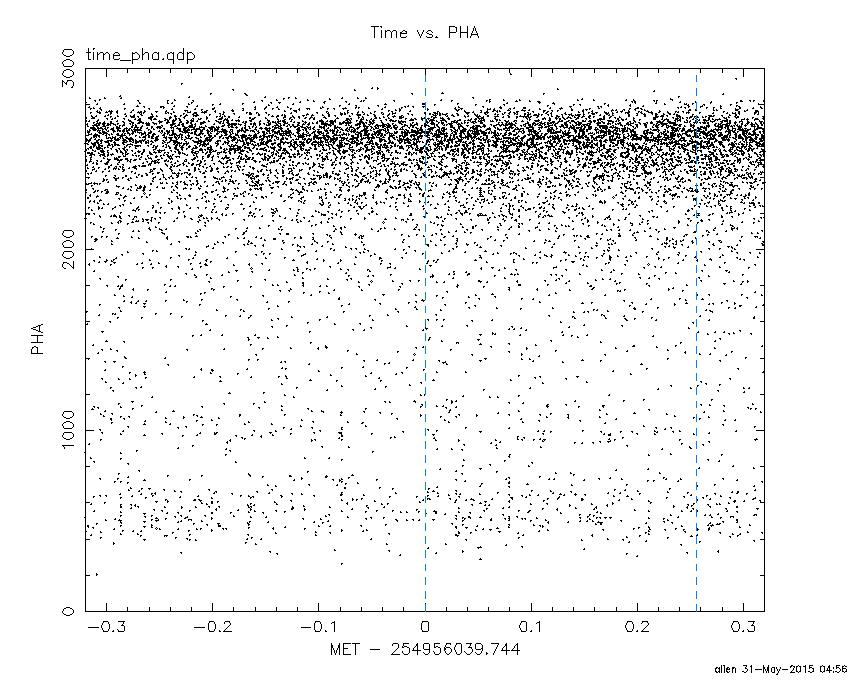

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

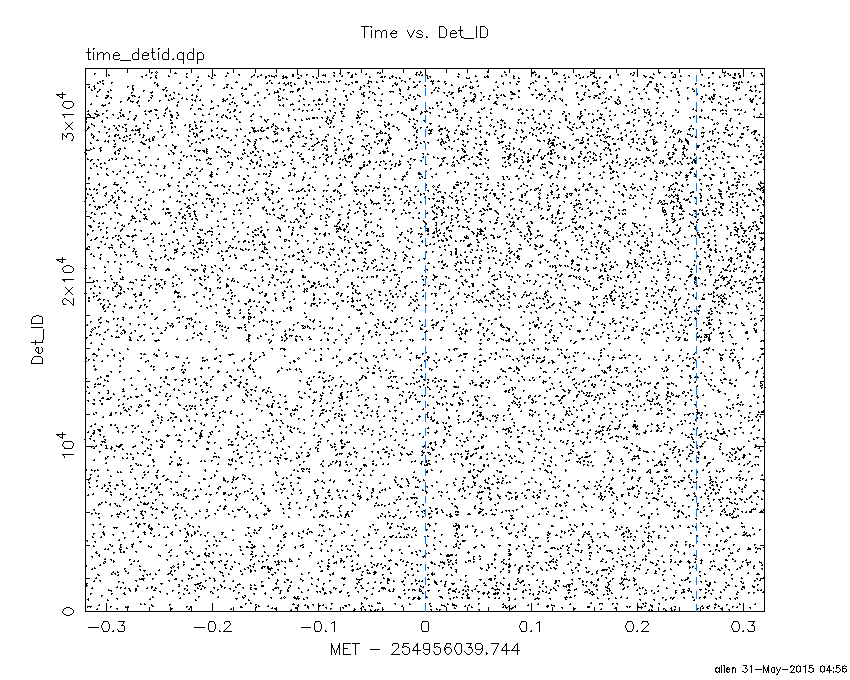

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

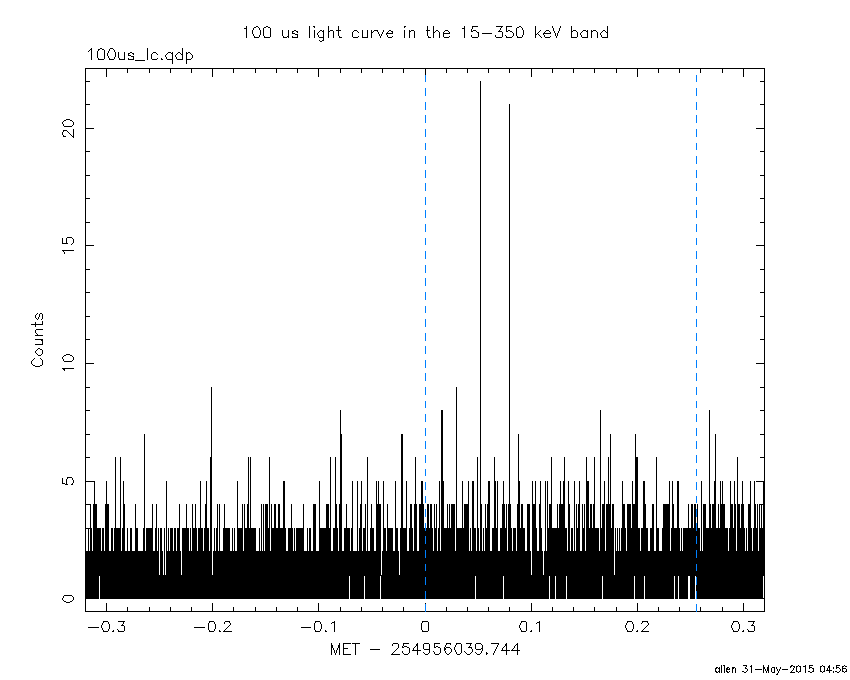

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

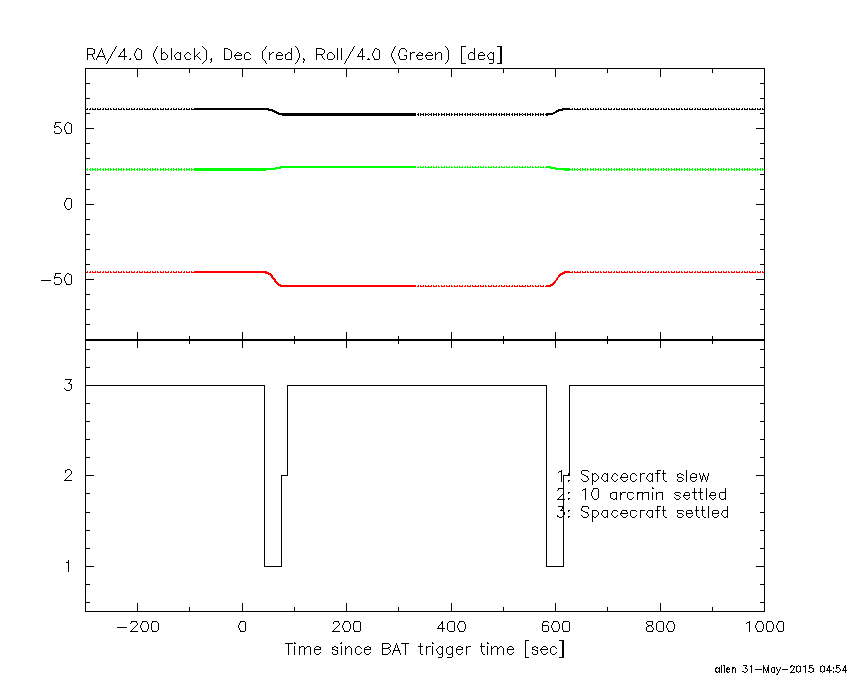

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-119.744000 -119.607500
-118.744000 -0.212000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2999 -60.4928   84.2  48.1   39.1  -0.0843  -0.1    7.8	Cen X-3
186.6830 -62.7873    1.3  40.0   38.4   2.7879   9.2    1.3	GX 301-2
244.9804 -15.6531    0.5  30.2  164.7   4.0013  23.1    0.8	Sco X-1
255.9448 -37.7774    5.7   8.0 -158.8   0.2575   2.0    4.5	4U 1700-377
256.3333 -36.4242    3.6   9.4 -159.9   0.4076   3.2    4.9	GX 349+2
263.0862 -24.8582    5.8  22.3 -154.4   0.2822   2.0    8.0	GX 1+4
264.5382 -44.4907    6.7   8.9  -92.2   0.2253   1.7    9.1	4U 1735-44
268.3689  -1.4510   10.3  46.1 -158.8   0.2853   1.1    0.1	SW J1753.5-0127
270.2159 -25.0203    3.2  25.0 -139.7   0.5283   3.6    5.1	GX 5-1
270.1975 -25.6083    4.7  24.5 -139.0   0.3690   2.4    9.9	GRS 1758-258
274.0267 -14.0014    3.1  36.4 -143.9   0.7295   3.8    2.4	GX 17+2
275.7363 -30.2543    3.5  23.9 -122.5   0.5160   3.3   11.9	H1820-303
284.9503 -24.9886    4.0  33.3 -118.0   0.6215   2.9    6.2	HT1900.1-2455
262.9862 -33.8936    2.4  14.1 -141.4   0.6212   4.9    3.5	GX 354-0
229.4030 -23.9080    1.9  28.1  130.0   1.1331   6.0 ------	UNKNOWN
230.8698 -35.1111    2.4  19.0  113.1   0.7452   4.9 ------	UNKNOWN
261.2344 -20.0026    2.8  26.4 -161.9   0.5920   4.2 ------	UNKNOWN
344.4351 -64.8158    3.1  51.0  -35.0   1.8020   3.8 ------	UNKNOWN
317.0630 -47.5845    3.6  43.6  -64.4   2.1387   3.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.212000 26.720000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3242 -60.6215   35.0  48.0   38.9   0.1051   0.3    0.3	Cen X-3
186.7842 -62.8908    9.0  39.9   38.3  -0.2144  -1.3    8.0	GX 301-2
245.1319 -15.5332    5.2  30.3  165.0  -0.2018  -2.2   10.9	Sco X-1
255.7992 -37.8957    5.1   7.9 -159.3  -0.1633  -2.3    9.4	4U 1700-377
256.6245 -36.5704    0.0   9.4 -158.2  -0.0365  -0.5   12.7	GX 349+2
262.8455 -24.6048    6.6  22.4 -155.1   0.1274   1.8   12.3	GX 1+4
264.8624 -44.4009   19.7   9.2  -92.5   0.0424   0.6    5.9	4U 1735-44
268.3373  -1.5384    3.7  46.0 -158.8   0.4636   3.1    5.5	SW J1753.5-0127
270.4012 -25.0043    4.8  25.1 -139.4   0.2035   2.4    7.8	GX 5-1
270.2614 -25.8511    7.7  24.3 -138.5   0.1251   1.5    6.9	GRS 1758-258
273.8759 -14.0748    4.1  36.3 -144.1   0.2898   2.8    7.9	GX 17+2
275.7145 -30.2578    0.0  23.9 -122.6  -0.1072  -1.3   12.7	H1820-303
284.8415 -24.8409   75.1  33.4 -118.3  -0.0190  -0.2   11.6	HT1900.1-2455
263.0378 -33.7250    4.8  14.3 -141.6   0.1795   2.4    7.0	GX 354-0
181.6698 -53.7408    2.5  44.5   50.7   1.6667   4.7 ------	UNKNOWN
198.1638 -60.9298    2.3  34.7   41.8   0.6466   5.1 ------	UNKNOWN
237.1746   4.1878    3.3  51.2  159.1   1.1135   3.5 ------	UNKNOWN
231.6985 -35.1879    2.3  18.4  114.3   0.4123   5.0 ------	UNKNOWN
269.1056 -32.7924    0.2  18.2 -129.2   4.0464  52.9 ------	UNKNOWN
266.3284   7.4401    2.8  54.2 -164.2   0.8755   4.1 ------	UNKNOWN
282.6851  -7.8614    2.0  45.8 -137.0   1.0320   5.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
75.956600 302.346000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.4973 -60.4540   20.0  35.1   44.7   0.2138   0.6   11.5	Cen X-3
186.6912 -62.7799    0.8  27.1   43.8   3.2441  13.7    1.1	GX 301-2
244.9880 -15.6415    0.6  39.1 -176.5   5.7821  19.6    0.5	Sco X-1
256.0507 -37.9360    2.7  20.6 -142.8   0.8362   4.2    6.3	4U 1700-377
256.4168 -36.5070    4.5  22.0 -144.1   0.5086   2.5    5.1	GX 349+2
262.9011 -24.8948    0.0  34.8 -145.1   0.2124   0.8   10.7	GX 1+4
264.6739 -44.3408    8.9  20.0 -116.4   0.2762   1.3    7.2	4U 1735-44
270.3000 -25.0573    3.2  37.9 -135.0   1.2415   3.6    1.6	GX 5-1
270.3161 -25.6173    3.9  37.4 -134.5   1.0017   2.9    7.6	GRS 1758-258
274.1335 -14.1348    5.3  49.2 -138.1   1.7808   2.2    9.5	GX 17+2
275.9247 -30.3670 1862.8  36.3 -123.2   0.0020   0.0    0.0	H1820-303
262.9535 -33.8115    2.8  27.1 -136.5   1.0190   4.1    2.3	GX 354-0
155.7793 -66.8841    2.5  38.8   30.8   1.6781   4.7 ------	UNKNOWN

Plot creation:
Sun May 31 04:56:42 EDT 2015
