batgrbproduct Analysis for Trigger=353567

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 16:20:02 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger353567
======================================================================

  Trigger: 00353567      Segment: 000

  BAT Trigger Time: 265346303.168   [s; MET]
      Trigger Stop: 265346303.424   [s; MET]
               UTC: 2009-05-30T03:18:18.384300    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 179.394767123952   Dec: 26.5835130140546  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.41
     Image Trigger?:     NO
     Rate S/N Ratio:     23.3452350598575  [ if not an image trigger ]
     Image S/N Ratio:    9.41

  Flight Position:   [ source = BAT ]
    RA: 179.394767123952   Dec: 26.5835130140546  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 179.402573429353   Dec: 26.5976058675687  [deg; J2000]
        { 11h 57m 36.6s , +26d 35' 51.4" }
         +/- 1.33955765155656 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.53475593900131 [arcmin] (formal 1-sigma fit error)
    SNR: 20.0329514253767

  Angular difference between Flight and Ground position is 0.943618 arcmin

  Partial Coding Fraction: 0.4101562    [ including projection effects ]

  Duration
     T90: 40.4560000002384 +/- 7.86754039611046
        Measured from: 0.0439999997615814
                   to: 40.5     [s; relative to TRIGTIME]
     T50: 25.3360000252724 +/- 12.3421490828646
        Measured from: 0.915999978780746
                   to: 26.2520000040531     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.0280000269412994
                   to: 0.971999973058701     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.188000023365021
                   to: 48.3599999845028     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.489716   0.614132   0.491570   0.104392
           0.047363   0.050234   0.045831   0.042566 [error]
 Peak      0.087103   0.148378   0.112363   0.043693
           0.009498   0.011210   0.010520   0.008833 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.57e-07 2.78e-07 3.77e-07 1.06e-06 1.09e-06 1.87e-06   erg/cm2
              Error 2.20e-08 2.44e-08 4.53e-08 2.67e-07 1.08e-07 3.05e-07   erg/cm2
Peak flux Power-law 9.02e-01 1.03e+00 8.42e-01 1.15e+00 3.19e+00 3.92e+00   ph/cm2/s
              Error 1.37e-01 9.72e-02 8.57e-02 2.42e-01 2.75e-01 3.50e-01   ph/cm2/s

Fluence   Cutoff-PL 1.46e-07 2.93e-07 3.85e-07 5.09e-07 1.05e-06 1.33e-06   erg/cm2
              Error 2.56e-08 3.07e-08 4.90e-08 5.09e-07 1.21e-07 4.77e-07   erg/cm2
Peak flux Cutoff-PL 8.74e-01 1.05e+00 8.57e-01 9.01e-01 3.17e+00 3.68e+00   ph/cm2/s
              Error 1.57e-01 1.16e-01 9.77e-02 3.74e-01 2.81e-01 5.55e-01   ph/cm2/s

Fluence        Band 1.45e-07 2.92e-07 3.84e-07 5.20e-07 1.05e-06 1.35e-06   erg/cm2
              Error 2.49e-08 -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.560    0.151    -      -           2.39e-03 2.16e-04   56.230 57
CPL   1.078    0.603      92.1  -30.8      4.27e-03 3.50e-03   54.220 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.290    0.143    -      -           2.68e-02 2.28e-03   44.770 57
CPL   1.095    0.453     233.8    0.0      3.37e-02 2.27e-02   44.440 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 3.264000 sec.
T50 in the 50-300 keV band: 1.728000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   48.548   -0.188   48.360
T90    40.456    0.044   40.500
T50    25.336    0.916   26.252
Peak    1.000   -0.028    0.972

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  179.4026    26.5976   0.0096    35.3419   -52.4392         1.0781821     20.033 TRIG_00353567

Foreground time interval of the image:
 -0.188   9.533 (delta_t =   9.721 [sec])
Background time interval of the image:
-315.267 -253.121 (delta_t =  62.147 [sec])
-239.168  -0.188 (delta_t = 238.980 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

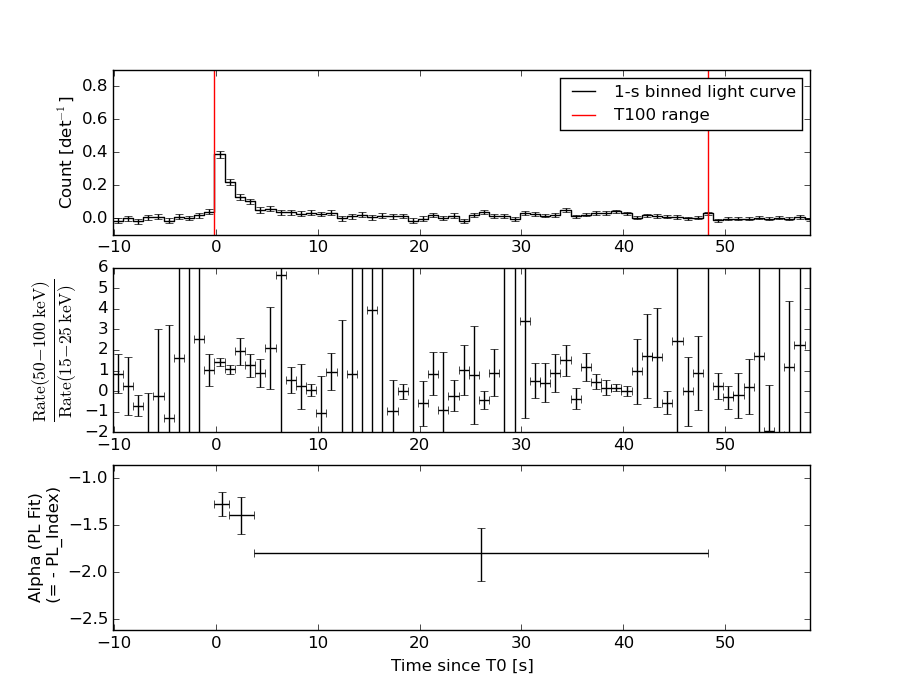

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

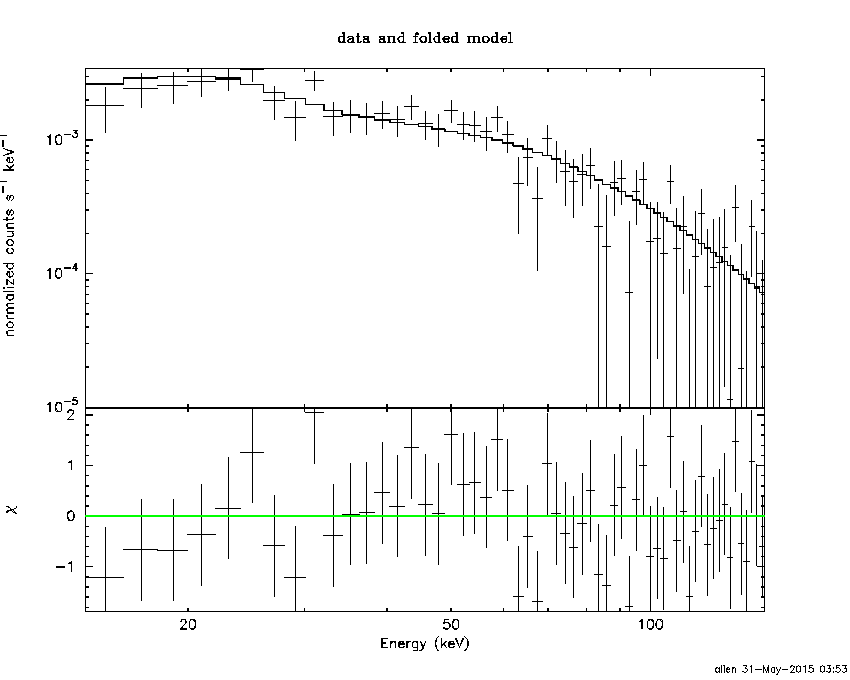

Power-law model

Time interval is from   -0.188 sec. to   48.360 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55954     ( -0.150027   0.152256 )
Norm@50keV  : 2.39245E-03    ( -0.000217347   0.000215606 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.23 using 59 PHA bins.
# Reduced chi-squared =         0.9865 for     57 degrees of freedom
# Null hypothesis probability =   5.038432e-01

Photon flux (15-150 keV)    in 48.55 sec: 0.303713 ( -0.026303  0.0263241 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.09202e-06 ( -1.07759e-07  1.08976e-07 ) ergs/cm2

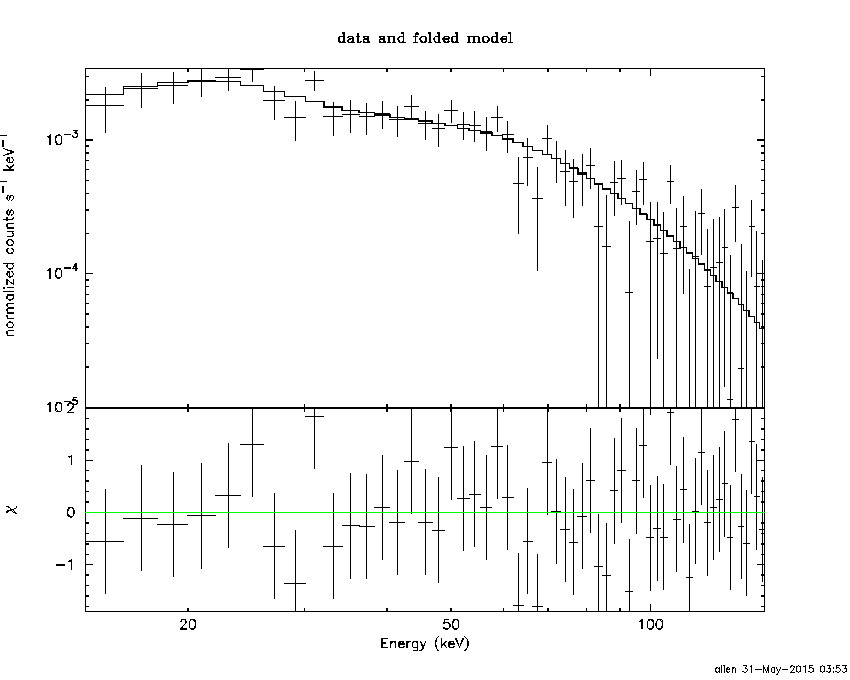

Cutoff power-law model

Time interval is from   -0.188 sec. to   48.360 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.07780     ( -0.663669   0.542959 )
Epeak [keV] : 92.1419      ( -30.5566 -92.1419 )
Norm@50keV  : 4.26522E-03    ( -0.0019781   0.00501958 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.22 using 59 PHA bins.
# Reduced chi-squared =         0.9682 for     56 degrees of freedom
# Null hypothesis probability =   5.425011e-01

Photon flux (15-150 keV)    in 48.55 sec: 0.297225 ( -0.027464  0.027425 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.04795e-06 ( -1.2004e-07  1.21195e-07 ) ergs/cm2

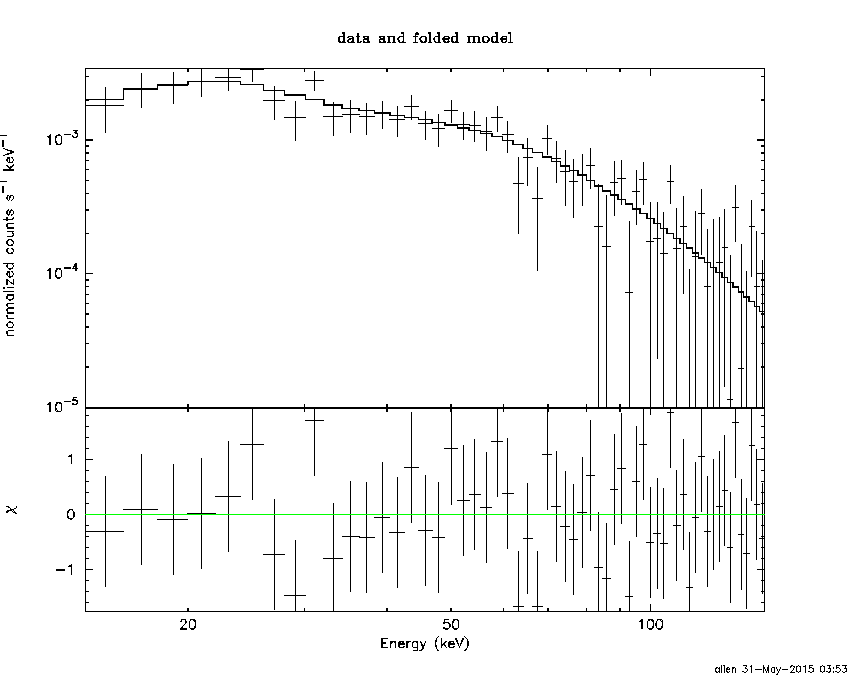

Band function

Time interval is from   -0.188 sec. to   48.360 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.07784   ( -0.480882   0.626213 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 92.1315      ( -24.8644 -92.1315 )
Norm@50keV   : 4.26460E-03    ( -0.00197796   0.00503212 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.22 using 59 PHA bins.
# Reduced chi-squared =         0.9858 for     55 degrees of freedom
# Null hypothesis probability =   5.043784e-01

Photon flux (15-150 keV)    in 48.55 sec: 0.296703 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.04747e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.0386  (-1.48626  1.6926)
R^2/D10^2   : 4.28897E-02  (-0.014225   0.0210012)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          80.68 using 59 PHA bins.
# Reduced chi-squared =          1.415 for     57 degrees of freedom
# Null hypothesis probability =   2.120345e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.667e-08   1.379e-08
25- 50  3.232e-07   3.602e-08
50-150  4.200e-07   8.251e-08
15-150  8.299e-07   9.880e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 195.150       (-66.9934      -187.599)
Norm        : 1.24045       (-0.108648     0.120684)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.49 using 59 PHA bins.
# Reduced chi-squared =         0.9560 for     57 degrees of freedom
# Null hypothesis probability =   5.697782e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.504e-07   8.266e-08
25- 50  2.886e-07   1.524e-07
50-150  6.283e-07   3.316e-07
15-150  1.067e-06   5.451e-07

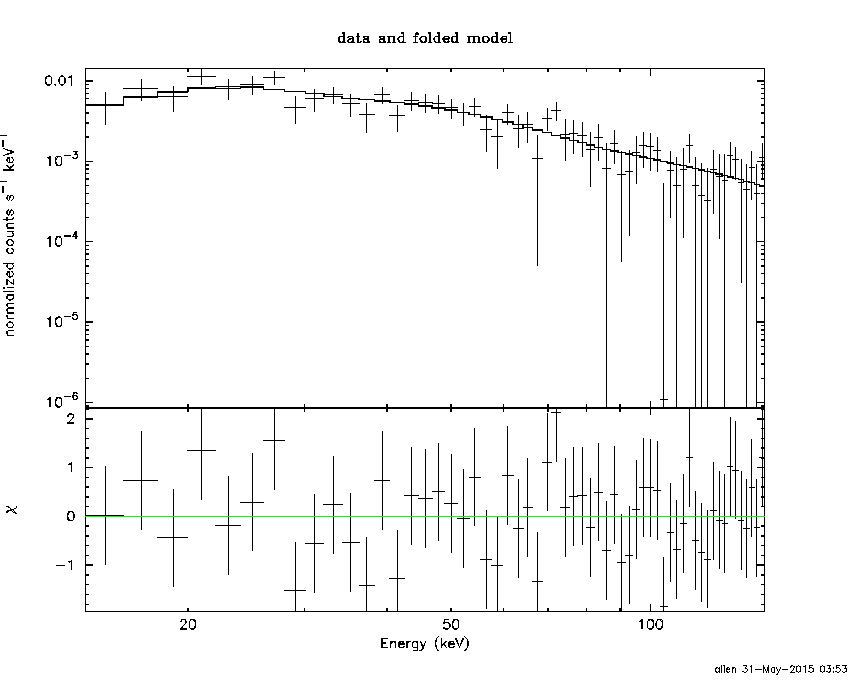

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.23093        (-1.79375      2.26115)
R1^2/D10^2  : 0.446580        (-0.281761      1.12371)
kT2 [keV]   : 22.1998        (-4.53776      9.06413)
R2^2/D10^2  : 6.80021E-03    (-0.00490125   0.0100211)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.88 using 59 PHA bins.
# Reduced chi-squared =         0.9795 for     55 degrees of freedom
# Null hypothesis probability =   5.176564e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.478e-07   7.114e-08
25- 50  2.869e-07   1.114e-07
50-150  6.007e-07   3.052e-07
15-150  1.035e-06   3.805e-07

Peak spectrum fit

Power-law model

Time interval is from   -0.028 sec. to    0.972 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.28986     ( -0.143498   0.142522 )
Norm@50keV  : 2.68031E-02    ( -0.00228193   0.00227777 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.77 using 59 PHA bins.
# Reduced chi-squared =         0.7855 for     57 degrees of freedom
# Null hypothesis probability =   8.800549e-01

Photon flux (15-150 keV)    in 1 sec: 3.19180 ( -0.274902  0.275107 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.65522e-07 ( -2.52542e-08  2.54196e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.028 sec. to    0.972 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.09518     ( -0.636768   0.269866 )
Epeak [keV] : 233.792      ( -234.049 -234.049 )
Norm@50keV  : 3.37161E-02    ( -0.00891023   0.0364545 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.44 using 59 PHA bins.
# Reduced chi-squared =         0.7936 for     56 degrees of freedom
# Null hypothesis probability =   8.672708e-01

Photon flux (15-150 keV)    in 1 sec: 3.17303 ( -0.28083  0.28031 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.6178e-07 ( -2.8317e-08  2.7673e-08 ) ergs/cm2

Band function

Time interval is from   -0.028 sec. to    0.972 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.05938   ( -3.52639   -2.82481 )
beta        : -1.42309    ( -0.224754   0.194035 )
Epeak [keV] : 29.1535      ( -10.2578 239.001 )
Norm@50keV   : 223.133    ( -223.114   225.118 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.45 using 59 PHA bins.
# Reduced chi-squared =         0.7536 for     55 degrees of freedom
# Null hypothesis probability =   9.118062e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.9433  (-1.69623  1.9749)
R^2/D10^2   : 0.307768  (-0.101482   0.145141)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.15 using 59 PHA bins.
# Reduced chi-squared =          1.266 for     57 degrees of freedom
# Null hypothesis probability =   8.521612e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.619e-08   2.595e-09
25- 50  6.791e-08   7.930e-09
50-150  1.205e-07   1.877e-08
15-150  2.046e-07   2.190e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 13.1674       (-1.12533     1.12528)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.76 using 59 PHA bins.
# Reduced chi-squared =         0.9257 for     57 degrees of freedom
# Null hypothesis probability =   6.346812e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.278e-08   3.390e-09
25- 50  6.307e-08   1.826e-08
50-150  1.383e-07   7.389e-08
15-150  2.342e-07   7.924e-08

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 11.3513        (-2.26488      2.1513)
R1^2/D10^2  : 0.817187        (-0.367934      0.632936)
kT2 [keV]   : 198.780        (      )
R2^2/D10^2  : 4.56185E-04    (-0.000120219   0.00943942)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.85 using 59 PHA bins.
#Fit statistic : Chi-Squared =          38.58 using 59 PHA bins.
# Reduced chi-squared =         0.7245 for     55 degrees of freedom
# Reduced chi-squared =         0.7014 for     55 degrees of freedom
# Null hypothesis probability =   9.380758e-01
# Null hypothesis probability =   9.545561e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.376e-08   6.685e-09
25- 50  6.829e-08   1.805e-08
50-150  1.651e-07   8.313e-08
15-150  2.571e-07   9.851e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42917     ( -0.126201   0.126306 )
Norm@50keV  : 7.89764E-03    ( -0.000598037   0.000596775 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.48 using 59 PHA bins.
# Reduced chi-squared =         0.8330 for     57 degrees of freedom
# Null hypothesis probability =   8.113695e-01

Photon flux (15-150 keV)    in 9.721 sec: 0.968347 ( -0.0737683  0.0738554 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.37552e-07 ( -6.13338e-08  6.17539e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.739179     ( -0.627865   0.542903 )
Epeak [keV] : 90.3405      ( -22.5164 137.991 )
Norm@50keV  : 1.77613E-02    ( -0.00823454   0.0187529 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.64 using 59 PHA bins.
# Reduced chi-squared =         0.7614 for     56 degrees of freedom
# Null hypothesis probability =   9.058594e-01

Photon flux (15-150 keV)    in 9.721 sec: 0.941188 ( -0.077216  0.076982 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.9874e-07 ( -6.92116e-08  6.93146e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.275427   ( -0.846186   0.278759 )
beta        : -1.83968    ( 1.84325   0.350399 )
Epeak [keV] : 65.0976      ( -36.4198 72.1578 )
Norm@50keV   : 3.36546E-02    ( -0.0338632   150.803 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.22 using 59 PHA bins.
# Reduced chi-squared =         0.7494 for     55 degrees of freedom
# Null hypothesis probability =   9.159592e-01

Photon flux (15-150 keV)    in 9.721 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.03047e-07 ( -7.02979e-07  -6.62749e-08 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.78e-07
S(50-100 keV) = 3.77e-07

T90 vs. Hardness ratio plot

T90                                   = 40.4560000002384 sec.
Hardness ratio (energy fluence ratio) = 1.35612

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.25406
Count Ratio (50-100 keV) / (15-25 keV) = 1.00379

Mask shadow pattern

IMX = 4.322918947296206E-01, IMY = 5.621379577940212E-01

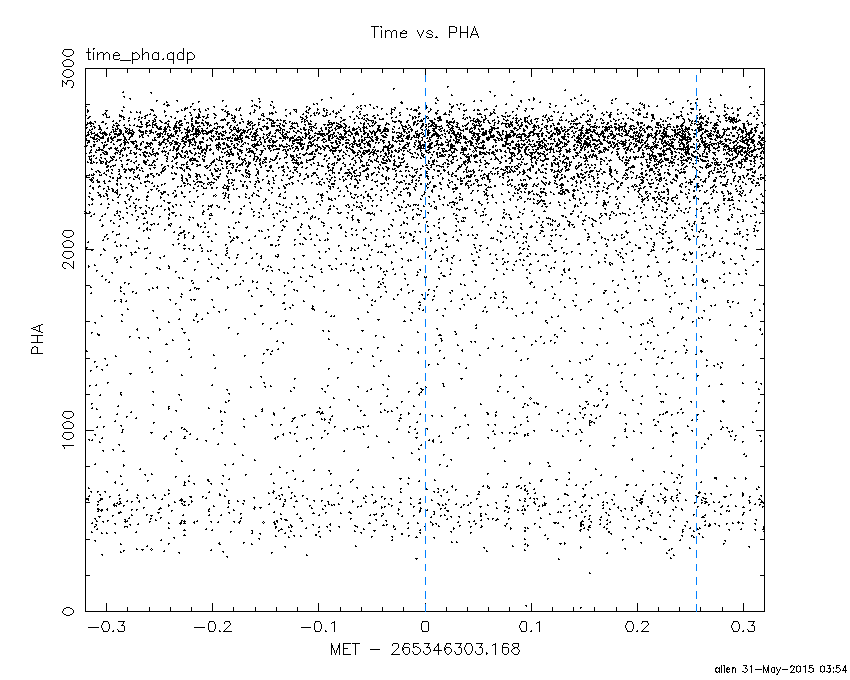

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

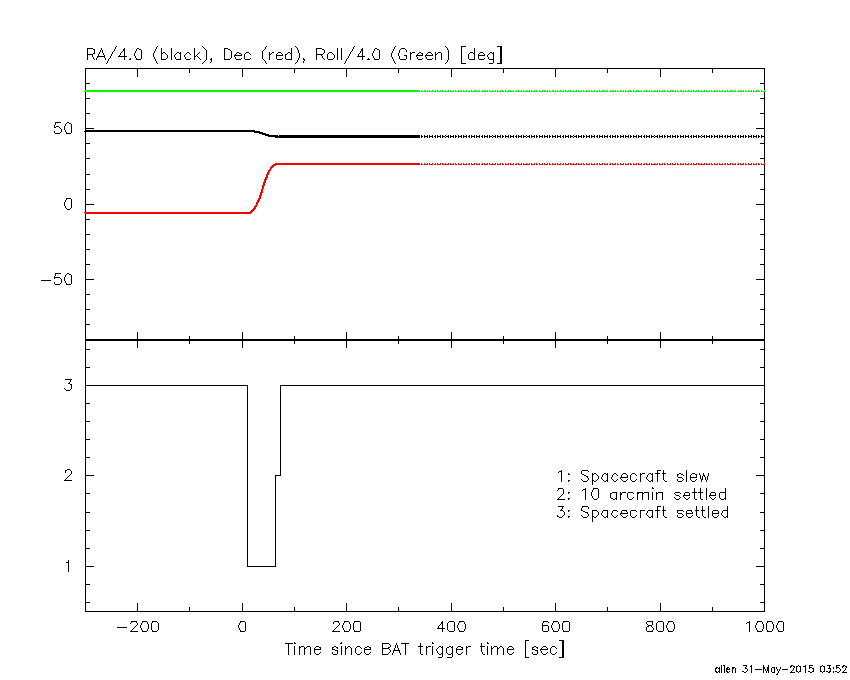

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-315.267410 -253.120900
-239.168000 -0.188000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.5768 -11.5681    2.8   9.4 -158.2   0.7802   4.1 ------	UNKNOWN
198.1505  51.5930    3.0  57.5  -26.4   4.7022   3.8 ------	UNKNOWN
140.2377 -24.9579    5.4  54.9 -146.0   2.9886   2.1 ------	UNKNOWN
149.4980  -5.2204    2.9  44.3 -121.0   3.4268   4.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.188000 9.532590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
218.7479 -11.9065    2.2  25.2   76.3   0.2166   5.4 ------	UNKNOWN
179.4026  26.5976    0.6  35.3  -52.4   1.0782  20.0 ------	UNKNOWN
183.5890  44.1245    1.9  50.8  -39.1   0.8905   6.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
63.932600 722.843000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
219.5274  24.4326    2.7  36.1   54.9   4.0451   4.2 ------	UNKNOWN
138.3911  63.5153    2.5  45.5  -53.7  10.7480   4.6 ------	UNKNOWN

Plot creation:
Sun May 31 03:54:28 EDT 2015
