batgrbproduct analysis for trigger=353728

batgrbproduct Analysis for Trigger=353728

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 16:04:42 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger353728
======================================================================

  Trigger: 00353728      Segment: 000

  BAT Trigger Time: 265487760.96   [s; MET]
      Trigger Stop: 265487761.984   [s; MET]
               UTC: 2009-05-31T18:35:56.171780    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 252.064493860549   Dec: -36.0245188355297  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    11.06
     Image Trigger?:     NO
     Rate S/N Ratio:     48.4148737476408  [ if not an image trigger ]
     Image S/N Ratio:    11.06

  Flight Position:   [ source = BAT ]
    RA: 252.064493860549   Dec: -36.0245188355297  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 252.050663288647   Dec: -36.0371248300275  [deg; J2000]
        { 16h 48m 12.2s , -36d 02' 13.6" }
         +/- 1.63203383503178 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.668135944031281 [arcmin] (formal 1-sigma fit error)
    SNR: 15.1084385497323

  Angular difference between Flight and Ground position is 1.011157 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 54.9959999918938 +/- 6.13174035585667
        Measured from: 0.439999997615814
                   to: 55.4359999895096     [s; relative to TRIGTIME]
     T50: 39.6159999966621 +/- 13.3353342529601
        Measured from: 1.60400000214577
                   to: 41.2199999988079     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.25
                   to: 1.25     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.252000004053116
                   to: 56.1319999992847     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.345998   0.326109   0.291201   0.099008
           0.041058   0.038554   0.032767   0.027373 [error]
 Peak      0.049357   0.071327   0.087462   0.033839
           0.006112   0.006192   0.006156   0.005358 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 8.40e-08 1.53e-07 2.14e-07 6.25e-07 6.13e-07 1.08e-06   erg/cm2
              Error 1.68e-08 1.77e-08 3.29e-08 2.16e-07 7.75e-08 2.39e-07   erg/cm2
Peak flux Power-law 3.69e-01 5.16e-01 5.36e-01 1.02e+00 1.74e+00 2.44e+00   ph/cm2/s
              Error 6.75e-02 5.49e-02 4.84e-02 2.16e-01 1.45e-01 2.33e-01   ph/cm2/s

Fluence   Cutoff-PL 8.44e-08 1.53e-07 2.13e-07 6.14e-07 6.12e-07 1.07e-06   erg/cm2
              Error 1.67e-08 1.73e-08 3.29e-08 2.55e-07 7.67e-08 2.70e-07   erg/cm2
Peak flux Cutoff-PL 3.73e-01 5.19e-01 5.34e-01 9.99e-01 1.74e+00 2.43e+00   ph/cm2/s
              Error 6.93e-02 5.49e-02 4.90e-02 2.25e-01 1.45e-01 2.87e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.516    0.214    -      -           1.16e-03 1.31e-04   57.410 57
CPL   1.526    0.279    9999.3    0.0      1.16e-03 8.30e-04   57.440 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.948    0.159    -      -           1.52e-02 1.25e-03   63.270 57
CPL   0.948    0.165    9999.4    0.0      1.52e-02 2.92e-03   63.310 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 110.784000 sec.
T50 in the 50-300 keV band: 61.568000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   55.880    0.252   56.132
T90    54.996    0.440   55.436
T50    39.616    1.604   41.220
Peak    1.000    0.250    1.250

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  252.0507   -36.0371   0.0128    12.5680    11.9314         1.1102854     15.108 TRIG_00353728

Foreground time interval of the image:
  0.252  56.132 (delta_t =  55.880 [sec])
Background time interval of the image:
-620.859 -588.914 (delta_t =  31.945 [sec])
-239.960   0.252 (delta_t = 240.212 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

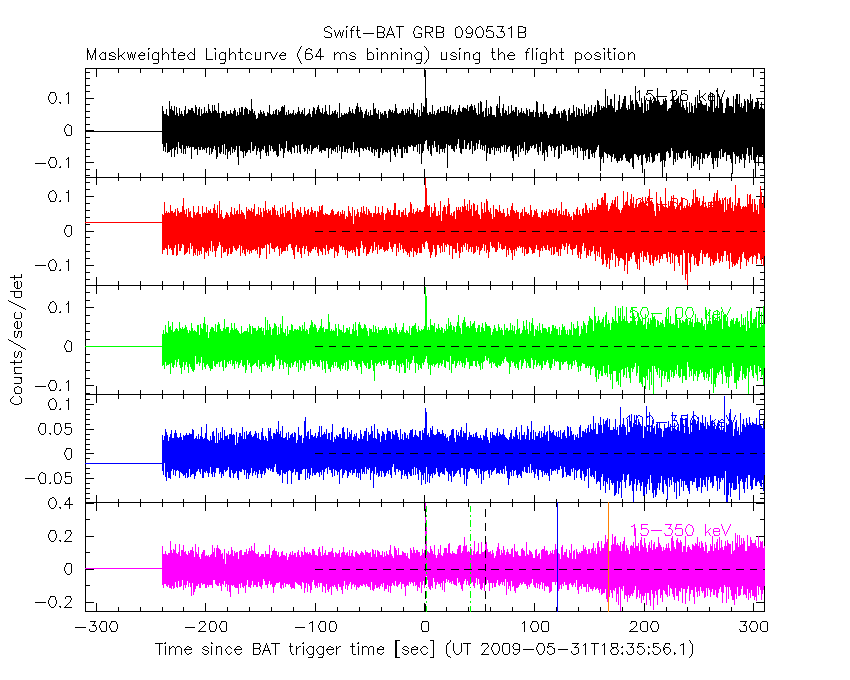

64 ms binning

Full time interval

From T100_start to T100_end

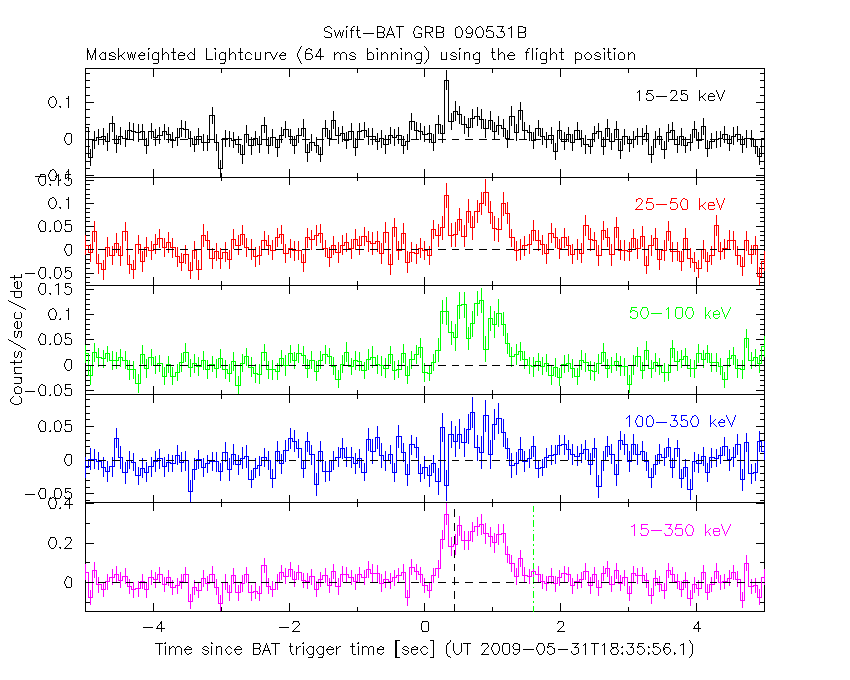

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

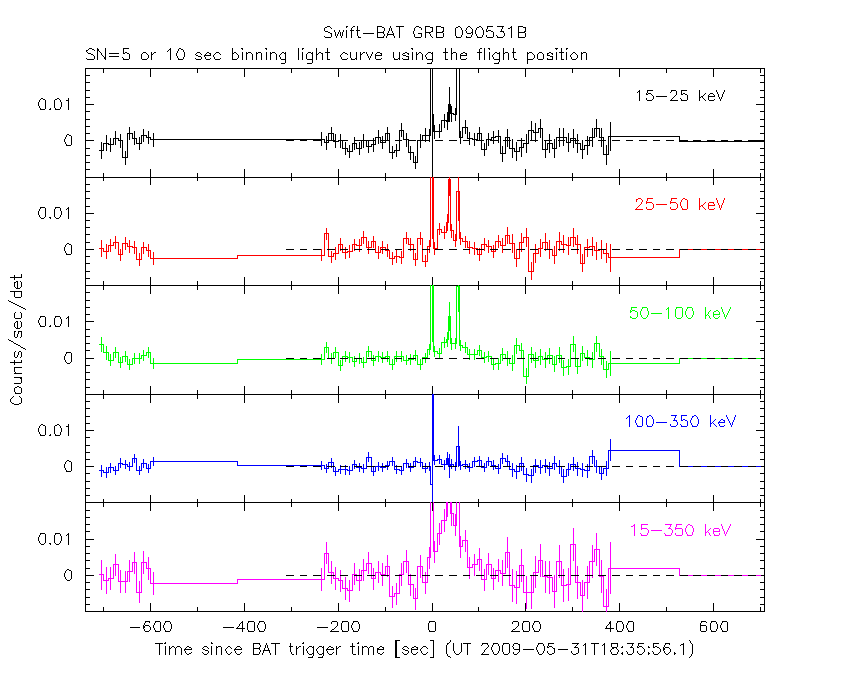

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    0.252 sec. to   56.132 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.51636     ( -0.213755   0.214969 )
Norm@50keV  : 1.15968E-03    ( -0.000132126   0.000130726 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.41 using 59 PHA bins.
# Reduced chi-squared =          1.007 for     57 degrees of freedom
# Null hypothesis probability =   4.599344e-01

Photon flux (15-150 keV)    in 55.88 sec: 0.145420 ( -0.016301  0.01636 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.13143e-07 ( -7.7011e-08  7.80141e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.252 sec. to   56.132 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52610     ( -0.352412   0.205446 )
Epeak [keV] : 9999.31      ( -9999.36 -9999.36 )
Norm@50keV  : 1.16049E-03    ( -0.00116095   0.000498734 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.44 using 59 PHA bins.
# Reduced chi-squared =          1.026 for     56 degrees of freedom
# Null hypothesis probability =   4.217659e-01

Photon flux (15-150 keV)    in 55.88 sec: 0.145859 ( -0.016932  0.015987 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.12104e-07 ( -7.5918e-08  7.74273e-08 ) ergs/cm2

Band function

Time interval is from    0.252 sec. to   56.132 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.95644   ( -4.95644   -4.95644 )
beta        : -1.54857    ( -0.237651   0.226134 )
Epeak [keV] : 21.1728      ( -21.1728 5.25484 )
Norm@50keV   : 322.548    ( -35.1063   676039 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.28 using 59 PHA bins.
# Reduced chi-squared =          1.041 for     55 degrees of freedom
# Null hypothesis probability =   3.905527e-01

Photon flux (15-150 keV)    in 55.88 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.6882  (-2.82378  3.53799)
R^2/D10^2   : 1.31325E-02  (-0.00649614   0.0130972)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          95.15 using 59 PHA bins.
# Reduced chi-squared =          1.669 for     57 degrees of freedom
# Null hypothesis probability =   1.143015e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.750e-08   9.583e-09
25- 50  1.551e-07   2.713e-08
50-150  2.648e-07   6.043e-08
15-150  4.575e-07   7.158e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 0.589317       (-0.0645578     0.0645537)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.13 using 59 PHA bins.
# Reduced chi-squared =          1.055 for     57 degrees of freedom
# Null hypothesis probability =   3.629883e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.202e-08   4.630e-08
25- 50  1.578e-07   8.636e-08
50-150  3.460e-07   1.885e-07
15-150  5.858e-07   3.205e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.68630        (-1.24268      1.65611)
R1^2/D10^2  : 0.395073        (-0.247468      0.707372)
kT2 [keV]   : 31.8326        (-8.34808      19.1787)
R2^2/D10^2  : 1.09382E-03    (-0.000795893   0.00178477)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.06 using 59 PHA bins.
# Reduced chi-squared =         0.9830 for     55 degrees of freedom
# Null hypothesis probability =   5.104412e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.678e-08   4.743e-08
25- 50  1.364e-07   5.381e-08
50-150  4.171e-07   2.228e-07
15-150  6.502e-07   2.536e-07

Peak spectrum fit

Power-law model

Time interval is from    0.250 sec. to    1.250 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.947780     ( -0.160264   0.157323 )
Norm@50keV  : 1.51740E-02    ( -0.00124851   0.00124428 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.27 using 59 PHA bins.
# Reduced chi-squared =          1.110 for     57 degrees of freedom
# Null hypothesis probability =   2.647724e-01

Photon flux (15-150 keV)    in 1 sec: 1.74322 ( -0.144551  0.14504 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.67232e-07 ( -1.53541e-08  1.5451e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.250 sec. to    1.250 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.948078     ( -0.17586   0.153348 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 1.52499E-02    ( -0.00124277   0.00460156 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.31 using 59 PHA bins.
# Reduced chi-squared =          1.130 for     56 degrees of freedom
# Null hypothesis probability =   2.343064e-01

Photon flux (15-150 keV)    in 1 sec: 1.74473 ( -0.14663  0.14293 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.66743e-07 ( -1.4901e-08  1.5862e-08 ) ergs/cm2

Band function

Time interval is from    0.250 sec. to    1.250 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.844337   ( 0.844337   0.844337 )
beta        : -0.947772    ( -0.157267   0.160559 )
Epeak [keV] : 27.9849      ( -27.9849 -27.9849 )
Norm@50keV   : 2.29355E-02    ( -0.00899986   2.20854 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.27 using 59 PHA bins.
# Reduced chi-squared =          1.150 for     55 degrees of freedom
# Null hypothesis probability =   2.076033e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 24.9813  (-2.978  3.57129)
R^2/D10^2   : 4.19702E-02  (-0.0135753   0.019405)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          95.16 using 59 PHA bins.
# Reduced chi-squared =          1.669 for     57 degrees of freedom
# Null hypothesis probability =   1.142285e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.552e-09   7.985e-10
25- 50  2.581e-08   3.500e-09
50-150  1.195e-07   1.753e-08
15-150  1.498e-07   1.685e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 7.00150       (-0.596382     0.596346)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         104.55 using 59 PHA bins.
# Reduced chi-squared =         1.8342 for     57 degrees of freedom
# Null hypothesis probability =   1.257145e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.744e-08   6.064e-09
25- 50  3.354e-08   1.618e-08
50-150  7.357e-08   3.752e-08
15-150  1.245e-07   5.898e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.83361        (-1.43739      1.92519)
R1^2/D10^2  : 2.57718        (-1.69069      5.7105)
kT2 [keV]   : 34.5680        (-5.95663      9.83725)
R2^2/D10^2  : 1.49034E-02    (-0.00745544   0.0110561)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.89 using 59 PHA bins.
# Reduced chi-squared =          1.071 for     55 degrees of freedom
# Null hypothesis probability =   3.352963e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.372e-08   6.520e-09
25- 50  2.703e-08   8.895e-09
50-150  1.313e-07   3.262e-08
15-150  1.720e-07   4.133e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.51636     ( -0.213755   0.214969 )
Norm@50keV  : 1.15968E-03    ( -0.000132126   0.000130726 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.41 using 59 PHA bins.
# Reduced chi-squared =          1.007 for     57 degrees of freedom
# Null hypothesis probability =   4.599344e-01

Photon flux (15-150 keV)    in 55.88 sec: 0.145420 ( -0.016301  0.01636 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.13143e-07 ( -7.7011e-08  7.80141e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52610     ( -0.352412   0.205446 )
Epeak [keV] : 9999.31      ( -9999.36 -9999.36 )
Norm@50keV  : 1.16049E-03    ( -0.00116095   0.000498734 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.44 using 59 PHA bins.
# Reduced chi-squared =          1.026 for     56 degrees of freedom
# Null hypothesis probability =   4.217659e-01

Photon flux (15-150 keV)    in 55.88 sec: 0.145859 ( -0.016932  0.015987 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.12104e-07 ( -7.5918e-08  7.74273e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.95644   ( -4.95644   -4.95644 )
beta        : -1.54857    ( -0.237651   0.226134 )
Epeak [keV] : 21.1728      ( -21.1728 5.25484 )
Norm@50keV   : 322.548    ( -35.1063   676039 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.28 using 59 PHA bins.
# Reduced chi-squared =          1.041 for     55 degrees of freedom
# Null hypothesis probability =   3.905527e-01

Photon flux (15-150 keV)    in 55.88 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.53e-07
S(50-100 keV) = 2.14e-07

T90 vs. Hardness ratio plot

T90                                   = 54.9959999918938 sec.
Hardness ratio (energy fluence ratio) = 1.39869

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.942517
Count Ratio (50-100 keV) / (15-25 keV) = 0.841626

Mask shadow pattern

IMX = 2.181239179977716E-01, IMY = -4.609093939030418E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

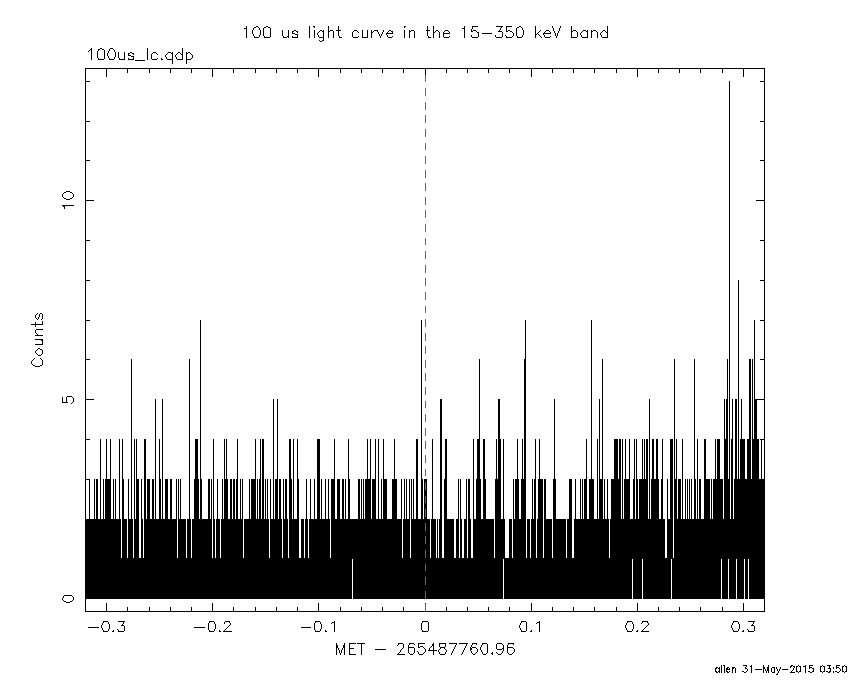

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-620.859400 -588.914100
-239.960000 0.252000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.5126 -62.8308    5.5  57.2  -24.2  -2.7111  -2.1    5.4	GX 301-2
244.9810 -15.6459    0.4  25.7   68.6   9.1132  31.5    0.4	Sco X-1
256.1170 -37.9571    4.9  10.3   -3.2   0.4758   2.3    9.2	4U 1700-377
256.4445 -36.2562    4.1   9.3    5.0   0.5800   2.8   10.0	GX 349+2
263.0750 -24.7385    3.4   8.1  100.4   0.6786   3.4    3.6	GX 1+4
264.6794 -44.6523    0.0  12.5  -50.4   0.8069   3.9   12.4	4U 1735-44
268.4600  -1.5643    5.7  30.7  127.1   0.6494   2.0    8.7	SW J1753.5-0127
270.3489 -24.9037   10.6   8.1  148.7   0.2106   1.1   11.1	GX 5-1
270.0844 -25.6986   13.3   7.2  149.5   0.1738   0.9   12.1	GRS 1758-258
274.0591 -14.1202    2.2  19.4  145.9   1.1141   5.2    5.9	GX 17+2
275.9500 -30.3410    1.8   8.3 -157.5   1.3246   6.5    2.0	H1820-303
285.0799 -24.7402    9.0  17.9 -166.7  -0.2759  -1.3   11.1	HT1900.1-2455
288.7317  10.9861    2.9  48.2  153.2   3.2118   4.0    4.6	GRS 1915+105
263.0026 -33.8071    2.0   3.4    4.9   1.2292   5.6    1.8	GX 354-0
272.3470   5.1837    2.5  37.8  132.9   2.2301   4.7 ------	UNKNOWN
298.7033  -3.3383    2.7  41.8  176.3   1.4520   4.3 ------	UNKNOWN
266.5305 -32.2150    1.2   0.0   99.8   2.1004   9.8 ------	UNKNOWN
255.7339 -48.7818    2.4  18.4  -33.5   1.0238   4.9 ------	UNKNOWN
318.7937  -9.9223    3.8  53.0 -159.3   1.8913   3.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.252000 56.132000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.7303 -62.6898    3.9  57.1  -24.1  -1.1342  -2.9    5.2	GX 301-2
245.0617 -15.4728    7.5  25.7   69.0  -0.1616  -1.5   11.1	Sco X-1
256.1125 -37.7552   11.2  10.2   -2.3  -0.0787  -1.0    8.0	4U 1700-377
256.4427 -36.4639    5.6   9.3    3.9   0.1612   2.1    2.5	GX 349+2
263.1013 -24.5991    9.4   8.2  101.0   0.0956   1.2   10.1	GX 1+4
264.6794 -44.6523    0.0  12.5  -50.4  -0.1309  -1.7   12.4	4U 1735-44
268.3268  -1.3117   51.2  31.0  126.9  -0.0288  -0.2    8.8	SW J1753.5-0127
270.4583 -25.0427    7.1   8.0  149.8   0.1293   1.6    9.7	GX 5-1
270.2567 -25.6778    6.5   7.3  150.6   0.1438   1.8    4.6	GRS 1758-258
273.9573 -13.9876    6.7  19.5  145.4  -0.1435  -1.7    4.1	GX 17+2
276.1381 -30.3587    5.0   8.4 -157.1  -0.1723  -2.3   11.0	H1820-303
285.0517 -24.7115    0.0  17.9 -166.8  -0.0926  -1.2   12.6	HT1900.1-2455
288.7593  11.0518    4.3  48.2  153.2  -0.7185  -2.7    6.8	GRS 1915+105
262.7950 -33.8584    4.9   3.5    5.4  -0.1924  -2.4    9.8	GX 354-0
297.4851  13.1479    2.4  54.2  161.5   2.3801   4.9 ------	UNKNOWN
252.0507 -36.0371    0.8  12.6   11.9   1.1104  15.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
167.340600 359.440600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
255.9226 -37.6909   21.5  26.1   59.1   0.1060   0.5    9.7	4U 1700-377
256.3846 -36.2588    6.9  26.2   62.4   0.3266   1.7   10.2	GX 349+2
262.7880 -24.7429    0.0  27.7   90.7   0.3869   1.7   12.0	GX 1+4
264.8863 -44.3455    6.0  18.3   44.3  -0.2768  -1.9    8.8	4U 1735-44
270.2751 -25.2474  117.7  22.6  101.4  -0.0177  -0.1   10.1	GX 5-1
270.2057 -25.8517    6.7  22.2  100.3   0.3119   1.7    8.4	GRS 1758-258
273.9591 -13.9820    6.2  30.4  121.5   0.4468   1.9    4.2	GX 17+2
275.8730 -30.3687    1.2  15.5  102.5   1.3739   9.2    2.7	H1820-303
285.0938 -25.1172    0.0  16.5  138.1   0.1274   0.8   12.2	HT1900.1-2455
263.0273 -33.8412    3.3  22.2   73.2   0.6644   3.5    1.9	GX 354-0
266.5544 -32.2027    2.2  20.4   81.2   1.0210   5.3 ------	UNKNOWN
301.7597   0.7174    2.2  43.3  170.4   1.5141   5.3 ------	UNKNOWN
347.1660 -60.6274    3.0  39.5  -68.1   2.1671   3.7 ------	UNKNOWN

Plot creation:
Sun May 31 03:50:19 EDT 2015
